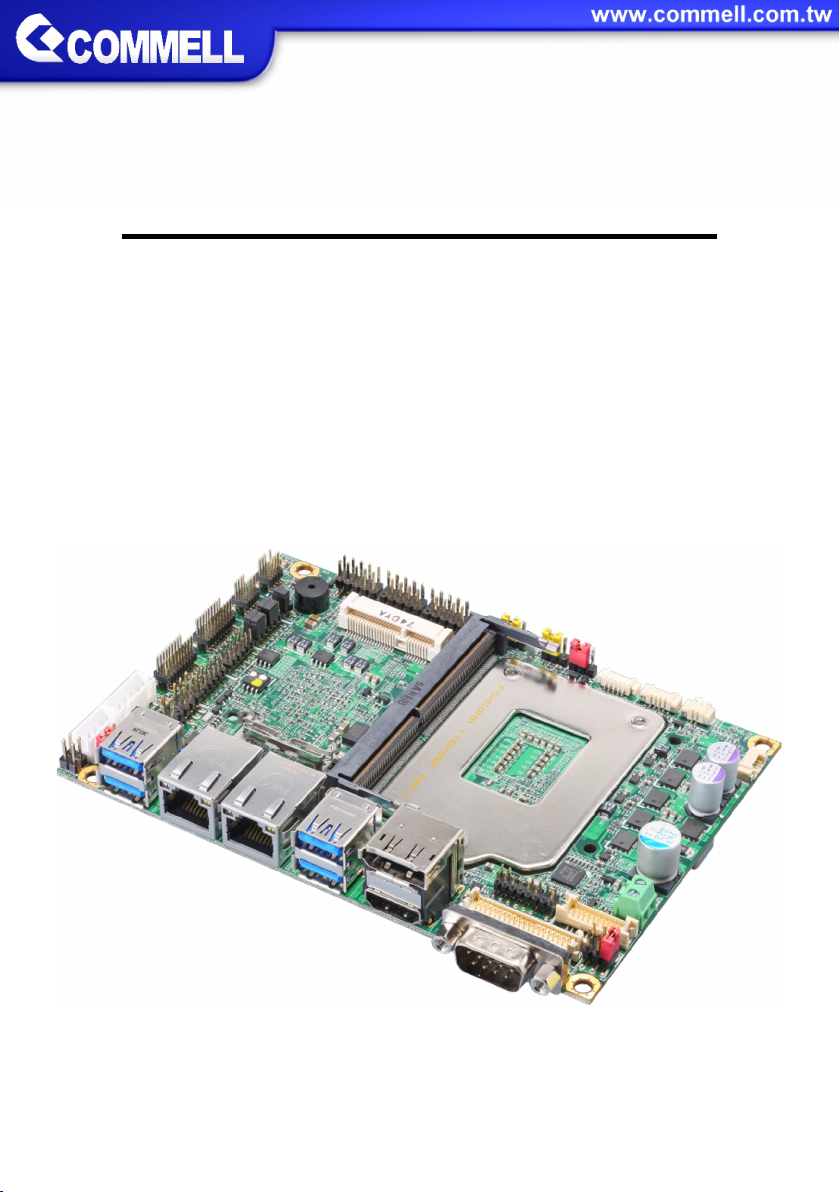

LS-37K
3.5 inch Desktop Miniboard
User’s Manual
Edition 2.1
2021/07/28
Page 2
LS-37K User’s Manual
-1-
Copyright
Copyright 2021, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 3
LS-37K User’s Manual
-2-

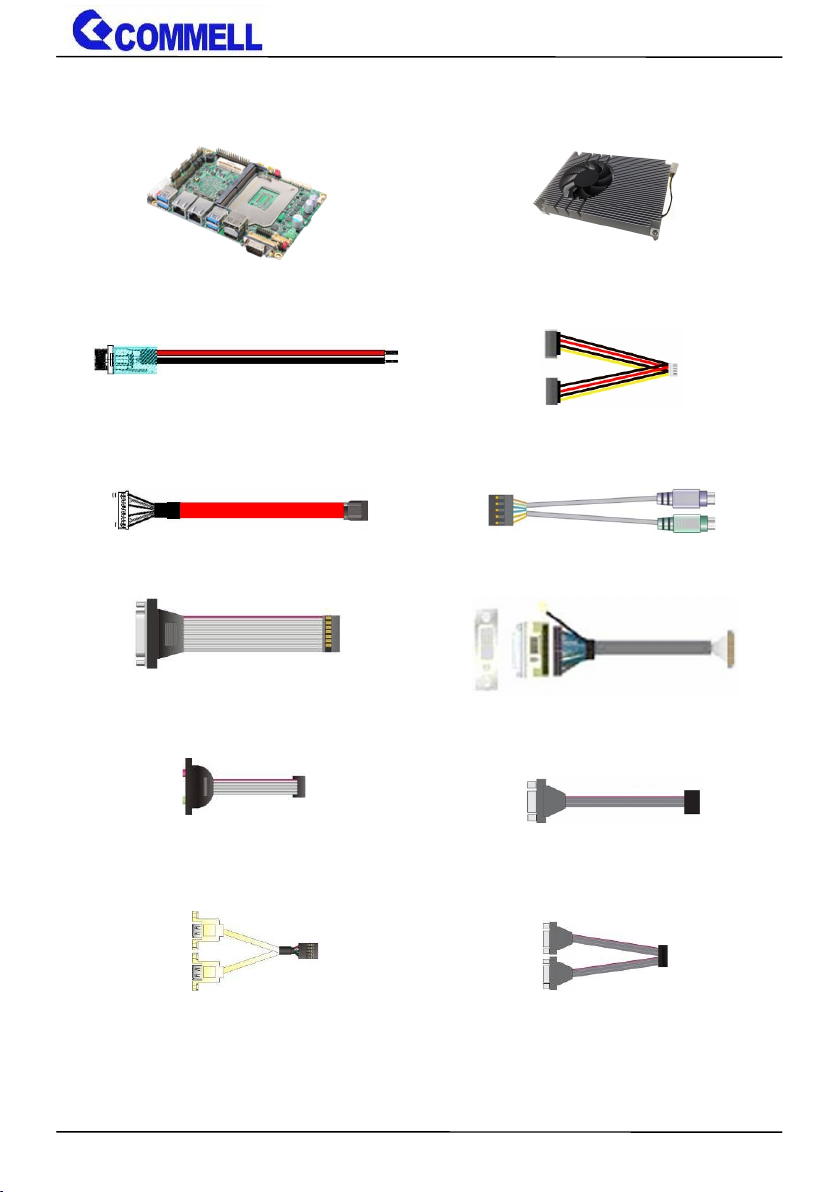

Packing List:
Please check the package content before you starting using the board.
Printed Matters:
Driver CD (Including User’s Manual) x 1
1 x LS-37K 3.5 inch Miniboard
1 x VGA Cable
(OALVGA-SNB-7) / (1040557)
1 x SATA CABLE
(OALSATA3-H10-L35 / 1040523)
1 xUSB2.0 cable
(OALUSBA-3 / 1040173) (Optional)
1 x Audio cable
(OALPJ-HDUNB / 1040123)
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KM / 1040131)
1 x Dual COM cable
(OALES-BKU2NB / 1040090) (Optional)
1 x COM Cable
(OALES-BKU1NB / 1040086)
1 x SATA Power Cable
(OALSATA15-2PJ / 1040613)
+
_
1 xDC Input Power Cable
(OALDC-B / 1040513)
1 x DVI module
(BADPDVI_A & OALDVI-DF13)
(4120008011 & 1040483)
1 x Cooler Fan
(OHSF-37K / 2181010029)
Page 4
LS-37K User’s Manual
-3-
Index
Chapter 1 <Introduction>............................................................... 4
1.1 <Product Overview>............................................................ 4
1.2 <Product Specification> ...................................................... 5
1.3 <Block Diagram>................................................................. 6
Chapter 2 <Hardware setup>......................................................... 7
2.1 <Connector Location and Reference> ................................ 7
2.1.1 <Internal connectors list> .......................................... 8
2.1.2 <External connectors list>......................................... 8
2.2 <CPU, Heatsink and Memory installation guide> ................ 9
2.2.1 <CPU compatible list>............................................... 9
2.2.2 <CPU installation> .................................................. 10
2.2.3 <Cooler Fan installation> ........................................ 11
2.2.4 <Memory Setup> .................................................... 13
2.3 <Jumper Location and Reference> ................................... 14
2.3.1 <Jumper list> .......................................................... 14
2.3.2 <Clear CMOS and Power on type selection>..........15
2.4 <I/O interface> .................................................................. 15
2.4.1 <Serial ATA interface>............................................. 15
2.4.2 <Ethernet interface>................................................ 16
2.4.3 <Display interface> ................................................. 16
2.4.4 <Serial Port interface> ............................................ 19
2.4.5 <USB interface>...................................................... 22
2.4.6 <Audio interface>.................................................... 23
2.4.7 <Expansion slot>..................................................... 24
2.4.8 <Front panel switch and indicator> .........................25
2.4.9 <GPIO and Other interface> ................................... 26
2.5 <Power supply> ................................................................ 28
2.5.1 <Power input>......................................................... 28
2.5.2 <Power output>....................................................... 28
Appendix A <Flash BIOS> ........................................................... 29
Appendix B <LCD Panel Type select> ........................................ 30
Appendix C <Programmable Watch Dog Timer>....................... 31
Appendix D <Hardware monitor > .............................................. 33
Appendix E <Programmable GPIO > .......................................... 34
Appendix F <RAID Setting>......................................................... 35
Appendix G < Setup ADP-3355,ADP-3460 >............................... 37
Contact information ........................................................................ 38
Page 5
LS-37K User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LS-37K is 3.5 inch Miniboard which supports 6th & 7th Generation Intel® Core™ i7/ i5/ i3,
S-series and Xeon® Processor with Intel® C236 Chipset, integrated HD Graphics , DDR4
memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3
Intel Skylake-S & Kaby Lake-S Processor with Intel® C236 Chipset
The 6th & 7th Intel® Core™ S-series and Xeon® processor family is new generation and
multi-core processor built on 14 nanometer process.
It provide new HD Graphics support triple displays at the same time, maximum supported is
up to 64GB of DDR4, better performance, flexibility and more enhanced security that is
suitable for a variety of intelligent systems the ideal choice.
Flexible Expansion Interface
It includes minicard slot, 6 x COM port, 4 x USB3.0, and 4 x USB2.0.
Skylake & Kaby Lake remove EHCI, all USB ports are xHCI
When you install Windows7 with USB device(CDROM, Keyboard, Mouse...), Windows7 can
not identify your usb device. You can use SATA CD-ROM and PS/2 to install Windows7.
Kaby Lake(7th gen CPU) only support Windows10 64bit
Intel only support Windows 10 64bit. It may lose some drivers if you use other Windows
version.
Page 6
LS-37K User’s Manual
-5-
1.2 <Product Specification>
System
Processor
Intel® 6th & 7th Core™ i7/ i5/ i3 and Xeon® E3-1200 v5/ v6 Processor,
FCLGA1151 package (TDP up to 45W)
Chipset
Intel® C236 PCH-H
Memory
1 x DDR4 DIMM 1866/2133 MHz up to 16GB, Support Non-ECC,
unbuffered memory only
(Xeon® E3-1200 v5 Product support ECC memory)
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
1 x MiniPCIe (support mSATA)
Graphics
Chipset
Intel® 9th Gen integrated HD Graphics
(Some Xeon® E3-1200 v5 Product CPU not support)
Display Interface
1 x DisplayPort, 1 x HDMI
1 x DVI, 1 x LVDS, 1 x VGA
LAN
Chip
1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11.0)
1 x Intel® I210-AT Gigabit LAN
I/O
Serial ATA
2 x SATA3 interface with 600MB/s transfer rate
Audio
Realtek ALC262 HD Audio
Internal I/O
2 x SATA3, 4 x USB2.0, 4 x RS232, 1 x RS232/485/422
1 x DVI, 1 x VGA , 1 x LVDS, 1 x LCD inverter,
1 x LPC, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS
Rear I/O
1 x DisplayPort, 1 x HDMI
4 x USB3.0, 2 x LAN, 1 x RS232
Mechanical & Environmental
Power Requirement
DC input 9~35V
Size
146mm x 101mm (L x W)
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing
Page 7
LS-37K User’s Manual
-6-
1.3 <Block Diagram>
1 x DisplayPort
PTN3460
1 x LVDS
DDI
Channel A
eDP
eDP
SATA3
USB3.0
USB2.0
SPI
PCIe x1
HDA
HD Audio
PCIe x1
SATA3
LPC
1 x LPC
ALC262
5 x RS232
1 x SMBUS
SMBus
1 x HDMI
DDI
DDI
DDR4 DIMM 1.2V
MiniPCIe
/ mSATA
DMI GEN3
PCIe x1
I210-AT
2 x SATA3
SIO
NCT6106D
C236
PCH-H
CPU
6th/ 7
th
Gen Processor
1 x RS232/RS422/RS485
1 x GPIO
I219-LM
1 x PS/2
SPI Flash
4 x USB2.0
4 x USB3.0
1 x DVI
PTN3355
1 x VGA
Page 8
LS-37K User’s Manual
-7-
Chapter 2 <Hardware setup>

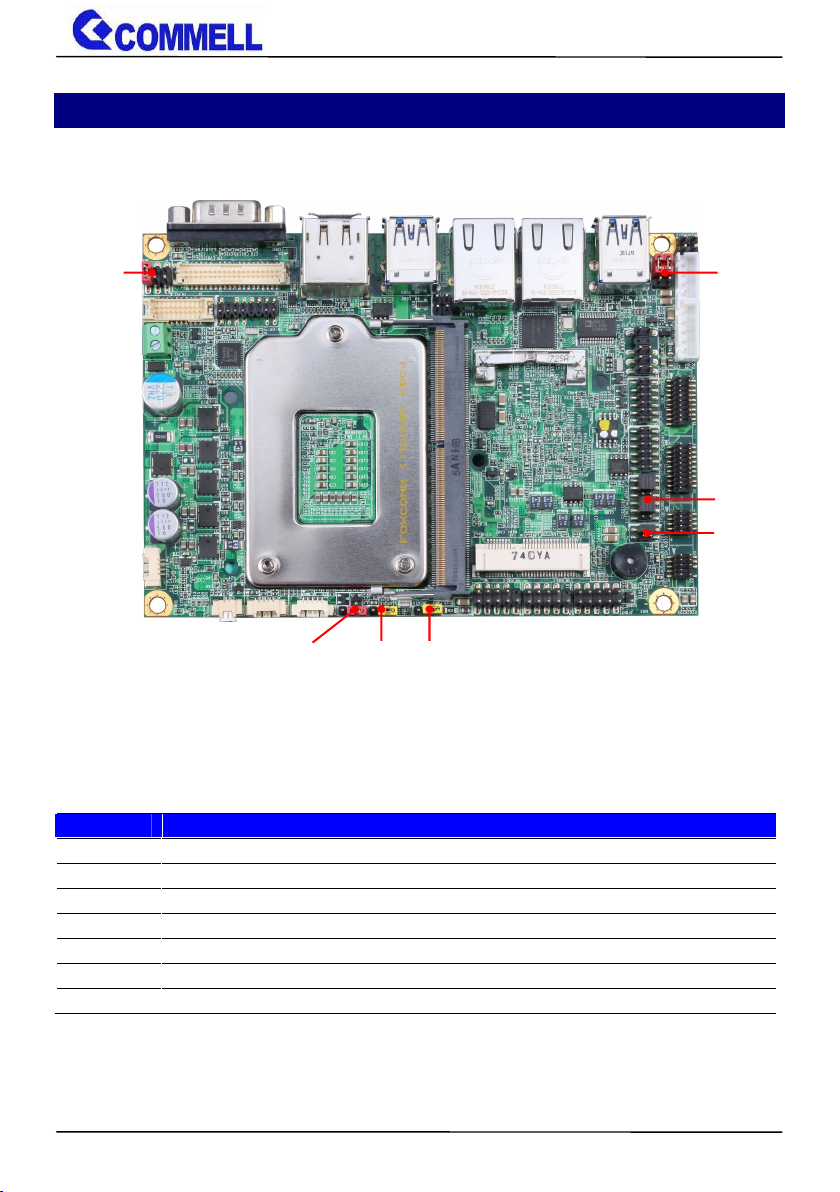

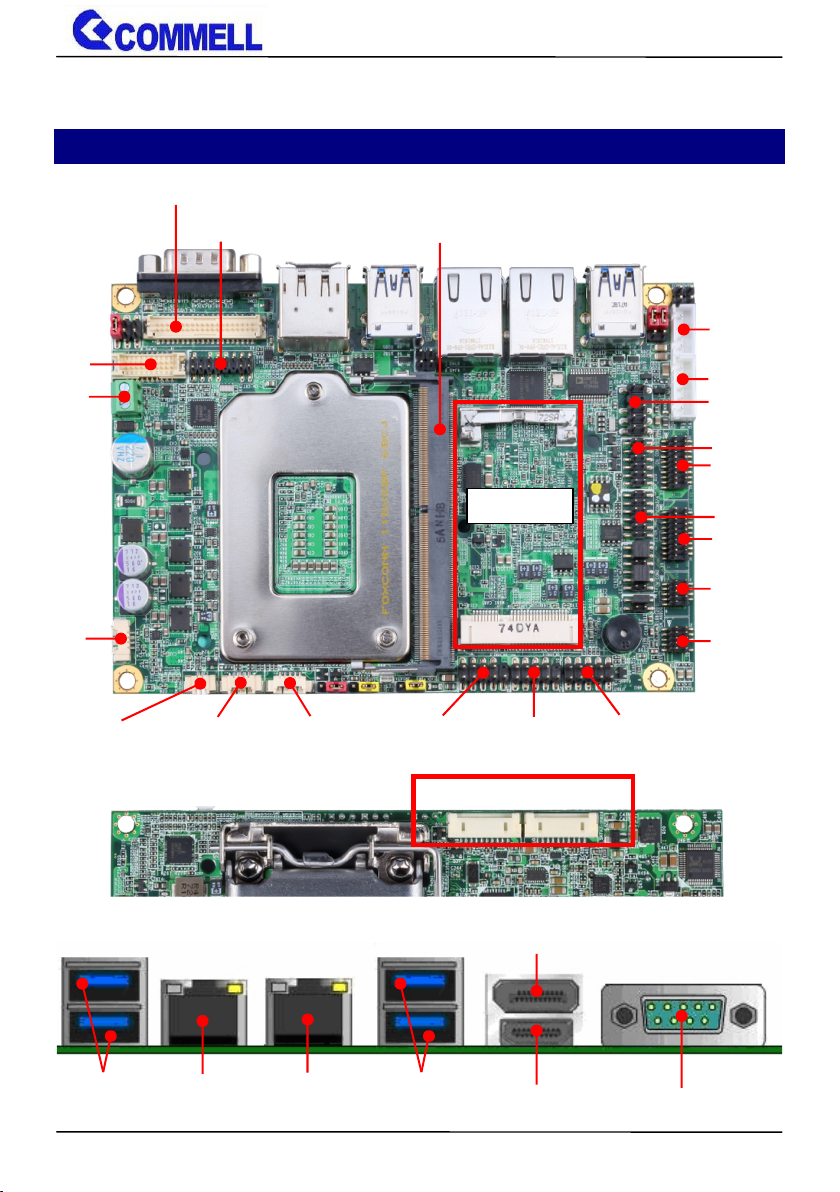

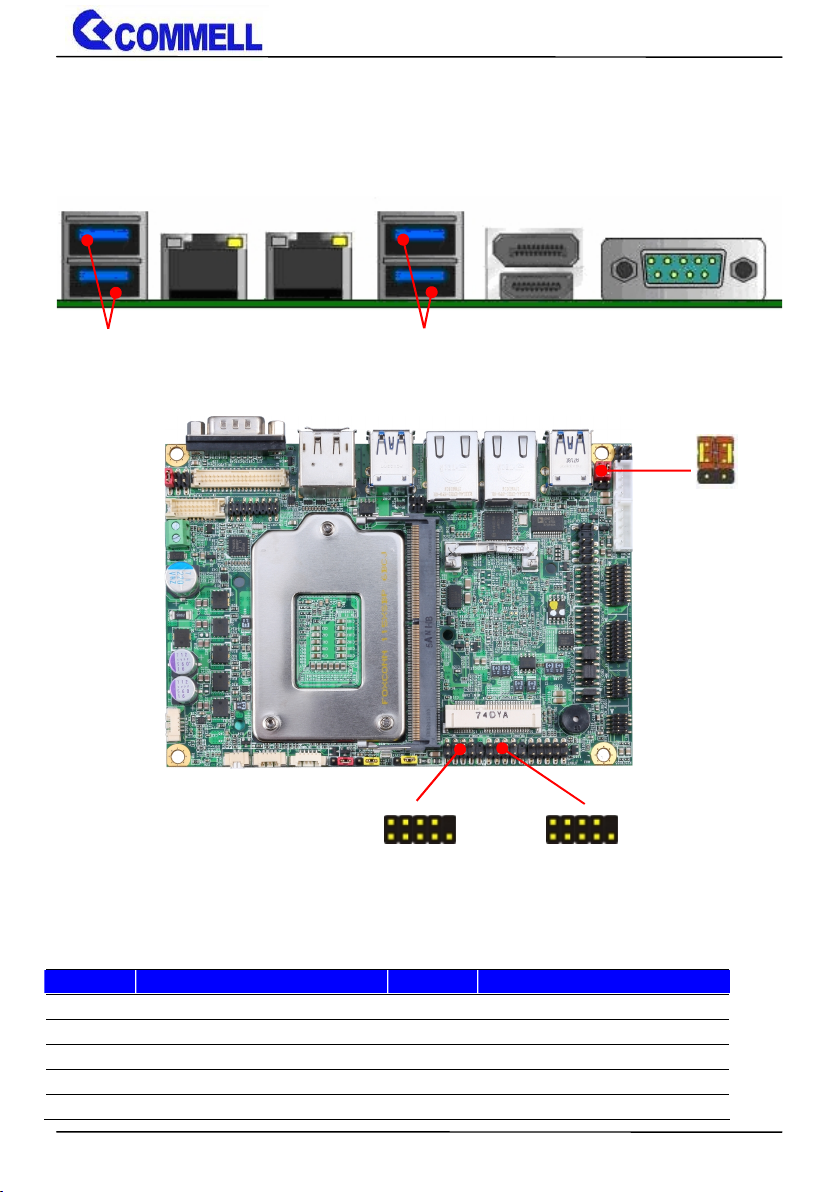

2.1 <Connector Location and Reference>
USB3.0
USB3.0
I210-AT
HDMI
DISPLAY PORT
COM1
I219-LM
CN_SATA3-1
CN_SATA3-2
CN_LVDS
CN_CRT
MINI_CARD
CPUFAN
CN_DVI
DC_IN1
CN_BAT
SYSFAN
CN_SMBUS
CN_USB2-2
CN_USB2-1
JFRNT
DDR4_A2
DC_OUT
CN_INV
CN_PS2
CN_DIO
CN_COM5/6
CN_LPC
CN_COM3/4
CN_COM2
CN_AUDIO
Page 9
LS-37K User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector
Function
DDR4_A2
260-pin DDR4 SO-DIMM slot
CN_SATA3-1/2
10-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_DVI
10 x 2-pin DVI connector
CN_CRT
16-pin VGA connector
CN_COM 2
9-pin RS232/RS485/422 connector
CN_COM 3/4/5/6
20-pin RS232 connector
CN_USB 2-1/2-2
5 x 2-pin USB2.0 pin header
CN_PS2
5 x 2-pin PS/2 pin header
CN_DIO
6 x 2-pin digital I/O connector
CN_SMBUS
5-pin SMBus connector
CN_BAT
2-pin Battery connector
CPUFAN
4-pin CPU fan connector
SYSFAN
4-pin system fan connector
MINI_CARD
52-pin Half-MiniPCIe card slot
JFRNT
14-pin front panel switch/indicator connector
DC_IN1
2-pin power input Terminal Block
2.1.2 <External connectors list>
Connector
Function
DisplayPort
DisplayPort connector
HDMI
HDMI connector
USB3.0 1/2
USB3.0 connector
LAN-1/2
RJ45 connector
COM1
DB9 Serial port connector
Page 10
LS-37K User’s Manual
-9-

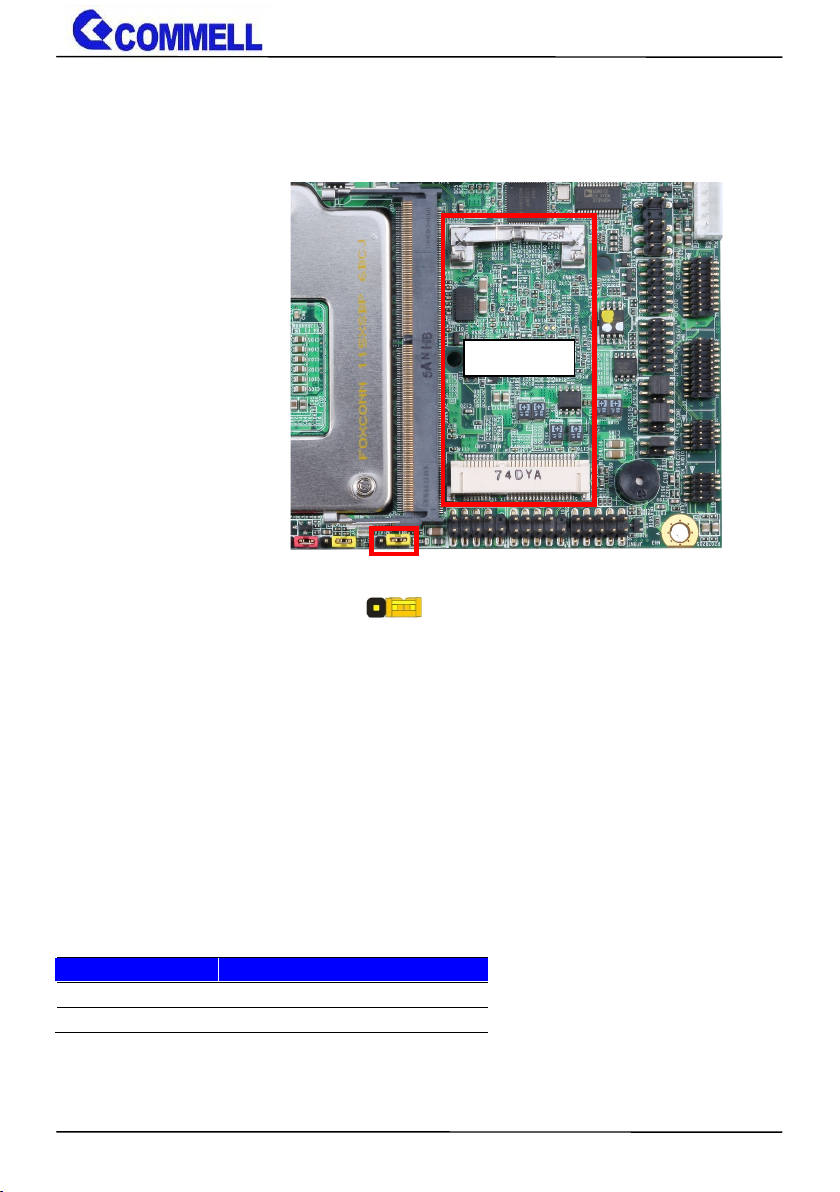

2.2 <CPU, Heatsink and Memory installation guide>
2.2.1 <CPU compatible list>
Recommended TDP less than 45W, please refer to the following models
Note1: Embedded processors with long-term support
Note2: No Graphics Output.
Skylake-S and Kaby Lake-S compatible list
Skylake
Core
TDP
Kaby Lake
Core
TDP
E3-1268L v5(Note1)
4
35W
i7-7700T
4
35W
E3-1260L v5(Note2)
4
45W
i5-7600T
4
35W
E3-1240L v5(Note2)
4
25W
i5-7500T
4
35W
E3-1235L v5
4
25W
i5-7400T
4
35W
i7-6700TE(Note1)
4
35W
i3-7300T
2
35W
i7-6700T
4
35W
i3-7101TE(Note1)
2
35W
i5-6600T
4
35W
i3-7100T
2
35W
i5-6500TE(Note1)
4
35W
G4600T
2
35W
i5-6500T
4
35W
G4560T
2
35W
i5-6400T
4
35W
G3930TE(Note1)
2
35W
i3-6300TE(Note1)
2
35W
G3930T
2
35W
i3-6300T
2
35W
G3900TE(Note1)
2
35W
i3-6100TE(Note1)
2
35W
G4400TE(Note1)
2
35W
i3-6100T
2
35W
G4500T
2
35W
G4400T
2
35W
Page 11
LS-37K User’s Manual
-10-

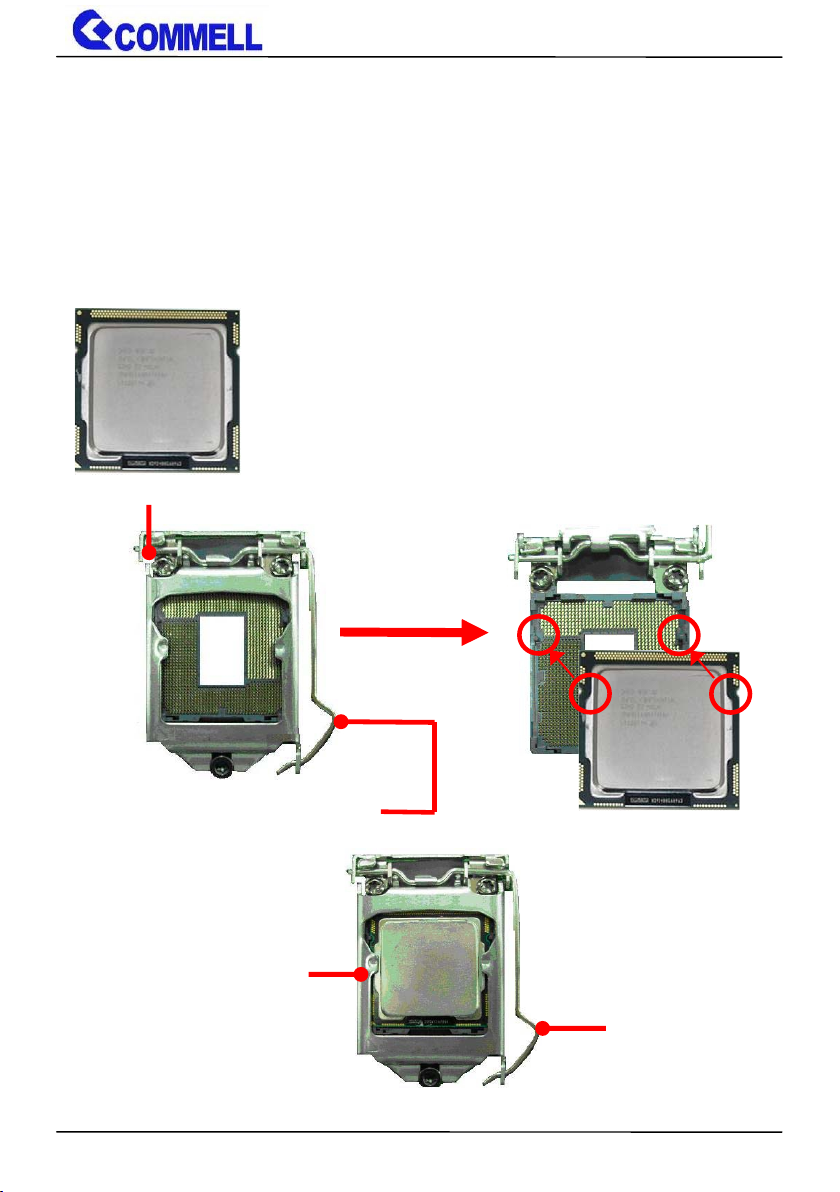

2.2.2 <CPU installation>
LS-37K has a LGA1151 CPU socket onboard; please check following steps to install the
processor properly.
Attention If LS-37K needs RMA, please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage, We could not provide warranty.
1. Lift this bar
2. Uncover this plate
Intel® 6th & 7th Core™ i7/ i5/ i3 and Xeon® E3-1200
v5 Processor, FCLGA1151 package
Checked point
3. Place the CPU on the top of the pins
4. Cover this plate
5. Lock this bar
Page 12
LS-37K User’s Manual
-11-
2.2.3 <Cooler Fan installation>

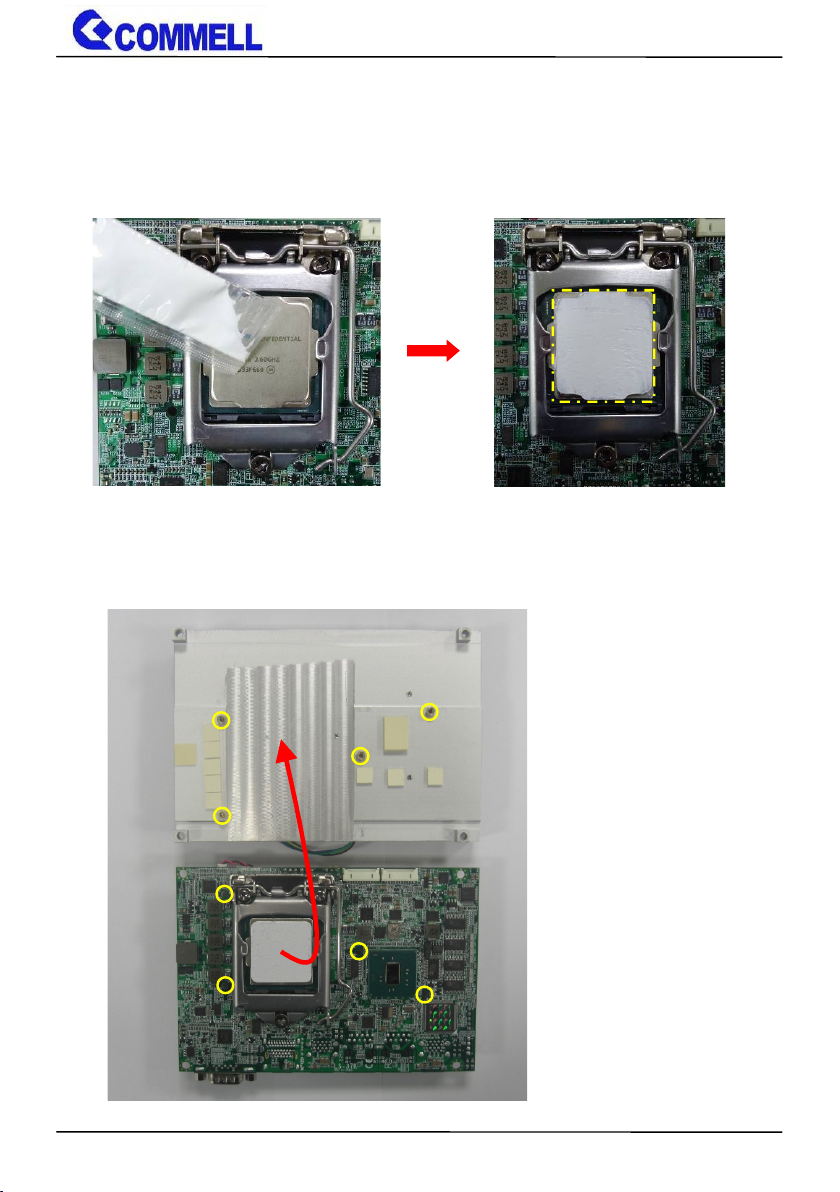

Step1. Apply Thermal Paste on the CPU.
Step2. Mount the Heatsink after aligning.
Page 13
LS-37K User’s Manual
-12-
Step3. Screw on the Heatsink.
Step4. Install Fan, finish.

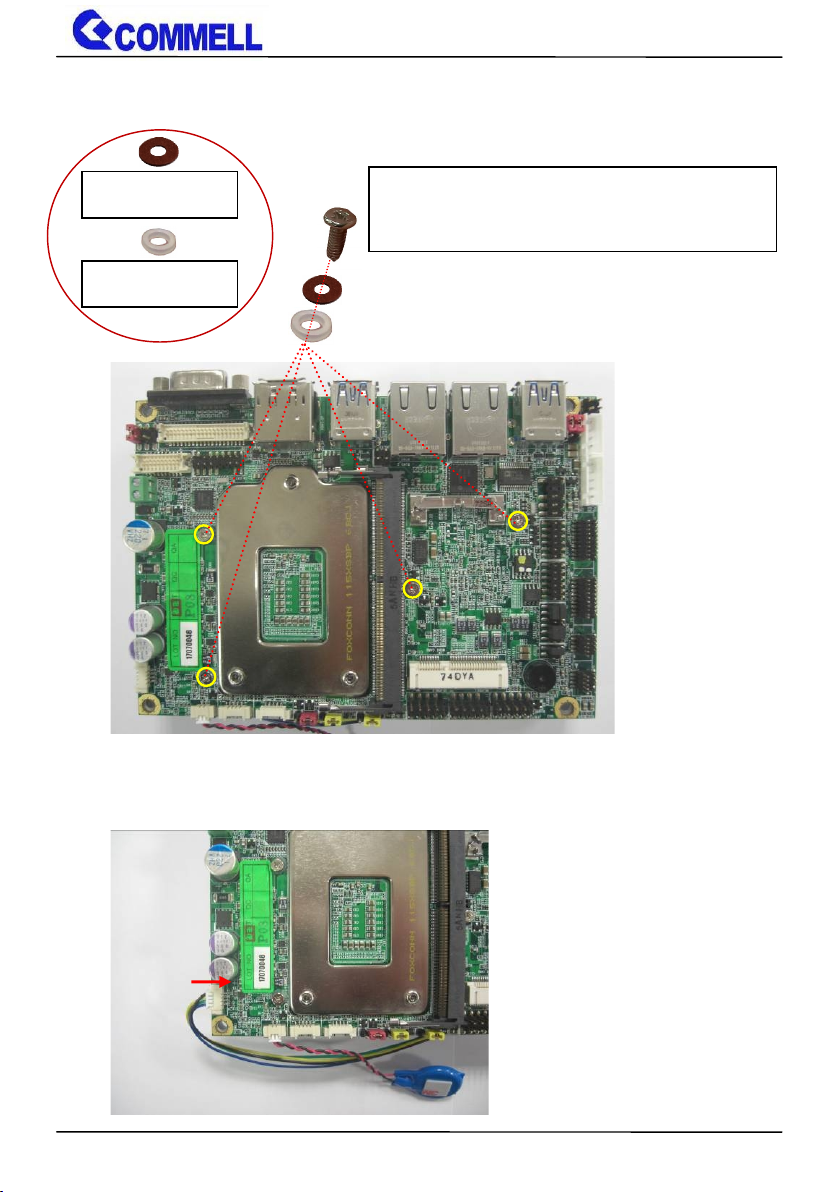

The suggestion screw torque of the
Heat Spreader/ Cooler is 1.2KGf‐cm
Red the film
Tears the film
Page 14
LS-37K User’s Manual
-13-
2.2.4 <Memory Setup>
LS-37K has 260-pin DDR4 DIMM support up to 16GB of memory capacity and 1.2 Voltage.
The memory frequency supports 1866/2133 MHz. Only Non-ECC memory is supported.
(Xeon® E3-1200 v5 / v6 Product support ECC memory)
In the process, the board must be powered off.

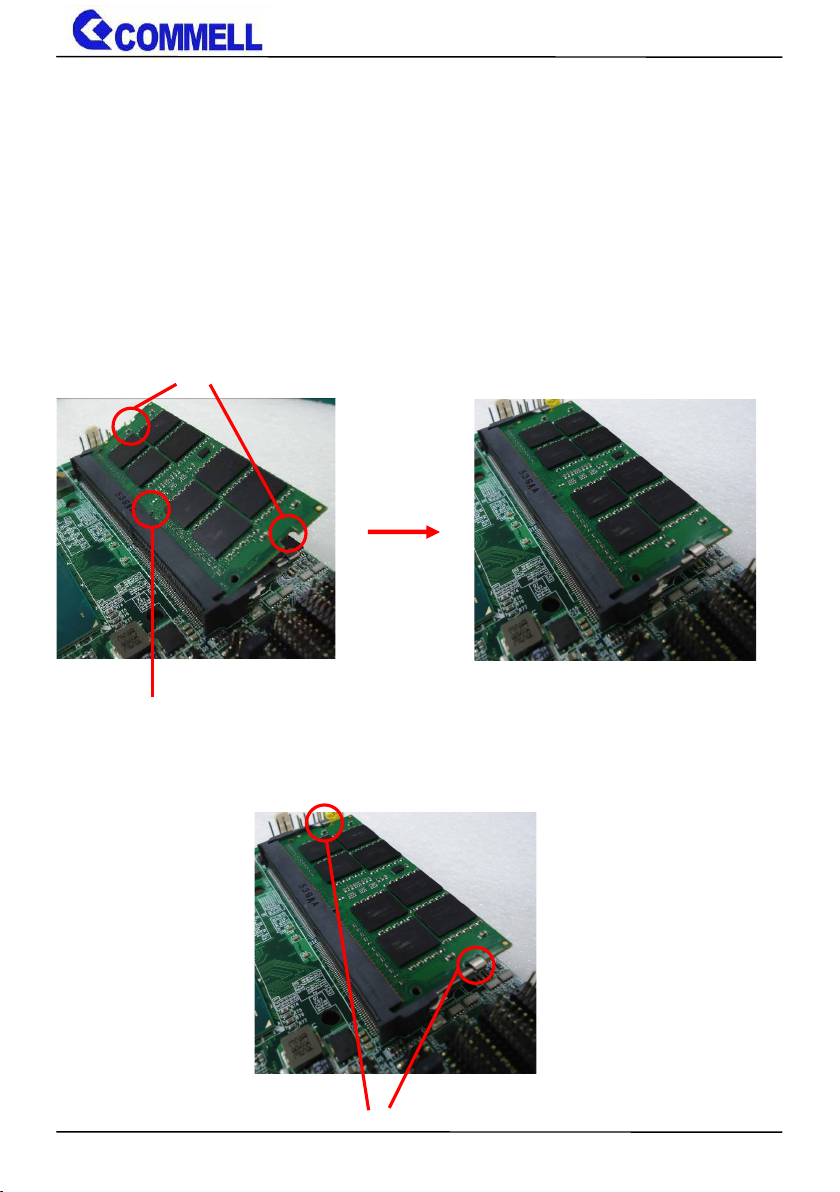

1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
3. To remove the memory, push outward on both sides of the latch.
Press down
Mounting notch
KEY
LATCH
Page 15
LS-37K User’s Manual
-14-

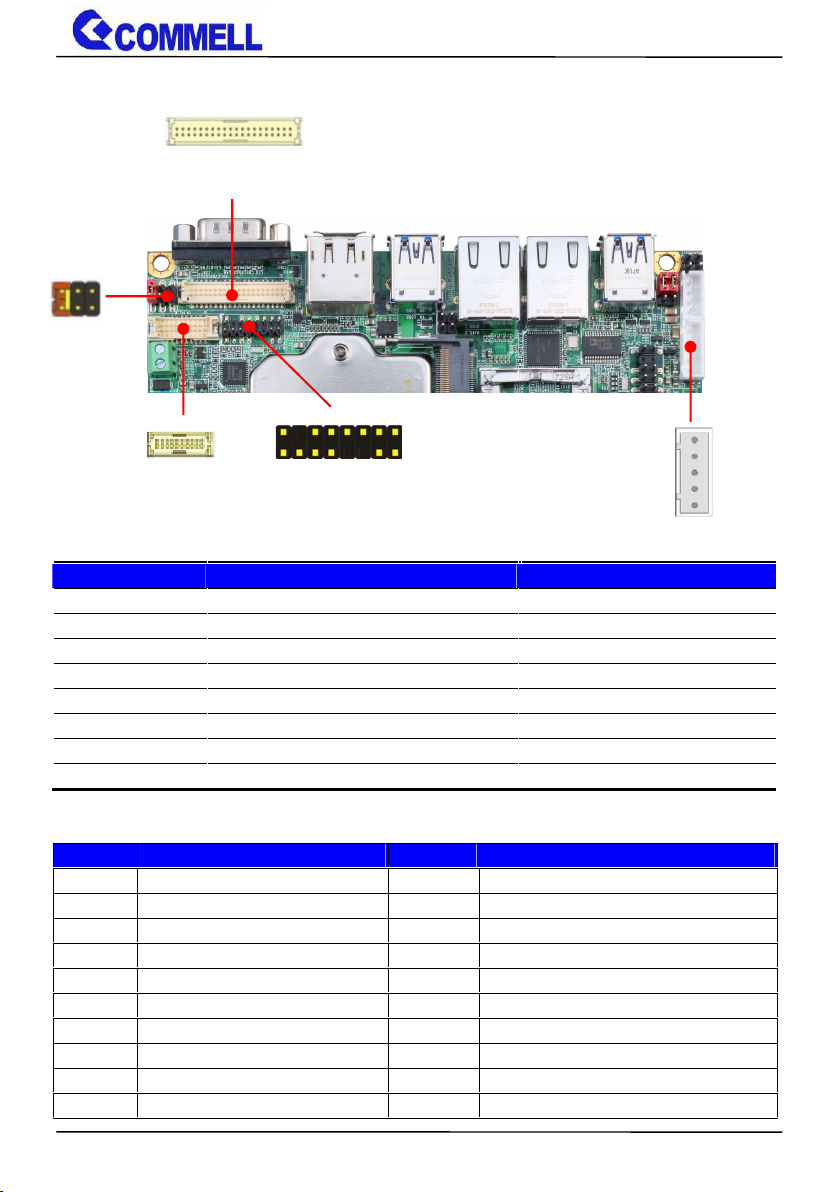

2.3 <Jumper Location and Reference>
2.3.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard MSATA Setting
JCSEL1
COM2 RS-232 RS422 RS485 Setting
JCSEL2
COM2 RS-232 RS422 RS485 Setting
JVUSB
USB Voltage Setting
JVLCD
JCSEL2
JCSEL1
JAT
JRTC
JMSATA
JVUSB
Page 16
LS-37K User’s Manual
-15-

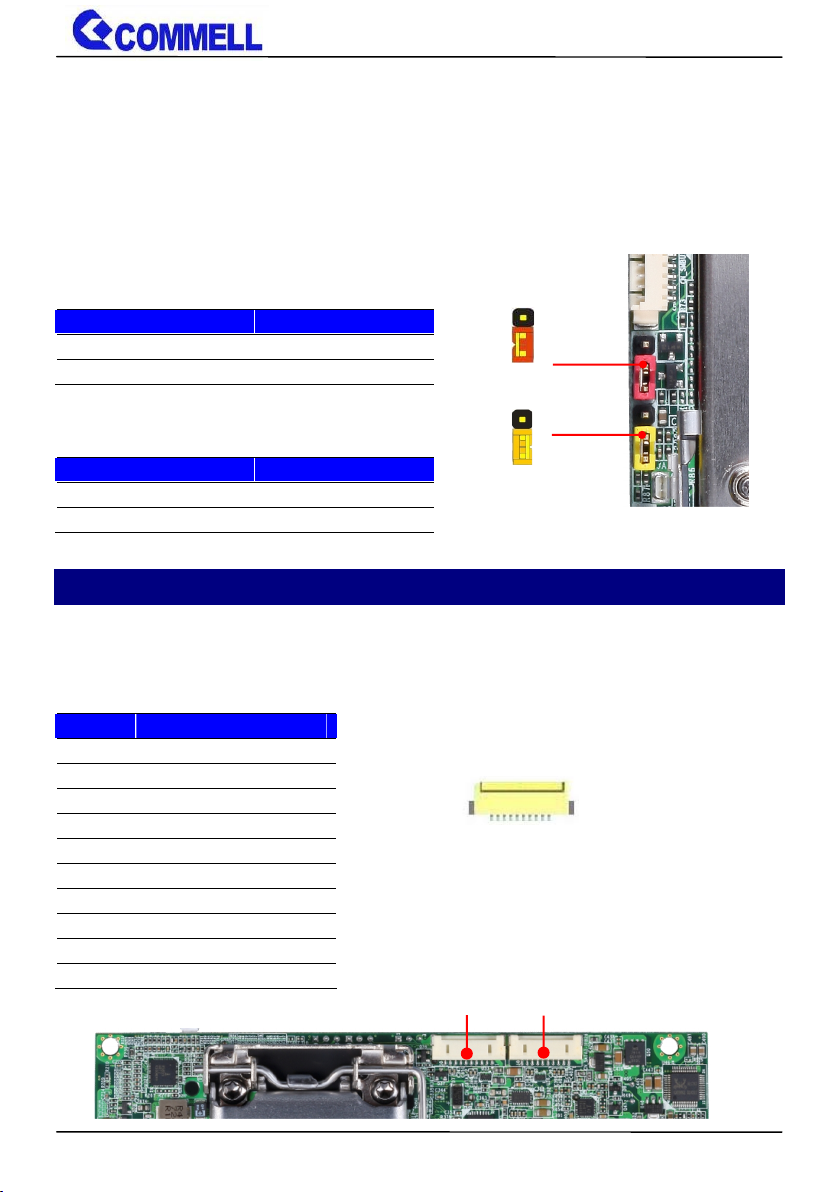

2.3.2 <Clear CMOS and Power on type selection>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
JRTC: Clear CMOS data jumper
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
2.4 <I/O interface>
2.4.1 <Serial ATA interface>
CN_SATA3-1/2: SATA3 10-pin connector
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
NA
6
NA
7
GND
8
RX-
9
RX+
10
GND
CN_SATA3-2
JAT
1
3
JRTC
1
3
CN_SATA3-1/2
10
1
CN_SATA3-1
Page 17
LS-37K User’s Manual
-16-
2.4.2 <Ethernet interface>

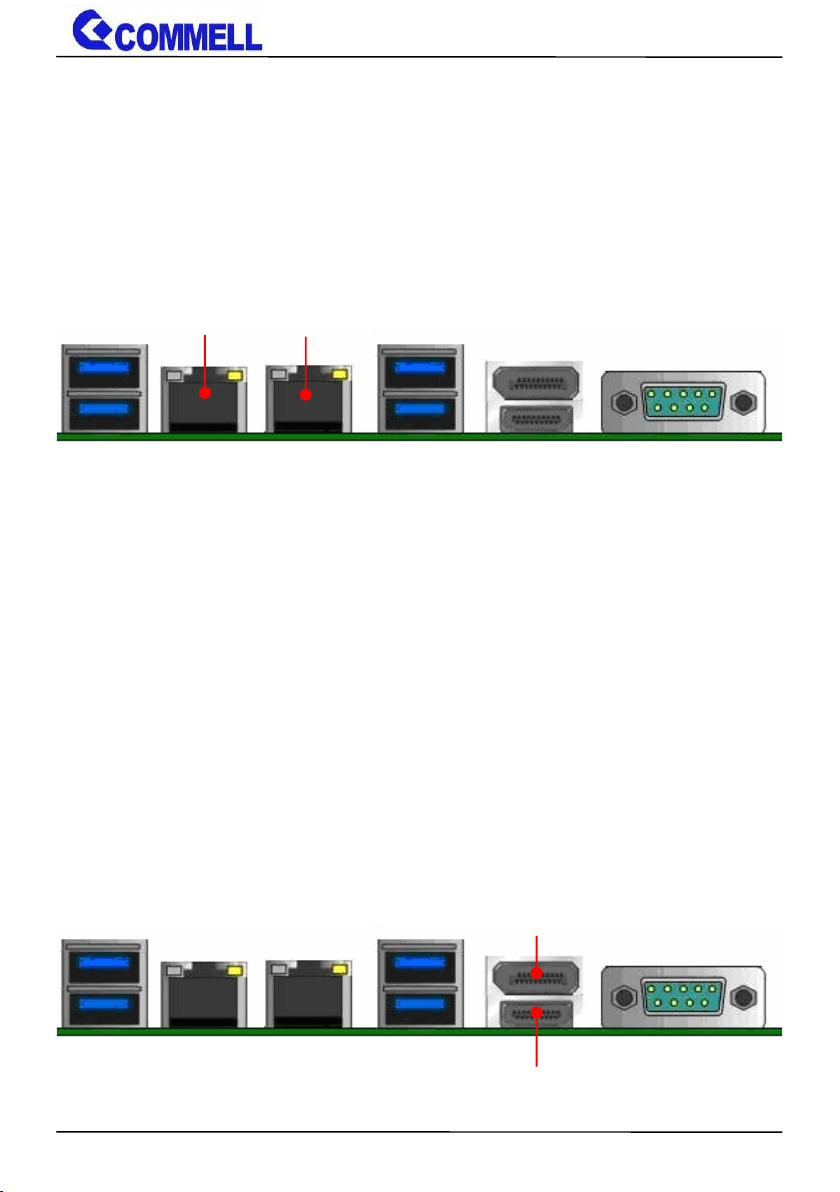

The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on
rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates,
with IEEE802.3 compliance and Wake-On-LAN supported.
2.4.3 <Display interface>
Based on the 6th Gen CPU with built-in HD Graphics 530, VGA and DVI up to
1920x1080@60Hz, DisplayPort up to 4096x2304@60Hz , HDMI up to
4096x2304@24Hz on rear IO. About the internal Display, LVDS (PTN3460) up to
1920x1200@60Hz support 18/24-bit color depth and single/dual channel. About

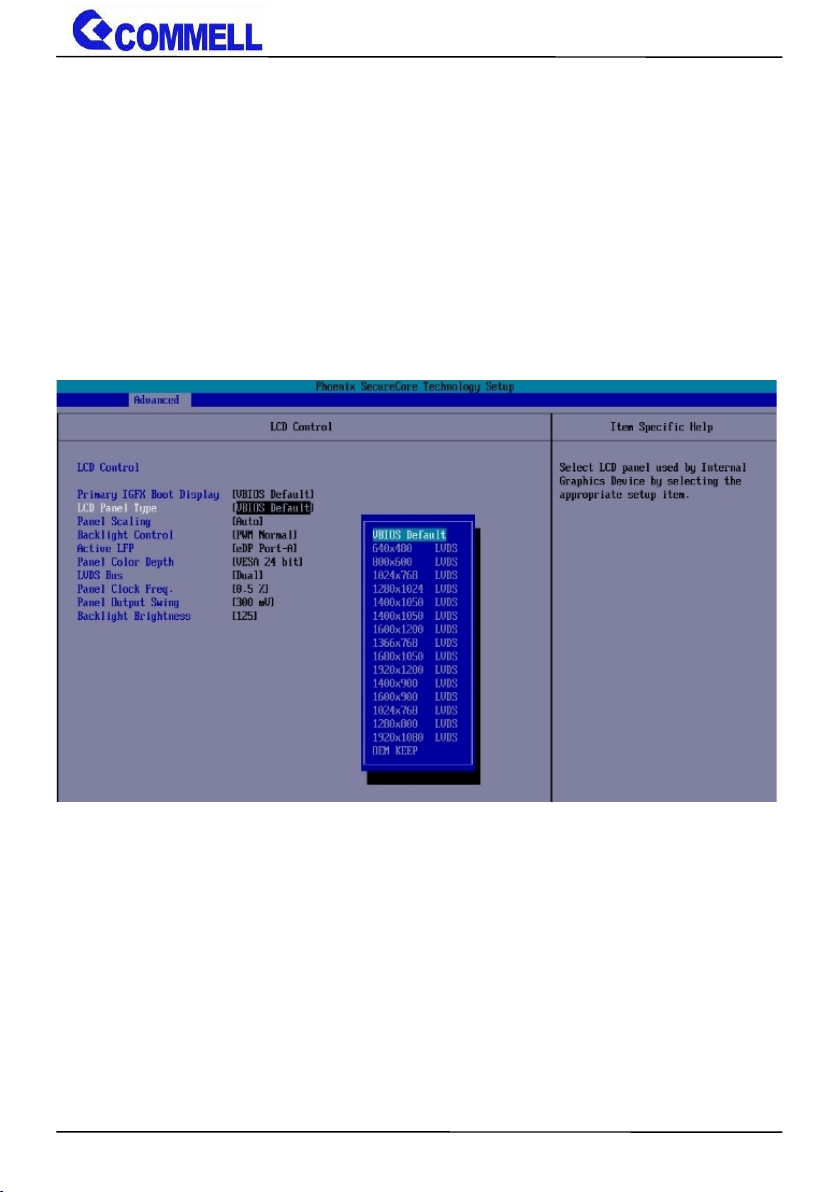

select LCD Panel Type in BIOS, please refer Appendix B.
The built-in HD Graphics support triple display function with clone mode and
extended mode.
I210-AT
I219-LM
HDMI
DISPLAY PORT
Page 18
LS-37K User’s Manual
-17-
CN_CRT: VGA 16-pin connector (Pitch 2.00 mm)
Pin
Signal
Pin
Signal
1BR2
BG
3BB4
NC
5
IOGND1
6
IOGND1
7
IOGND1
8
IOGND1
9NC10
IOGND1
11NC12
5VCDA
13
5HSYNC
14
5VSYNC
15
5VCLK
16
NC
CN_DVI: DVI onboard 20-pin connector
Pin
Signal
Pin
Signal
1
+5V2N/C
3
HPD4Ground
5
TMDSTX0N
6
TMDSTX0P
7
Ground
8
TMDSTX1N
9
TMDSTX1P
10
Ground
11
TMDSTX2N
12
TMDSTX2P
13
Ground14Ground
15
TMDSTXCP
16
Ground
17
DVI_DA18DVI_SL
19
N/C20N/C
CN_LVDS
1
39
2
40
JVLCD
2
6
1
5
5
1
CN_INV
CN_CRT
15162
1
19201
2
CN_DVI
Page 19
LS-37K User’s Manual
-18-
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
2
Set by JVLCD
1
Set by JVLCD
4
Detect (Active low)
3
GND
6
A_LVDS_0-
5
B_LVDS_0-
8
A_LVDS_0+
7
B_LVDS_0+
10
GND9GND
12
A_LVDS_1-
11
B_LVDS_1-
14
A_LVDS_1+
13
B_LVDS_1+
16
GND15GND
18
A_LVDS_2-
17
B_LVDS_2-
20
A_LVDS_2+
19
B_LVDS_2+
22
GND21GND
24
A_LVDS_CLK-
23
B_LVDS_3-
26
A_LVDS_CLK+
25
B_LVDS_3+
28
GND27GND
30
A_LVDS_3-
29
B_LVDS_CLK-
32
A_LVDS_3+
31
B_LVDS_CLK+
34
GND33GND
36
LVDS_DDCSCL
35
NC
38
LVDS_DDCSDA
37
NC
40NC39
NC
Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
12V
2
Backlight Control
3
GND
4
GND
5
Enable Backlight
JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
2-3
5V
5-6
12V
Page 20
LS-37K User’s Manual
-19-

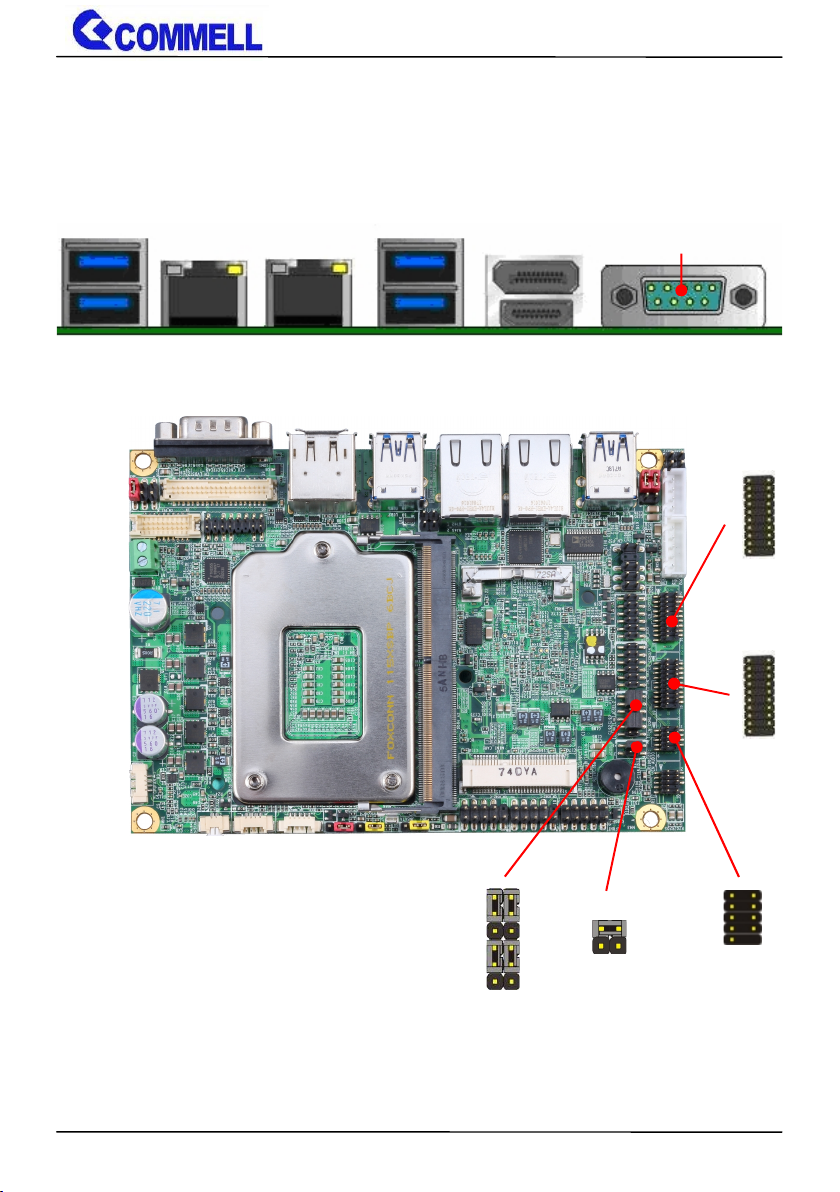

2.4.4 <Serial Port interface>
COM1
20
19
2
1
CN_COM3/4
20
19
2
1
CN_COM5/6
CN_COM2
10
9
2
1
4
3
1
2
JCSEL1
1
12
2
11
JCSEL2
Page 21
LS-37K User’s Manual
-20-
COM1: RS232 DB9 connector
Pin
Signal
Pin
Signal
1
DCD2RXD
3
TXD4DTR
5
GND6DSR
7
RTS8CTS
9
Set by JP1
COM2: RS232/422/485 9-pin header
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD/ 422RX+
4
DTR/ 422RX-
5
GND6DSR
7
RTS8CTS
9
Set by JP2
Use JCSEL1 and JCSEL2 to select communication mode
COM3/4: RS232 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key
Page 22
LS-37K User’s Manual
-21-
COM5/6: RS232 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key

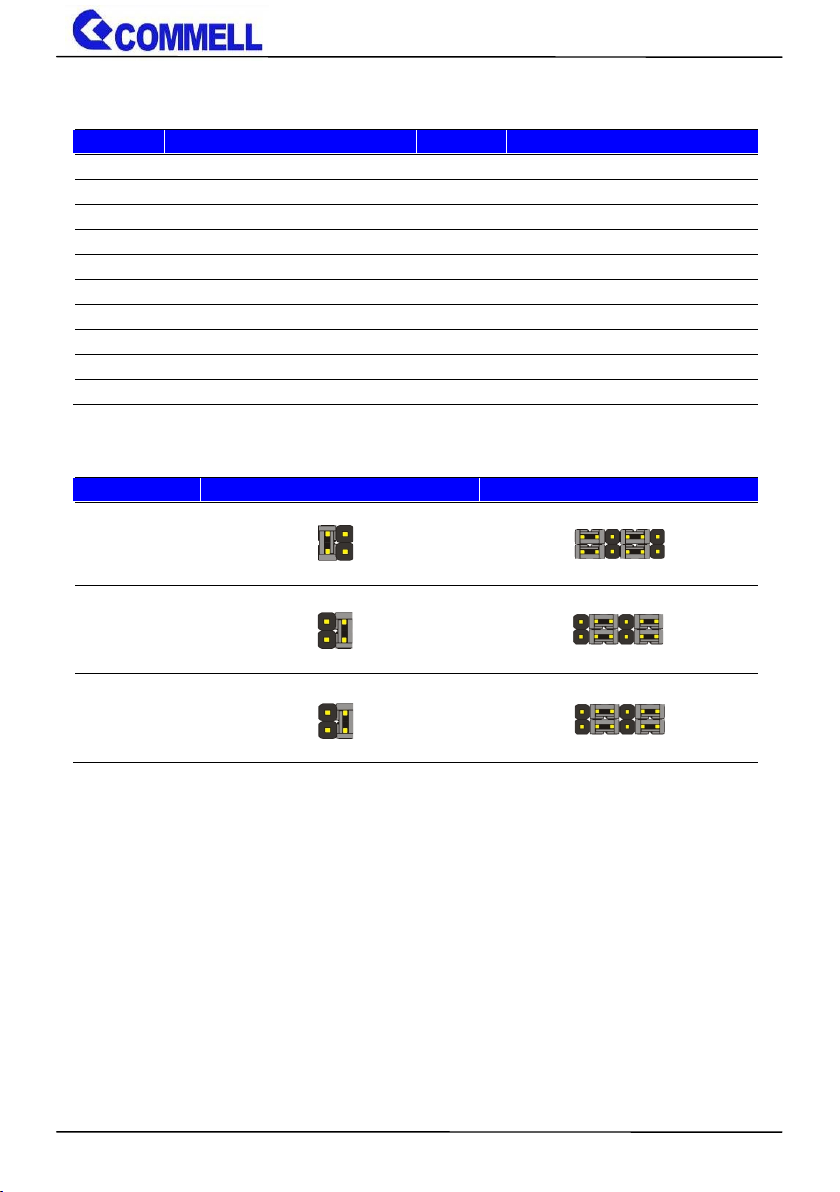

JCSEL1, JCSEL2: For configure COM2 communication mode
Function
JCSEL1
JCSEL2
RS232
RS485
RS422
RS-485 cable modification:
CN_COM2 RTX- Data- : short Pin1& Pin4
CN_COM2 RTX+ Data+ : short Pin2& Pin3
1
12
2
11
2
4
1
3
1
12
2
11
1
12
2
11
2
4
1
3
2
4
1
3
Page 23
LS-37K User’s Manual
-22-
2.4.5 <USB interface>
CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND8GND
9
GND10Key
USB3.0
(LEFT)
USB3.0
(RIGHT)
5
6
1
2
JVUSB
CN_USB2-1
2
9
10
1
CN_USB2-2
2
9
10
1
Page 24
LS-37K User’s Manual
-23-

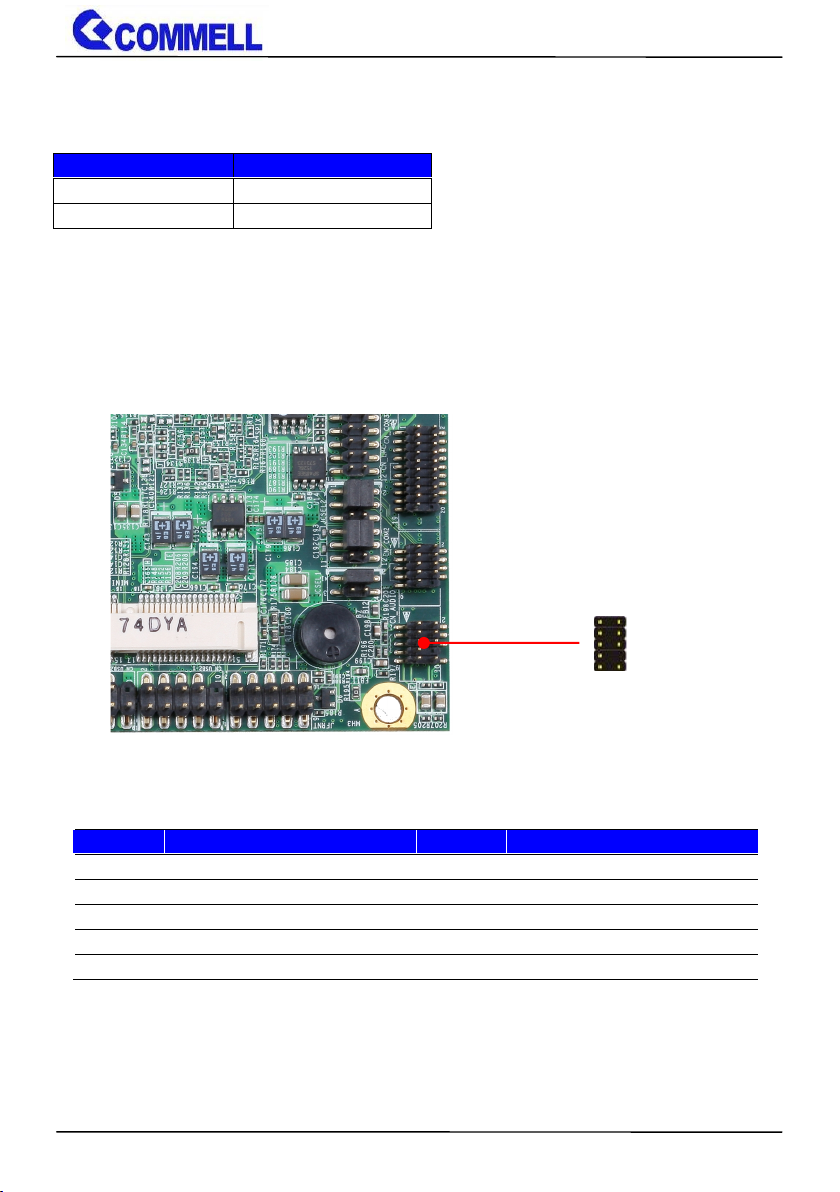

Install USB3.0 Driver If you want to use CN_USB 2-1/2-2 in Windows7.
JVUSB: 6-pin Power select jumper
Pin
Description
1-3 & 2-4
5V_SB (Default)
3-5 & 4-6
5V
Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
JVUSB can control USB3.0(RIGHT) power.
2.4.6 <Audio interface>
CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
CN_AUDIO
9
2
1
10
Page 25
LS-37K User’s Manual
-24-
2.4.7 <Expansion slot>
MINI_CARD have some special design to compatible our mini-PCIe card.
(ex: MPX-574D2, MPX-210D2 etc)
MINI_CARD support mSATA by JMSATA
JMSATA: Setting MINI_CARD to support PCIe/mSATA
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
1
3
JMSATA
MINI_CARD
Page 26
LS-37K User’s Manual
-25-

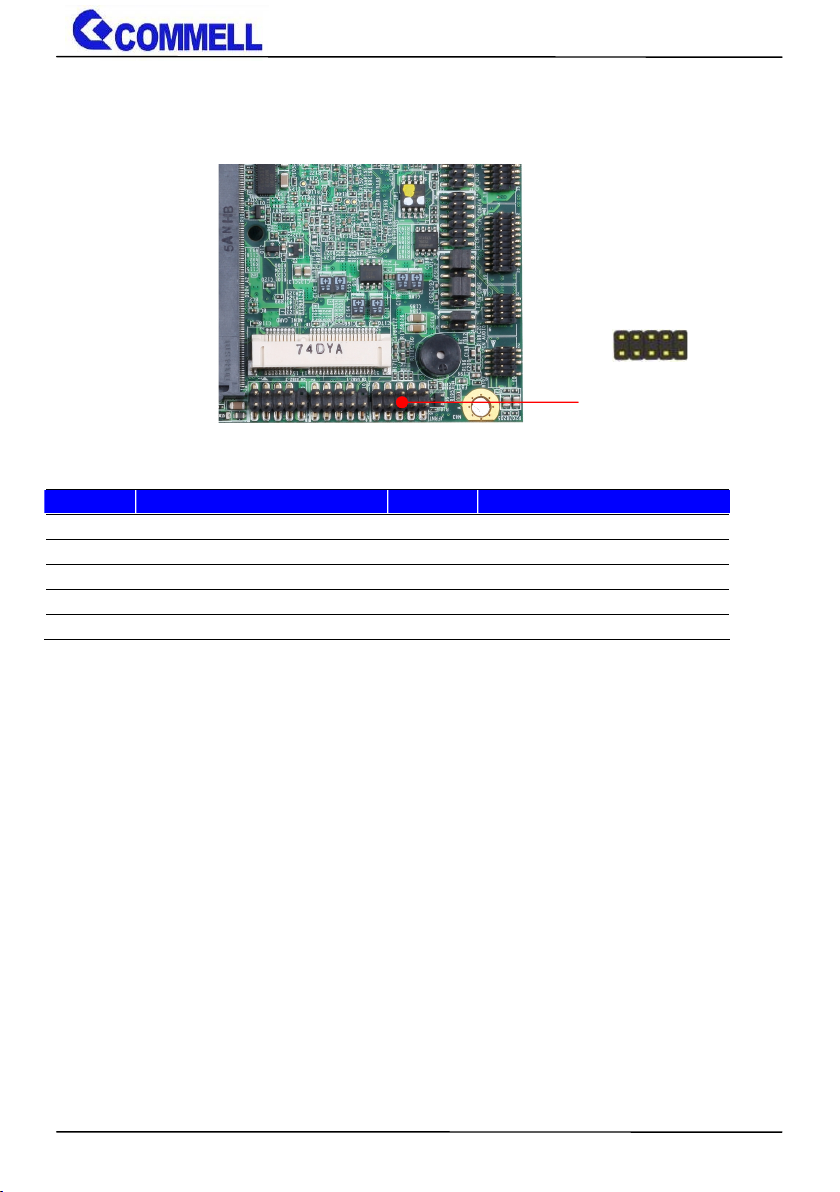

2.4.8 <Front panel switch and indicator>
JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
Power_ON-
2
Power_ON+
3
Speaker-
4
Speaker+
5
HDD_LED-
6
HDD_LED+
7
Power_LED-
8
Power_LED+
9
Reset+
10
Reset-
JFRNT
10
1
9
2
Page 27
LS-37K User’s Manual
-26-

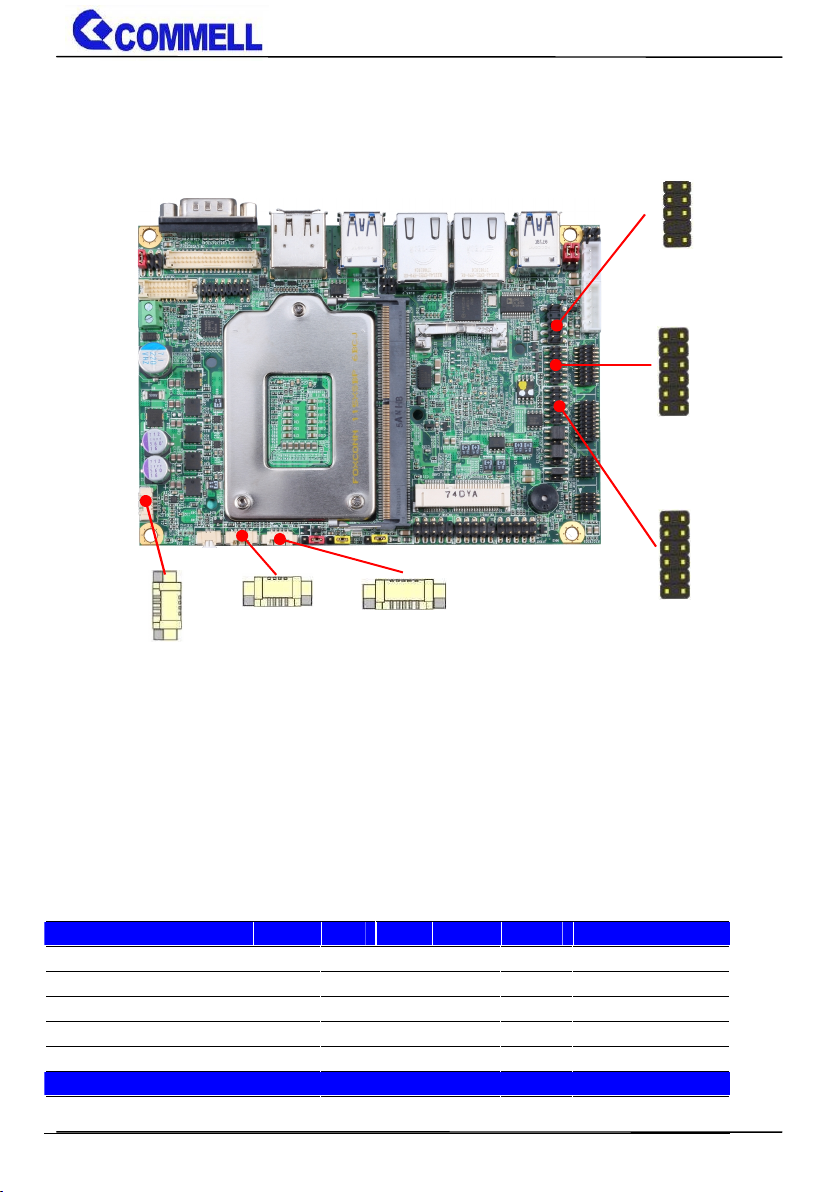

2.4.9 <GPIO and Other interface>
When using GPIO function, please note:
As Output: Open-drain, most applications need use an external pull up
resistor. (If not may cause damage)
As Input: TTL-level.
GPIO DC characteristics
Parameter
SYM
MIN
TYP
MAX
UNIT
Conditions
Input Low Voltage
Vt-0.5
0.8
1.1VVIN =3.3V
Input High Voltage
Vt+1.6
2.0
2.4VVIN =3.3V
Hystersis
VTH0.5
1.2VVIN =3.3V
Input High Leakage
I
LIH
+10μAVIN =3.3V
Input Low Leakage
I
LIL
-10μAVIN =0V
Open-drain output pin with 12-mA sink capability
Output Low Voltage
V
OL
0.4
V
IOL=12mA
CN_PS2
1092
1
CN_DIO
12111
2
CN_LPC
12111
2
CN_SMBUS
1
5
SYSFAN
1 4
CPUFAN
1
4
Page 28
LS-37K User’s Manual
-27-
CN_DIO: GPIO 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
GND2GND
3
GPIO0
4
GPIO4
5
GPIO1
6
GPIO5
7
GPIO2
8
GPIO6
9
GPIO3
10
GPIO7
115V12
12V
CN_LPC: LPC 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
CLK2RST
3
-LFRAME
4
LAD3
5
LAD2
6
LAD1
7
LAD0
8
3.3V
9
SERIRQ
10
GND
11
3.3VSB
12
NC
CN_PS/2: PS/2 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
KB_DATA
2
M_DATA
3NC4
NC
5
GND6GND
7
VCC8VCC
9
KB_CLK
10
M_CLK
CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm)
Pin
Signal
1
5V
2
NC
3
SMBDAT
4
SMBCLK
5
GND
CPUFAN & SYSFAN: cooler fan 4-pin connector
Pin1234
Signal
GND
12V
Sensor
Control
Page 29
LS-37K User’s Manual
-28-

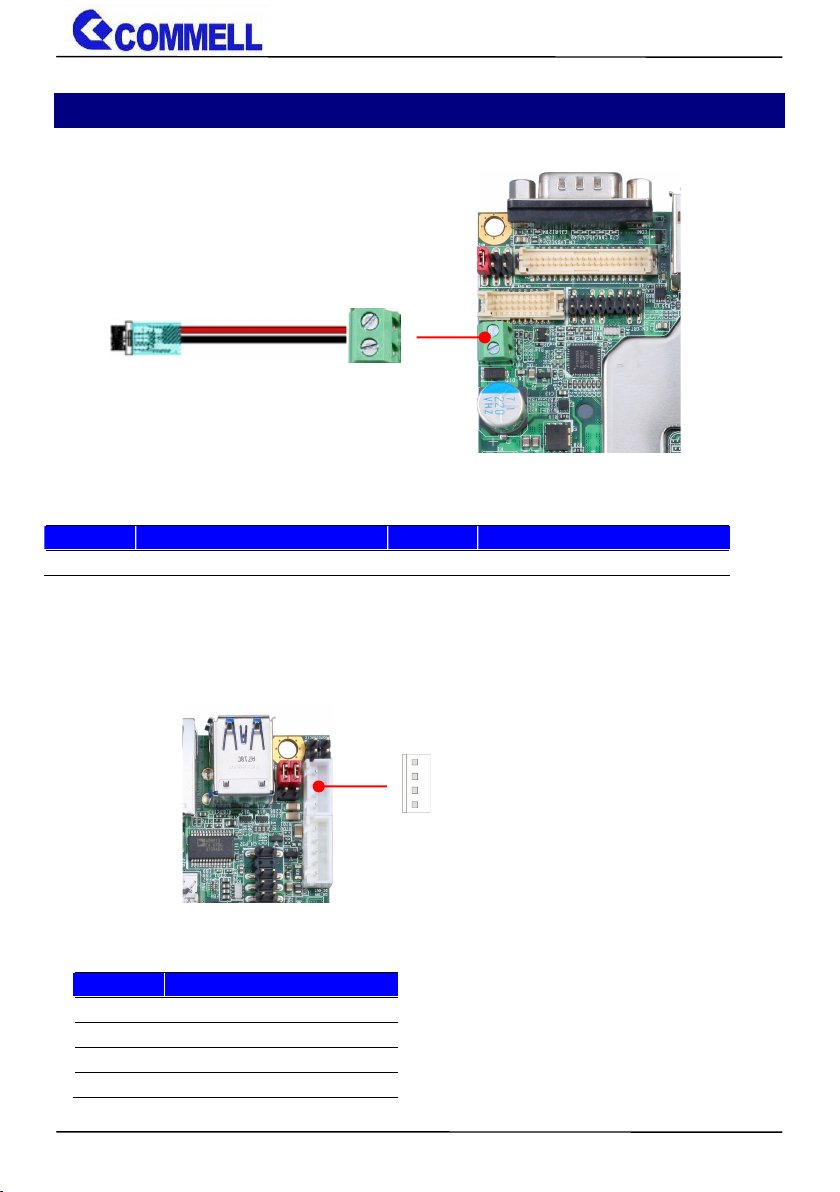

2.5 <Power supply>
2.5.1 <Power input>
DC_IN1: Terminal Block 2-pin power connector
Pin
Signal
Pin
Signal
1
GND
3
Power in
The power support 9~35V wide voltage input.
2.5.2 <Power output>
DC_OUT: SATA power 4-pin connector
Pin
Signal
1
12V
2
GND
3
GND
4
5V
DC_IN1
1
3
+
_
DC_OUT
Page 30
LS-37K User’s Manual
-29-
Appendix A <Flash BIOS>
A.1 <Flash tool>
The board is based on Phoenix BIOS and can be updated easily by the BIOS
auto flash tool. You can download the tool online at the address below:
FPT TOOL
The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the
BIOS flash chip and update the BIOS.
A.2 <Flash BIOS process>
1. Please make a bootable UFD which can boot into DOS environment.
2. Unzip the flash tool and copy it into bootable UFD.
3. Add a bin file to the same folder..
4. Power on the system and flash the BIOS under the DOS environment.
(Command: fpt –savemac –f xxx.bin)
5. Power off the system and then power on.
Page 31
LS-37K User’s Manual
-30-
Appendix B <LCD Panel Type select>
According your panel, it need to select the correct resolution in the BIOS. If there is
no fit your panel type, please feedback for us to make OEM model.
You can find the setting from
AdvancedIntel Advanced Menu
SA configurationGraphics configurationLCD controlLCD Panel Type
Page 32
LS-37K User’s Manual
-31-
Appendix C <Programmable Watch Dog Timer>

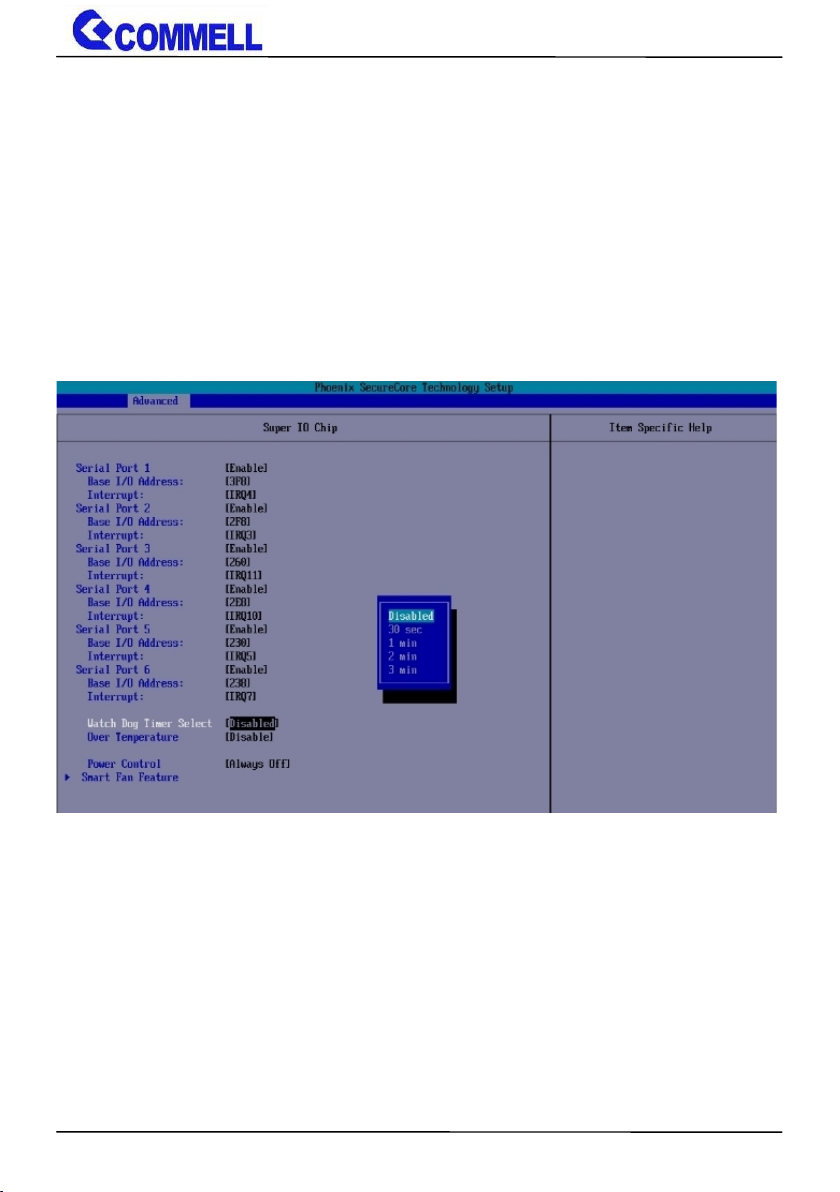

The watchdog timer makes the system auto-reset while it stops to work for a
period. The integrated watchdog timer can be setup as system reset mode by
program. You can select Timer setting in the BIOS, after setting the time options,
the system will reset according to the period of your selection.
Find the setting from
AdvancedIntel Advanced MenuSuper IO Chip
Timeout value range
1 to 255 Minute and Second
Page 33
LS-37K User’s Manual
-32-
Program sample
Watchdog timer setup as system reset with 5 second of timeout
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 08 ;select Logical Device
-o 4E 30
-o 4F 01 ; activate WDTO# function
-o 4E F0
-o 4F 00 ;set “00” is second mode, set “08” is minute mode
-o 4E F1
-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute
;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)
For further information, please refer to Nuvoton NCT6106D datasheet
…
Page 34
LS-37K User’s Manual
-33-

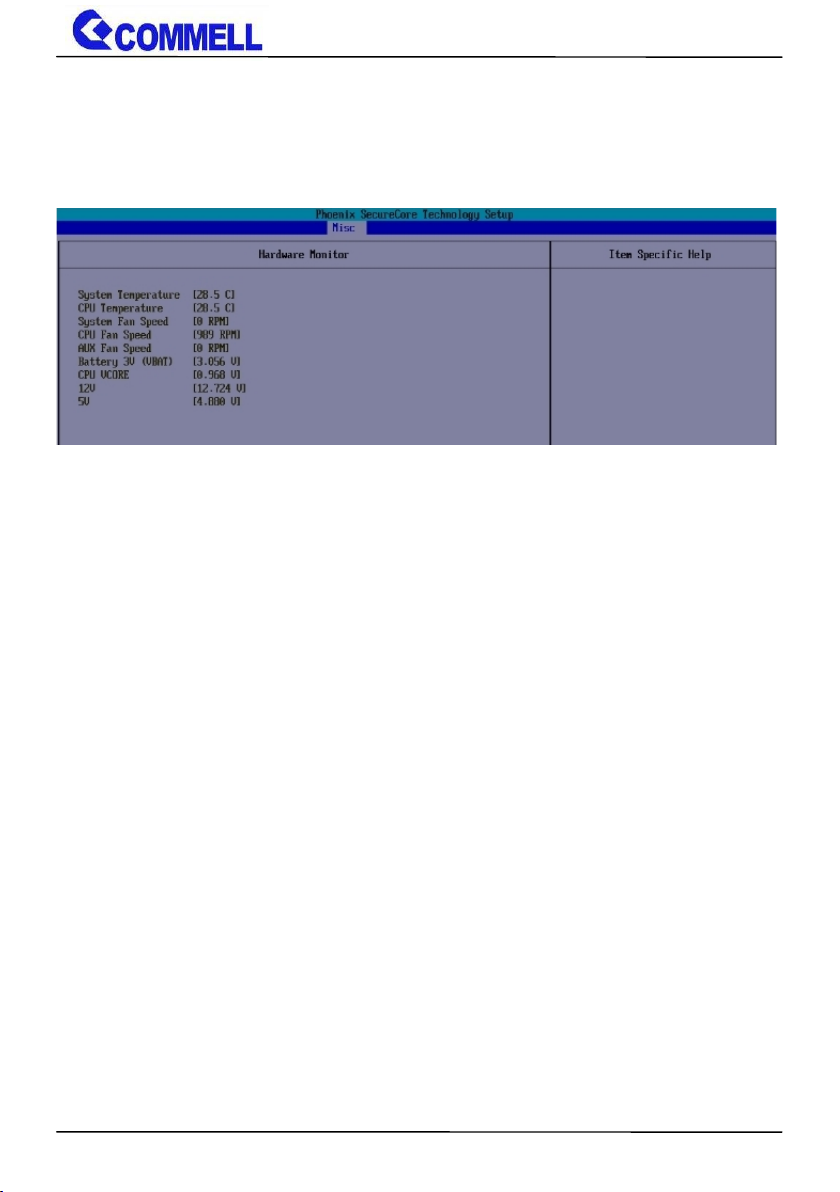

Appendix D <Hardware monitor >
Find the setting from Misc-SIO NCT6106D Hardware Monitor
Page 35
LS-37K User’s Manual
-34-
Appendix E <Programmable GPIO >
The GPIO’ can be programmed with the MS-DOS debug program using simple
IN/OUT commands.
The DC characteristics please refer to GPIO paragraph (Page20).
GPIO01234567
bit01234567
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 07 ;select Logical Device
-o 4E 30
-o 4F 10 ;activate GPIO function (The board use GPIO4)
-o 4E F0
-o 4F XX ;set “01” GPIO as input, set “00” GPIO as output
-o 4E F1
-o 4F XX ;if set GPIO as output, this register’s value can be set “00~ FF”
Optional
-o 4E F2
-o 4F XX ;set “01”, the respective bit are inverted (Both input and output)
;set “00”, the respective bit are normal
For further information, please refer to Nuvoton NCT6106D datasheet
Page 36
LS-37K User’s Manual
-35-

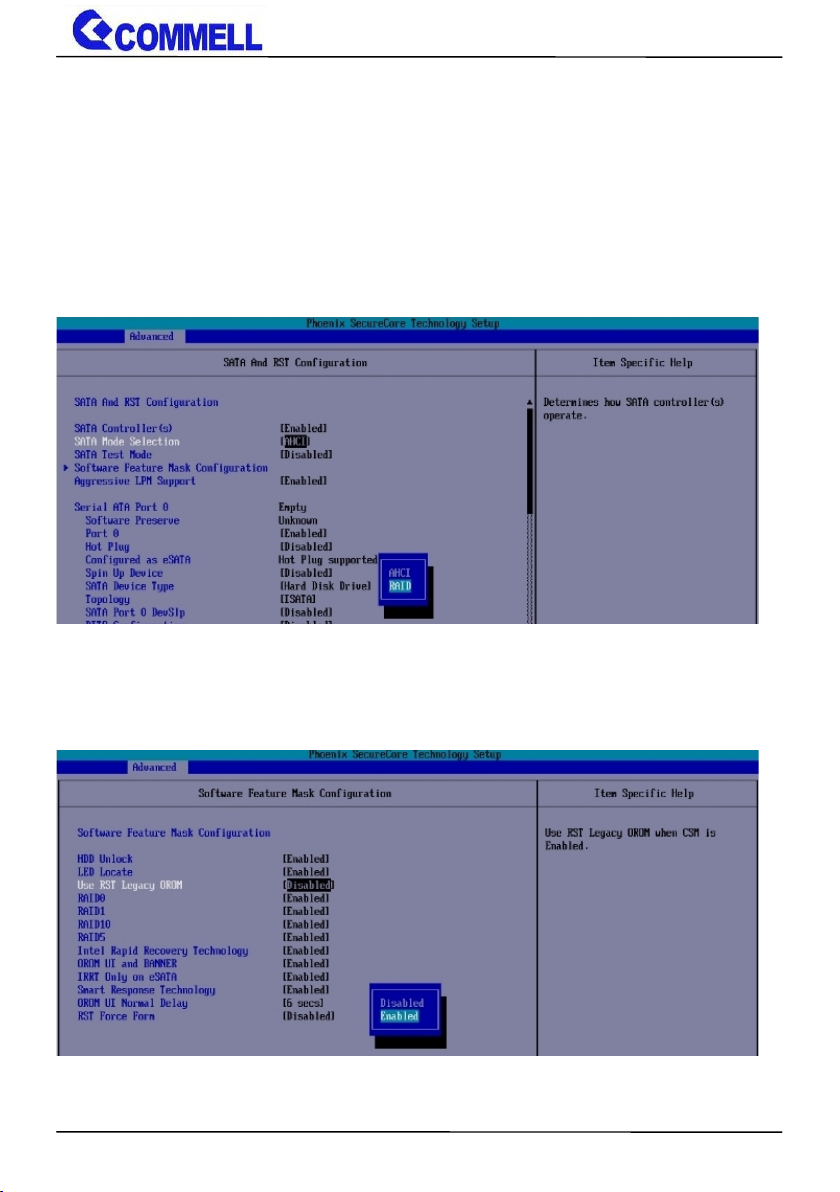

Appendix F <RAID Setting>
When use RAID function, it need to enter the BIOS set RAID mode first.
Find the setting from
[Advanced] [Intel Advanced Menu] [PCH-IO Configuration]
[SATA Configuration] [SATA Mode Selection]
SATA And RST Configuration Software Feature Mask Configuration
Set Use RST Legacy OROM [Enable]
Page 37
LS-37K User’s Manual
-36-

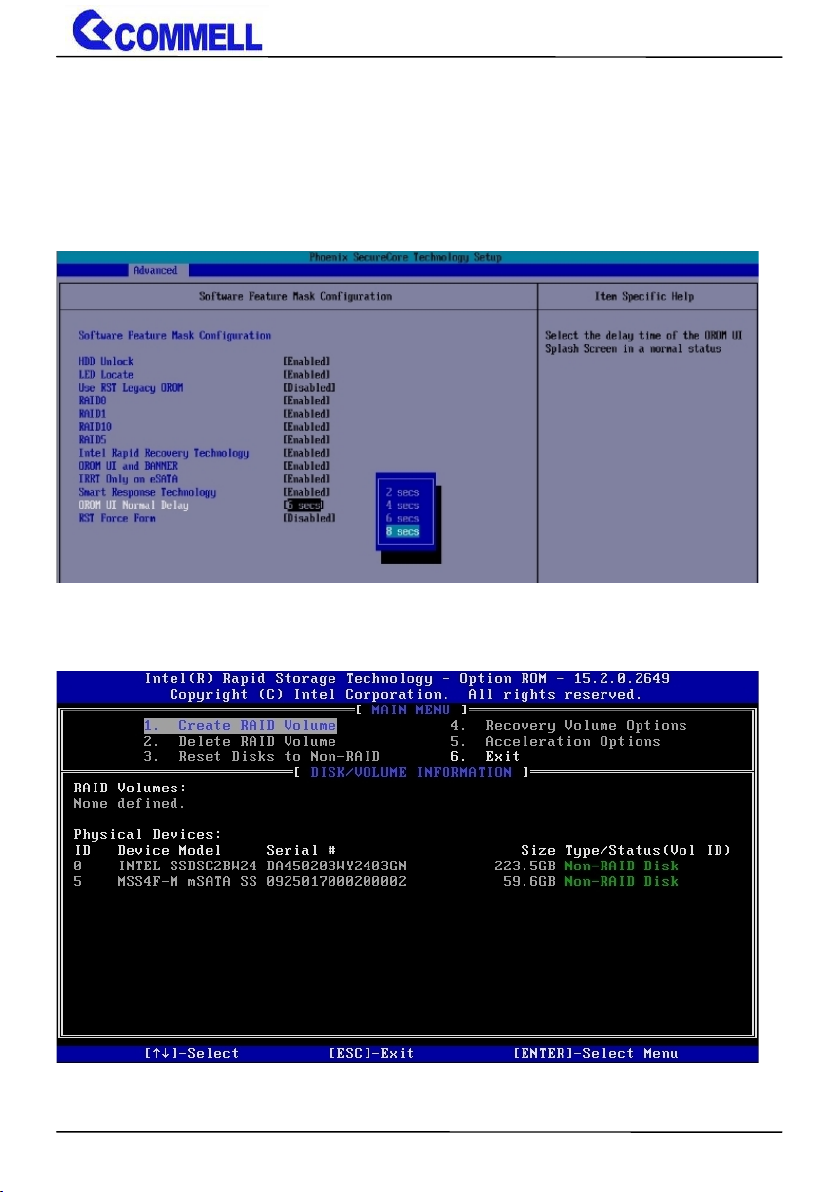

If this screen stop time is too short, it can be set in the BIOS.
[Advanced] [Intel Advanced Menu] [PCH-IO Configuration]
[SATA Configuration] [Software Feature Mask Configuration]
[OROM UI Normal Delay] [ 8 sec] (Need to set RAID mode first)
At boot time, press <CTRL + I> to enter the RAID configuration menu.
Page 38
LS-37K User’s Manual
-37-
Appendix G < Setup ADP-3355,ADP-3460 >
LS-37KT series have a 2nd CRT or 2nd LVDS, it’s no need install extra driver.
For further information, please refer to the manual.
ADP-3355 manual Link
ADP-3460 manual Link

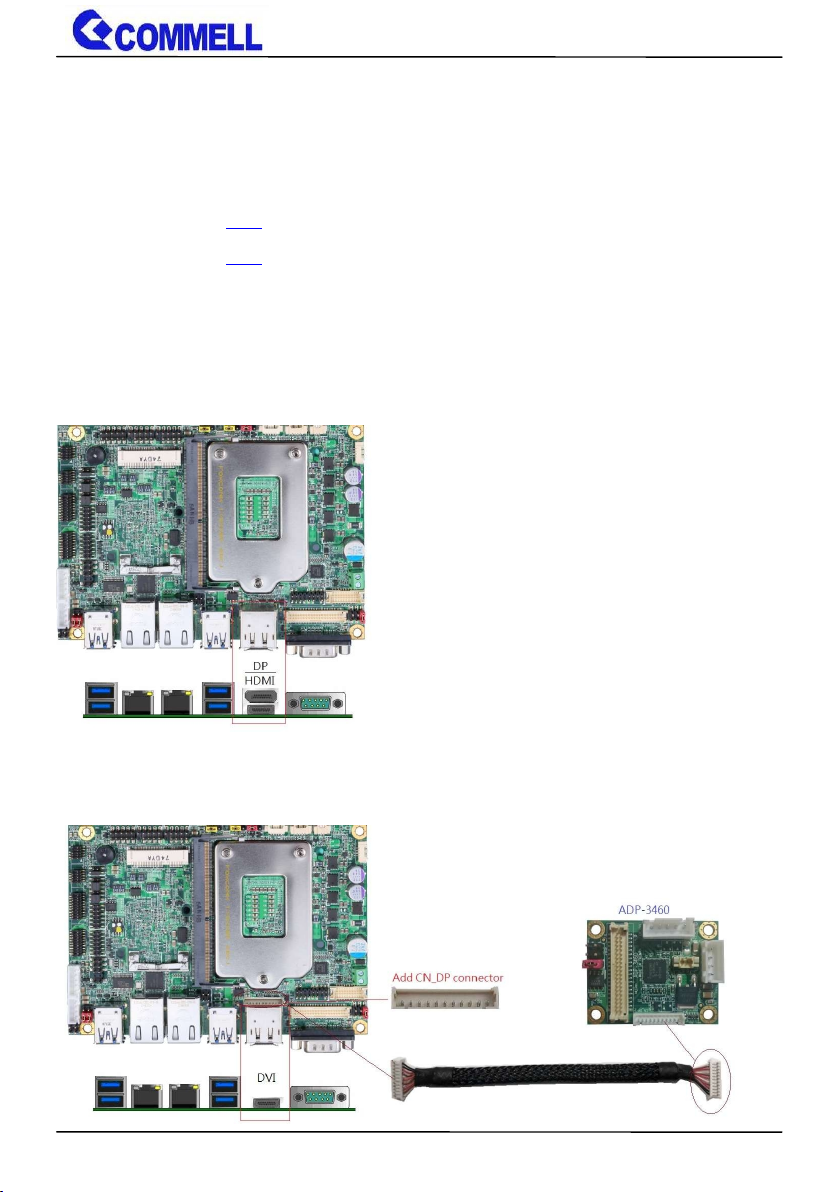

Please refer the pictures below, they show the difference between LS-37K and
LS-37KT.
LS-37K
LS-37KT
Page 39
LS-37K User’s Manual
-38-
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
Website
www.commell.com.tw
E-mail
[email protected] (General infomation)
[email protected] (Technical Support)
Commell is a brand name of Taiwan Commate computer Inc.
Loading...
