Page 1
LE-37H
3.5 inch Motherboard
User’s Manual
Edition 1.7
2019/07/16
Page 2
LE-37H User’s Manual
-1-
Copyright
Copyright 2019, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website atTUhttp://www.commell.com.twUT
Page 3
LE-37H User’s Manual
-2-

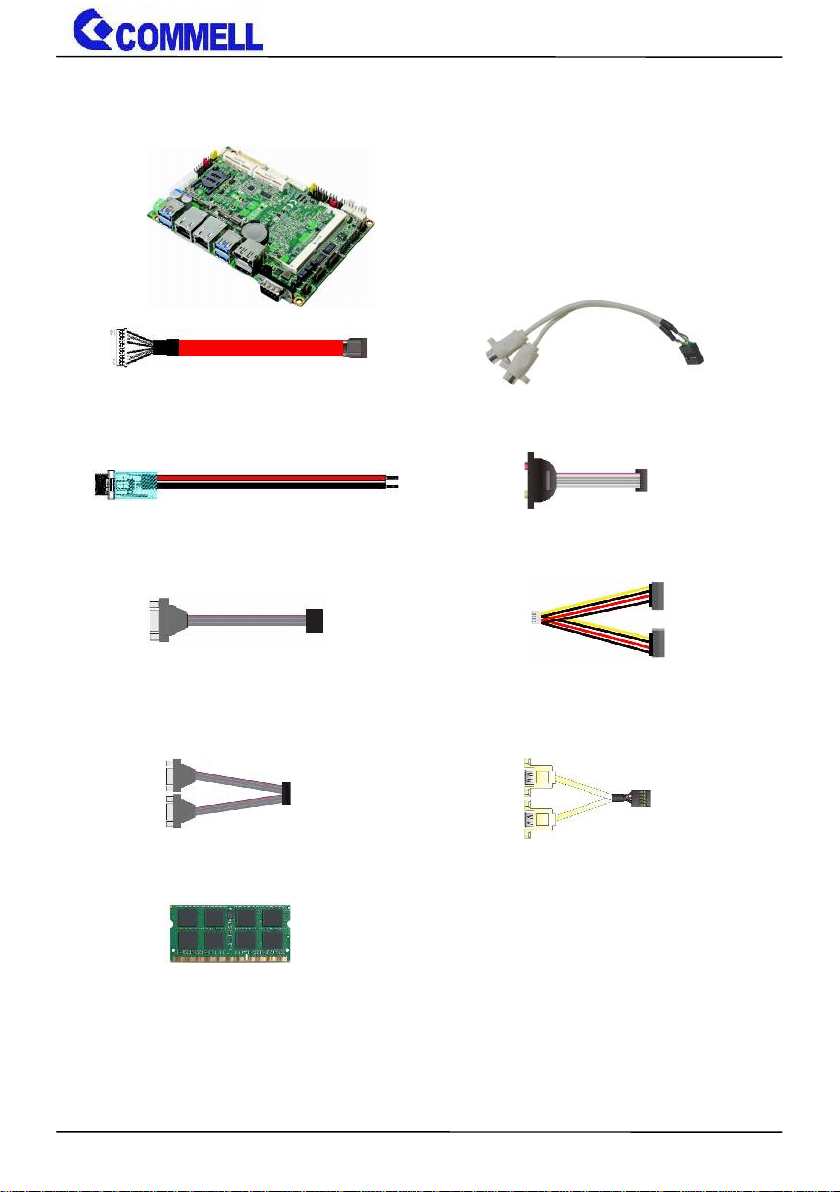

Packing List:
Please check the package content before you starting using the board.
Optional:
Printed Matters:
Driver CD x 1 (Including User’s Manual)
1 xDC Input Power Cable
(OALDC-B / 1040513)
+
_
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KM / 1040131)
1 x Audio cable
(OALPJ-HDUNB / 1040123)
1 xUSB2.0 cable
(OALUSBA-3 / 1040173)
1 x COM Cable
(OALES-BKU1NB / 1040086)
1 x Dual COM cable
(OALES-BKU2NB / 1040090)
1 x LE-37H Motherboard
(include heat spreader or Cooler Fan)
1 x SATA CABLE
(OALSATA3-H10-L35 / 1040523)
1 x SATA Power Cable
(OALSATA15-2PJ/ 1040613)
1 x DDR3L SO-DIMM
(DSDM8GB-DDR3L-1600-SO-1.35V / 1140073)
Page 4
LE-37H User’s Manual
-3-
Index
Chapter 1 <Introduction>...............................................................4
1.1 <Product Overview>............................................................4
1.2 <Product Specification> ......................................................5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>.........................................................7
2.1 <Connector Location and Reference> ................................7
2.1.1 <Internal connectors list>..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <Jumper Location and Reference>.....................................9
2.2.1 <Jumper list> ............................................................9
2.2.2 <Clear CMOS and Power on type selection>..........10
2.3 <Installing the Memory>....................................................10
2.4 <I/O interface> ..................................................................11
2.4.1 <Serial ATA interface>.............................................11
2.4.2 <Ethernet interface>................................................12
2.4.3 <Display interface> .................................................12
2.4.4 <Serial Port interface> ............................................14
2.4.5 <USB interface>......................................................16
2.4.6 <Audio interface>....................................................17
2.4.7 <Expansion slot>.....................................................18
2.4.8 <Front panel switch and indicator> .........................19
2.4.9 < GPIO ,SMBUS and Other Interface > ..................20
2.5 <Power supply> ................................................................22
2.5.1 <Power input>.........................................................22
2.5.2 <Power output>.......................................................22
Appendix A <Flash BIOS> ...........................................................23
A.1 BIOS Auto Flash Tool........................................................23
A.2 Flash Method....................................................................23
Appendix B <Setup ADP-3355,ADP-3460>.................................23
Appendix C <LCD Panel Type select>........................................24
Appendix D <Programmable Watch Dog Timer>.......................26
Appendix E <Programmable GPIO > ..........................................27
Appendix F <SuperIO Setting> ...................................................28
Contact information.....................................................................29
Page 5
LE-37H User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LE-37H is 3.5 inch Motherboard which is design based on Celeron® N3350, Pentium®
N4200, and Atom™ x7-E3950 Processors (Apollo Lake SoC), delivering outstanding
compute, graphical, and media performance while operating in an extended range of
thermal conditions. The SoC bases on the Silvermont microarchitecture, utilizing Intel’s
industry-leading 14nm process technology with 3-D Tri-Gate transistors, which deliver
significant improvements in computational performance and energy efficiency.
New features for Apollo Lake
Celeron® Processor N3350, and Pentium® Processor N4200 have a lower TDP 6W, it
provides new HD Graphics to support triple display, 4K resolution, maximum memory size is
up to 8GB of DDR3L, and more enhanced security that is suitable for a variety of intelligent
systems the ideal choice.
All in One multimedia solution
The board provides high performance onboard graphics, 18/24-bit single/dual channel
LVDS interface, DisplayPort, HDMI, and High Definition Audio, to meet the very requirement
of the multimedia application.
Flexible Expansion Interface
The board provides one MiniPCIe and support mSATA.
Apollo Lake only support Windows10 64bit
So far Intel just support Windows 10 64bit. It may lose some drivers if you use other
Windows version.
Page 6
LE-37H User’s Manual
-5-
1.2 <Product Specification>
System
Processor
Intel®Apollo Lake Series Processor N3350/ N4200/x7-E3950,
FCBGA1296 package
Chipset
Apollo Lake SoC
Memory
1 x DDR3L DIMM 1866 MHz up to 8GB, Support Non-ECC,
unbuffered memory only
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
2 x MiniPCIe (Minicard1 support mSATA)
1 x Sim slot, 1 x SD Card slot
Graphics
Chipset
Intel® HD Graphics
Display Interface
1 x LVDS, 1 x HDMI, 1 x DisplayPort/VGA/ 2nd LVDS(Optional)
LAN
Chip
2 x Intel® I210-AT Gigabit LAN
I/O
Serial ATA
2 x SATA3 (CN_SATA2 cannot use when Minicard1 change to mSATA)
Audio
Realtek ALC262 HD Audio
Internal I/O
2 x SATA3, 4 x RS232, 2 x USB2.0, 1 x LPC 1 x GPIO ,1 x PS/2,
1 x SMBUS, 1 x LVDS, 1 x LCD inverter,1 x RS232/422/485, 1 x Audio
1 x VGA(Optional), 1 x 2nd LVDS(optional)
Rear I/O
4 x USB3.0, 2 x LAN, 1 x HDMI, 1 x DisplayPort (Optional), 1 x RS232.
Mechanical & Environmental
Power Requirement
DC 6~35V
Size & Thickness
146mm x 101mm (L x W), 1.6mm
Temperature
Operating within 0°C~60°C
Storage within -20°C~80°C
(For LE-37H N3350/N4200 Series)
Operating within -40°C~85°C
Storage within -40°C~85°C
(For LE-37H x7-E3950 Series)
Relative Humidity
10%~90%, non-condensing
Page 7
LE-37H User’s Manual
-6-
1.3 <Block Diagram>
CPU
Apollo Lake
SoC
DDR3L
SO-DIMM
1 x DisplayPort
1 x HDMI
PTN3460
1 x LVDS
SIO
NCT6106D
DDI
Channel A
eDP
DDI
1 x SATA3
SATA3
4 x USB3.0
2 x USB2.0
USB3.0
USB2.0
SPI Flash
SPI
SD Card
HDA
HD Audio
LPC
1 x LPC
ALC262
5 x RS232
1 x SMBUS
PCIe x1
SATA3
MiniPCIe
/ mSATA
1 x PS/2
SMBus
PCIe x2
2 x I210-AT
1 x RS232/422/485
1 x SATA3
PCIe x1
MiniPCIe
1 x GPIO
Page 8
LE-37H User’s Manual
-7-
Chapter 2 <Hardware setup>

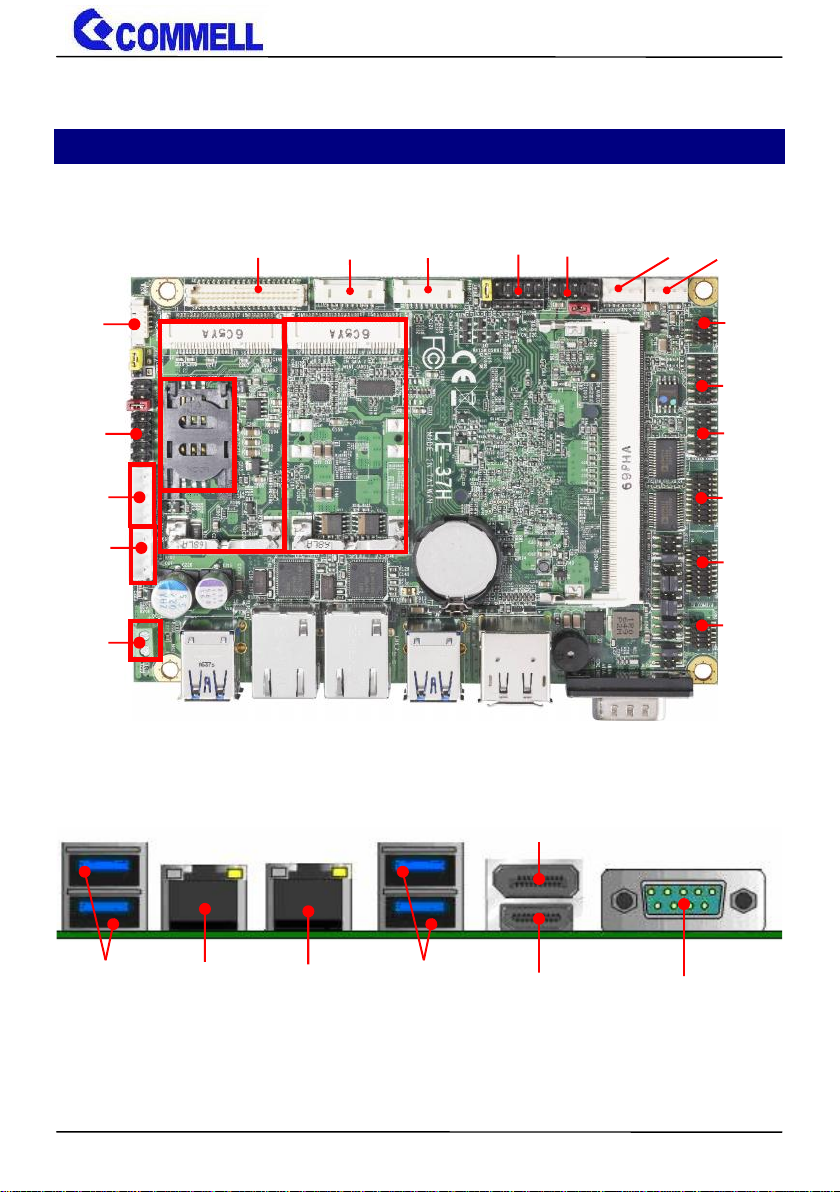

2.1 <Connector Location and Reference>
USB3.0
USB3.0
I210-AT
I210-AT
HDMI
DISPLAY PORT
COM1
CN_AUDIO
CN_LPC
CN_DIO
CN_COM5/6
CN_COM3/4
CN_COM2
CN_SMBUS
JFRNT
CN_INV
DC_OUT
DC_IN
CN_LVDS CN_SATA2 CN_SATA1 CN_USB CN_PS2 SYSFAN CPUFAN
MINI_CARD1
MINI_CARD2
SIMM
Page 9
LE-37H User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector
Function
SO-DIMM
204-pin DDR3L SO-DIMM slot
CN_SATA-1/2
10-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LPC
6 x 2-pin LPC pin header
CN_DIO
6 x 2-pin digital I/O connector
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_SMBUS
5-pin SMBus connector
CN_COM2
9-pin RS232/485/422 connector
CN_COM 3/4 5/6
19-pin RS232 connector
CN_USB
5 x 2-pin USB2.0 pin header
CN_PS2
5 x 2-pin PS/2 pin header
CPUFAN
4-pin CPU fan connector
SYSFAN
4-pin system fan connector
JFRNT
5 x 2-pin front panel switch/indicator pin header
MINI_CARD1/2
52-pin MiniPCIe card slot
SIMM
6-pin slot
DC_OUT
4-pin SATA Power connector
DC_IN
2-pin power input Terminal Block
2.1.2 <External connectors list>
Connector
Function
DisplayPort
DisplayPort connector
HDMI
HDMI connector
USB1/2
4 x USB3.0 connector
RJ45_1/2
RJ45 LAN connector
COM1
DB9 Serial port connector
Page 10
LE-37H User’s Manual
-9-

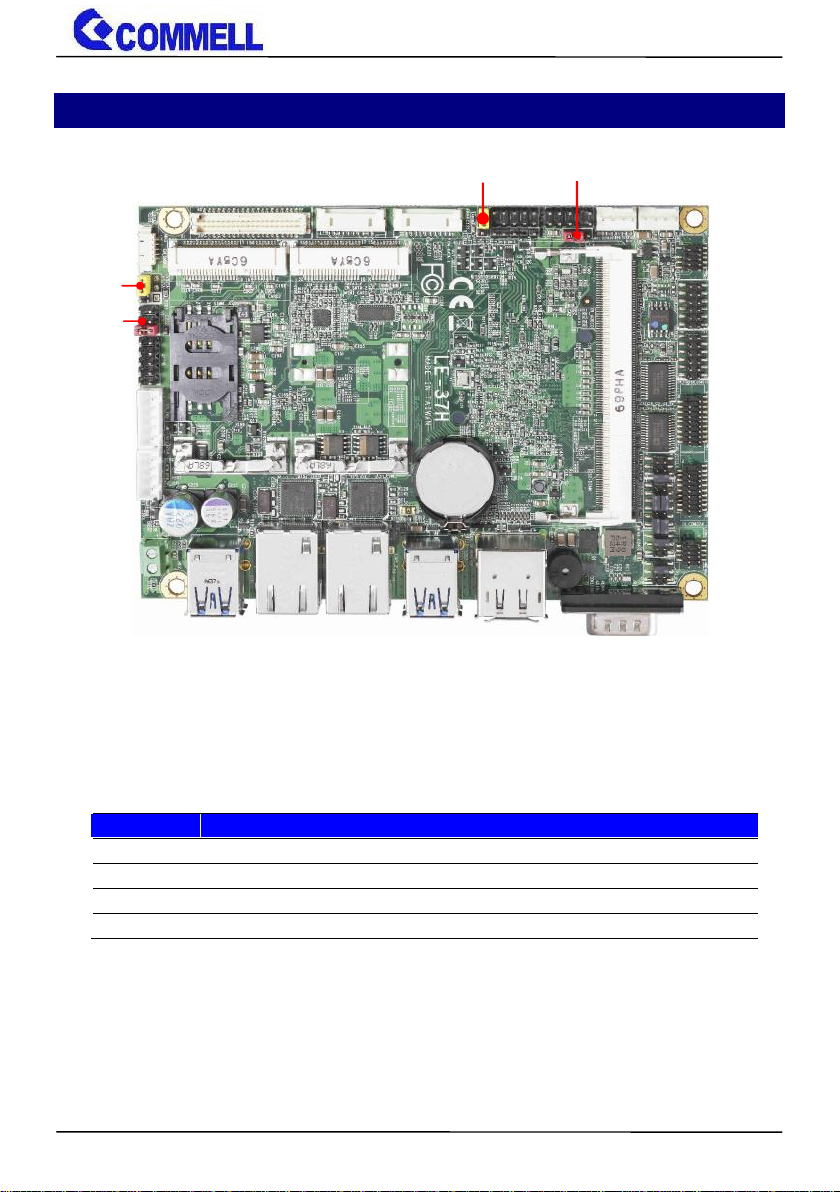

2.2 <Jumper Location and Reference>
2.2.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard mSATA Setting
JMSATA
JVLCD
JAT JRTC
Page 11
LE-37H User’s Manual
-10-

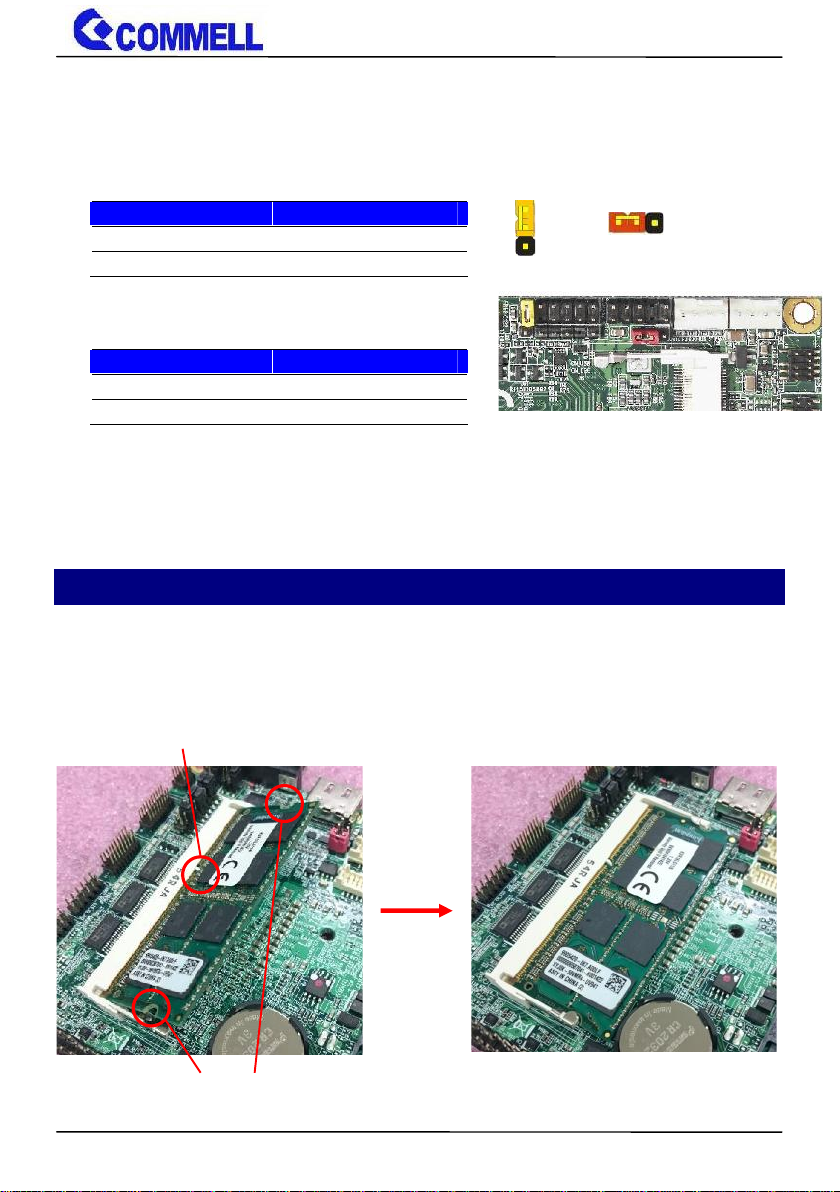

2.2.2 <Clear CMOS and Power on type selection>
JRTC: Clear CMOS data jumper
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
2.3 <Installing the Memory>
In the process, the board must be powered off.
1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
JAT JRTC
3
1
1
3
Key
Mounting notch
Press down
Page 12
LE-37H User’s Manual
-11-

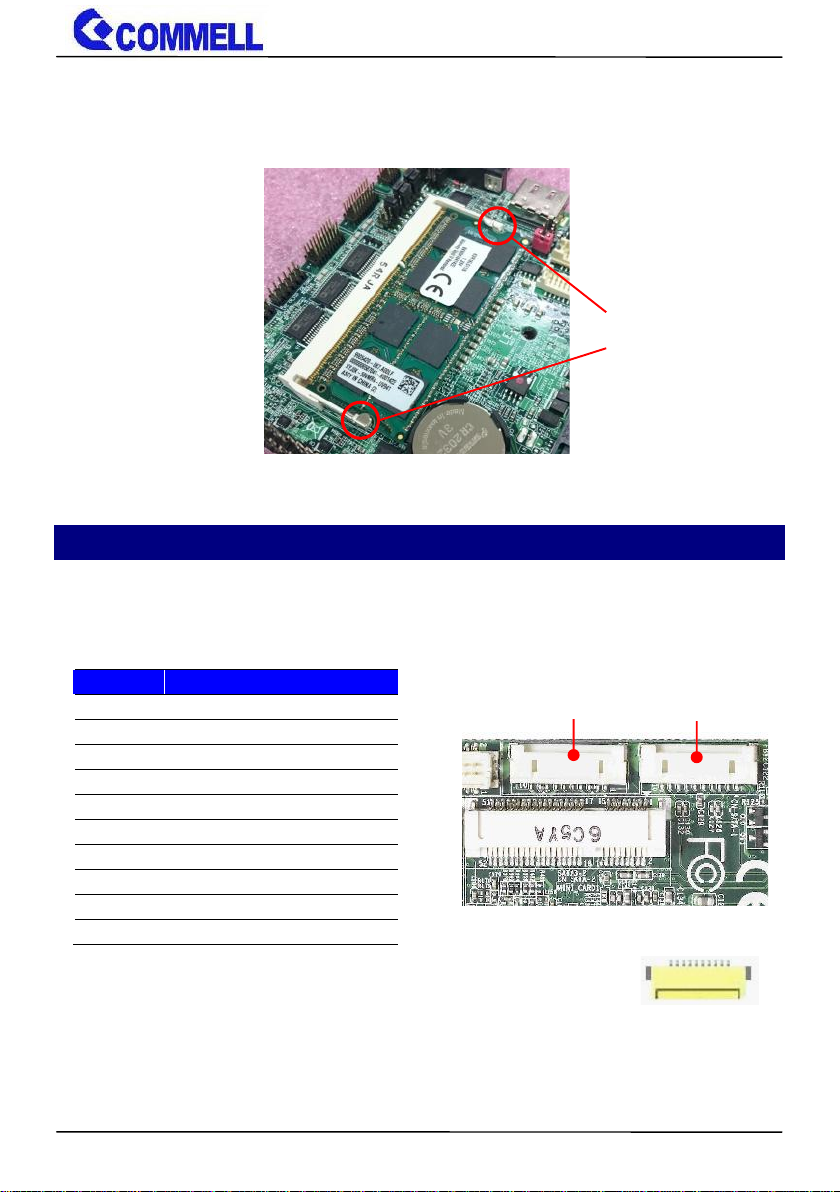

3. To remove the memory, push outward on both sides of the latch.
2.4 <I/O interface>
2.4.1 <Serial ATA interface>
CN_SATA: SATA3 10-pin connector
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
NC
6
NC
7
GND
8
RX-
9
RX+
10
GND
CN_SATA1/2
10 1
Latch
CN_SATA2 CN_SATA1
Page 13
LE-37H User’s Manual
-12-
2.4.2 <Ethernet interface>
The board provide I210-AT Gigabit Ethernet which supports WOL on rear I/O.
Find the setting from
Front PageSetup utility
AdvancedSouth Cluster Configuration Miscellaneous Configuration
Wake on LAN [Disable] (default)
(You have to turn off fast startup in Windows10)

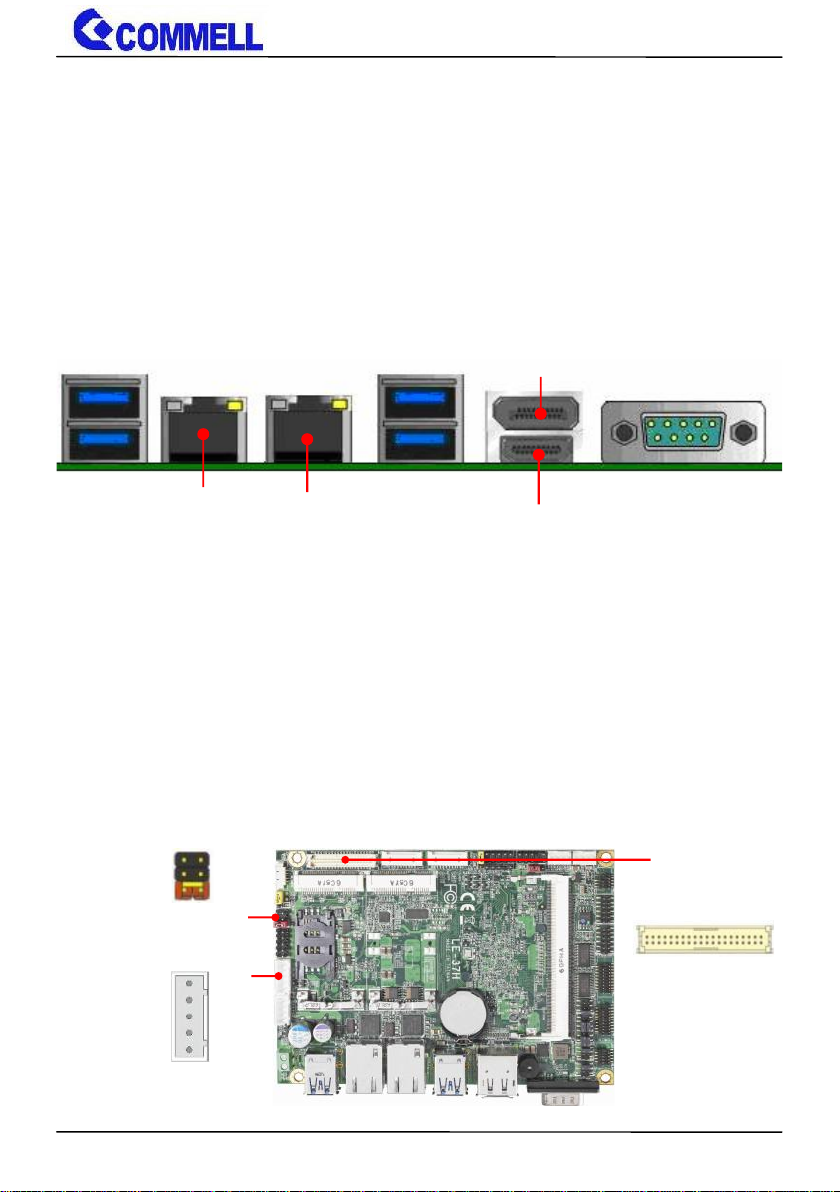

2.4.3 <Display interface>
Based on the Apollo Lake SoC with built-in HD Graphics, the DisplayPort1.2 up to
4096x2160 @ 60Hz on rear I/O.About the internal Display, the HDMI1.4b
resolution up to 3840x2160 @ 30Hz and LVDS (PTN3460) up to 1920x1200 @
60Hz support 18/24-bit color depth and single/dual channel. About select LCD
Panel Type in BIOS, please refer Appendix C.The built-in HD Graphics support
triple display function with clone mode and extended mode.
CN_LVDS
40
1
39
2
I210-AT I210-AT
HDMI
DISPLAY PORT
CN_INV
1
5
JVLCD
6
5
2
1
Page 14
LE-37H User’s Manual
-13-
JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
2-3
5V
5-6
12V
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
1
Set by JVLCD
2
Set by JVLCD
3
GND
4
Detect (Active low)
5
B_LVDS_0-
6
A_LVDS_0-
7
B_LVDS_0+
8
A_LVDS_0+
9
GND10GND
11
B_LVDS_1-
12
A_LVDS_1-
13
B_LVDS_1+
14
A_LVDS_1+
15
GND16GND
17
B_LVDS_2-
18
A_LVDS_2-
19
B_LVDS_2+
20
A_LVDS_2+
21
GND22GND
23
B_LVDS_3-
24
A_LVDS_CLK-
25
B_LVDS_3+
26
A_LVDS_CLK+
27
GND28GND
29
B_LVDS_CLK-
30
A_LVDS_3-
31
B_LVDS_CLK+
32
A_LVDS_3+
33
GND34GND
35NC36
LVDS_DDCSCL
37NC38
LVDS_DDCSDA
39NC40
NC
Pn4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
12V
2
Backlight Control
3
GND
4
GND
5
Enable Backlight
Page 15
LE-37H User’s Manual
-14-

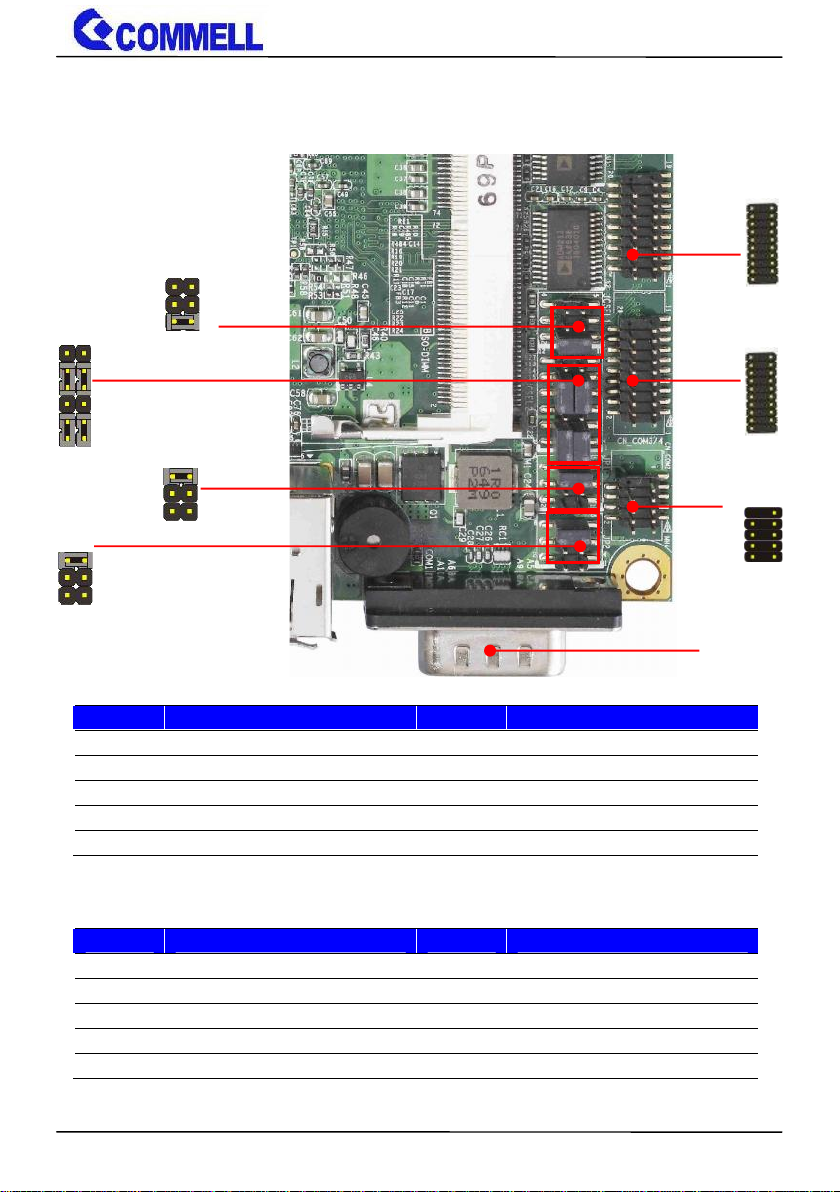

2.4.4 <Serial Port interface>
COM1: RS232 DB9 connector
Pin
Signal
Pin
Signal
1
DCD2RXD
3
TXD4DTR
5
GND6DSR
7
RTS8CTS
9
Set by JP2
10
Key
CN_COM2: RS232/422/485 10-pin header (Pitch 1.27mm x 2.54mm)
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD/ 422RX+
4
DTR/ 422RX-
5
GND6DSR
7
RTS8CTS
9
Set by JP1
10
Key
Note: Use JCSEL1 and JCSEL2 to select communication mode
CN_COM2
129
10
1
2
19
20
CN_COM3/4
1
2
19
20
CN_COM5/6
JP1
2
5
6
1
JP2
2
5
6
1
2
11
12
1
JCSEL2
JCSEL1
2
5
6
1
COM1
Page 16
LE-37H User’s Manual
-15-
CN_COM3/4,5/6: RS232 20-pin header (Pitch 1.27mm x 2.54mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key

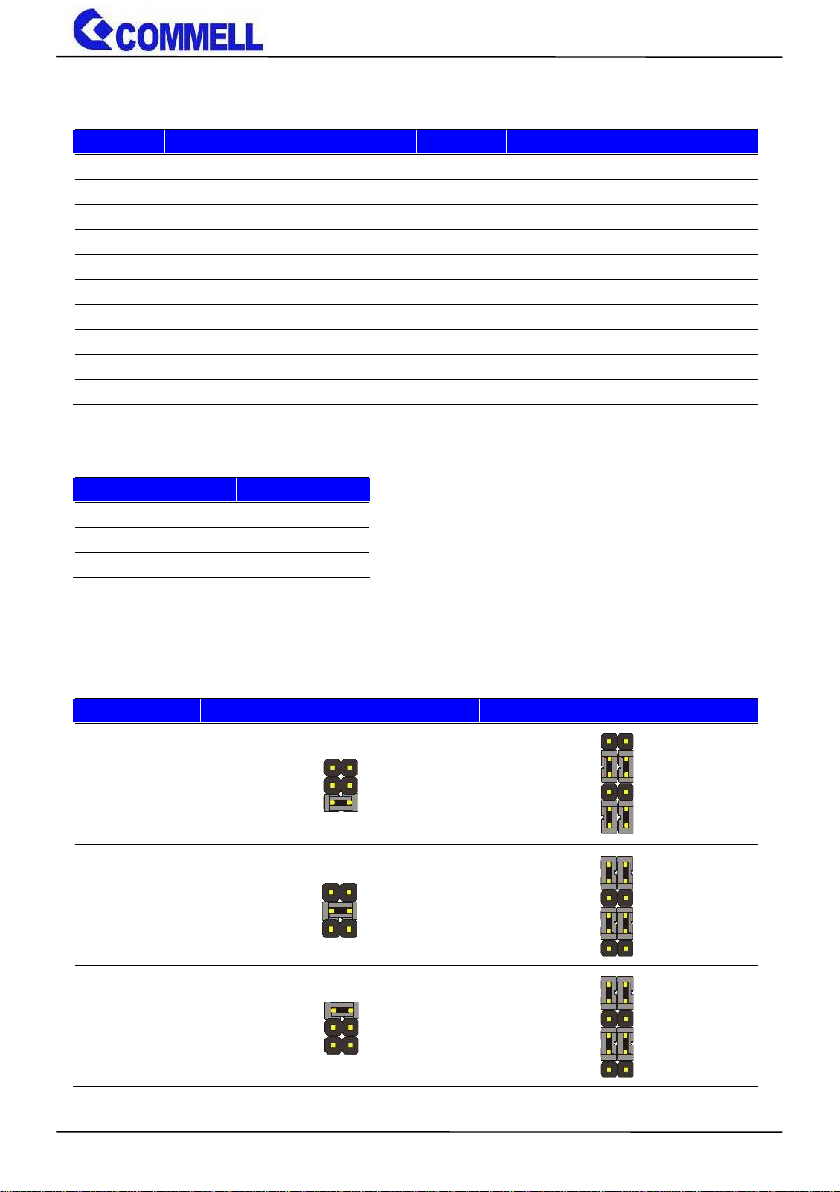

JP1, JP2: COM1, COM2 pin-9 setting
Jumper settings
Function
1-2
5V
3-4
12V
5-6
RI (Default)
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage
JCSEL1, JCSEL2: For configure COM2 communication mode
Function
JCSEL1
JCSEL2
RS232
RS485
RS422
256
1
2
5
6
1
2
5
6
1
2
1
11
12
2
1
11
12
2
1
11
12
Page 17
LE-37H User’s Manual
-16-

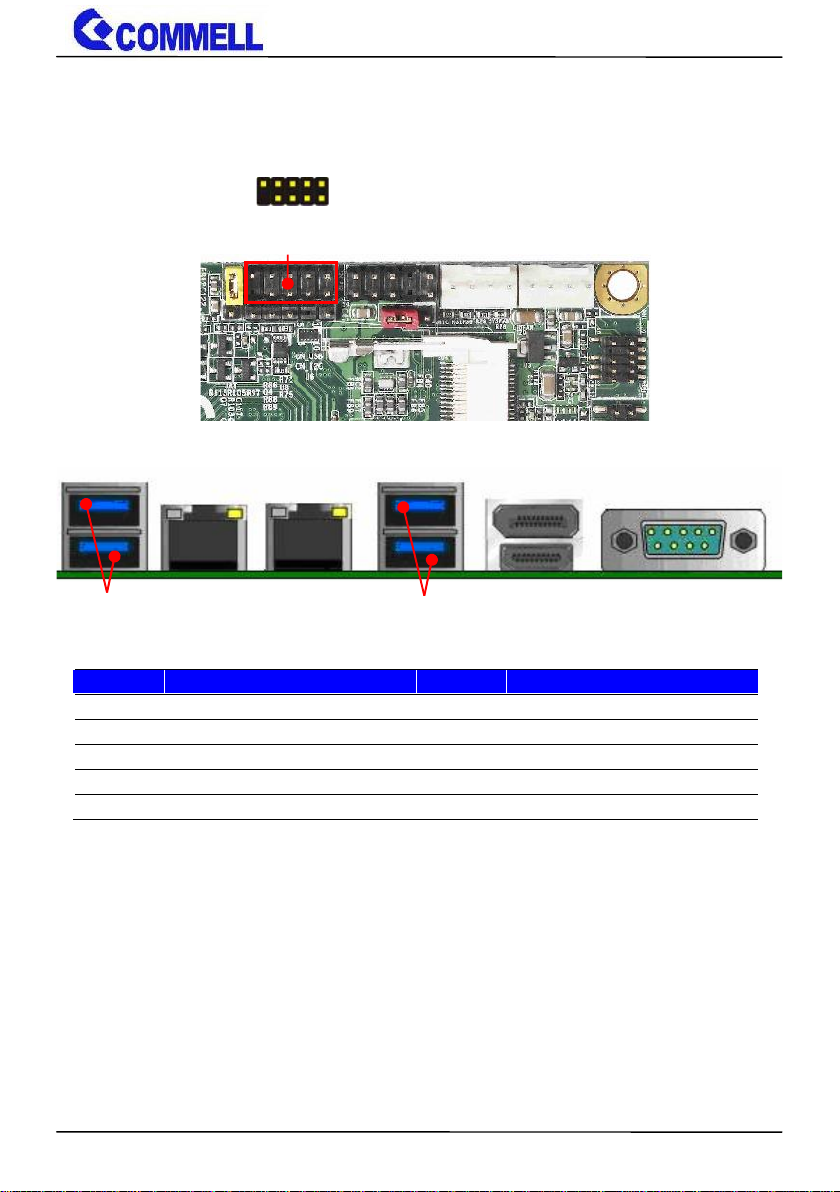

2.4.5 <USB interface>
CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND8GND
9
GND10Key
CN_USB
USB3.0
USB3.0
9 1
10 2
Page 18
LE-37H User’s Manual
-17-

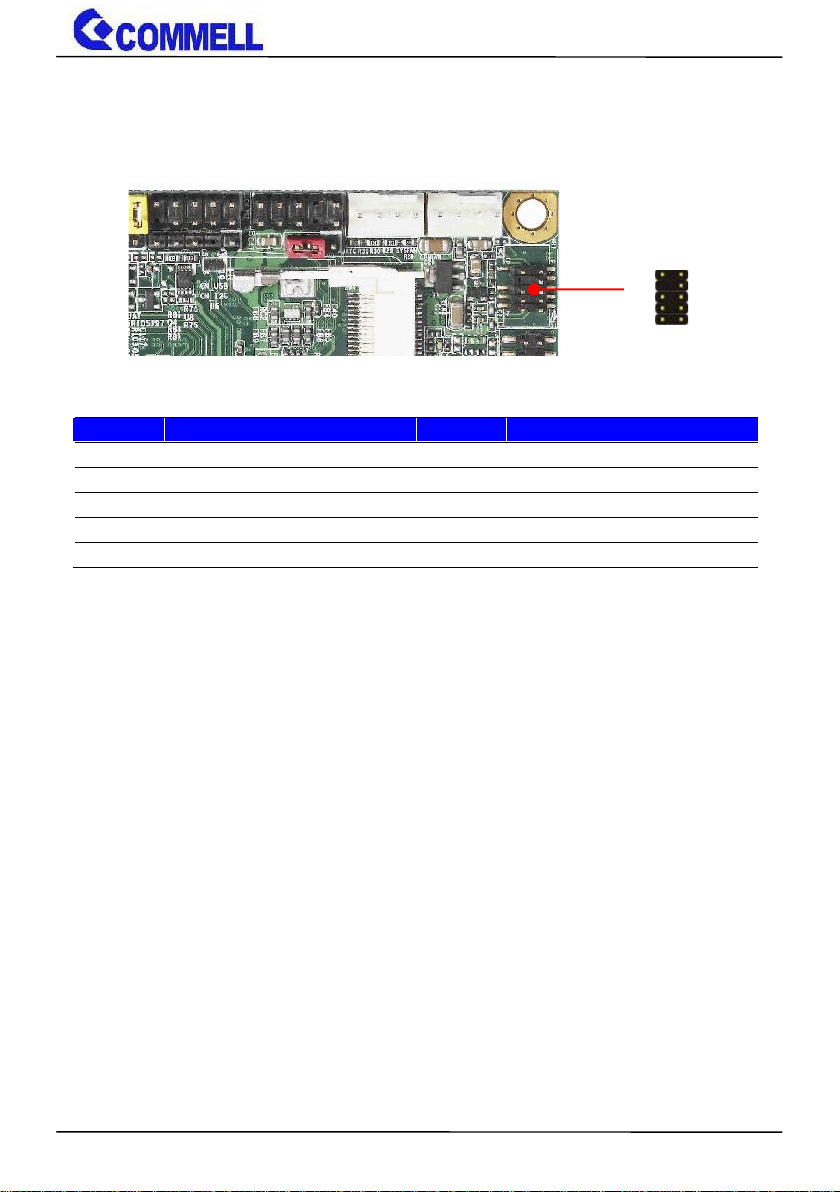

2.4.6 <Audio interface>
CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R4NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
CN_AUDIO
1102
9
Page 19
LE-37H User’s Manual
-18-

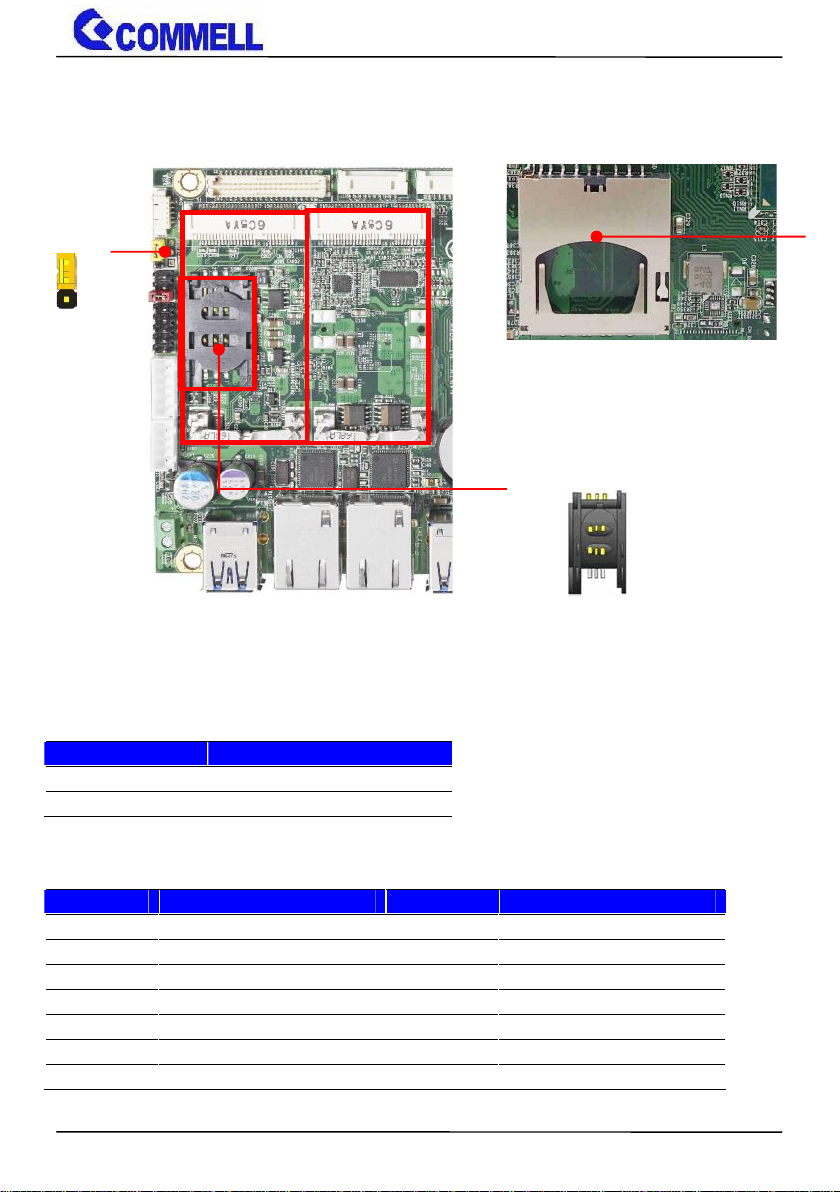

2.4.7 <Expansion slot>
MINI_CARD1 support mSATA by JMSATA
MINI_CARD2 connect SIM card with 3G module.
JMSATA: Setting MINI_CARD1 to support PCIe/mSATA
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
(CN_SATA2 cannot use when Minicard1 change to mSATA)
SD Slot:
Pin
Signal
Pin
Signal
1
SD_D3
2
SD_CMD
3
3.3V4NC
5
SD_CLK
6
GND
7
SD_D0
8
SD_D1
9
SD_D2
10
SD_CD
11
GND12GND
13
SD_WP
1
3
JMSATA
MINI_CARD1
MINI_CARD2
SIMM
SD Slot
1 3
5 7
SIMM
Page 20
LE-37H User’s Manual
-19-

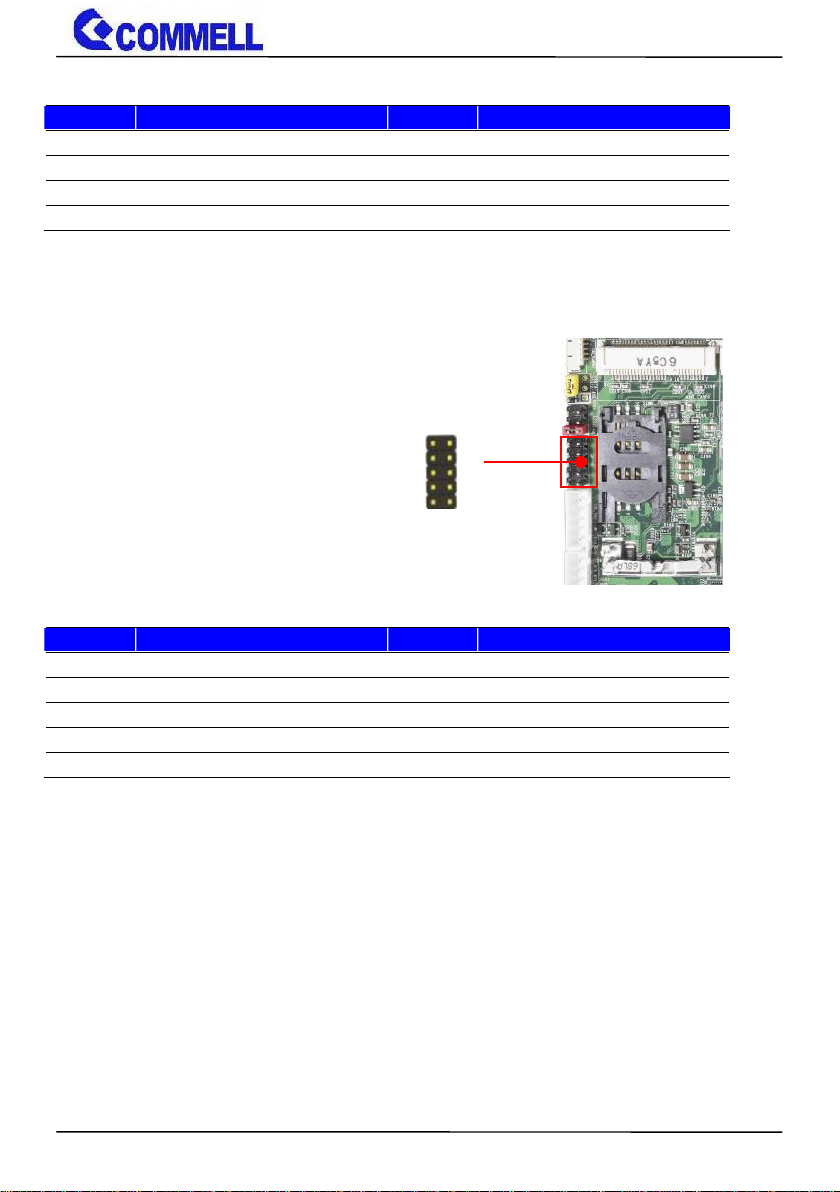

SIMM: (3G MiniPcie Mode)
Pin
Signal
Pin
Signal
1
SIMVCC
2
SIMRST
3
SIMCLK
4
NC
5
GND
6
SIMVPP
7
SIMDATA
2.4.8 <Front panel switch and indicator>
JFRNT: Front panel switch and indicator 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
Power_ON-
2
Power_ON+
3
Speaker-
4
Speaker+
5
HDD_LED-
6
HDD_LED+
7
Power_LED-
8
Power_LED+
9
Reset+
10
Reset-
JFRNT
9
2
1
10
Page 21
LE-37H User’s Manual
-20-

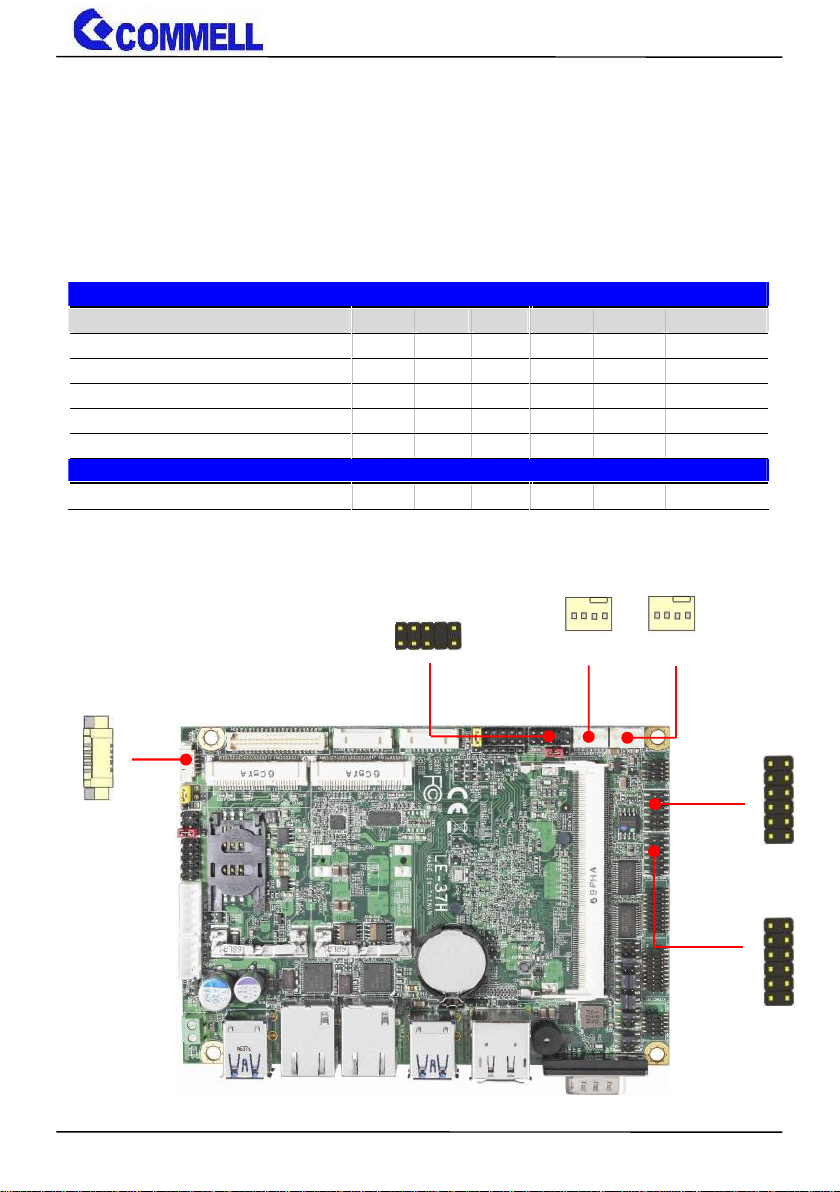

2.4.9 < GPIO ,SMBUS and Other Interface >
The board provides a programmable 8-bit digital I/O interface; you can use this general
purpose I/O port for system control like POS or KIOSK. The GPIO is an Open-drain output
and TTL-level input.
1. Output：Open-drain, Most applications need use an external pull-up resistor.
2. Input：TTL-level.
DC characteristics:
5V TTL-level Input Pin
Parameter
Sym
Min
Typ
Max
Unit
Conditions
Input Low Threshold Voltage
Vt-0.5
0.8
1.1
V
VCC=3.3V
Input High Threshold Voltage
Vt+1.6
2.0
2.4
V
VCC=3.3V
Hystersis
VTH0.5
1.2
V
VCC=3.3V
Input High Leakage
I
LIH
+10
μA
VIN= 3.3V
Input Low Leakage
I
LIL
-10
μA
VIN= 0V
Open-drain output pin with 12-mA sink capability
Output Low Voltage
VOL0.4
V
IOL = 12 mA
CN_LPC
1122
11
CN_SMBUS
1
5
1
4
1
4
CN_DIO
1122
11
CN_PS2 SYSFAN CPUFAN
2
10
1
9
Page 22
LE-37H User’s Manual
-21-
CN_LPC: LPC 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
CLK2RST
3
-LFRAME
4
LAD3
5
LAD2
6
LAD1
7
LAD0
8
3.3V
9
SERIRQ
10
GND
11
3.3VSB
12
NC
CN_DIO: GPIO 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
GND2GND
3
GPIO0
4
GPIO4
5
GPIO1
6
GPIO5
7
GPIO2
8
GPIO6
9
GPIO3
10
GPIO7
115V12
12V
CN_SMBUS: SMBus 5-pin connector
CN_PS/2: PS/2 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
KB_DATA
2
M_DATA
3NC4
NC
5
GND6GND
7
VCC8VCC
9
KB_CLK
10
M_CLK
Pin
Signal
1
5V
2
NC
3
SMBDAT
4
SMBCLK
5
GND
Page 23
LE-37H User’s Manual
-22-

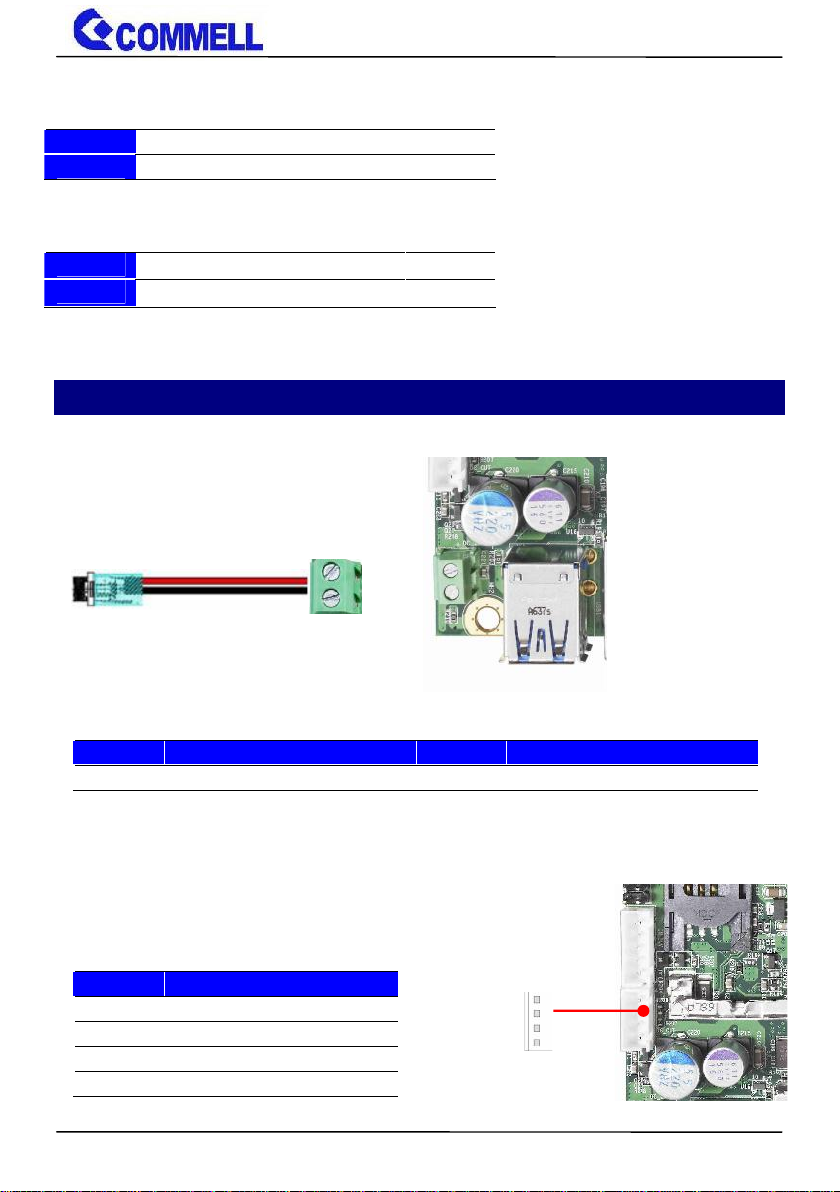

CPUFAN: CPU cooler fan 4-pin connector
Pin1234
Signal
GND
12V
Sensor
Control
SYSFAN: System cooler fan 4-pin connector
Pin1234
Signal
GND
12V
Sensor
Control
2.5 <Power supply>
2.5.1 <Power input>
DC_IN: Terminal Block 2-pin power connector
Pin
Signal
Pin
Signal
1
GND
2
Power in
The power support 6~35V wide voltage input.
2.5.2 <Power output>
DC_OUT: SATA power 4-pin connector
Pin
Signal
1
12V
2
GND
3
GND
4
5V
DC_IN
1
2
DC_OUT
4
1
+
_
1
4
Page 24
LE-37H User’s Manual
-23-
Appendix A <Flash BIOS>
A.1 BIOS Auto Flash Tool
The board is based on Insyde BIOS and can be updated easily by the BIOS auto flash
tool. You can download the tool online at the address below:
LE-37H DOS reflash tool
A.2 Flash Method
1. Please make a bootable UFD which can boot into DOS environment.
2. Unzip the flash tool and copy it into bootable UFD.
3. Add a bin file to the same folder..
4. Power on the system and flash the BIOS under the DOS environment.
(Command: H2OFFT xxx.bin -all)
5. Power off the system and then power on
Appendix B <Setup ADP-3355,ADP-3460>
LE-37HT Series have a CRT or 2nd LVDS, it’s no need install extra driver.For
further information, please refer to the manual.
ADP-3355 manual Link
ADP-3460 manual Link
Page 25
LE-37H User’s Manual
-24-

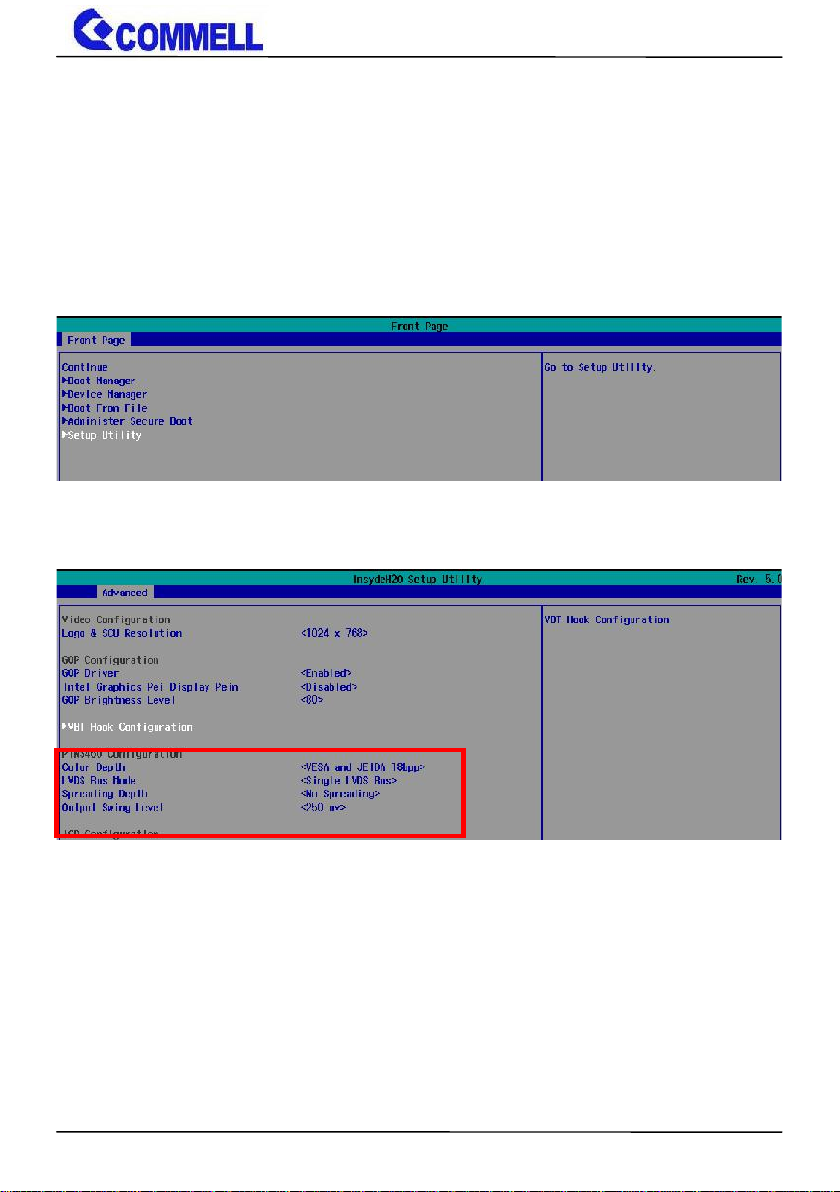

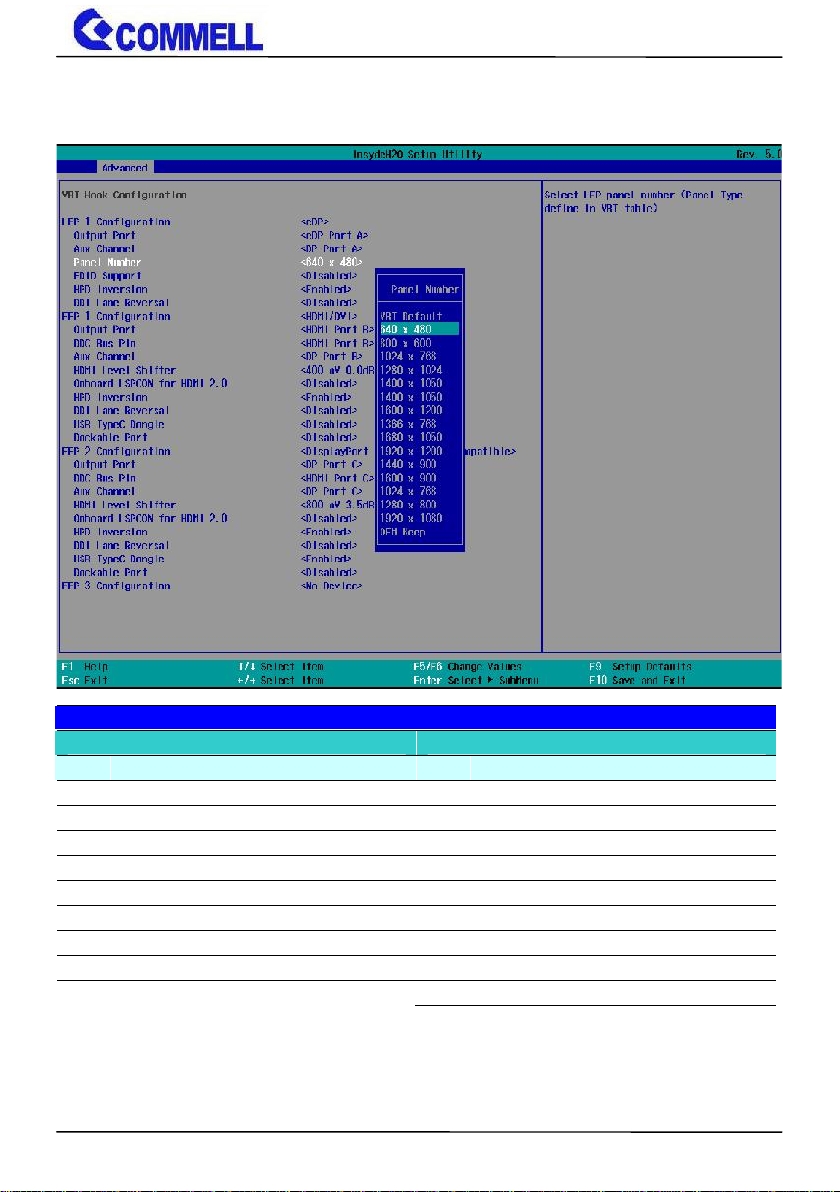

Appendix C <LCD Panel Type select>
According your panel, it need to select the correct resolution in the BIOS.
If there is no fit your panel type, please feedback for us to make OEM model.
Find the setting from
Fornt page-----> Setup Utility
Advanced-----> Uncore Configuration----->VBT Hook Configuration
You can change 18bit /24bit, Single /Dual channel in PTN3460 configuration
Page 26
LE-37H User’s Manual
-25-
There are 16 resolutions in Panel Number.
BIOS panel type selection form (BIOS Version:1.0)
Single / Dual channel
Single / Dual channel
NO.
Type
NO.
Type
1
Auto
9
1366 x 768
2
640 x 480
10
1680 x 1050
3
800 x 600
11
1920 x 1200
4
1024 x 768
12
1400 x 900
5
1280 x 1024
13
1600 x 900
6
1400 x 1050 Reduced Blanking
14
1024 x 768
7
1400 x 1050 non-Reduced Blanking
15
1280 x 800
8
1600 x 1200
16
1920 x 1080
17
OEM keep
Page 27
LE-37H User’s Manual
-26-
Appendix D <Programmable Watch Dog Timer>
Timeout value range
1 to 255 Minute and Second
Program sample
Watchdog timer setup as system reset with 5 second of timeout
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 08 ;select Logical Device
-o 4E 30
-o 4F 01 ; activate WDTO# function
-o 4E F0
-o 4F 00 ;set “00” is second mode, set “08” is minute mode
-o 4E F1
-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute
;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)
For further information, please refer to Nuvoton NCT6106D datasheet
…
Page 28
LE-37H User’s Manual
-27-
Appendix E <Programmable GPIO >
The GPIO’ can be programmed with the MS-DOS debug program using simple
IN/OUT commands.
GPIO01234567
bit01234567
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 07 ;select Logical Device
-o 4E 30
-o 4F 10 ;activate GPIO function (The board use GPIO4)
-o 4E F0
-o 4F XX ;set “01” GPIO as input, set “00” GPIO as output
-o 4E F1
-o 4F XX ;if set GPIO as output, this register’s value can be set “00~ FF”
Optional
-o 4E F2
-o 4F XX ;set “01”, the respective bit are inverted (Both input and output)
;set “00”, the respective bit are normal
For further information, please refer to Nuvoton NCT6106D datasheet
Page 29
LE-37H User’s Manual
-28-

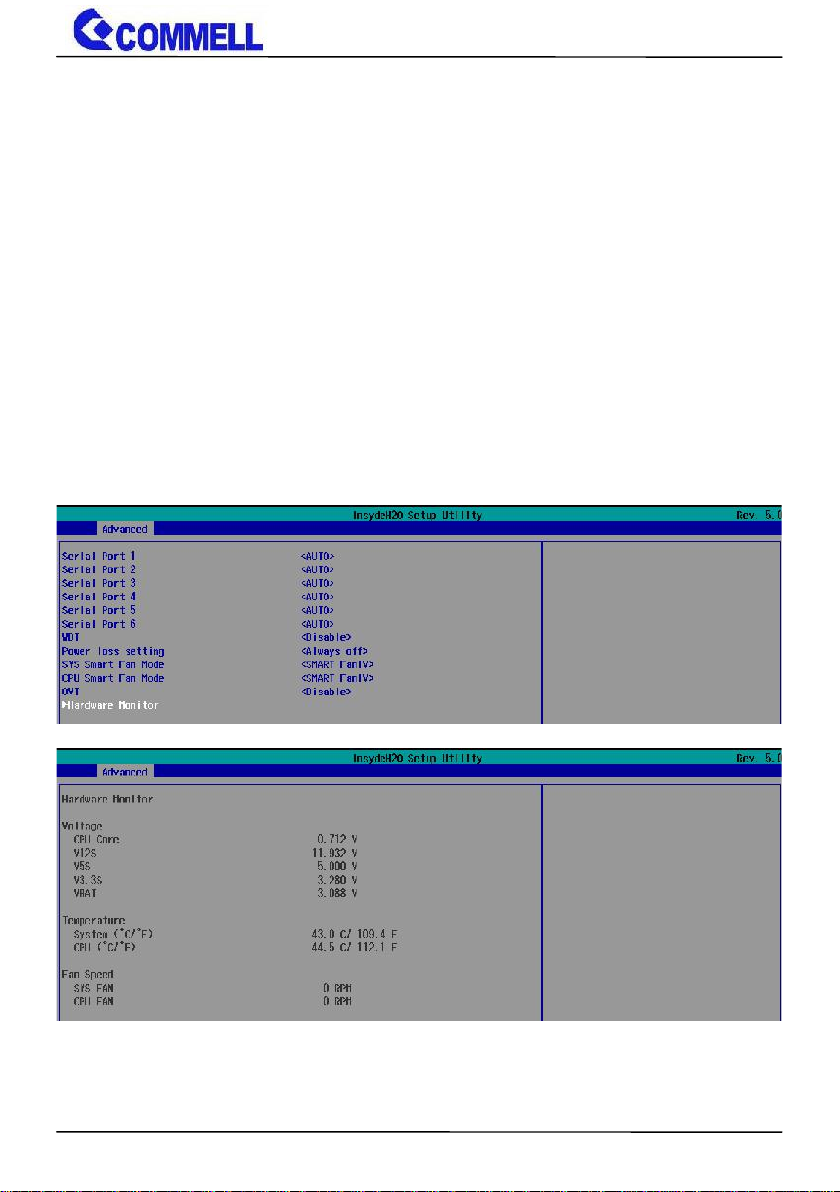

Appendix F <SuperIO Setting>
Press Delete to enter BIOS Setup menu
On Front Page screen, click Setup Utility
On Advanced screen, click SIO NUVOTON6106D
There are 5 functions in the page.
1.WDT(Watch Dog Timer)
2.Power Loss setting
3.Hardware monitor
4.Smart fan
5.OVT (Over temperature)
Page 30
LE-37H User’s Manual
-29-
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
FAX
+886-2-26963911
Website
www.commell.com.tw
E-mail
Commell is a brand name of Taiwan Commate computer Inc.
Loading...
