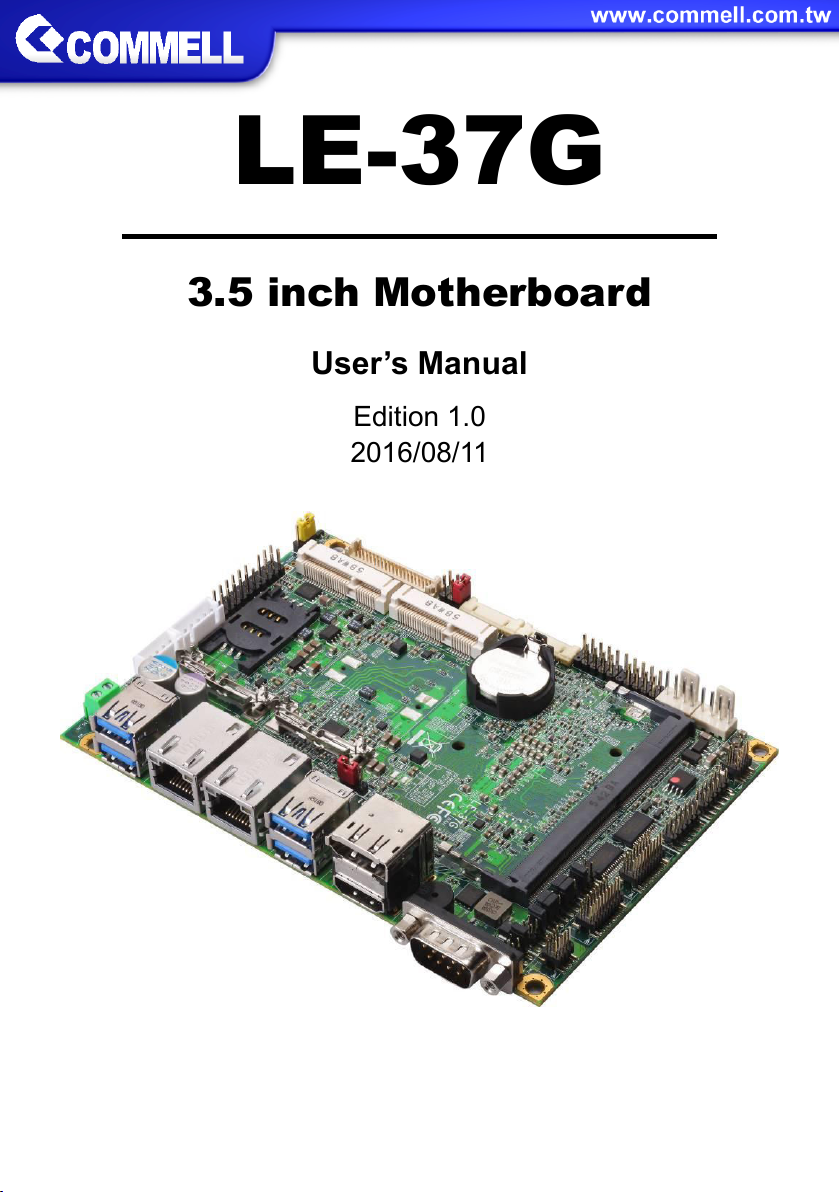

LE-37G
3.5 inch Motherboard
User’s Manual
Edition 1.0
2016/08/11
Page 2
LE-37G User’s Manual
-1-

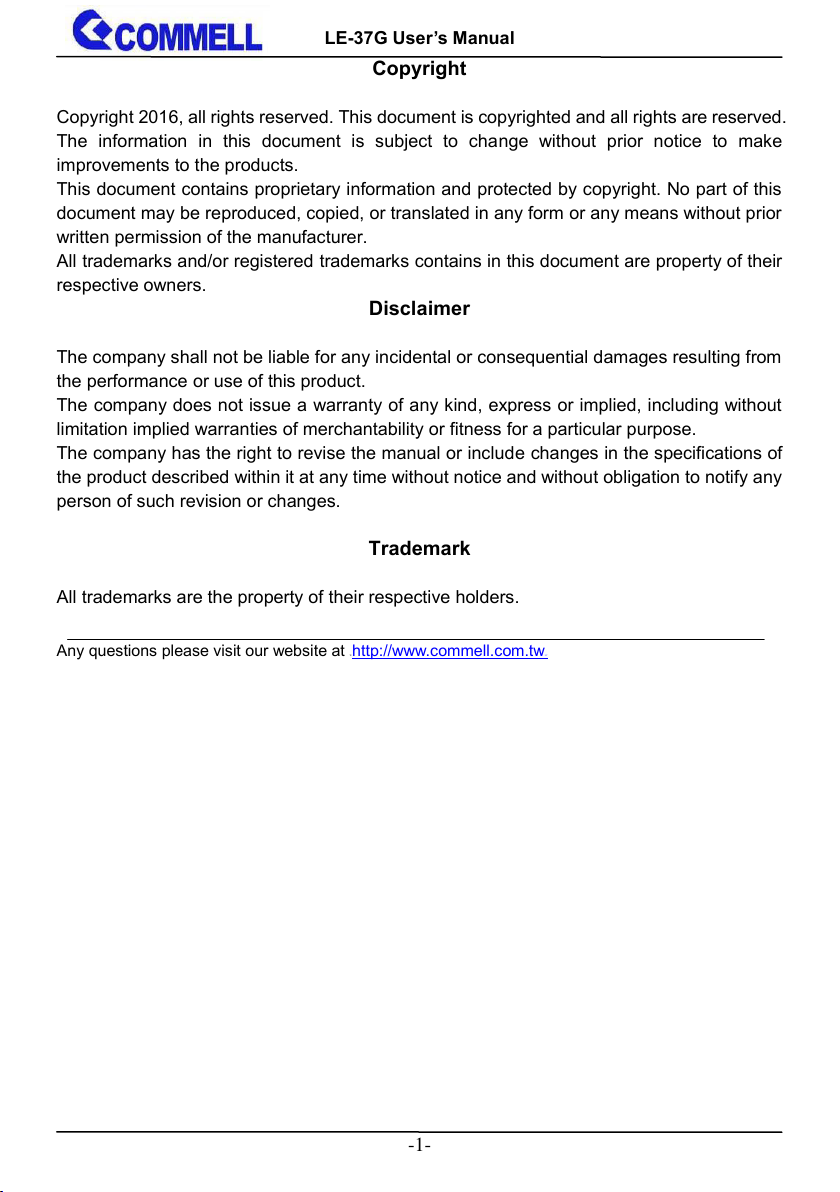

Copyright
Copyright 2016, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at
TUhttp://www.commell.com.twUT
Page 3
LE-37G User’s Manual
-2-
1 x LE-37G 3.5 inch Motherboard
(include Heat conductive sheet)
1 x SATA Cable
(OALSATA3-H10-L35 / 1040523)
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KM / 1040131)
1 xDC Input Power Cable
(OALDC-B / 1040513)
1 x Audio cable
(OALPJ-HDUNB / 1040123)
1 x Dual COM cable
(OALES-BKU2NB / 1040090)
1 x COM Cable
(OALES-BKU1NB / 1040086)
1 x SATA Power Cable
(OALSATA15-2PJ / 1040613)
1 xUSB2.0 cable
(OALUSBA-3 / 1040173)
Packing List:
Please check the package content before you starting using the board.
Optional:
Printed Matters:
Driver CD x 1 (Including User’s Manual)
Page 4
LE-37G User’s Manual
-3-

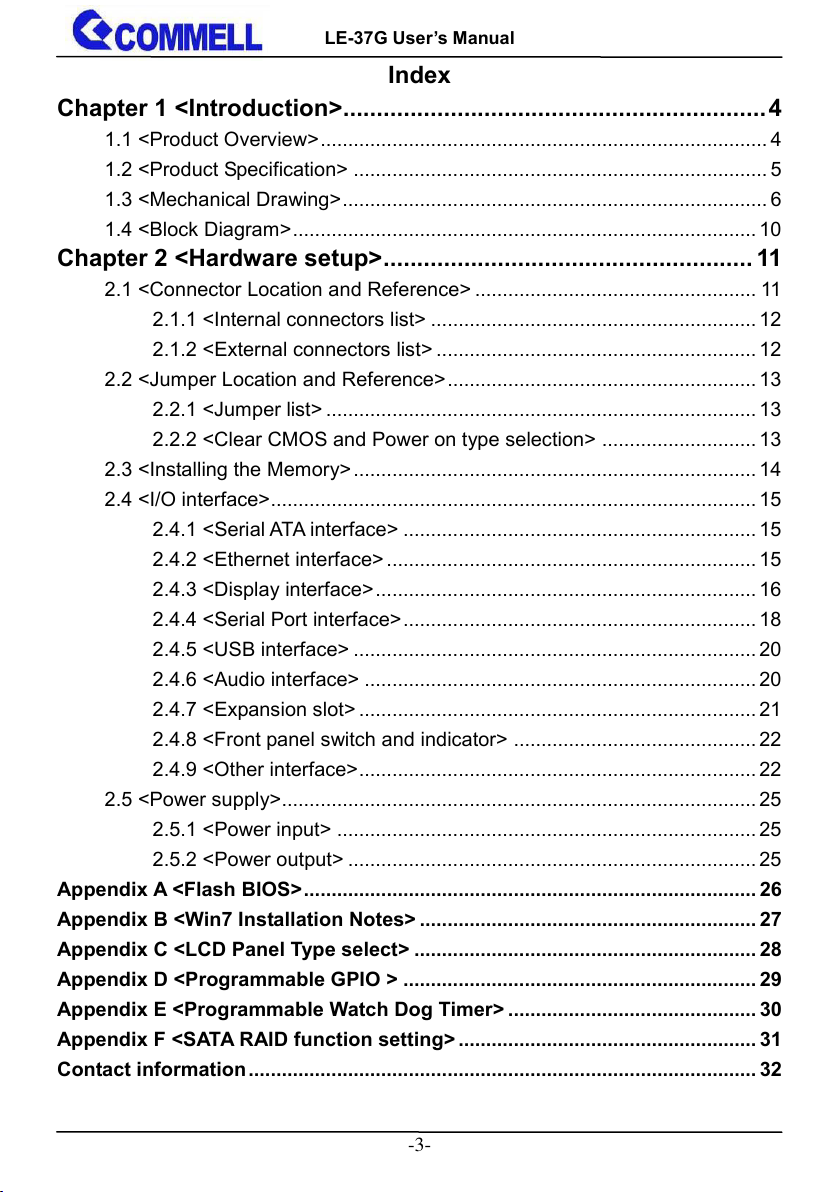

Index
Chapter 1 <Introduction>............................................................... 4
1.1 <Product Overview> ................................................................................. 4
1.2 <Product Specification> ........................................................................... 5
1.3 <Mechanical Drawing> ............................................................................. 6
1.4 <Block Diagram> .................................................................................... 10
Chapter 2 <Hardware setup> ....................................................... 11
2.1 <Connector Location and Reference> ................................................... 11
2.1.1 <Internal connectors list> ........................................................... 12
2.1.2 <External connectors list> .......................................................... 12
2.2 <Jumper Location and Reference> ........................................................ 13
2.2.1 <Jumper list> .............................................................................. 13
2.2.2 <Clear CMOS and Power on type selection> ............................ 13
2.3 <Installing the Memory> ......................................................................... 14
2.4 <I/O interface> ........................................................................................ 15
2.4.1 <Serial ATA interface> ................................................................ 15
2.4.2 <Ethernet interface> ................................................................... 15
2.4.3 <Display interface> ..................................................................... 16
2.4.4 <Serial Port interface> ................................................................ 18
2.4.5 <USB interface> ......................................................................... 20
2.4.6 <Audio interface> ....................................................................... 20
2.4.7 <Expansion slot> ........................................................................ 21
2.4.8 <Front panel switch and indicator> ............................................ 22
2.4.9 <Other interface> ........................................................................ 22
2.5 <Power supply>...................................................................................... 25
2.5.1 <Power input> ............................................................................ 25
2.5.2 <Power output> .......................................................................... 25
Appendix A <Flash BIOS> .................................................................................. 26
Appendix B <Win7 Installation Notes> ............................................................. 27
Appendix C <LCD Panel Type select> .............................................................. 28
Appendix D <Programmable GPIO > ................................................................ 29
Appendix E <Programmable Watch Dog Timer> ............................................. 30
Appendix F <SATA RAID function setting> ...................................................... 31
Contact information ............................................................................................ 32
Page 5
LE-37G User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LE-37G is 3.5 inch Motherboard which supports 6th Generation Intel® Core™ U-series i7, i5,
i3, Celeron Mobile Processor with Sunrise Point PCH-LP, integrated HD Graphics, DDR4
memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 with AHCI function
for a system.
Intel Skylake-U Processor with Sunrise Point PCH-LP
The 6th Generation Intel® Core™ U-series processor family is the next generation,
multi-core mobile processor built on 14 nanometer process with MCP technology.
The Skylake-U has a lower TDP 15W and 28W, it provides new HD Graphics (GT2 and GT3
GPU) support triple display at the same time, maximum supported is up to 32GB of DDR4
and DDR3L, better performance, flexibility and more enhanced security that is suitable for a
variety of intelligent systems the ideal choice.
All in One multimedia solution
The board provides high performance onboard graphics, 24-bit dual channel LVDS interface,
DisplayPort, HDMI, and High Definition Audio, to meet the very requirement of the
multimedia application.
Flexible Expansion Interface
The board provides two MiniPCIe and support mSATA, SIM.
Page 6
LE-37G User’s Manual
-5-
System
Processor
Intel® Skylake Core™ i7, i5, i3, Celeron U-series Processor
FCBGA1356 with MCP
Chipset
Sunrise Point-LP
Memory
1 x DDR4 SO-DIMM 1866/2133 MHz up to 16GB
Support Non-ECC memory
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
2 x MiniPCIe (Card2 support mSATA) and Card2 half-size choosable,
1 x SIM slot
Graphics
Chipset
Intel® Gen 9 integrated HD Graphics
Display Interface
1 x HDMI, 1 x LVDS, 1 x DisplayPort/VGA (Note)
LAN
Chip
1 x Intel® I210-AT Gigabit LAN
1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11.0)
I/O
Serial ATA
2 x SATA3 support RAID 0, 1
Audio
Realtek ALC262 HD Audio
Digital I/O
Programmable 8-bit GPIO with 12 pin-header
Internal I/O
2 x SATA3, 1 x RS232/422/485, 4 x RS232, 1 x PS/2, 4 x USB2.0,
1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x SMBUS, 1 x DIO, 1 x Audio,
1 x DC Out, 1 x VGA for optional
Rear I/O
1 x RS232, 1 x HDMI, 1 x DisplayPort for optional, 4 x USB3.0, 2 x LAN
Mechanical & Environmental
Power Requirement
DC input 9~24V
Size & Thickness
146mm x 101mm (L x W), 1.6mm
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing
1.2 <Product Specification>
Note: If you need to change DisplayPort to VGA, it requires Commell ADP-3355 DP to VGA module.
Page 7
LE-37G User’s Manual
-6-

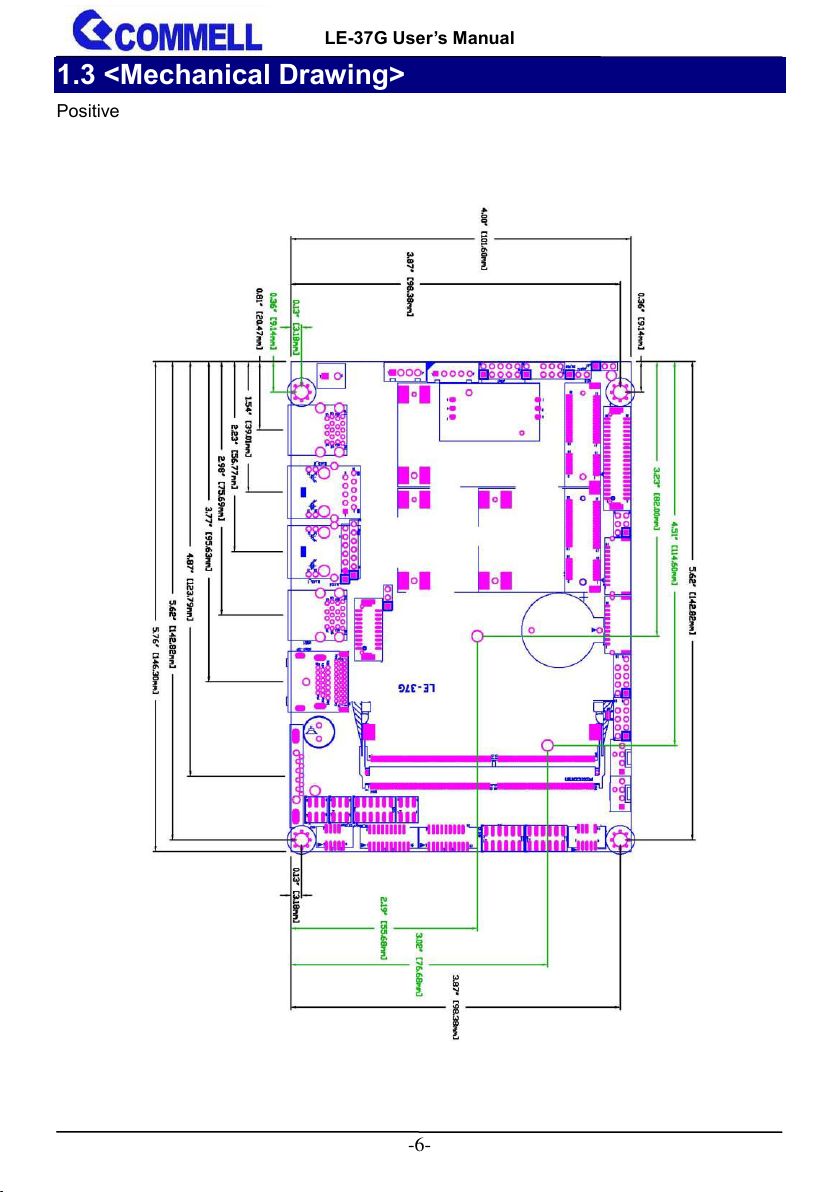

1.3 <Mechanical Drawing>
Positive
Page 8
-7-
Back
LE-37G User’s Manual
Page 9
-8-
I/O
LE-37G User’s Manual
Page 10
LE-37G User’s Manual
-9-
CPU
6
th
Gen Processor
PCH-LP
DDR4
SO-DIMM
1 x DisplayPort
PTN3460
1 x LVDS
SIO
NCT6106D
DDI3
Channel A
eDP1
2 x SATA3
SATA3
4 x USB3.0
4 x USB2.0
USB3.0
USB2.0
SPI Flash
SPI
PCIe x1
I219-LM
HDA
HD Audio
PCIe x1
SATA3
LPC
1 x LPC
ALC262
5 x RS232
1 x SMBUS
1 x PS/2
I210-AT
PCIe x1
MiniCard1
PCIe x1
MiniCard2
1 x RS232/422/485
1 x DIO
SMBUS
GPIO
DDI2
Cable
ADP3355
1 x VGA
1 x HDMI

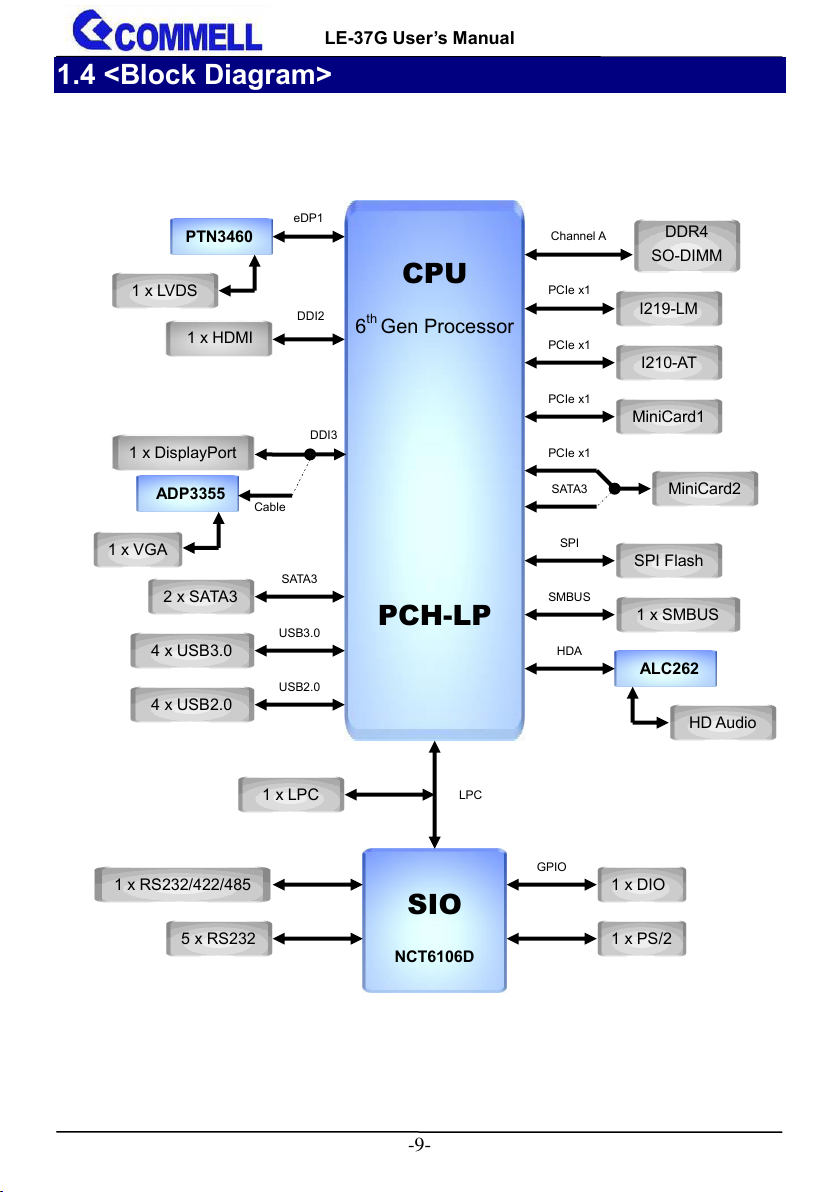

1.4 <Block Diagram>
Page 11
LE-37G User’s Manual
-10-
CN_LVDS
MINI_CARD1
CN_LPC
CN_AUDIO
DC_IN
CN_USB1
JFRNT
SATA3-2
CN_COM5/6
CN_INV
DC_OUT
CPUFAN
SMBUS
MINI_CARD2
CN_COM3/4
CN_COM2
CN_DIO
SO-DIMM
CN_PS2
SATA3-1
CN_USB2
COM1
DisplayPort
HDMI
USB2
SIMM
USB1
LAN2
LAN1
SYSFAN
CN_DVI
CN_DP
Chapter 2 <Hardware setup>
2.1 <Connector Location and Reference>
Page 12
LE-37G User’s Manual
-11-
Connector
Function
SO-DIMM
260-pin DDR4 SO-DIMM slot
SATA3-1/2
10-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LPC
6 x 2-pin LPC pin header
CN_DIO
6 x 2-pin General Purpose In/Out pin header
CN_LVDS
20 x 2-pin LVDS connector
CN_DVI
10 x 2-pin DVI-D connector for optional
CN_DP
11 x 1-pin DP to VGA module connector for optional
CN_INV
5-pin LCD inverter connector
CN_COM2
10-pin RS232/422/485 connector
CN_COM3/4
20-pin RS232 connector
CN_COM5/6
20-pin RS232 connector
CN_USB1/2
5 x 2-pin USB2.0 pin header
CN_PS2
5 x 2-pin PS/2 pin header
SMBUS
5-pin SMBus connector
SIMM
6-pin SIM card slot
CPUFAN
4-pin CPU fan connector
SYSFAN
4-pin system fan connector
JFRNT
5 x 2-pin front panel switch/indicator pin header
MINI_CARD1/2
52-pin MiniPCIe card slot
DC_OUT
4-pin SATA Power connector
DC_IN
2-pin power input Terminal Block
Connector
Function
COM1
DB9 connector
HDMI-DP
DisplayPort and HDMI dual layer connector
USB1
2 x USB3.0 connector
USB2
2 x USB3.0 connector
LAN1
RJ45 connector
LAN2
RJ45 connector
2.1.1 <Internal connectors list>
2.1.2 <External connectors list>
Page 13
LE-37G User’s Manual
-12-
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard2 mSATA Setting
JCSEL1/2
CN_COM2 RS232/422/485 select
JP1/2
COM1 and CN_COM2 9-pin setting
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
JRTC
JVLCD
JAT
JMSATA
JP2
JP1
JCSEL1
JCSEL2
2.2 <Jumper Location and Reference>
2.2.1 <Jumper list>
2.2.2 <Clear CMOS and Power on type selection>
JRTC: Clear CMOS data jumper
JAT: AT/ATX mode select jumper
Page 14
LE-37G User’s Manual
-13-
Key
Mounting notch
Press down
Latch

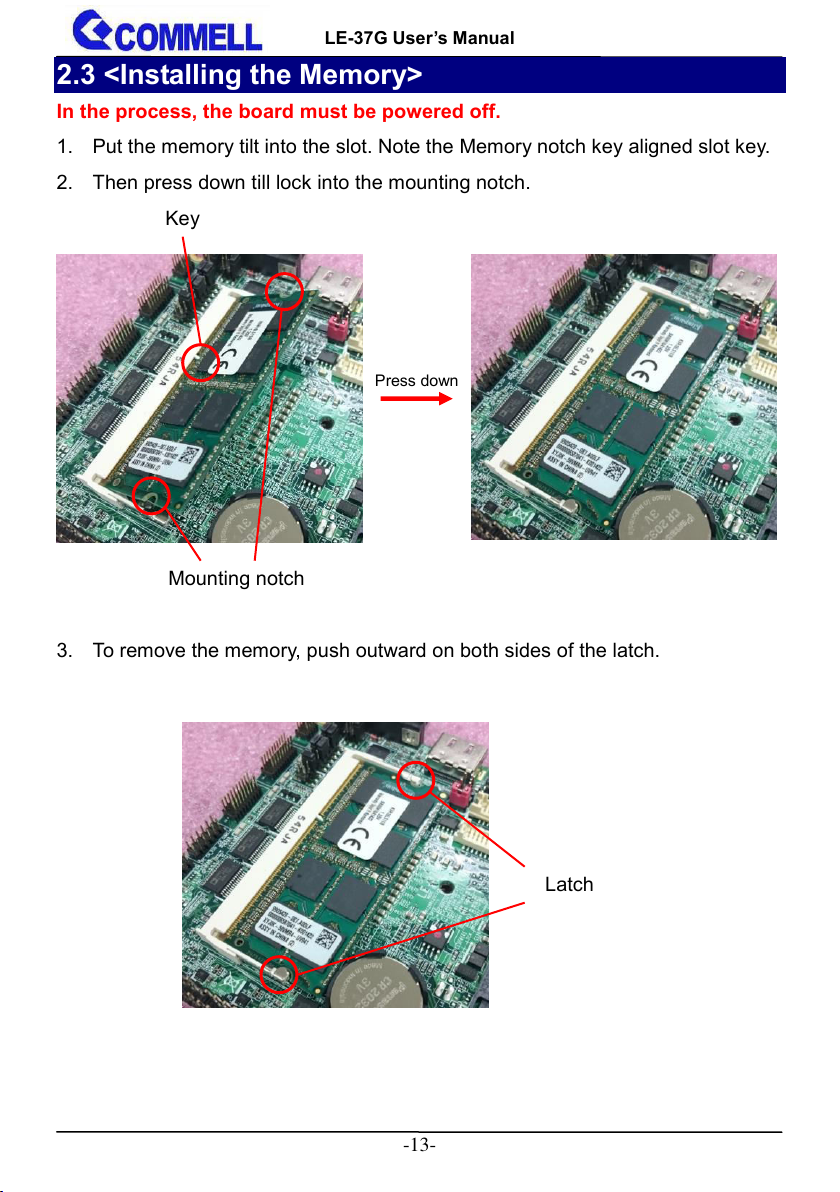

2.3 <Installing the Memory>
In the process, the board must be powered off.
1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
3. To remove the memory, push outward on both sides of the latch.
Page 15
LE-37G User’s Manual
-14-
I219-LM
SATA3-1
SATA3-2
I210-AT

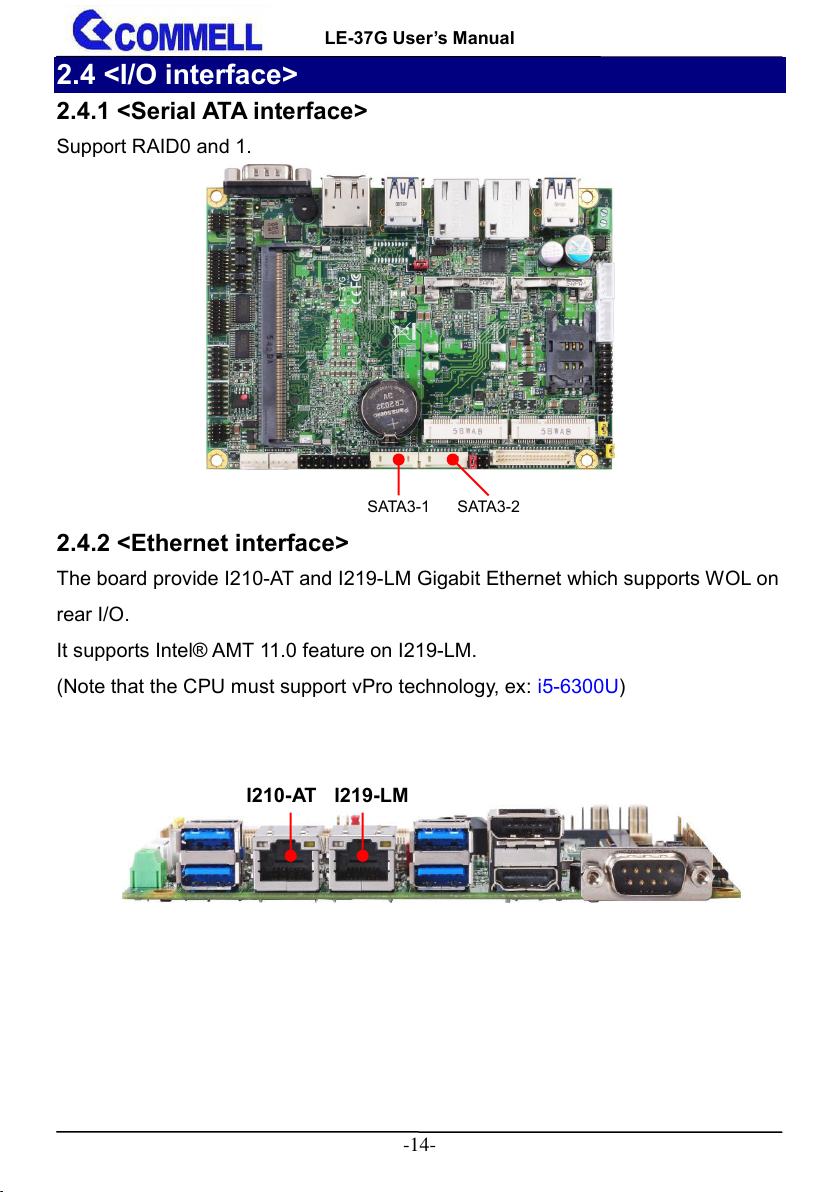

2.4 <I/O interface>
2.4.1 <Serial ATA interface>
Support RAID0 and 1.
2.4.2 <Ethernet interface>
The board provide I210-AT and I219-LM Gigabit Ethernet which supports WOL on
rear I/O.
It supports Intel® AMT 11.0 feature on I219-LM.
(Note that the CPU must support vPro technology, ex:
i5-6300U)
Page 16
LE-37G User’s Manual
-15-
Pin
Signal
Pin
Signal
1
5V 2 NC
3
HPD
4
GND
5
TMDS_TX0-
6
TMDS_TX0+
7
GND
8
TMDS_TX1-
9
TMDS_TX1+
10
GND
11
TMDS_TX2-
12
TMDS_TX2+
13
GND
14
TMDS_CLK-
15
TMDS_CLK+
16
GND
17
SDA
18
SCL
19
NC
20
NC
CN_DVI
CN_LVDS
1
40
JVLCD
2
39
1
19
2
20
5
1
HDMI-DP
6
2
optional
CN_DP
CN_INV
1
5
2.4.3 <Display interface>
Based on the 6th Gen CPU with built-in HD Graphics, the DisplayPort resolution
up to 3840x2160 @ 60Hz or 4096x2304 @ 60Hz, the HDMI up to 4096x2304 @
24Hz and LVDS up to 1920x1200 @ 60Hz support 18/24-bit color depth and dual
channel. About select LCD Panel Type in BIOS, please refer
Appendix C.
The VGA resolution is up to 2048x1536 @50Hz.
The built-in HD Graphics support triple display function with clone mode and
extended mode.
Note1: The HDMI-DP dual layer connector can be changed HDMI & CN_DP to use
VGA module.
Note2: The HDMI can be changed CN_DVI connector.
CN_DVI: DVI 20-pin connector
Page 17
LE-37G User’s Manual
-16-
Pin
Signal
Pin
Signal
2
Set by JVLCD
1
Set by JVLCD
4
Detect (Active low)
3
GND
6
A_LVDS_0-
5
B_LVDS_0-
8
A_LVDS_0+
7
B_LVDS_0+
10
GND
9
GND
12
A_LVDS_1-
11
B_LVDS_1-
14
A_LVDS_1+
13
B_LVDS_1+
16
GND
15
GND
18
A_LVDS_2-
17
B_LVDS_2-
20
A_LVDS_2+
19
B_LVDS_2+
22
GND
21
GND
24
A_LVDS_CLK-
23
B_LVDS_3-
26
A_LVDS_CLK+
25
B_LVDS_3+
28
GND
27
GND
30
A_LVDS_3-
29
B_LVDS_CLK-
32
A_LVDS_3+
31
B_LVDS_CLK+
34
GND
33
GND
36
LVDS_DDCSCL
35
NC
38
LVDS_DDCSDA
37
NC
40
NC
39
NC
Pin
Signal
1
12V
2
Backlight Control
3
GND
4
GND
5
Enable Backlight
Jumper settings
Function
1-2
3.3V (Default)
3-4
5V
5-6
12V

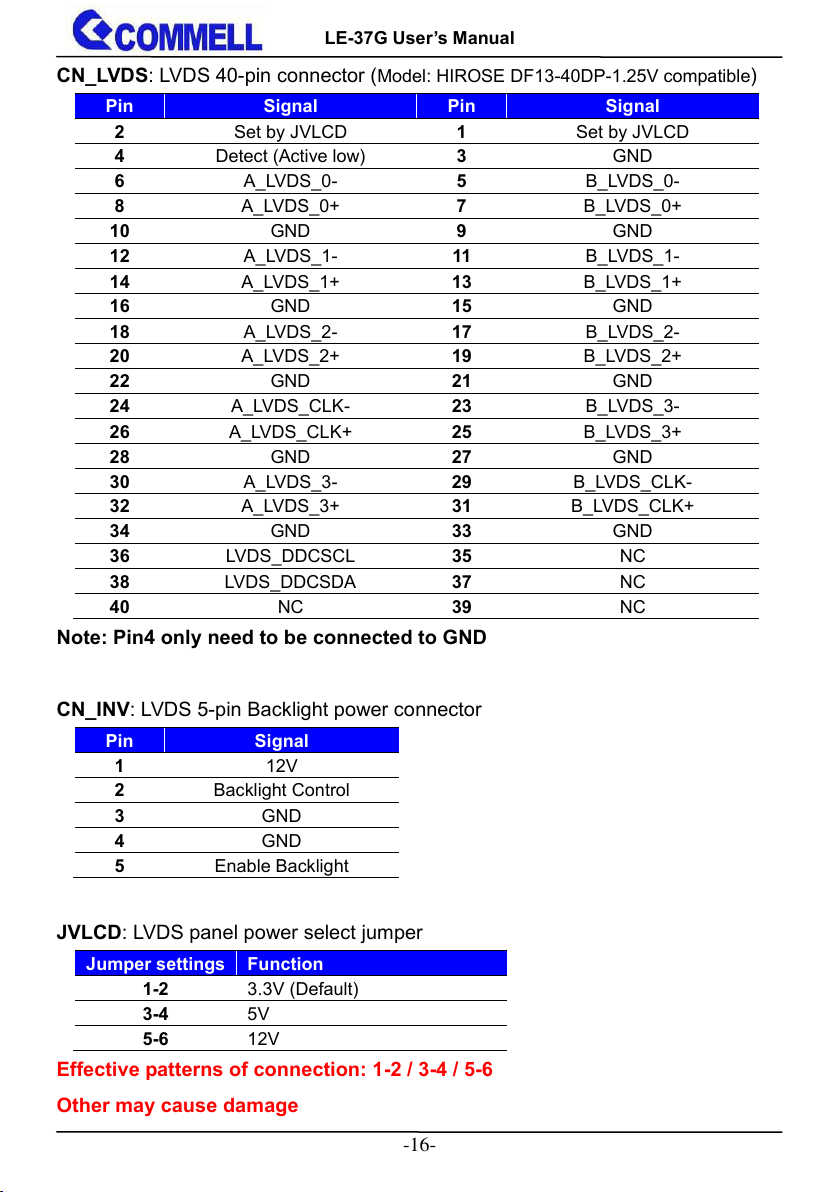

CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Note: Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
JVLCD: LVDS panel power select jumper
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage
Page 18
LE-37G User’s Manual
-17-
Pin
Signal
Pin
Signal
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
Set by JP1
10
Key
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD/ 422RX+
4
DTR/ 422RX-
5
GND
6
DSR
7
RTS
8
CTS
9
Set by JP2
10
Key
CN_COM2
1
2
9
10
CN_COM3/4
CN_COM5/6
1
2
19
20
1
2
20
19
2
1
6
5
JP1
JP2
2 6 1
5
JCSEL1
1
2
11
12
JCSEL2
1
2
5
6
COM1

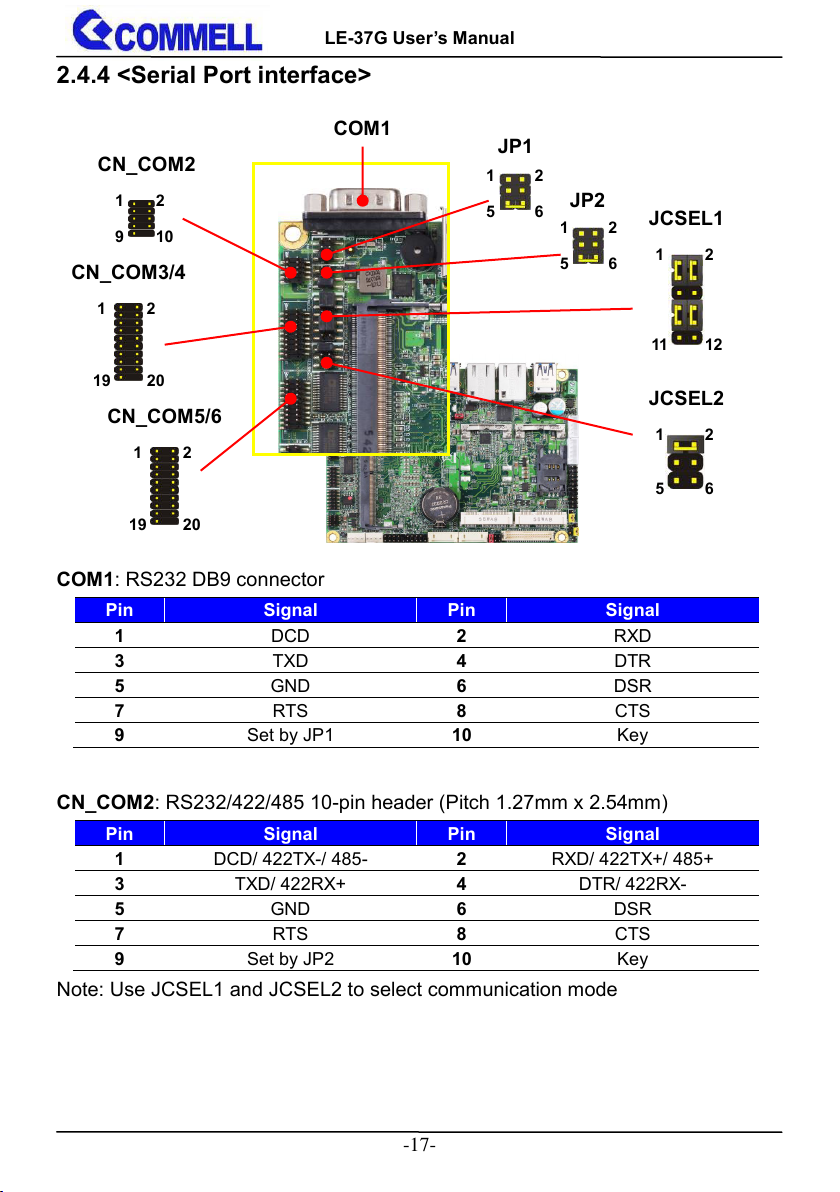

2.4.4 <Serial Port interface>
COM1: RS232 DB9 connector
CN_COM2: RS232/422/485 10-pin header (Pitch 1.27mm x 2.54mm)
Note: Use JCSEL1 and JCSEL2 to select communication mode
Page 19
LE-37G User’s Manual
-18-
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI1
10
NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI2
20
Key
Jumper settings
Function
1-2
5V
3-4
12V
5-6
RI (Default)
Function
JCSEL1
JCSEL2
RS232
RS485
RS422
1
12
1
12
1
12
6
1
5
1
5
1
2
11
2
11
2
11
2
2
2
5
6
6

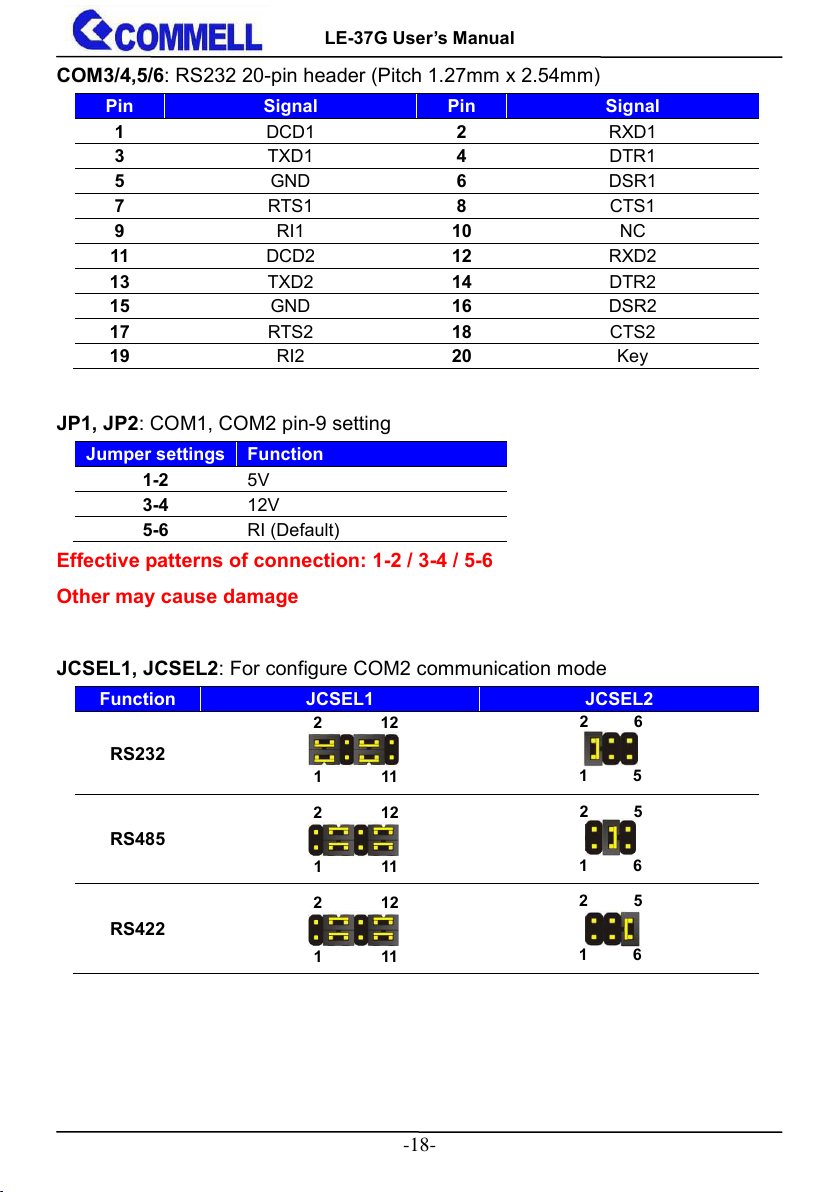

COM3/4,5/6: RS232 20-pin header (Pitch 1.27mm x 2.54mm)
JP1, JP2: COM1, COM2 pin-9 setting
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage
JCSEL1, JCSEL2: For configure COM2 communication mode
Page 20
LE-37G User’s Manual
-19-
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
9
GND
10
Key
CN_AUDIO
9
2
CN_USB2
1
10 1 2
9
USB1
10
CN_USB1
1 2 9
10
USB2

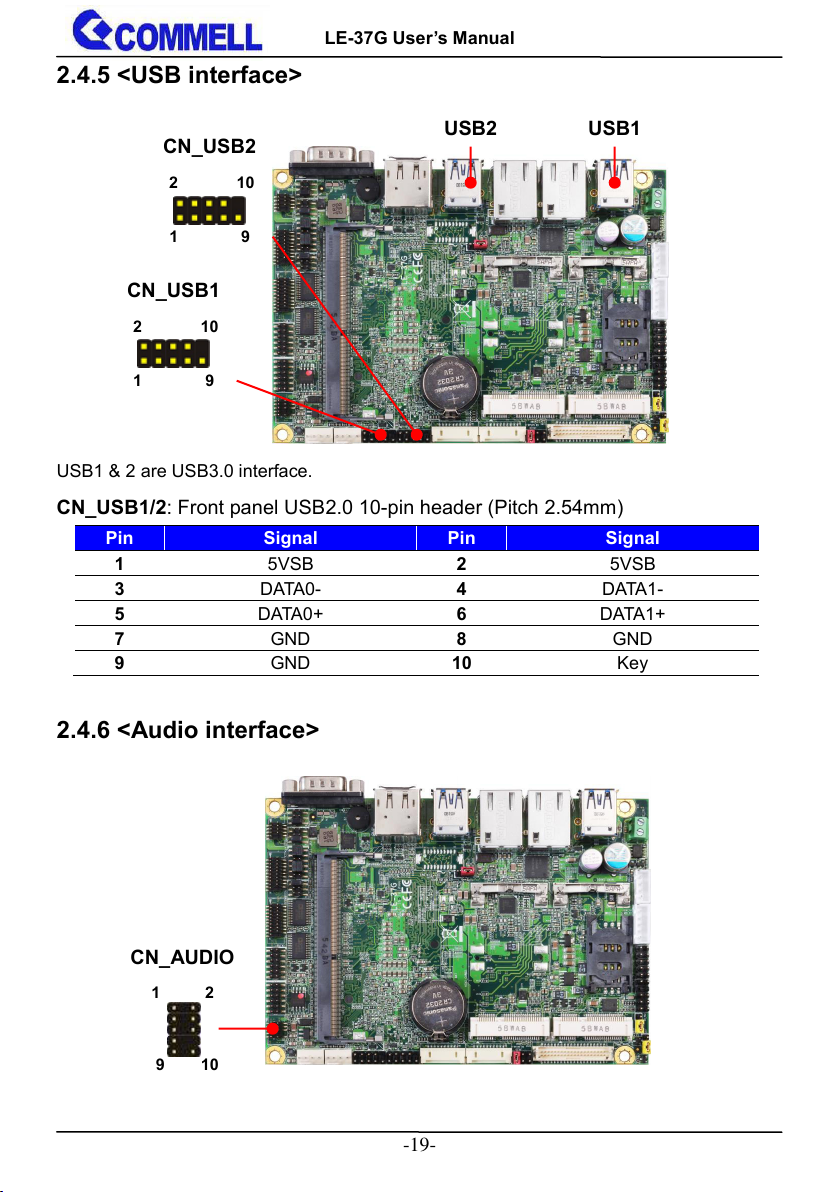

2.4.5 <USB interface>
USB1 & 2 are USB3.0 interface.
CN_USB1/2: Front panel USB2.0 10-pin header (Pitch 2.54mm)
2.4.6 <Audio interface>
Page 21
LE-37G User’s Manual
-20-
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
MINI_CARD2
JMSATA
MINI_CARD1
1
3
CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm)

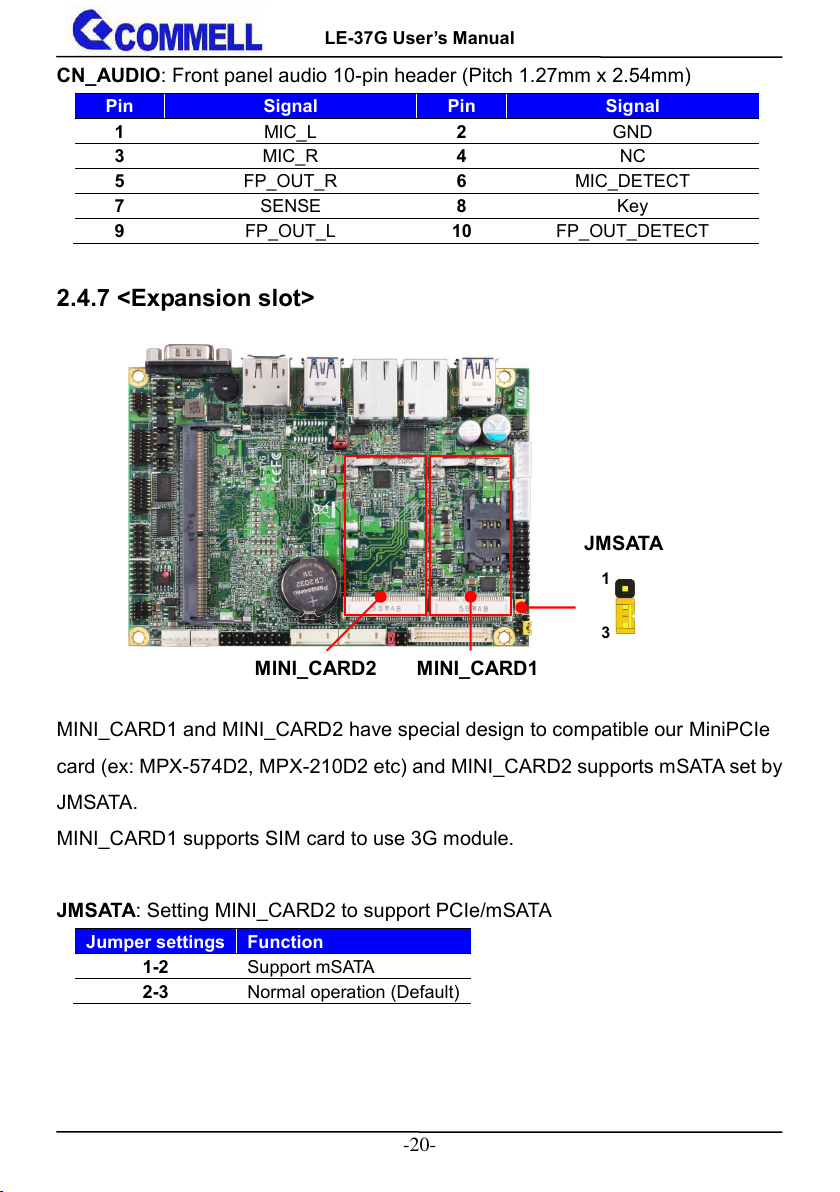

2.4.7 <Expansion slot>
MINI_CARD1 and MINI_CARD2 have special design to compatible our MiniPCIe
card (ex: MPX-574D2, MPX-210D2 etc) and MINI_CARD2 supports mSATA set by
JMSATA.
MINI_CARD1 supports SIM card to use 3G module.
JMSATA: Setting MINI_CARD2 to support PCIe/mSATA
Page 22
LE-37G User’s Manual
-21-
Pin
Signal
Pin
Signal
1
Power_ON-
2
Power_ON+
3
Speaker-
4
Speaker+
5
HDD_LED-
6
HDD_LED+
7
Power_LED-
8
Power_LED+
9
Reset+
10
Reset-
JFRNT
2
CN_DIO
1
12
9
10
2
11
1
CN_LPC
1
11
12
2
SMBUS
1
5
CPUFAN
1
4
SYSFAN
1
4

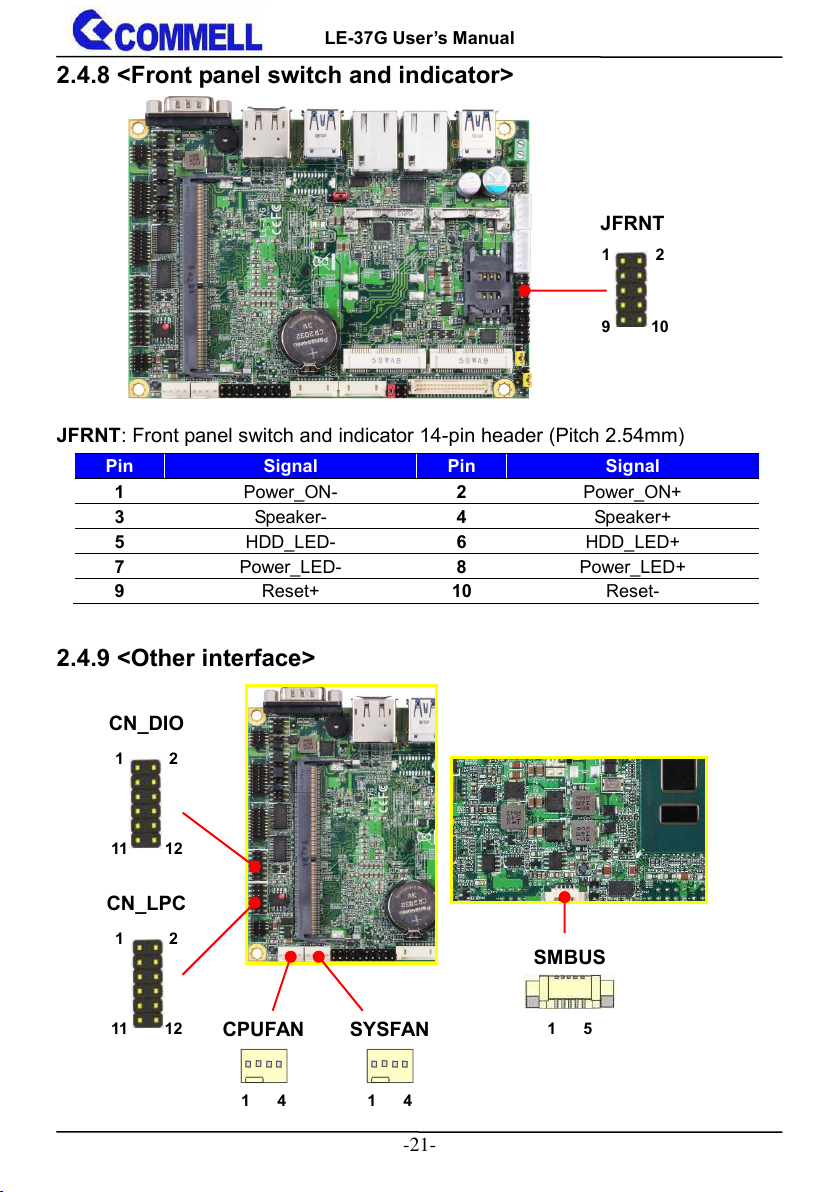

2.4.8 <Front panel switch and indicator>
JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm)
2.4.9 <Other interface>
Page 23
LE-37G User’s Manual
-22-
Parameter
SYM
MIN
TYP
MAX
UNIT
Conditions
Input Low Voltage
VIL
0.8
V
Input High Voltage
VIH
2.0
V
Output Low Voltage
VOL
0.4
V
IOL =12mA
Input High Leakage
I
LIH
+10
μA
VIN =3.3V
Input Low Leakage
I
LIL
-10
μA
VIN =0V
Pin
Signal
Pin
Signal
1
GND
2
GND
3
GPIO0
4
GPIO4
5
GPIO1
6
GPIO5
7
GPIO2
8
GPIO6
9
GPIO3
10
GPIO7
11
5V
12
12V
Pin
Signal
Pin
Signal
1
CLK
2
RST
3
-LFRAME
4
LAD3
5
LAD2
6
LAD1
7
LAD0
8
3.3V
9
SERIRQ
10
GND
11
3.3VSB
12
NC
When using GPIO function, please note:
As Output:
Open-drain, most applications need use an external pull up
resistor. (If not may cause damage)
As Input: TTL-level.
GPIO DC characteristics
CN_DIO: GPIO 12-pin header (Pitch 2.00mm)
CN_LPC: LPC 12-pin header (Pitch 2.00mm)
Note: Support TPM module.
Page 24
LE-37G User’s Manual
-23-
Pin
Signal
1
5V
2
NC
3
SMBDAT
4
SMBCLK
5
GND
Pin 1 2 3 4
Signal
GND
12V
Sensor
Control
Pin 1 2 3 4
Signal
GND
12V
Sensor
Control

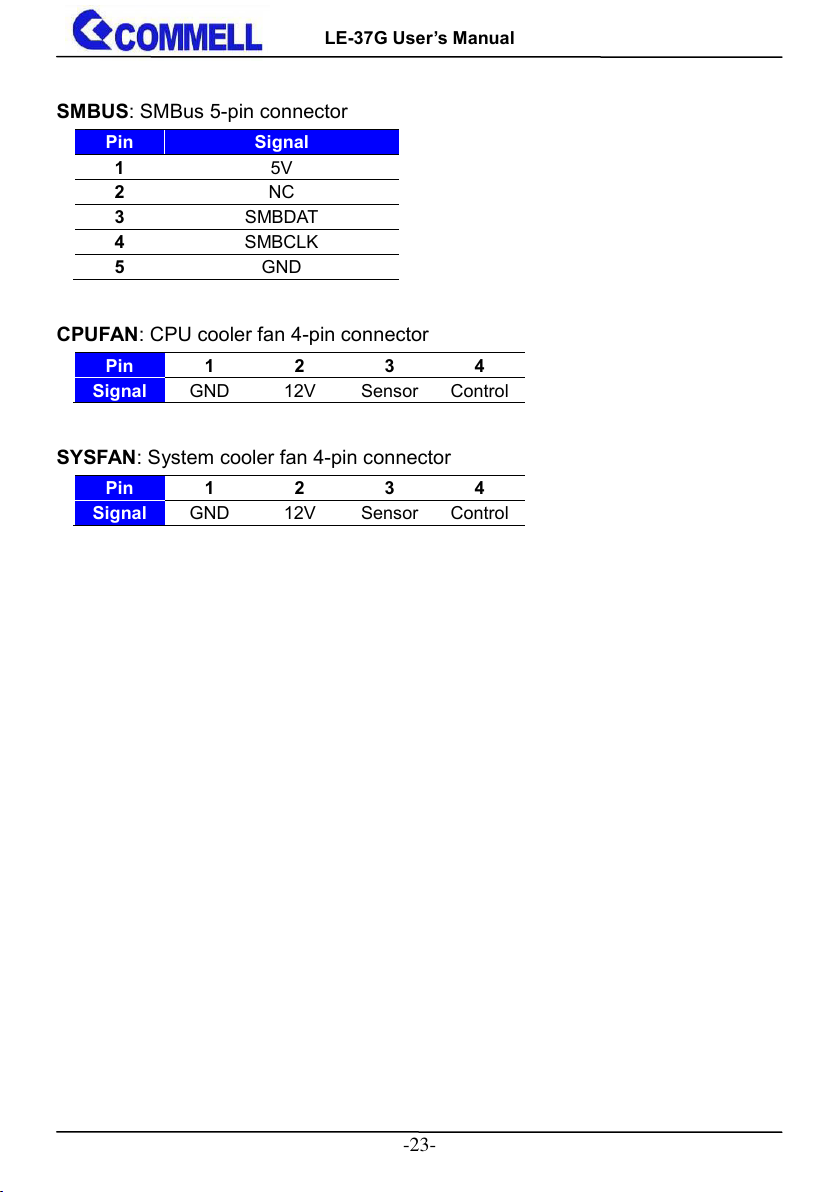

SMBUS: SMBus 5-pin connector
CPUFAN: CPU cooler fan 4-pin connector
SYSFAN: System cooler fan 4-pin connector
Page 25
LE-37G User’s Manual
-24-
Pin
Signal
Pin
Signal
1
GND
2
9~24V Power input
Pin
Signal
1
12V
2
GND
3
GND
4
5V
DC_IN
2
1
DC_OUT
1
4
2.5 <Power supply>
2.5.1 <Power input>
DC_IN: Terminal block 2-pin power connector
2.5.2 <Power output>
DC_OUT: SATA power 4-pin connector
Page 26
LE-37G User’s Manual
-25-

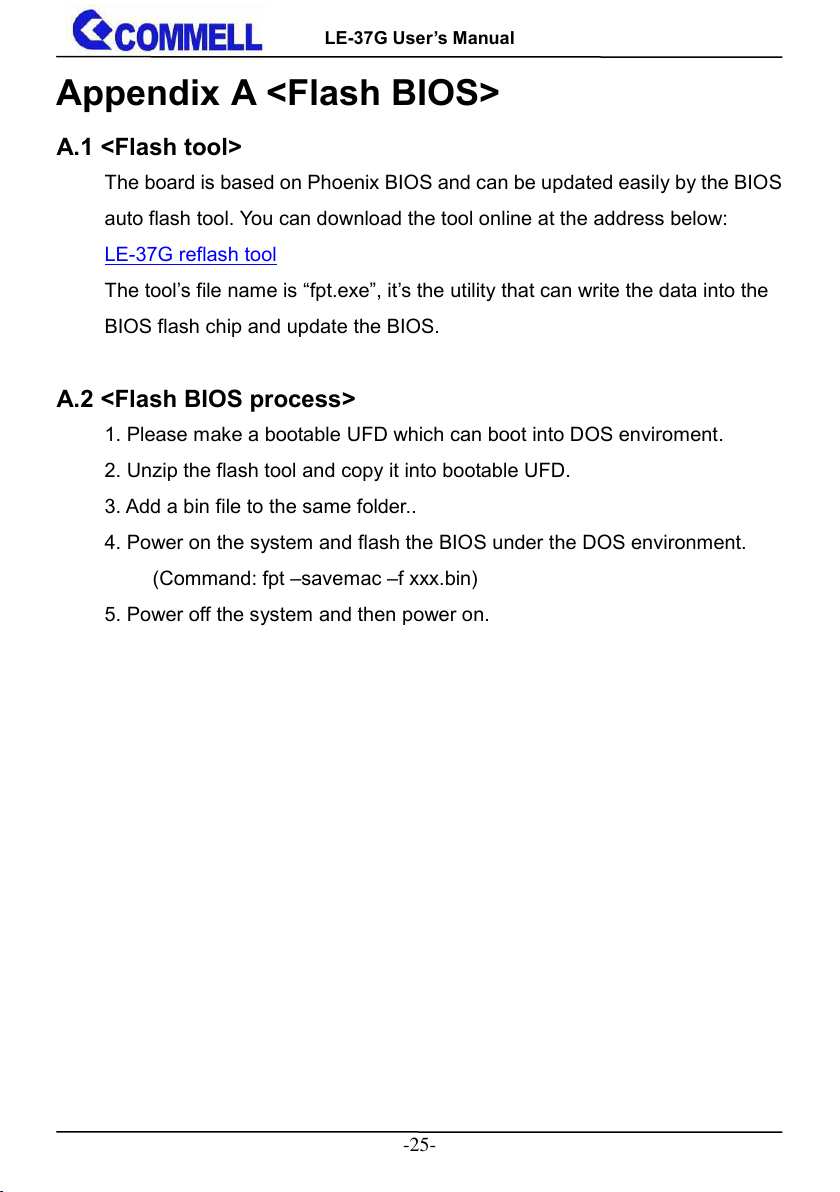

Appendix A <Flash BIOS>
A.1 <Flash tool>
The board is based on Phoenix BIOS and can be updated easily by the BIOS
auto flash tool. You can download the tool online at the address below:
LE-37G reflash tool
The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the
BIOS flash chip and update the BIOS.
A.2 <Flash BIOS process>
1. Please make a bootable UFD which can boot into DOS enviroment.
2. Unzip the flash tool and copy it into bootable UFD.
3. Add a bin file to the same folder..
4. Power on the system and flash the BIOS under the DOS environment.
(Command: fpt –savemac –f xxx.bin)
5. Power off the system and then power on.
Page 27
LE-37G User’s Manual
-26-

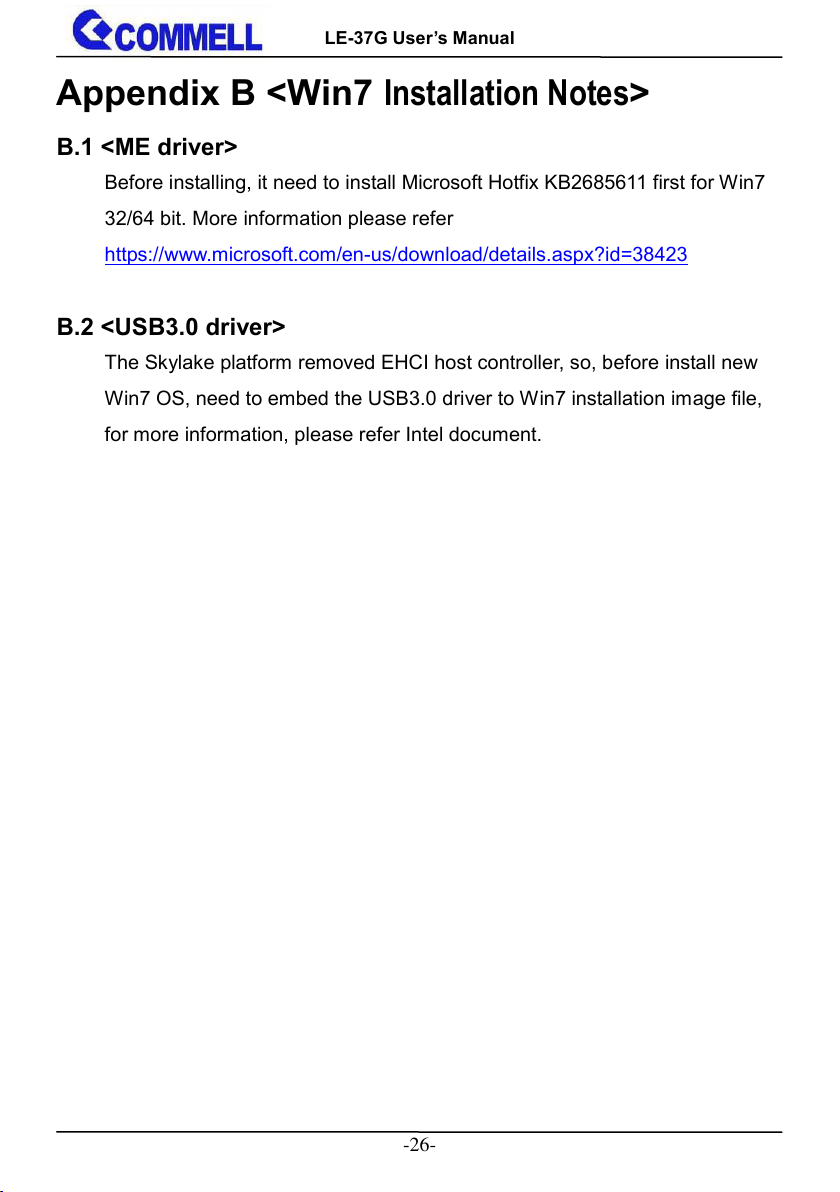

Appendix B <Win7 Installation Notes>
B.1 <ME driver>
Before installing, it need to install Microsoft Hotfix KB2685611 first for Win7
32/64 bit. More information please refer
https://www.microsoft.com/en-us/download/details.aspx?id=38423
B.2 <USB3.0 driver>
The Skylake platform removed EHCI host controller, so, before install new
Win7 OS, need to embed the USB3.0 driver to Win7 installation image file,
for more information, please refer Intel document.
Page 28
LE-37G User’s Manual
-27-
BIOS panel type selection form (BIOS Version:1.0)
Single / Dual channel
Single / Dual channel
NO.
Type
NO.
Type
1
640 x 480
9
1680 x 1050
2
800 x 600
10
1920 x 1200
3
1024 x 768
11
1440 x 900
4
1280 x 1024
12
1600 x 900
5
1400 x 1050 Reduced Blanking
13
1024 x 768
6
1400 x 1050 non-Reduced Blanking
14
1280 x 800
7
1600 x 1200
15
1920 x 1080
8
1366 x 768
16
OEM Keep
Appendix C <LCD Panel Type select>
According your panel, it need to select the correct resolution in the BIOS. If there is
no fit your panel type, please feedback for us to make OEM modol.
Page 29
LE-37G User’s Manual
-28-
GPIO
0 1 2 3 4 5 6
7
bit 0 1 2 3 4 5
6
7
Appendix D <Programmable GPIO >
The GPIO’ can be programmed with the MS-DOS debug program using simple
IN/OUT commands.
The DC characteristics please refer to GPIO paragraph (Page20).
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 07 ;select Logical Device
-o 4E 30
-o 4F 10 ;activate GPIO function (The board use GPIO3)
-o 4E F0
-o 4F XX ;set “01” GPIO as input, set “00” GPIO as output
-o 4E F1
-o 4F XX ;if set GPIO as output, this register’s value can be set “00~ FF”
Optional
-o 4E F2
-o 4F XX ;set “01”, the respective bit are inverted (Both input and output)
;set “00”, the respective bit are normal
For further information, please refer to Nuvoton NCT6106D datasheet
Page 30
LE-37G User’s Manual
-29-
…
Appendix E <Programmable Watch Dog Timer>
Timeout value range
1 to 255 Minute and Second
Program sample
Watchdog timer setup as system reset with 5 second of timeout
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 08 ;select Logical Device
-o 4E 30
-o 4F 01 ; activate WDTO# function
-o 4E F5
-o 4F 00 ;set “00” is second mode, set “04” is minute mode
-o 4E F6
-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute
;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)
For further information, please refer to Nuvoton NCT6106D datasheet
Page 31
LE-37G User’s Manual
-30-

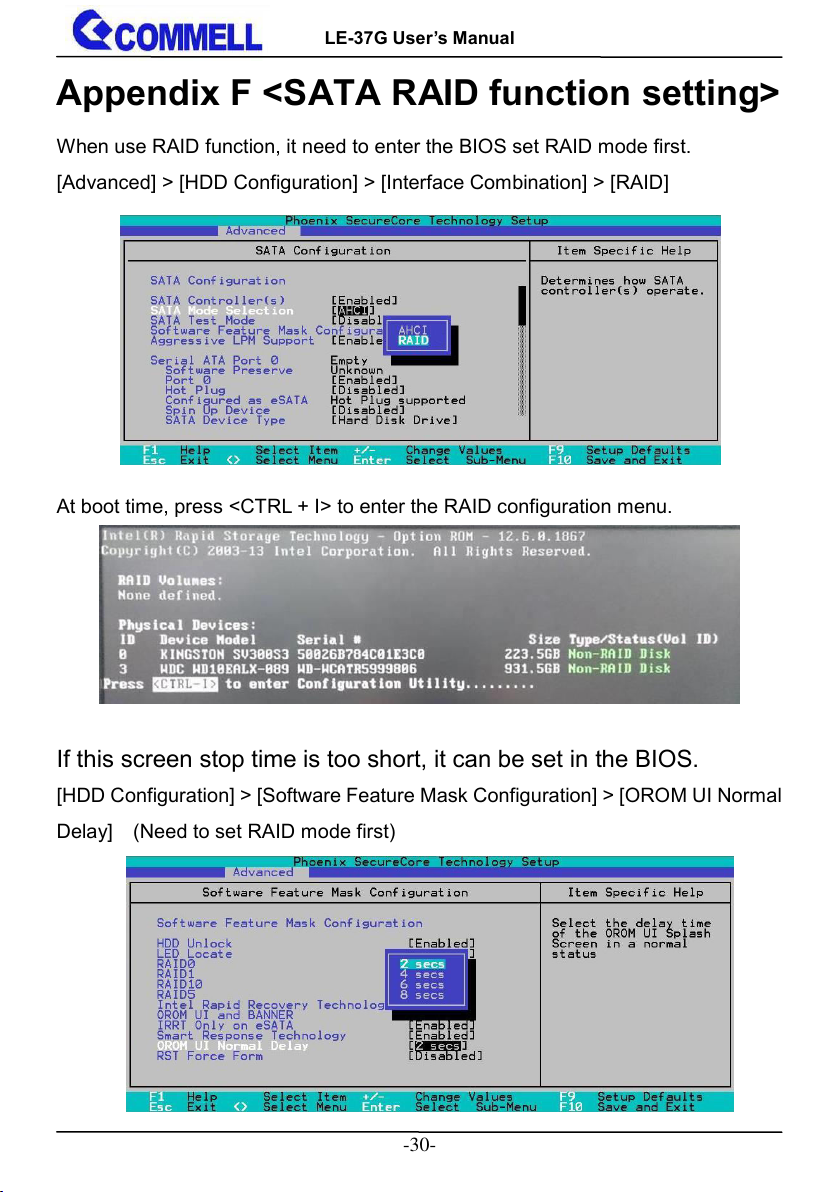

Appendix F <SATA RAID function setting>
When use RAID function, it need to enter the BIOS set RAID mode first.
[Advanced] > [HDD Configuration] > [Interface Combination] > [RAID]
At boot time, press <CTRL + I> to enter the RAID configuration menu.
If this screen stop time is too short, it can be set in the BIOS.
[HDD Configuration] > [Software Feature Mask Configuration] > [OROM UI Normal
Delay] (Need to set RAID mode first)
Page 32
LE-37G User’s Manual
-31-
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
FAX
+886-2-26963911
Website
www.commell.com.tw
E-mail
info@commell.com.tw (General infomation)
tech@commell.com.tw (Technical Support)
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Commell is a brand name of Taiwan Commate computer Inc.
Loading...
