Commell HE-B73, RM590E Manual

HE-B73

PICMG 1.3 Half-size CPU Card

User’s Manual

Edition 1.2

2021/11/18

HE-B73 User’s Manual

-1-

Copyright

Copyright 2021, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website atTUhttp://www.commell.com.twUT

HE-B73 User’s Manual

-2-

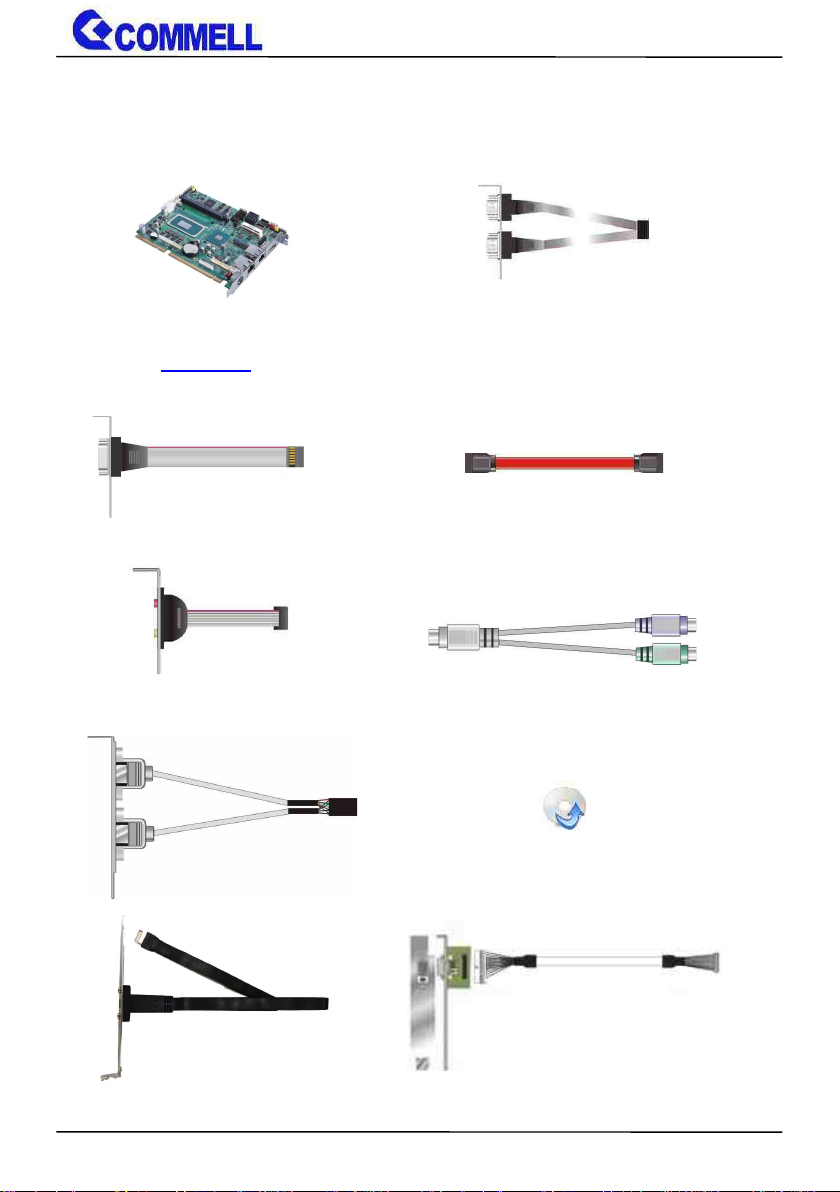

Packing List:

Please check the package content before you starting using the board.

Appendix G

1 x Driver CD

(Including User’s Manual)

1 x HE-B73PICMG 1.3 Half-size CPU Card

(include Cooler Fan)

2 x SATA Cable

(OALSATA3-L) / (1040529)

1 x VGA Cable

(OALVGA-S-7) / (1040556)

1 x Dual COM PORT Cable
(OALES-BKU2) / (1040087)

1 x Audio Cable

(OALPJ-HD)/ (1040120)

1 x PS/2 Keyboard & Mouse Cable

(OALPS2/MKN)/ (1040551)

1 x USB2.0 Cable

(OALUSBA-1 )/ (1040172)

1 x USB3.2 Gen2 Cable (Optional)

(OALUSBE-USBC-L30 / 1040681)

1 x DVI Cable (Optional)

(BADPDVIP_A & OALDVI-MX15-L15)

(4120008021 & 1040683 )

HE-B73 User’s Manual

-3-

Index

Chapter 1 <Introduction>..................................................................4

1.1 <Product Overview>............................................................4

1.2 <Product Specification> ......................................................5

1.3 <Block Diagram>.................................................................6

Chapter 2 <Hardware setup>...........................................................7

2.1 <Connector Location and Reference> ................................7

2.1.1 <Internal connectors list>..........................................8

2.1.2 <External connectors list>.........................................8

2.2 <Memory Setup>.................................................................9

2.3 <Jumper Location and Reference>...................................10

2.3.1 <Jumper list> ..........................................................10

2.3.2 <Clear CMOS and Power on type selection>..........11

2.4 <I/O interface> ..................................................................11

2.4.1 <Serial ATA interface>.............................................11

2.4.2 <Ethernet interface>................................................12

2.4.3 <Display interface> .................................................12

2.4.4 <Serial Port interface> ............................................16

2.4.5 <USB interface>......................................................18

2.4.6 <Audio interface>....................................................19

2.4.7 <Expansion slot>.....................................................20

2.4.8 <Front panel switch and indicator> .........................21

2.4.9 <GPIO and Other interface>...................................22

2.5 <Power supply> ................................................................24

2.5.1 <Power input>.........................................................24

Appendix A <Flash BIOS>..............................................................25

Appendix B <LCD Panel Type select> ...........................................26

Appendix C <Programmable Watch Dog Timer>............................27

Appendix D <Hardware Monitor>...................................................29

Appendix E <Programmable GPIO> ..............................................30

Appendix F <RAID Setting>...........................................................31

Appendix G <Cooler fan>...............................................................32

Contact information........................................................................33

HE-B73 User’s Manual

-4-

Chapter 1 <Introduction>

1.1 <Product Overview>

HE-B73 is a PICMG 1.3 Half-size CPU Card which supports Tiger Lake/11th Gen H

Processors, integrated UHD Graphics, DDR4 memory, Realtek High Definition Audio, Intel
Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system.

New feature for Tiger Lake H

Tiger Lake/11th Gen H Processors are based on the 10nm SuperFin process, and offer
long-life availability. They have Intel UHD Graphics up to 32 EUs.

All in One multimedia solution

The board provides one MiniPCIe slot ( support mSATA), one M.2 2230 slot, one M.2 2280
slot (PCIe Gen4).

Tiger Lake support Windows10 version 20H2 64bit and Linux kernel 5.8

Intel recommends using Windows 10 version 20H2 64bit. It may lose some drivers if you
use other Windows version.

HE-B73 User’s Manual

-5-

1.2 <Product Specification>

System

Processor

Tiger Lake/11thGen H Processor FCBGA1787 package

Chipset

Intel® QM580E / RM590E (TGL-H Xeon CPUs have to use RM590E)

Memory

2 x DDR4 SO-DIMM 3200 MHz up to 64GB,
Support Non-ECC, unbuffered memory

(TGL-H Xeon CPUs can support ECC memory)

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Expansion

1 x MiniPCIe with SIM slot (support mSATA)
1 x M.2 2280 Key M support PCIe Gen4 and SATA
1 x M.2 2230 Key E for Wi-Fi and Bluetooth
1 x PCIe X16 slot (Backplane)
4 x PCIe X1 slot or 1 x PCIe X4 slot (Backplane) (Optional)

Graphics

Chipset

Intel® 11thGen integrated UHD Graphics

Display Interface

1 x LVDS(Note1),1 x DVI(Note5), 1 x DisplayPort(Note2), 1 x VGA

LAN

Chip

1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT 15.0)
1 x Intel® I225-LM Gigabit LAN (up to 2.5GbE)

I/O

Serial ATA

2 x SATA3

Audio

Realtek ALC888S HD Audio

Internal I/O

1 x VGA, 1 x DVI(Note5), 1 x Audio, 1 x GPIO, 2 x SATA3,
4 x RS232, 2 x RS232/RS422/RS485, 1 x SMBus,
2 x USB3.2 Gen2 (Type E), 4 x USB2.0,
1 x LVDS, 1 x LCD inverter connector

Rear I/O

1 x DisplayPort, 2 x LAN, 1 x PS/2

Mechanical & Environmental

Power Requirement

Standard 24-pin ATX power from Backplane

Size

168mm x 126mm (L x W)

Temperature

Operating within 0°C~60°C (32°F~140°F) (Note3)
Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity

10%~90%, non-condensing

Note1: Onboard 18/24-bit single/dual channel +3.3V/ +5V/ +12V LVDS
Note2: Add ADP-3355 supports 2

nd

VGA or Add ADP-3460 supports 2ndLVDS.

Note3: W-11865MRE, W-11555MRE, W-11155MRE can operate within -40°C~85°C
Note4: Please don’t remove cooler fan, it’s will destroy thermal paste on CPU.
Note5: DVI cable is optional.

HE-B73 User’s Manual

-6-

1.3 <Block Diagram>

DP

PTN3460

LVDS

I219-LM

I225-LM

2 x USB3.2 Gen2 (TypeE)

DDR4 SODIMM 3200

2 x SATA

1 x PCIe / mSATA

1 x M.2 2230

1 x M.2 KEY M 2280

1 x ALC888S

1 x SYSFAN

1 x CPUFAN

1 x GPIO

2 x RS232/422/485

4 x RS232

ESPI

Tiger Lake H

Processor

Super I/O

NCT6126D

DVI

1 x PCIe X16 Slot

(Backplane)

DMI x8

QM580E

Or

RM590E

4 x USB2.0

1 x PS/2

4 x PCIe 1X or 1 x PCIe 4X

(Backplane)

DDR4 SODIMM 3200

PTN3355

VGA

HE-B73 User’s Manual

-7-

Chapter 2 <Hardware setup>

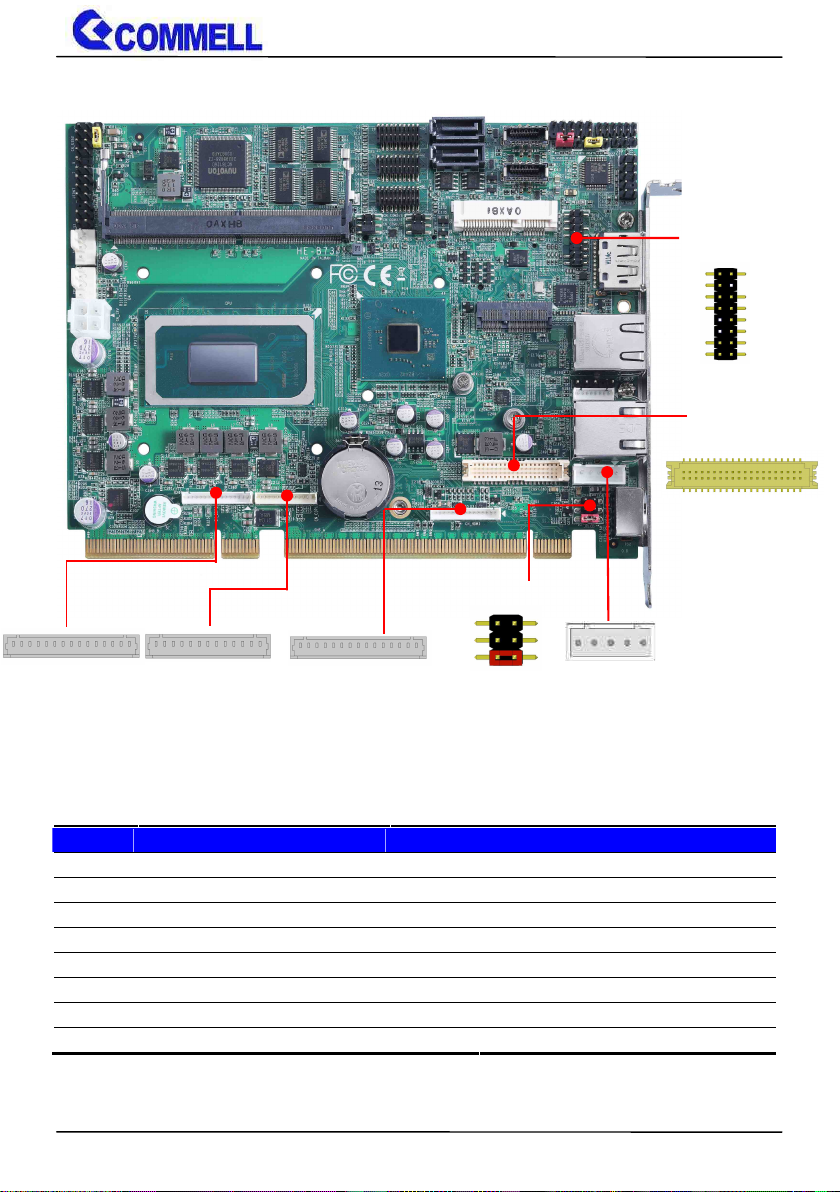

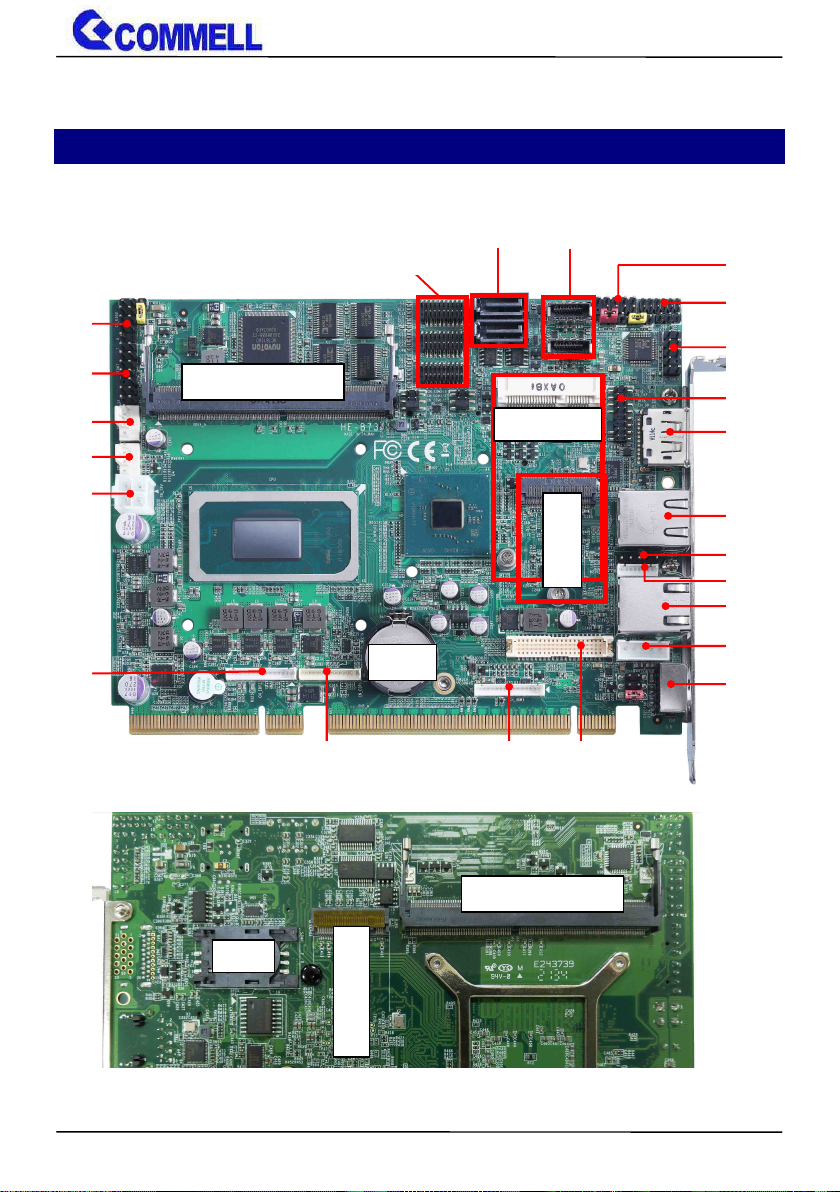

2.1 <Connector Location and Reference>

M.2 KEY E

MINI_CARD

M.2_NVME

CN_COM5/6
CN_COM3/4
CN_COM1/2

BAT

DDR4_A

SATA3-1
SATA3-2

TYPE_E-1
TYPE_E-2

DDR4_B

SIMM

CN_USB1

CN_DIO

CN_AUDIO

CN_CRT

Display Port

RJ45-1

CN_SMBUS
JLANLED

RJ45-2

CN_INV

PS/2

CN_EDP1 CN_HDMI CN_LVDS

CN_USB2

JFRNT

SYSFAN

CPUFAN

CN_12V

CN_EDP2

HE-B73 User’s Manual

-8-

2.1.1 <Internal connectors list>

Connector

Function

DDR4_A/B

260-pin DDR4 SO-DIMM slot

SATA3-1/ 3-2

7-pin SATA3 connector

CN_AUDIO

5 x 2-pin audio pin header

CN_LVDS

20 x 2-pin LVDS connector

CN_INV

5-pin LCD inverter connector

CN_SMBUS

5-pin SMBus connector

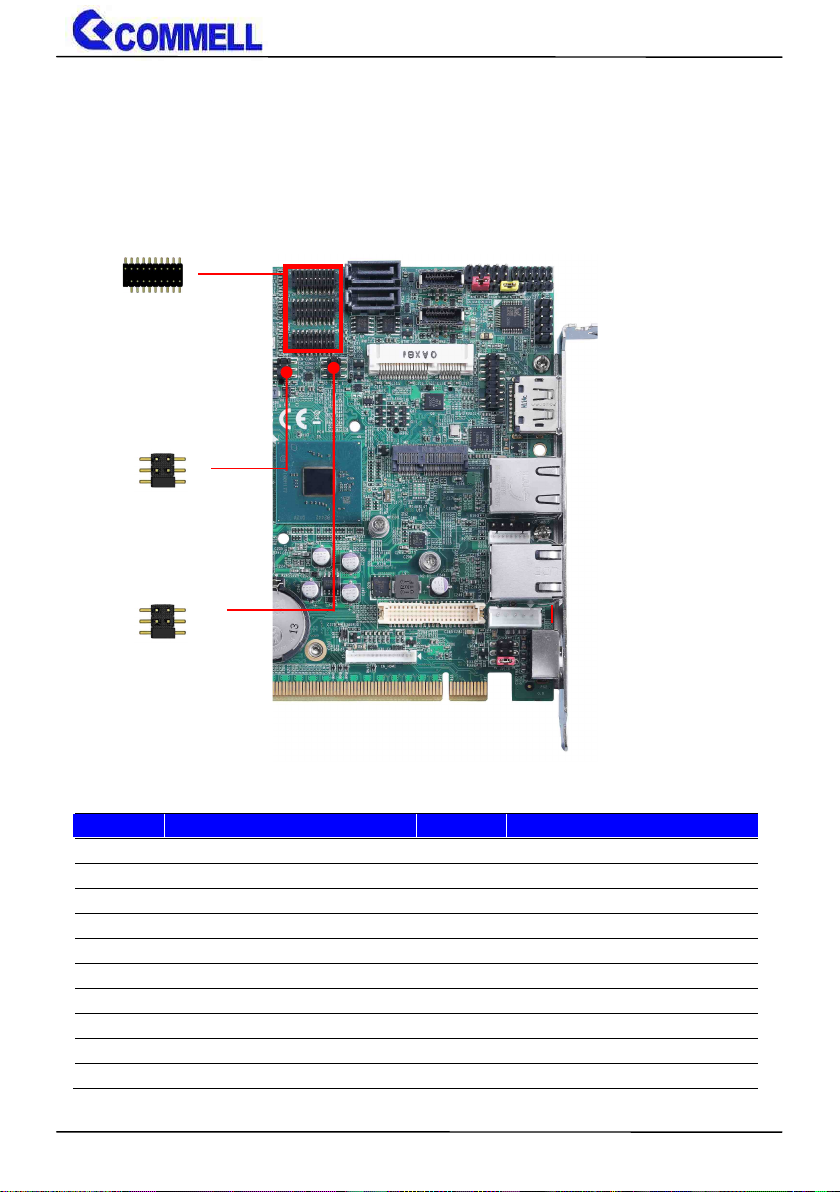

CN_COM1/2

20-pin RS232/RS422/RS485 connector

CN_COM3/4/5/6

20-pin RS232 connector

CN_USB1/2

5 x 2-pin USB2.0 pin header

CN_DIO

6 x 2-pin digital I/O connector

CN_EDP1

13-pin eDP connector (Optional)

CN_EDP2

15-pin eDP connector (Optional)

CN_HDMI

15-pin DVI connector

CPUFAN

4-pin CPU fan connector

SYSFAN

4-pin system fan connector

JLANLED

8-pin RJ45-1/2 LED

SIMM

6-pin socket

JFRNT

10-pin front panel switch/indicator connector

TYPE_E-1/2

20-pin Type E USB3.2 Gen2 connector

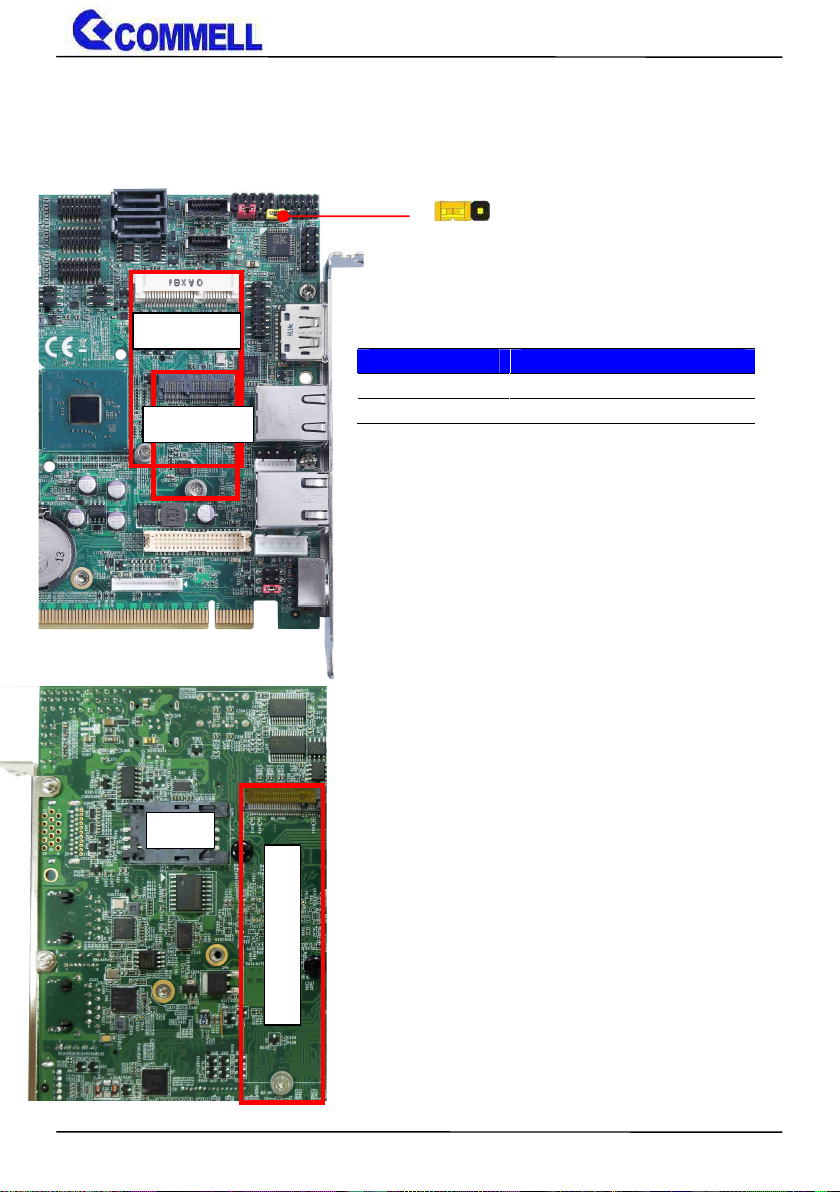

MINI_CARD

52-pin MiniPCIe card slot

M2

75-pin M.2 Key E slot

M2_NVME

75-pin M.2 Key M slot support PCIe Gen4 and SATA

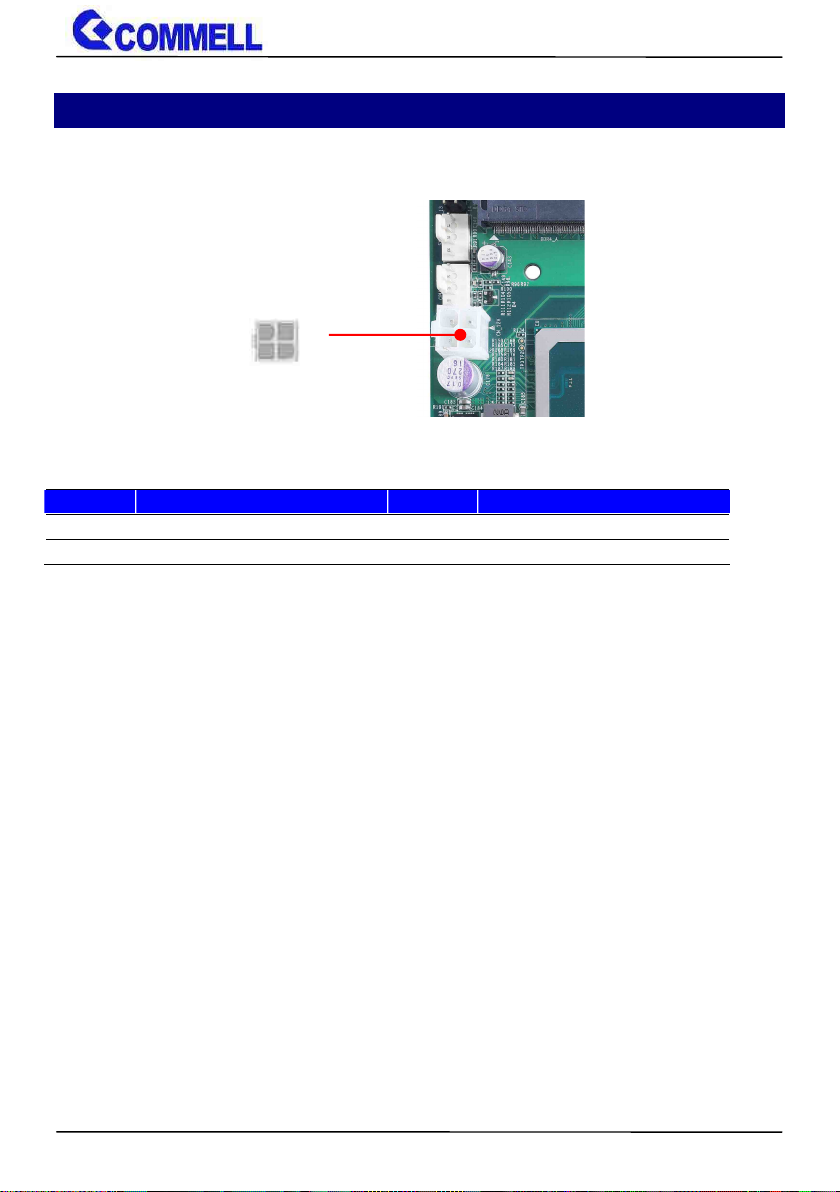

CN_12V

4-pin power input Terminal Block

2.1.2 <External connectors list>

Connector

Function

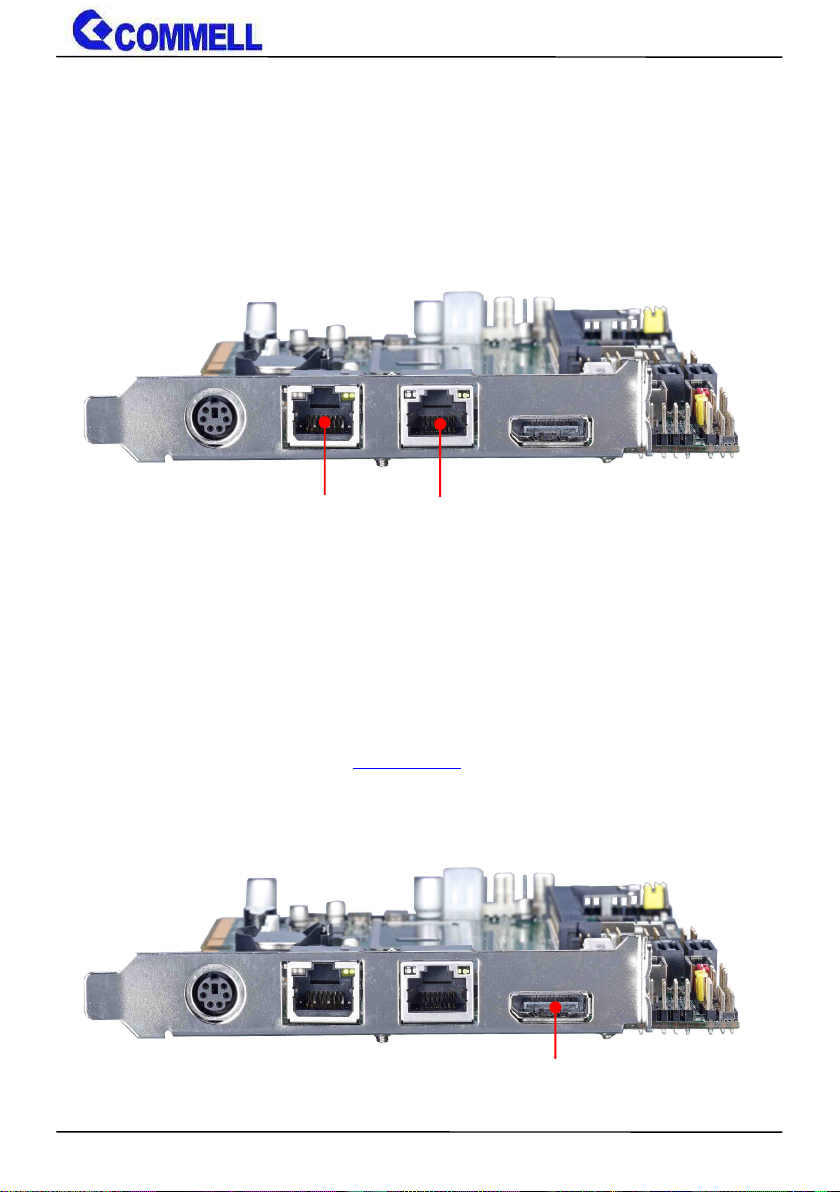

DisplayPort

DisplayPort connector

RJ45-1

RJ45 connector (I219-LM)

RJ45-2

RJ45 connector (I225-LM)

PS/2

PS/2 keyboard and mouse connector

HE-B73 User’s Manual

-9-

2.2 <Memory Setup>

HE-B73 has 260-pin DDR4 SODIMM support up to 64GB of memory capacity and 1.2

Voltage. The memory frequency supports 3200 MHz. Only Non-ECC memory is supported.

In the process, the board must be powered off.

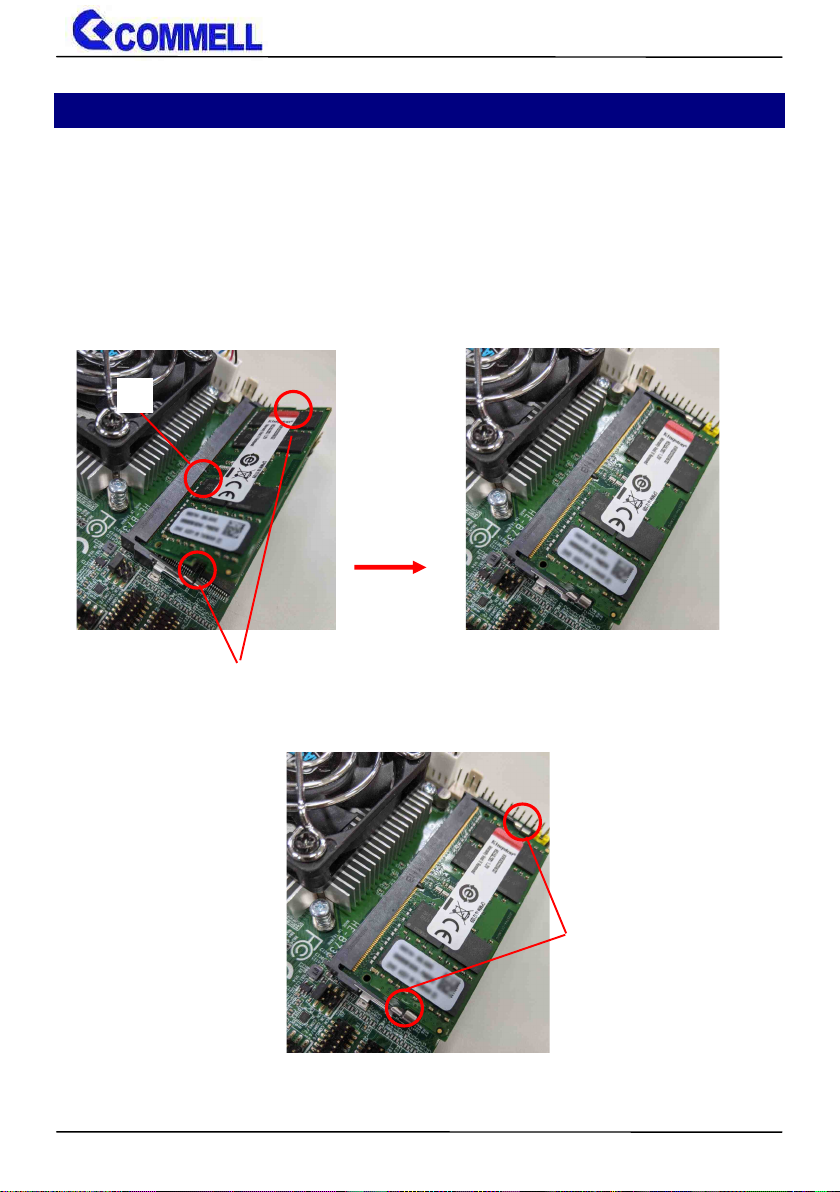

1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.

2. Then press down till lock into the mounting notch.

3. To remove the memory, push outward on both sides of the latch.

Key

Mounting notch

Press down

Latch

HE-B73 User’s Manual

-10-

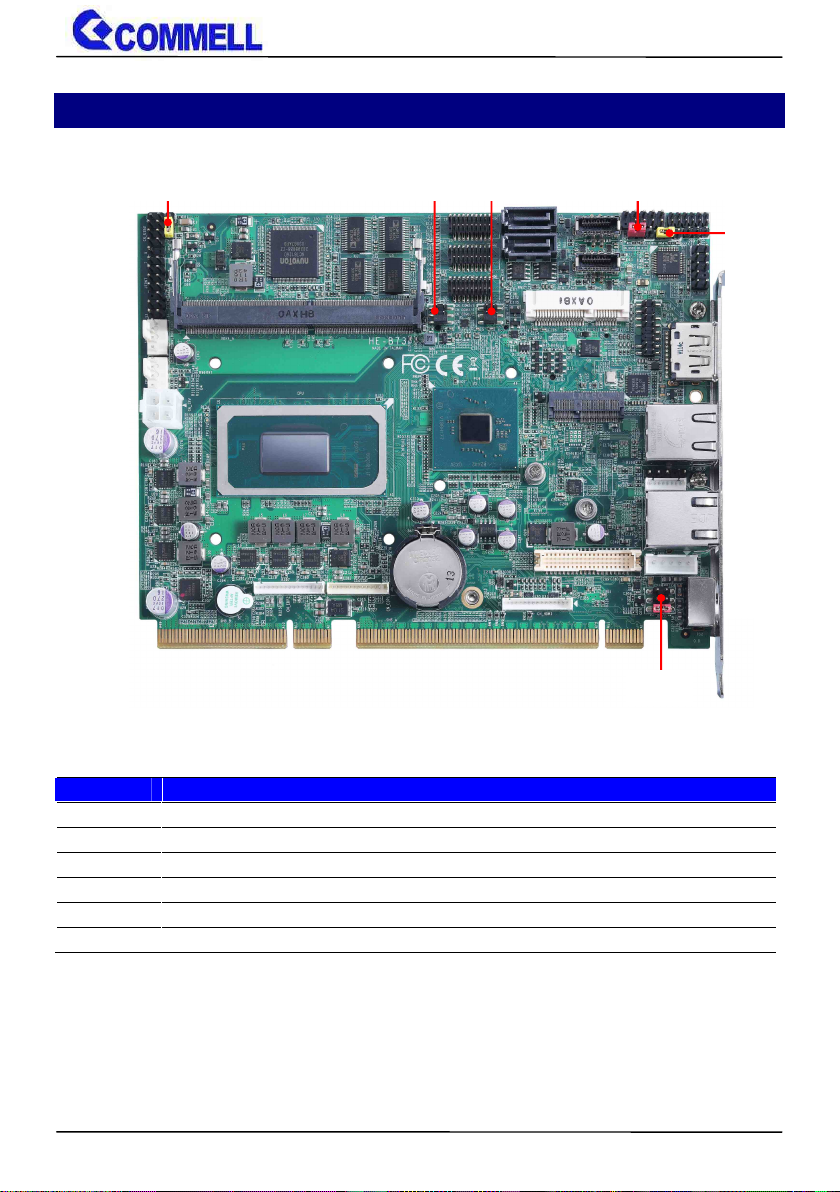

2.3 <Jumper Location and Reference>

2.3.1 <Jumper list>

Jumper

Function

JAT

Power mode select

JRTC

CMOS Normal/Clear Setting

JVLCD

Panel Voltage Setting

JMSATA

MiniCard mSATA Setting

JP1

COM1 Voltage Setting (For Pin 9)

JP2

COM2 Voltage Setting (For Pin 9)

JMSATA

JVLCD

JAT JP1 JP2 JRTC

HE-B73 User’s Manual

-11-

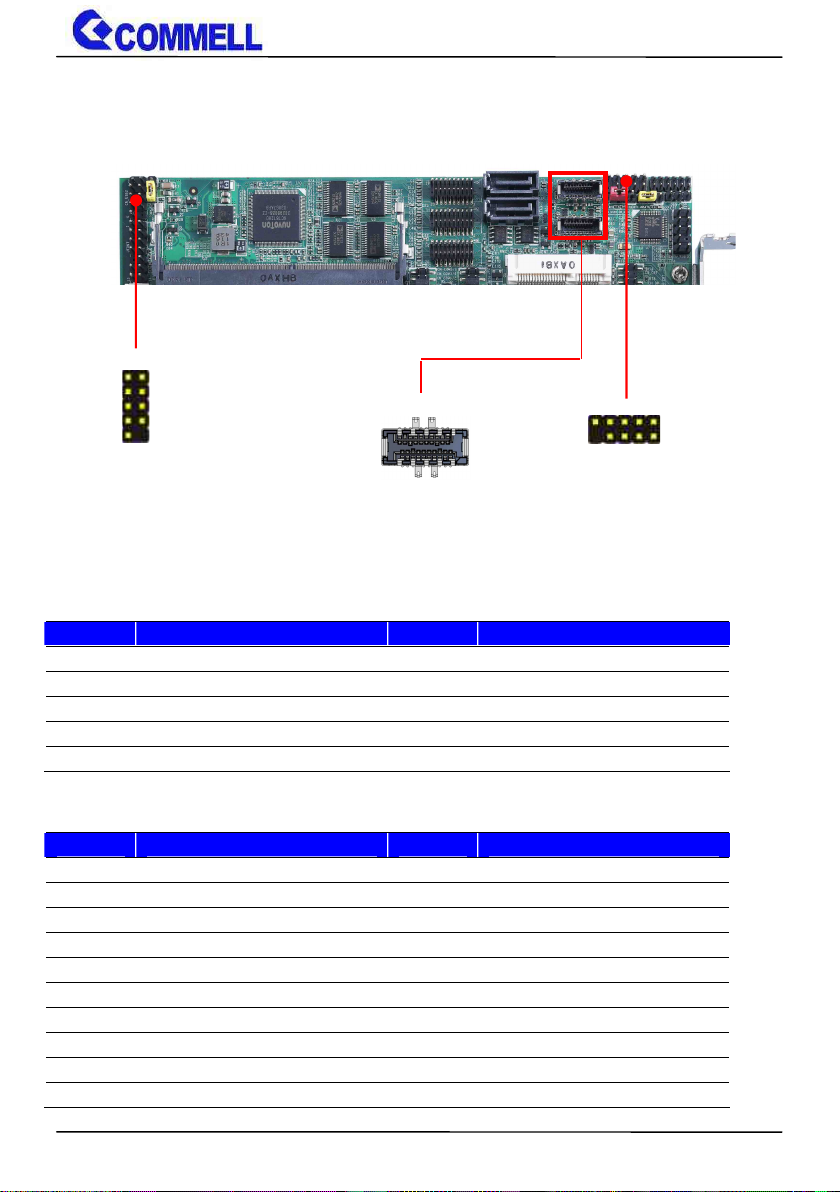

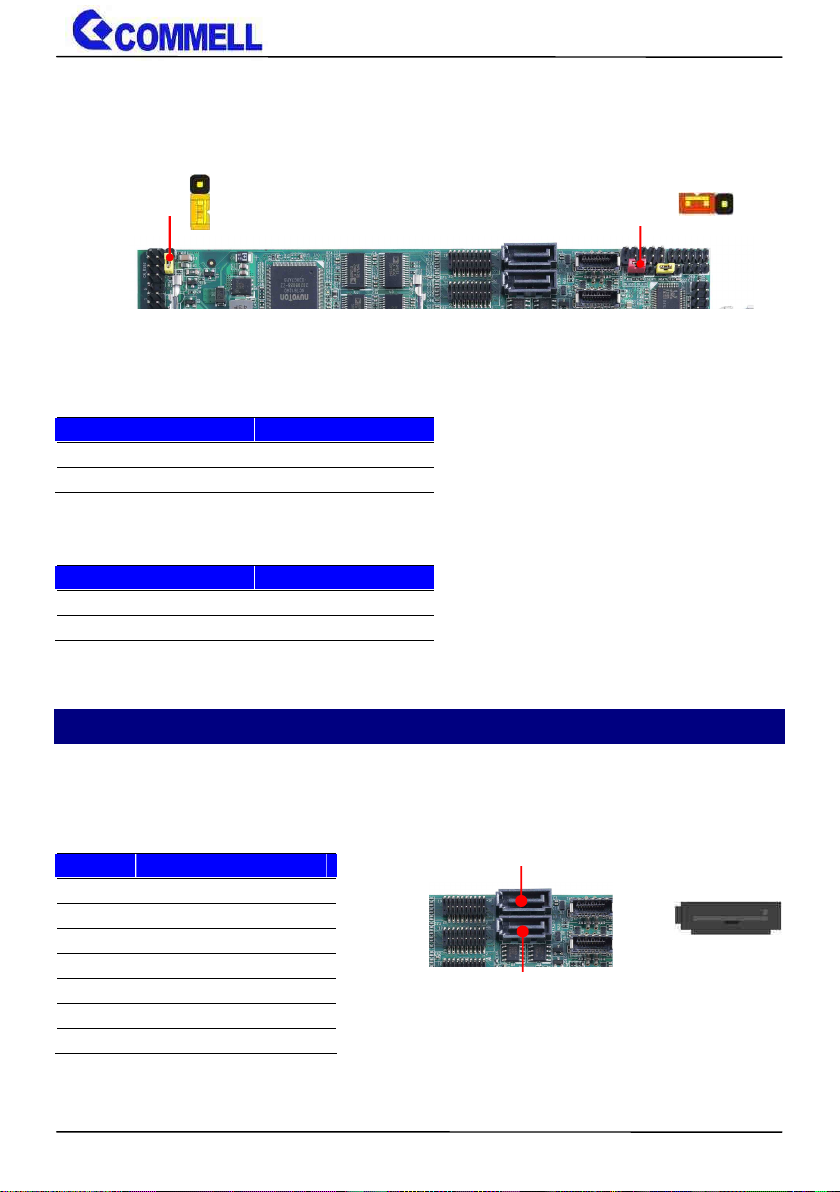

2.3.2 <Clear CMOS and Power on type selection>

JAT: AT/ATX mode select jumper

Jumper settings

Function

1-2

AT mode

2-3

ATX mode (Default)

JRTC: Clear CMOS data jumper

2.4 <I/O interface>

2.4.1 <Serial ATA interface>

SATA3-1/2 : SATA3 7-pin connector

Jumper settings

Function

1-2

Clear CMOS

2-3

Normal (Default)

Pin

Signal

1

GND

2

TX+

3

TX-

4

GND

5

RX-

6

RX+

7

GND

1 7

SATA3-2

1

3

3 1

JAT

JRTC

SATA3-1

HE-B73 User’s Manual

-12-

2.4.2 <Ethernet interface>

The board provides I219-LM and I225-LM Gigabit Ethernet which supports WOL
on rear I/O. It supports Intel® AMT 15.0 feature on I219-LM.
(Note that the CPU must support vPro technology.)

2.4.3 <Display interface>

Based on the 11th Gen CPU with built-in Intel® UHD Graphics, the DisplayPort
resolution up to 3840x2160 @ 60Hz or 4096x2304 @ 60Hz, the DVI up to
1920x1080 @ 60Hz and LVDS up to 1920x1200 @ 60Hz supports single bus or
dual bus LVDS signaling with color depths of 18 bits or 24 bits. About select LCD

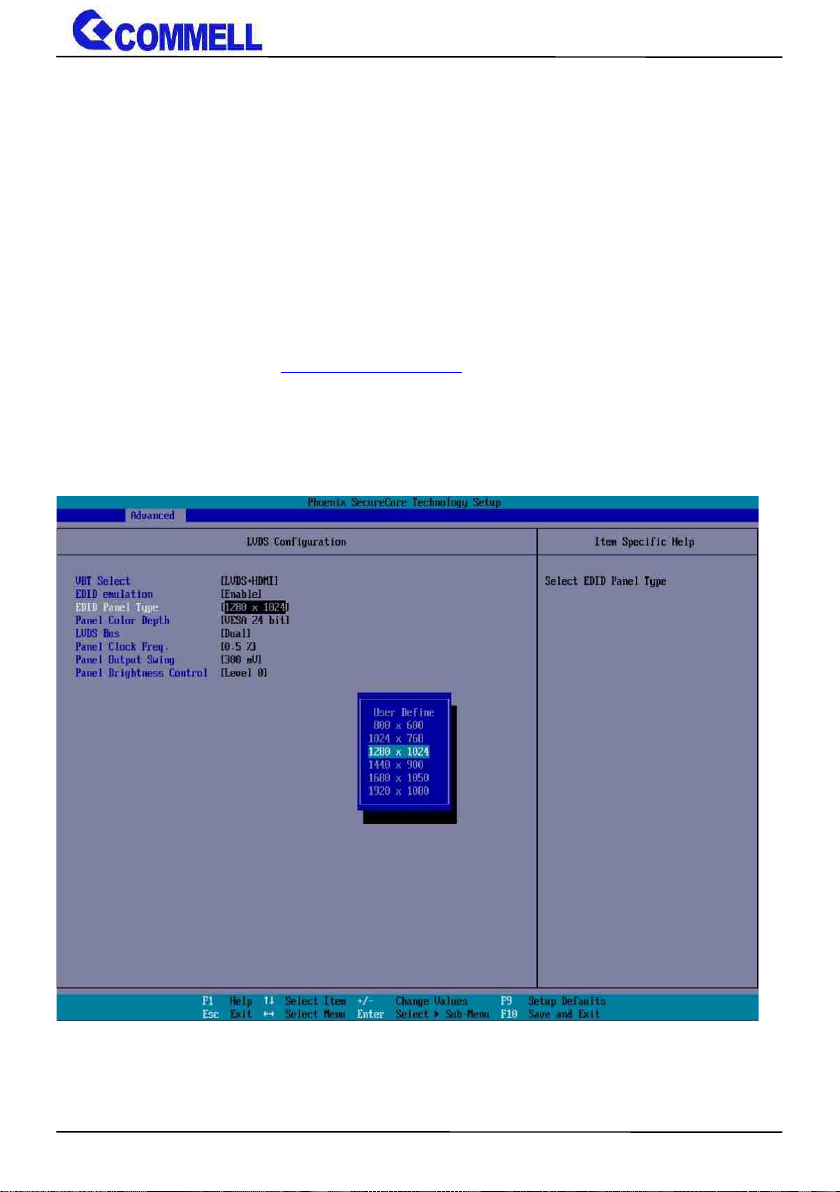

Panel Type in BIOS, please refer Appendix B.The built-in UHD Graphics support
Quad display function with clone mode and extended mode.

I225-LM I219-LM

DP

HE-B73 User’s Manual

-13-

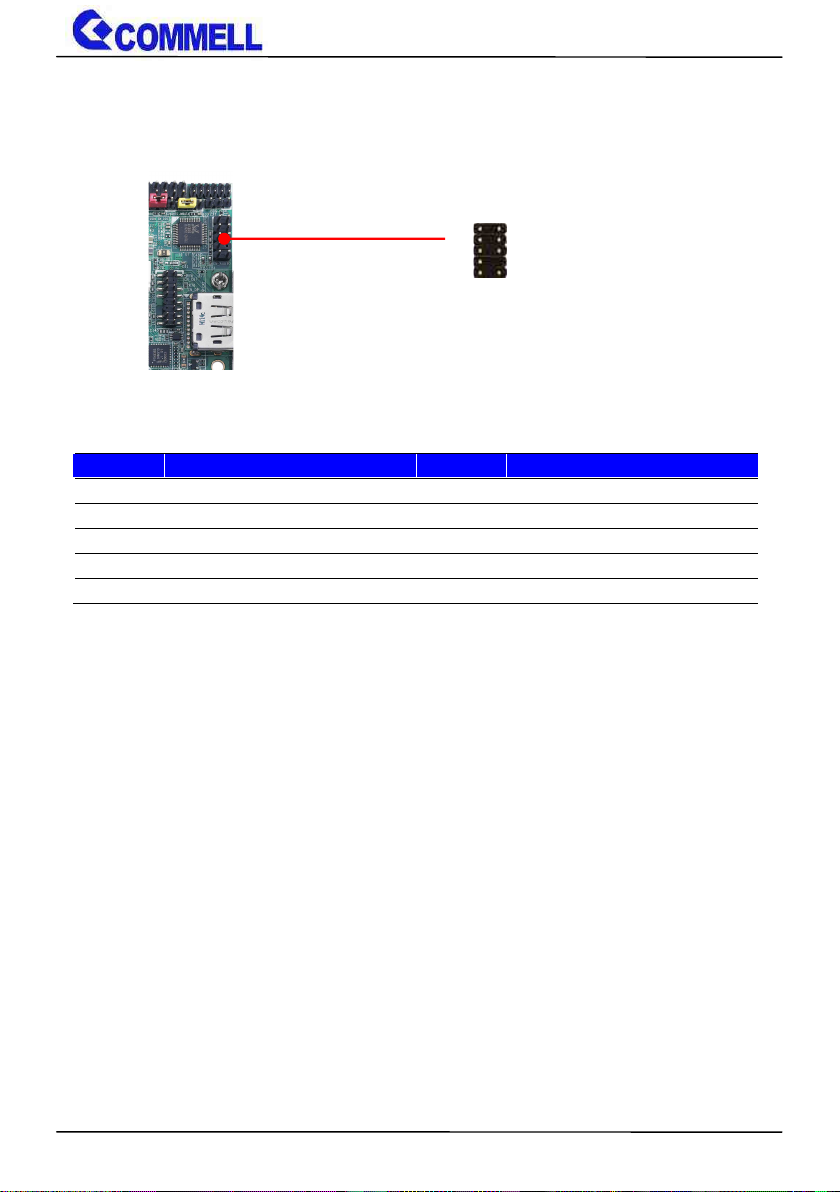

CN_CRT: VGA 16-pin connector (Pitch 2.00 mm)

Pin

Signal

Pin

Signal

1BR2

BG

3BB4

NC

5

IOGND1

6

IOGND1

7

IOGND1

8

IOGND1

9NC10

IOGND1

11NC12

5VCDA

13

5HSYNC

14

5VSYNC

15

5VCLK16NC

40 2

39 1

CN_EDP2 CN_EDP1 CN_HDMI JVLCD CN_INV
(Optional) (Optional) (Optional)

1

5

2 1

6 5

15 1

CN_LVDS

CN_CRT

1 2

15 16

15 1

13 1

HE-B73 User’s Manual

-14-

CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)

Pin

Signal

Pin

Signal

2

Set by JVLCD

1

Set by JVLCD

4

Detect (Active low)

3

GND

6

A_LVDS_0-

5

B_LVDS_0-

8

A_LVDS_0+

7

B_LVDS_0+

10

GND9GND

12

A_LVDS_1-

11

B_LVDS_1-

14

A_LVDS_1+

13

B_LVDS_1+

16

GND15GND

18

A_LVDS_2-

17

B_LVDS_2-

20

A_LVDS_2+

19

B_LVDS_2+

22

GND21GND

24

A_LVDS_CLK-

23

B_LVDS_3-

26

A_LVDS_CLK+

25

B_LVDS_3+

28

GND27GND

30

A_LVDS_3-

29

B_LVDS_CLK-

32

A_LVDS_3+

31

B_LVDS_CLK+

34

GND33GND

36

LVDS_DDCSCL

35

NC

38

LVDS_DDCSDA

37

NC

40NC39

NC

Pin4 only need to be connected to GND

CN_INV: LVDS 5-pin Backlight power connector

Pin

Signal

1

12V

2

Backlight Control

3

5V

4

GND

5

Enable Backlight

JVLCD: LVDS panel power select jumper

Jumper settings

Function

1-2

3.3V (Default)

3-4

5V

5-6

12V

HE-B73 User’s Manual

-15-

CN_HDMI: DVI 15-pin connector

Pin

Signal

Pin

Signal

1

TMDS Data2+

9

GND

2

TMDS Data2−

10

TMDS Clock+

3

GND

11

TMDS Clock−

4

TMDS Data1+

12

SCL

5

TMDS Data1−

13

SDA

6

GND145V

7

TMDS Data0+

15

HPD

8

TMDS Data0−

CN_EDP1: eDP 13-pin connector

Pin

Signal

Pin

Signal

1

EDP0+8AUX-

2

EDP0-9GND

3

GND10EDP_HPD

4

EDP1+

11

3.3V (EDP power)

5

EDP1-12SDA

6

GND13SCL

7

AUX+

CN_EDP2: eDP 15-pin connector

Pin

Signal

Pin

Signal

1

EDP2+9GND

2

EDP2-

10

3.3V (EDP power)

3

GND

11

3.3V (EDP power)

4

EDP3+

12

12V (Backlight power)

5

EDP3-

13

12V (Backlight power)

6

GND

14

12V (Backlight power)

7

PWM

15

12V (Backlight power)

8

Enable Backlight

HE-B73 User’s Manual

-16-

2.4.4 <Serial Port interface>

CN_COM1/2: RS232/422/485 20-pin header (Pitch 2.54 x 1.27mm)

Pin

Signal

Pin

Signal

1

DCD1/ 422TX-/ 485-

2

RXD1/ 422TX+/ 485+

3

TXD1

4

DTR1

5

GND

6

DSR1/ 422RX+

7

RTS1

8

CTS1/ 422RX-

9

RI110NC

11

DCD2/ 422TX-/ 485-

12

RXD2/ 422TX+/ 485+

13

TXD2

14

DTR2

15

GND

16

DSR2/ 422RX+

17

RTS2

18

CTS2/ 422RX-

19

RI220Key

JP1

1 2

5 6

JP2

19 1

20 2

CN_COM5/6
CN_COM3/4
CN_COM1/2

1 2

5 6

HE-B73 User’s Manual

-17-

COM1 & COM2

RS-232/422/485 can set by BIOS.

You can find the setting from
Advanced-> Motherboard Advanced menu-> Super IO configuration->
Serial Port configuration->Interface

If you want to use RS485, please follow below step before connection.

COM1 RTX- Data- : short Pin1& Pin8
COM1 RTX+ Data+ : short Pin2& Pin6
COM2 RTX- Data-: short Pin1& Pin8
COM2 RTX+ Data+: short Pin2& Pin6

JP1, JP2: COM1, COM2 pin-9 setting

Jumper settings

Function

1-2

5V

3-4

12V

5-6

RI (Default)

CN_COM3/4, CN_COM/5/6: RS232 20-pin header (Pitch 2.54 x 1.27mm)

Pin

Signal

Pin

Signal

1

DCD1

2

RXD1

3

TXD1

4

DTR1

5

GND

6

DSR1

7

RTS1

8

CTS1

9

RI110NC

11

DCD2

12

RXD2

13

TXD2

14

DTR2

15

GND

16

DSR2

17

RTS2

18

CTS2

19

RI220Key

Effective patterns of connection:
1-2 / 3-4 / 5-6
Other may cause damage

HE-B73 User’s Manual

-18-

2.4.5 <USB interface>

CN_USB1/2: USB2.0 10-pin header (Pitch 2.54 mm)

Pin

Signal

Pin

Signal

1

5VSB

2

5VSB

3

DATA0-

4

DATA1-

5

DATA0+

6

DATA1+

7

GND8GND

9

GND10Key

TYPE_E: USB3.2 Gen2 20-pin header (Cable optional)

Pin

Signal

Pin

Signal

15V20

N/A

2

USB3.2_Gen2_TX1+

19

USB2.0_DATA+

3

USB3.2_Gen2_TX1-

18

USB2.0_DATA-

4

GND17GND

5

USB3.2_Gen2_RX1+

16

USB3.2_Gen2_RX2-

6

USB3.2_Gen2_RX1-

15

USB3.2_Gen2_RX2+

75V14

GND

8

N/A

13

USB3.2_Gen2_TX2-

9

N/A

12

USB3.2_Gen2_TX2+

10

N/A115V

TYPE_E-1 CN_USB1
TYPE_E-2

2

9

1

11 20

10 1

9

1 2

CN_USB2

HE-B73 User’s Manual

-19-

2.4.6 <Audio interface>

CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)

Pin

Signal

Pin

Signal

1

MIC_L

2

GND

3

MIC_R

4

NC

5

FP_OUT_R

6

MIC_DETECT

7

SENSE

8

Key

9

FP_OUT_L

10

FP_OUT_DETECT

CN_AUDIO

1 2

9 10

HE-B73 User’s Manual

-20-

2.4.7 <Expansion slot>

JMSATA

MINI_CARD

M.2_NVME

3 1

SIM

M.2 KEY E

MINI_CARD support mSATA by JMSATA, and connect SIM card

M.2_NVME support PCIe Gen4 and SATA

JMSATA: Setting MINI_CARD to support PCIe/mSATA

Settings

Function

1-2

Support mSATA

2-3

Normal operation (Default)

HE-B73 User’s Manual

-21-

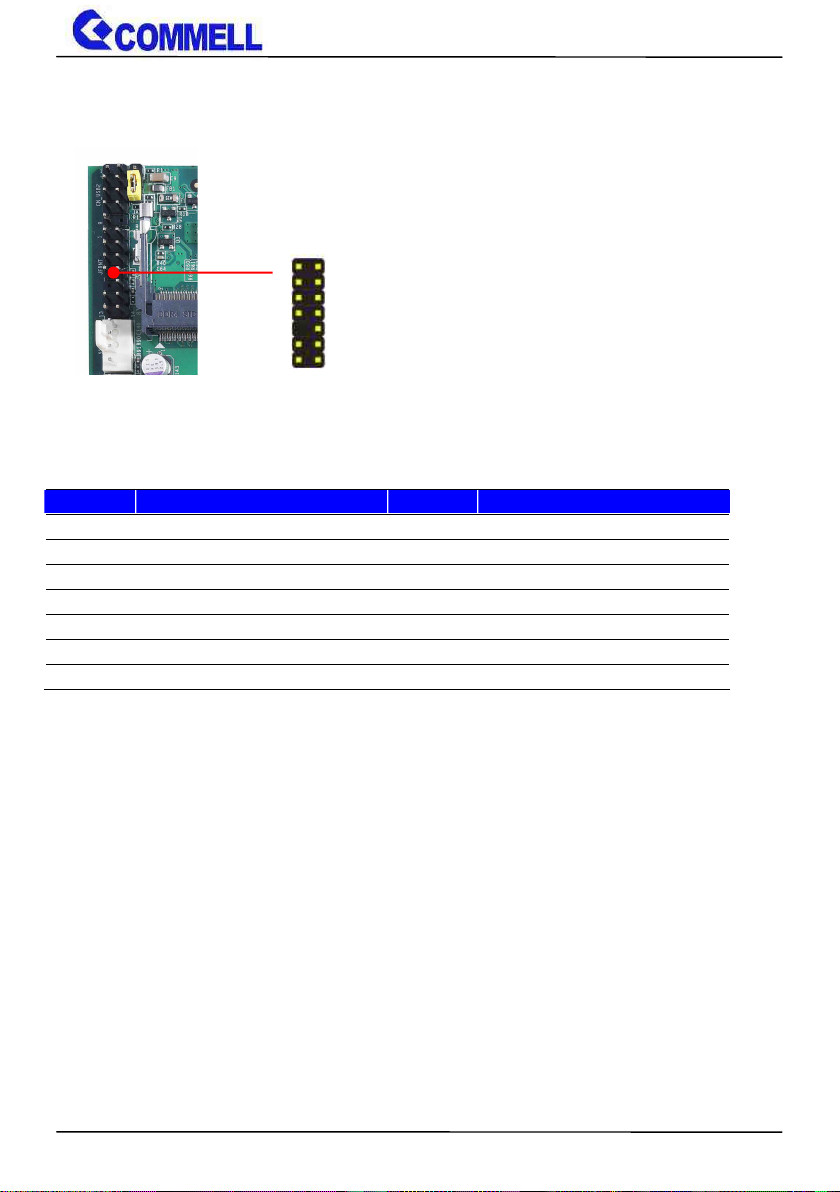

2.4.8 <Front panel switch and indicator>

JFRNT: Front panel switch and indicator 14-pin header

Pin

Signal

Pin

Signal

1

HDD_LED+

2

Power_LED+

3

HDD_LED-

4

NC

5

Reset+

6

Power_LED-

7

Reset-

8

Speaker+

9

Key10NC

11

Power_ON+

12

NC

13

Power_ON-

14

Speaker-

JFRNT

1

14

2

13

HE-B73 User’s Manual

-22-

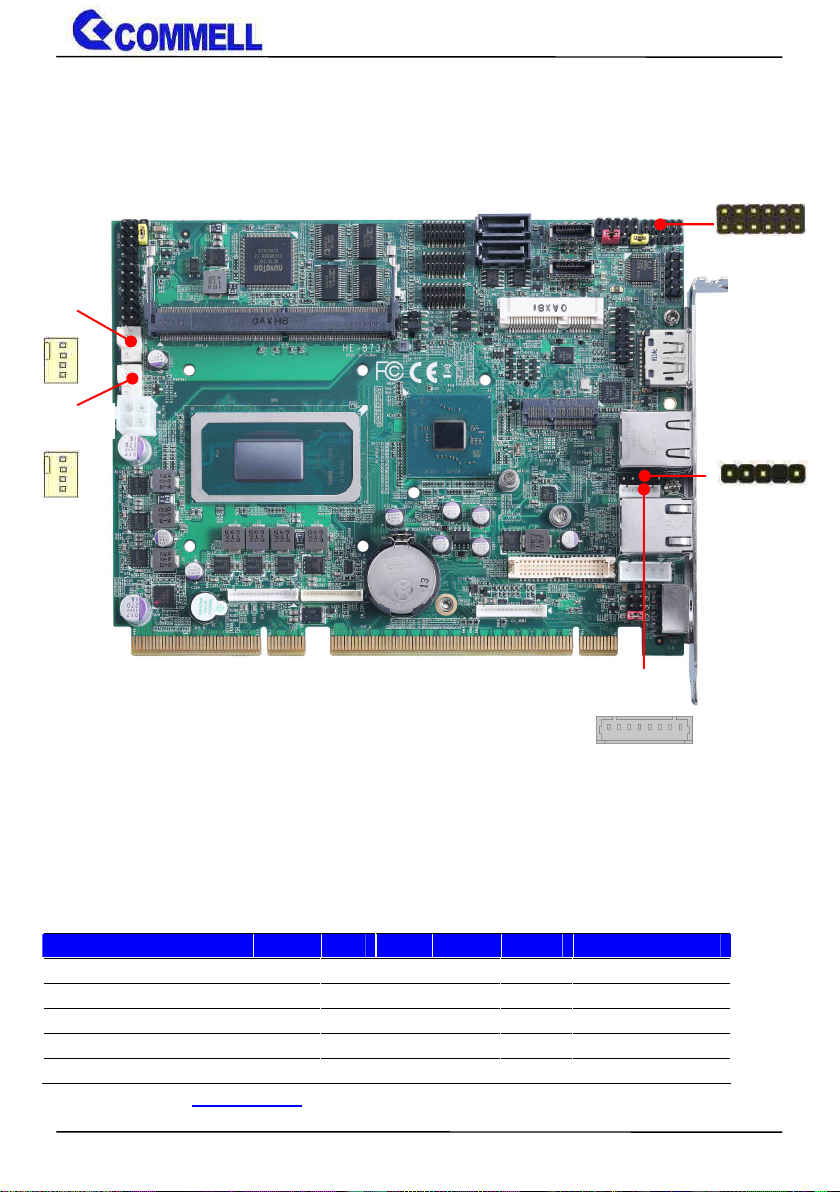

2.4.9 <GPIO and Other interface>

When using GPIO function, please note:
As Output: Open-drain, most applications need use an external pull up resistor.
(If not may cause damage)
As Input: TTL-level.

GPIO DC characteristics (open drain mode)

Parameter

SYM

MIN

TYP

MAX

UNIT

Conditions

Input Low Voltage

VIL0.8

V

Input High Voltage

VIH2.0

V

Output Low Voltage

VOL0.4VIOL =12mA

Input High Leakage

I

LIH

+10μAVIN =3.3V

Input Low Leakage

I

LIL

-10μAVIN =0V

Please refer to Appendix E to program the configuration register

SYSFAN

11 1

CPUFAN

CN_DIO

1
4

1
4

12 2

CN_SMBUS

5 1

JLANLED

8 1

HE-B73 User’s Manual

-23-

CN_DIO: GPIO 12-pin header (Pitch 2.00mm)

Pin

Signal

Pin

Signal

1

GND2GND

3

GP40

4

GP44

5

GP41

6

GP45

7

GP42

8

GP46

9

GP43

10

GP47

115V12

12V

CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm)

Pin1234

5

Signal5VNC

SMBDAT

SMBCLK

GND

CPUFAN: CPU cooler fan 4-pin connector

Pin1234

Signal

GND

12V

Sensor

Control

SYSFAN: System cooler fan 4-pin connector

Pin1234

Signal

GND

12V

Sensor

Control

JLANLED: RJ45 LED 8-pin connector

Pin

Signal

1

I219 SPEED LED+ (1G) / I219 SPEED LED- (10/100M)

2

I219 SPEED LED- (1G) / I219 SPEED LED+ (10/100M)

3

I219 ACT LED-

4

I219 ACT LED+

5

I225 SPEED LED+ (2.5G) / I225 SPEED LED- (1G)

6

I225 SPEED LED- (2.5G) / I225 SPEED LED+ (1G)

7

I225 ACT LED-

8

I225 ACT LED+

HE-B73 User’s Manual

-24-

2.5 <Power supply>

2.5.1 <Power input>

CN_12V: 4-pin 12V connector

Pin

Signal

Pin

Signal

1

GND2GND

3

12V412V

CN_12V

4 2

3 1

HE-B73 User’s Manual

-25-

Appendix A <Flash BIOS>

A.1 <Flash tool>

The board is based on Phoenix BIOS and can be updated easily by the BIOS
auto flash tool. You can download the tool online at the address below:

FPT Tool

The tool’s file name is “FPT.exe”, it’s the utility that can write the data into the
BIOS flash chip and update the BIOS.

A.2 <Flash BIOS process>

1.Extract the zip file(re-flash tool and BIOS file) to root of the USB flash drive.

2.Insert your USB flash drive in USB port of the board and power on the
system.

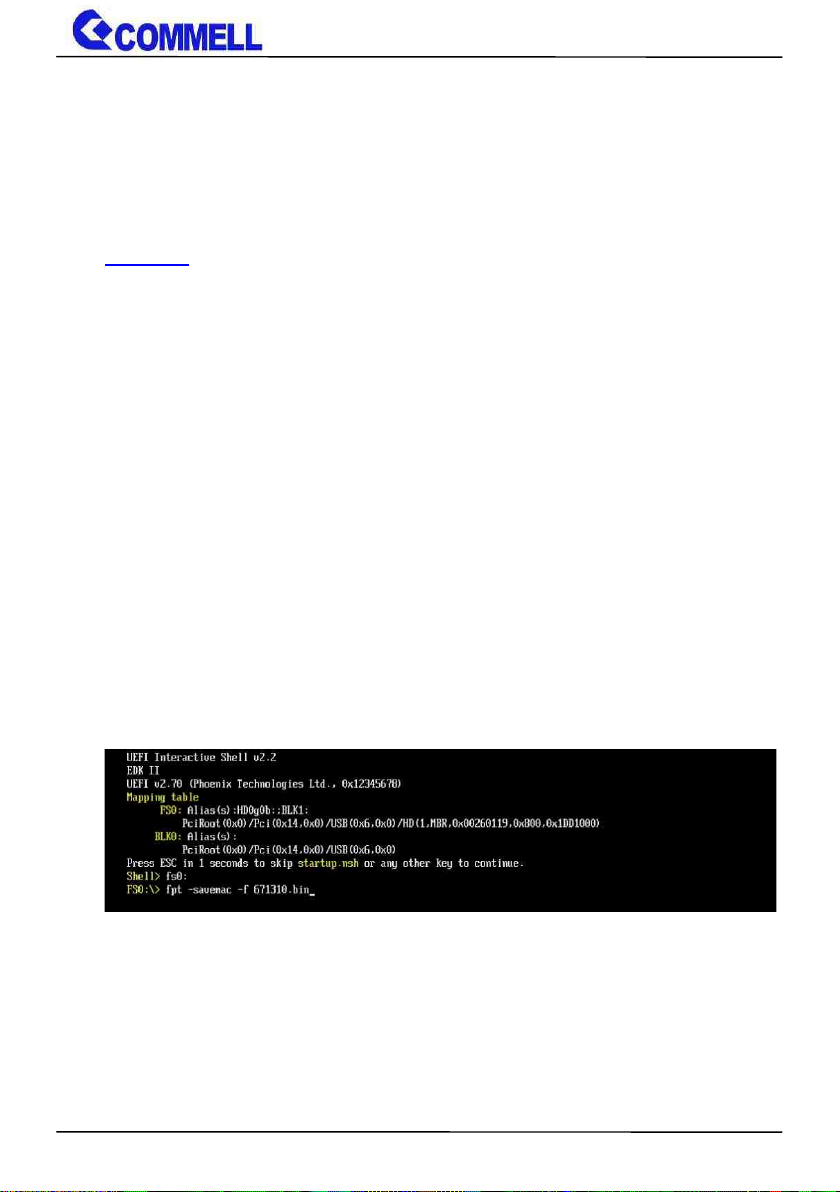

3.Press F5 in the Phoenix Logo screen

4.Click the Internal Shell, then input the “fs0:” command to switch to the root
of the USB flash drive.

5. Type the ” fpt -savemac -f xxx.bin” command to start flash BIOS processes.
( xxx.bin means the BIOS file that you want to update)

6. When it finished all update processes, restart the system.

HE-B73 User’s Manual

-26-

Appendix B <LCD Panel Type select>

According your panel, it needs to select the correct resolution in the BIOS. If there
is no fit your panel type, please feedback for us to make OEM model.

Find the setting from
Advanced->Motherboard Advanced menu->LVDS Configuration
EDID Panel type: There are 7 resolutions in LCD Panel Type, if your panel is not
in the list, please contact [email protected]

LVDS Bus: Select Single / Dual channel
Panel Color Depth: Select VESA 24 bit / JEIDA 24 bit / VESA and JEIDA 18 bit

HE-B73 User’s Manual

-27-

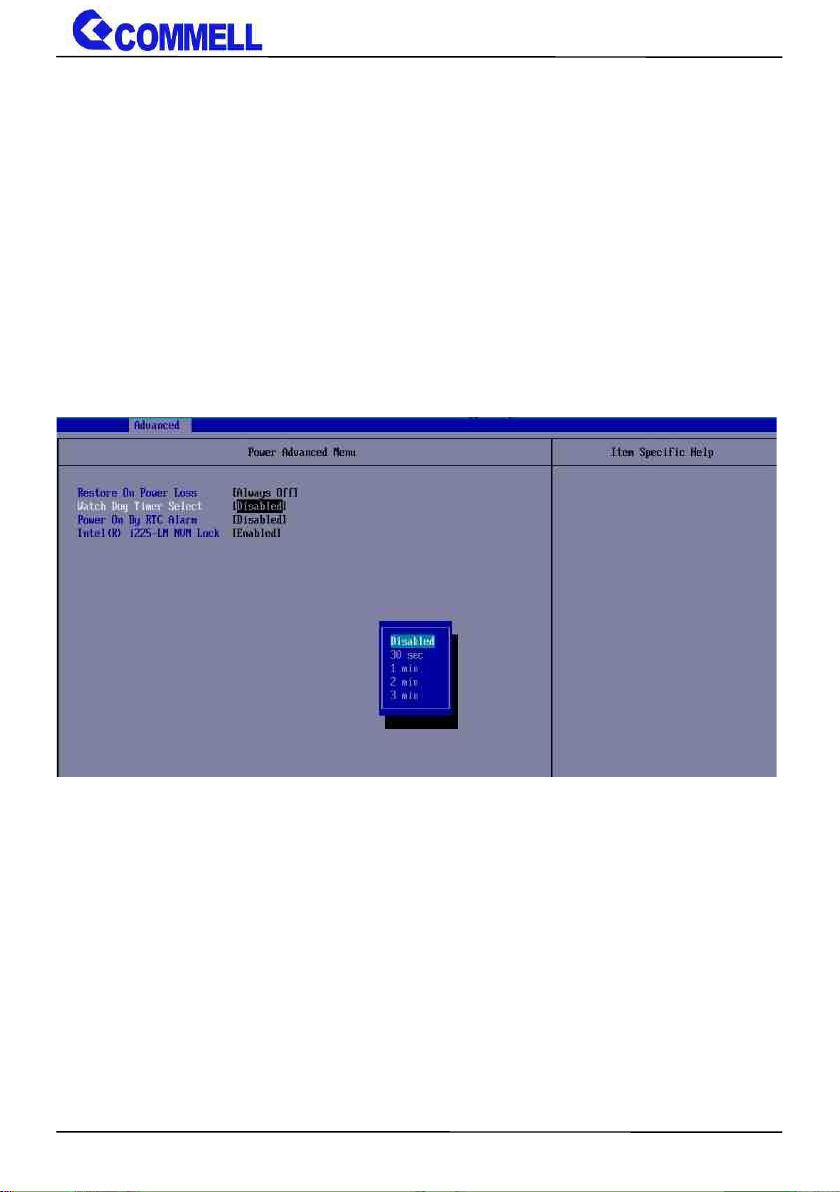

Appendix C <Programmable Watch Dog Timer>

The watchdog timer makes the system auto-reset while it stops to work for a
period. The integrated watchdog timer can be setup as system reset mode by
program. You can select Timer setting in the BIOS, after setting the time options,
the system will reset according to the period of your selection.
Find the setting from
AdvancedMotherboard Advanced Menu->Power Advanced menu->
Watch dog timer select

HE-B73 User’s Manual

-28-

Program sample

Watchdog timer setup as system reset with 5 second of timeout

-o 4E 87 ;enter configuration

-o 4E 87

-o 4E 07

-o 4F 08 ;select Logical Device

-o 4E 30

-o 4F 01 ; activate WDTO# function

-o 4E F0

-o 4F 00 ;set “00” is second mode, set “08” is minute mode

-o 4E F1

-o 4F 05 ;00h: Timeout Disable

;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute

;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)

For further information, please refer to Nuvoton NCT6126D datasheet

…

HE-B73 User’s Manual

-29-

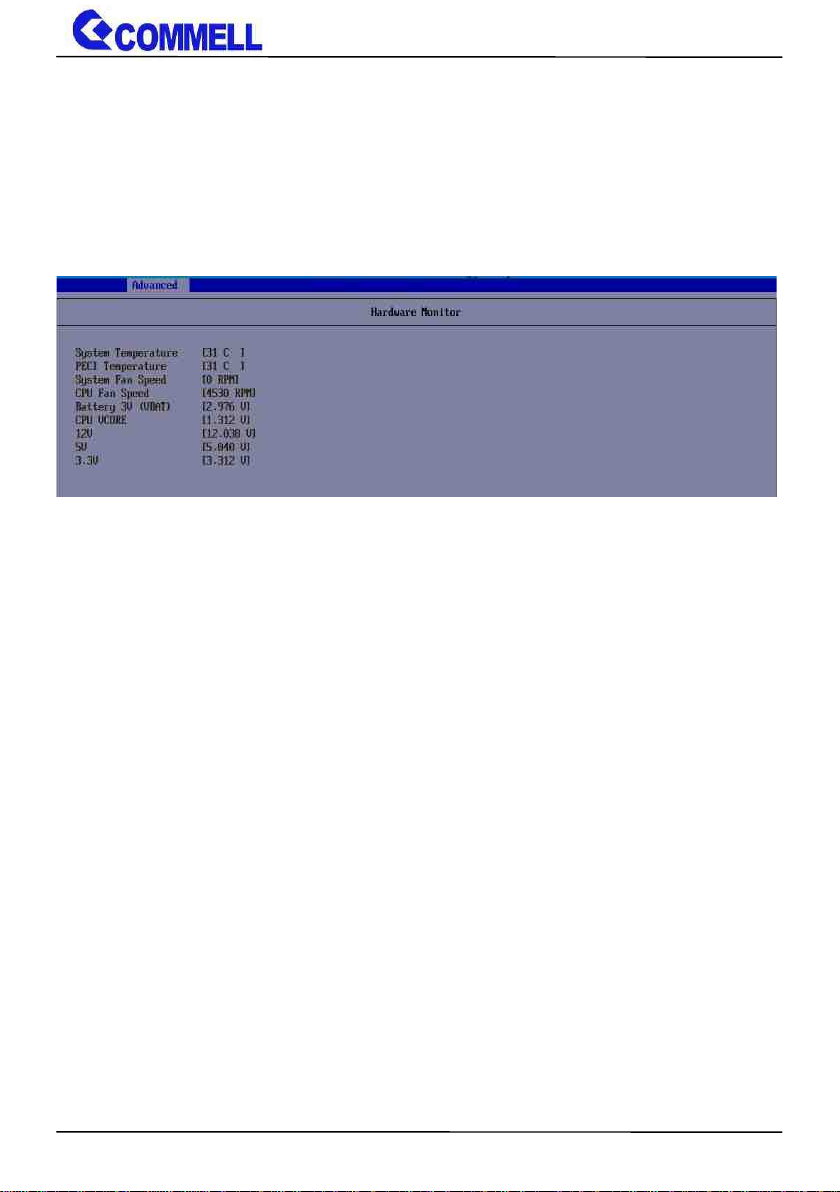

Appendix D <Hardware Monitor>

Find the setting from
Advanced-> Motherboard Advanced menu-> Super IO configuration->
Hardware Monitor

HE-B73 User’s Manual

-30-

Appendix E <Programmable GPIO>

The GPIO can be programmed using simple IN/OUT commands.

GPIO01234567

bit01234567

-o 4E 87 ;enter configuration

-o 4E 87

-o 4E 07

-o 4F 07 ;select Logical Device

-o 4E 30

-o 4F 10 ;activate GPIO function (The board use GPIO4)

-o 4E F0

-o 4F XX ;set “01” GPIO as input, set “00” GPIO as output

-o 4E F1

-o 4F XX ;if set GPIO as output, this register’s value can be set “00~ FF”

Optional

-o 4E F2

-o 4F XX ;set “01”, the respective bit are inverted (Both input and output)

;set “00”, the respective bit are normal

For further information, please refer to Nuvoton NCT6126D datasheet

HE-B73 User’s Manual

-31-

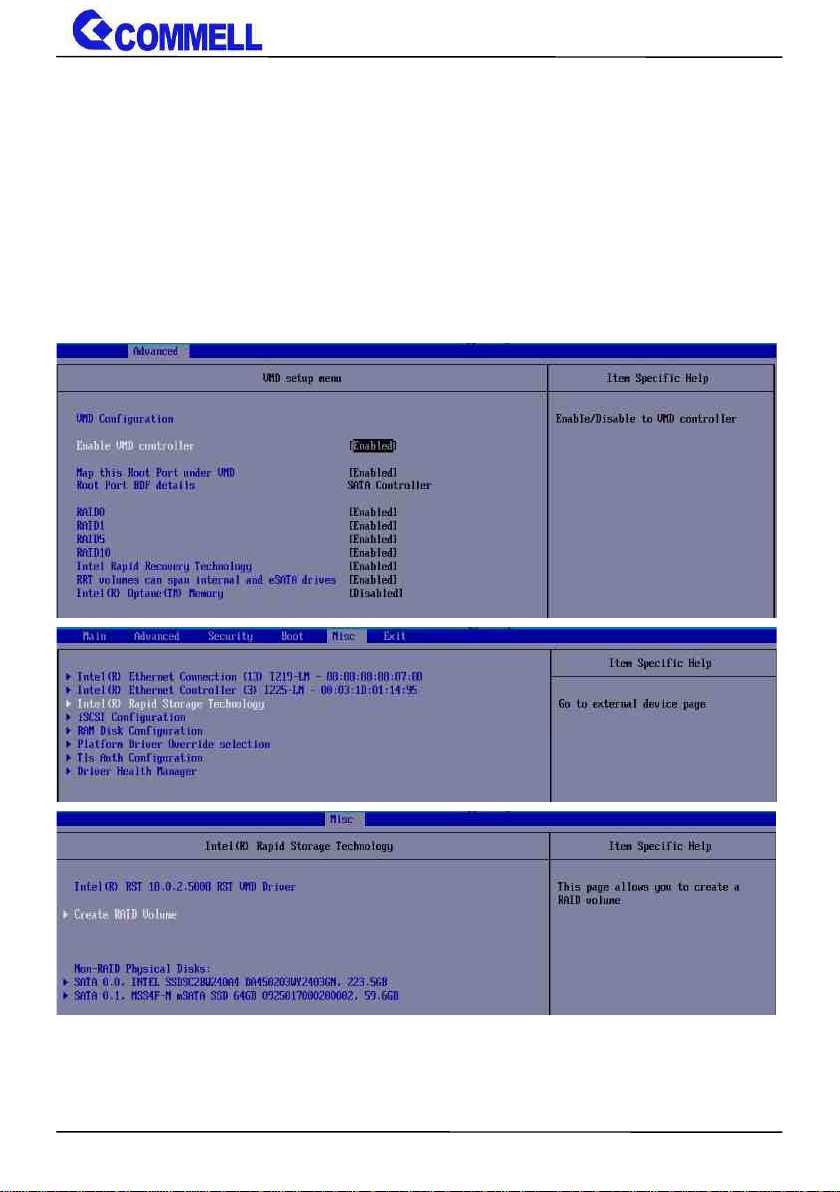

Appendix F <RAID Setting>

When use RAID function, it need to enter the BIOS set RAID mode first.
Advanced  Intel Advanced menu SA Configuration  VMD Configuraion

1. Find VMD controller, and set to enable

2. Set “Map this Root port under VMD” to enable.

3. Set “Intel Optane memory to disabled

4. Press F10 to save.

5. In Misc page, you can find Intel® Rapid Storage Technology,

6. You can see “Create RAID Volume”, then choose two disks to create.

Note: if you use two M.2 2280 SSD to create RAID, you have to load driver when

install Windows 10.

HE-B73 User’s Manual

-32-

Appendix G <Cooler fan>

You will see two different cool fans on CPU.
OHS-P-M-L is for high power CPU (Core™ i7-11850HE, Core™ i5-11500HE,
Xeon® W-11865MRE, Xeon® W-11555MRE, Xeon® W-11155MRE)

OHS-P-M-K is for low power CPU (Core™ i3-11100HE, Celeron® 6600HE, Xeon®
W-11865MLE, Xeon® W-11555MLE, Xeon® W-11155MLE)

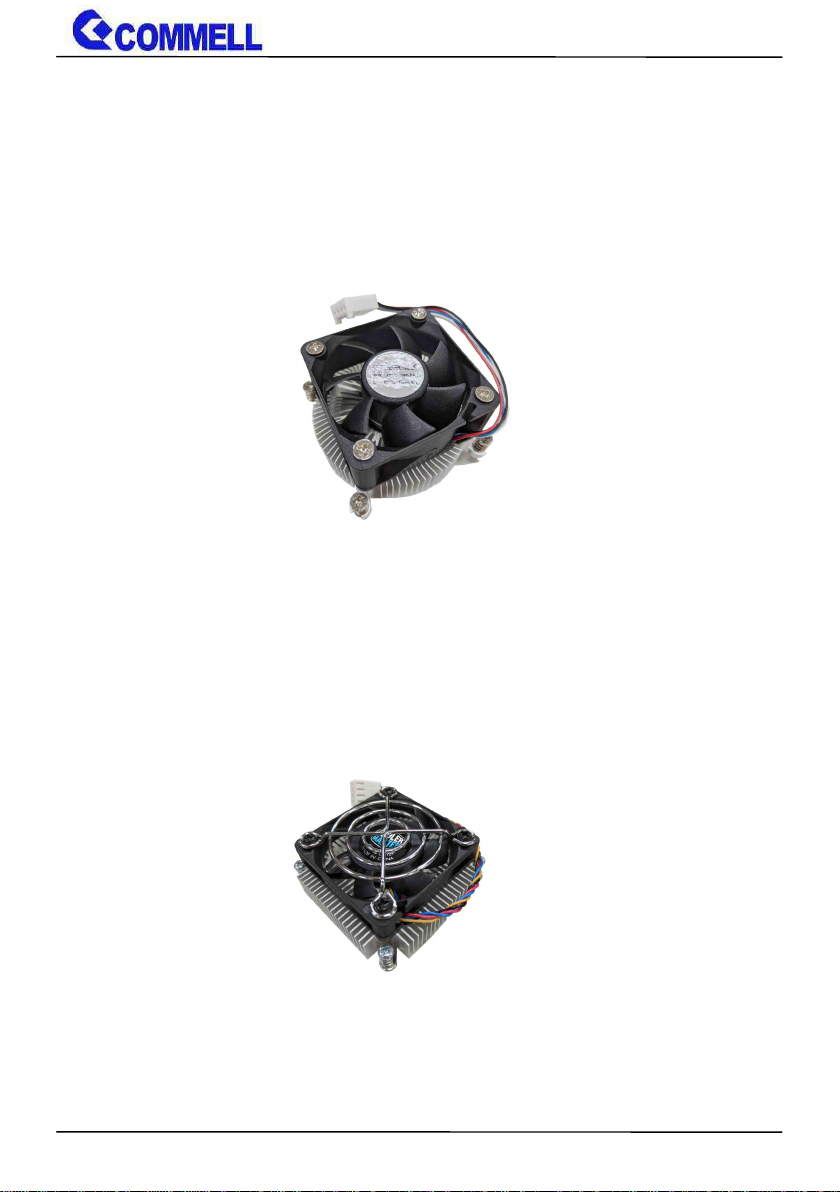

OHS-P-M-L

OHS-P-M-K

HE-B73 User’s Manual

-33-

Contact information

Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.

Taiwan Commate computer Inc.

Address

19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.

TEL

[phone]

Website

www.commell.com.tw

E-mail

[email protected] (General infomation)
[email protected] (Technical Support)

Commell is a brand name of Taiwan Commate computer Inc.

T
