Color video door phone CDV-70AR3

• Thank you for purchasing COMMAX products.

• Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Greetings

www.safemag.ru

● Thank you for choosing COMMAX.

● Please read this manual carefully before you use the product.

Table of contents

Greetings ..................................................................................................................1

Contents table...........................................................................................................1

1. Warnings and caution ...........................................................................................2

2. Product Overview..................................................................................................4

3. Operation Methods ...............................................................................................5

4. Settings.................................................................................................................6

5. Installation.............................................................................................................8

6. Wiring ...................................................................................................................9

7. Part lists ..............................................................................................................11

8. Specification........................................................................................................11

1. Warnings and caution

www.safemag.ru

Please follow the things described below in order to prevent any danger or property damage.

Prohibition.

Warning

It may cause a serious damage or injury if violated.

No disassembly

No touch

Caution

It may cause a minor damage or injury if violated.

Please don’t use several products at the same time on one power socket.

·It may cause a fire due to an ab

normal overheating.

Please don’t install the product in the place where there is much oil, smoke or humidity.

·It may cause an electric shock or fire.

Power & Installation

Warning

Please don’t bend the power cable excessively or it may cause an electric shock.

·fire when using a damaged power cable.

Please don’t install the product with the lightening and thunder.

·It may cause an electric shock or fire.

Must follow strictly.

Shows plugging out the power cord without an exception

Shows the warning and caution for an electric shock.

Shows the warning and caution for a fire.

Please don’t handle the power cable with a wet hand.

·It may cause an electric shock.

Please don’t use and connect this product with other products with different rated voltage

·It may cause a disorder or fire.

Please plug out the power cable from the socket when not using it for a long period of time.

·It may shorten the product lifespan or cause a fire.

When installing the product that generates heat, please install the product away from the wall (10cm) for the ventilation.

·It may cause a fire due to the increased internal temperature.

Warning

www.safemag.ru

Please don’t disassemble, repair or rebuild this product arbitrarily (please contact the service center if a repair is needed.

·It may cause an electric shock or fire.

Cleaning & UsePower & Installation

Please plug the power cable firmly into the inner end

·It may cause a fire.

Please be careful when using an AC circuit breaker since there is a possibility of an electric shock.

If an abnormal sound, burning smell or smoke is coming out of the product, please plug out the power cable and contact a service center.

·It may cause an electric shock or fire.

Caution

Please hold the plug tightly when unplugging the power cable (a part of the copper wire may be disconnected if the grabbing is only made on the cord when pulling out the cable).

·It may cause an electric shock or fire

Please check the use voltage and current for the DC-only products and use the appropriate rectifier.

·It may cause a fire.

Please don’t insert any metallic or burnable materials into the ventilation hole.

·It may cause an electric shock or fire.

When connecting the power cables after cutting the cable, please install the product with power off

·It may cause an electric shock or fire

Please avoid direct rays of the sun or heating devices at a time of installation.

·It may cause a fire.

Please use only the designated batteries for the products of using DC power.

·It may cause an electric shock or fire.

When installing the product, please fix it firmly while using the wall-mounting unit and screws.

·It may cause an injury from the falling object.

Please don’t install the product on an unstable place or small support board.

·It may cause an injury if it falls down while in use.

When cleaning the product, please rub it with a soft and dry cloth after plugging out the power cable. (Please don’t use any chemical products such as wax, benzene, alcohol or cleanser.)

Cleaning & Use

Please don’t drop the product on the ground and don’t apply a shock .

·It may cause a failure.

Please use the designated connection cable within the maximum calling distance designated for the product

·It may reduce the product performance.

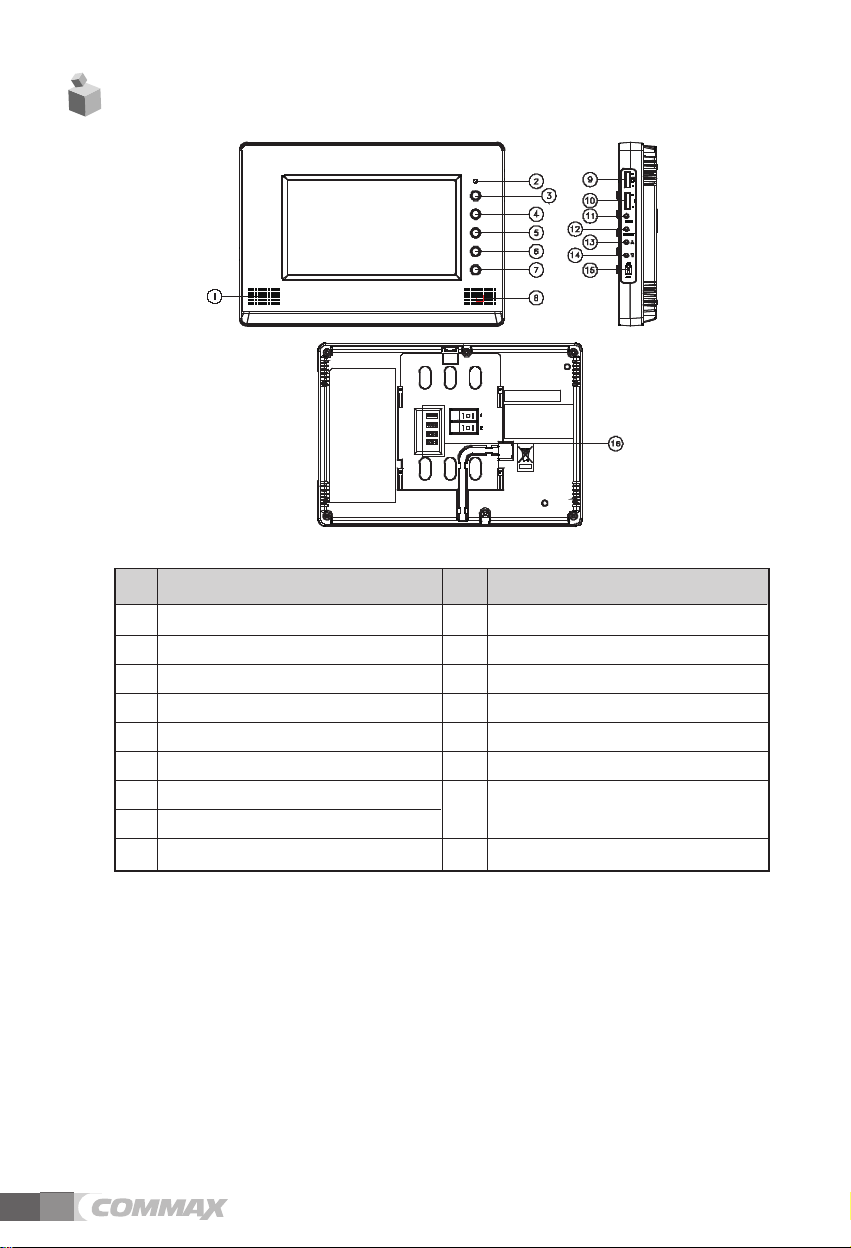

2. Product Overview

www.safemag.ru

No. DescriptionNo.

1 Speaker 10 Call Sound Level Control 2 On/Off & status LED 11 Menu Button 3 Monitor Button 12 Select Button 4 Interphone Button 13 Up Button (△)

5 Talk Button 14 Down Button (▽) 6 Door Release 15 Power Switch 7 2nd Door Release 16 Connector Terminal 8 Microphone (camera/Interphone/prog.) 9 Talk Sound Level Control

Talk Sound Level Control : Use to adjust sound level during talking.

※

Call Sound Level Control : Use to adjust sound level of calling sound.

※

Description

3. Operation Methods

www.safemag.ru

3-1. Receiving a calling from visitor.

① When the call button is pressed by a visitor on the door camera, the melody shall be

rung and visitors' image is shown on the screen (If you do not press the Talk Button, the display will be shown up for 30 seconds and turned off automatically).

② By pressing the Talk Button, you are able to talk with visitor. By pressing the Door

Release Button, you can open the door for visitor(Door release function can be done only when the monitor is showing the visitor, on the camera which has door release function.)

③ When monitor and door camera are on talking, the 3-party talking is possible by

picking up receiver of the interphone. (Camera-Monitor-Interphone talking at same time.)

④ By pressing Talk Button again you can end the talking and monitor comes back to

stand-by mode.

3-2. Talk with Interphone.

(1) Calling from the Interphone.

① You will hear calling sound when interphone call the monitor. ② Press Talk Button to talk with the interphone. ③ When monitor and interphone are on talking, the 3-party talking is possible by calling

from the door camera. (Camera-Monitor-Interphone talking at same time.) (2) Calling the interphone from the monitor. ① Press Talk Button and Interphone Button in order to call the interphone from the

monitor. (Interphone button should be pressed & held until the interphone answers.) ② Then talking is available by picking up the handset of interphone.

3-3. Monitoring : To see the visitor at the door.

(On stand-by mode) Operation

- By pressing the Monitor button repeatedly, the monitor will work as following in order.

Camera 1  Camera 2  OFF  Camera 1 ......

(On talking mode) Operation

- By pressing the Monitor button repeatedly, the monitor will work as following in order.

Camera 1  Camera 2  Camera 1  Camera 2  ......

On talking or monitoring mode, press menu button on the right side of product, and press △/▽ buttons to adjust display(brightness, contrast, color), to enter the Utility menu, to check the product information.

•Following 4 buttons on the right side of the product are used for setting.

www.safemag.ru

* Menu, End : MENU * Move up, right : △(UP Button) * Select, Input : SELECT * Move down, left : ▽

(DOWN Button)

3-4. Door Release Function

If you press the ‘door release’ button (Key shaped button), the monitoring door camera will make a sound and release the door. (the door release function is only enabled while in a monitoring mode)



The same rule applies to COMMAX interphone series.

If you press the ‘2

released.



'2nd Door Release' only enabled for the 2nd door release function on camera 1 (only applicable for DRC-40KR2 model or other camera models with a built-in 2nd door

release function). '2nd Door Release' button is for the 2nd door release function on camera 1 only and not for the camera 2.

Door Release’ button while in a monitoring mode, the 2nddoor is

4. Settings

4-1. Display Setting (Brightness, Contrast, Color Adjustment)

On Setting Mode, move to Door Video Set and press Select button to enter the display setting mode. (1) BRIGHTNESS : To adjust brightness. (2) CONTRAST : To adjust contrast. (3) COLOR : To adjust color.

※ How to adjust

① On DOOR VIDEO SET display press △/▽ to move to the item you want to adjust ② Press Select Button to select the item. ③ Adjust using △/▽ buttons. ④ Press Select Button again to finish.

(4) RESET : Puts back settings to initial setting. ※ How to reset.

① On DOOR VIDEO SET display move to RESET item.

www.safemag.ru

② Press SELECT Button to select the item. ③ Select YES using △/▽ buttons. ④ Press SELECT button to reset.

(5) EXIT : Return to Configuration mode

※ Setting

① Click △/▽ button to move to EXIT in DOOR VIDEO SET menu ② Click SELECT button

4-2. UTILITY(Extra features)

Press the MENU button in use of conversation or monitoring and set up Screen mode (1) SCREEN MODE: Choose screen ratio

① Move to UTILITY menu in display setting mode and press SELECT BUTTON.

And then move to SCREEN MODE on the list using △/▽ button.

② Press SELECT button to enter the menu ③ Set screen ratio using △ /▽ button. ④ Press the SELECT button.

※ WIDE : Full of the screen. Not actual ratio(4:3). Image is expanded according to

LCD(WIDE LCD) ratio.

※ 4:3 : Image of 4:3 ratio(actual ratio for camera) without expansion is shown.

(BLANK will be shown on the left and right of LCD screen) ※ ZOOM : Zoon in(expansion) image maintaining actual ratio(4:3) is shown. (full of the screen) (2) EXIT : Return to configuration mode

※ Setting

① Move to EXIT in UTILITY MODE by using △ /▽ button ② Click SELECT button to choose

4-3. INFORMATION (Model and Version checking)

Click △/▽ button to check the Model and version in configuration mode (1) Model : The name of Model (2) Version : The version of the product (3) VIDEO : The video type of the product (4) SOURCE : The location of the image

margaid noitallatsnI )1

4-4. EXIT(End configuration)

www.safemag.ru

Move to EXIT and click Select button.

5. Installation

- Terminal wiring in rear

CDV-70AR3 CAMERA1

CAMERA2

ADAPTED POWER

S1 S2

1 2 3 4

1234

NC NO

COM

RED BLUE YELLOW

DOOR RELEASE

ADAPTED POWER

INTERPHONE

PROGRAM

DOOR RELEASE

DOOR

RELEASE

6. Wiring

www.safemag.ru

CAMERA CONNECTOR POLARITY

1. RED : VOICE 2. BLUE : GND 3. YELLOW : POWER(+12V) 4. WHITE : VIDEO

Caution on the Wiring

Be sure to use a separate wiring for each connect 2lines of UTP CABLE[CAT.5] are required if UTP CABLE[CAT.5] is used for CAMERA1 and CAMERA2

DOOR Camera Wiring

www.safemag.ru

• If UTP CABLE[CAT.5] is used, use 5 lines for GND line.

INTERPHONE Wiring

• If UTP CABLE[CAT.5] is used, use 5 lines for GND line.

7. Part list

MANUAL

www.safemag.ru

Monitor

T4 X 18

Wall bracket

Mounting Screw

Wall bracket Manual

M3 X 6 Monitor

Fixing Screw

Connector

(4P X 3pcs)

8. Specification

MODEL

Transmission way Door camera 4wires (Polarity), interphone 4wires (polarity) Rating Voltage 100V-240V~, 50/60Hz (FREE VOLTAGE) Power consumption On stand-by : 3.5W On talk : 15W Transmission way HANDS FREE (Voice switch circuit) Monitor 7" TFT-DIGITAL LCD Call sound Door : Electronic chime (Sol Mi Do), interphone : Beep Display Monitoring : 30 ±5sec , Talk : 60 ±5sec

Pie 0.5mm 0.65mm 0.8mm

Distance

28m 50m 70m Working temperature 0 ~+40℃ (32℉ ~ 104℉) Dimension 243(W) X 168(H) X 35 mm(D)

CDV-70AR3
