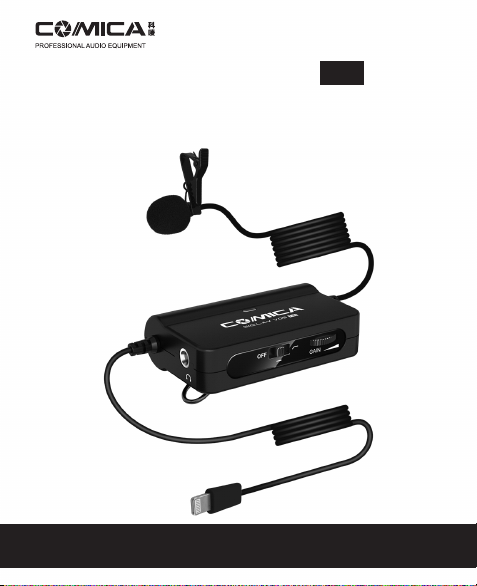

Comica V05 MI User Manual

SIG.LAV V05 MI

Multi-functional Single Lavalier Microphone

(For Iphone with Lightning Interface, MFI Certified)

User Manual

Foreword

Thanks for purchasing Comica SIG.LAV V05 MI multi-function
single lavalier microphone .

This product can be equipped with smartphone and camera for
audio recording. It is designed with functions of supporting
adjustable sensitivity, smartphone and camera switch, real-time
monitoring, work indicator light, CR2032 3V battery power supply,
flexible back clip, which can bring you better experience and
sound quality effect and without any concern!

Please carefully read this instruction manual before use. The
product has been precisely calibrated at the factory, and please
do not assemble and disassemble the parts by yourself, or the
warranty will be invalid!

Notice

While the product is used for IOS system phones, it supports both
Iphone original audio recording mode and video recording mode.
While used for smartphone, please set the smartphone to fly mode
to avoid any interference.
Please stay away from heat source or interference source when
using.
Please avoid falling, collision or impact when using.
Please do not use in rain or humidity, or there will be a risk of shot
circuit.

1

Main Functions

. Design for Iphone with Lightning Interface

. Stepless Gain Control

. Real-time Monitor

Design for Iphone

with Lightning Interface

Stepless Gain

Adjustment

. Super-shield and Low Noise Mic

. LED Working Indicator

Real-time

Audio Monitor

Super-shield

and Low Noise Mic

Package List

Body of Microphone Back Clip

SIG.LAV V05 MI

Multi-functional Single Lavalier Microphone

(For Iphone with Lightning Interface, MFI Certified)

User Manual

Carrying Case Instruction Warranty Card

2

Working Indicator

Components

Microphone

1

Lightning Interface audio output line

2

Monitoring jack

3

Work indicator light

4

Mic

5

Gain control wheel

6

Power / Record / Low Cut Off function switch

7

Back clip

8

Battery holder

1

8

3

2

6

7

4

5

3

Installation and Use

1. Move to Record / Low Cut Off function switch , the indicator light
turns green

Move to Record / Low Cut Off function switch

the indicator light turns green

4

2. Insert the Lightning Interface output connector into the Lightning
Interface input interface of the smartphone and used with the
recording system of smartphone for recording

a.While the product is used for IOS system phones, it supports
both Iphone original audio recording mode and video
recording mode.
b.While used for smartphone, please set the smartphone to
fly mode to avoid any interference.

5

Function Description

1. Gain Control Wheel
During the usage, the gain control wheel can adjust the output

sensitivity of microphone

2. 3.5mm monitoring jack

You can monitor the recording situation through the 3.5mm

monitoring jack

3. On and off function switch

When the power of the battery is low, the indicator light turns red,

and the battery should be replaced. When not in use, please move
the switch to OFF, turn off the machine.

6

Move to power switch on the left side

Gain Control Wheel

Specification

Polar Pattern

+5.0

0.0

-2.0

-4.0

-6.0

-8.0

-10.0

-12.0

-14.0

-16.0

-18.0

-20.0

-22.0

-24.0

-25.0

dB rel. 1V/Pa

Frequency:

500 Hz :
1000 Hz :
4000 Hz :

Frequency Response

20

10

0

-10

dB re 1 V/Pa

-20

-30

20Hz 100 1000 10 000 20 000

-2.0

-10.0

-20.0

7

Product Features

Polar Pattern

Sensitivity

Gain Range

Frequency Response

Max SPL

Working Temperature

Storage Temperature

8

S/N

Battery

Omni-directional

-35dB ±2dB

Maximum increase +10dB

60Hz - 18kHz

>65dB

100dB

CR2032 3V

0℃ ~ +50

℃

-20℃ ~ +60

℃

SIG.LAV V05 MI

多功能单领夹式麦克风

（Iphone Lightning 接口专用,MFI 认证）

用户使用手册

前 言

感谢您购买科唛

Lightning 接口专用,MFI 认证）。

此产品可搭配手机、相机进行音频录制。它设计有支持增益调
节、手机/相机切换开关、实时监听、工作指示灯、CR2032 3V电池
供电、灵活的背夹等功能，能带给您更好的体验及音质效果。无
所顾虑！

使用前请认真阅读此使用说明书，本产品在出厂时已进行精密校
准，请勿自行组装拆卸零部件，否则不予保修！

SIG.LAV V05 MI

多功能单领夹式麦克风（

注意事项

该麦克风配合IOS系统（IPHONE）的手机使用时，在录音及视频录
模式下均可正常工作
当用于手机时，请将手机设置为飞行模式，以避免信号干扰
使用时请远离热源或干扰源
使用时请避免掉落，碰撞或重击
请勿在下雨或潮湿环境环境中使用，否则会有短路的危险

1

Iphone

产品主要功能

. Iphone Lightning接口专用
. 无级增益可调
. 实时监听

. 超强屏蔽、抗噪咪头
. LED工作指示灯

实时监听 超强屏蔽

Iphone Lightning

接口专用

无级

增益可调

抗噪咪头

包装清单

麦克风主体 背夹

SIG.LAV V05 MI

多功能单领夹式麦克风

（Iphone Lightning 接口专用,MFI 认证）

用户使用手册

手提袋 说明书 保修卡

LED工作指示灯

2

麦克风

1

Iphone Lightning音频输出线

2

监听孔

3

工作指示灯

4

咪头

5

增益调节拨盘

6

电源/录音/低切转换开关

7

背夹

8

电池仓

1

3

部件介绍及说明

3

2

6

7

8

4

5

安装与使用

1.将开关拨至录音或低切，指示灯亮绿灯

拨至录音或低切

指示灯亮绿灯

4

２.把Iphone Lightning输出接头插入到手机的Iphone Lightning 输入
接口，打开手机的录音软件，即可以进行录音

a.该麦克风配合IOS系统（IPHONE）的手机使用时，在录音及
视频录模式下均可正常工作
b.当用于手机时，请将手机设置为飞行模式，以避免信号干扰

5

功能解析

1. 增益调节拨盘
使用过程中，增益调节拨盘可以调节麦克风输出灵敏度

增益调节拨盘

２. 3.5mm监听孔
通过监听孔，可以实时了解录音情况

３.开/关功能切换
电池低电时，指示灯亮红灯，此时应该更换新电池使用。机器　
　 不使用时，请将开关拨动OFF，关闭机器

拨至左侧电源开关

6

技术参数

指向图

+5.0

0.0

-2.0

-4.0

-6.0

-8.0

-10.0

-12.0

-14.0

-16.0

-18.0

-20.0

-22.0

-24.0

-25.0

dB rel. 1V/Pa

Frequency:

500 Hz :
1000 Hz :
4000 Hz :

频响图

20

10

0

-10

dB re 1 V/Pa

-20

-30

20Hz 100 1000 10 000 20 000

7

-2.0

-10.0

-20.0

产品特征

指向性

咪头灵敏度

增益调节

频响

信噪比

最大声压级

电池

工作温度

储存温度

全指向

-35dB ±2dB

最大增加+10dB

60Hz - 18kHz

>65dB
100dB

CR2032 3V

0℃ ~ +50℃

-20℃ ~ +60℃

8
