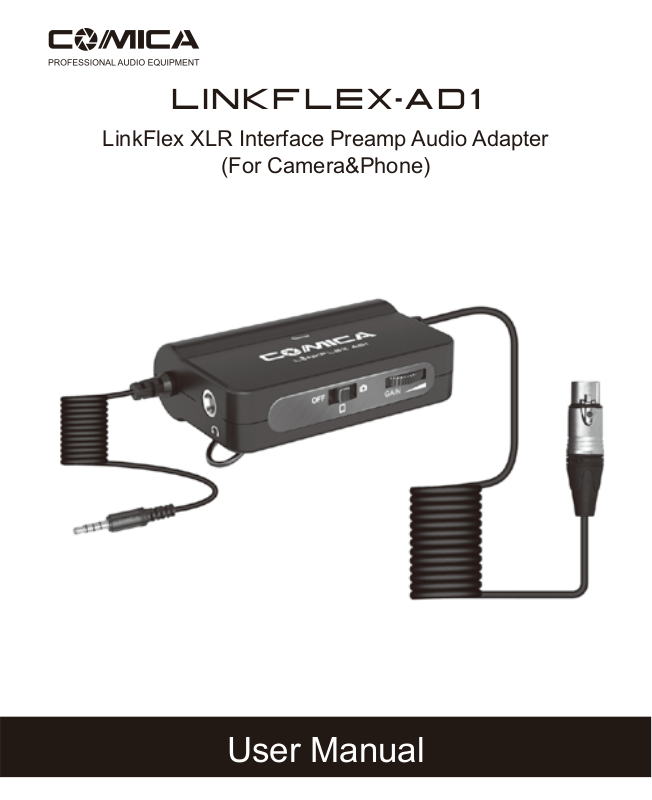

Comica LINKFLEX-AD1 User Manual

LINKFLEX-AD1

LinkFlex XLR Interface Preamp Audio Adapter

(For Camera&Phone)

User Manual

Foreword

Thanks for purchasing Comica LinkFlex XLR Interface Preamp
Audio Adapter (For Camera&Phone).

This product can help to transfer XLR microphone to smartphone
or camera for audio recording. It is designed with functions of
supporting adjustable sensitivity, smartphone and camera switch,
real-time monitoring, etc. which can bring you better experience
and sound quality effect.

Please carefully read this instruction manual before use. The product
has been precisely calibrated at the factory, and please do not
assemble and disassemble the parts by yourself, or the warranty
will be invalid!

Notice

The product supports all XLR dynamic and positive condenser mic,
and not support passive condenser mic which need external
phantom power.
The product is compatible with IOS and Andriod systems. When
used with Iphone 7 and other new version Iphones with Lightning
jack,the original audio cable adapter (3.5mm-Lightning) is needed.
While the microphone is used for IOS system phones, it supports
both Iphone original audio recording mode and video recording
mode.
While the microphone is used for Android System phones, it only
supports phone's original audio recording mode but not video
mode, you should download 3rd party APP to use while in video
shooting mode.
While used for smartphone, please set the smartphone to fly mode
to avoid any interference.
Please stay away from heat source or interference source when
using.
Please avoid falling, collision or impact when using.
Please do not use in rain or humidity, or there will be a risk of shot
circuit.

1

. For both camera and smartphone
. Stepless adjustable sensitivity
. Real-time monitoring

Universal for

Camera&Phone

Body of Converter Back Clip

Case Instruction Manual Warranty Card

2

Main Functions

. Strong shielding and anti-noise mic
. LED work indicator light
. Working condition indicator

Stepless Gain

Adjustment

Real-time

Audio Monitor

Package list

LINKFLEX-AD1

LinkFlex microphone front amplifier adapter

(For Camera&Phone)

User Manual

Working Indicator

Components

Microphone

1

3.5mm audio output line

2

Monitoring jack

3

Work indicator light

4

XLR input jack

5

Gain Control Wheel

6

Power / Camera / Smartphone Switch

7

8

Back clip

1

8

3

2

7

4

5

6

3

Installation and Use

Before use

Insert the XLR Microphone into the XLR input interface

a.

The product supports all XLR dynamic and positive condenser mic,
and not support passive condenser mic which need external
phantom power.
b. The product is compatible with IOS and Andriod systems. When
used with Iphone 7 and other new version Iphones with Lightning
jack,the original audio cable adapter (3.5mm-Lightning) is needed.
c. While used for smartphone, please set the smartphone to fly mode
to avoid any interference.
d. While the microphone is used for IOS system phones, it supports
both Iphone original audio recording mode and video recording
mode.
e. While the microphone is used for Android System phones, it only
supports phone's original audio recording mode but not video
mode, you should download 3rd party APP to use while in video
shooting mode.

4

1.Used with camera

1.1 When used with camera, move the switch to camera, the
indicator light turns green

Move to camera on the right side

the indicator light turns green

5

1.2 Insert the 3.5mm output connector into the 3.5mm input
interface of the camera for recording

6
