Comelit 6202B Specsheet

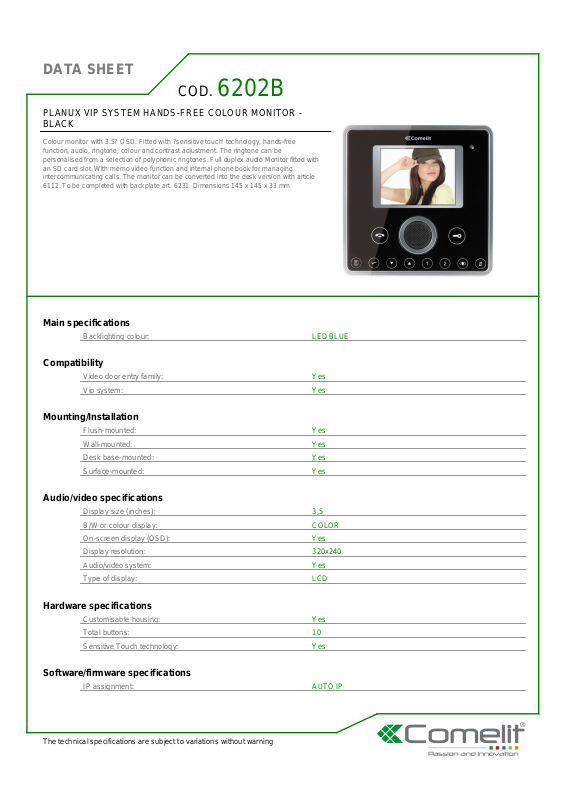

DATA SHEET
COD.
6202B
PLANUX VIP SYSTEM HANDS-FREE COLOUR MONITOR BLACK
Colour monitor with 3.5? OSD. Fitted with ?sensitive touch' technology, hands-free
function, audio, ringtone, colour and contrast adjustment. The ringtone can be
personalised from a selection of polyphonic ringtones. Full duplex audio Monitor fitted with
an SD card slot. With memo video function and internal phone book for managing
intercommunicating calls. The monitor can be converted into the desk version with article
6112. To be completed with backplate art. 6231. Dimensions 145 x 145 x 33 mm
Main specifications
Backlighting colour: LED BLUE
Compatibility
Video door entry family: Yes
Vip system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Desk base-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Display size (inches): 3,5
B/W or colour display: COLOR
On-screen display (OSD): Yes
Display resolution: 320x240
Audio/video system: Yes
Type of display: LCD
Hardware specifications
Customisable housing: Yes
Total buttons: 10
Sensitive Touch technology: Yes
Software/firmware specifications
IP assignment: AUTO IP
The technical specifications are subject to variations without warning
DATA SHEET
Connectivity
Type of connections/ports: SD CARD
Functions - Settings
Automatic gain control (AGC): Yes
Actuator control function: Yes
Privacy conversation function: Yes
Intercom function: Yes
Privacy function: Yes
Key button function: Yes
Full Duplex hands-free function: Yes
Display colour control: Yes
Display contrast control: Yes
Display brightness control: Yes
Loudspeaker volume control: Yes
Ringtone volume control: Yes
Technical properties
Temperature range: -5 / 55 ° C
Electrical specifications
Maximum current absorption (mA): 150
General info
Self-ignition: Yes
EAN product code: '8023903209389
Intrastat code: 85176920
Customisable ringtone: Yes
Product height (mm): 145
Product width (mm): 145
Product depth (mm): 33
Product colour: BLACK RAL 9005
Packaging
Single pack height (mm): 80
Single pack width (mm): 160
Single pack weight (g): 420
Single pack depth (mm): 160
Single pack volume (dm3): 2,048
The technical specifications are subject to variations without warning
