Comelit 6201W Specsheet

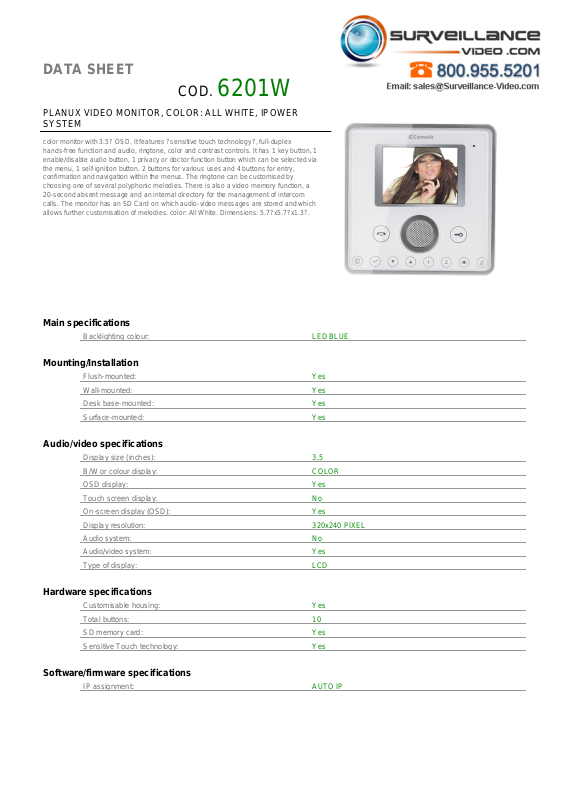

DATA SHEET

COD.

6201W

PLANUX VIDEO MONITOR, COLOR: ALL WHITE, IPOWER
SYSTEM

color monitor with 3.5? OSD. It features ?sensitive touch technology?, full-duplex
hands-free function and audio, ringtone, color and contrast controls. It has 1 key button, 1
enable/disable audio button, 1 privacy or doctor function button which can be selected via
the menu, 1 self-ignition button, 2 buttons for various uses and 4 buttons for entry,
confirmation and navigation within the menus. The ringtone can be customised by
choosing one of several polyphonic melodies. There is also a video memory function, a
20-second absent message and an internal directory for the management of intercom
calls. The monitor has an SD Card on which audio-video messages are stored and which
allows further customisation of melodies. color: All White. Dimensions: 5.7?x5.7?x1.3?.

Main specifications

Backlighting colour: LED BLUE

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Desk base-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Display size (inches): 3,5
B/W or colour display: COLOR
OSD display: Yes
Touch screen display: No
On-screen display (OSD): Yes
Display resolution: 320x240 PIXEL
Audio system: No
Audio/video system: Yes
Type of display: LCD

Hardware specifications

Customisable housing: Yes
Total buttons: 10
SD memory card: Yes
Sensitive Touch technology: Yes

Software/firmware specifications

IP assignment: AUTO IP

DATA SHEET

Connectivity

Type of connections/ports: SD CARD

Functions - Settings

Automatic gain control (AGC): Yes
Switchboard call function: No
Actuator control function: Yes
Privacy conversation function: Yes
Induction loop function: No
Intercom function: Yes
Privacy function: Yes
Key button function: Yes
Hands-free function: No
Full Duplex hands-free function: Yes
Display colour control: Yes
Display contrast control: Yes
Display brightness control: Yes
Loudspeaker volume control: Yes
Microphone volume control: Yes
Ringtone volume control: Yes

Technical properties

Temperature range: -5 / 55

Electrical specifications

Maximum current absorption (mA): 150

General info

Self-ignition: Yes
EAN product code: '8023903208634
Intrastat code: 85176910
Customisable ringtone: Yes
Product height (mm): 145
Product width (mm): 145
Product depth (mm): 33
Product colour: WHITE RAL9016

Packaging

Single pack height (mm): 80
Single pack width (mm): 160
Single pack weight (g): 420
Single pack depth (mm): 160
