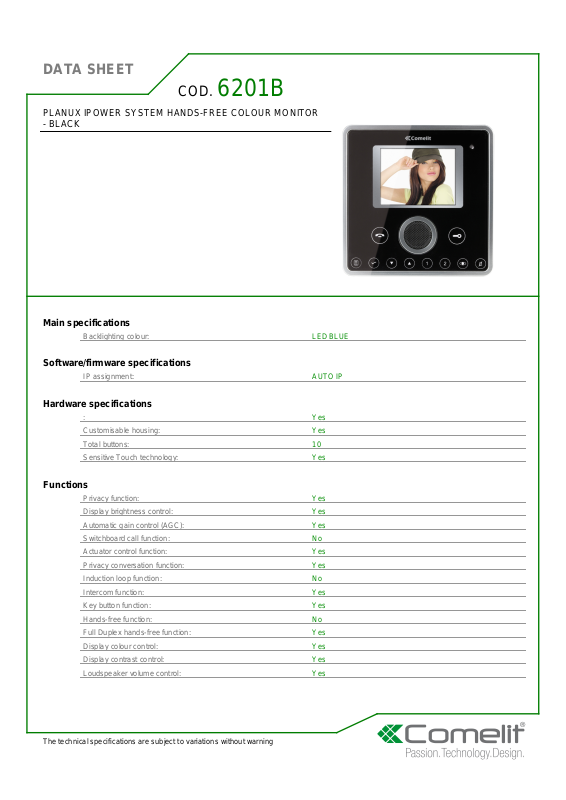

DATA SHEET
COD.
6201B
PLANUX IPOWER SYSTEM HANDS-FREE COLOUR MONITOR
- BLACK
Main specifications
Backlighting colour: LED BLUE
Software/firmware specifications
IP assignment: AUTO IP
Hardware specifications
: Yes
Customisable housing: Yes
Total buttons: 10
Sensitive Touch technology: Yes
Functions
Privacy function: Yes
Display brightness control: Yes
Automatic gain control (AGC): Yes
Switchboard call function: No
Actuator control function: Yes
Privacy conversation function: Yes
Induction loop function: No
Intercom function: Yes
Key button function: Yes
Hands-free function: No
Full Duplex hands-free function: Yes
Display colour control: Yes
Display contrast control: Yes
Loudspeaker volume control: Yes
The technical specifications are subject to variations without warning
Page 2
DATA SHEET
Microphone volume control: Yes
Ringtone volume control: Yes
General info
Product height (mm): 145
Product width (mm): 145
Product depth (mm): 33
Product colour: BLACK RAL9005
Operating temperature (°C): -5/55
Self-ignition: Yes
EAN product code: 8023903208627
Intrastat code: 85176910
Customisable ringtone: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Desk base-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Display size (inches): 3,5
B/W or colour display: COLOR
OSD display: Yes
Touch screen display: No
On-screen display (OSD): Yes
Display resolution (H x V): 320x240 pixel
Audio system: No
Audio/video system: Yes
Type of display: LCD
Connectivity
Type of connections/ports: SD CARD
Electrical specifications
Maximum current absorption (mA): 150
Packaging
Single pack height (mm): 80
Single pack width (mm): 160
Single pack weight (Kg): 0,42
Single pack depth (mm): 160
Single pack volume (dm3): 2,048
The technical specifications are subject to variations without warning
