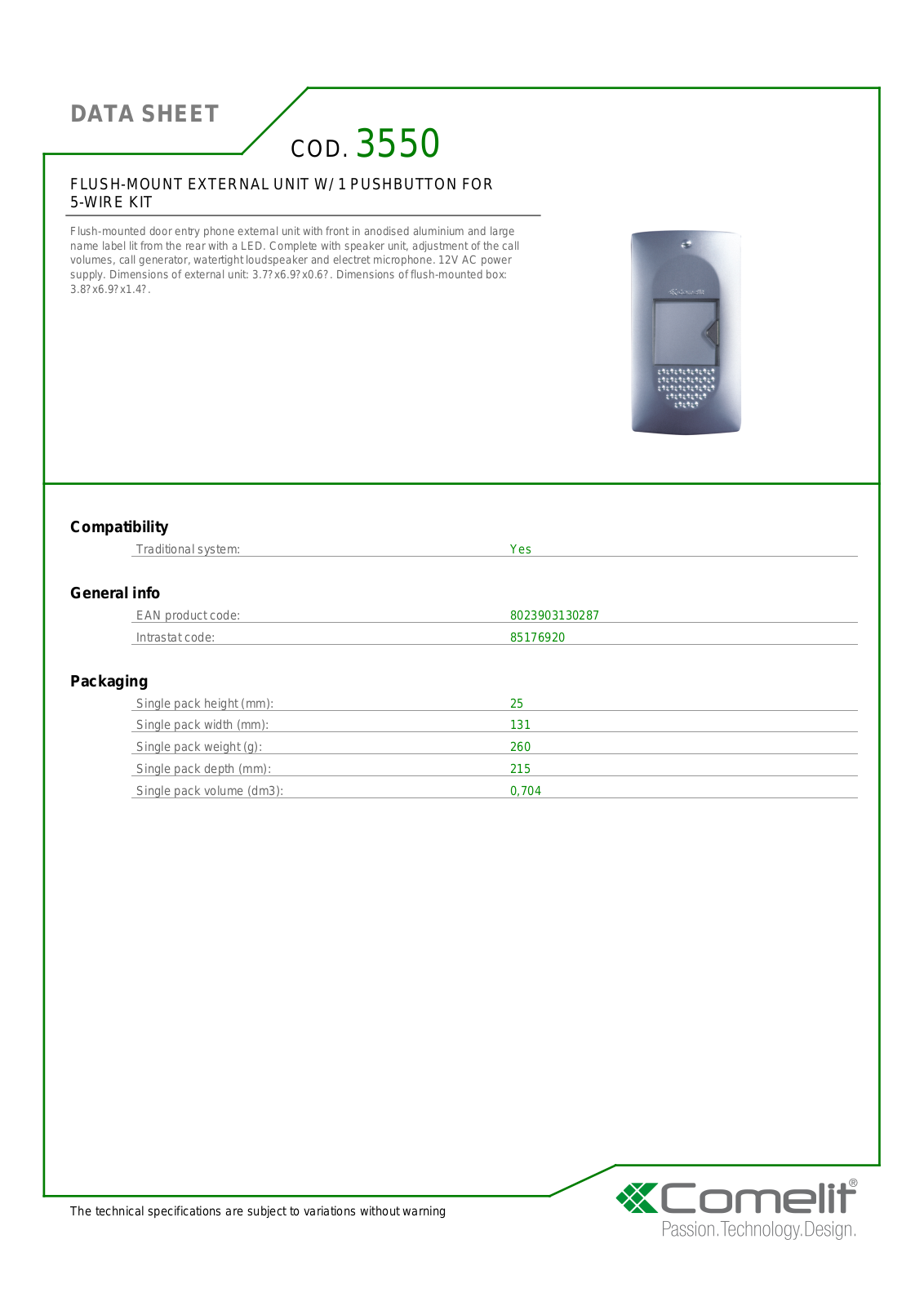

Comelit 3550 Specsheet

DATA SHEET

COD.

3550

FLUSH-MOUNT EXTERNAL UNIT W/ 1 PUSHBUTTON FOR
5-WIRE KIT

Flush-mounted door entry phone external unit with front in anodised aluminium and large
name label lit from the rear with a LED. Complete with speaker unit, adjustment of the call
volumes, call generator, watertight loudspeaker and electret microphone. 12V AC power
supply. Dimensions of external unit: 3.7?x6.9?x0.6?. Dimensions of flush-mounted box:

3.8?x6.9?x1.4?.

Compatibility

Traditional system: Yes

General info

EAN product code: 8023903130287
Intrastat code: 85176920

Packaging

Single pack height (mm): 25
Single pack width (mm): 131
Single pack weight (g): 260
Single pack depth (mm): 215
Single pack volume (dm3): 0,704

The technical specifications are subject to variations without warning
