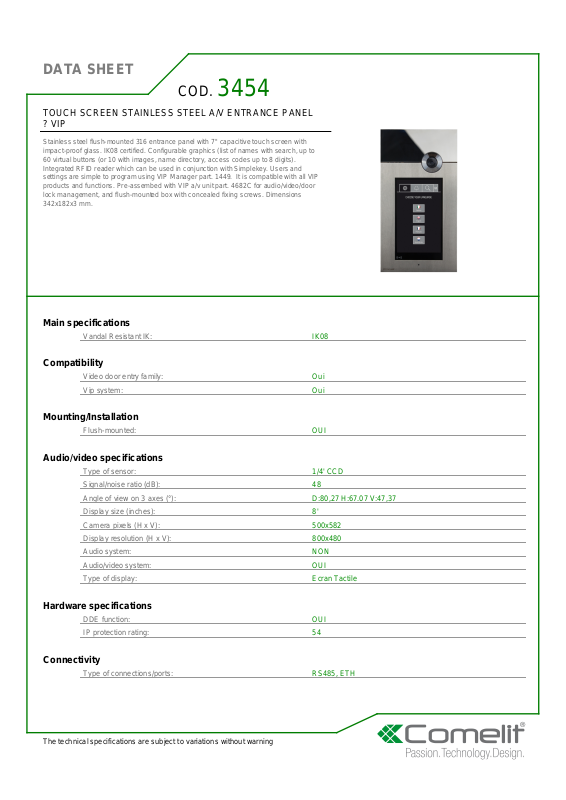

DATA SHEET

COD.

3454

TOUCH SCREEN STAINLESS STEEL A/V ENTRANCE PANEL
? VIP

Stainless steel flush-mounted 316 entrance panel with 7'' capacitive touch screen with
impact-proof glass. IK08 certified. Configurable graphics (list of names with search, up to
60 virtual buttons (or 10 with images, name directory, access codes up to 8 digits).
Integrated RFID reader which can be used in conjunction with Simplekey. Users and
settings are simple to program using VIP Manager part. 1449. It is compatible with all VIP
products and functions. Pre-assembed with VIP a/v unit part. 4682C for audio/video/door
lock management, and flush-mounted box with concealed fixing screws. Dimensions
342x182x3 mm.

Main specifications

Vandal Resistant IK: IK08

Compatibility

Video door entry family: Oui
Vip system: Oui

Mounting/Installation

Flush-mounted: OUI

Audio/video specifications

Type of sensor: 1/4' CCD
Signal/noise ratio (dB): 48
Angle of view on 3 axes (°): D:80,27 H:67.07 V:47,37
Display size (inches): 8'
Camera pixels (H x V): 500x582
Display resolution (H x V): 800x480
Audio system: NON
Audio/video system: OUI
Type of display: Ecran Tactile

Hardware specifications

DDE function: OUI
IP protection rating: 54

Connectivity

Type of connections/ports: RS485, ETH

The technical specifications are subject to variations without warning

DATA SHEET

Ethernet ports: 1
RS485 ports: 2

Functions - Settings

Key button function: OUI
Loudspeaker volume control: OUI

Technical properties

Temperature range (°C): -25/50

Electrical specifications

Absorption: 25W

General info

Product height (mm): 342
Product width (mm): 182
Product depth (mm): 60

Packaging

Single pack height (mm): 130
Single pack width (mm): 515
Single pack weight (g): 4350
Single pack depth (mm): 235

The technical specifications are subject to variations without warning
