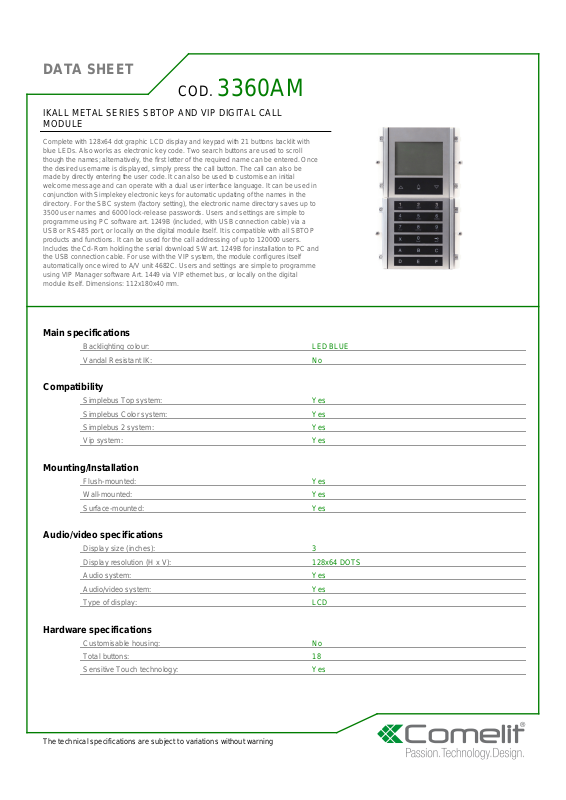

Comelit 3360AM Specsheet

DATA SHEET

COD.

3360AM

IKALL METAL SERIES SBTOP AND VIP DIGITAL CALL
MODULE

Complete with 128x64 dot graphic LCD display and keypad with 21 buttons backlit with
blue LEDs. Also works as electronic key code. Two search buttons are used to scroll
though the names; alternatively, the first letter of the required name can be entered. Once
the desired username is displayed, simply press the call button. The call can also be
made by directly entering the user code. It can also be used to customise an initial
welcome message and can operate with a dual user interface language. It can be used in
conjunction with Simplekey electronic keys for automatic updating of the names in the
directory. For the SBC system (factory setting), the electronic name directory saves up to
3500 user names and 6000 lock-release passwords. Users and settings are simple to
programme using PC software art. 1249B (included, with USB connection cable) via a
USB or RS485 port, or locally on the digital module itself. It is compatible with all SBTOP
products and functions. It can be used for the call addressing of up to 120000 users.
Includes the Cd-Rom holding the serial download SW art. 1249B for installation to PC and
the USB connection cable. For use with the VIP system, the module configures itself
automatically once wired to A/V unit 4682C. Users and settings are simple to programme
using VIP Manager software Art. 1449 via VIP ethernet bus, or locally on the digital
module itself. Dimensions: 112x180x40 mm.

Main specifications

Backlighting colour: LED BLUE
Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Display size (inches): 3
Display resolution (H x V): 128x64 DOTS
Audio system: Yes
Audio/video system: Yes
Type of display: LCD

Hardware specifications

Customisable housing: No
Total buttons: 18
Sensitive Touch technology: Yes

The technical specifications are subject to variations without warning

DATA SHEET

Connectivity

Type of connections/ports: RS485, USB
RS485 ports: 1

Functions - Settings

Key button function: Yes

Technical properties

Temperature range (°C): -25/55

Electrical specifications

Maximum current absorption (mA): 80

General info

Intrastat code: 8517709000
Product height (mm): 180
Product width (mm): 112
Product depth (mm): 40
Product colour: BLACK RAL9005

Packaging

Single pack height (mm): 90
Single pack width (mm): 158
Single pack weight (g): 550
Single pack depth (mm): 160
Single pack volume (dm3): 2,275

The technical specifications are subject to variations without warning
