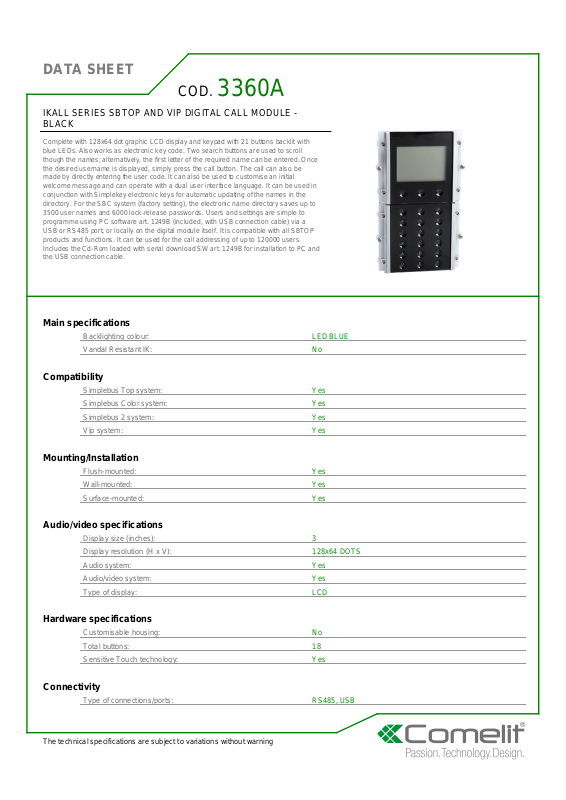

DATA SHEET
COD.
3360A
IKALL SERIES SBTOP AND VIP DIGITAL CALL MODULE BLACK
Complete with 128x64 dot graphic LCD display and keypad with 21 buttons backlit with
blue LEDs. Also works as electronic key code. Two search buttons are used to scroll
though the names; alternatively, the first letter of the required name can be entered. Once
the desired username is displayed, simply press the call button. The call can also be
made by directly entering the user code. It can also be used to customise an initial
welcome message and can operate with a dual user interface language. It can be used in
conjunction with Simplekey electronic keys for automatic updating of the names in the
directory. For the SBC system (factory setting), the electronic name directory saves up to
3500 user names and 6000 lock-release passwords. Users and settings are simple to
programme using PC software art. 1249B (included, with USB connection cable) via a
USB or RS485 port, or locally on the digital module itself. It is compatible with all SBTOP
products and functions. It can be used for the call addressing of up to 120000 users.
Includes the Cd-Rom loaded with serial download SW art. 1249B for installation to PC and
the USB connection cable.
Main specifications
Backlighting colour: LED BLUE
Vandal Resistant IK: No
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Display size (inches): 3
Display resolution (H x V): 128x64 DOTS
Audio system: Yes
Audio/video system: Yes
Type of display: LCD
Hardware specifications
Customisable housing: No
Total buttons: 18
Sensitive Touch technology: Yes
Connectivity
Type of connections/ports: RS485, USB
The technical specifications are subject to variations without warning
DATA SHEET
RS485 ports: 1
Functions - Settings
Key button function: Yes
Technical properties
Temperature range (°C): -25/55
Electrical specifications
Maximum current absorption (mA): 80
General info
Intrastat code: 8517709000
Product height (mm): 180
Product width (mm): 112
Product depth (mm): 40
Product colour: BLACK RAL9005
Packaging
Single pack height (mm): 90
Single pack width (mm): 158
Single pack weight (g): 500
Single pack depth (mm): 160
Single pack volume (dm3): 2,275
The technical specifications are subject to variations without warning
