Comelit 3349M Specsheet

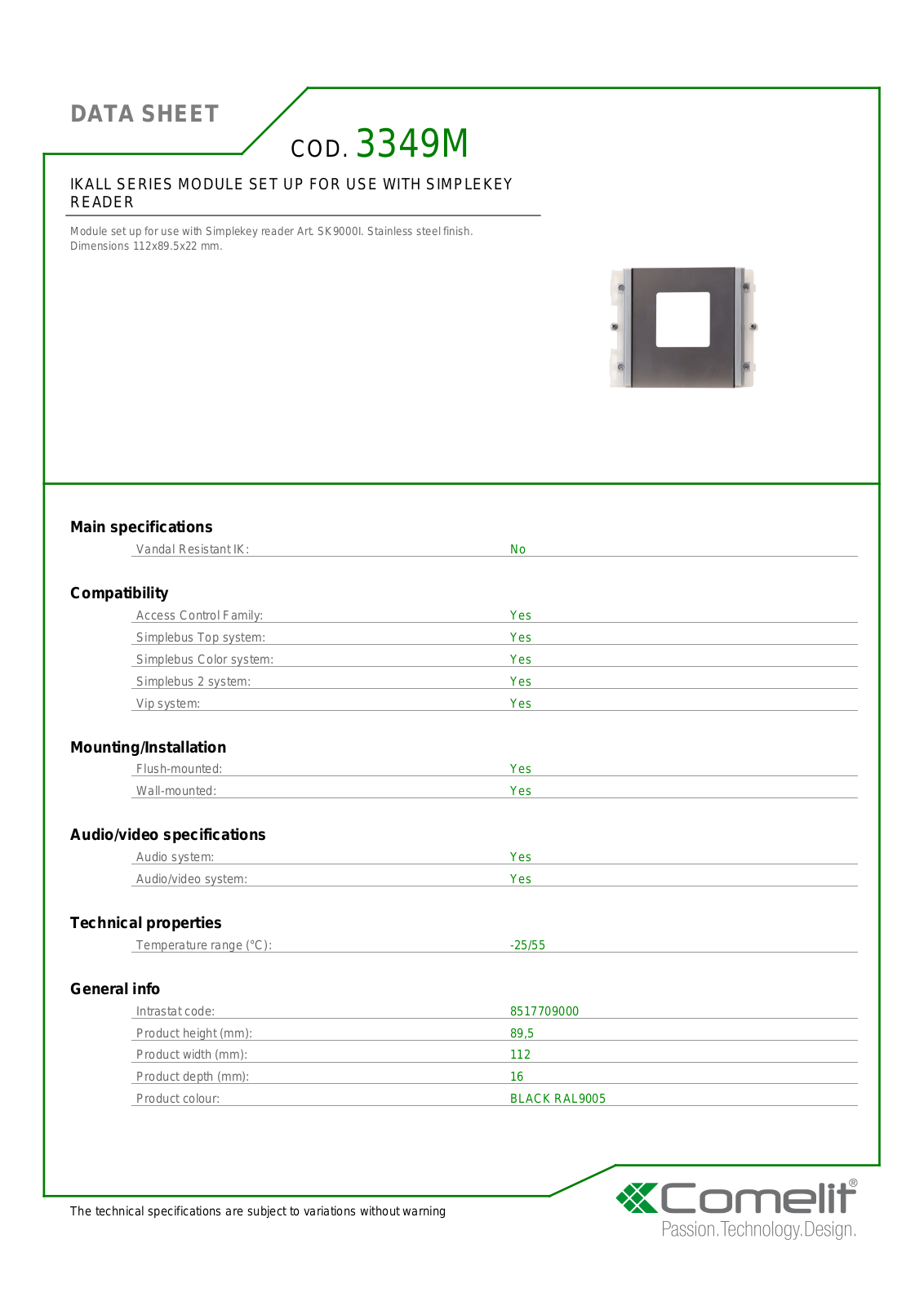

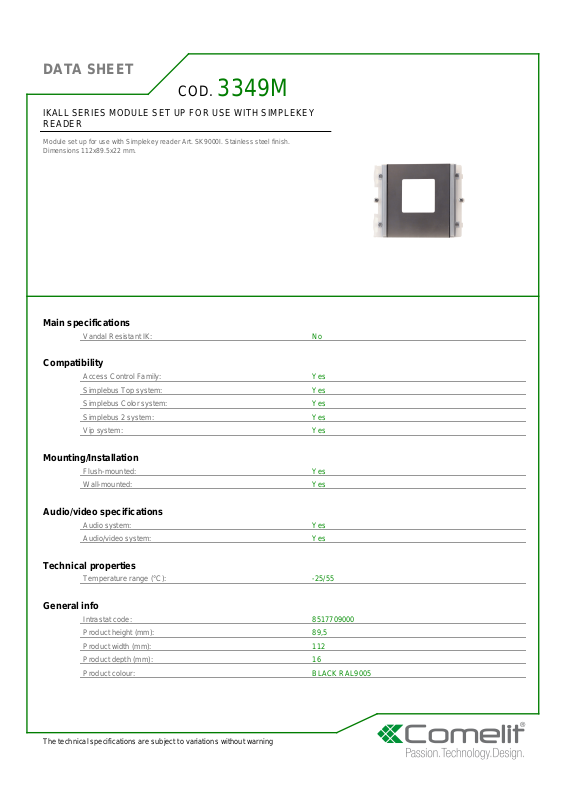

DATA SHEET

COD.

3349M

IKALL SERIES MODULE SET UP FOR USE WITH SIMPLEKEY
READER

Module set up for use with Simplekey reader Art. SK9000I. Stainless steel finish.
Dimensions 112x89.5x22 mm.

Main specifications

Vandal Resistant IK: No

Compatibility

Access Control Family: Yes
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Technical properties

Temperature range (°C): -25/55

General info

Intrastat code: 8517709000
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 16
Product colour: BLACK RAL9005

The technical specifications are subject to variations without warning

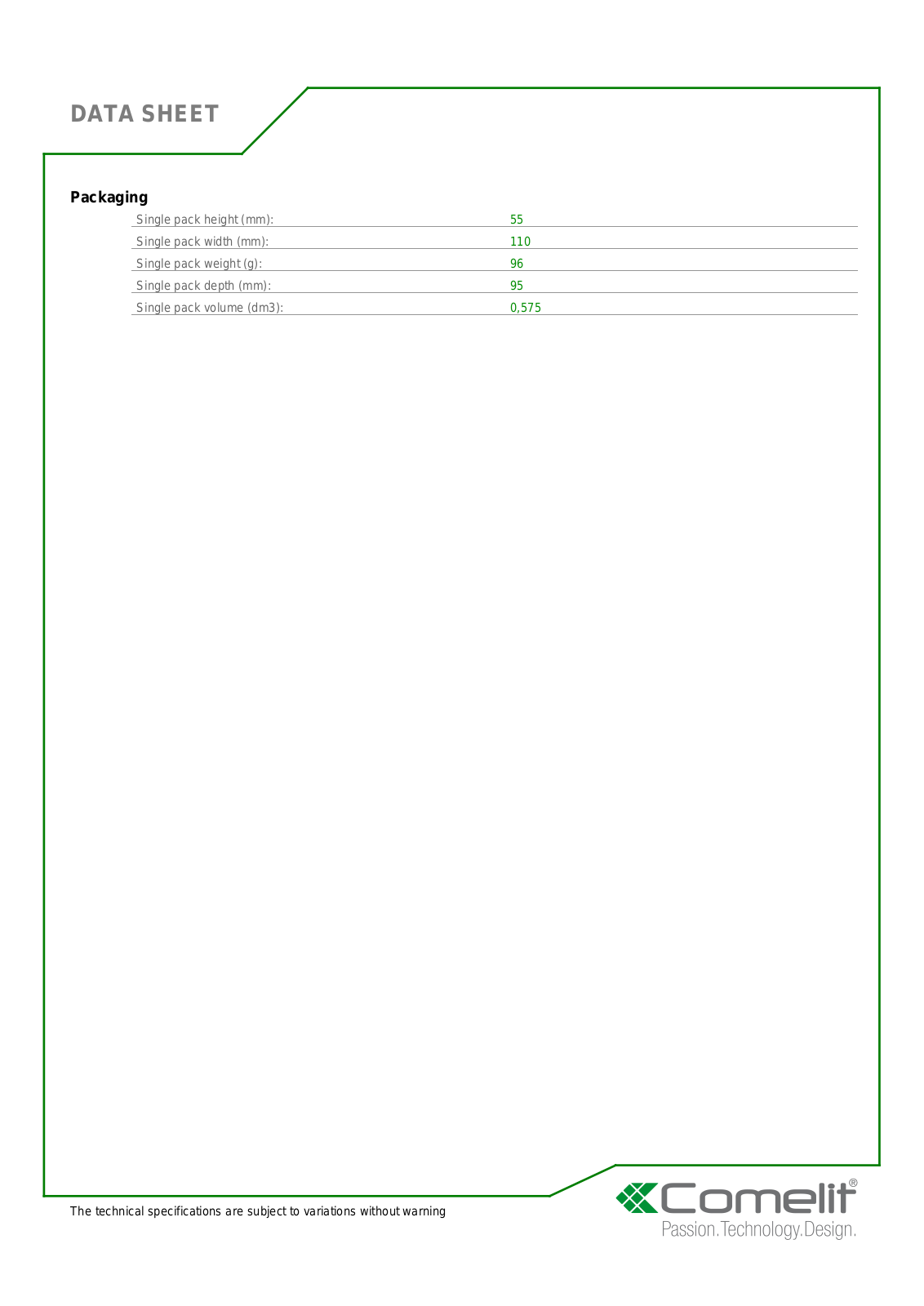

DATA SHEET

Packaging

Single pack height (mm): 55
Single pack width (mm): 110
Single pack weight (g): 96
Single pack depth (mm): 95
Single pack volume (dm3): 0,575

The technical specifications are subject to variations without warning
