Comelit 3348M Specsheet

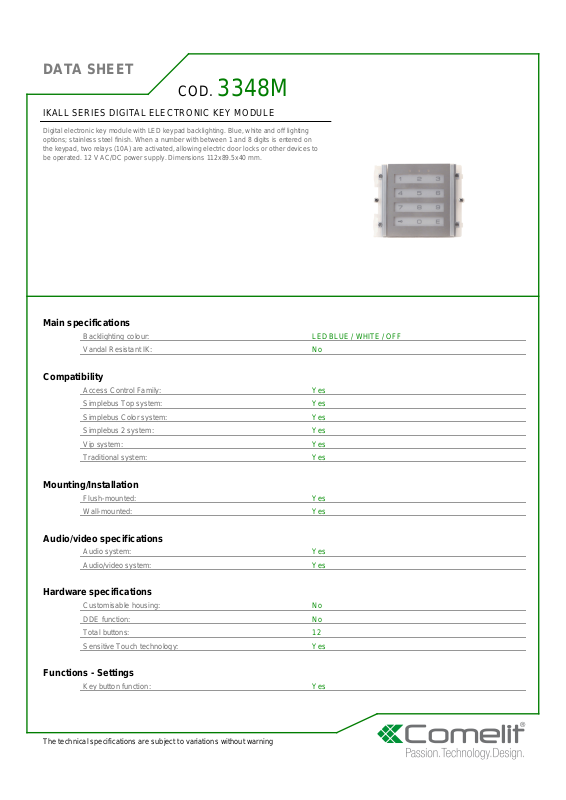

DATA SHEET

COD.

3348M

IKALL SERIES DIGITAL ELECTRONIC KEY MODULE

Digital electronic key module with LED keypad backlighting. Blue, white and off lighting
options; stainless steel finish. When a number with between 1 and 8 digits is entered on
the keypad, two relays (10A) are activated, allowing electric door locks or other devices to
be operated. 12 V AC/DC power supply. Dimensions 112x89.5x40 mm.

Main specifications

Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No

Compatibility

Access Control Family: Yes
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes
Traditional system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 12
Sensitive Touch technology: Yes

Functions - Settings

Key button function: Yes

The technical specifications are subject to variations without warning

DATA SHEET

Technical properties

Temperature range (°C): -25/55

Electrical specifications

Maximum current absorption (mA): 200

General info

Intrastat code: 8517709000
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40

Packaging

Single pack height (mm): 55
Single pack width (mm): 110
Single pack weight (g): 334
Single pack depth (mm): 95
Single pack volume (dm3): 0,575

The technical specifications are subject to variations without warning
