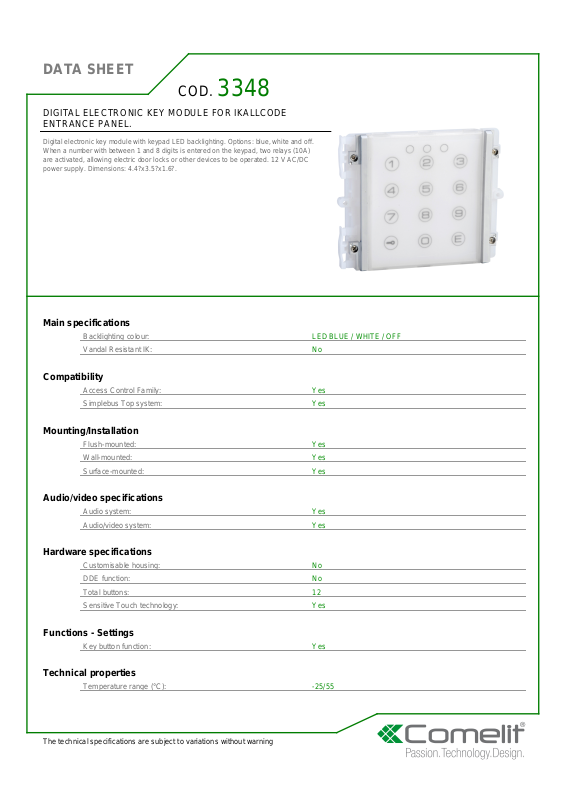

DATA SHEET

COD.

3348

DIGITAL ELECTRONIC KEY MODULE FOR IKALLCODE
ENTRANCE PANEL.

Digital electronic key module with keypad LED backlighting. Options: blue, white and off.
When a number with between 1 and 8 digits is entered on the keypad, two relays (10A)
are activated, allowing electric door locks or other devices to be operated. 12 V AC/DC
power supply. Dimensions: 4.4?x3.5?x1.6?.

Main specifications

Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No

Compatibility

Access Control Family: Yes
Simplebus Top system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 12
Sensitive Touch technology: Yes

Functions - Settings

Key button function: Yes

Technical properties

Temperature range (°C): -25/55

The technical specifications are subject to variations without warning

DATA SHEET

Electrical specifications

Maximum current absorption (mA): 200

General info

EAN product code: 8023903209105
Intrastat code: 85176920
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 314
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
