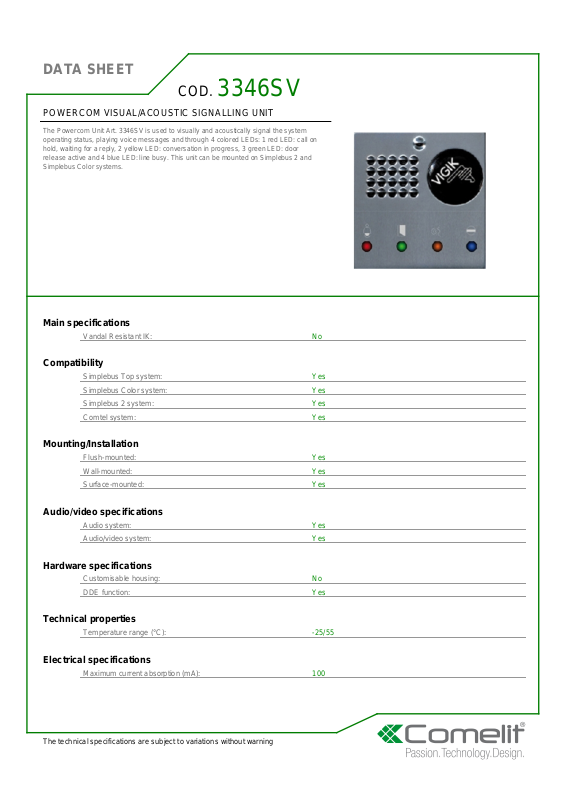

DATA SHEET

COD.

3346SV

POWERCOM VISUAL/ACOUSTIC SIGNALLING UNIT

The Powercom Unit Art. 3346SV is used to visually and acoustically signal the system
operating status, playing voice messages and through 4 colored LEDs: 1 red LED: call on
hold, waiting for a reply, 2 yellow LED: conversation in progress, 3 green LED: door
release active and 4 blue LED: line busy. This unit can be mounted on Simplebus 2 and
Simplebus Color systems.

Main specifications

Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Comtel system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: Yes

Technical properties

Temperature range (°C): -25/55

Electrical specifications

Maximum current absorption (mA): 100

The technical specifications are subject to variations without warning

DATA SHEET

General info

EAN product code: 8023903194654
Intrastat code: 85176920
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 38
Product colour: GREY

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 210
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
