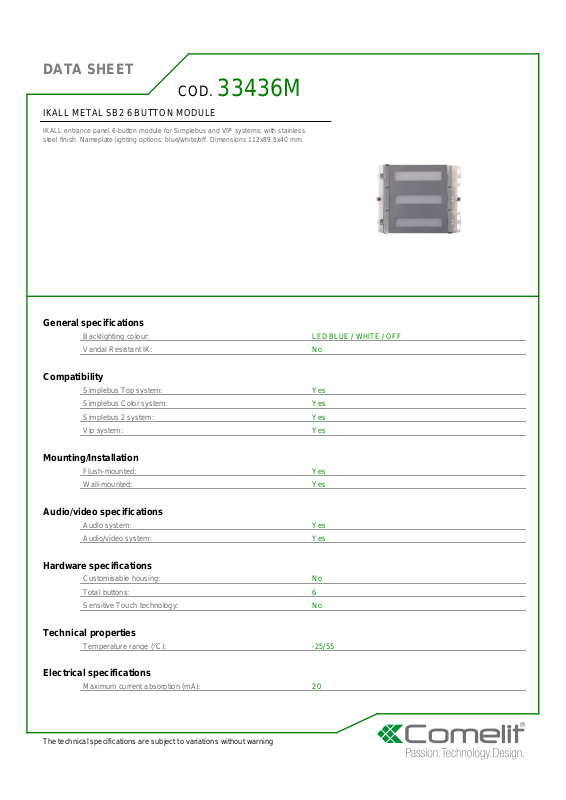

DATA SHEET
COD.
33436M
IKALL METAL SB2 6 BUTTON MODULE
IKALL entrance panel 6-button module for Simplebus and VIP systems, with stainless
steel finish. Nameplate lighting options: blue/white/off. Dimensions 112x89.5x40 mm.
General specifications
Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Hardware specifications
Customisable housing: No
Total buttons: 6
Sensitive Touch technology: No
Technical properties
Temperature range (°C): -25/55
Electrical specifications
Maximum current absorption (mA): 20
The technical specifications are subject to variations without warning
DATA SHEET
General info
Intrastat code: 8517709000
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40
Product colour: LIGHT BLUE
Packaging
Single pack height (mm): 55
Single pack width (mm): 110
Single pack weight (g): 250
Single pack depth (mm): 95
Single pack volume (dm3): 0,575
The technical specifications are subject to variations without warning
