Comelit 3268I-2 Specsheet

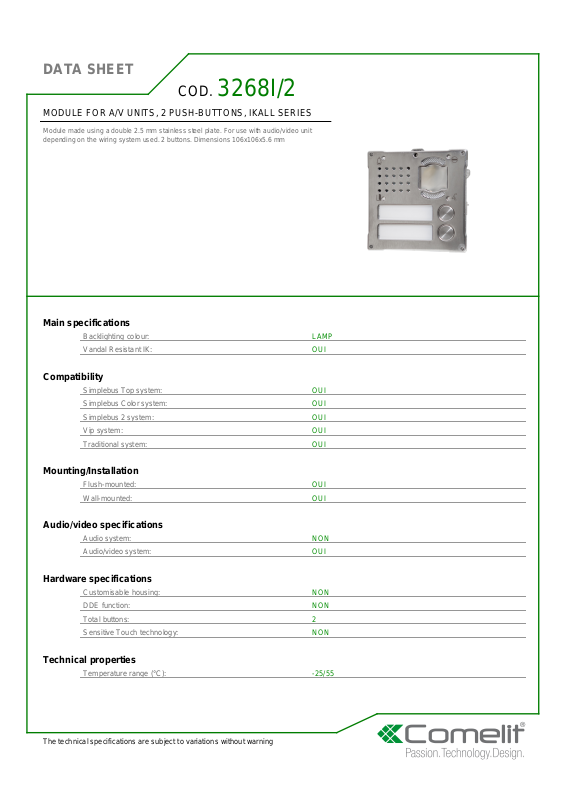

DATA SHEET

COD.

3268I/2

MODULE FOR A/V UNITS, 2 PUSH-BUTTONS, IKALL SERIES

Module made using a double 2.5 mm stainless steel plate. For use with audio/video unit
depending on the wiring system used. 2 buttons. Dimensions 106x106x5.6 mm

Main specifications

Backlighting colour: LAMP
Vandal Resistant IK: OUI

Compatibility

Simplebus Top system: OUI
Simplebus Color system: OUI
Simplebus 2 system: OUI
Vip system: OUI
Traditional system: OUI

Mounting/Installation

Flush-mounted: OUI
Wall-mounted: OUI

Audio/video specifications

Audio system: NON
Audio/video system: OUI

Hardware specifications

Customisable housing: NON
DDE function: NON
Total buttons: 2
Sensitive Touch technology: NON

Technical properties

Temperature range (°C): -25/55

The technical specifications are subject to variations without warning

DATA SHEET

Electrical specifications

Maximum current absorption (mA): 150

General info

Intrastat code: 85176920
Product height (mm): 106
Product width (mm): 106
Product depth (mm): 5,6
Product colour: GREY

Packaging

Single pack height (mm): 109
Single pack width (mm): 110
Single pack weight (g): 412
Single pack depth (mm): 45
Single pack volume (dm3): 0,54

The technical specifications are subject to variations without warning
