Comelit 3262-2 Specsheet

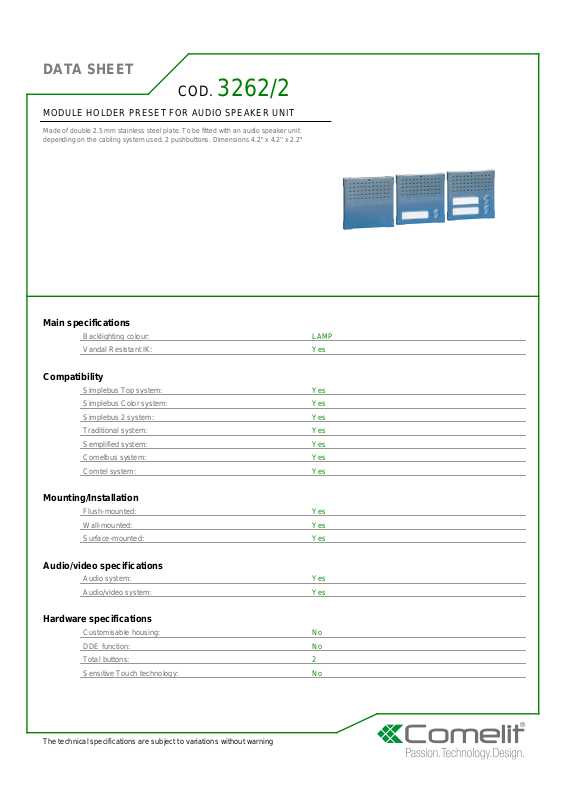

DATA SHEET

COD.

3262/2

MODULE HOLDER PRESET FOR AUDIO SPEAKER UNIT

Made of double 2.5 mm stainless steel plate. To be fitted with an audio speaker unit
depending on the cabling system used. 2 pushbuttons. Dimensions 4.2'' x 4.2'' x 2.2''

Main specifications

Backlighting colour: LAMP
Vandal Resistant IK: Yes

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 2
Sensitive Touch technology: No

The technical specifications are subject to variations without warning

DATA SHEET

Technical properties

Temperature range (°C): -25/55

Electrical specifications

Maximum current absorption (mA): 150

General info

EAN product code: 8023903131642
Intrastat code: 85176920
Product height (mm): 106
Product width (mm): 106
Product depth (mm): 5,6
Product colour: GREY

Packaging

Single pack height (mm): 109
Single pack width (mm): 110
Single pack weight (g): 443
Single pack depth (mm): 45
Single pack volume (dm3): 0,54

The technical specifications are subject to variations without warning
