Comelit 3218-2-RI-A Specsheet

3218/2/RI/A

VIDEO DOOR ENTRY SYSTEMS & KITS

ROMA

1/3

OVERVIEW

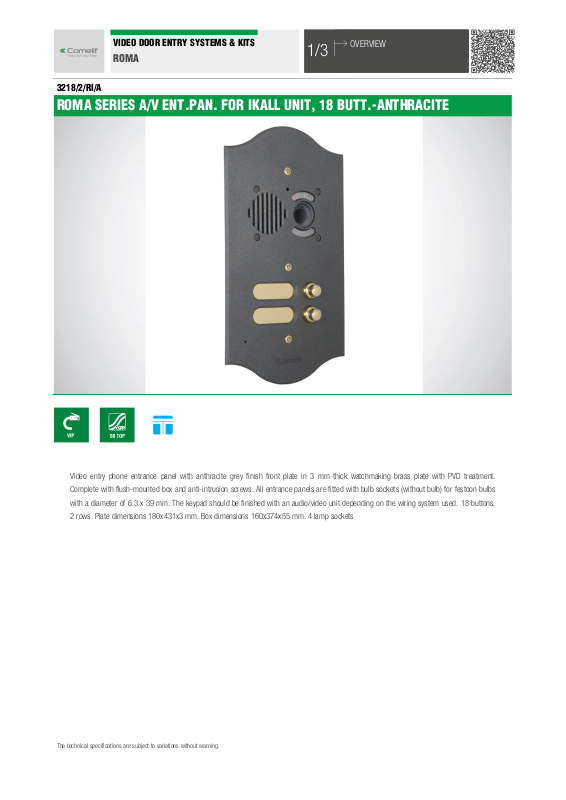

ROMA SERIES A/V ENT.PAN. FOR IKALL UNIT, 18 BUTT.-ANTHRACITE

Video entry phone entrance panel with anthracite grey finish front plate in 3 mm thick watchmaking brass plate with PVD treatment.

Complete with flush-mounted box and anti-intrusion screws. All entrance panels are fitted with bulb sockets (without bulb) for festoon bulbs

with a diameter of 6.3 x 39 mm. The keypad should be finished with an audio/video unit depending on the wiring system used. 18 buttons,

2 rows. Plate dimensions 180x431x3 mm. Box dimensions 160x374x55 mm. 4 lamp sockets

The technical specifications are subject to variations without warning.

VIDEO DOOR ENTRY SYSTEMS & KITS

ROMA

2/3

FUNCTION  AND GENERAL DATA

3218/2/RI/A

ROMA SERIES A/V ENT.PAN. FOR IKALL UNIT, 18 BUTT.-ANTHRACITE

GENERAL DATA

Product height (mm): 431

Product width (mm): 180

Product depth (mm): 3

COMPATIBILITY

Simplebus Top audio/video system: Yes

Simplebus 2 audio system: Yes

Traditional system: Yes

Semplified system: Yes

Comelbus system: Yes

Comtel system: Yes

The technical specifications are subject to variations without warning.
