Comelit 3202-RI-A Specsheet

3202/RI/A

VIDEO DOOR ENTRY SYSTEMS & KITS

ROMA

1/3

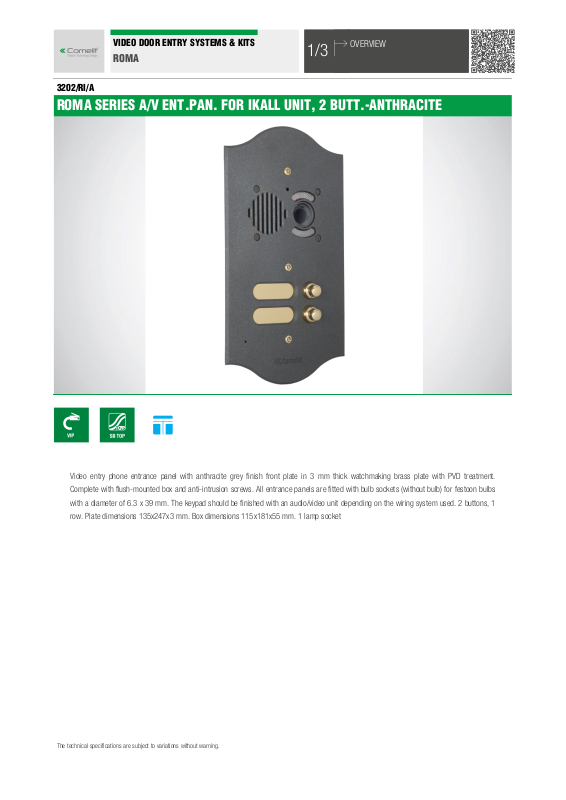

OVERVIEW

ROMA SERIES A/V ENT.PAN. FOR IKALL UNIT, 2 BUTT.-ANTHRACITE

Video entry phone entrance panel with anthracite grey finish front plate in 3 mm thick watchmaking brass plate with PVD treatment.

Complete with flush-mounted box and anti-intrusion screws. All entrance panels are fitted with bulb sockets (without bulb) for festoon bulbs

with a diameter of 6.3 x 39 mm. The keypad should be finished with an audio/video unit depending on the wiring system used. 2 buttons, 1

row. Plate dimensions 135x247x3 mm. Box dimensions 115x181x55 mm. 1 lamp socket

The technical specifications are subject to variations without warning.

VIDEO DOOR ENTRY SYSTEMS & KITS

ROMA

2/3

FUNCTION  AND GENERAL DATA

3202/RI/A

ROMA SERIES A/V ENT.PAN. FOR IKALL UNIT, 2 BUTT.-ANTHRACITE

MAIN FEATURES

Audio system: No

Audio/video system: Yes

Flush-mounted: Yes

Wall-mounted: Yes

Total buttons: 2

Operating temperature (°C): -25 ÷ 55

Vandal Resistant rating (IK code): IK08

HARDWARE SPECIFICATIONS

Customisable housing: No

Visual signalling: No

Acoustic signalling: No

Sensitive Touch technology: No

GENERAL DATA

Product height (mm): 247

Product width (mm): 135

Product depth (mm): 3

COMPATIBILITY

Simplebus Top audio/video system: Yes

Simplebus 2 audio system: Yes

Traditional system: Yes

Semplified system: Yes

Comelbus system: Yes

Comtel system: Yes

The technical specifications are subject to variations without warning.
