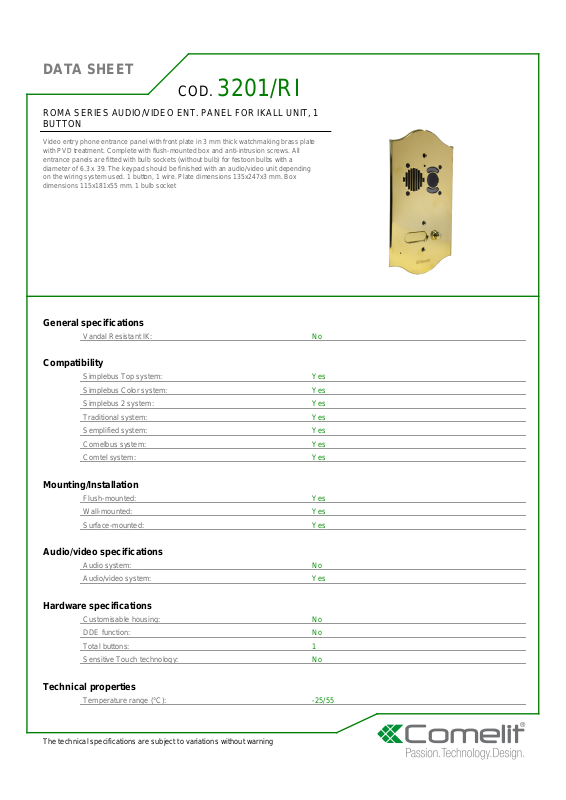

Comelit 3201-RI Specsheet

DATA SHEET

COD.

3201/RI

ROMA SERIES AUDIO/VIDEO ENT. PANEL FOR IKALL UNIT, 1
BUTTON

Video entry phone entrance panel with front plate in 3 mm thick watchmaking brass plate
with PVD treatment. Complete with flush-mounted box and anti-intrusion screws. All
entrance panels are fitted with bulb sockets (without bulb) for festoon bulbs with a
diameter of 6.3 x 39. The keypad should be finished with an audio/video unit depending
on the wiring system used. 1 button, 1 wire. Plate dimensions 135x247x3 mm. Box
dimensions 115x181x55 mm. 1 bulb socket

General specifications

Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: No
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 1
Sensitive Touch technology: No

Technical properties

Temperature range (°C): -25/55

The technical specifications are subject to variations without warning

DATA SHEET

General info

Intrastat code: 85176920
Product height (mm): 247
Product width (mm): 135
Product depth (mm): 3
Product colour: BRASS

Packaging

Single pack height (mm): 105
Single pack width (mm): 155
Single pack weight (g): 1402
Single pack depth (mm): 338
Single pack volume (dm3): 5,5

The technical specifications are subject to variations without warning
