Comelit 3201-R Specsheet

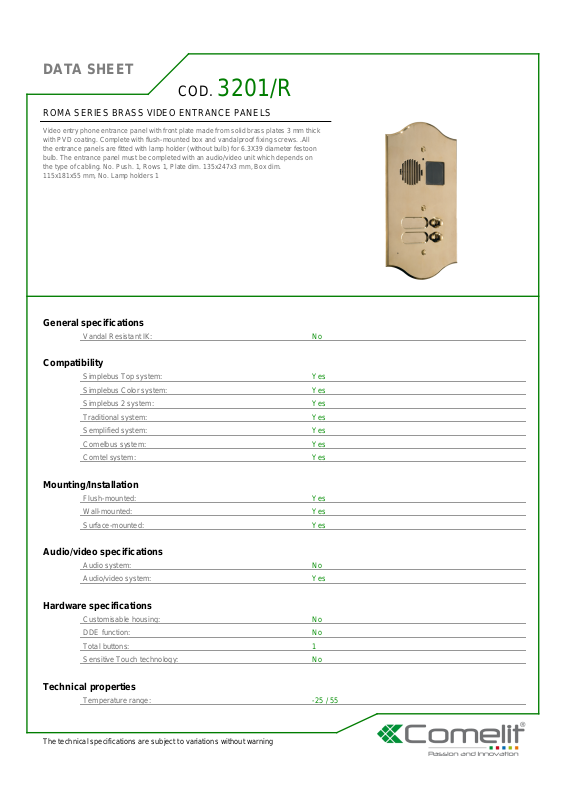

DATA SHEET

COD.

3201/R

ROMA SERIES BRASS VIDEO ENTRANCE PANELS

Video entry phone entrance panel with front plate made from solid brass plates 3 mm thick
with PVD coating. Complete with flush-mounted box and vandalproof fixing screws. .All
the entrance panels are fitted with lamp holder (without bulb) for 6.3X39 diameter festoon
bulb. The entrance panel must be completed with an audio/video unit which depends on
the type of cabling. No. Push. 1, Rows 1, Plate dim. 135x247x3 mm, Box dim.
115x181x55 mm, No. Lamp holders 1

General specifications

Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: No
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 1
Sensitive Touch technology: No

Technical properties

Temperature range: -25 / 55

The technical specifications are subject to variations without warning

DATA SHEET

General info

EAN product code: '8023903162776
Intrastat code: 85176920
Product height (mm): 247
Product width (mm): 135
Product depth (mm): 3
Product colour: BRASS

Packaging

Single pack height (mm): 105
Single pack width (mm): 155
Single pack weight (g): 1400
Single pack depth (mm): 338
Single pack volume (dm3): 5,5

The technical specifications are subject to variations without warning
