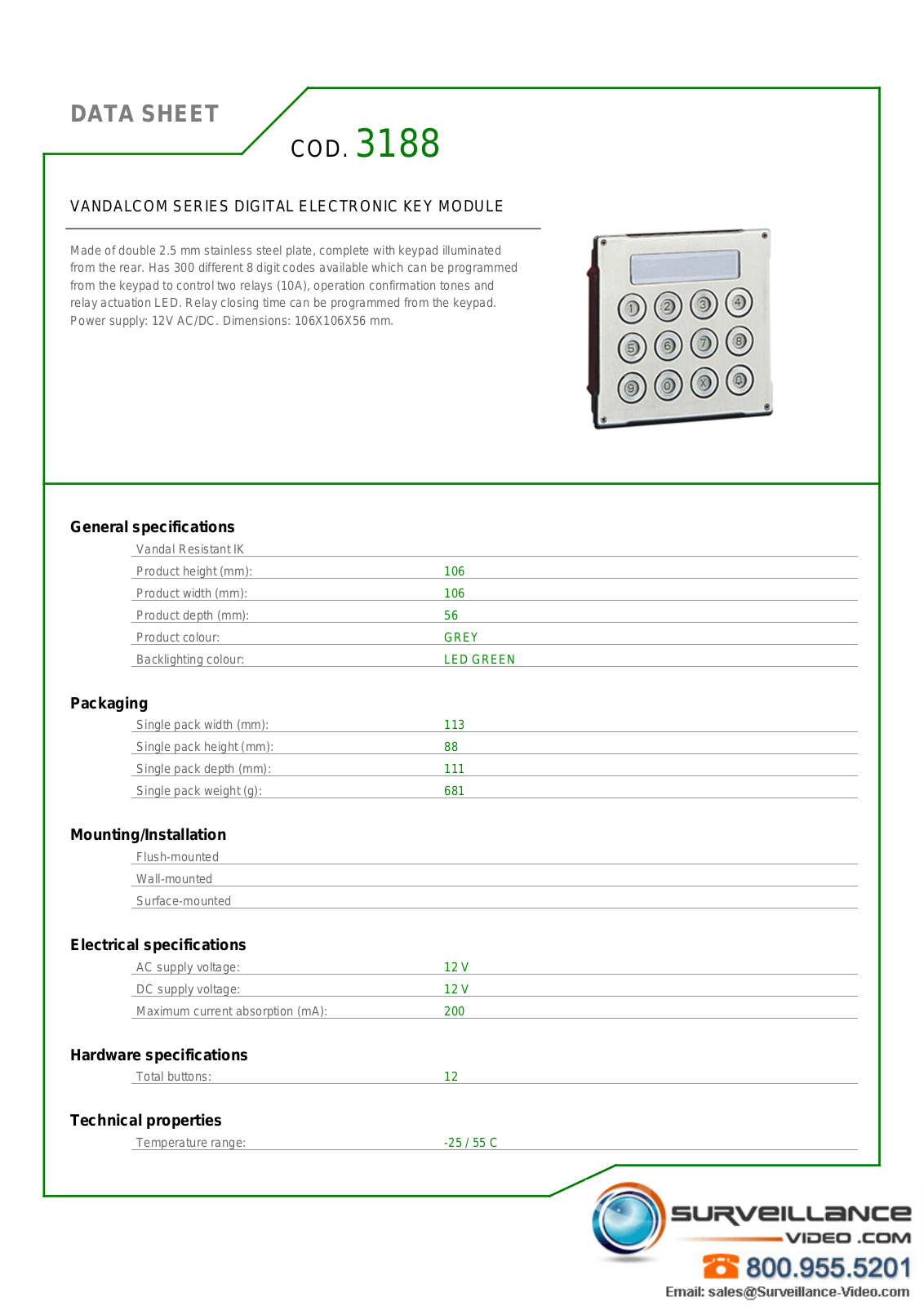

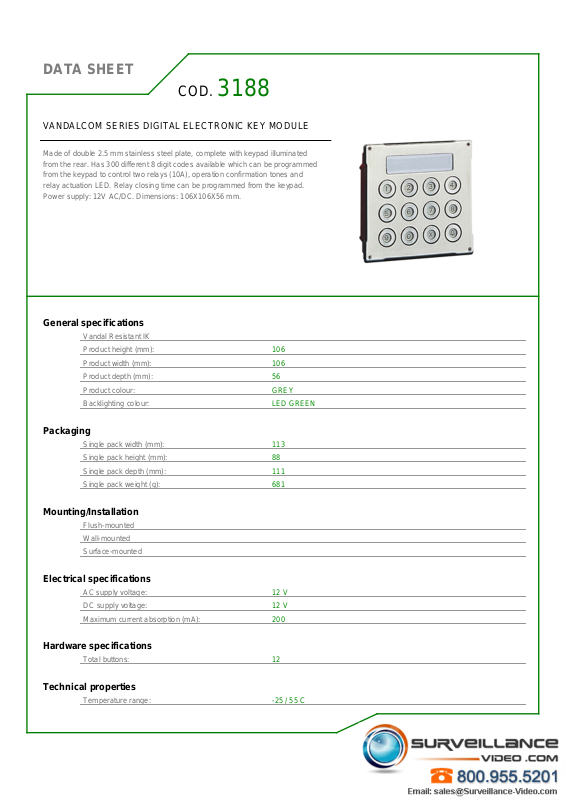

DATA SHEET

COD.

3188

VANDALCOM SERIES DIGITAL ELECTRONIC KEY MODULE

Made of double 2.5 mm stainless steel plate, complete with keypad illuminated
from the rear. Has 300 different 8 digit codes available which can be programmed
from the keypad to control two relays (10A), operation confirmation tones and
relay actuation LED. Relay closing time can be programmed from the keypad.
Power supply: 12V AC/DC. Dimensions: 106X106X56 mm.

General specifications

Vandal Resistant IK
Product height (mm): 106
Product width (mm): 106
Product depth (mm): 56
Product colour: GREY
Backlighting colour: LED GREEN

Packaging

Single pack width (mm): 113
Single pack height (mm): 88
Single pack depth (mm): 111
Single pack weight (g): 681

Mounting/Installation

Flush-mounted
Wall-mounted
Surface-mounted

Electrical specifications

AC supply voltage: 12 V
DC supply voltage: 12 V
Maximum current absorption (mA): 200

Hardware specifications

Total buttons: 12

Technical properties

Temperature range: -25 / 55 C

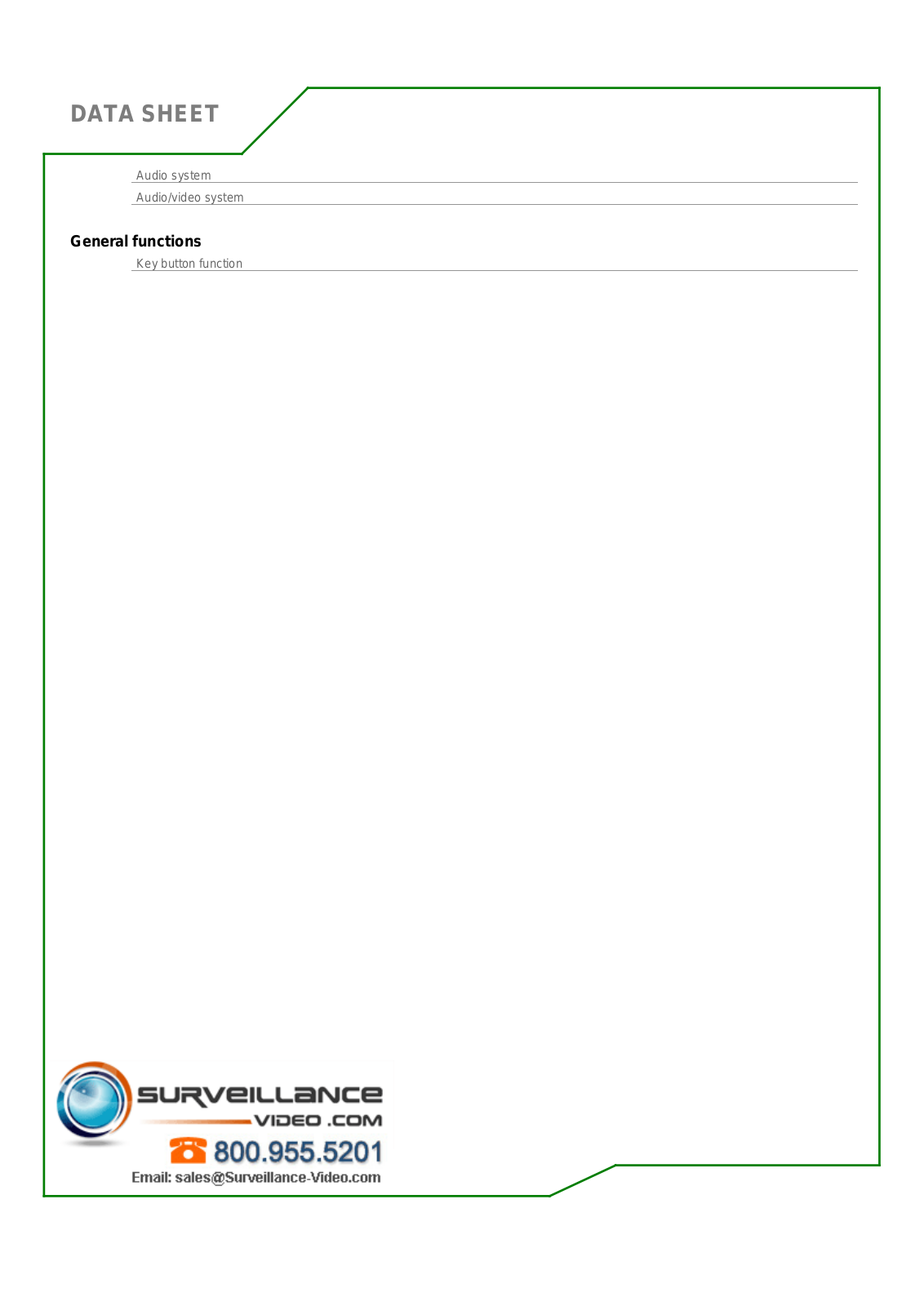

DATA SHEET

Audio system
Audio/video system

General functions

Key button function
