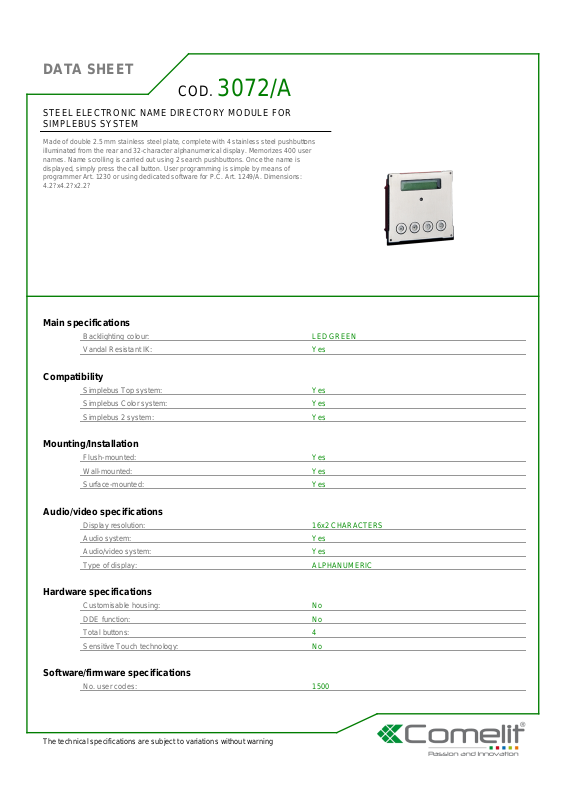

DATA SHEET

COD.

3072/A

STEEL ELECTRONIC NAME DIRECTORY MODULE FOR
SIMPLEBUS SYSTEM

Made of double 2.5 mm stainless steel plate, complete with 4 stainless steel pushbuttons
illuminated from the rear and 32-character alphanumerical display. Memorizes 400 user
names. Name scrolling is carried out using 2 search pushbuttons. Once the name is
displayed, simply press the call button. User programming is simple by means of
programmer Art. 1230 or using dedicated software for P.C. Art. 1249/A. Dimensions:

4.2?x4.2?x2.2?

Main specifications

Backlighting colour: LED GREEN
Vandal Resistant IK: Yes

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Display resolution: 16x2 CHARACTERS
Audio system: Yes
Audio/video system: Yes
Type of display: ALPHANUMERIC

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 4
Sensitive Touch technology: No

Software/firmware specifications

No. user codes: 1500

The technical specifications are subject to variations without warning

DATA SHEET

No. of storable users: 1500

Connectivity

Type of connections/ports: RS232, RS485, INFRARED
Infrared port: Yes
RS232 ports: 1
RS485 ports: 1

Functions - Settings

Key button function: No

Technical properties

Temperature range: -25 / 55

Electrical specifications

Maximum current absorption (mA): 100

General info

EAN product code: '8023903139174
Intrastat code: 85176920
Product height (mm): 106
Product width (mm): 106
Product depth (mm): 56
Product colour: GREY

Packaging

Single pack height (mm): 88
Single pack width (mm): 113
Single pack weight (g): 700
Single pack depth (mm): 111
Single pack volume (dm3): 1,104

The technical specifications are subject to variations without warning
