Page 1
1/3
3018NV
ALUMINIUM VIDEO ENTRANCE PANEL, 18 BUTTONS

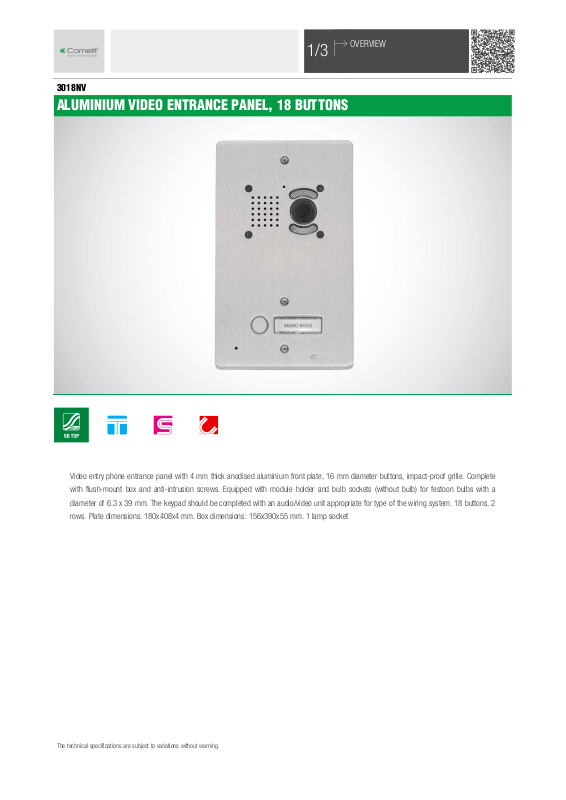

OVERVIEW
Video entry phone entrance panel with 4 mm thick anodised aluminium front plate, 16 mm diameter buttons, impact-proof grille. Complete
with flush-mount box and anti-intrusion screws. Equipped with module holder and bulb sockets (without bulb) for festoon bulbs with a
diameter of 6.3 x 39 mm. The keypad should be completed with an audio/video unit appropriate for type of the wiring system. 18 buttons, 2
rows. Plate dimensions: 180x408x4 mm. Box dimensions: 156x390x55 mm. 1 lamp socket
The technical specifications are subject to variations without warning.
Page 2
2/3
3018NV
ALUMINIUM VIDEO ENTRANCE PANEL, 18 BUTTONS
MAIN FEATURES
Audio system: Yes
Audio/video system: Yes
Flush-mounted: Yes
HARDWARE SPECIFICATIONS
Sensitive Touch technology: No
GENERAL DATA
Product height (inch): 16.06
Product width (inch): 7.09
Product depth (inch): 0.16
FUNCTION AND GENERAL DATA
COMPATIBILITY
Simplebus Top audio/video system: Yes
Simplebus 2 audio system: Yes
Vip system: Yes
Traditional system: Yes
The technical specifications are subject to variations without warning.
Page 3
3/3
3018NV
ALUMINIUM VIDEO ENTRANCE PANEL, 18 BUTTONS
ACCESSORIES
ACCESSORIES
Accessory allowing the installation and use of Ikall audio/video modules part. 4680, 4680C, 4680K, 4680KC,
4681, 4682C, 4682HC, 4682KC, 4682HKC, 4675 and 4673 on single-plate entrance panels. Fitted with a
voltage reducer for powering festoon lamps if used with power supply unit 1595 or 1207.
1250IV ACCESSORY FOR A/V IKALL GROUP ASSEMBLING
Accessory allowing the installation and use of Ikall audio/video modules part. 4680, 4680C, 4680K, 4680KC,
4681, 4682C, 4682HC, 4682KC, 4682HKC, 4675 and 4673 on single-plate entrance panels. Fitted with a
voltage reducer for powering festoon lamps if used with power supply unit 1595 or 1207.
The technical specifications are subject to variations without warning.
