OVERVIEW
3012XVB
316 ANALOG AUDIO/VID. ENT.PAN., 12 BUTTONS 2 WIRES

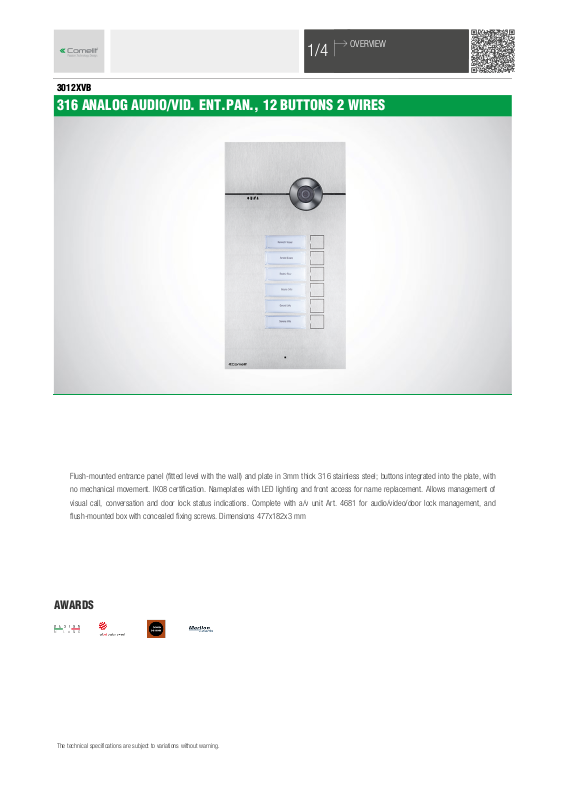

Flush-mounted entrance panel (fitted level with the wall) and plate in 3mm thick 316 stainless steel; buttons integrated into the plate, with
no mechanical movement. IK08 certification. Nameplates with LED lighting and front access for name replacement. Allows management of
visual call, conversation and door lock status indications. Complete with a/v unit Art. 4681 for audio/video/door lock management, and
flush-mounted box with concealed fixing screws. Dimensions 477x182x3 mm
AWARDS
The technical specifications are subject to variations without warning.
Page 2
2/4
FUNCTION AND GENERAL DATA
3012XVB
316 ANALOG AUDIO/VID. ENT.PAN., 12 BUTTONS 2 WIRES
MAIN FEATURES
Audio/video system: Yes
Flush-mounted: Yes
Video resolution (H x V - pixel):
Horizontal resolution (TVL):
Signal/noise ratio (dB): 48
Video output: Composite, 1Vpp, 75 Ohm, PAL
Maximum current absorption (mA): 450
Total buttons: 12
Loudspeaker volume control: Yes
Operating temperature (°F): -13 ÷ 131
Vandal Resistant rating (IK code):
HARDWARE SPECIFICATIONS
Visual signalling: Yes
Acoustic signalling: Yes
Sensitive Touch technology: Yes
GENERAL DATA
Product depth (inch): 2.36
COMPATIBILITY
Simplebus Top audio/video system: Yes
TECHNICAL CHARACTERISTICS
Sensitivity (lux): 1
Type of camera:
The technical specifications are subject to variations without warning.
Page 3
3/4
ACCESSORIES
3012XVB
316 ANALOG AUDIO/VID. ENT.PAN., 12 BUTTONS 2 WIRES
ACCESSORIES
Flush-mounted 3 mm thick stainless steel plate for housing the access control module. Can be used in
conjunction with all entrance panels in the 316 range. Dimensions 88x182x3 mm

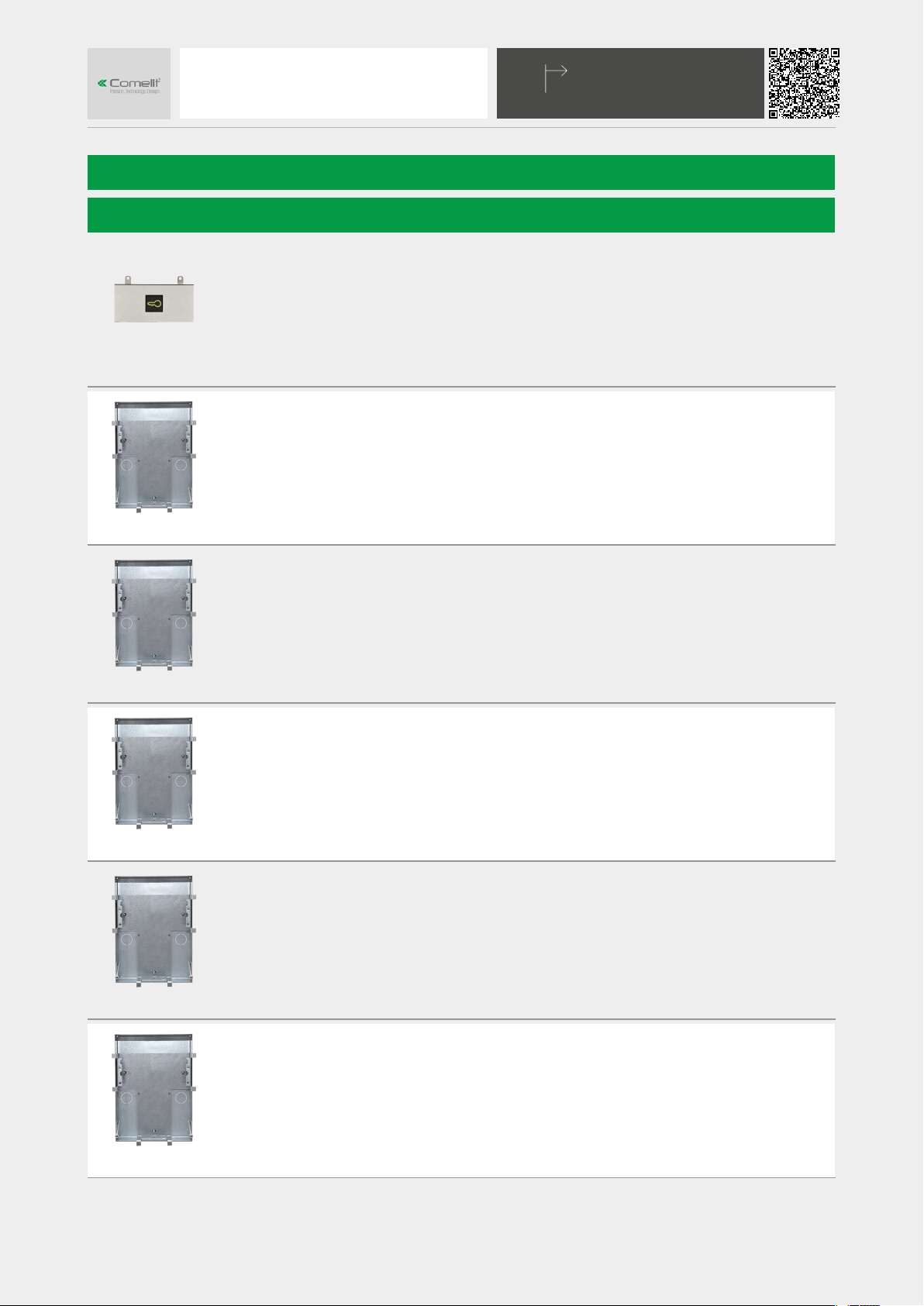

Flush-mounted box for 1- and 2-button ent. panels from 316 Analog series. Dimensions: 164x227.5x56 mm
Flush-mounted box for 3- and 4-button ent. panels from 316 Analog series. Dimensions: 164x273.5x56 mm
3458 ACCESS CONTROL ACCESSORY MODULE FOR EXTERNAL UNITS, 316
Flush-mounted 3 mm thick stainless steel plate for housing the access control module. Can be used in
conjunction with all entrance panels in the 316 range. Dimensions 88x182x3 mm
3460/2 FLUSH-MOUNTED BOX FOR 1- AND 2-BUTTON ENT.PANELS. 316 SERIES
Flush-mounted box for 1- and 2-button ent. panels from 316 Analog series. Dimensions: 164x227.5x56 mm
3460/4 FLUSH-MOUNTED BOX FOR 3- AND 4-BUTTON ENT.PANELS. 316 SERIES
Flush-mounted box for 3- and 4-button ent. panels from 316 Analog series. Dimensions: 164x273.5x56 mm
Flush-mounted box for 5- and 6-button ent. panels from 316 Analog series and for 316 Touch and 316 Sense
series ent. panels. Dimensions: 164x323x56 mm
Flush-mounted box for 7-, 8- and 9-button ent. panels from 316 Analog series. Dimensions: 164x388.5x56 mm
Flush-mounted box for 10-, 11- and 12-button ent. panels from 316 Analog series. Dimensions: 164x457.5x56
mm
3460/6 FLUSH-MT.BOX FOR TOUCH-SENSE & 5-6 BUTT.ENT.PAN. 316 SERIES
Flush-mounted box for 5- and 6-button ent. panels from 316 Analog series and for 316 Touch and 316 Sense
series ent. panels. Dimensions: 164x323x56 mm
3460/9 FLUSH-MOUNTED BOX FOR 7-8-9-BUTTON ENT. PANELS. 316 SERIES
Flush-mounted box for 7-, 8- and 9-button ent. panels from 316 Analog series. Dimensions: 164x388.5x56 mm
3460/12 FLUSH-MOUNTED BOX FOR 10-11-12-BUTTON ENT.PANELS. 316 SERIES
Flush-mounted box for 10-, 11- and 12-button ent. panels from 316 Analog series. Dimensions: 164x457.5x56
mm
The technical specifications are subject to variations without warning.
Page 4
4/4
ACCESSORIES
3012XVB
316 ANALOG AUDIO/VID. ENT.PAN., 12 BUTTONS 2 WIRES
ACCESSORIES

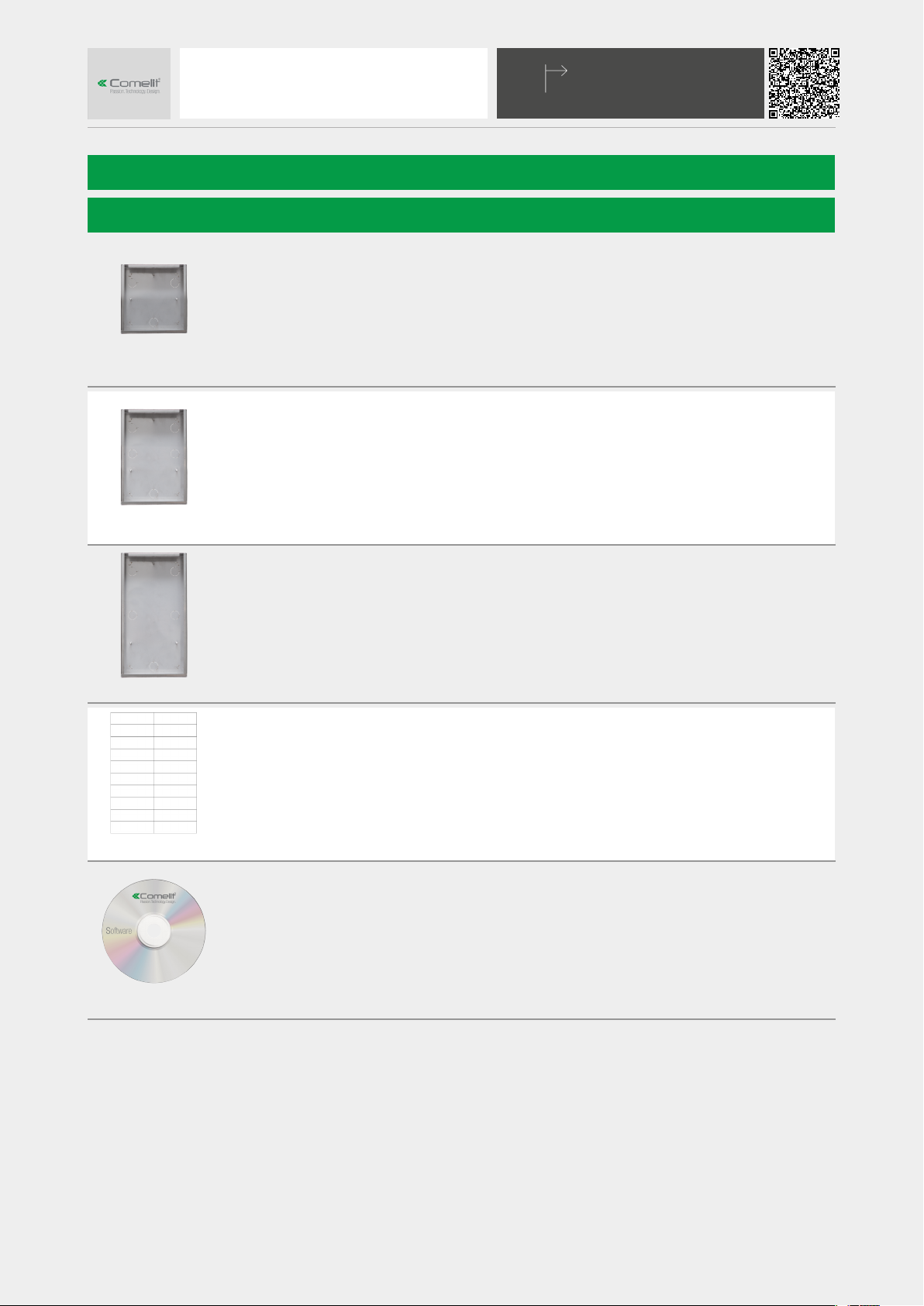

Stainless steel accessory for wall-mounted 316 series entrance panels with 1 or 2 buttons. Dimensions
180x245x57 mm
Stainless steel accessory for wall-mounted 316 series entrance panels with 3 or 4 buttons. Dimensions
180x290x57 mm
Stainless steel accessory for wall-mounted entrance panels Art. 3451, 3451/A, 3452, 3453, 3454. Dimensions
180x340x57 mm
3462/2 WALL-MOUNTED HOUSING SERIES 316 1 & 2 BUT. PANEL
Stainless steel accessory for wall-mounted 316 series entrance panels with 1 or 2 buttons. Dimensions
180x245x57 mm
3462/4 WALL-MOUNTED HOUSING SERIES 316 3 & 4 BUT. PANEL
Stainless steel accessory for wall-mounted 316 series entrance panels with 3 or 4 buttons. Dimensions
180x290x57 mm
3462/6 WALL HOUSING FOR TOUCH-SENSE & 5-6 BUTT.ENT.PAN. 316 SERIES
Stainless steel accessory for wall-mounted entrance panels Art. 3451, 3451/A, 3452, 3453, 3454. Dimensions
180x340x57 mm
The kit contains 10 sheets of adhesive labels for nameplates and 7 sheets for information modules.
Dedicated software for the creation and printing of nameplate and information labels for Ikall, Vandalcom, Quadra
and 316 Analog entrance panels. Requires use of adhesive labels art.1217, 1218, 1219 or art.1220. This
software is available to download free of charge from the Comelit website
1220 NAME TAG SHEETS FOR 316 ANALOG ENTRANCE PANEL
The kit contains 10 sheets of adhesive labels for nameplates and 7 sheets for information modules.
1235A NAMEPLATE LABEL PRINTING SOFTWARE
Dedicated software for the creation and printing of nameplate and information labels for Ikall, Vandalcom, Quadra
and 316 Analog entrance panels. Requires use of adhesive labels art.1217, 1218, 1219 or art.1220. This
software is available to download free of charge from the Comelit website
