Comelit 3011XVB Specsheet

1/4

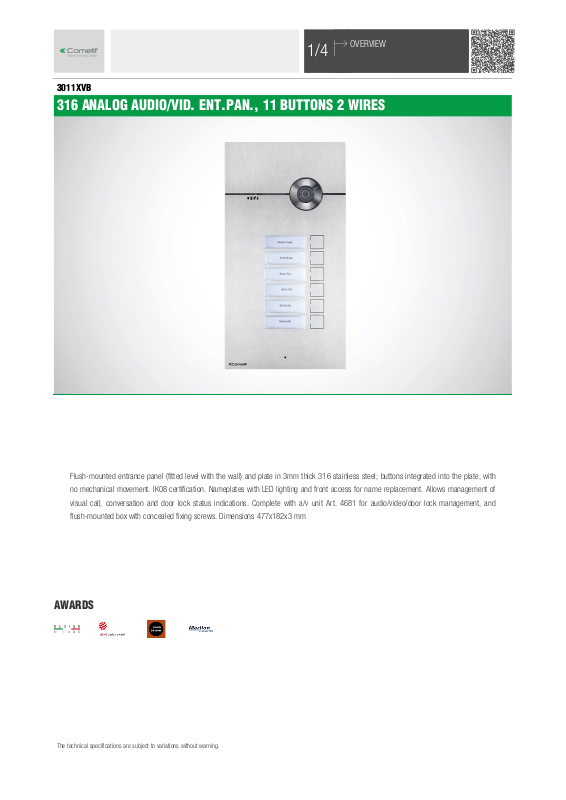

OVERVIEW

3011XVB

316 ANALOG AUDIO/VID. ENT.PAN., 11 BUTTONS 2 WIRES

Flush-mounted entrance panel (fitted level with the wall) and plate in 3mm thick 316 stainless steel; buttons integrated into the plate, with

no mechanical movement. IK08 certification. Nameplates with LED lighting and front access for name replacement. Allows management of

visual call, conversation and door lock status indications. Complete with a/v unit Art. 4681 for audio/video/door lock management, and

flush-mounted box with concealed fixing screws. Dimensions 477x182x3 mm

AWARDS

The technical specifications are subject to variations without warning.

2/4

FUNCTION  AND GENERAL DATA

3011XVB

316 ANALOG AUDIO/VID. ENT.PAN., 11 BUTTONS 2 WIRES

MAIN FEATURES

Audio/video system: Yes

Flush-mounted: Yes

Video resolution (H x V - pixel):

Horizontal resolution (TVL):

Signal/noise ratio (dB): 48

Video output: Composite, 1Vpp, 75 Ohm, PAL

Maximum current absorption (mA): 450

Total buttons: 11

Loudspeaker volume control: Yes

Operating temperature (°F): -13 ÷ 131

Vandal Resistant rating (IK code):

HARDWARE SPECIFICATIONS

Visual signalling: Yes

Acoustic signalling: Yes

Sensitive Touch technology: Yes

GENERAL DATA

Product depth (inch): 2.36

COMPATIBILITY

Simplebus Top audio/video system: Yes

TECHNICAL CHARACTERISTICS

Sensitivity (lux): 1

Type of camera:

The technical specifications are subject to variations without warning.
