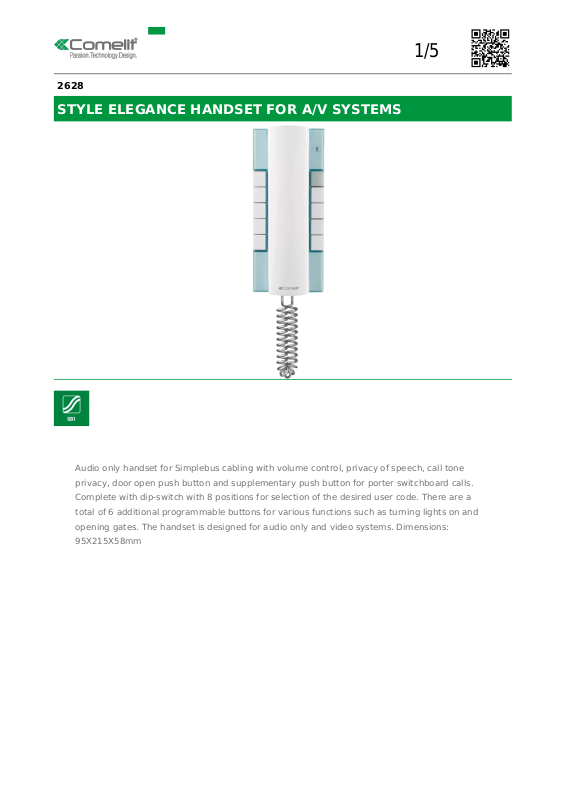

Page 1
2628
STYLE ELEGANCE HANDSET FOR A/V SYSTEMS
1/5
Audio only handset for Simplebus cabling with volume control, privacy of speech, call tone
privacy, door open push button and supplementary push button for porter switchboard calls.
Complete with dip-switch with 8 positions for selection of the desired user code. There are a
total of 6 additional programmable buttons for various functions such as turning lights on and
opening gates. The handset is designed for audio only and video systems. Dimensions:
95X215X58mm
Page 2
2628
STYLE ELEGANCE HANDSET FOR A/V SYSTEMS
MAIN FEATURES
Audio system Yes
Wall-mounted Yes
Desk base-mounted Si
Interchangeable cover Yes
Total buttons (n°) 4
Additional buttons (n°) 6
LED signaling (no.) (n°) 1
Led to additional signaling (no.) (n°) 3
2/5
FUNCTIONS
Actuator control function Yes
Switchboard call function Yes
Priority calls Yes
Call to multiple addresses Yes
Call to group addresses Yes
Call forwarding Yes
Privacy function Yes
Redial Yes
Floor door call function Yes
Electronic bell Yes
Privacy conversation function Yes
Key button function Yes
HARDWARE SPECIFICATIONS
Customisable housing Yes
Type of finish Plastic
SETTINGS
Loudspeaker volume control Yes
Microphone volume control Yes
The technical specifications are subject to change without prior notice.
Page 3
2628
STYLE ELEGANCE HANDSET FOR A/V SYSTEMS
SETTINGS
Ringtone volume control Yes
GENERAL DATA
Height (mm) 215
Width (mm) 95
Depth (mm) 58
COMPATIBILITY
Simplebus 2 audio/video system Yes
Simplebus 2 audio system Yes
3/5
TECHNICAL CHARACTERISTICS
Supply voltage 22÷28VDC
Minimum current absorption (mA) 1
Maximum current absorption (mA) 200
Maximum absorption (W) 200
IP protection rating IP30
Operating temperature (°C) -5 ÷ 40
Weight (g) 0.5
The technical specifications are subject to change without prior notice.
Page 4
2628
STYLE ELEGANCE HANDSET FOR A/V SYSTEMS
ACCESSORIES
4/5
2642W/28
2642W/16
2600/5
WHITE DESK BASE FOR STYLE 28 WIRE
White desk conversion kit for all the telephones in the Style series.
Complete with 1.5 mt of white cable and connection bushing fitted
with 28 connection terminals. Dimensions 84X189X32 mm.
WHITE DESK BASE FOR STYLE 16 WIRE
White desk conversion kit for all the telephones in the Style series.
Complete with 1.5 mt of white cable and connection bushing fitted
with 16 connection terminals. Dimensions 84X189X32 mm.
RED COVER ACCESSORY FOR STYLE ELEGANCE DOOR ENTRY PHONE
Red facia for Style elegance version telephone
2600/4
2600/3
2600/2
2600/1
ORANGE FACIA FOR STYLE ELEGANCE
Orange facia for Style elegance version telephone
BLACK FACIA FOR STYLE ELEGANCE
Black facia for Style elegance version telephone
GREEN FACIA FOR STYLE ELEGANCE
Green facia for Style elegance version telephone
PALE BLUE FACIA FOR STYLE ELEGANCE
Pale blue facia for Style elegance version telephone
The technical specifications are subject to change without prior notice.
Page 5
2628
STYLE ELEGANCE HANDSET FOR A/V SYSTEMS
ACCESSORIES
5/5
1627B
1627
1626
1214/2C
ACCESSORY - 1 ADDITIONAL LED FOR STYLE INTERCOM - BLACK
Blue LED to be inserted in the base of the telephone. Takes up the
space of one element. 12-24V AC-DC operation.
LED FOR STYLE ELEGANCE H/SET
Blue LED to be inserted in the base of the telephone. Takes up the
space of one element. 12-24V AC-DC operation.
STYLE INTERCOM ADDITIONAL PUSH BUTTON
Pushbutton to be inserted in the base of the telephone. Takes up
the space of one element.
VIDEO FILTER FOR S2 SYSTEM
Line branch terminal for colour monitors. The terminal must be
connected on the riser to be branched towards brackets or
telephones.
The technical specifications are subject to change without prior notice.The technical specifications are subject to change without prior notice.
