2610
STYLE ELEGANCE HANDSET FOR A/V KITS
1/5

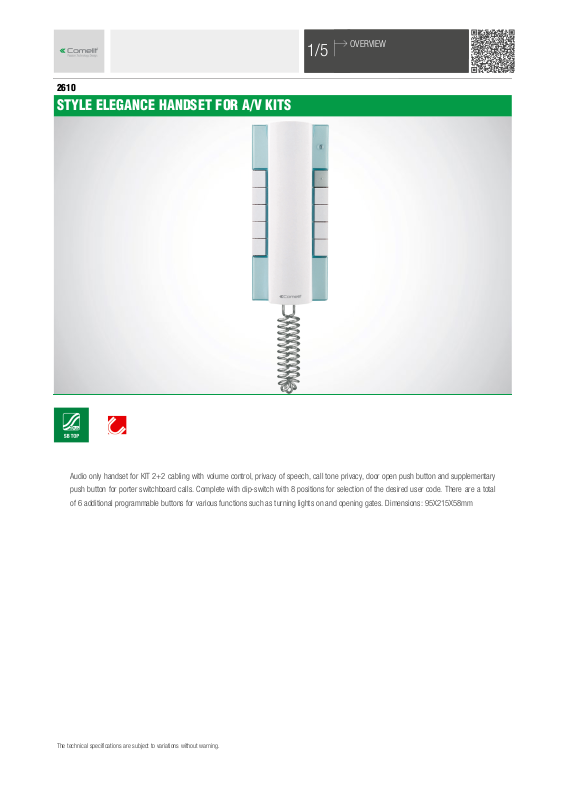

OVERVIEW
Audio only handset for KIT 2+2 cabling with volume control, privacy of speech, call tone privacy, door open push button and supplementary
push button for porter switchboard calls. Complete with dip-switch with 8 positions for selection of the desired user code. There are a total
of 6 additional programmable buttons for various functions such as turning lights on and opening gates. Dimensions: 95X215X58mm
The technical specifications are subject to variations without warning.
Page 2
2/5
2610
STYLE ELEGANCE HANDSET FOR A/V KITS
MAIN FEATURES
Audio system: Yes
Wall-mounted: Yes
Desk base-mounted: Yes
Colour:
Interchangeable cover: Yes
Total buttons: 2
FUNCTIONS
Actuator control function: Yes
Switchboard call function: Yes
Priority calls: Yes
Intercom function: Yes
Selective intercom call: Yes
Call to multiple addresses: Yes
Call to group addresses: Yes
Call forwarding: Yes
Privacy function: Yes
Doctor: Yes
Redial: Yes
Floor door call function: Yes
Electronic bell: Yes
FUNCTION AND GENERAL DATA
HARDWARE SPECIFICATIONS
Type of finish: Plastica
SETTINGS
Loudspeaker volume control: Yes
Microphone volume control: Yes
Ringtone volume control: Yes
COMPATIBILITY
Simplebus Top audio/video system: Yes
TECHNICAL CHARACTERISTICS
Power supply voltage (VDC): 22 ÷ 28
Minimum current absorption (mA): 1
Maximum current absorption (mA): 200
The technical specifications are subject to variations without warning.
Page 3
3/5
FUNCTION AND GENERAL DATA
2610
STYLE ELEGANCE HANDSET FOR A/V KITS
TECHNICAL CHARACTERISTICS
Microphone:
Loudspeaker:
IP protection rating: IP30
Operating temperature (°C): -5 ÷ 40
Weight (g): 0,52
Clamps: L L CFP CFP C2 P2 S- S+
The technical specifications are subject to variations without warning.
Page 4
2610
STYLE ELEGANCE HANDSET FOR A/V KITS
ACCESSORIES
4/5
ACCESSORIES
Line branch terminal for colour monitors. The terminal must be connected on the riser to be branched towards
brackets or telephones.
Pushbutton to be inserted in the base of the telephone. Takes up the space of one element.
Blue LED to be inserted in the base of the telephone. Takes up the space of one element. 12-24V AC-DC
operation.
1214/2C VIDEO FILTER FOR SIMPLEBUS COLOUR SYSTEM
Line branch terminal for colour monitors. The terminal must be connected on the riser to be branched towards
brackets or telephones.
1626 STYLE INTERCOM ADDITIONAL PUSH BUTTON
Pushbutton to be inserted in the base of the telephone. Takes up the space of one element.
1627 LED FOR STYLE ELEGANCE H/SET
Blue LED to be inserted in the base of the telephone. Takes up the space of one element. 12-24V AC-DC
operation.
Blue LED to be inserted in the base of the telephone. Takes up the space of one element. 12-24V AC-DC
operation.
Pale blue facia for Style elegance version telephone
Green facia for Style elegance version telephone
1627B ACCESSORY - 1 ADDITIONAL LED FOR STYLE INTERCOM - BLACK
Blue LED to be inserted in the base of the telephone. Takes up the space of one element. 12-24V AC-DC
operation.
2600/1 PALE BLUE FACIA FOR STYLE ELEGANCE
Pale blue facia for Style elegance version telephone
2600/2 GREEN FACIA FOR STYLE ELEGANCE
Green facia for Style elegance version telephone
The technical specifications are subject to variations without warning.
Page 5
2610
STYLE ELEGANCE HANDSET FOR A/V KITS
ACCESSORIES
5/5
ACCESSORIES
Black facia for Style elegance version telephone
Orange facia for Style elegance version telephone
Red facia for Style elegance version telephone
2600/3 BLACK FACIA FOR STYLE ELEGANCE
2600/4 ORANGE FACIA FOR STYLE ELEGANCE
2600/5 RED COVER ACCESSORY FOR STYLE ELEGANCE DOOR ENTRY PHONE
Black facia for Style elegance version telephone
Orange facia for Style elegance version telephone
Red facia for Style elegance version telephone
White desk conversion kit for all the telephones in the Style series. Complete with 1.5 mt of white cable and
connection bushing fitted with 16 connection terminals. Dimensions 84X189X32 mm.
White desk conversion kit for all the telephones in the Style series. Complete with 1.5 mt of white cable and
connection bushing fitted with 28 connection terminals. Dimensions 84X189X32 mm.
2642W/16 WHITE DESK BASE FOR STYLE 16 WIRE
White desk conversion kit for all the telephones in the Style series. Complete with 1.5 mt of white cable and
connection bushing fitted with 16 connection terminals. Dimensions 84X189X32 mm.
2642W/28 WHITE DESK BASE FOR STYLE 28 WIRE
White desk conversion kit for all the telephones in the Style series. Complete with 1.5 mt of white cable and
connection bushing fitted with 28 connection terminals. Dimensions 84X189X32 mm.
The technical specifications are subject to variations without warning.
