Comed EVA-HF325, EVA-HF525 User Manual

Operating

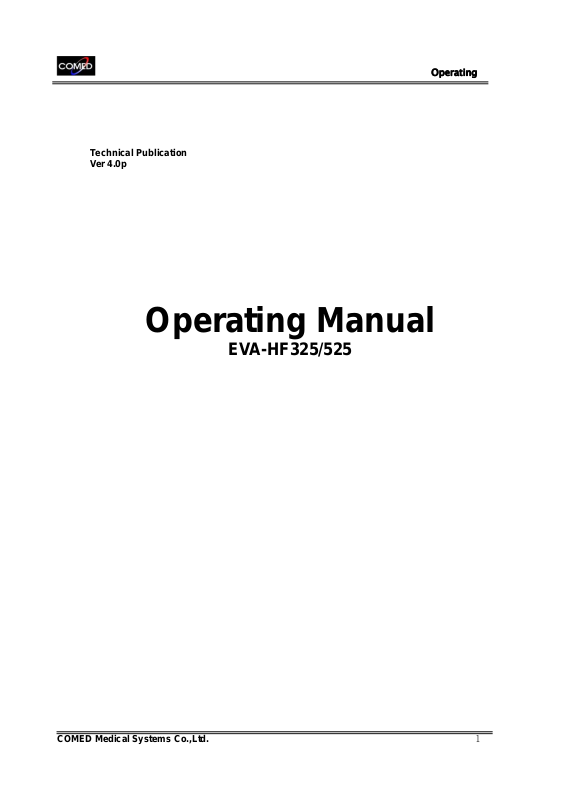

Technical Publication Ver 4.0p

Operating Manual

EVA-HF325/525

COMED Medical Systems Co.,Ltd. 1

Operating

2. Introductions

This manual is made for using instrument safe and rightly. This manual not respect changing the running mode and safety from external damage to instrument.

This high frequency inverter type of the photo/imaging system is operated by the built-in operation program. It is comfortably designed to satisfy the operator's comfort as well as to enhance the efficiency and the quality of X-ray. Operator can easily select or change the necessary conditions for necessary photographs/images.

(1) This manual is made for operating instrument safe and rightly

(2) This instrument must following this manual process.

(3) Read this manual carefully before using the instrument. Keep this manual closely

for referring later.

(4) EVA HF325/525 is a radioactivity medical instrument and using under the medical

management. So it needs the authorized person who has the know-how about the X-ray.

(5) High voltage generating circuit provides stable X-ray out put with little radiation through rectifying electric wave method.

(6) X-ray tube system is made in rotary bipolar method which uses two foci(small focus

1.0mm/ large focus 2.0mm) to enhance its durability.

(7) Control panel consists of x-ray controller and communication cable. So it can dealt the X-Ray irradiation and control from the long distance. LCD display allows the operator to irradiate at best X-ray irradiating conditions.

(8) Table and stand are connected into one single unit. Therefore, no extra stand rail work is needed. Table moves in four directions to provide easy-positioning.

(9) Temperature sensor is attached to prevent TUBE from overheating. micom-controller senses the temperature and protects the TUBE becoming too hot.

(10) X-ray Controlling device and high voltage radiation device are all built in one unit. Therefore, it is easy to convey and possible to install even in a small space.

COMED Medical Systems Co.,Ltd. 5

Operating

(11) PSU(POWER STORAGE UNIT) does not need much power and works efficiently under 2kW~3kW. Therefore, you could reduce electricity rate and save electricity cost. (PSU OPTION)

(8) Wide selecting modes allow the operator to combine and create various working conditions.

Only the legally authorized person(doctor, radio-diagnosis technician, X-ray diagnosis engineer) has the permission to operate the system

COMED Medical Systems Co.,Ltd. 6

Operating

3. Composition

This is divide by following that X-Ray radiography stand, an accessory, option etc..

3.1 X-Ray radiography device

z X-Ray tube z STAND z HANDLE BAR z COLLIMATOR z TABLE z RAIL z CONSOLE DISPLAY z CONTROLLER z HIGH TRANS

3.2 Option

z CEILING (Ceiling support) z BUCKY STAND (Ground support) z PSU

z STAND (Ceiling support)

3.3 The others

z User Manual

COMED Medical Systems Co.,Ltd. 7

Operating

4. Using safety Guide

4.1 Safety rule

◆ KOMED Co, Ltd designs and builds this instrument complying with

related safety requirement.

Only the authorized personnel can remove the covers and/or have access to the components under tension.

☞WARNING

This device has not been designed to be used in environments where vapours, anaestethic mixes flammable with air, or oxygen and nitrous oxide can be detected.

Avoid pouring water, even accidentally, or other liquids into the device, as this cause short-circuits.

Before cleaning the device, please disconnect it from the line voltage

Wherever necessary, use the accessories, such the leaded aprons, to protect the patient from radiation

While performing the radiography, no one, apart from the operator and the patient, must remain in the room.

EVA-HF 325/525 has been built to support a continuous operation at intermittent

load.

Cooling down the storing heating at a radioactivity origin, must follow the described use cycles.

COMED Medical Systems Co.,Ltd. 8

Operating

☞ WARNING !

Though the X-ray quantity supplied by radioactivity units is quite low and distributed on a small surface, the operator must adopt the precautions and fit protections for the patient and himself, during the execution of radiography. It is advisable to control the X-ray emission from a protected area, by means of a remote control. If it is necessary to operate near the patient, stay as far as the cable of the remote control allows it, or at least 2m far both from the X-ray source and from the patient.

COMED Medical Systems Co.,Ltd. 9

Operating

4.2 Electronic safety

◆ Before handling the system, be sure to check the following instructions.

● Make sure the source power voltage and capacity match up to AC220-240VAC(37.5kW/40kW). (When using PSU, DC voltage 370VDC)

● Make sure all the connecting terminals(collimator, high voltage cable, bulky, and etc.) are properly connected.

● Make sure the system's grounding is perfectly done. (If the grounding is imperfect, there may be noise.)

☞ Warning !

Through this unit has been designed with a quite acceptable protection level from electromagnetic interferences, it is advisable to install it a certain distance from electrical energy transformation chambers, from Uninterruptible Power Supply(UPS) units, from portable receiving-transmitting units.

Mobile telephones are only admitted at a distance of more than 1,5 m from any component if the device.

Other medical instruments and devices that must be used in the same installation area of the unit must comply the Electromagnetic Compatibility rules in force.

Non-complying instruments, of which the poor immunity from electromagnetic fields in well known, must be installed at least 3m far from the EVA-HF325/525 and supplied by a different electrical line.

COMED Medical Systems Co.,Ltd. 10

Operating

4.3 Environmental risks and displacement

The device contains in some of its parts, materials and liquids that at the end of the units

life, must be disposed of at the fit disposal centers.

Particularly the device contains the following materials and components

Tube: dielectric oil, lead, copper, iron, aluminium, glass, tungsten,

beryllium.

Control, HIGH TRANS : iron, dielectric oil, brass, acryloyl, non-biodegradable

plastix material packaging

Instrument structure : iron, brass, non-biodegradable plastix material packaging

☞ Warning !

Part dismantle of the instrument must performed by the staff of COMED Co, Ltd or qualified technicians authorized personnel

COEMD Co, Ltd or the agent is not responsible for the displacement

of the device performed by the user and for the related costs.

COMED Medical Systems Co.,Ltd. 11

Operating

5. Specifications

5.1 X-ray tube device (X-ray TUBE)

z Focal Spot : Large Focus : 2.0 mm Small Focus : 1.0 mm

z Anode Speed : 50 Hz : 2700 rpm (Min) 60 Hz : 3200 rpm (Min)

z Maximum Anode Heat Dissipation Rate : 667Hu/s

5.2 X-ray high-voltage device

1) EVA-HF325

z Tube-current adjustment : 10mA ~ 300mA

z Tube-voltage adjustment : 40kV ~ 125kV

z Time adjustment : 0.001 ~ 10sec

z Rated :

125kVp / 200mA / 1sec(200mAs) 80kVp / 100mA / 6.3sec(630mAs)

total 0.010mAs ~ 630mAs possibly adjustment

2) EVA-HF525

z Tube-current adjustment : 10mA ~ 500mA

z Tube-voltage adjustment : 40kV ~ 125kV

z Time adjustment : 0.001sec ~ 10sec

z Rated :

125kVp / 200mA / 1sec(200mAs) 80kVp / 100mA / 6.3sec(630mAs)

total 0.010mAs ~ 630mAs possibly adustment

5.3 X-ray control

• method MICRO PROCESSOR control digital display

• radiography MANUAL

APR

(Anatomical Programalbe Radiography)

COMED Medical Systems Co.,Ltd. 12

Operating

5.4 Instrument structure

1) Tube

z Forward-backward movement range : 185mm z X-axis center rotating angle range : over ± 90°

z Z-axis center rotating angle range : over ± 90° z Max height : above ground 1720 mm (Tube photosphere standard)

z Min height : above ground 650 mm (Tube photosphere standard) z Up-down movement range : 1170 mm

z Left-right movement range : 1940 mm

2) TABLE

z Forward-backward movement range : 200mm

z Left-right movement range : 600mm

5.5 Optional specifications

z All-in-one type

z Ceiling support type

5.6 Using voltage

z Power single phase 220V

z Outward Power 37.5kW/40kW

5.7 Size and weight

z Height : 2070 mm

z Width : 2600 mm z Range : 1350 mm z Weight : 398 Kg

COMED Medical Systems Co.,Ltd. 13

Operating

5.8 Block Diagram

The electric composition block diagram of PXR-Series is shown in Fig 2-1.

Power Supply

OP PANEL

EM swich Delay

EM swich

IF

AD/DC Convertor

PWR

HF DC/AC Inverter

IGBT Driver

HT CONT

FILAMENT

AEC

HV TANK

Fig 1-1 COMPOSITION OF THE HFG

X-ray TUBE

Stater

Collimator

ION Chamber

AC input voltage is converted into DC voltage by a single-phase all wave rectifier circuit. This DC voltage is inverted in high-frequency voltage of about 20kHz by IGBT inverter. The high-frequency voltage is converted into the 40 (+20kV/-20kV) to 125kV (+62.5kV/-62.5kV) DC high voltage by a high-voltage transformer and the multi-voltage rectifier circuit. This DC high voltage is supplied to an X-ray tube through a high-voltage cable, and PWM INV controls this X-ray tube voltage. Modulating the Filament voltage controls the tube current.

. The operation panel can operate selection in each mode of operation and control, selection and setting of conditions. These operation conditions are transmitted by the communication system from OP-CONT to HT-CONT. HT-CONT controls the output of a high-voltage generator according to the instructions from OP-CONT.

COMED Medical Systems Co.,Ltd. 14

Operating

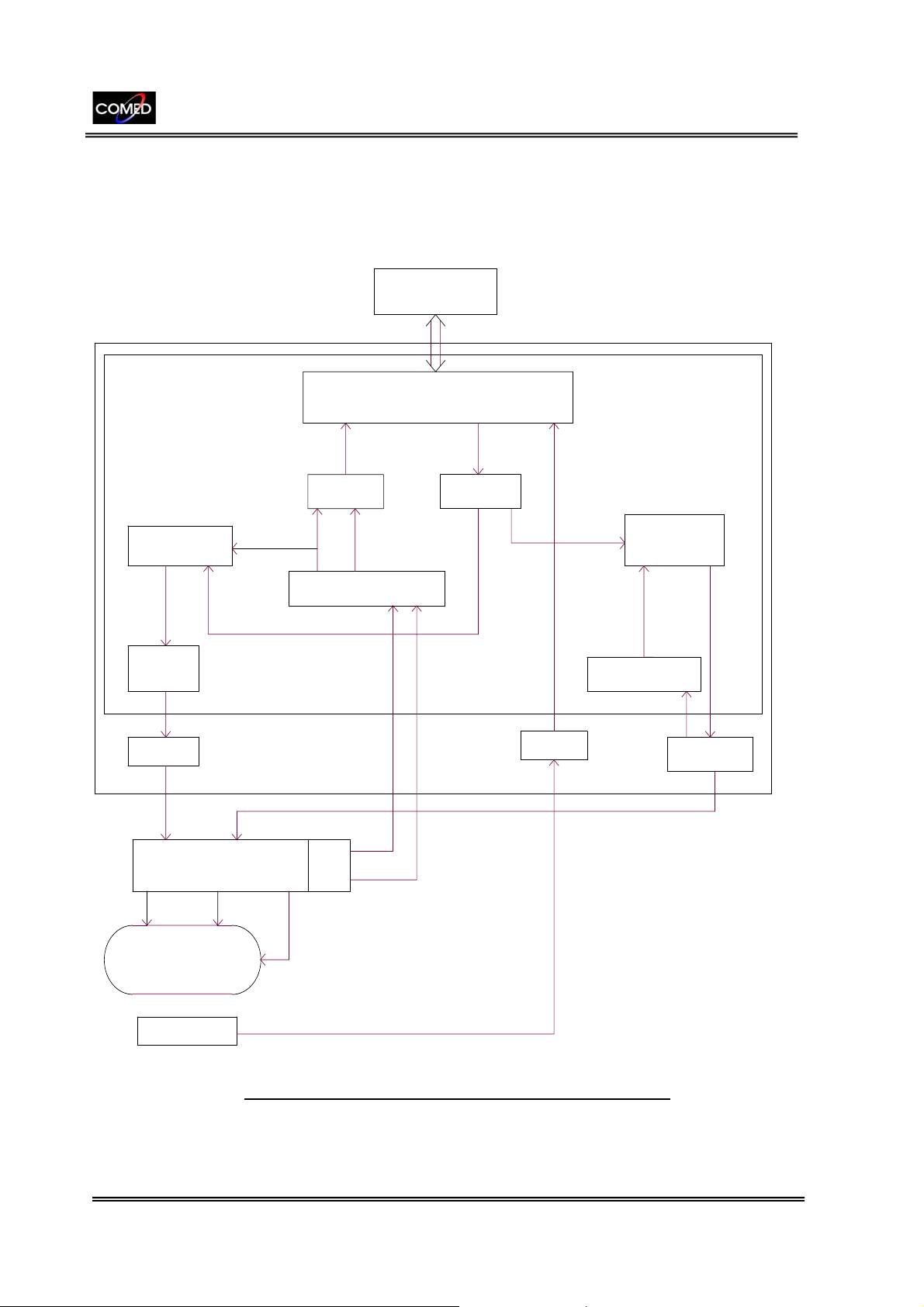

The flow of the control signal of X-ray exposure is shown in the following Fig 1-2.

Operation Panel

High Voltage Generator

Main CPU

PWM

Drive circuit

IGBT

HV Trans

FIL. Trans.

kV FB

A/D CONV

kV, mA FB Amp

kV mA

D/A CONV

AEC

PWM

mA FB

Filament

rms/DC CONV

FIL. INV.

A

X-ray TUBE

ION Chamber

C

FIL.

Fig 1-2 CONTROL SIGNAL OF X-RAY EXPOSURE

COMED Medical Systems Co.,Ltd. 15

Operating

6. Using environmental condition

◆ When using this instrument avoid following the place

z The place that direct rays z The place that a lit of dust and high humidity z The place that badly ventilated z The place that saltiness z The place that has chemical material and gas z The place that high vibration

◆ Keep the temperature and humidity for the normal running.

● Possible Storage Temp.,Humidity Range: 5 ～40˚C , 5 ～ 90%RH

● Possible Usage Temp.,Humidity Range: 10 ～35˚C , 30 ～85%RH

● Best Preferred Temp.,Humidity Range: 17 ～23˚C , 40 ～60%RH

COMED Medical Systems Co.,Ltd. 16

Operating

7. Instrument running and operation instructions

◆ Preparations

1)Turn on the main power supply switch. Supply power to X-ray controlling system and check out for any extraordinary or odd.

2) Warm up the system for at least 30 minutes before taking radiography.

7.1 HANDLE BAR operating method

When this button pressed condition, TUBE can rotate to

WALL BUCKY and side of the patients

When this button pressed condition, TUBE can move

forward and backward direction.

When this button pressed condition, TUBE can move up

and down direction.

When this button pressed condition, TUBE can move left

and right direction.

When this button pressed condition, body of the STAND

can rotate.

When this button pressed condition, TUBE can move all

direction.

COMED Medical Systems Co.,Ltd. 17

Operating

7.2 Radiography TABLE operating method

Using table at this device select 4way table that operator easily decide radiography

part of the patient’s body.

- Placed patient over the bed, pressed button of the collimator, and under pressed the foot switch. The operator placed radiography part of the patients.

- When Table and Grid Center are same location that sounded buzzer like “beep~.

7.3 BUCKY STAND operating method

1) Placed the patients front of the bucky stand, and decide the place adjust the patient’s body size that move the cassette tray up and down

2) Input the cassette with a file to the Cassette holder

3) X-ray output window of the tube look at the bucky stand direction, and adjust angle of the handle bar to 90 degree.

4) Press the button of collimator and decide the position with pressing the up /down button of the handle bar that the center of the light to the radiography target part of the patient.

7.4 CASSETTE TRAY operating method

1) At first placed the radiate position of the patients, and move the center light of the collimator to the radiate position.

2) Pull out the cassette hold and move the tray to the radiated position and the tube in a straight line.

3) Input cassette within the film and fixed. And the cassette holder push into the tray that cassette fixed right position.

COMED Medical Systems Co.,Ltd. 18

Operating

8. X – RAY operating method

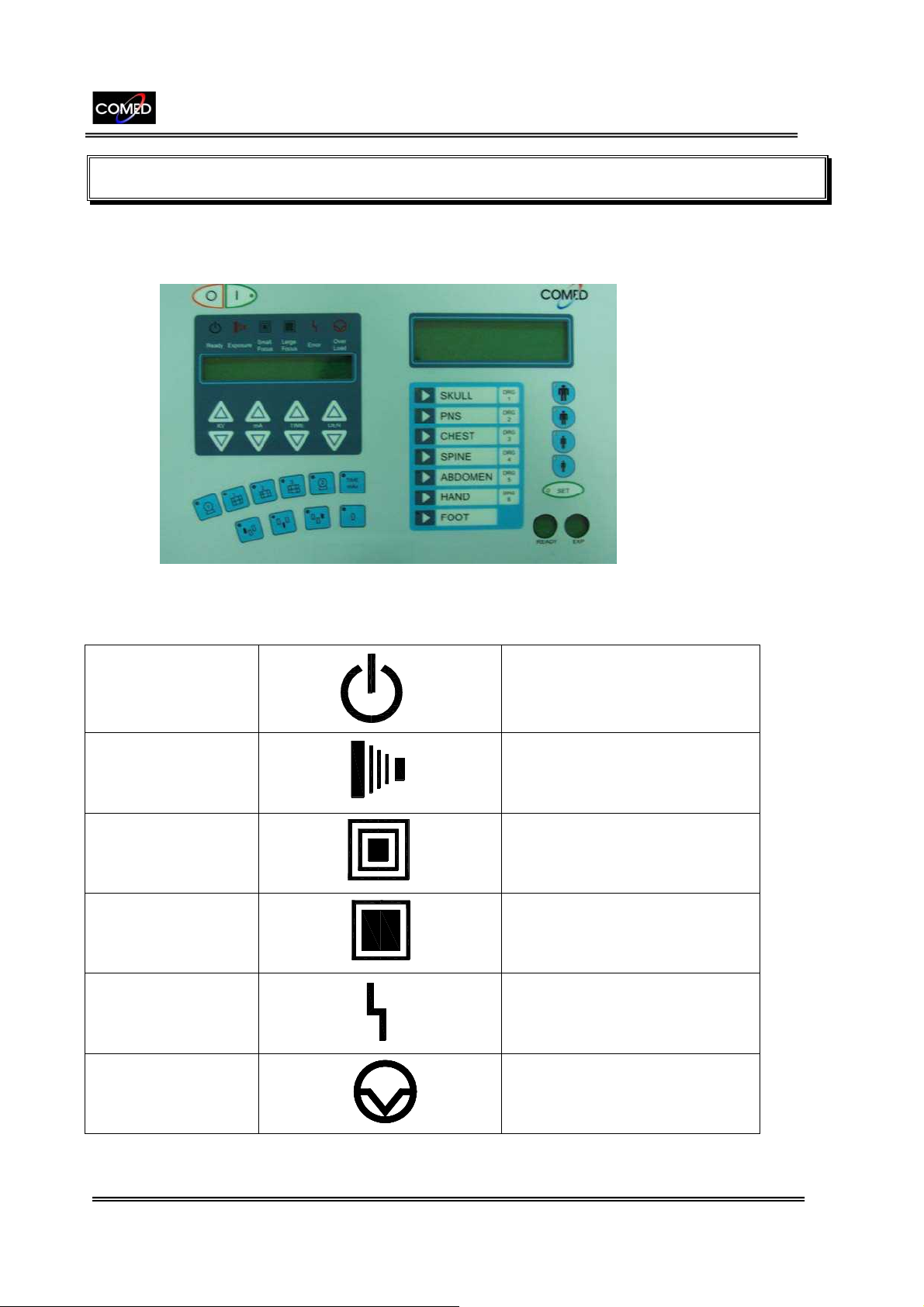

8.1 OPERATION PANEL operating method

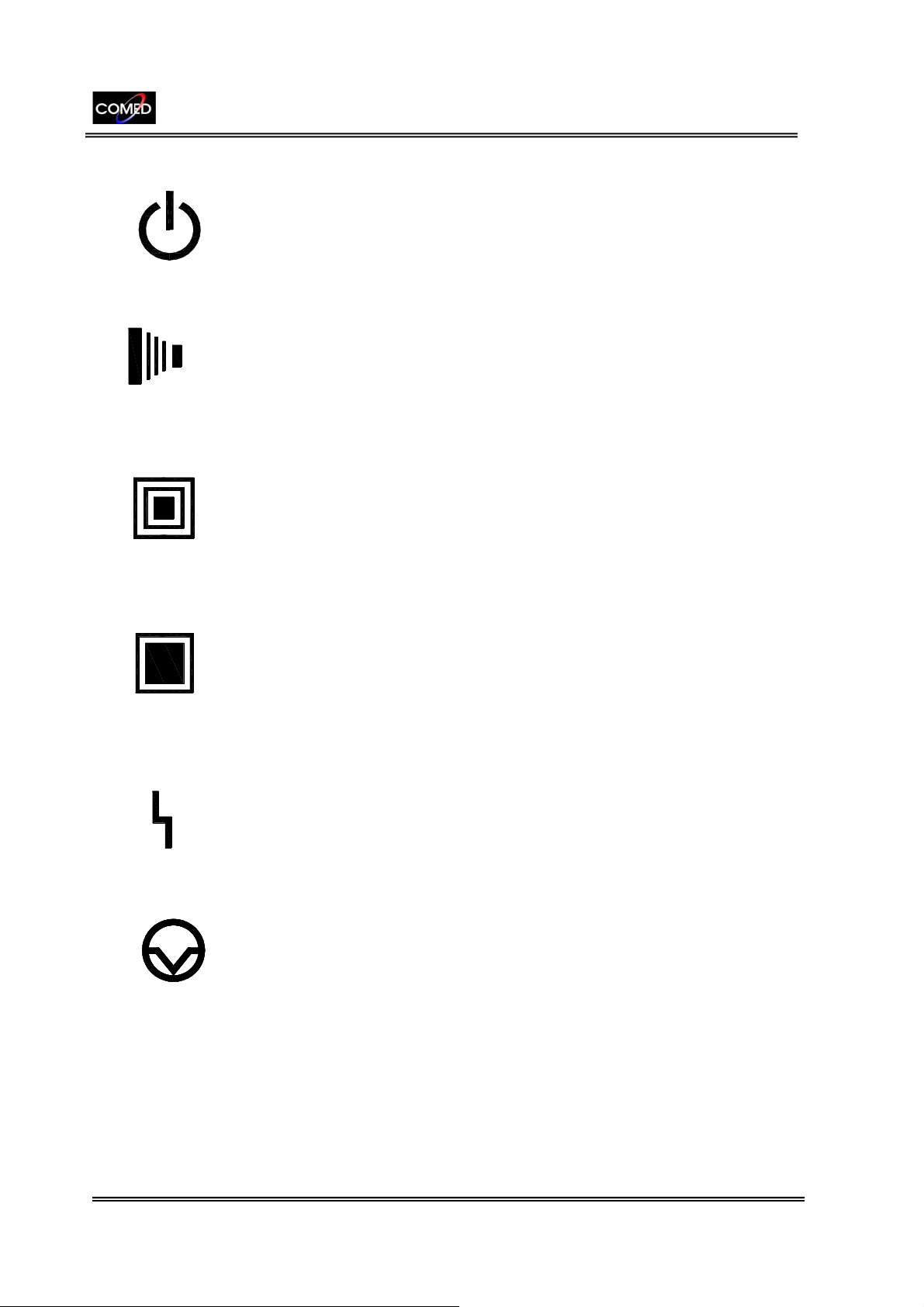

8.1.1 Display lamp

A B

C D

E

READY display lamp

EXPOSURE display lamp

SMALL FOCUS display lamp

LARGE FOCUS display lamp

ERROR display lamp

F

COMED Medical Systems Co.,Ltd. 19

OVER LOAD display lamp

Operating

A. READY display lamp

While the READY S/W is pressed, this lamp turn on.

B. EXPOSURE display lamp

When pressed the READY S/W and press the EXPOSURE S/W this lamp turned on

during the X-ray radiation times

C. SMALL FOCUS dislplay lamp

If the focus of the Tube is the small focus, this display lamp will turn on.

(below 160mA condition.)

D. LARGE FOCUS display lamp

If the focus of the Tube is the large focus, this display lamp will turn on.

(over 160mA condition.)

E. ERROR display lamp

After the controller self-exam. if error occurred then error display lamp will turn on.

F. OVER LOAD display lamp

Exceed the capacity of the tube or abnormal condition that overload display lamp will

turn on.

COMED Medical Systems Co.,Ltd. 20

Operating

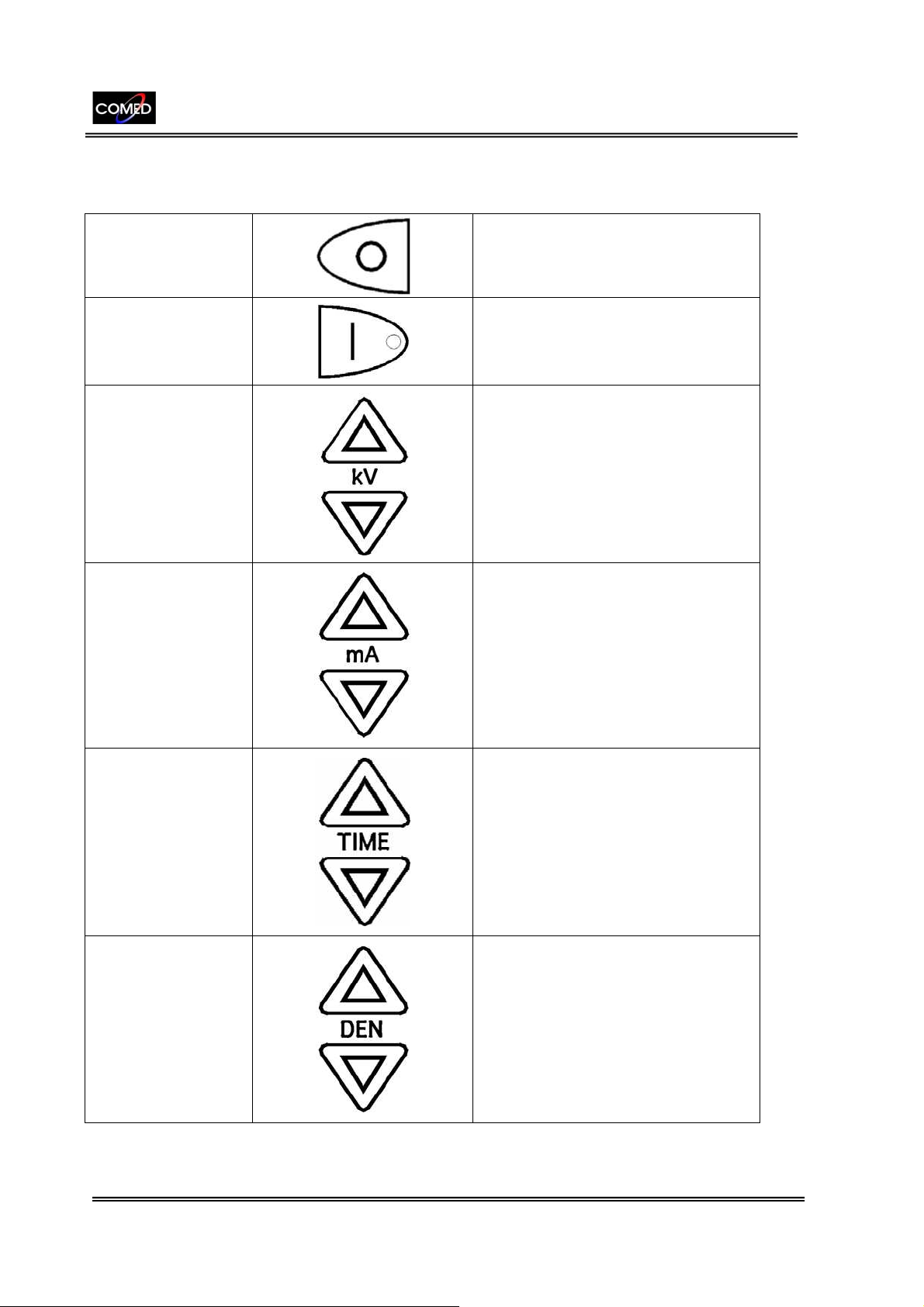

8.1.2 Operating panel PART1(Operating panel left side)

A B

C

D

POWER OFF S/W

POWR ON S/W

kV adjustment S/W

mA adjustment S/W

E

F

TIME adjustment S/W

DENSITY adjustment S/W

COMED Medical Systems Co.,Ltd. 21

Operating

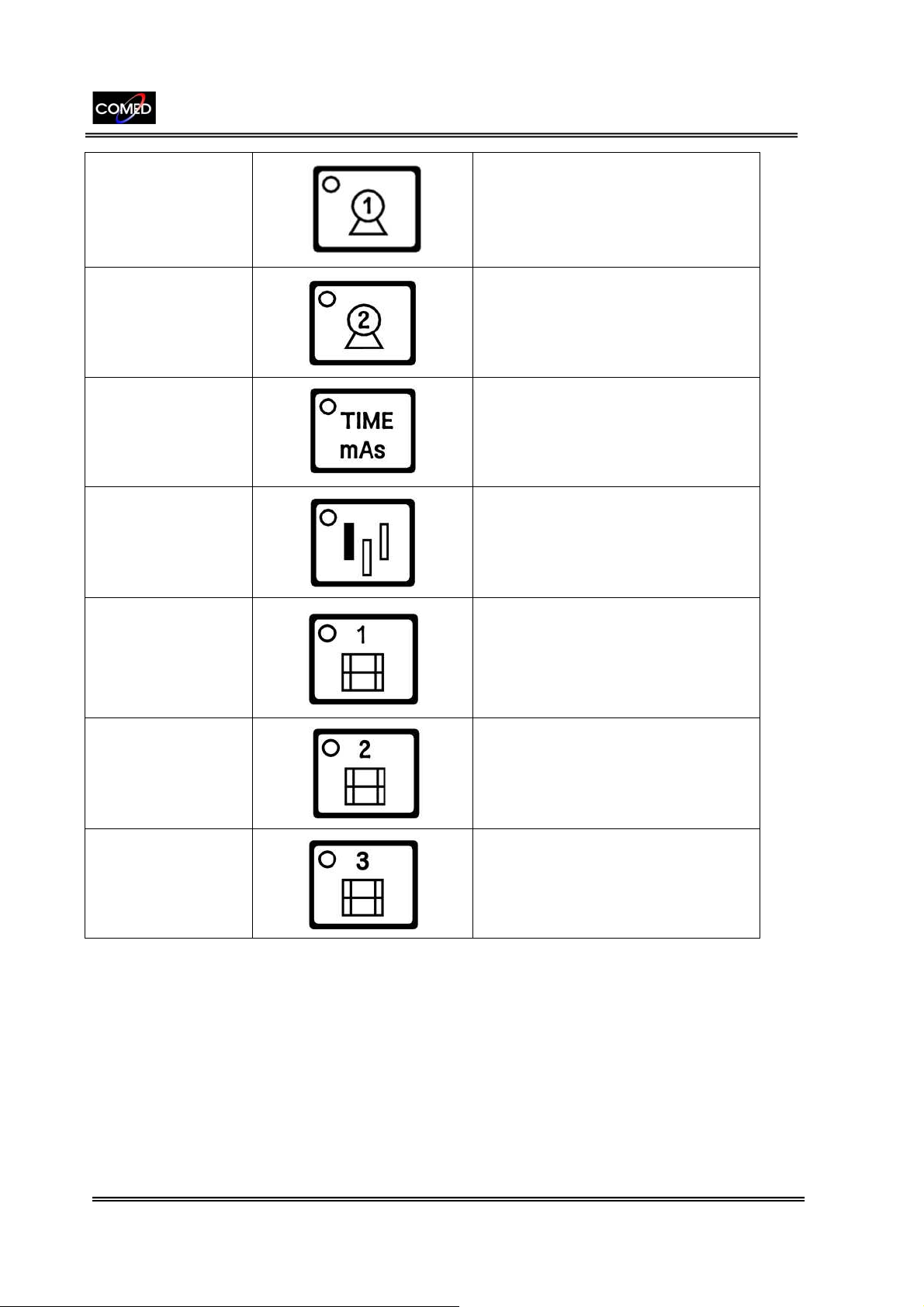

G

H

I

J

K

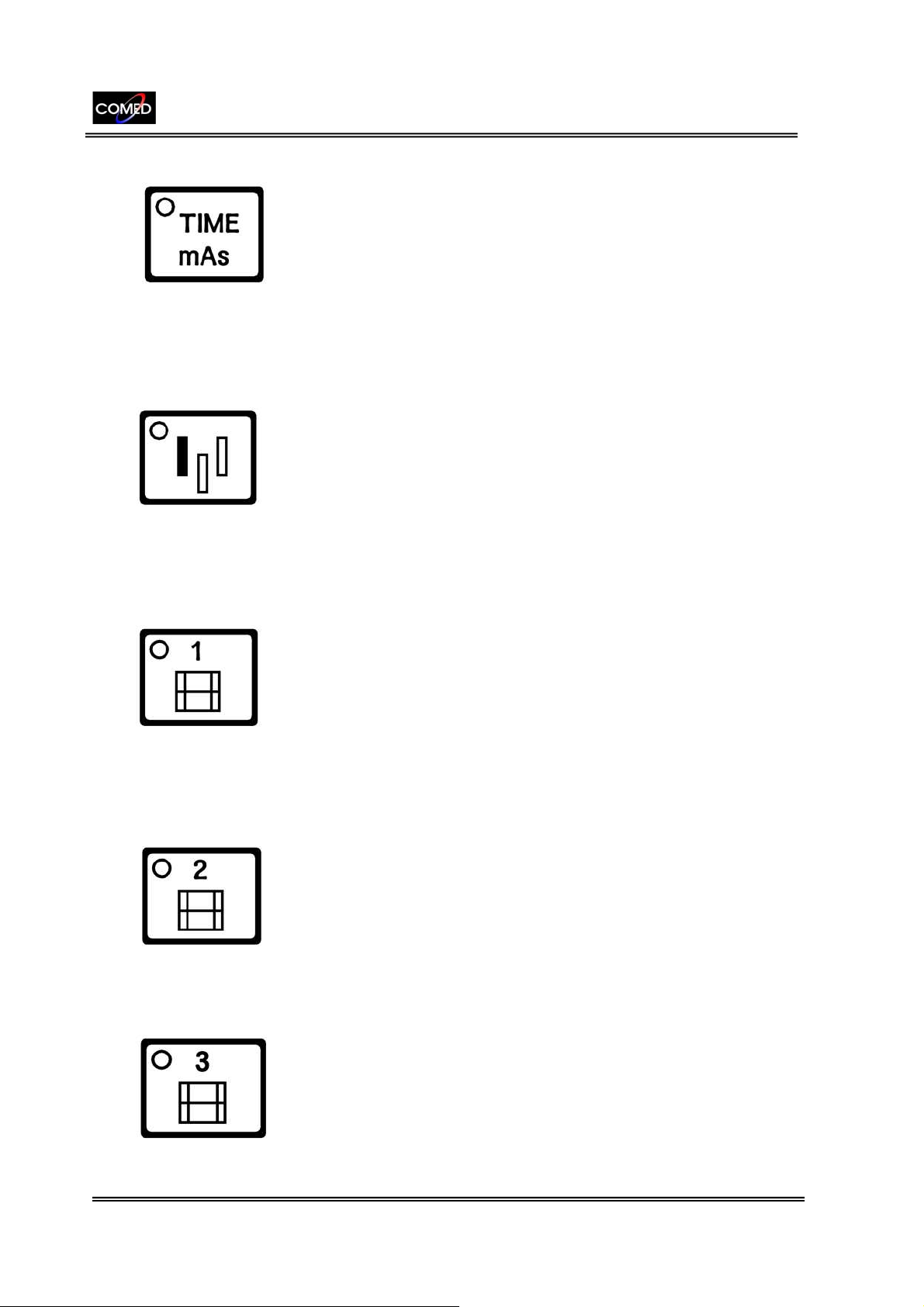

TUBE 1 SELECT S/W

TUBE 2 SELECT S/W

TIME, mAs CHANGE S/W

AUTO EXPOSURE

CONTROL POSITION S/W

BUCKY 1 SELECT S/W

L

M

BUCKY 2 SELECT S/W

BUCKY 3 SELECT S/W

COMED Medical Systems Co.,Ltd. 22

Operating

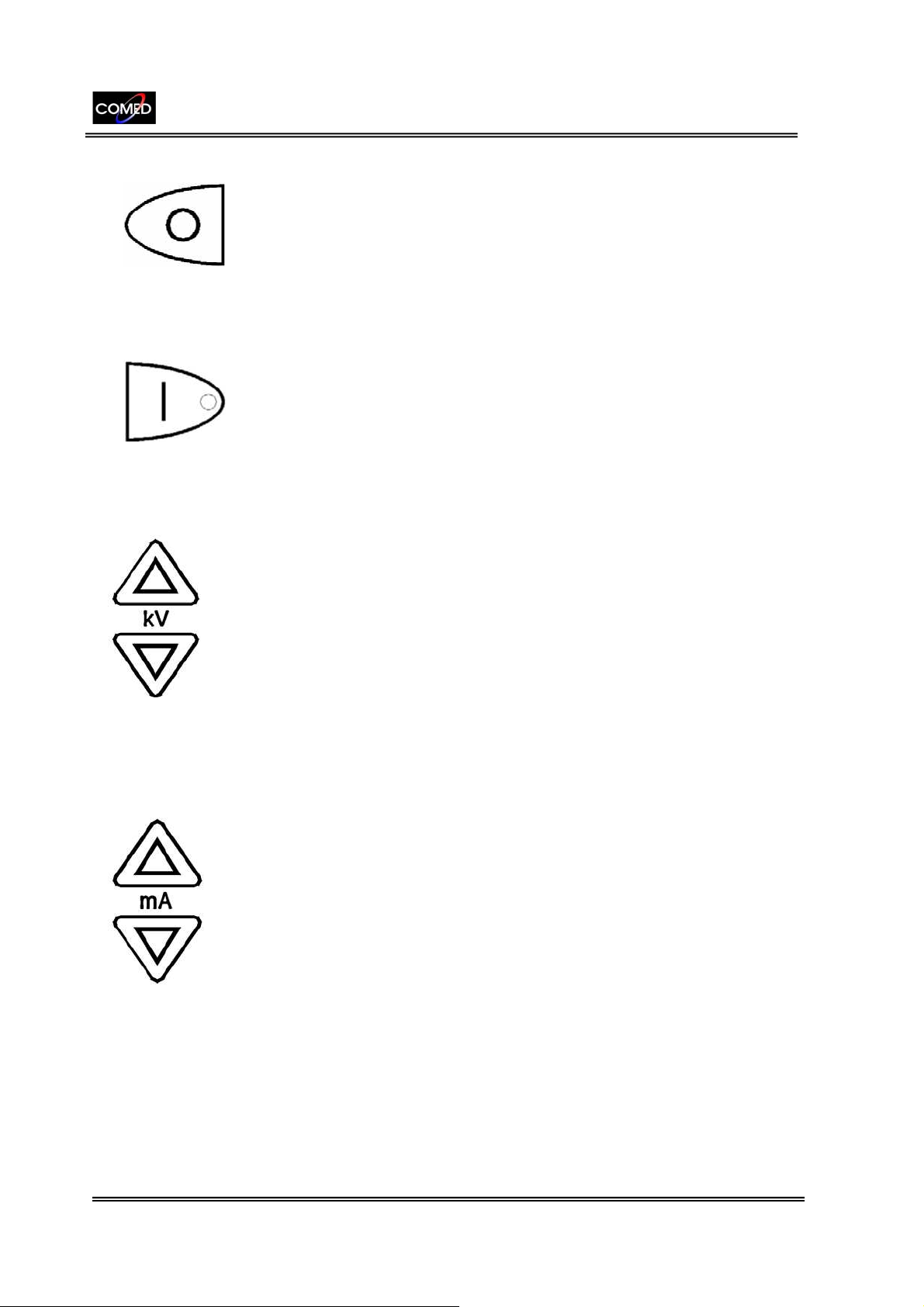

A. POWER OFF S/W

Press this button, all power turned off.

B. POWR ON S/W

Press this button, all power turned on.

C. kV adjustment S/W

The button adjust the value of the Kv. Press upper triangle, increase the value of the

Kv and press downward triangle, decrease the value of the Kv.

D. mA adjustment S/W

The button adjust the value of the mA. Press upper triangle, increase the value of the

mA and press downward triangle, decrease the value of the mA.

COMED Medical Systems Co.,Ltd. 23

Operating

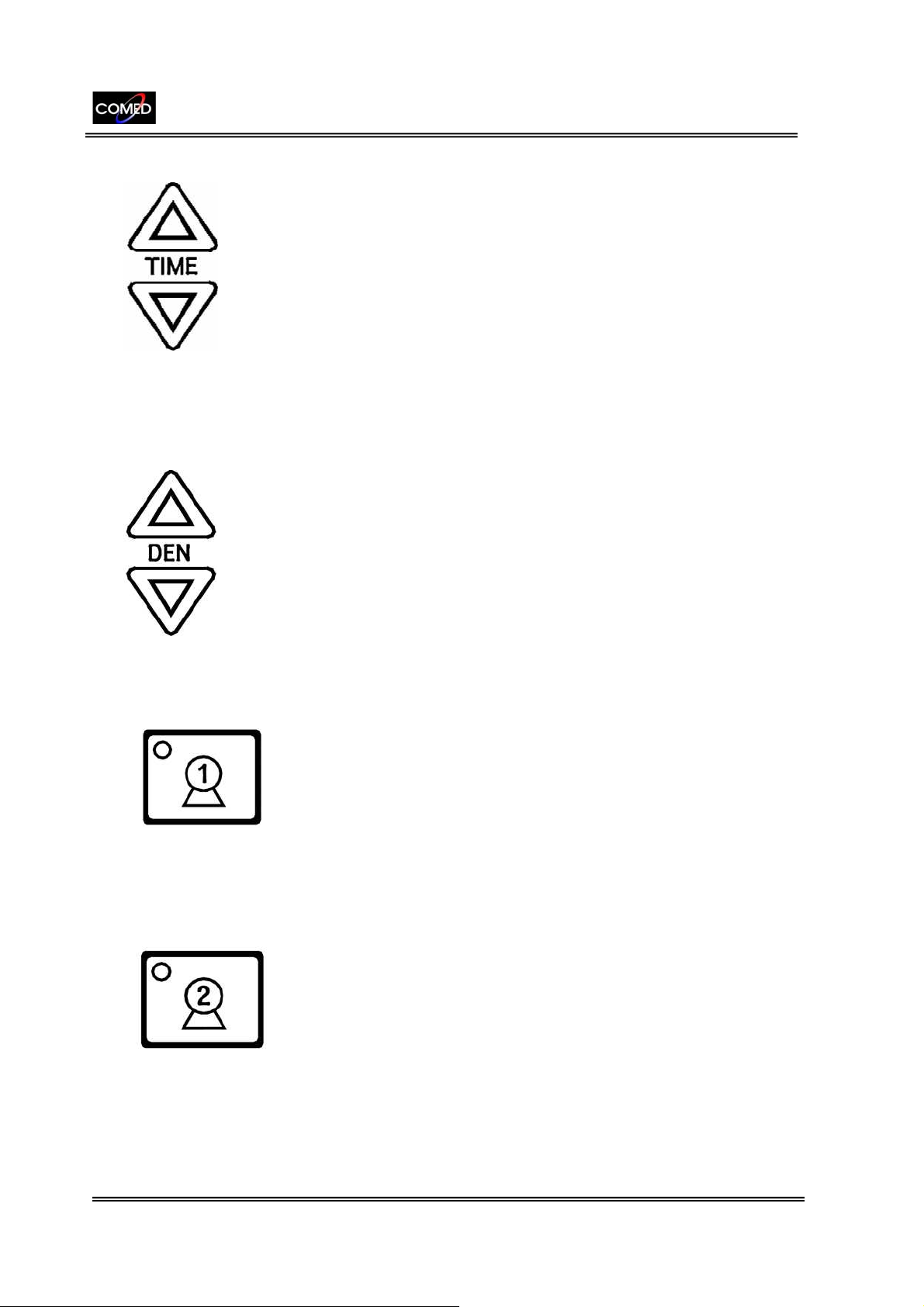

E. TIME adjustment S/W

The button adjust the time of the radiation. Press upper triangle, increase the time of

the radiation and press downward triangle, decrease the time of the radiation.

F. DENSITY adjustment S/W

The button adjust the density. (Not use at this machine.)

G. TUBE 1 SELECT S/W

Select the 1st tube, when use two tubes. (Only one tube use at this machine.)

H. TUBE 2 SELECT S/W

nd

Select the 2 (Not use at this machine.)

tube, when use two tubes.

COMED Medical Systems Co.,Ltd. 24

Operating

I. TIME, mAs CHANGE S/W

If press this button then display screen change time to mAs (If press one more then change mAs to time...)

J. AUTO EXPOSURE CONTROL POSITION S/W

Three button like above the picture, When using AEC functions. (Not use at this machine)

K. BUCKY 1 SELECT S/W

1st Burky button. Press this button then select the table burky running at this

instrument.

L. BUCKY 2 SELECT S/W

Optional specification. If has the burky-stand. Press this button then select the burky

running at burky-stand.

M. BUCKY 3 SELECT S/W

Functions select burky running of the other instrument.

COMED Medical Systems Co.,Ltd. 25

Operating

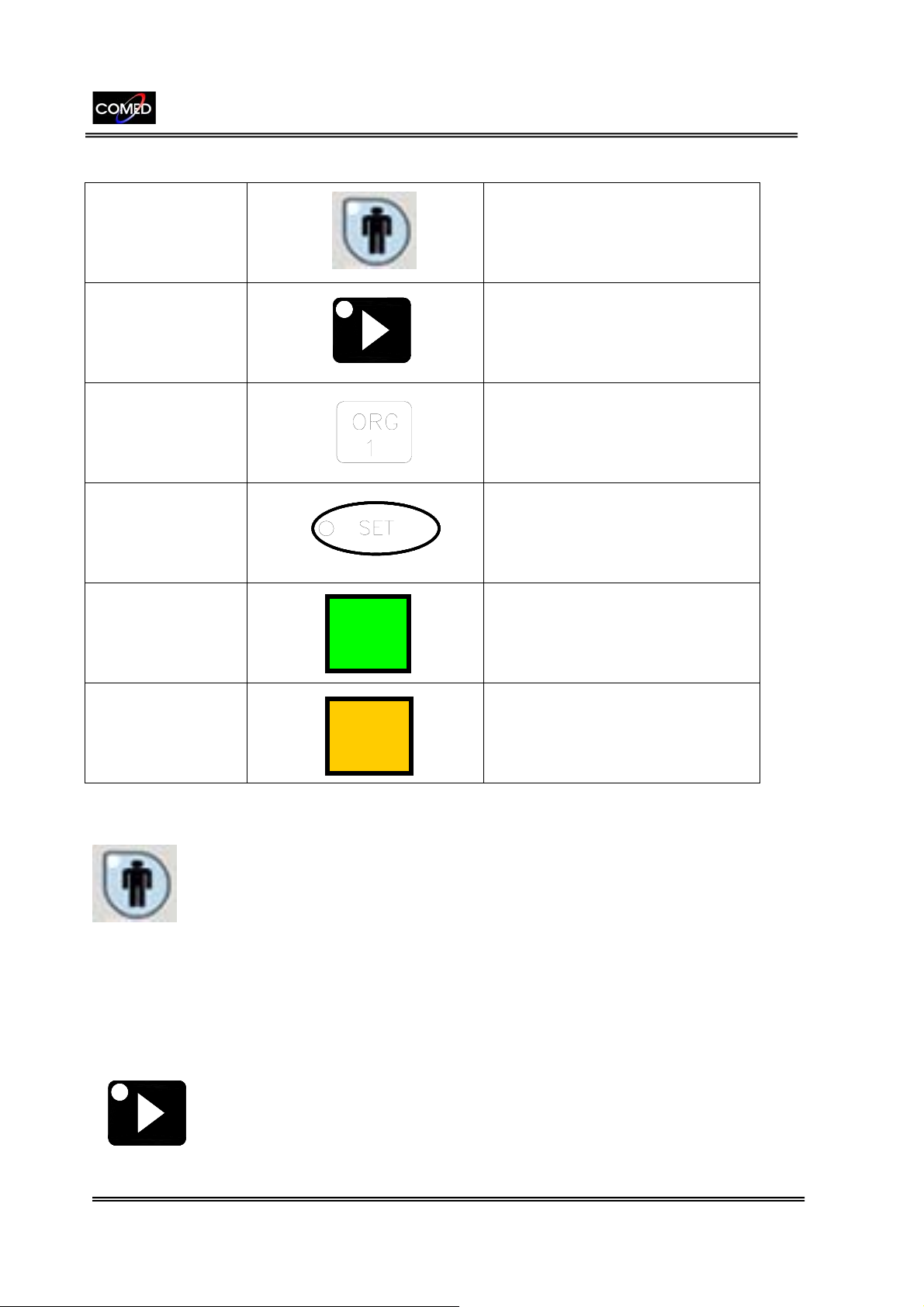

8.1.3 Operating panel PART1(Operating panel right-side)

A

B

C

D

E

Green

Body size SELECT S/W

Body part SELECT S/W

Detail body part SELECT S/W

Save condition S/W

READY S/W

F

A. Body size SELECT S/W

The button select the body size, it divide patients to large, medium, small and child.

B. Body part SELECT S/W

The button selects the body part. The button select the wanted part at a picture.

COMED Medical Systems Co.,Ltd. 26

Yellow

EXPOSURE S/W

Operating

C. Detail body part SELECT S/W

The button selects the detail body part. Press the wanted part from the right LCD window.

D. Save condition S/W

The button saves the condition. When save the condition, press this button 2 second.

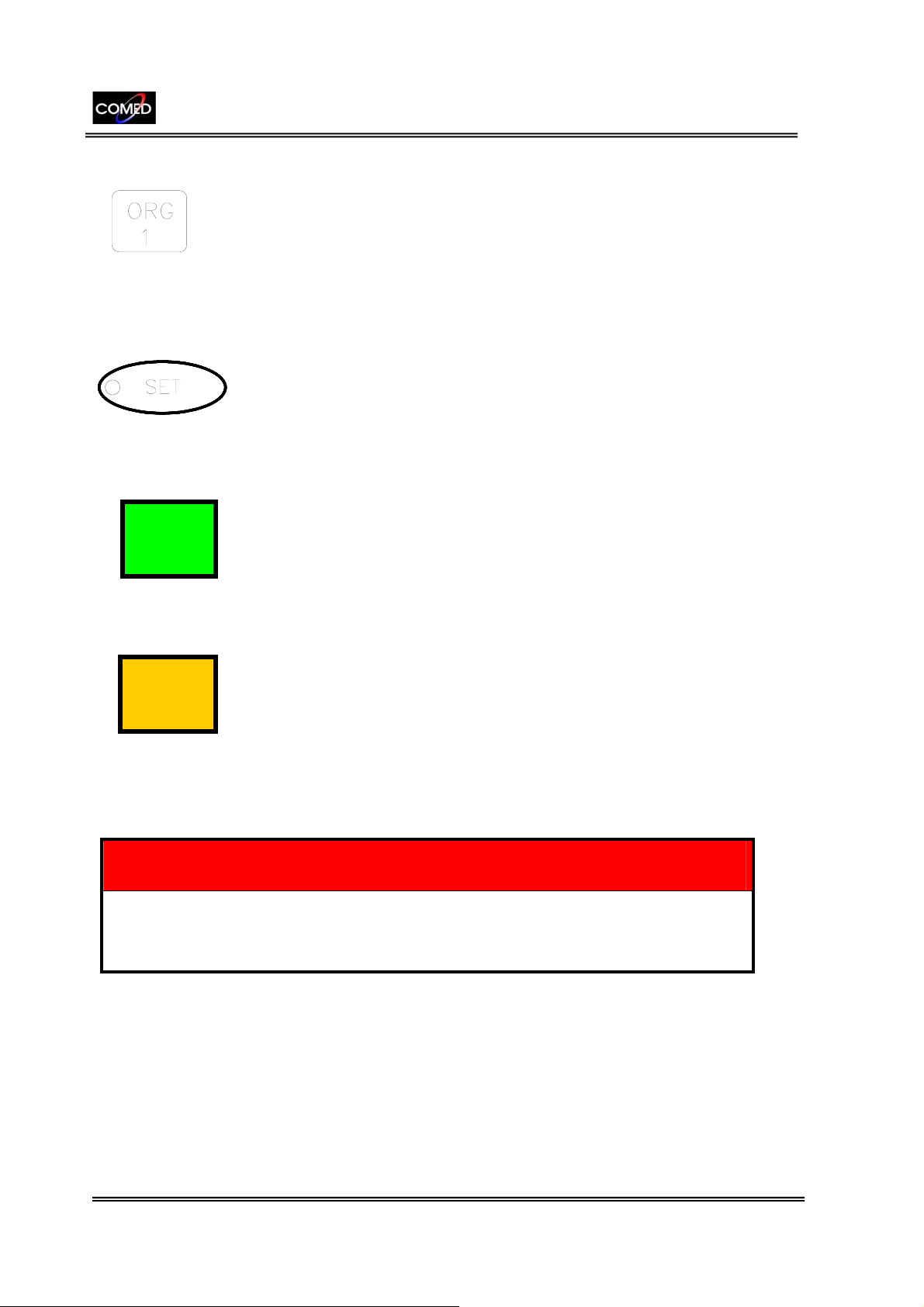

E. READY S/W

Green

READY S/W. While pressing this button, READY display lamp turned on.

F. EXPOSURE S/W

Yellow

EXPOSE S/W. During turning on the READY display lamp, press this button then the

X-ray is generated.

☞ Warning !

Please the X-RAY ON KEY switch press until end of the X-RAY

radiation for completing the X-ray radiation.

COMED Medical Systems Co.,Ltd. 27

Operating

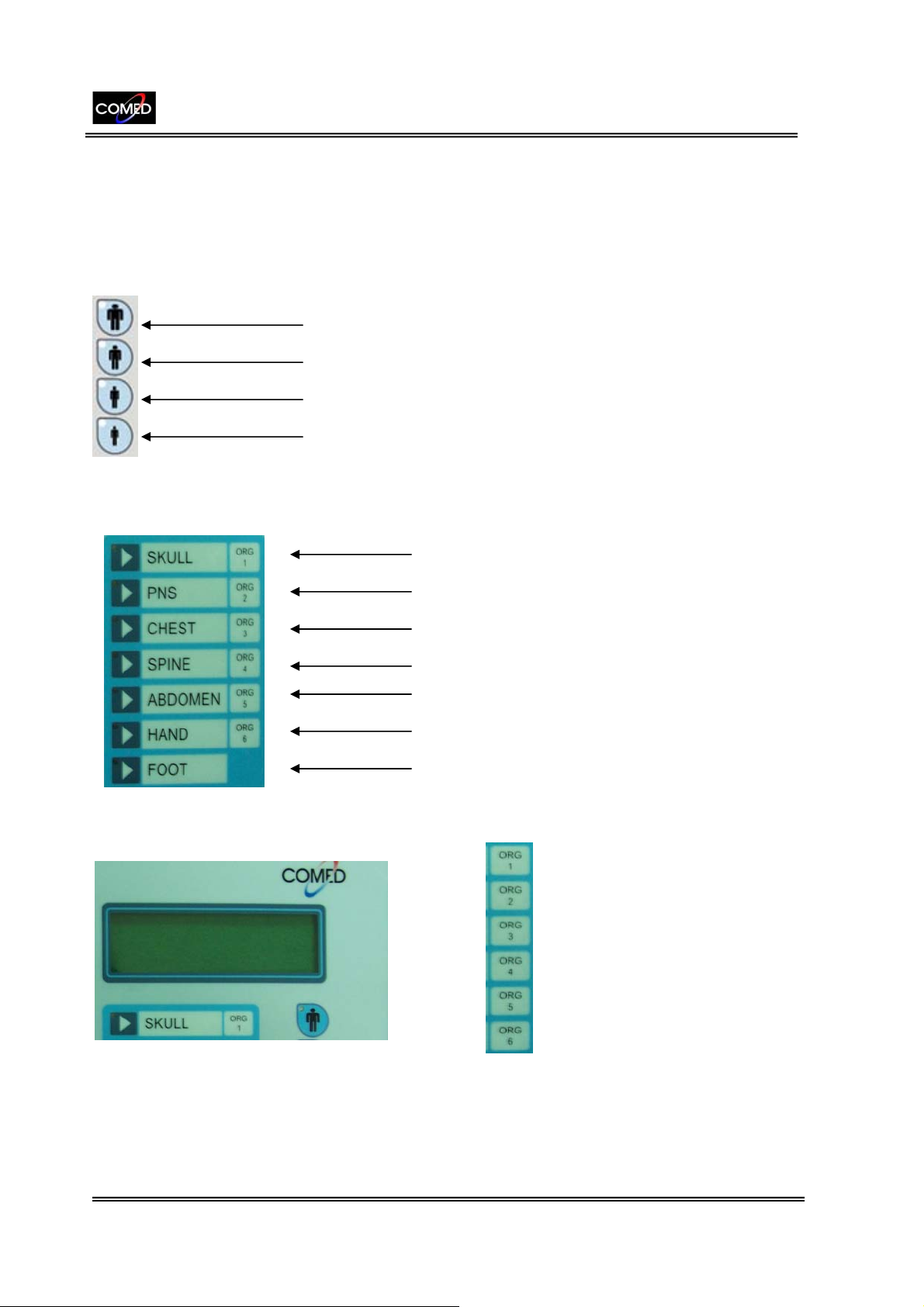

8.1.4 APR(Anatomical Programable Radiography) saving method

◆ See operating panel menu.

1. Select the body size.

Large

Medium

Small

Child

2. Select the body part.

3. Select the detail body part.

SKULL

PNS

CHEST

ABDOMEN SPINE

UPPER EXTREMITY

LOWER EXTREMITY

(See above display window and select one from 6 kind of the detail body part then

marked symbol ★.)

COMED Medical Systems Co.,Ltd. 28

Operating

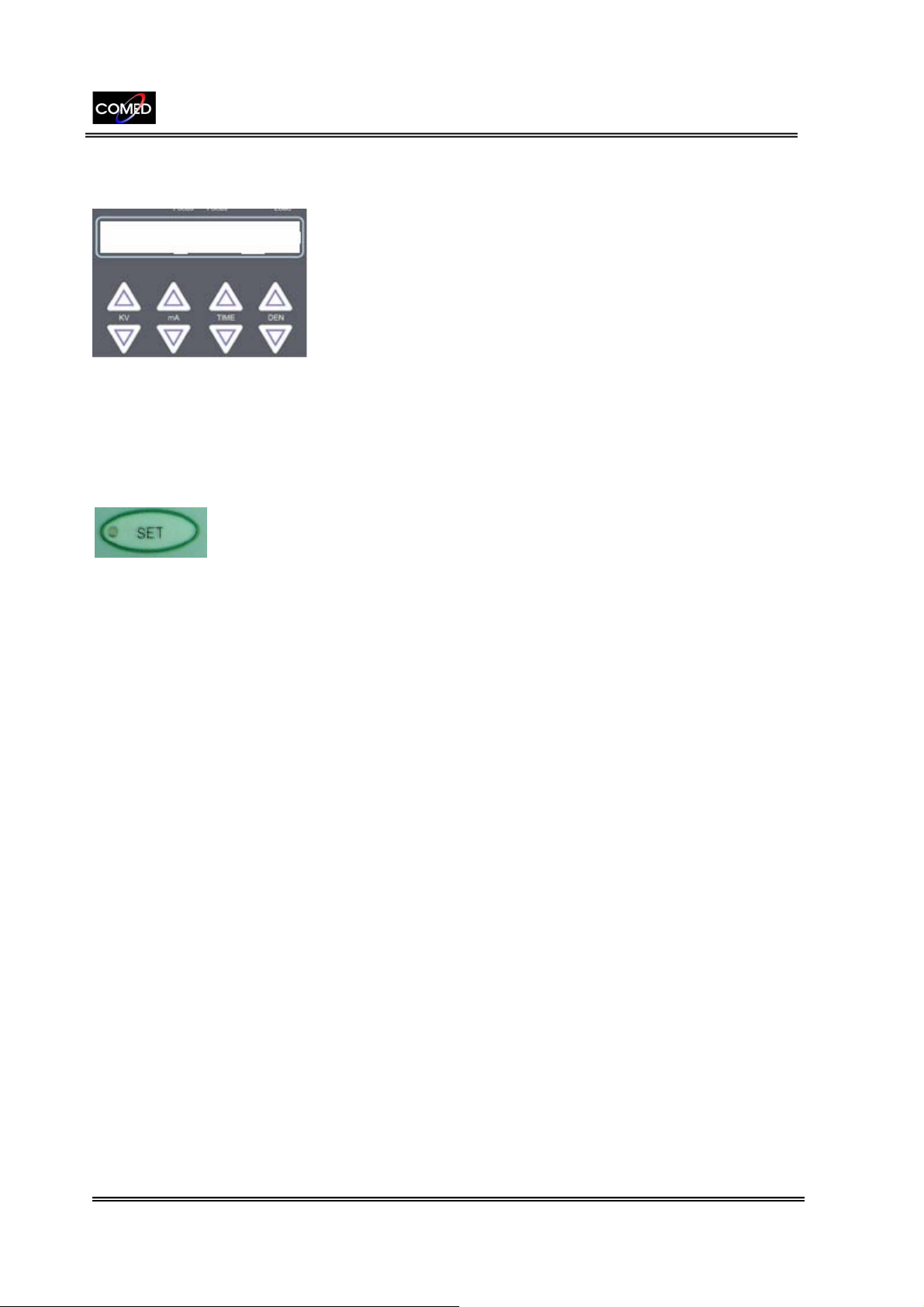

4. Select the value of Kv and mAs.

5. When save the setting condition, press the SET/SW until sounding the buzzer(about

1 second).

COMED Medical Systems Co.,Ltd. 29

Operating

9. Maintenance and repairing

◆ General

We recommend this instrument always have a periodical inspection every year for confidence and renew

Must have a periodical inspection by the authorized technician.

◆ CLEANING

No a periodical cleaning cycle, cleaning the unit when the instrument become dirty

after operating

To clean the main-part of the instrument, at first turn power off and pull the plug out

from the socket then do cleaning.

When cleaning the main-part of the instrument, using a soft piece of close and clean

softly for not scratching the main-part

COMED Medical Systems Co.,Ltd. 30

Operating

10. Broke down and measures

◆ ERROR MESSAGE

When specific ERROR occurred at this machine, easily recognized the error because

CONSOLE DILSPLAY window show the ERROR MESSAEG due to self-exam functions of the CONTROLLER.

ERROR CODE LIST

Error Code Description

Err 01 CHARGE MONITOR ERROR

 When the power voltage drops below AC160V and DC150V.

Err 02 TIME OVER ERROR AT STANDBY(Serial Communication Fail Error)

 Standby position is not cleared after the 10 sec. at the operation panel power on( No reply from HT-CONT)

Err 03 READY OUT SIGNAL ERROR AT STANDBY

 Defects of Operation panel or HT control board

Err 04 X-RAY OUT SIGNAL ERROR AT STANDBY

 Defects of Operation panel or HT control board

Err 05 PANEL READY SWITCH INPUT ERROR AT STANDBY

 When the operation panel ready switch input is ‘on’ position.

Err 06 PANEL X-RAY SWITCH INPUT ERROR AT STANDBY

 When the operation panel ready switch input is ‘on’ position.

Err 07 Not Defined

Err 08 Not Defined

Err 09 ROTOR CURRENT ERROR AT NON-EXPOSURE POSITION

 TP18 (RTR_I_FB) of HT Control Board is higher than 1V at non-exposure action

Err 10 FILLAMENT CURRENT ERROR AT NON-EXPOSURE POSITION

 TP2 (FIL_I_FB) of HT Control Board is higher than 1.5V at non-exposure action

Err 11 kV FEEDBACK CURRENT ERROR AT NON-EXPOSURE POSITION

 TP8 (kV_FB) of HT Control Board is higher than 1V TP8 (33.3kV) at non-exposure action

Err 12 mA FEEDBACK CURRENT ERROR AT NON-EXPOSURE POSITION

 TP4 (mA_FB) 10-80mA setting of HT Control Board is higher than o.5V (5mA), In case of 100-500mA setting of HT Control Board is higher than o.1V (11mA) TP8 (33.3kV) at non-exposure action

COMED Medical Systems Co.,Ltd. 31

Operating

Err 13 ROTOR CURRENT ERROR AT EXPOSURE POSITION

 TP18 (RTR_I_FB) of HT Control Board is lower than 3.0V at exposure ready action after the 0.8 sec. With ready switch input.

Err 14 FILLAMENT CURRENT ERROR AT EXPOSURE POSITION

 TP2 (FIL_I_FB) of HT Control Board is lower than 1.5V at exposure ready action after the 1.5 sec. With ready switch input.

Err 15

Err 16 mA FEEDBACK CURRENT ERROR AT EXPOSURE POSITION

Err 17 Not Defined

Err 18 X-RAY TIME OVER ERROR AT SEC MODE EXPOSURE

kV FEEDBACK CURRENT ERROR AT EXPOSURE POSITION  After Exposure is ready, X-ray switch input and turn on HV-ENABLE signal and within 3msec HT8 (kV_FB)setting is under %70 During exposure TP8(kV_FB) setting is under 70% *kV Feedback monitoring data(70%) can be set on calibration mode[C-2_43]

 Exposure Ready Condition TP4 (mA_FB) 10-80mA setting of HT Control Board is lower than o.5V (5mA), In case of 100-630mA setting of HT Control Board is lower than o.1V (11mA) after the 3 msec. with kV Feedback signal.  During Exposure TP4 (mA_FB) 10-80mA setting of HT Control Board is lower than o.5V (5mA), In case of 100-630mA setting of HT Control Board is lower than o.1V (11mA) .

 X-ray end signal is not reached to the panel from HT exceeding the setting time at the sec mode exposure

Err 19 X-RAY TIME OVER ERROR AT mAs MODE EXPOSURE

 X-ray end signal is not reached to the panel from HT exceeding the setting time calculated by the mA×(1/2) formula at the mAs mode exposure.

Err 20 X-RAY TIME OVER ERROR AT AEC MODE EXPOSURE

 X-ray end signal is not reached to the panel from HT exceeding the setting time calculated by backup-timer at the AEC mode exposure.

Err 21 HV INTERLOCK ERROR

 Unlink the HV trans connection

Err 22 IGBT FAULT ERROR

 HV Tans is under overloading condition about mA (350A).

Err 23 kV FEEDBACK OVER CURRENT ERROR AT EXPOSURE POSITION

 TP8 (kV_FB) of HT Control Board is higher than 20kV during the exposure.

COMED Medical Systems Co.,Ltd. 32

Operating

Err 24 mA FEEDBACK OVER CURRENT ERROR AT EXPOSURE POSITION

 TP8 (mA_FB) of HT Control Board is higher than [mA setting value plus 50%] during the exposure.

Err 25 NO ZERO CROSS ERROR

 Impossible to detect the frequency signal.

Err 26 ZERO CROSS OVER ERROR

 Frequency signal detection over.

Ch_01

Ch_07

TUBE THERMOSTAT OPERATION  The temperature of the slim and long shaped light bulb is higher than 80C.

 Thermo switch is in open position.  Release the check code at Thermo switch off condition.

Shortage of power-supply capacity for exposure

 The power voltage drop is below AC160V and DC 150V.  Release the check code with input of power.

COMED Medical Systems Co.,Ltd. 33

Operating

When occur the Error code, Turn power off and contact the SERVISE PART.

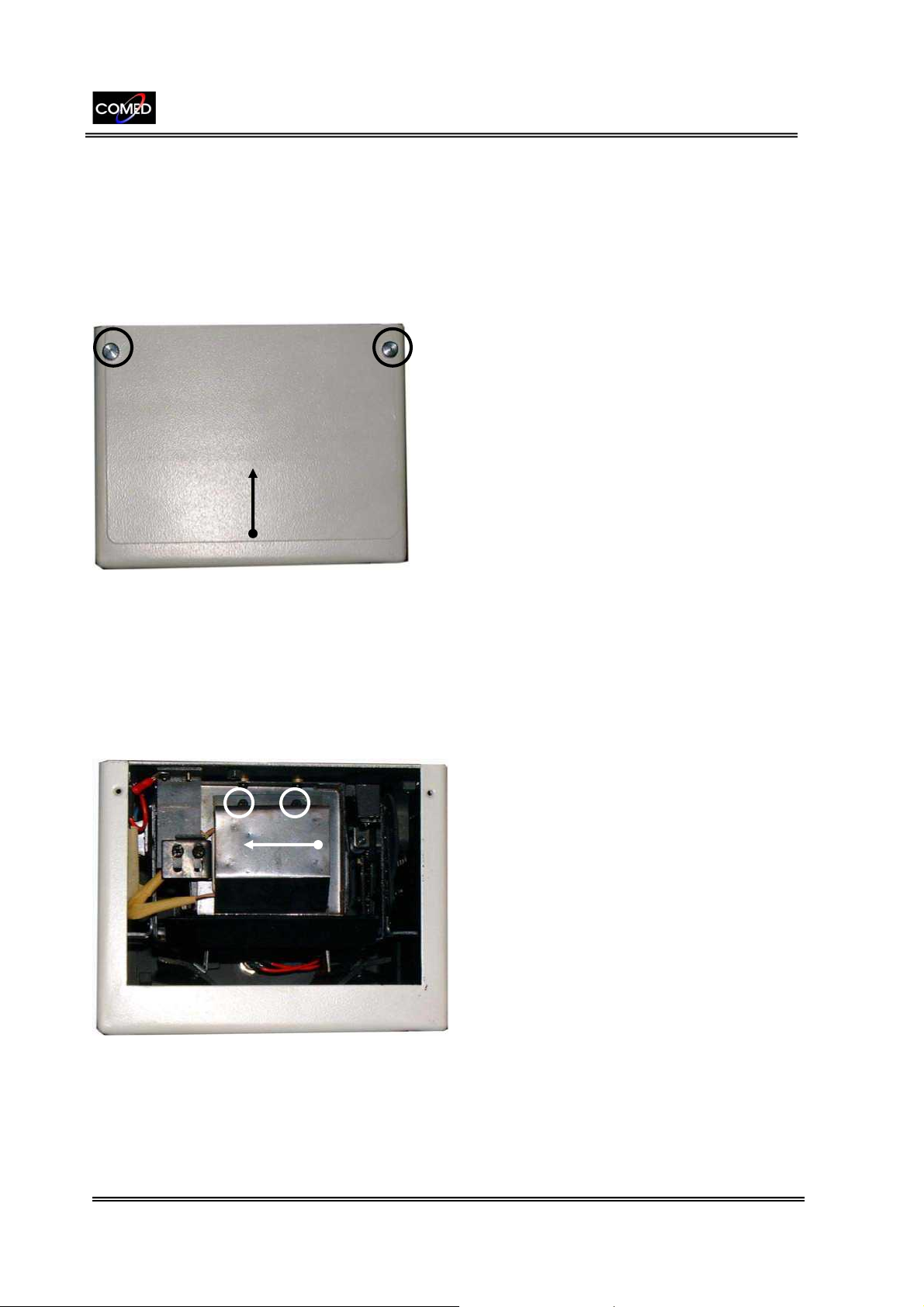

◆ Collimator lamp replace method

1. back-cover release

Release the bolt by the hand, which display two circles from above picture. Lifting and

pull out back-cover of the collimator.

2. Lamp back-cover release

Release the bolt a little by the screwdriver, which display the circles from above picture.

Push the arrow-direction and pull the lamp back-cover.

COMED Medical Systems Co.,Ltd. 34

Operating

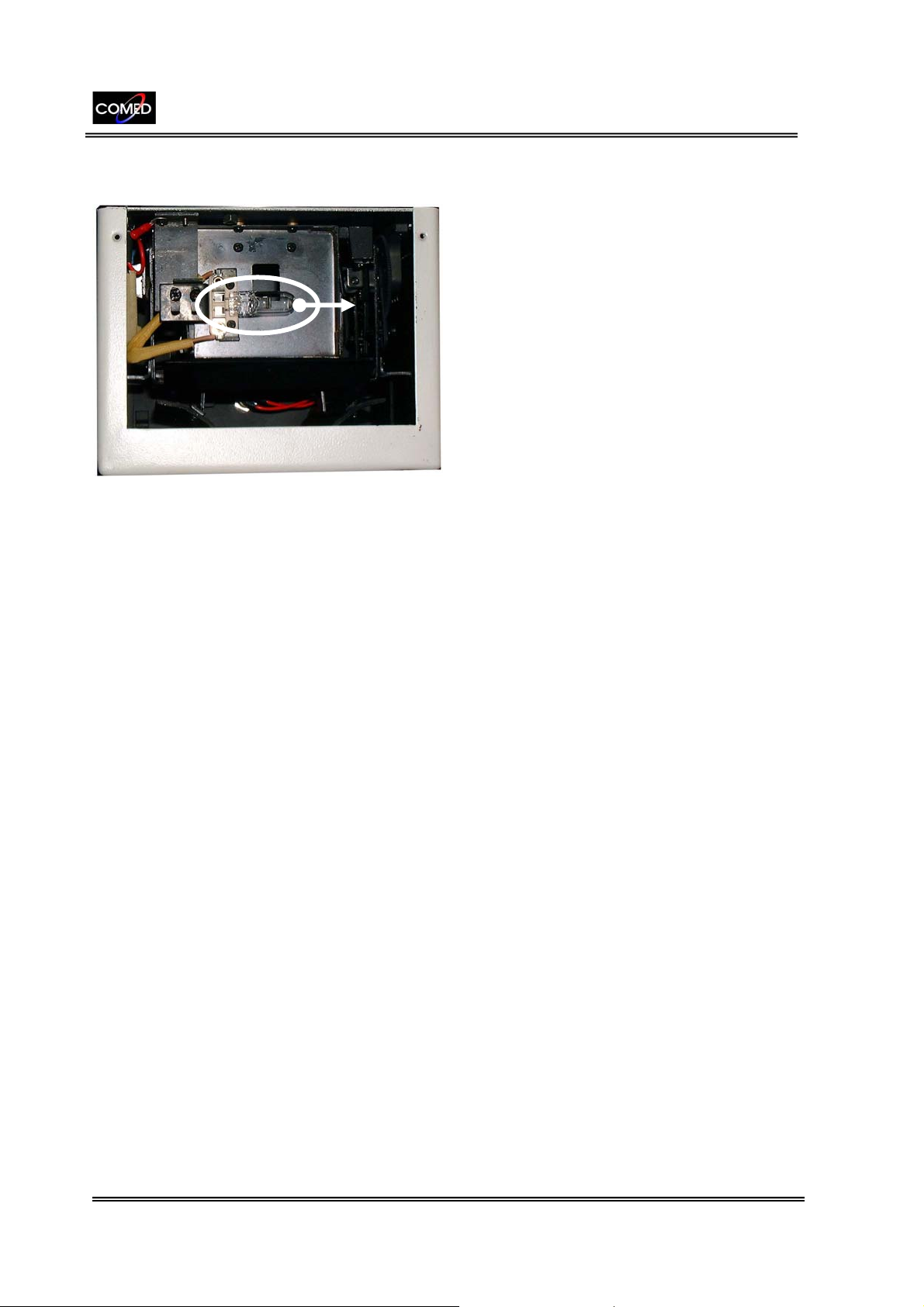

3. Lamp pull out

pull out the lamp the arrow-direction , which display the while-circle from above picture.

4. Lamp sticking

Sticking of the lamp is reversed pull out of the lamp

◆Warning – Replacement lamp(new lamp) never touch by the hand

(Long-time running lamp is very hot, so don’t touch.)

COMED Medical Systems Co.,Ltd. 35

Operating

A

p

A

11. Radiography condition table

SKULL

PNS

CHEST

ABDOMEN

SPINE

Upper

EXTREMITY

Lower

EXTREMITY

`POSITION

P/PA 60 100 25 1 64 100 32 1

Lateral 56 100 25 1 60 100 32 1

Townes 64 100 25 1 68 100 32 1

Mandible

Nasal Lateral 43 100 3 . 43 100 5 .

PNS

Mastoid

Chest

Rib

Clavicle

Shoulder

Supine 54 100 8 . 58 200 25 1

Pelvis

Hi

Lateral 62 100 5 . 72 200 20 1

C-spine T-spine L-spine

Finger 40 50 1.25 . 40 50 3 .

Foream 50 50 3.15 . 52 50 6.25 .

Elbow 50 50 3.15 . 52 50 6.25 .

Humerus 50 50 5 . 52 50 10 .

Merchant 50 50 6.25 . 52 50 6.25 .

Femur 56 50 16 . 60 100 25 .

PA 50 100 8 . 70 200 16 1

xial Later 50 100 6 . 68 200 16 1

Waters 70 100 10 1 70 100 32 1

Caldwell 70 100 8 1 70 100 20 1

Lateral 70 100 8 1 70 100 16 1

Law 70 100 5 1 75 100 20 1

Stenvers 65 100 5 1 72 100 10 1

Towns 70 100 8 1 72 100 20 1

PA 94 100 4 . 100 200 15 2

Lateral 94 100 6 . 100 200 20 2

P 50 100 6 . 68 100 20 1

Both obliq 56 100 6 . 70 100 25 1

P 50 100 8 . 70 200 10 1 P 54 100 6.3 . 70 200 10 1

Erect 56 100 8 . 62 200 25 2

KUB 56 100 8 . 65 200 20 1

P 50 100 8 . 56 200 20 1

Lateral 60 100 10 . 80 200 32 1

P 54 100 3.2 . 58 200 16 1

Lateral 56 100 5 . 60 200 16 1

P 60 100 5 . 63 200 20 1

Lateral 66 100 10 . 71 200 25 1

P 55 100 8 . 58 200 20 1

Lateral 63 100 12.5 . 64 200 32 1

Hand 43 50 2.5 . 44 50 2.5 . Wrist 50 50 2 . 50 50 4 .

Foot 43 50 3.15 . 44 50 3.15 .

nkle 50 50 5 . 52 50 5 .

Tibia 50 50 5 . 55 50 5 .

Knee 50 50 6.25 . 52 50 6.25 .

kVp mA mAs Grid kVp mA mAs Grid

SS S

COMED Medical Systems Co.,Ltd. 36

Operating

A

r

A

p

A

SKULL

PNS

CHEST

ABDOMEN

SPINE

Upper

EXTREMITY

Lower

EXTREMITY

POSITION

P/PA 68 100 32 1 72 100 32 1

Lateral 64 100 32 1 68 100 32 1

Townes 72 100 32 1 76 100 32 1

Mandible

Nasal Lateral 45 100 5 . 45 100 6 .

PNS

Mastoid

Chest

Rib

Clavicle

Shoulde

Supine 64 200 32 1 72 200 40 1

Erect 68 200 32 2 74 200 40 2

Pelvis

Lateral 75 200 25 1 80 200 25 1

Hi

C-spine

T-spine L-spine

Finger 42 50 4 . 45 50 4 .

Hand 45 50 2.5 . 46 50 2.5 . Wrist 50 50 5 . 50 50 6.25 .

Foream 54 50 6.25 . 56 50 8 .

Elbow 54 50 8 . 56 50 10 .

Humerus 54 50 10 . 56 50 16 .

Foot 45 50 3.15 . 46 50 3.15 .

nkle 54 50 5 . 56 50 6.25 .

Tibia 54 50 6.25 . 56 50 10 .

Knee 54 50 6.25 . 56 50 6.25 .

Merchant 54 50 6.25 . 56 50 8 .

Femur 64 100 32 . 69 100 0.32 .

PA 70 200 20 1 70 200 25 1

xial Later 70 200 16 1 70 200 20 1

Waters 80 100 25 1 85 100 32 1

Caldwell 70 100 32 1 75 100 32 1

Lateral 75 100 20 1 78 100 20 1

Law 78 100 32 1 85 100 32 1

Stenvers 70 100 20 1 73 200 20 1

Towns 73 100 32 1 78 200 32 1

PA 106 100 6.3 2 112 100 6.3 2

Lateral 106 100 16 2 112 100 16 2

P 70 100 20 1 72 100 25 1

Both obliq 72 100 32 1 80 200 32 1

P 70 200 20 1 70 200 25 1 P 70 200 20 1 70 200 25 1

KUB 75 200 40 1 75 200 50 1

P 62 200 50 1 75 200 50 1

Lateral 85 200 50 1 95 200 50 1

P 62 200 25 1 66 200 32 1

Lateral 64 200 32 1 68 200 32 1

P 66 200 25 1 69 200 32 1

Lateral 74 200 40 1 78 200 64 1

P 68 200 32 1 70 200 40 1

Lateral 90 200 50 1 95 200 64 1

kVp mA mAs Grid kVp mA mAs Grid

M L

☞ Note !

Above condition table is not the absolute value,

So operator adjust and save to using above condition

COMED Medical Systems Co.,Ltd. 37

Operating

12. Radiography skill

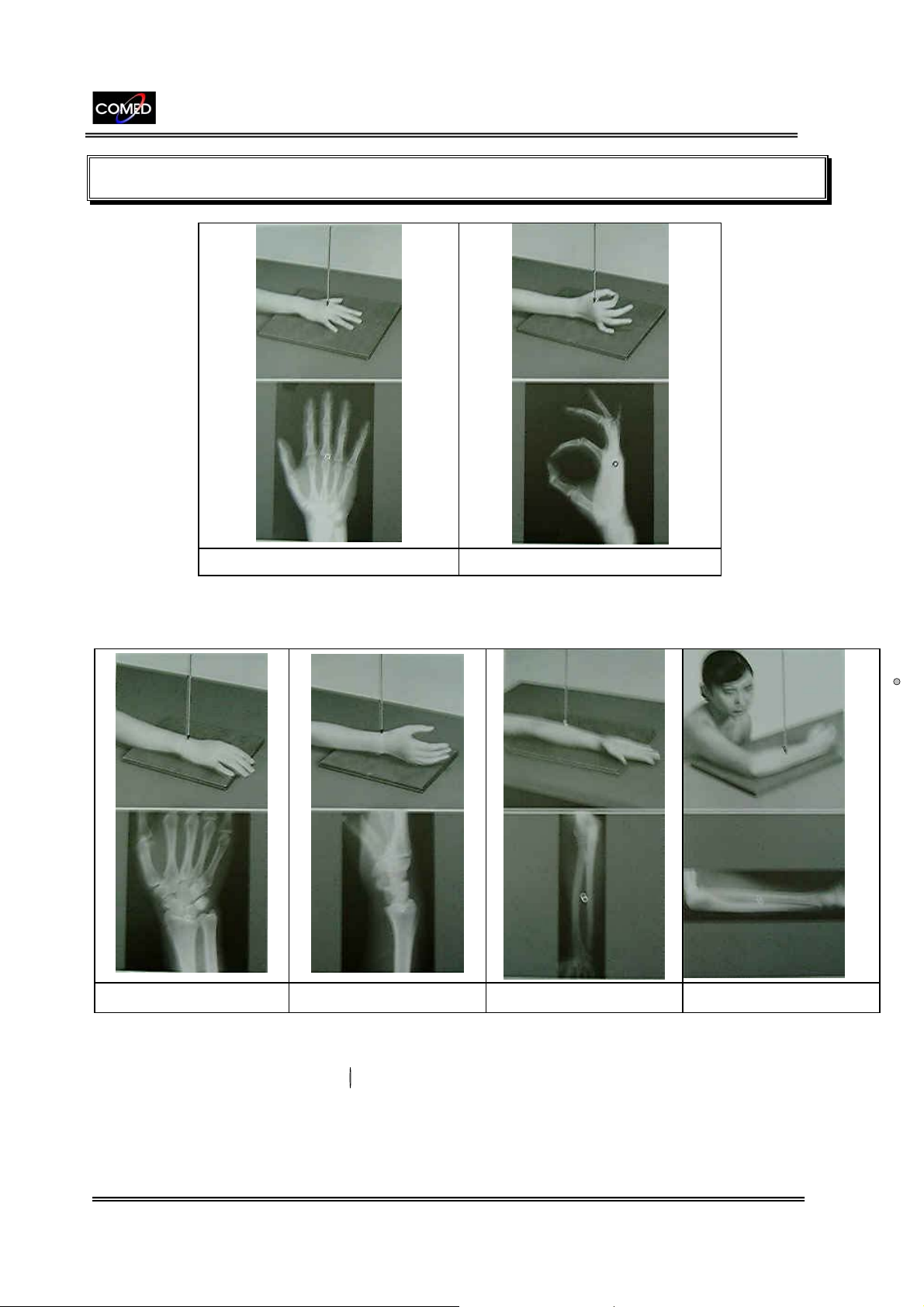

▣ HAND PA ▣ HAND Lateral

▣ Wrist PA ▣ Wrist Lateral ▣ Forearm AP ▣ Forearm Lateral

COMED Medical Systems Co.,Ltd. 38

Operating

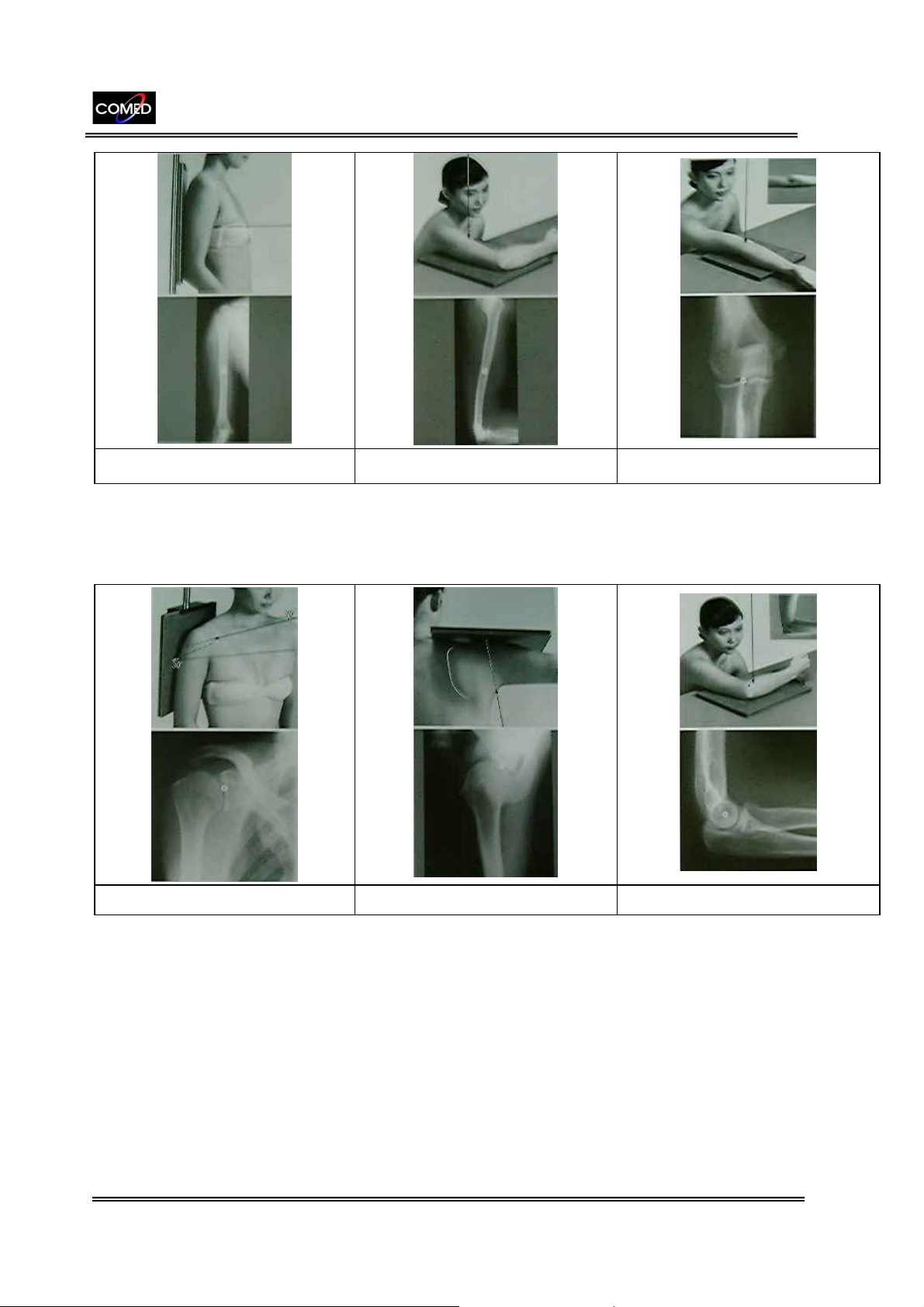

▣ Humerus AP ▣ Humerus Lateral ▣ Elbow AP

▣ Glenoid fossa ▣ Shoulder axial ▣ Elbow Lateral

COMED Medical Systems Co.,Ltd. 39

Operating

▣ FOOT AP ▣ FOOT Lateral ▣ Ankle joint AP

▣ LEG AP ▣ LEG lateral ▣ Ankle joint lateral

COMED Medical Systems Co.,Ltd. 40

Operating

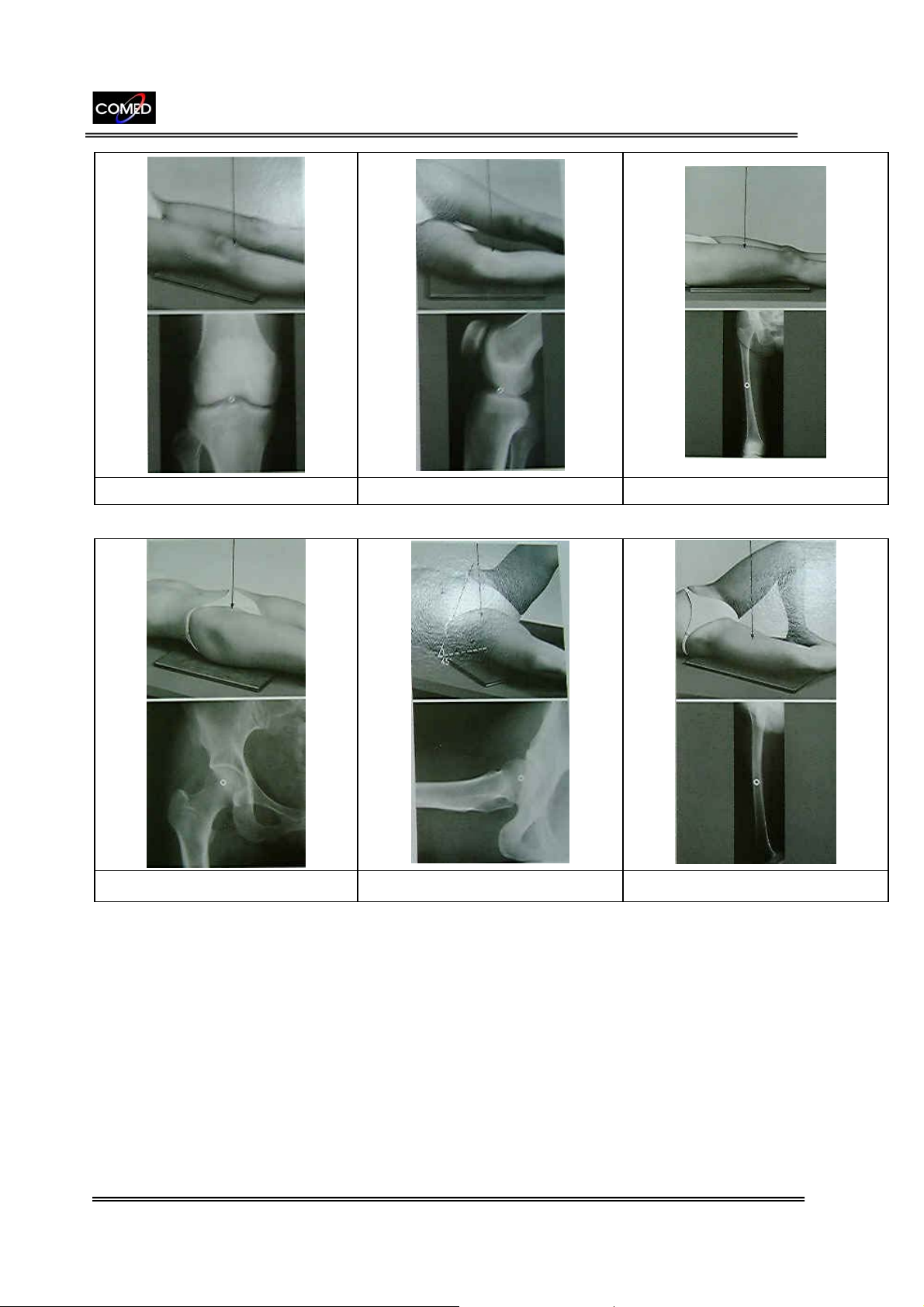

▣ KLEE joint AP ▣ KLEE joint Lateral ▣ Femur AP

▣ Hip joint AP ▣ Hip joint Lateral ▣ Femur Lateral

COMED Medical Systems Co.,Ltd. 41

Operating

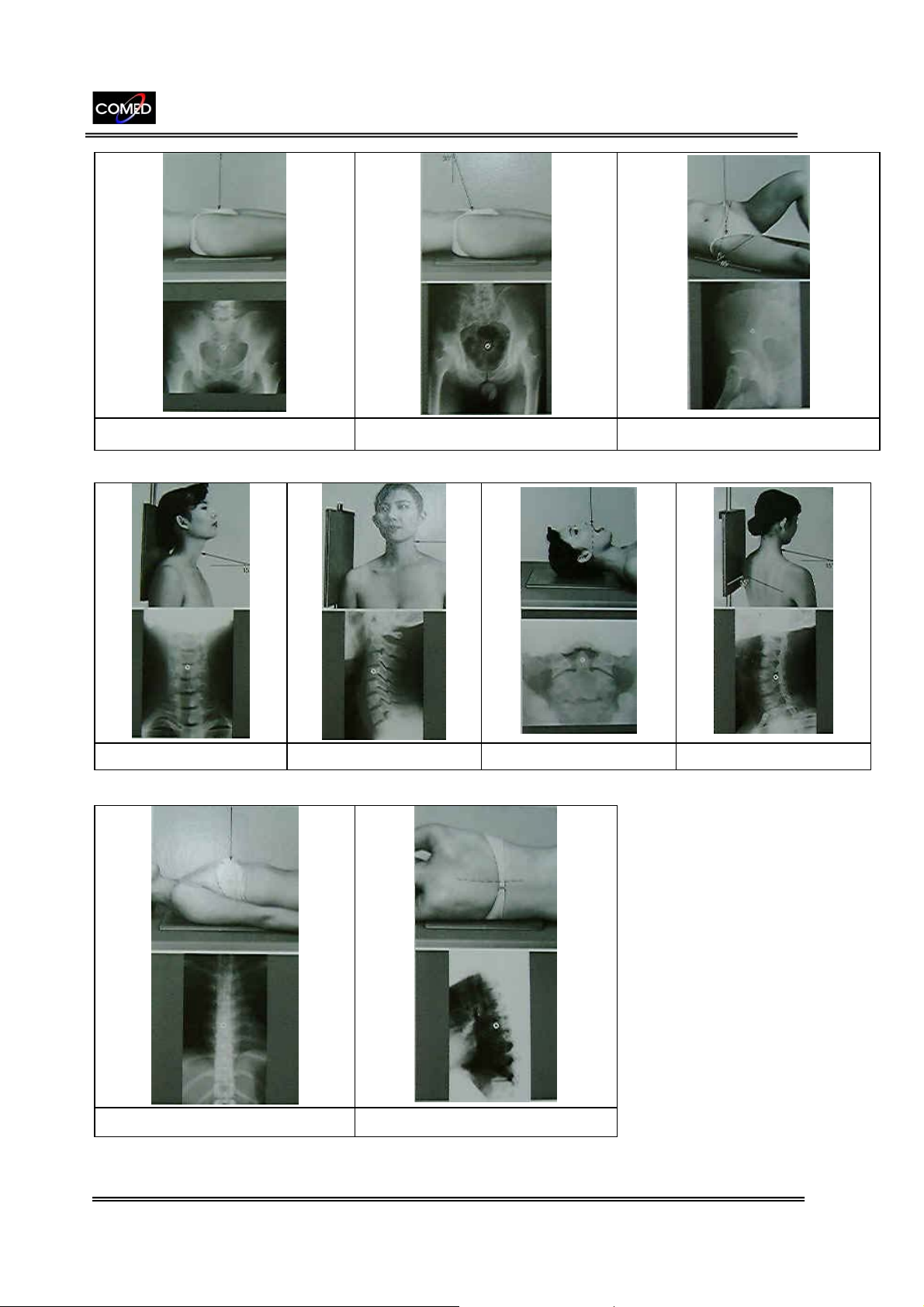

▣ Pelvis AP ▣ Pelvis inlet ▣ Pelvis oblique

▣C spine AP ▣C spine lateral ▣C-Open Mouth ▣C-oblique

▣ Chest AP ▣ Chest Lateral

COMED Medical Systems Co.,Ltd. 42

Operating

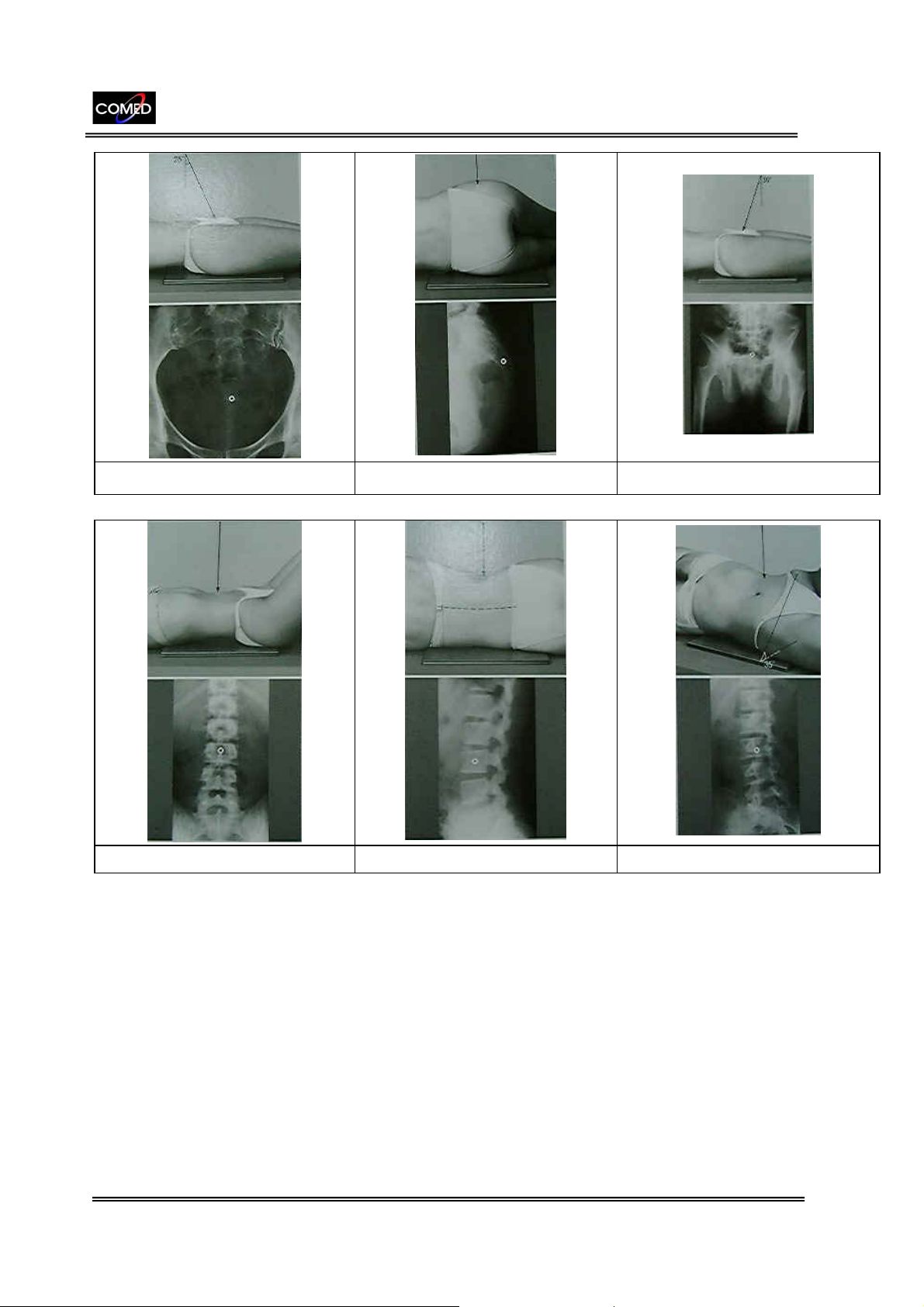

▣COCCYX AP ▣COCCYX Lateral ▣Pelvis outlet

▣ L-spine AP ▣ L-spine Lateral ▣ L-spine oblique

COMED Medical Systems Co.,Ltd. 43

Operating

▣ Skull AP ▣ Skull Lateral ▣ Skull Town's

▣ PNS AP ▣ PNS Lateral ▣ PNS waters

COMED Medical Systems Co.,Ltd. 44

Memo

Operating

☞ Note !

This instrument can changed no pre-notify for the efficiency and the safety

Purchasing agency : (☎ )

Manufacturing company : Comed Co,Ltd (☎ +82-31-764-7321 )

Selling company : (☎ ) A/S company : (☎ )

COMED Medical Systems Co.,Ltd. 45

Comed EVA-HF325, EVA-HF525 User Manual

Table of Contents

2. Introductions

3. Composition

4. Using safety Guide

5. Specifications

6. Using environmental condition

7. Instrument running and operation instructions

8. X – RAY operating method

9. Maintenance and repairing

10. Broke down and measures

ERROR CODE LIST

Err 01 CHARGE MONITOR ERROR

Err 19 X-RAY TIME OVER ERROR AT mAs MODE EXPOSURE

11. Radiography condition table

12. Radiography skill
