Comdial MP5000, CONVERSip EP300 User Manual

CONVERSip EP300 Voice IP Endpoint
for MP5000
User Guide
GCA70-399 May ‘04 ii
CONVERSip EP300 Voice IP Endpoint
User Guide
CONVERSip, MP5000, EP300 Voice IP Endpoint, and EP200 Multime-
dia IP Endpoint are trademarks of Comdial Corporation. All other prod-
uct names are trademarks of their respective owners.
First Edition
May, 2004
Copyright © 2004 Comdial Corporation
All rights reserved. Unauthorized use of this
document is prohibited.
Comdial Corporation
106 Cattlemen Road, Sarasota, FL 34232
(941) 554-5000 or (800) 266-3425
-Notice-
Comdial reserves the right to make any
changes and improvements in the product
described in this document at any time and
without prior notice.
May ‘04 Comdial iii
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer­ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic­ular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
iv Comdial May ‘04
This Page Intentionally Left Blank
May ‘04 Comdial v
Revision History
Ve rs io n Changes Date
01 Initial Release 05/17/04
May ‘04 Comdial vi
This Page Intentionally Left Blank
May ‘04 Comdial vii
CONVERSip EP300 User (MP5000)
TABLE OF CONTENTS
1. INTRODUCTION................................................................9
1.1 Positioning the EP300.......................................................10
1.2 Making the Connections...................................................12
1.3 Adjusting the Volume .......................................................13
1.4 Using the LCD Menu........................................................13
2. MAKING CALLS..............................................................19
2.1 Making a Call to Another Extension ................................19
2.2 Making a Call to an Outside Party....................................20
2.3 Redialing a Previously Dialed Number ............................22
2.4 Making a Call Using a Speed Dial Button........................23
2.5 Making a Call by Dialing a Speed Dial Bin .....................24
2.6 Making a Call to a User Name .........................................24
2.7 Calling the Attendant........................................................25
3. ANSWERING CALLS ......................................................27
3.1 Answering a Call in your Pickup Group...........................28
3.2 Answering a Call While on a Call ....................................28
4. PROCESSING CALLS .....................................................31
4.1 Muting the Microphone ....................................................31
4.2 Using Call Hold ................................................................31
4.3 Retrieving a Held Call ......................................................32
Contents
viii Comdial May ‘04
4.4 Parking Calls.....................................................................32
4.4.1 Placing an Outside Call in a Park Orbit....................33
4.4.2 Retrieving an Outside Call from a Park Orbit ..........33
4.4.3 Handling Park Recalls ..............................................33
4.5 Transferring a Call............................................................34
4.6 Establishing a Multi-Party Conference.............................35
4.6.1 Ad-Hoc Conferences.................................................35
4.6.2 Meet-Me Conferences...............................................36
4.7 Forwarding Calls to Another Extension ...........................37
4.8 Using Call Pickup.............................................................37
4.9 Feature Access Codes .......................................................38
APPENDIX A SPECIFICATIONS......................................39
CONVERSip EP300 User
May ‘04 Comdial 9
1. INTRODUCTION
Before you start using your EP300, take a quick look at its layout. The endpoint has three soft keys, 24 programmable buttons, seven fixed function buttons, volume up and down buttons, an LCD, and a standard dial pad.
When your new EP300 arrives, the system installer unpacks the phone and connects the line cord to a network jack. The following sections describe a few initial adjustments that allow you to quickly begin making and answering calls.
handset
speaker
LCD
soft keys (not programmable)
programmable buttons
hold
transfer/ conference
redial
headset
speaker
mute
dial/answer
volume down
microphone opening
volume up
Introduction
10 Comdial May ‘04
1.1 Positioning the EP300
You should adjust the position of the EP300 on your desk or table to suit your individual needs and maximize the performance of the sound activated features. When using your EP300 as a speakerphone, the microphone and loudspeaker are farther from you than when you use a handset. Some positioning tips to consider include:
• For the microphone to best detect your voice, speak within three feet of it and face the speakerphone.
• Background noise may prevent the sound-activated switches from operating properly. Avoid placing the speakerphone where it will detect sounds from typewriters, keyboards, printers, paging systems, and other equipment.
• Place the EP300 on a hard surface and away from table edges. Do not place the EP300 in corners or enclosures. Do not let obstructions come between you and the microphone.
The EP300 has an adjustable pedestal to allow you to select the most comfortable viewing angle. When you receive the EP300, the ped­estal is in its lowest position—flush against the pedestal.
CONVERSip EP300 User
May ‘04 Comdial 11
To adjust the pedestal, perform the following tasks.
1. Grasp the rear of the
pedestal base firmly with one hand and lift the rear portion of the EP300 upward with your other hand.
2. Lift the EP300
upward with one hand and raise the EP300 supporting arms upward with your other hand. Notice there are three sets of notches under the EP300 corresponding to the three positions available.
3. When the EP300 is at the desired height, select the closest pair
of notches and insert the supporting arms in the notches. Press down slightly on the EP300 until you feel the supporting arms snap into place.
Also remember, as with any piece of electronic equipment, your EP300 may be damaged by contact with liquids. So please try to place the EP300 in an area that is free from the danger of spills.
Introduction
12 Comdial May ‘04
1.2 Making the Connections
The connectors for attaching your EP300 to the network are located on the underside of the instrument. Here you will also find con­nectors for attaching the power supply and an optional headset. You can also connect a cable from the EP300 to your PC so that both devices can operate with a single network cable. The following diagram shows the cable connection locations.
Note: Some types of network equipment can provide the power for the EP300 instrument through its Ethernet connection. In those instances, the external power supply is not required.
Caution: Do not connect this jack directly to a central office line.
To LAN connection
To PC
To Handset
To Headset
Power
CONVERSip EP300 User
May ‘04 Comdial 13
1.3 Adjusting the Volume
Adjusting the volume on the EP300-24 instrument affects the loudness of the speaker, handset, and headset (if equipped). Refer to Figure 1-1 for the location of the volume control.
To adjust the volume during a call, perform the following steps.
1. Press the volume up or volume down button on the EP300.
The EP300 adjusts the volume incrementally each tome you press the button.
2. The volume setting remains in affect for the current call only.
If you want to adjust the volume for all calls, you can adjust your default settings by using the LCD menu structure. To do so, select Menu, 1 Hardware Settings>1 Handset Volume and set the volume you want to use on all calls. The new setting remains in place until you make subsequent adjustments.
1.4 Using the LCD Menu
The EP300 menu allows you to view or modify the configuration set­tings of your EP300, and to view the call activity log. Some items are password protected and should only be changed by the installer or administrator, since doing so could adversely affect the operation of your phone.
Normal display on your EP300 LCD consists of the date and time on the first line, and the soft key labels on the second line.
Tue Apr 20 4:22 MENU STA
Introduction
14 Comdial May ‘04
To enter the configuration menu, press the MENU soft key.
Press MENU to advance to the next menu choice. To select an item, press the ENTER soft key. To return to the previous level, press the BACK soft key. To advance to the next item on the current menu, press NEXT.
If the displayed results extend beyond the viewing area of the LCD, the soft key functions change to allow you to scroll to the left or right.
1 HW Settings ENTER BACK NEXT
02:02:d0:00:11:00-> <- BACK ->
CONVERSip EP300 User
May ‘04 Comdial 15
The following selections are available from the EP300 menu.
Main
Menu
Option
1
2
HW Settings --
sets the default volume level for the
handset, speaker, headset, and ringer.
Handset Volume-allows you to set the current volume setting for the handset, from 1 to 8, with 8 being the highest. The default is level 3.
Speaker Volume-allows you to set the current volume setting for the speaker, from 1 to 8, with 8 being the highest. The default is level 3.
Headset Volume-allows you to set the current volume setting for the headset, from 1 to 8, with 8 being the highest. The default is level 3.
Ring Volume-allows you to set the current volume setting for the ringer, from 1 to 8, with 8 being the highest. The default is level 1.
Info - displays call lists, system information, and LAN information.
Received Calls-displays the last 10 calls received at your EP300.
Sent Calls-displays the last 10 calls placed from your EP300.
--CONTINUED ON NEXT PAGE--
1
2
3
4
1
2
Introduction
16 Comdial May ‘04
1
2
3
4
5
6
7
8
Main
Menu
Option
2
Info - (continued)
System Info-displays the following system information.
Network Info shows the MAC Address, VSP Address, DHCP, IP Address, Net Mask, and GW Address.
Codecs shows the default audio format of your EP300.
Serial Number of your EP300.
HW Version of your EP300.
SW Version installed on your EP300.
Extension assigned to your EP300.
Prog Buttons allows you to check which
programmable buttons are set. Some buttons may have been programmed by either the system administrator or the installing technician.
Build Date-shows the time and date of your last EP300 build.
--CONTINUED ON NEXT PAGE--
3
CONVERSip EP300 User
May ‘04 Comdial 17
1
2
Main
Menu
Option
2
3
Info - (continued)
LAN Info-displays the following LAN information.
Received Pkts shows the network packets received by your EP300.
Sent Pkts shows the network packets sent by your EP300.
--CONTINUED ON NEXT PAGE--
4
Network - (requires password) - used to configure the IP address settings.
1
2
IP Settings-sets the IP address for this station.
VSP Address (MP5000 IP address)-sets the IP
address of the MP5000 unit.
Introduction
18 Comdial May ‘04
Main
Menu
Option
4
System - used to perform system functions.
Tests (requires password) allows you to perform functional tests.
Factory Defs allows you to restore this EP300 to its factory defaults.
Download downloads firmware changes.
Register Mode specifies the type of registration
Register manually registers the phone with the
host.
Change Passwds allows you to change the password for this EP300.
Restart Phone restarts the EP300.
1
2
3
4
5
6
7
CONVERSip EP300 User
May ‘04 Comdial 19
2. MAKING CALLS
Comdial’s EP300 is based on a technology called Session Initiation Protocol (SIP). This technology provides new ways to process calls not previously available with standard telephone systems.
2.1 Making a Call to Another Extension
You can make a call to another extension by dialing the number assigned to that extension, or by selecting the name of the intended party from your local address book or contact list.
To make an intercom call by dialing the extension number, perform the following steps.
1. When you lift the handset, or press the SPEAKER button, the
system plays the dial tone. The LCD display prompts you to enter the number you want to call.
2. Enter the extension number using the dial pad. If you make a
mistake, press the BACK soft key (to backspace one digit at a time) or CLEAR to erase all digits and cancel.
Enter Number CLEAR
Making Calls
20 Comdial May ‘04
3. Press the DIAL/ANSWER button or the DIAL soft key.
4. The system begins placing your call. You can cancel the call
before it is answered by pressing the CLEAR soft key.
5. The system rings the called extension (if idle), or plays a busy
signal (if busy). If you dialed an invalid number, the system plays an audible tone indicating that the number you dialed is invalid.
6. When the called party answers, begin speaking.
7. When the call is complete, hang up the handset (or press the
SPEAKER button if using the speakerphone).
2.2 Making a Call to an Outside Party
You can dial outside parties by including the outside line access code before dialing the number (95545000, where 9 is the access code), or by first selecting the outgoing line if you have direct access from a pre-programmed button. The default access code for outside lines is
9.
To dial an external number, perform the following steps.
1. Lift the handset, or press the SPEAKER button. The system
plays the dial tone.
2. Dial the number, preceded by the line access code. If you
make a mistake, press the BACK soft key or CLEAR soft key to re-enter the digits.

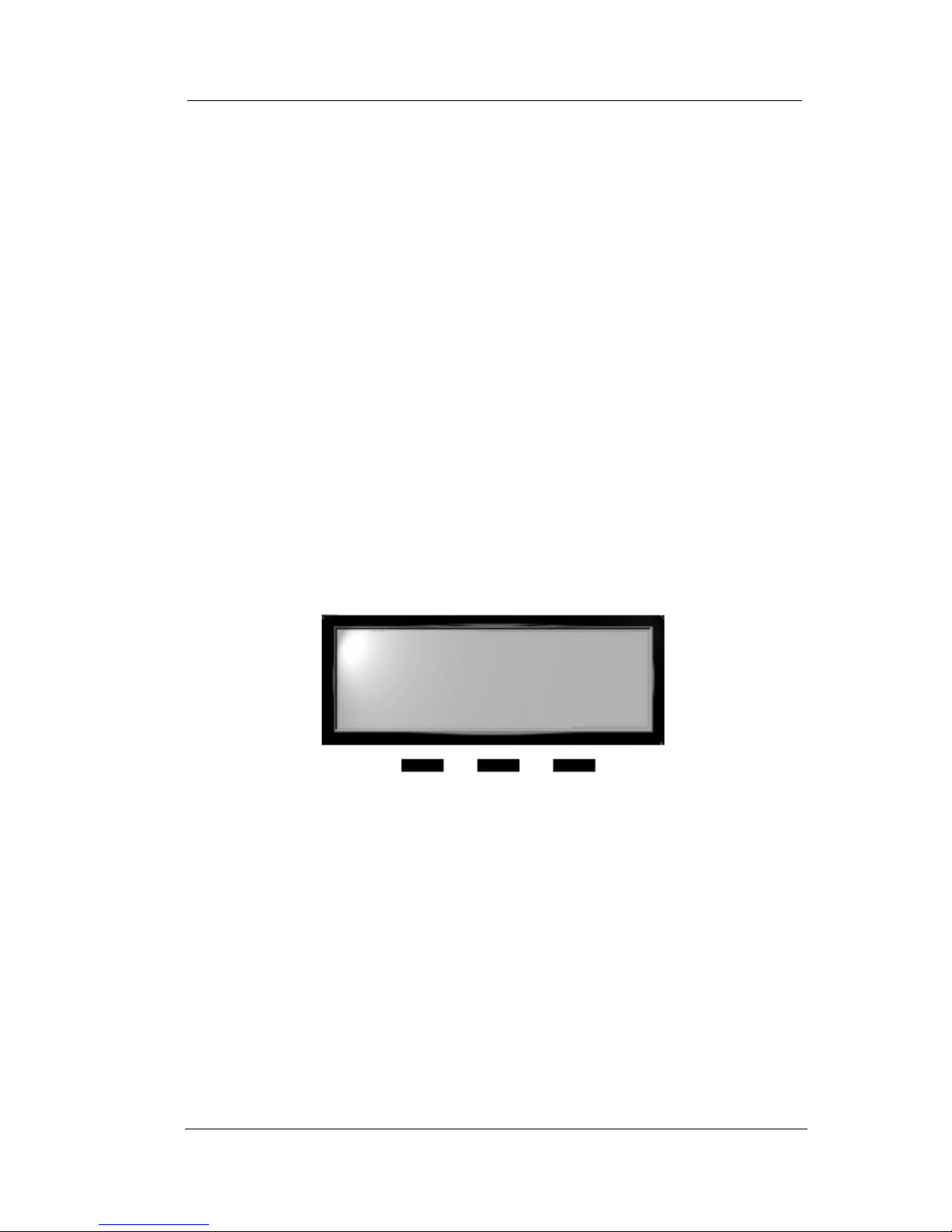

1120 DIAL BACK CLEAR
CONVERSip EP300 User
May ‘04 Comdial 21
3. Press the DIAL soft button or the DIAL/ANSWR button.
4. If all outside lines are busy, the system plays a fast busy signal,
indicating that there are no lines available.
5. When the called party answers, begin your conversation. Note
that the system changes the soft key options on your EP300’s LCD once the call connects.
6. When the call is complete, press the END soft key, hang up the
handset, or press the SPEAKER button if using the speaker- phone option.
95545000 DIAL BACK CLEAR
95545000 HOLD TRANS END
Making Calls
22 Comdial May ‘04
2.3 Redialing a Previously Dialed Number
The system remembers the last ten numbers you dialed. If you want to redial any of those numbers, press the REDIAL button on the EP300.
By pressing the PREV or NEXT soft keys, you can scroll through the list of previously called numbers, and select the number from the list.
To redial a previously dialed number, perform the following steps.
1. Lift the handset, or press the SPEAKER button. The system plays the dial tone.
2. Press the Redial button.
3. Observe the LCD display and select the number to dial by pressing the PREV soft key.
4. When you have made your selection, press the DIAL soft key.
5. The system rings the called extension (if idle), or plays a busy signal (if busy). If you dialed an invalid number, the system plays an audible tone indicating that the number you dialed is invalid.
6. When the called party answers, begin your conversation. Note that the system changes the soft key options on your EP300’s LCD once the call connects.
9415545000 PREV DIAL CLEAR
CONVERSip EP300 User
May ‘04 Comdial 23
7. When the call is complete, press the END soft key, hang up the handset, or press the SPEAKER button if using the speaker- phone option.
2.4 Making a Call Using a Speed Dial Button
To use a speed dial button to make a call, perform the following steps.
1. Lift the handset, or press the SPEAKER button. The system plays the dial tone.
2. Press a pre-programmed speed dial button.
3. The system rings the called extension (if idle), or plays a busy signal (if busy). If you dialed an invalid number, the system plays an audible tone indicating that the number you dialed is invalid.
4. When the called party answers, begin your conversation.
5. When the call is complete, press the END soft key, hang up the handset, or press the SPEAKER button if using the speaker- phone option.
2.5 Calling the Attendant
During the initial system configuration, the system installer assigns the extension number for the attendant. To call the attendant, either dial their unique extension number, or you can simply press 0.
95545000 HOLD TRANS END
Making Calls
24 Comdial May ‘04
CONVERSip EP300 User
May ‘04 Comdial 27
3. ANSWERING CALLS
When your station receives an incoming call, your EP300 alerts you with an audible and visual indication. You will hear a ringing tone from the speaker and the LCD display will provide you with the Caller ID information about the call. To answer a call, perform the following steps.
1. An incoming call rings at your station.
2. Pick up the handset,
- or -
Press the ANS soft key for handsfree communications. You may also press the DENY soft key to send the call to voice mail (if activated) or return a busy signal to the caller.
3. Begin your conversation.
4. Hang up the handset, or press the SPEAKER button (if hands­free) to end the call.
9415545000 ANS DENY
9415545000 DENY
Answering Calls
28 Comdial May ‘04
CONVERSip EP300 User
May ‘04 Comdial 31
4. PROCESSING CALLS
4.1 Muting the Microphone
You have the option of muting the microphone on the EP300-24 so that the distant party cannot hear any audio from your microphone. This setting affects the transmitter of the handset, headset, and the built-in microphone of the EP300. This condition remains in affect until the call is disconnected, or you press the button again, whichever occurs first.
To mute the microphone, press the MUTE button. To restore to normal operation, press the MUTE button again.
4.2 Using Call Hold
You can place a call on hold and retrieve it later. To place a call on hold, perform the following steps.
1. While on an active call, press the HOLD button on your EP300. The lamp associated with this button blinks.
2. The system plays music on hold (if equipped) to the outside party.
3. The lamp extinguishes if the outside party hangs up before you retrieve the call. The LCD shows the number of calls on hold instead of the station number.
CALLS ON HOLD: 2 MENU
Processing Calls
32 Comdial May ‘04
4.3 Retrieving a Held Call
Calls on hold can be retrieved by any endpoint that has a line appearance for the held call.
1. Press the SPEAKER button or pick up the handset (if privacy is desired).
2. Press the flashing HOLD button.
3. The system returns the call to your endpoint and the extin­guishes the HOLD lamp. If multiple calls are on hold at your station, the system does not extinguish the hold lamp until you have retrieved all held calls.
4.4 Transferring a Call
You can answer a call at your EP300 and transfer it to another end­point. If you first identify the caller to the party receiving the transfer, you have made a screened or consultative transfer.
To screen and transfer a call to another endpoint in the system, perform the following steps.
1. Receive or place a call from/to another party.
2. Press the pre-programmed TRANSFER button on your EP300. The soft key designations reflect the choices available; either TRANSfer, CONFerence, or CLEAR.
The system automatically places the outside party on hold.
3. Enter the extension to which you want to send the call, and press the DIAL button.
4. When the new party answers, announce the call.
5. If the new party accepts the call, press the TRANS soft key.
6. If the new party rejects the call, press the HOLD button to retrieve the call.
CONVERSip EP300 User
May ‘04 Comdial 33
If you transfer the call without first announcing it, you have made an un-screened or blind transfer.
To transfer an un-screened call to another system endpoint, perform the following steps.
1. While on a call, press the pre-programmed TRANS soft key or TRANS/CONF button on your EP300.
The system automatically places the outside party on hold.
2. Enter the number for the intended destination and press the Dial button on your EP300.
3. Press the TRANS soft key to transfer the call.
If the other party answers, the system connects the transferred call to that party. If the other party does not answer, the call follows the no-answer forward condition of the target destina­tion.
4.5 Establishing a Multi-Party Conference
You may wish to create a conference call with other parties.
4.5.1 MEET-ME CONFERENCES
A Meet-Me conference is established when all participants dial a code to enter the conference room. If you want to use Meet-Me con­ferences, your system must use Comdial's voice mail system (see your System Administrator for more details).
To set up a Meet-Me conference, perform the following steps.
1. Dial the conference room mailbox number (default 5801, 5802, 5803, 5804, 5805).
The voice mail transfers the caller into the conference room.
2. If you are the first member to join the conference, the EP300 plays tone-on-hold beeps.
Processing Calls
34 Comdial May ‘04
3. When a second caller enters, the EP300 plays a double beep to announce their entry, and you can begin your conversation.
4. When additional parties enter the conference, the EP300 plays a double beep to announce their arrival; all parties in the room can then communicate.
5. When all parties are present, any endpoint in the conference can press ### while in the room to lock entrance to the room. You can enter ### again to toggle the lock.
When the room is locked, the EP300 plays a long beep-short beep that indicates that the room is locked. When the room is unlocked, the EP300 plays a short beep-long beep that indi­cates that the room is unlocked. Note: For security reasons,
external lines in the conference room are not permitted to lock the door.
May, ’04 Comdial 39
CONVERSip EP300 User (MP5000)
APPENDIX A SPECIFICATIONS
Technical Data:
• Certifications: FCC Part 15 Class B, RF emission compliant
• Safety Approved: OSHA Accredited NRTL (Nationally Recognized Test Laboratory) to UL 60950 and CSA C22.2 #60950.
• Dimensions: 9.5” w x 9.25”d x 7.5” h
• Weight: 2 lbs.
• Operating Humidity: 90% NC
• Operating Temperature: 0-50 degrees C
• Power: 9VDC 1A, 120 VAC external transformer
Connectors:
• Network: RJ45 (Ethernet)
• PC: RJ45 (Ethernet)
• Handset: RJ14 Standard Handset Connector
• Headset: RJ14 Standard Headset Connector
• Power: Center pin
Specifications
40 Comdial May, ’04
User Interface:
• 2 x 16 character display
• 24 programmable buttons with tri-color LEDs
• Phone buttons web configurable (via MP5000 or MP1000 platforms)
• 7 fixed feature buttons (hold, transfer/conference, redial, headset, speaker, mute, dial/answer)
• 3 soft keys
• Last calls (10 entries)
• Received calls, sent calls
• Call waiting indication
• Clock
• Caller-ID
• Call blocking
• Up to 5 lines
• Menu-driven user interface
• Log in/log out
• Speakerphone (Full Duplex)
Presence:
• Presence Indication
• Compatible with Microsoft Messenger
Codecs:
• G.711 aLaw, uLaw
• G.723
• Out-of-band DTMF (RFC2833)
May, ’04 Comdial 41
CONVERSip EP300 User (MP5000)
SIP:
• RFC3261 compliant
• UDP and TCP support
• MWI events
• Inband DTMF
• REFER (RFC3525)
Installation:
• Static IP provisioning, DHCP
• Daylight saving time, time retrieval from server
• Dynamic field-upgradable software
Ethernet:
• 2 port with switch included (802.3 10/100 BT half duplex/full duplex with autosense)
• Power over LAN support & IEEE 802.3af
Specifications
42 Comdial May, ’04
CONVERSip EP300 User (MP5000)
May ‘04 Comdial 43
INDEX
A
address book, calling using 24 Ad-Hoc Conferences 35 Adjusting the Volume 13 Answering a Call in your Pickup
Group 28 Answering a Call While on a Call 28 Answering Calls 25, 27 auto redial 22
C
call forward 37 call hold 31 call hold, retrieval 32 call pickup 37 calling an outside party 20 Calling the Attendant 25 calling using speed dial bin 24 calling using speed dial button 23 calls 19 codes, feature access 38 conference 35 conferences, ad hoc 35 conferences, meet me 36 connections 12
E
Establishing a Multi-Party
Conference 35
F
Feature Access Codes 38 Forwarding Calls to Another
Extension 37
H
Handling Park Recalls 33 hold, placing call on 31
I
Introduction 9, 27
L
LCD menu structure 15
M
Making a Call by Dialing a Speed Dial
Bin 24 Making a Call to a User Name 24 Making a Call to an Outside Party 20 Making a Call Using a Speed Dial
Button 23 Making Calls 19 Making the Connections 12 Meet-Me Conferences 36 menus on LCD 15 microphone, muting 31 multi-party conference 35 Muting the Microphone 31
P
park orbit, outside calls 33 park orbit, retrieving a call from 33 park recalls 33 Parking Calls 32 pickup groups, answering calls in 28 placing a call on hold 31 Placing an Outside Call in a Park
Orbit 33
Index
44 Comdial May ‘04
Positioning the EP300 10
R
recalling parked calls 33 Redialing a Previously Dialed
Number 22 Retrieving a Held Call 32 Retrieving an Outside Call from a Park
Orbit 33
S
speed dial bin, calling using 24 speed dial button, calling using 23
T
Transferring a Call 34
U
Using Call Hold 31 Using Call Pickup 37
V
volume control 13
CONVERSip EP300 User (MP5000)
May ‘04 Comdial 45
GCA70-399 Rev 1 May ‘04
Loading...
