GCA70349.05 06/03 Printed in U.S.A.

DXP, DXP Plus, and FX Series

Digital Communications Systems

Large Screen Display Speakerphone

Station User’s Guide

User Guide

This user’s guide is for the following system:

DXP, DXP Plus, and FX Series

Digital Communications Systems

This user’s guide applies to the following telephone models:

•Impact SCS 8412F-** Rev. A and later.

•Impact SCS 8412S-** Rev. A and later.

•Impact SCS 8412FJ-** Rev. A and later

•Impact SCS 8412SJ-** Rev. A and later

Contact your Comdial dealer for updates of this as well as other

Comdial publications.

Comdial Corporation

106 Cattlemen Road, Sarasota, FL 34232

(941) 554-5000 or (800) 266-3425

-Notice-

Comdial reserves the right to make any changes and improvements in the

product described in this document at any time and without prior notice.

Impact is a trademark of Comdial Corporation. All other product names

are trademarks of their respective owners.

Printed in USA

GCA70349

June, 03 Comdial i

ABOUT THIS BOOK

This user’s guide serves as both an introduction for new speakephone users and a reference for experienced users.

Introduction

The first chapter of the manual describes the initial setup and adjustments necessary to begin using your speakerphone.

1 Getting Started

The first chapters describe the basic and advanced features of the Common Code Based DXP, DXP Plus, and FX System:

2 Answering Calls

3 Making Calls

4 Advanced Call Handling

5 Nonverbal Messaging

6Programming

7 Other Advanced Features

Following the advanced feature descriptions are two reference tables, a glossary that defines many general phrases and abbrevia

tions which may not be familiar to users, tips on speakerphone use for the new user described in Appendix D, and all feature sets available for the DXP, DXP Plus, and FX systems.

Appendix A Quick Reference Guide

Appendix B Display Abbreviations

Appendix C Glossary

Appendix D Speakerphone Characteristics

Appendix E Feature Networking Support

Finally, at the end of the publication, an index provides a detailed reference to the feature locations.

ii Comdial June, 03

NOTES:

June, 03 Comdial iii

Large Screen Display Speakerphone User’s Guide

TABLE OF CONTENTS

1. GETTING STARTED ........................................................1

1.1 Welcome .............................................................................1

1.2 Setting Up Your Speakerphone...........................................1

1.2.1 Positioning Your Speakerphone..................................2

1.2.2 Using Your Speakerphone ..........................................3

1.2.3 Setting Display Contrast .............................................4

1.2.4 Setting a Personal Ringing Tone.................................5

1.2.5 Setting Volume Levels ................................................5

1.3 Answering and Making Calls .............................................7

1.4 Understanding the Basic Functions ....................................8

1.5 Your Speakerphones Buttons............................................10

1.6 Your Speakerphones Display Lights.................................12

1.7 Understanding The Large Screen Display........................14

2. ANSWERING CALLS ....................................................15

2.1 Answering Outside Calls ..................................................15

2.2 Answering Intercom Calls ................................................17

2.3 Night-Transferred Calls - Line Access From Any

Station...............................................................................18

2.4 Holding Calls ....................................................................19

2.5 Call Pickup........................................................................22

2.5.1 Group Call Pickup ....................................................22

2.5.2 Directed Call Pickup.................................................22

2.6 Pickup For Monitored Stations.........................................22

Contents

iv Comdial June, 03

2.7 Receiving Subdued Off-Hook Voice Announcements

(SOHVA) ..........................................................................25

2.7.1 Handling an Incoming SOHVA ................................25

2.7.2 Voice Announce Blocking ........................................27

2.8 Caller ID (Automatic Number Identification) ..................28

3. MAKING CALLS ............................................................31

3.1 Making Outside Calls .......................................................31

3.2 Making Intercom Calls .....................................................32

3.3 Automatic Dialing ............................................................33

3.4 Redialing...........................................................................34

3.4.1 Redial - Last-Dialed Number....................................35

3.4.2 Redial Programming (Storing Numbers)..................35

3.5 Camping On - Busy Station, Automatic Callback............36

3.6 Advanced Camping On Options.......................................37

3.6.1 Camping On - Idle Station, Automatic Callback......37

3.6.2 Camping On - Busy Station, Wait For An Answer

(Call Waiting) ............................................................38

3.7 Sending Subdued Off-Hook Voice Announcements

(SOHVA) ..........................................................................40

4. ADVANCED CALL HANDLING ..................................41

4.1 Waiting For A Line (Queuing)..........................................41

4.2 Conferencing.....................................................................42

4.3 Call Forwarding ................................................................44

4.3.1 Forwarding a Call .....................................................44

4.3.2 Diverting All Incoming Calls To Another Station ....47

June, 03 Comdial v

Large Screen Display Speakerphone User’s Guide

4.4 Call Forward Outside System (CFOS) .............................48

4.5 Call Parking ......................................................................50

4.5.1 Parking a Call............................................................50

4.5.2 Handling Park Recalls ..............................................50

4.6 Call Transferring...............................................................52

4.6.1 Screened Call Transfers ............................................52

4.6.2 Unscreened Call Transfers........................................53

4.6.3 Other Call Transferring Options ...............................54

4.6.4 Hot Transfer..............................................................54

4.6.5 Quick Transfer ..........................................................55

5. NONVERBAL MESSAGING .........................................59

5.1 LCD Message Delivery ....................................................59

5.2 Message Waiting Light and Messaging ............................62

5.3 Response Message Delivery.............................................64

6. PROGRAMMING ...........................................................65

6.1 DSS Numbers ...................................................................65

6.2 Speed Dial Numbers........................................................66

6.3 Feature Access Codes .......................................................69

6.3.1 LCD Feature Buttons ................................................71

6.4 Reminder Alert .................................................................74

6.5 Response Message Button ................................................75

7. OTHER ADVANCED FEATURES ...............................77

7.1 Background Music............................................................77

7.2 Line Groups ......................................................................77

Contents

vi Comdial June, 03

7.3 Do Not Disturb Condition ................................................78

7.4 Automatic Redial..............................................................79

7.5 Tracker Paging System.....................................................81

7.6 Auxiliary Jack...................................................................83

7.7 Account Codes.................................................................86

7.8 Dial By Name ...................................................................87

7.9 Volume Control.................................................................88

7.9.1 Setting Current Volume Level ..................................88

7.9.2 Muting Your Speakerphone ......................................90

7.10Programmed Button Display ............................................90

7.10.1Button Functions Display (Button Query)................90

7.10.2Status Of Busy Lines and Stations (Busy DSS/BLF

Button Inquiry) ..........................................................91

7.11Automatic Set Relocation .................................................91

7.12Paging ...............................................................................92

7.13Viewing The Call Log ......................................................93

7.14IMIST Module ..................................................................93

7.15DSS/BLF Console Operation ...........................................95

7.15.1Accessing The DSS/BLF Console Button Levels ....96

Appendix A Feature Access Codes ......................................97

Appendix B Display Abbreviations ...................................101

Appendix C Glossary .........................................................107

Appendix D Speakerphone Characteristics........................117

Appendix E Feature Networking Support..........................123

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 1

1. GETTING STARTED

1.1 Welcome

Congratulations and thank you for using a Comdial telephone! Your digital speakerphone is supported by a communication system with hundreds of built-in, standard features. This manual serves as a helpful guide for using these various functions.

The sections in this introductory chapter help you initially set up your speakerphone and become familiar with the controls and indicators. The remaining sections are titled as follows:

• Setting Up Your Speakerphone

• Understanding the Basic Functions

• Your Speakerphones Buttons

• Your Speakerphones Display Lights

1.2 Setting Up Your Speakerphone

When your new speakerphone arrives, the system installer unpacks

your speakerphone and connects the line to a system jack. The following sections describe a few initial adjust

ments that allow you to quickly begin making and answering calls with some of the most basic features.

Impact SCS 8412S Speakerphone

Getting Started

2 Comdiall June, 03

1.2.1 POSITIONING YOUR SPEAKERPHONE

You should adjust the position of the speakerphone on your desk or table to suit your individual needs and maximize the performance of the sound activated features. When using your speakerphone, the microphone and loudspeaker are farther from you than when you use a handset. Some positioning tips to consider include:

• For the microphone to best detect your voice, speak within three feet of it and face the speakerphone.

• Background noise may prevent the sound-activated switches from operating properly. Avoid placing the speakerphone where it will detect sounds from typewriters, keyboards, printers, paging systems, or other equipment.

• Place the telephone on a hard surface and away from table edges. Do not place the telephone in corners or enclosures. Do not let obstructions come between you and the microphone.

• Your telephone has an adjustable pedestal to allow you to select the most comfortable viewing angle. When you receive the telephone, the pedestal is in its lowest positionflush against the pedestal.

• To adjust the pedestal,

1. GRASP the rear of the pedestal base

firmly with one hand and LIFT the rear portion of the telephone upward with your other hand.

2. LIFT the telephone upward with one

hand and RAISE the telephone sup

porting arms upward with your other hand. (Notice there are three sets of notches under the telephone corre

sponding to the three positions available.)

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 3

3. When the telephone is at the desired height, SELECT the closest pair of notches and INSERT the supporting arms in the notches. PRESS DOWN slightly on the telephone until you feel the supporting arms snap into place.

Also remember, as with any piece of electronic equipment, your telephone may be damaged by contact with liquids. Please try to place the telephone in an area that is free from the danger of spills.

1.2.2 USING YOUR SPEAKERPHONE

• To manually place a call using your speakerphone.

1. PRESS INTERCOM or line button.

2. DIAL the number.

3. When party answers, SPEAK toward the telephone.

• To automatically dial a number using your speakerphone.

—PRESS the preprogrammed speed dial or DSS/BLF button and SPEAK toward the telephone when your party answers.

• To answer a call with your speakerphone.

1. PRESS the INTERCOM or line button with flashing red or orange light.

2. SPEAK toward the telephone to answer the call.

3. PRESS SPEAKER to end.

Note: For more tips and information on speakerphone use, including the use of a Full-Duplex Speakerphone, see Appendix D, Speakerphone Characteristics on page 117.

Getting Started

4 Comdiall June, 03

1.2.3 SETTING DISPLAY CONTRAST

You can darken or lighten the contrast of the display for best viewing.

• To adjust the display

contrast,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT Contrast Level.

4. SELECT the Contrast Level interactive button (to the right of the LCD, on the same row as the words Contract Level) once for each change of darkness you desire. Each press of the button makes the display darker until you go past level eight and return to level one.

5. SELECT EXIT to end.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 5

1.2.4 SETTING A PERSONAL RINGING TONE

You can choose one of eight different ring tones for your telephone. Often, when several telephones are located close together, each user chooses a different personal ring tone.

• To select one of the ring

tones, proceed as follows:

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT.

4. SELECT Ring Tone interactive button (to the right of the LCD) to scroll through the eight ring tones.

5. SELECT EXIT to end.

The next time your telephone rings, you will hear the new ring tone.

1.2.5 SETTING VOLUME LEVELS

The volume control on your telephone is a multipurpose control you

can use to set the volume (loudness) of the ringer, the speaker, and the handset. There are four ringer loudness levels (plus an off position).

• To set the ringer loudness level,

1. While your telephone is on-

hook and idle, PRESS the VOL

UME UP or VOLUME DOWN button once for each change in loudness you desire. The ringer sounds once for each change as an example of the current setting.

Getting Started

6 Comdiall June, 03

2. SELECT SAVE to end.

• To set the speaker and handset loudness levels,

1. PRESS INTERCOM button.

2. PRESS the VOLUME UP or

VOLUME DOWN button once for each change in speaker vol

ume that you desire.

3. SELECT SAVE.

4. LIFT handset.

5. PRESS the VOLUME UP or

VOLUME DOWN button once for each change in handset vol

ume that you desire.

6. SELECT SAVE.

NOTE: If you set the ringer to the OFF position, your telephone sounds a short ring burst once for each call you receive at your station.

NOTE:When a call ends, the system resets the speaker and handset volume of all future calls to the programmed setting. For instructions in setting your speakerphones default volume, see Volume Control section in the system specific Other Advanced Features chapter on page 77.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 7

1.3 Answering and Making Calls

Your speakerphone is now properly configured to answer and make calls to both stations within your system (intercom calls) and outside lines. Remember that when dialing an outside number, you must first select a line to connect your system to the local exchange.

• When you hear outside ringing (long bursts),

1. PRESS flashing line button.

2. SPEAK toward telephone or LIFT handset if privacy is desired.

• When you hear intercom ringing (two short bursts),

1. PRESS INTERCOM.

2. SPEAK toward telephone or LIFT handset if privacy is desired.

• To dial an outside number manually,

1. PRESS INTERCOM.

2. DIAL 9 or PRESS other line button to select line (See Line Groups

in the system specific Features chapters for more information on selecting an outside line).

3. LISTEN for dial tone.

4. DIAL number.

5. LIFT handset if privacy is desired.

• To dial an intercom number manually,

1. PRESS INTERCOM.

2. DIAL extension number (called telephone will ring or tone will be

heard).

3. SPEAK toward telephone or LIFT handset if privacy is desired.

Getting Started

8 Comdiall June, 03

1.4 Understanding the Basic Functions

Your speakerphone provides many versatile features for your use. These features are explained in terms of what they allow you to do.

Alphanumeric Display (Liquid Crystal DisplayLCD)

• Displays time, day, date, and active call information.

• Keeps you apprized of the status of your telephone.

• Provides programming prompts.

Auxiliary Jack

Your Impact SCS LCD speakerphone may be equipped with an auxiliary jack that provides an interface for a headset, a tape recorder, an external ringer, or an external pager.

Message-Waiting Light

Indicates that a message awaits pick up.

Microphone Opening

Allows hands-free operation of speakerphone (speak clearly toward microphone opening).

Speaker

• Sounds distant partys voice.

• Sounds ringing and call-in-progress tones.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 9

Impact SCS 8412S and 8412F- LCD Speakerphone

Getting Started

10 Comdiall June, 03

1.5 Your Speakerphones Buttons

Hold Button (HOLD)

• Places a line or intercom call on hold.

• Stores pauses in number sequences during programming.

• If available, scrolls through LCD response messages.

• If multiple held calls feature is available, scans or scrolls through calls placed on hold (when hold light is flashing).

Interactive Buttons (located below alphanumeric display)

• Provide quick and easy access to system features.

• Provide straightforward button programming without dialing codes (the interactive buttons themselves, however, are not programmable).

Intercom Button (INTERCOM)

• Selects an intercom line.

• Allows you to initiate many of the telephones features.

Mute Button (MUTE)

• Keeps the person on the line from hearing your conversation.

• Allows reply to a Subdued Off-Hook Voice Announcement (SOHVA).

Direct Station Select/Busy Lamp Field (DSS/ BLF)Programmable Buttons

• Allow you to store numbers for automatic dialing functions.

• Allow you to store telephone extension numbers for Direct Station Selection (DSS).

• May be programmed as a feature button.

• May be designated a line button by your system installer.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 11

Shift Button (SHIFT)

Allows you to enter a second tier for storing and/or automatically dialing speed dial numbers. (That is, you can store two speed dial numbers at every programmable button locationone in the regular tier and one in the second tier). You activate the shift function by pressing this button and turning the shift light on before storing or automatically dialing a speed dial number from the second tier.

Speaker Button (SPEAKER)

• Turns your speaker on or off.

• Disconnects a call when you are on a hands free call.

• Ends or cancels programming.

Tap Button (TAP)

• Recalls dial tone or generates a hookflash.

• Retrieves held calls or last call placed on hold.

• Places flash while programming speeddial number.

Transfer/Conference Button (TRNS/CONF)

• Transfers calls.

• Sets up conference calls.

Volume Control (VOLUME UP or VOLUME DOWN)

Regulates the volume of the ringer, speaker, handset, headset, background music, and group listening mode.

Getting Started

12 Comdiall June, 03

1.6 Your Speakerphones Display Lights

The lights (LEDs) on your LCD speakerphone indicate the status of lines, features, and intercoms.

Busy Lamp Field (BLF) lights (next to a Direct Station Select/Busy Lamp Field or DSS/BLF programmable button):

• Steady red = station is in use.

• Flashing red = station is receiving a call.

• Winking/Fluttering red = message-waiting light set for you by station associated with that DSS/BLF button.

Next to a line button:

• Steady green = this is your line, either on-hook (in a hands free mode) or off-hook, when the line is active.

• Steady red = another station is using this line.

• Flashing red = a call is coming in on this line.

• Flashing orange = this line will be answered when you lift the handset.

• Winking green = your line is on hold.

• Winking red = the call has been placed on hold by another station.

• Fluttering orange or green = your line has recalled from hold.

• Fluttering red = the line put on hold by another station has recalled.

NOTE:You can find the programmable buttons that the installer designates line buttons in the same location as the DSS/BLF but

tons. Ensure that these buttons are labeled correctly to indicate their unique features.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 13

Next to a fixed feature or programmable feature button:

• Steady red = the feature is on.

• Steady off = the feature is off.

The MUTE Button:

On steady = called party cannot hear your conversation.

The INTERCOM Button:

• Steady green or red = you are using your intercom.

• Fluttering red = an LCD message is set on your telephone for others to receive when calling.

• Flashing orange = someone is calling your extension or a call is being transferred to you.

The HOLD Button:

Winking green = a line is on hold at your station (DXP, DXP Plus, FXS and FXT only).

The MESSAGE-WAITING Button :

Winking red = message awaits pick up.

The SPEAKER Button:

• On steady (with the telephone on hook and busy) = speakerphone mode

• On steady (with telephone on hook and idle) = background music is turned on.

NOTE:You can find the programmable buttons that the installer designates feature buttons through user programming in the same location as the DSS/BLF programmable buttons. Ensure that these buttons are labeled correctly to indicate their unique features.

Getting Started

14 Comdiall June, 03

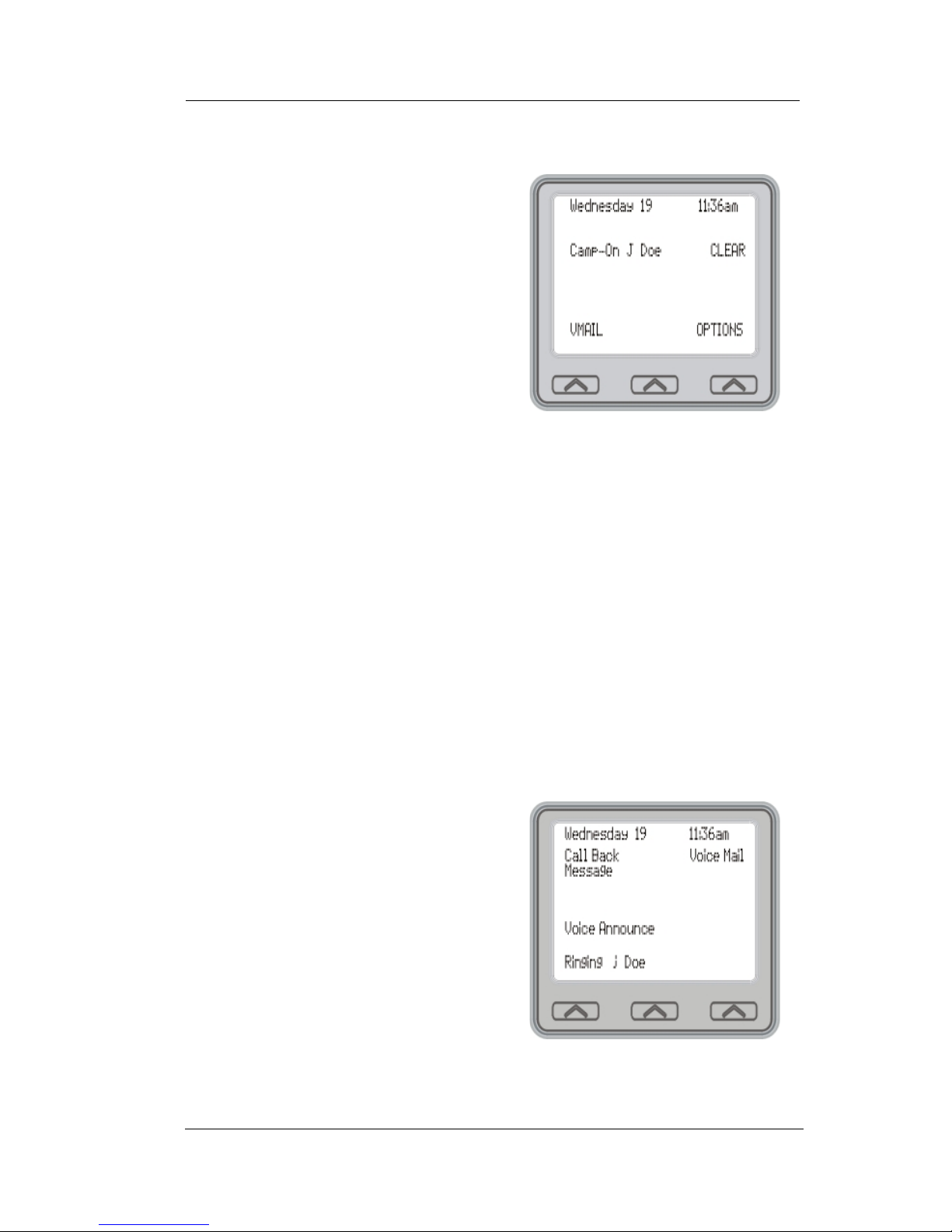

1.7 Understanding The Large Screen Display

Your speakerphone has a large screen display consisting of six lines of 24 possible character positions per line. This provides you with much more system information than can be presented on two-line dis

plays. This large display allows you many programming options as well as quick and easy selection of the many features available on your speakerphone. Your speakerphone has 13 interactive buttons for selecting or programming features.

When your speakerphone is idle, the first line in your display shows the day, date and time while the sixth line displays the word OPTIONS. If your system is using the voice mail option, this is also indicated in the sixth line by the word VMAIL. If your voice mail has four messages for you, for example, the VMAIL display is replaced by 4MSG.

Lines two through four are used on the idle display to indicate features that may be active (flashing), enabled or set.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 15

2. ANSWERING CALLS

2.1 Answering Outside Calls

When an outside call rings at your station, the LCD screen displays the system line number of the incoming call (e.g., L123) and any caller ID information that your ringing line is programmed to receive. In addition to simply lifting the handset, your other options for answering the call are displayed above the interactive buttons.

• When you hear outside ringing (two long bursts) and

observe an orange

flashing light,

1. For speakerphone , PRESS

flashing line button or SELECT Answer and SPEAK toward telephone.

2. For privacy, LIFT handset.

3. SELECT Do Not Disturb if you

do not wish to answer the call at this time. (Selecting Do Not Disturb stops your telephone from ringing but continues to send a ringing tone to the caller.) The associated BLF will continue to flash until the caller disconnects.

• When you hear outside ringing (two long bursts) and observe a

red flashing light,

1. PRESS flashing line button or SELECT Answer.

2. SPEAK toward telephone or LIFT handset if privacy is desired.

3. SELECT Do Not Disturb if you do not wish to answer the call at this

time.

Note: For more information on setting Do Not Disturb at your station, see section titled Do Not Disturb Condition on page 78 .

Outside Call on Line 339

Answering Calls

16 Comdiall June, 03

• After you have answered an outside call at your station, your LCD will display HOLD, TRANSFER, CONFERENCE, GROUP LISTEN, and RECORD

1. SELECT Hold to place the call

on hold at your station, or

2. SELECT Transfer to initiate a

transfer to another station, then dial the station number, announce the call or hang up to complete the transfer, or

3. SELECT Conference to initiate

a conference call.

4. SELECT Group Listen to acti-

vate the speaker while using the handset or headset, so a group can listen to the conversation but not interact with the calling party.

5. SELECT Record to record the call (if VMAIL is installed).

Selecting Hold, Transfer, or

Conference

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 17

2.2 Answering Intercom Calls

An intercom call is one that is made from one system telephone to another. Your station receives intercom calls in one of two ways depending upon system programming. In a voice-first setting, a short tone is followed by the caller’s voice heard on the speaker. With a tone-first setting, the telephone rings in a distinctive pattern and the user of the receiving station must take action to answer the call.

As with an outside call, your LCD screen displays the line number of the incoming call (e.g.,

L123

) and any caller ID information that the

ringing line is programmed to receive.

• When you hear an intercom tone followed by a caller’s voice,

—SPEAK toward the telephone to answer, or LIFT handset if pri-

vacy is desired.

• When you hear intercom ringing (two short bursts),

1. PRESS INTERCOM or

SELECT Answer.

2. SPEAK toward telephone or

LIFT handset if privacy is desired.

3. SELECT Do Not Disturb if you

do not wish to answer the call at this time.

Note: For more information on setting Do Not Disturb at your station, see section titled Do Not Disturb Condition on page 78 .

Answering Calls

18 Comdiall June, 03

2.3 Night-Transferred Calls - Line Access From Any Station

The system attendant can transfer incoming calls to a particular station or stations for off-hour ringing.

• If your telephone rings,

1. PRESS line button with flashing light.

2. LIFT handset to talk.

• When you hear loud ringing anywhere in the system,

1. LIFT handset.

2. PRESS INTERCOM.

3. CHOOSE ringing zone:

• DIAL 65 through 68 to select ringing zone (1-4).

• DIAL 69 to answer for any zone.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 19

2.4 Holding Calls

You can place a call on hold and retrieve it later. With a regular hold, you can pick up the held call at your telephone or another user can pick the call up at a telephone sharing the held call line appearance.

• To place a call on hold,

—PRESS HOLD (station button)

or SELECT Hold (interactive button).

• To retrieve a held call,

1. PRESS line button of the held call (with winking green light), or INTERCOM for intercom call held or PRESS TAP.

2. SPEAK toward telephone or LIFT handset if privacy is desired.

With an exclusive hold condition, you must pick up the held call at your telephone; no other telephone has access to the call.

• To place a call on exclusive hold,

—PRESS HOLD twice.

• To retrieve exclusive hold,

1. PRESS line button of held call (with winking green light), or PRESS TAP.

2. SPEAK toward telephone or LIFT handset if privacy is desired.

Note: Unless you use your HOLD button to scroll through the calls on hold, TAP always retrieves the last number placed on hold, regardless of whether you have line appearance for the line on which the call is holding.

Answering Calls

20 Comdiall June, 03

3. After a call has been on hold for the period of time (set by the installer of your system), the system causes four quick hold recall tone bursts to sound at your telephone, the flash rate of the line button becomes faster and the light becomes orange. If the call is on exclusive hold, it will revert to manual hold after the hold recall period.

• If a held line is recalling,

choose one of the following:

1. SELECT Hold to place the call on hold at your station and restart hold timer.

2. LIFT handset, PRESS line button (with flashing orange light) or SELECT Answer to retrieve the call.

3. The installer can add a directed station hold feature to your tele

phone. With this feature, you can place a call on hold at another station. You can also pick up the held call that has been wait

ing the longest length of time at another telephone.

• To place a call on directed station hold,

1. ANSWER call.

2. PRESS INTERCOM or TRNS/CONF if intercom call.

3. DIAL *90.

4. DIAL extension number of station to receive held call.

5. HANG UP.

• To retrieve a held call at another station,

1. PRESS INTERCOM.

2. DIAL #90.

3. DIAL extension number of station where call is currently on hold.

4. PRESS TAP to answer call.

A Recalling Held Line

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 21

Often, you will have more than one call on hold at your station. You know you can retrieve the last call placed on hold simply by pressing TAP ; however, if you do not have line appearance for a line on which another call is holding, the system provides a way for you to access that call before servicing the last call you placed on hold.

• To scan your held calls and retrieve a specific one:

1. REPEATEDLY PRESS HOLD to scan held call list.

2. PRESS TAP to retrieve call.

Scan Calls on Hold

Answering Calls

22 Comdiall June, 03

2.5 Call Pickup

The Impact system offers three distinct methods to answer incoming calls that are ringing at other stations.

2.5.1 GROUP CALL PICKUP

The installer often arranges several telephones together in a user group. If your telephone is so arranged, you can answer calls that are ringing at other stations within your particular group.

• To answer a call that is ringing within your group,

1. PRESS INTERCOM.

2. DIAL #4.

3. SPEAK toward telephone, or LIFT handset if privacy is desired.

2.5.2 DIRECTED CALL PICKUP

Also, you can answer a call that is ringing at any telephone in the system if you know the ringing telephone’s extension number.

• To answer a call that is ringing at any telephone in the system,

1. PRESS INTERCOM.

2. DIAL *4.

3. DIAL extension number of ringing telephone.

4. SPEAK toward telephone, or LIFT handset if privacy is desired.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 23

2.6 Pickup For Monitored Stations

Your telephone may have the personal intercom number of another telephone appearing at a programmable button location. You can use the light associated with this button to monitor the status of that tele

phone, and you can press the button to make a call to that telephone if you wish. The associated light is known as the Busy Lamp Field (BLF) light, and the button is known as the Direct Station Select (DSS) button. If the installer arranged for your telephone to have the station monitoring feature, the BLF light shows activity status at the monitored telephone.

• To monitor another telephone,

—OBSERVE the BLF light indications next to the Direct Station Select

(DSS/BLF) button:

• Off = Station is idle

• Flashing (if enabled) = Station has an incoming call

• On = Station is busy

Note: If you do not have the station monitoring feature, the BLF light shows just the following information: Off = idle, On = busy.

Answering Calls

24 Comdiall June, 03

• To call an idle monitored station or to answer one that is

ringing,

1. NOTE the BLF light condition.

2. PRESS assigned DSS/BLF button.

3. SPEAK toward telephone, or LIFT handset if privacy is desired.

Note: If you place this call on hold or if you transfer it to another telephone, the BLF light flashes a hold signal. You can retrieve the call by pressing TAP.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 25

2.7 Receiving Subdued Off-Hook

Voice Announcements (SOHVA)

2.7.1 HANDLING AN INCOMING SOHVA

This feature allows an intercom caller to break into your call by making an announcement through your handset receiver. The distant party that you are currently talking to cannot hear the announcement made by the SOHVA caller.

• To respond to a SOHVA verbally,

1. SELECT and HOLD REPLY .

2. SPEAK into handset. Distant

party cannot hear your response.

3. RELEASE REPLY after

response is complete to return to distant party.

• To respond to a SOHVA nonverbally through Response Messaging,

1. SELECT Message.

2. SELECT one of the messages

appearing in your LCD by SELECTING the correspond

ing interactive button. (Message appears in the display of the telephone making the SOHVA).

3. CONTINUE your current call with distant party. (SOHVA caller is automatically discon

nected from your telephone).

Answering Calls

26 Comdiall June, 03

• To respond to a SOHVA by blocking (see Voice Announce

Blocking for more information),

—SELECT BLOCK when you hear SOHVA tone. (SOHVA call is dis-

connected).

Note: A station that is currently active in speakerphone mode or has Voice Announce Block set CAN NOT receive a SOHVA.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 27

2.7.2 VOICE ANNOUNCE BLOCKING

If your system installer makes this feature available, you can prevent voice announcements from sounding over your telephone speaker if you wish.

This feature also blocks Subdued Off-Hook Voice

Announcements (SOHVA) and will refuse any attempted SOHVAs.

• To block (unblock) all voice-

announced calls,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT Voice Announce Block.

4. SELECT ON interactive button to block (or OFF to unblock).

5. SELECT EXIT to end.

Answering Calls

28 Comdiall June, 03

2.8 Caller ID (Automatic Number Identification)

When installed by system programming, the Caller ID feature allows you to view incoming call numbers before you answer them. Incoming call numbers flash in the left half of the LCD. If the name of the calling party is available it will display in the second half on the right side of the LCD. If you answer the call, the number appears steady in the left half of the LCD.

The system also stores numbers that ring on your line but receive no answer. The system indicates that it has stored ring-no answer numbers by causing the programmed Caller-ID (CID) light on your telephone to flash. Pressing the CID button allows you to view the stored numbers one at a time. Pressing the programmed SAVED NUMBER REDIAL button causes the system to dial the displayed number. If the call has been returned by someone else, selecting the T key reveals who returned the call. Everyone sharing your line can scroll through the stored numbers and choose which calls to return.

• To scroll through ring-no answer numbers stored on your system (CID light is flashing),

1. SELECT the CID button on your telephone. Your LCD will display

the calling number, date, and time the call came in. The most recent call appears first in the list.

2. SELECT the CID button each time you wish to display the next most

recent ring-no answer call to your line.

3. To dial one of the numbers in the redial queue, SELECT the SAVED

NUMBER REDIAL button. The system will automatically dial the number.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 29

Depending on your system programming, when a call is returned it might remain in the ring-no answer queue or the system might delete it from the ring-no answer queue. Your system installer can tell you how the feature is programmed. If the system is programmed to leave a returned number in the redial queue, the display will show a “S” next to numbers that have been returned.

• To determine who viewed the number and returned the call,

—DIAL *.

Answering Calls

30 Comdiall June, 03

Notes:

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 31

3. MAKING CALLS

3.1 Making Outside Calls

You can manually dial a number over any telephone line you select. Or, if the installer assigned a prime line or the idle line preference feature to your LCD speakerphone, the system automatically selects a line for use when you lift the handset or press the speaker button.

• To dial an outside number manually,

1. PRESS INTERCOM and DIAL

9 or SELECT a line button.

2. LISTEN for dial tone.

3. DIAL number.

4. LIFT handset if privacy is

desired.

If your station has an assigned prime line, you will not have to select a line before dialing outside your system.

• To dial an outside number using your prime line,

1. PRESS SPEAKER or LIFT handset if privacy is desired. Outside line

is automatically selected.

2. LISTEN for dial tone (LCD displays Dial Number.)

3. DIAL number.

Outside Dialing Display

Making Calls

32 Comdiall June, 03

3.2 Making Intercom Calls

There are two methods for making an intercom call. One causes the called telephone to ring (tone-first). The other causes your voice to sound out at the called telephone (voice-first). Your installer can set the system to deliver either tone-first or voice-first calling.

• To manually cause the other telephone to ring (tone calling),

1. PRESS INTERCOM or

SELECT Dial by Name.

2. DIAL extension number (called

telephone will ring).

• To tone call automatically,

—PRESS DSS/BLF button (called telephone will ring).

Note: The following instructions assume a tone-first setting. You can change a call to voice announce signaling for that call simply by pressing the INTERCOM button again after dialing the exten

sion number or by pressing the DSS/BLF button again.

Note: The following instructions assume a voice-first default setting. Any user can change a call to a tone signaling for that call simply by pressing the INTERCOM button again after dialing the extension number or by pressing the DSS/BLF button again.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 33

• To voice announce manually,

1. PRESS INTERCOM.

2. DIAL extension number.

3. SPEAK your announcement.

• To voice announce automatically,

1. PRESS DSS/BLF button.

2. SPEAK your announcement.

3.3 Automatic Dialing

This feature provides one- or two-button speed dialing using programmable buttons at which you have previously stored numbers. Two levels of number storage are available at each storage location, and you can use one or both levels as needed. Further, since you usually store a line choice as part of a speed dial number, line selection is automatic with speed dialing.

There are two types of speed dial numbers: (1) numbers that you store for your own use (personal speed dial numbers), and (2) numbers that the system attendant stores for everyones use (system speed dial numbers).

• To automatically dial a number stored at one of the programmable buttons on your station, choose one of the following:

—PRESS programmed speed dial button, or PRESS SHIFT and

programmed speed dial button.

• To speed dial a personal speed dial number,

—While on hook, DIAL speed dial number on dial pad ( 0 to 9).

Making Calls

34 Comdiall June, 03

• To speed dial a system speed dial number,

—While on hook, DIAL * and system speed dial number.

3.4 Redialing

For instruction on using your systems Automatic Redial feature, see page 79 in the Other Advanced Features chapter.

Note: If you are already on a line, you must press SHIFT before dialing the personal or system speed dial numbers that are stored at the dial pad. Also, if a speed dials preselected line is in use, the speed dial will not engage.

Note: On some systems, due to programming action, the available system speed dial codes are *100 - *299 and *100 - *599.

Speed Dialing Options

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 35

3.4.1 REDIAL - LAST-DIALED NUMBER

• To redial the last-dialed number,

1. PRESS SPEAKER or HANG UP handset to disconnect current ring-

ing or busy tone.

2. DIAL #.

3. LISTEN for ringing or busy tone over the telephone speaker.

3.4.2 REDIAL PROGRAMMING (STORING NUMBERS)

• To permanently store a number youve just dialed, choose

one of these

methods:

1. While the number is still ring-

ing, SELECT MORE , then SELECT Save.

2. PRESS an unused programma-

ble button location.

• To store a number while you are on a call (if available),

1. PRESS programmed SAVE NUMBER REDIAL button twice (the

display prompts you to dial a number).

2. DIAL the number that you wish to save (the system immediately

saves the number for later redial; it does not dial it over the line you are on now).

• To redial the saved number,

1. PRESS line button to select a line.

2. PRESS programmed SAVE NUMBER REDIAL button (system auto-

matically dials the number that you saved earlier).

Making Calls

36 Comdiall June, 03

3.5 Camping On - Busy Station, Automatic Callback

If you call another station and receive a busy signal or a Do Not Disturb tone, you can press a button that will cause the system to ring your telephone when the station is available. This is called camping on at a station. Please note that you can camp on to only one station at a time.

• To camp on at any busy station,

1. SELECT Camp-On.

2. Your telephone immediately hangs up. When the station you called becomes available, your telephone will ring with five short tone bursts.

• When you hear five short

tone bursts,

—PRESS INTERCOM or

SELECT Answer. The other telephone will start ringing.

Note: If you do not press INTERCOM after the ring back tones within the time limit set by the installer, the call back is canceled.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 37

• To cancel the call back

before your telephone sounds the

tone bursts,

—PRESS INTERCOM and DIAL #6 or SELECT CLEAR .

• To camp on at a station with

a Do Not Disturb condition set,

—SELECT Camp-On. A call

back will occur when called station is no longer set in the Do Not Disturb mode.

3.6 Advanced Camping On Options

3.6.1 CAMPING ON - IDLE STATION, AUTOMATIC CALLBACK

If you call another station and hear ringing but receive no answer, you can press a button that will cause the system to ring your telephone when any activity is initiated at that station.

• To camp on at a station for

which you hear ringing but receive no answer,

—SELECT Call Back. Call-

back will occur after any activity is initiated at dialed station.

• To cancel the camp-on

condition,

—PRESS INTERCOM and DIAL #6 or SELECT CLEAR.

Making Calls

38 Comdiall June, 03

3.6.2 CAMPING ON - BUSY STATION, WAIT FOR AN ANSWER (CALL WAITING)

If the telephone you have called is busy, you can send a call-waiting tone to the telephone and wait on the line for an answer (you must be using the handset for this feature to work).

• To activate call waiting

when you hear a busy signal,

1. DIAL *6 (called party hears tone).

2. WAIT on line for reply.

3. Called party can place the current call on hold or disconnect from the call to answer your call-waiting tone, or choose to ignore your call-waiting tone and continue current conversa

tion.

• To cancel call waiting,

1. PRESS INTERCOM and DIAL #6.

2. HANG UP or PRESS SPEAKER to end.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 39

• To answer a call-waiting tone if you receive one while on a

call,

1. HEAR short tone burst in receiver.

2. PLACE current call on hold, or complete call and HANG UP (waiting call will ring at your telephone).

3. LIFT handset to answer call.

Camping On Options

Making Calls

40 Comdiall June, 03

3.7 Sending Subdued Off-Hook Voice Announcements (SOHVA)

You can make a private voice announcement to another station that is off-hook and busy on a call if the installer has arranged the system to provide this feature.

• Make a SOHVA announcement using the SOHVA button as follows:

1. MAKE intercom call and

HEAR busy tone. If called sta

tion is on outside line, ring-back tone is heard, but SOHVA is still available.

2. SELECT SOHVA and HEAR several quick tone bursts.

3. MAKE announcement.

4. WAIT on line for reply (either verbal or LCD reply). If your station returns to idle, the called party has blocked your SOHVA.

Note: If the called station is currently in speakerphone mode or if the SOHVA has been denied by system programming, interactive button selection for SOHVA will not be available.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 41

4. ADVANCED CALL HANDLING

4.1 Waiting For A Line (Queuing)

If all the lines in a line group are busy, you can place your telephone in a queue to await an idle line.

• To queue for a line group,

1. PRESS INTERCOM.

2. DIAL the line group access code (see Line Group Access code table on page 78 for your systems codes).

3. HEAR busy tone.

4. DIAL *6.

• If you have line appearance for a particular line and wish to

queue for it,

1. OBSERVE the busy status light (LED).

2. PRESS INTERCOM.

3. DIAL *6.

4. PRESS line button.

5. When line group is free, your telephone sounds several short tone bursts. When you hear this, lift handset, hear dial tone, and place call.

• To cancel line queuing or line group queuing,

1. PRESS INTERCOM.

2. DIAL #6.

Advanced Call Handling

42 Comdiall June, 03

4.2 Conferencing

When your telephone is joined together with several other telephones on the same call, the effect is called conferencing. You can make conference calls that involve up to five parties, including you as the originating party, in any combination of outside lines and intercom parties.

• To set up a conference call that includes any combination of

outside lines and intercom parties,

1. MAKE first call.

2. SELECT Conference. Call is placed on hold automatically.

3. SELECT next line and MAKE next call.

4. SELECT Conference to establish conference.

5. PRESS TRNS/CONF button to add more parties.

• To continue conversation on

remaining line after other outside lines have dropped out of conference,

1. PRESS HOLD.

2. PRESS the line button of the remaining party.

Note: When setting up a conference call with outside lines and internal telephones, you must call the outside lines first.

Estabishing a Conference

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 43

• To retrieve a line from hold

and bring that party back into

the conference,

1. PRESS TRNS/CONF.

2. PRESS line button.

3. PRESS TRNS/CONF.

If you are involved in a conference call with two outside lines, you can drop out of this established con

ference call and leave the outside lines in the conference with each other. This is known as an unsupervised conference call.

• To drop out of a conference call you initiated involving outside lines (creating an unsupervised conference),

—DIAL # (lines remain lighted and in use until one or both outside

parties disconnect; when only one party drops out of an unsupervised conference, the other party remains on hold until he hangs up or the line is answered).

• To rejoin an unsupervised conference between two outside lines,

—PRESS TAP.

Advanced Call Handling

44 Comdiall June, 03

• To drop a party out of a conference call,

1. SELECT Drop Party.

2. SELECT the party you wish to drop from the conference call by

pressing the interactive button beside the appropriate line.

4.3 Call Forwarding

4.3.1 FORWARDING A CALL

You can forward the calls that normally ring at your telephone to another telephone. To remind you that your calls are being for

warded, your telephone will sound a short ring burst each time the system forwards a call.

Conference Call Management

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 45

You can forward calls that ring at your telephone but receive no answer; this feature is valuable if you are frequently away from your desk for short periods of time and find it inconvenient to permanently forward your calls every time you leave.

• To forward your calls,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT.

4. SELECT Call Forwarding.

5. Choose one of the following call forwarding options:

• SELECT Forward All to forward all calls

• SELECT Forward Personal to forward prime line and intercom calls.

• SELECT Forward RNA All to forward all calls that ring at your

station but receive no answer after a programmed number of rings.

• SELECT Forward RNA Personal to forward your prime line and intercom calls that ring at your station but receive no answer after a programmed number of rings.

• SELECT CFOS to forward your calls to outside the system.

6. DIAL extension number or PRESS DSS/BLF button of telephone to receive your forwarded calls.

7. SELECT EXIT to end.

Selecting Call Forwarding

Call Forwarding Options List

Advanced Call Handling

46 Comdiall June, 03

• To cancel call forwarding,

—SELECT CLEAR to disable call forwarding.

Call Forwarding Options

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 47

4.3.2 DIVERTING ALL INCOMING CALLS TO ANOTHER STATION

Call diverting permits you to send an incoming call to another station that you have previously designated. You can divert an incoming call to the designated station whether you are busy or idle.

• To identify the station to receive diverted calls,

1. PRESS INTERCOM.

2. DIAL *55.

3. DIAL extension number of station to receive diverted call.

• To divert calls to the

designated station,

1. HEAR ringing and/or SEE flashing line status light.

2. SELECT Divert (system immediately forwards ringing call to station you designated).

Advanced Call Handling

48 Comdiall June, 03

4.4 Call Forward Outside System (CFOS)

If enabled by your installer, the Call Forward Outside System (CFOS)* feature allows you to forward incoming or transferred line calls to telephone numbers outside the system

• To activate CFOS with your LCD speakerphone,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT.

4. SELECT Call Forwarding.

5. SELECT CFOS.

6. SELECT NEXT.

7. CHOOSE a type of CFOS by SELECTING the top right-hand interactive button to scroll through the list of call types.

• SELECT Line for prime line calls.

• SELECT Line Group for and dial access code for outside calls.

• SELECT Prime/Last Line for the last line used for prime calls.

• SELECT ARS for calls utilizing the least costly line group available to route a call.

• SELECT ARS programmed number for selecting a programmed button for ARS calls.

Selecting CFOS

Choose CFOS Type

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 49

8. Follow instructions on LCD display and then SELECT DONE or do nothing and let previously selected destination remain in effect.

9. SELECT EXIT.

• To deactivate CFOS, choose one of the following:

—SELECT CLEAR.

• To join an active CFOS call

from the CFOS-enabled station,

—Note flashing HOLD light indicat-

ing active CFOS call, and press TAP. Join CFOS-forwarded party and CFOS destination in a confer

ence call.

* Comdial has taken reasonable steps in the design of all product features, including CFOS , which protect against unauthorized or fraudulent access to, or use of, a system, or which protect against unauthorized, fraudulent or unaccounted-for access to, or use of, long distance lines. However, no system is entirely invulnerable or immune from unauthorized or fraudulent access or use, or unaccounted-for access or use, and therefore Comdial disclaims any and all liability, and makes no warranty, express or implied, relating to unauthorized or fraudulent access or use, or unaccounted-for access or use.

Selecting Line

Deactivate CFOS

Advanced Call Handling

50 Comdiall June, 03

4.5 Call Parking

4.5.1 PARKING A CALL

You can place an intercom or outside call on hold in the system so that it can be answered from any station, even though it may not have a line appearance for the call. You accomplish this by placing the call in one of many park orbits, where the call remains until it is answered.

• To park a call in orbit,

1. While on the call, PRESS INTERCOM and DIAL *or

2. PRESS TRNS/CONF if intercom call.

3. DIAL code for park orbit (910 to 999 for orbit 1099).

4. Remember the code for later use or make it known to those who need to know it in order to retrieve the call.

• To park a call using a programmed PARK button,

—While on the call, PRESS the programmed PARK button (the system

places the call in a preselected park orbit and lights the PARK light).

• To retrieve a call that was placed on hold in the system

(parked),

1. PRESS INTERCOM.

2. DIAL #.

3. DIAL code for orbit ( 910 to 999 for orbit 1099), or PRESS programmed PARK button.

4.5.2 HANDLING PARK RECALLS

When a parked call times out of the system, it returns to your telephone in the form of a park recall (you hear four short tone bursts at 12-second intervals).

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 51

• To answer a park recall,

—SELECT Answer. The call will then connect to your station.

• To place a park recall on hold at

your station,

—SELECT Hold.. After the call remains on hold for a period of time, it rings back to your telephone as a hold recall.

• To re-park a park recall and

restart the park timer,

1. ANSWER/RETRIEVE call.

2. SELECT Park(the system places the call back in its original park orbit where it remains until it is answered or recalls again).

A Park Recall

Parking Calls

Advanced Call Handling

52 Comdiall June, 03

4.6 Call Transferring

4.6.1 SCREENED CALL TRANSFERS

You can answer a call at your LCD speakerphone and transfer it to another telephone. If you first identify the caller to the party receiving the transfer (giving that user the opportunity to prepare for the call), you have made a screened transfer.

• To screen and transfer a call to

another telephone in the system,

1. ANSWER call.

2. PRESS TRNS/CONF button or SELECT Transfer (call is automati

cally placed on hold).

3. DIAL extension number of telephone to receive transfer, or PRESS DSS/BLF button for that extension.

4. ANNOUNCE call when intercom party answers.

5. PRESS SPEAKER to disconnect (if in speakerphone mode), or HANG UP.

The intercom party then has the call (if he or she answered the screened transfer with the handset). If you announce the transfer over the speaker, the intercom partys telephone will ring with the trans

ferred call after you hang up.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 53

• If the intercom party is busy,

take one of the following steps (if made available at your telephone by installer programming):

1. SELECT Reconnect to reconnect the call to your station.

2. SELECT Message to leave a message-waiting indication at the called station.

3. SELECT Callback to camp-on at the called station.

4. SELECT Voicemail to connect the caller to the busy partys Voicemail.

• If the intercom party does not answer their telephone when

ringing, take one of the following steps:

1. SELECT RECONNECT to reconnect the call to your station.

2. SELECT MESSAGE to leave a message-waiting indication at the station.

3. SELECT CALLBACK to leave a message-waiting indication at the station.

4.6.2 UNSCREENED CALL TRANSFERS

You can answer a call at your LCD speakerphone and transfer it to another telephone. If you transfer the call without first announcing it, you have made an unscreened transfer.

• To transfer an unscreened call to another system telephone,

1. ANSWER call.

2. PRESS TRNS/CONF or SELECT Transfer (call is automatically placed on hold).

3. DIAL extension number of telephone to receive transfer, or PRESS DSS/BLF button for that extension.

Advanced Call Handling

54 Comdiall June, 03

4. PRESS SPEAKER to disconnect (if in speakerphone mode), or HANG UP. The transfer will ring at the called telephone.

• If an unscreened transfer call is

not answered and recalls to your telephone, you can take one of the following steps:

1. PRESS HOLD or SELECT Hold to place the call on hold at your tele

phone.

2. SELECT ANSWER to return to the call.

3. SELECT SEND to retry the transfer.

4.6.3 OTHER CALL TRANSFERRING OPTIONS

4.6.4 HOT TRANSFER

A hot transfer is a type of screened transfer. This feature is useful for transferring calls to people who need to work in a hands free mode. Once you announce the call and the system completes the transfer, the person receiving the transfer can simply begin speaking toward his or her speakerphone to answer the call.

• To make a hot transfer to another telephone in the system,

1. ANSWER call.

2. PRESS TRNS/CONF or SELECT Transfer (the system automatically places the call on hold).

3. DIAL extension number of the telephone to receive the transfer or PRESS DSS/BLF button for that extension.

4. ANNOUNCE call.

5. PRESS TRNS/CONF or SELECT Transfer.

Note: Unscreened transfers ring at busy telephones and wait to be answered.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 55

6. PRESS SPEAKER to disconnect (if in speakerphone mode) or HANG UP. The person receiving the transfer then has the call

4.6.5 QUICK TRANSFER

When the installer programs the quick transfer method on your telephone, you can deliver an automatic transfer of an incoming line call without pressing the TRNS/CONF button.

• To do a quick screened transfer,

1. ANSWER call.

2. DIAL intercom number for transfer location.

3. When party at transfer location answers, ANNOUNCE call.

4. HANG UP, SELECT RELEASE, or PRESS SPEAKER button.

• To do a quick unscreened transfer,

1. ANSWER call.

2. DIAL intercom number for transfer location.

3. HANG UP, SELECT RELEASE, or PRESS SPEAKER button.

Advanced Call Handling

56 Comdiall June, 03

Call Transferring Summary

Transfer

Option

Sender’s Actions After Answering

Original Call.

Delivery Method

of transferred

call.

Best Suited

For

Screened Transfer

1. Press TRNS/CONF

2. Dial Extension

3. Announce Call

4. Disconnect

Normal intercom ringing (two short bursts) and the introduction of the call; if answered in speakerphone mode, ringing will also follow the transfer.

Normal transfers that require introduction.

Unscreened Transfer

1. Press TRNS/CONF

2. Dial Extension

3. Disconnect

Normal intercom ringing (two short bursts).

Expected transfers that need no intro

duction.

Hot Transfer 1. Press TRNS/CONF

2. Dial Extension

3. Announce Call

4. Press TRNS/CONF

5. Disconnect

Transfer introduction followed directly

Personnel who must receive speakerphone calls in a hands-free mode.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 57

Quick Transfer (with intro)

1. Dial Extension

2. Announce Call

3. Disconnect

Intercom ringing (two short bursts) and the introduc

tion of the call; if answered in speakerphone mode, ringing will also follow the transfer.

Normal transfers from attendants and operators who handle a large number of incoming calls which require transfer.

Quick Transfer (without intro)

1. Dial Extension

2. Disconnect

Normal intercom ringing (two short bursts)

Expected transfers from atendants and operators who handle a large number of inoming calls which require transfer.

Call Transferring Summary (Continued)

Transfer

Option

Sender’s Actions After Answering

Original Call.

Delivery Method

of transferred

call.

Best Suited

For

Advanced Call Handling

58 Comdiall June, 03

Notes:

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 59

5. NONVERBAL MESSAGING

5.1 LCD Message Delivery

You can set system-supplied messages at your station to be received and displayed by a calling LCD speakerphone.

• To turn on a message from your telephone,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT.

4. SELECT LCD MESSAGING.

5. SELECT the message you would like to appear in a calling partys LCD by SELECTING the corre

sponding interactive button. In addition to the five options shown below, there are 25 more options available to be programmed.

• SELECT Back at and enter the time you will be back to display Back at xxxx on the LCD display.

For example: dial #00 01 29 0405 for the time 01:45).

• SELECT Call to and enter the extension number to call to display Call and the extension number on the LCD display.

For example: DIAL #0907081502 0000 for the number 978-2200.

• SELECT out to lunch to display out to lunch on the LCD display.

• SELECT Take a message to display Take a message on the LCD display.

• SELECT I will be back to display I will be back on the LCD display.

6. SELECT EXIT.

Nonverbal Messaging

60 Comdiall June, 03

• To turn off the message and your intercom light,

—SELECT CLEAR.

Dialing Code Table

Character Dialing Code Character Dialing C ode

1 01 8 08

2 02 9 09

3 03 0 00

4 04 space 12

5 05 - 15

6 06 : 29

7 07

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 61

LCD Message List

Dial Code Message

01 Back at (default message 1)

02 Call (default message 2)

03 Ask them to hold (default message 3)

04 Take a message (default message 4)

05 I will call back (default message 5)

Nonverbal Messaging

62 Comdiall June, 03

5.2 Message Waiting Light and Messaging

If the system installer designates your LCD speakerphone to have message-wait originate ability, you can turn on the message-waiting light of any other telephone.

• To turn on the message-waiting light (and a broken dial tone, if installer programmed) at another station that is idle or busy,

1. PRESS INTERCOM.

2. DIAL *3.

3. DIAL extension number or PRESS DSS/BLF button of station to be

alerted. The message-waiting light of called station will flash.

• You can also turn on the message-waiting light and broken dial tone at another station when that station is busy,

1. HEAR the busy tone and REMAIN

on the line.

2. SELECT MESSAGE.

3. HANG UP.

• To turn off the message waiting light at a busy or idle station,

1. PRESS INTERCOM.

2. DIAL #3.

3. DIAL extension number or PRESS

DSS/BLF button of station that was alerted. The message-waiting light of called station will turn off.

• To turn off the message-waiting light during messagedelivering conversation,

—PRESS INTERCOM once if off-hook, twice if on-hook.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 63

• To receive a message at an alerted station,

1. OBSERVE flashing message wait-

ing light and the LCD message indicating who called for you.

2. SELECT CALL to dial the messag-

ing station automatically.

3. SELECT CLEAR to clear the mes-

sage from your station.

Receiving a Message

Nonverbal Messaging

64 Comdiall June, 03

5.3 Response Message Delivery

By programming one or more RESPONSE MESSAGE buttons on your LCD speakerphone, you can respond with a variety of messages to many calling situations. A scrolling RESPONSE MESSAGE button allows the sender to select from several different messages which have been programmed by the system attendant. A fixed RESPONSE MESSAGE button sends the same message you previ

ously select each time it is pressed. (See page 73 for instructions on programming a dedicated RESPONSE MESSAGE button.

• To send an LCD message when you call and receive busy signal or no answer,

1. While still on the call, PRESS the appropriate RESPONSE MES-

SAGE button to send a preselected message to the other telephone,

2. If a scrolling Response Messaging was programmed, continue to

PRESS RESPONSE MESSAGE button and DIAL # when your dis

play shows the message you wish to send.

• To send an LCD message to a caller who has initiated a SOHVA or intercom call from another LCD telephone,

1. HEAR the SOHVA tone or voice announcement in your handset or

headset.

2. PRESS the appropriate fixed RESPONSE MESSAGE button to send

a preselected message to the calling telephone,

3. If a scrolling Response Messaging was programmed, continue to

PRESS RESPONSE MESSAGE button and DIAL # when your dis

play shows the message you wish to send.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 65

6. PROGRAMMING

6.1 DSS Numbers

Storing another station extension number at a DSS/BLF programmable location allows you to monitor that station, dial with the press of one button, or pick up or hold calls at that station quickly and con

veniently.

• To store an intercom number as a DSS number,

NOTE: Storing DSS numbers at button locations will overwrite any previously stored numbers.

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT until the DSS

option appears.

4. SELECT DSS/BLF.

5. PRESS programmable button

to choose DSS/BLF button loca

tion.

6. DIAL extension number.

7. REPEAT the previous steps, or

SELECT EXIT.

Programming

66 Comdiall June, 03

8. PRESS SPEAKER to end.

6.2 Speed Dial Numbers

Speed dialing is a feature that lets you store and dial frequently called numbers using one or two buttons. You can store numbers for speed dialing at any programmable button that is not now assigned as a line button or other feature by the system administrator or installer or at the keypad numbers.

Note: The Federal Communications Commission (FCC) requires that when programming emergency numbers and/or making test calls to emergency numbers:

1. Remain on the line and briefly explain to the dispatcher the reason for the call.

2. Perform such activities in the off-peak hours, such as early morning or late evening.

CAUTION

Do not attempt to program interactive but-

tons; doing so can cause the system to

make features unavailable. If you inadvertently program inter-

active buttons, you can retrieve their functions in the following

manner:

1. PRESS INTERCOM **1

2. PRESS the interactive button to be reprogrammed

3. DIAL 91, 92, or 93 (for buttons from left to right).

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 67

• To store an outside number as a speed dial number, follow the display prompts and proceed as follows:

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT until Speeddial

option appears.

4. SELECT Speeddial to choose speed

dial programming.

5. PRESS programmable button or dial pad button (09) to choose stor-

age location (remember, to access second level storage at a programmable button, press SHIFT first).

6. SELECT EDIT.

Speed Dialing Options

Programming

68 Comdiall June, 03

7. Make your speed dial route selection

choice from the list on the LCD

pressing the appropriate button.

• PRESS line button to select outside

line,

• DIAL 00 to select prime line or last

line used.

• DIAL 01 to 16 to select line

group.

• PRESS INTERCOM button or dial

8 to select intercom.

8. DIAL number (up to 16 digits long,

include * and # if needed).

9. SELECT DONE to store the number.

10. REPEAT previous steps until all

numbers are stored, or SELECT EXIT.

11. PRESS SPEAKER to end.

Note: You may need a pause between numbers to compensate for differences in response time between your system and the host system (ask your attendant about this). To store a pause, press HOLD, then continue dialing. If your system is behind a host sys

tem that needs a hookflash to access a feature, press TAP to store a hookflash, then continue dialing.

Selecting Line or Intercom

Dialing a Speed Number

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 69

6.3 Feature Access Codes

In addition to the system features which may be programmed using the interactive buttons, several other features may be programmed by using their access codes. The feature codes are programmed like speed dial numbers and can occupy the same programmable buttons on your telephone. Access codes are listed in Appendix A, Feature Access Codes found on page 97.

• To store a system feature access code,

1. SELECT OPTIONS

2. SELECT Programming.

3. SELECT NEXT until Feature But-

tonoption appears.

4. SELECT Feature Button.

5. SELECT the programmable button

at which you wish to store the fea

ture (remember, if there is anything else programmed at this button, the new programming will overwrite it). For help in selecting a button, SELECT SHOW EMPTY LOCA

TIONS to display unused feature buttons (green lights). To display all feature buttons (used and unused) (red lights), SELECT SHOW ALL LOCATIONS.

6. The speakerphone will now display a list of features which you can

scroll

through by SELECTING NEXT.

7. SELECT the feature you want to assign to the programmable button.

8. REPEAT previous steps until all numbers are stored.

9. SELECT EXIT.

10. PRESS SPEAKER to end.

Programming

70 Comdiall June, 03

• To clear a feature button assignment,

—REPEAT the above procedure, but SELECT EXIT once you have

selected the feature button.

As you program numbers, fill in the identification strips on your telephone as well as these tables.

Speed Dial Numbers, Features, or DSS/BLF Locations

(Programmable Buttons)

1 13

2 14

3 15

4 16

5 17

6 18

7 19

8 20

9 21

10 22

11 23

12 24

Personal Speed Dial Numbers

(Keypad Buttons)

1 6

2 7

3 8

4 9

5 0

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 71

6.3.1 LCD FEATURE BUTTONS

You can create feature access buttons to make operation easier. To do this, use the interactive buttons to select the feature you want to store, and then store it on a programmable button (see the instructions on page 73).

• Account Code (Account Code)allows you to enter an account code for call record purposes.

• Auto Redial (Auto Redial)allows you to redial the last dialed number.

• Authorization Entry Code (Authorization Entry)allows you the mobility to use your class of service features, prime line assignments, and exception numbers on any telephone in the system.

• Auxiliary Pager (APAGE)selects external pager operation through the auxiliary jack.

• Auxiliary Recorder (ARECD)selects tape recorder operation through the auxiliary jack.

• Auxiliary Ringer (ARING)selects auxiliary ringer operation through the auxiliary jack.

• Background Music (MUSIC)allows you to enable or disable background music; also allows you to choose from two preprogrammed music sources.

• Call Forward All (Call Forward All)allows you to forward all of your calls to another telephone.

• Call Forward Outside System (CFOS) allows you to forward incoming or transferred calls to telephone numbers outside the system.

• Call Forward Personal (Call Forward Personal)allows you to forward all of your prime line calls to another telephone.

• Call Forward Ring No Answer All (Call Forward RNA All )allows you to forward all calls that ring at your station but receive no answer after a preprogrammed number of rings.

Programming

72 Comdiall June, 03

• Call Forward Ring No Answer Personal (Call Forward RNA Personal)allows you to forward all prime line calls that ring at your station but receive no answer after a preprogrammed number of rings.

• Camp-On With Automatic Call Back (CAMP)allows you to camp on to a station. The system calls you back as soon as the called station becomes idle or occupied.

• Camp-On (Call Waiting)(CAMP)when calling a busy station, this feature allows you to send a call waiting tone to the station and to wait on-line for a reply.

• Clear Feature (CLEAR)clears a currently active or engaged feature.

• Do Not Disturb (DND)prevents other telephones from ringing your telephone.

• Executive Override (Executive Override)allows overriding a call or a Do Not Disturb condition at another telephone.

• Group Listen (Group Listen)allows others to hear a conversation over the telephone speaker while you use the handset or headset; the distant party can hear only the conversation transmitted through the handset or headset microphone.

• Headset (Headset)allows you to use the Headset.

• Meet Me (Meet-Me)provides the capability for you to page with the instruction to meet you on line.

• Message Wait (Message Wait)allows you to be notified that there is a message waiting.

• Page Zone (Page Zone)provides one-button access to paging.

• Park Orbit (Park Orbit)parks calls in preselected park orbit.

• Pick-Up Direct (Pickup Direct)allows you to pick up a call ringing elsewhere in your system.

• Pick-Up Group (Pickup Group)allows you to pick up a call ringing in your group.

• Privacy Release (Privacy Release)allows other telephones which share a line appearance for current call to join.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 73

• Response Messaging (Response Messaging)allows you to send an LCD message to a caller who has initiated a SOHVA or intercom call from another LCD telephone.

• Saved Number Redial (Saved Number Redial)redials the last number saved

• Service Observe (Service Observe)allows you to monitor a conversation or activity at another telephone in an undetected manner.

• Tracker Paging System (Tracker Access)allows you to enter tracker pager numbers, pickup a tracker page, and either enable and/or disable a pager number.

• Voice-Announce Block (Voice Announce Block)blocks voice announcements.

• Volume Save (Volume Save)allows the preset volume level to be saved.

Programming of the feature access buttons may require several selections involving many LCD screens. If an abbreviation used is not familiar to you, consult Appendix B, Display Abbreviations on page .

• To create a feature access button,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT until the Feature Button option appears.

4. SELECT Feature Button.

5. SELECT the Feature Level interactive button to toggle between 1 and

6. SELECT one of the three options.

• Show Empty Locations - green lights

• Show All Locations - red lights

• Feature Level

7. SELECT the button you want to assign as a feature button.

Programming

74 Comdiall June, 03

8. SELECT the feature you want to assign to by SELECTING the corresponding interactive button. (SELECT NEXT to scroll through the list of available feature.

9. REPEAT steps 1 through 7 for other features.

10. SELECT EXIT to end programming.

• To clear a feature button assignment,

—REPEAT the above procedure, but SELECT CLEAR before select-

ing storage location button.

6.4 Reminder Alert

You can set up to two reminder alerts to sound at your LCD so that you will remember important regular events or occasional events.

• To set a reminder alert at your telephone,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT until the Reminder Alert option appears.

4. SELECT Reminder Alert.

5. SELECT Reminder Alert 1 or Reminder Alert 2 to select available alert designation; if you have already programmed an alert for 1, select 2 to set a second alert condition.

6. DIAL reminder time using the numbers on the dial pad (remember to add a zero [0] before single digit times: 01 for one oclock, 02 for 2 oclock, etc.)

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 75

7. Toggle interactive button between AM or PM.

8. SELECT Reminder Alert interactive button to select ON.

9. SELECT EXIT.

When an alert sounds at the set time, you hear four short tone bursts, which will continue until acted upon. If you are not at your station to hear the alert when it sounds, your telephones ring tone changes to the alert tone for every incoming call until you respond to the alert.

• To respond to an alert after it

sounds, choose one of the following:

1. SELECT CLEAR to turn off the alert.

2. SELECT SET to reset the alert for the same time the following day.

6.5 Response Message Button

You may program a RESPONSE MESSAGE button, which allows you to send an LCD message to a caller who has initiated a SOHVA or intercom call from another LCD speakerphone, or to send an LCD message to another LCD speakerphone that you call and receive a busy signal or no answer.

• To store a fixed RESPONSE MESSAGE button (delivers the same message each time it is pressed),

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT until the Feature Button option appears.

Programming

76 Comdiall June, 03

4. SELECT Feature Button.

5. SELECT the programmable button you wish to use as a response mes-

sage button.

6. SELECT NEXT until the Response Message option appears.

7. SELECT Response Message.

8. SELECT from the list of displayed messages. SELECT NEXT to

scroll through the list of messages. If you use the Back at or Call options add to them as follows:

• For Back at message, dial the code for the time numbers and colon

from dialing codes table.

For example, dial #0001290405 for time 01:45.

• For the Call message, dial the code for telephone number where you

can be reached.

For example, dial #090708150202 0000 for number 978-2200).

9. REPEAT steps 5 through 8 for other features, or SELECT EXIT to

end programming.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 77

7. OTHER ADVANCED FEATURES

7.1 Background Music

If the telephone system supplies background music, you can turn it on at your LCD speakerphone while on-hook and idle. The system automatically turns background music off during calls and voice announcements.

• To turn the music on,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT Background Music.

4. SELECT Background Music inter-

active button and toggle between 1 or 2.

5. SELECT EXIT .

6. ADJUST music volume with the

volume buttons.

• To turn the music off,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT Background Music.

4. SELECT Background Music interactive button and SELECT OFF.

5. SELECT EXIT .

7.2 Line Groups

Some systems have telephone lines arranged into line groups which may be accessed for outside calling instead of selecting an individual line button.

Other Advanced Features

78 Comdiall June, 03

• If your system has line groups, access them as follows:

1. PRESS INTERCOM.

2. DIAL desired line group access code,

—If your system attendant has reassigned your line group access codes,

write them here for future reference.

3. LISTEN for outside dial tone.

4. DIAL desired number.

5. LIFT handset to talk.

7.3 Do Not Disturb Condition

This feature keeps calls from ringing at your LCD speakerphone and makes your station appear to be busy to intercom calls. As a reminder, a station that is set in Do Not Disturb mode will display this infor

mation on the LCD.

• To enable DND, proceed as follows:

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT Do Not Disturb.

4. SELECT Do Not Disturb interact

button to toggle between ON and OFF.

5. SELECT EXIT.

Line Group Access Codes

Line Group Default Code Active Code *

1 9

2 through 11 80 through 89

12 through 16 60 through 64

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 79

• To disable the DND condition,

—REPEAT the above procedure, BUT SELECT OFF instead of ON at

step 4.

• To set a Do Not Disturb condition at your telephone when a call rings at your station,

1. Hear ringing and notice incoming

call information in display.

2. SELECT OPTIONS.

3. SELECT Programming.

4. SELECT Do Not Disturb.

5. SELECT Do Not Disturb interact

button. Ringing will stop, caller will hear the do not disturb tone, and your telephone will remain in DND until you disable the feature (described above).

6. SELECT EXIT.

7.4 Automatic Redial

If your station has the multiple automatic redial feature enabled, you can place up to ten numbers in your telephones redial queue.

Note: The AUTOMATIC REDIAL button described in the following steps must be programmed by your system installer or attendant. Individual users DO NOT have access to programming of this feature.

Other Advanced Features

80 Comdiall June, 03

• To use the automatic redial feature to redial a busy or unanswered number,

1. While on the call, SELECT Auto

Redial or PRESS the AUTOMATIC REDIAL button programmed by your installer.

2. The system repeatedly dials the

number until you cancel the feature or the system has dialed the number a preprogrammed number of times (determined by your system installer).

3. The AUTOMATIC REDIAL light flashes between redials and turns

on steady during redialing.

4. IF your installer has enabled answer supervision on your line, the sys-

tem automatically cancels automatic redialing and turns the AUTOMATIC REDIAL light off.

5. IF answer supervision is NOT enabled, SELECT Auto Redial or the

programmed AUTOMATIC REDIAL button while on the call to can

cel automatic redialing,

6. IF your system installer has enabled the redial multiple numbers fea-

ture, you can have up to ten numbers in your redial queue. To add numbers to your redial queue, REPEAT step 1 in the above procedure.

• To scroll through numbers in your redial queue if your telephone is currently idle,

1. SELECT Auto Redial or the programmed AUTOMATIC REDIAL

button. The display shows the last number dialed.

2. Choose one of the following:

• SELECT REMOVE to remove the number from the redial queue.

• SELECT NEXT to scroll to the next number in the queue.

• SELECT EXIT to exit from the redial queue.

Initiating Auto Redial

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 81

• To interrupt the redialing procedure so that you can scroll through numbers in your redial queue,

1. While your telephone is in the process of dialing a number, SELECT

Auto Redial or the programmed AUTOMATIC REDIAL button twice. This treats the number as answered, cancels automatic redialing for that number, and puts the number back in the automatic redial queue. The display shows the last number dialed.

2. CHOOSE from one of the following:

• SELECT REMOVE to remove the number from the redial queue.

• SELECT NEXT to scroll to the next number in the queue.

• SELECT EXIT to exit from the redial queue.

• To cancel the automatic redial feature, choose one of the following:

1. PERFORM any user activity at the station (go on-hook, select the

speaker button, etc.),

2. DIAL #72 to delete all numbers from the redial queue,

3. SELECT Auto Redial or the programmed AUTOMATIC REDIAL

button while the number you wish to remove from the redial queue is ringing.

7.5 Tracker Paging System

When installed with your system, the Tracker Paging System option allows you to send call back and parked call messages to Tracker pagers assigned to station extension numbers. Along with the parked call message, the system parks the call in orbit for retrieval by the paged party. The type of message that the system delivers (either alphanumeric or numeric-only) is dependent upon the Tracker pager model in use at the station.When outside callers call into a system that has both a Tracker Paging option and a voice mail option installed, the system gives these callers the option of either leaving a message or tracking the person that they are calling.

Other Advanced Features

82 Comdiall June, 03

• To track a called party after receiving a ring no answer,

1. MAKE an intercom call to someone and RECEIVE no answer.

2. SELECT TRACK.

3. HEAR confirmation beep (Tracker page accepted) or HEAR busy

tone (Tracker page not accepted).

4. PRESS SPEAKER to end.

• To track a called party without first calling them,

1. PRESS INTERCOM and DIAL *8.

2. DIAL extension number or SELECT

the LIST NAMES interactive button. The LCD display shows several let

ters beside each interactive button. SELECT the interactive button next to the letter of the persons name whom you wish to call. The LCD display shows the first existing name to match to the letters you selected or shows a No Name Match mes

sage if the system cannot find a match.

3. SELECT NEXT to display the subsequent names in the index until you reach the name you need.

4. HEAR confirmation beep (Tracker page accepted) or HEAR busy tone (Tracker page not accepted).

5. PRESS SPEAKER to end.

• To use Tracker to transfer a call to a park orbit for retrieval

and transmit the calls park orbit code and caller ID information (if available),

1. ANSWER call and SELECT Transfer.

2. DIAL extension number.

3. If the called station does not answer or is busy, SELECT TRACK.

4. HEAR confirmation beep (Tracker page accepted) or HEAR busy tone (Tracker page not accepted).

Note: All the names starting with the letters you selected will appear, but they will not be in alphabetical order.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 83

5. PRESS SPEAKER button to end.

• To retrieve a call that you parked using the Tracker option,

1. PRESS HOLD button to scroll your held calls, (display shows PAGE and extension number of each parked call).

2. PRESS TAP to retrieve the displayed parked call.

• If you receive a parked call message on your Tracker pager,

1. GO to any system station.

2. PRESS INTERCOM.

3. DIAL Tracker pager orbit code ( #800 to #899 ).

4. RETRIEVE call.

• To enable or disable a Tracker pager at your station,

1. PRESS INTERCOM.

2. DIAL #07 to enable, or DIAL #06 to disable.

3. PRESS SPEAKER to end.

7.6 Auxiliary Jack

Your Impact SCS LCD speakerphone may be equipped with an auxiliary jack that provides an interface for a headset, a tape recorder, an external ringer or an external pager. If your LCD speakerphone is so equipped, you must program one of its programmable buttons to serve as an enable/disable button for each auxiliary device you plan to connect. The system will activate only the device that it identifies in the display, and will activate only one device at any time.

The following modes are programmable with the auxiliary jack:

Note: Tracker parked calls will recall to your station after a preprogrammed time-out. You can either place the call into another Tracker page orbit or retrieve the call.

Other Advanced Features

84 Comdiall June, 03

• The headset mode allows you to operate your telephone with a

headset instead of as a speakerphone or with the handset.

• The recorder mode allows you to send your voice and that of

the distant party to a tape recorder.

• The ringer mode allows an external speaker to sound the

ringing of your telephone.

• The pager mode allows an external paging device to sound all

voice announcements (all-call, zone paging, voice announced intercom calls) sent to your telephone.

• Program the enable/disable buttons (at any blank

programmable button location) as follows:

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT until the Feature Button option appears.

4. SELECT Feature Button.

5. PRESS blank programmable button location to serve as enable/disable button for the feature youve selected.

6. SELECT NEXT until desired auxiliary feature appears.

• APAGE to choose pager

• ARECD to choose recorder

• ARING to choose external ringer

• Headset to choose headset

Note: The recorder, external ringer, or pager requires external power.

Auxiliary Jack Location

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 85

7. RETURN to previous steps to add another device, or SELECT SPEAKER to quit.

• To enable an auxiliary mode,

—SELECT enable/disable button to enable mode. Light associated with

button turns on and display denotes feature.

• To disable an auxiliary mode,

—SELECT enable/disable button. Light associated with button will turn

off and display no longer denotes the feature.

CAUTION

With the exception of a headset micro-

phone, do not connect the audio output

of any external device to the auxiliary jack. Also, do not

connect the tip and ring leads of a telephone line to the aux-

iliary jack. Do not connect any devices to the auxiliary jack

other than those mentioned above.

Other Advanced Features

86 Comdiall June, 03

7.7 Account Codes

If the installer has arranged your system for account code entry, your display may prompt you to enter an account code after answering a call.

• To enter account code on an

incoming call,

1. IF available, PRESS programmed ACCOUNT CODE button (the call in progress is not interrupted).

2. IF not available, PRESS INTERCOM and DIAL *04 (call is automatically placed on hold).

3. DIAL account code. Your telephone automatically returns to the call after youve dialed the complete account code.

If the installer has arranged your system for account code entry, your display may prompt you to enter an account code before dialing. Depending upon how the installer has programmed your system, these account codes may be forced(mandatory) for dialing outside numbers

• To enter account code on an outgoing call,

1. DIAL 9 or other line button (the display will prompt for Account Code if programmed to do so).

2. PRESS INTERCOM (call is automatically placed on hold).

3. DIAL *04 and account code, or PRESS programmed ACCOUNT CODE button.

4. LISTEN for dial tone and DIAL number you are calling.

Note: See page 73 for instructions on programming a dedicated ACCOUNT CODE button.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 87

7.8 Dial By Name

The Dial By Name feature provides an index of names for you to search through. When you select a name in the index, the system will automatically dial that persons extension number.

• To use Dial By Name,

1. SELECT OPTIONS to enter the dial by name menu.

2. SELECT Internal Dial by Name interactive button for intercom call

ing, or SELECT External Dial by Name for speed dial calling.

3. SELECT ALL to view all entries or SELECT interactive button corre

sponding to the letters in the name you want to locate (for example, dial ABC for Comdial). There is no limit to the number of digits you can dial.

4. The display shows the first existing name match to the dialed digits or shows a NO MATCH message if the system can not find a match.

5. SELECT NEXT to display the subsequent names in the index until you reach the name you need.

6. SELECT interactive button corresponding to the name you want to call.

Other Advanced Features

88 Comdiall June, 03

7.9 Volume Control

7.9.1 SETTING CURRENT VOLUME LEVEL

The volume control on your telephone is a multipurpose control you can use to set the volume (loudness) of the ringer, the speaker, the handset, the headset, background music, and the group listening mode.

• There are four ringer loudness

levels (plus an off position). Set these levels as follows:

—While your telephone is on-hook

and idle, PRESS the VOLUME UP or VOLUME DOWN button once for each change in loudness you desire. The ringer sounds once for each change as an example of the current setting.

• There are eight speaker loudness levels. Set these levels for

the current call as follows:

—While on a call and in speakerphone mode, PRESS the VOLUME UP

or VOLUME DOWN button once for each change in loudness that you desire.

Note: If you set the ringer to the OFF position, your telephone will sound a short ring burst once for each call you receive at your station while the ringer is off.

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 89

• There are at least eight handset loudness levels that you can

set for the current call as follows:

—While on a call and in handset mode, PRESS the VOLUME UP or

VOLUME DOWN button once for each change in loudness that you desire.

• There are eight headset

loudness levels that you can set for the current call as follows:

—While on a call and in headset mode,

PRESS the VOLUME UP or VOL

UME DOWN button once for each change in loudness that you desire.

• There are eight group listening loudness levels. Set the level for the current call as follows:

—While on a call and in the group listening mode, PRESS VOLUME

UP or VOLUME DOWN button once for each change in loudness you desire.

• There are eight background music loudness levels. To set the level,

—While background music is on at your station, PRESS VOLUME UP

or VOLUME DOWN button once for each change in loudness you desire. This level remains set for background music until you change it again, even if you turn off the feature and then reactivate it.

Note: When the call ends, the system resets the loudness of all future calls to the programmed (default) setting. For instructions in setting your speakerphones default volume, see the next section of this chapter.

Other Advanced Features

90 Comdiall June, 03

7.9.2 MUTING YOUR SPEAKERPHONE

By using the MUTE button, you can block transmission of your voice to the distant party. You can do this whether you are using the handset or the speaker.

• To mute your station,

—PRESS MUTE (mute function and light turn on). You can still hear

the distant party, but he or she cannot hear you.

• To speak to the distant party,

—PRESS MUTE again (mute function and light turn off).

7.10 Programmed Button Display

7.10.1 BUTTON FUNCTIONS DISPLAY (BUTTON QUERY)

You can cause the display to identify the function of each button on your telephone.

• To button query your telephone,

1. SELECT OPTIONS.

2. SELECT Programming.

3. SELECT NEXT until the Button

Query option appears.

4. SELECT Button Query.

5. PRESS the button in question.

6. READ the displayed information

(display will hold for few seconds before the telephone returns to idle).

Large Screen Display Speakerphone User’s Guide

June, 03 Comdial. 91

7.10.2 STATUS OF BUSY LINES AND STATIONS (BUSY DSS/BLF BUTTON INQUIRY)

You can use this feature to identify the station that is busy on a line or the line on which a station is busy.

• To identify the station that occupies a busy line,

1. PRESS DSS/BLF button for busy line.

2. READ your display for intercom number of station that is busy on

line.

• To identify the line that a busy station occupies,

1. PRESS DSS/BLF button for busy station.

2. READ your display for the busy stations line number.

7.11 Automatic Set Relocation

If your installer has equipped your system with automatic set relocation, when you move your telephone to a new location, the system gives you a choice (through a display prompt) as to whether you want to keep your previous programming or use the programming in the new location.

• To maintain the extension number and programming features from the old location,

1. CONNECT the telephone line cord to the new jack.

2. OBSERVE the flashing HOLD light and PRESS HOLD while the

light is still flashing (your telephone immediately assumed the fea

tures from the previous location).

Note: If you do not select a button after installing the telephone, the system automatically defaults to the programming from the previous location.

Other Advanced Features

92 Comdiall June, 03

• To assume the extension number and programming features from the new location,

1. CONNECT the telephone line cord to the new jack.

2. OBSERVE the flashing HOLD light and DIAL # while the light is

still flashing (your telephone immediately assumes the features from the new location).

7.12 Paging

Your system provides an all-call or a zone page feature that you access by dialing special codes. This arrangement sounds your voice announcement through the telephone speakers or through an external paging unit.

• To send a paging announcement,

1. LIFT handset.

2. PRESS INTERCOM.

3. DIAL 70 through 77 for zones 18.

4. MAKE announcement.

5. REMAIN on line if awaiting a reply (known as a Meet-Me page), or

HANG UP handset.

At times other telephone users may page you with instructions to meet them on line. This is known as a Meet-Me page. You can go to the nearest telephone, dial a code, and be in contact with the paging party.

• To reply to a Meet-Me page,

1. LIFT handset of nearest telephone.

2. PRESS INTERCOM.

3. DIAL 78.

4. MEET paging party on line.

Note: Zone 1 (code 70) provides an all-call function in the default mode.

Comdial Large Screen Display Speakerphone User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
