Cognex MX-1000 Quick Reference Manual

MX-1000

Quick Reference Guide

09/08/2017
Version:5.7.1.51

Precautions

Observe these precautionswhen installing the Cognex product, to reduce the risk of
injury or equipment damage:

l To reduce the risk of damage or malfunction due to over-voltage, line noise,

electrostaticdischarge (ESD), power surges,or other irregularitiesinthe
power supply, route all cablesand wires away from high-voltage power
sources.

l Changes or modificationsnot expressly approved by the par ty responsible

for regulatory compliance could void the user’s authority to oper ate the
equipment.

l Cable shielding can be degraded or cablescan be damaged or wear out

more quickly if a service loop or bend r adius istighter than 10X the cable
diameter. The bend radiusmust begin at least sixinches from the
connector.

l This device should be used in accordance with the instructions in this

manual.

l Allspecificationsare for reference purpose only and maybe changed

without notice.

2

MX-1000 Layout

1 Scanner head (rotatableby 45°)

2 Indicator LEDs

3 Side trigger buttons

4 Power button

5 Touchscr een

6 Home button

7 Speaker vents

8 Recessed area for mobile camera

9 Slider to lock battery cover

10 Battery cover

11 Lanyard hook

12 Endcap of pistol grip*

13 Trigger button on the pistol grip*

*Pistol grip is optional

3

MX-1000 Accessories

Battery for reader ( DMA-MTBATTERY-01)

Battery for pistol grip accessory (3070 m Ah, DM A-HHBATTERY-01)

Pistol grip (DM A-GRIP- 01)

Note: The grip features its own trigger button and an additional battery
which can bechargedvia thecharging station.

Belt holster ( DMA-HOLSTER-01, and DMA-HOLSTER-02)

Wir eless charging station ( DMA-MTBASE-xx*)

Multi-device charger ( DMA-MTBASE4-U S, DMA-MTBASE4-EU, DMA­MTBASE4BKT-US, DMA-M TBASE4BKT- EU)

Multi-battery charger ( DMA-MBC-xx)

Wir eless car charger (DMA-VMC HARGER-00)

Power supply for charging station 24V/18W (DM A-24VPWR-xx*)

4

USB Type-C battery charger ki ts:

l DMA-MXUSB-01: USB Type-C Battery Cover (DM A-MXUSB-00)

+ U SB Type-C 3Amp Car Charger (DM A-MXUSB- CHARGER)

l DMA-MXUSB-02: USB Type-C Battery Cover (DM A-MXUSB-00)

+ H andstrap (DMA-MXSTRAP-00)

l DMA-MXUSB-03: USB Type-C Battery Cover (DM A-MXUSB-00)

+ U SB Type-C 3Amp Car Charger (DM A-MXUSB- CHARGER) +

Handstrap (DM A-MXSTRAP-00)

Passive car holder (DMA-VMH OLDER-00)

Note: Usi ng or storingthe device outside of therecomm ended

temperature ranges m ay damage or reduce the battery’s lifespan.

Leaving the MX Series Mobile Terminal with a m obile device in direct

sunli ght for an extended amount of time can raise the temperature above

ther ecomm endedlimit.

Top Cover (DM A-COVERKIT-S6, DMA-C OVERKIT-S7)

* xx canbe US or EU

5

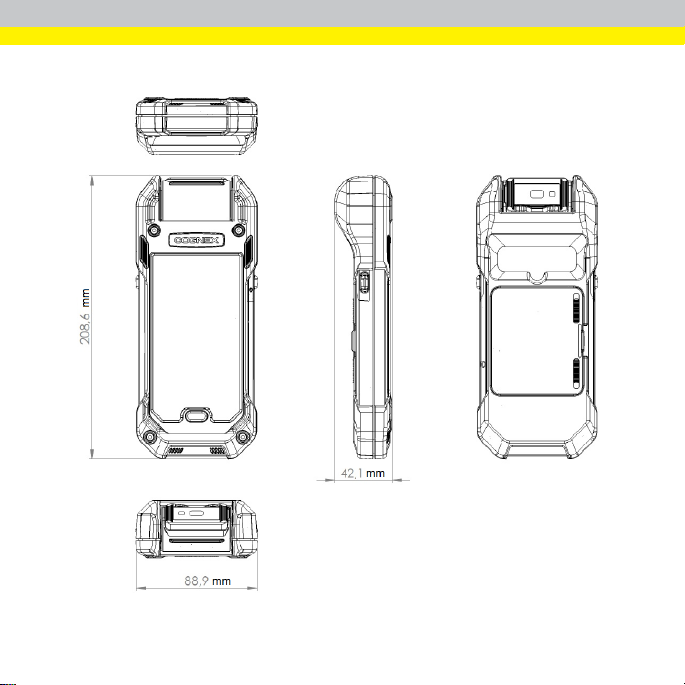

Dimensional Drawings

6

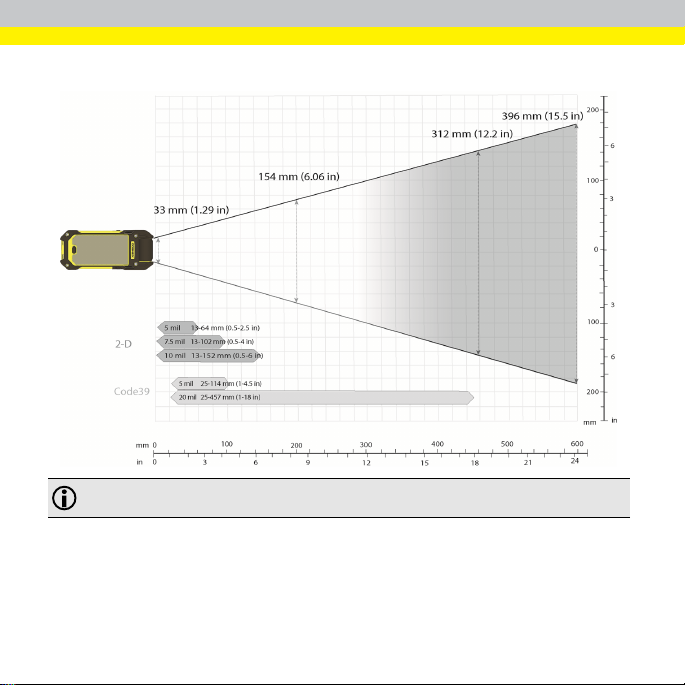

Field of View and Reading Distances

Note: Due to tolerances, ranges canvary by +/- 5 mm for small codes to +/- a couple of centimeters for

large codes.

7

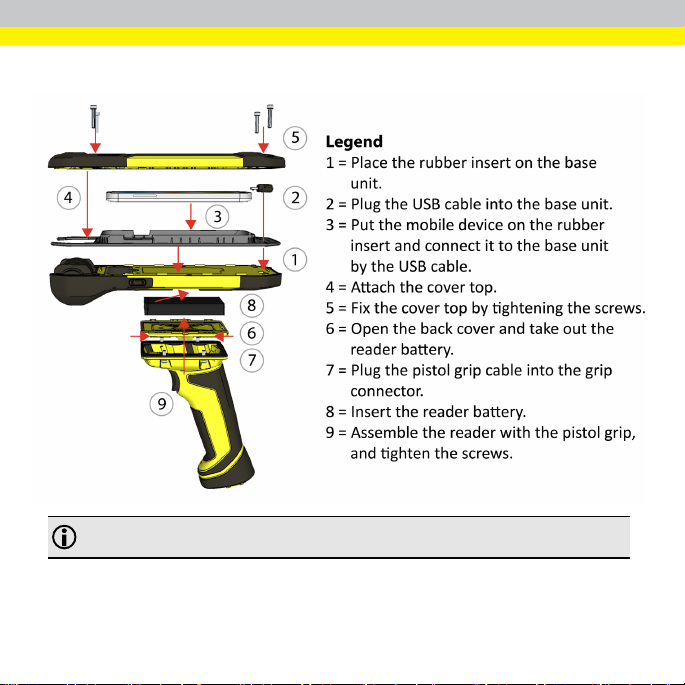

Assembling the Reader

Note: For details, see the MX-1000 Reference Manual.

For a li st of supportedm obile devices, please contact C ognex.

8

Installation

Installation procedures and specifications are presented in detail in the MX­1000Reference Manual, which isinstalled with the DataMan Setup Tool. F rom the
Windows Start menu, select the following to access the manual: All Progr ams >
Cognex > DataMan Software v5.7.0 > Documentation.

Note: If any of the standard components appear to be missing or damaged,
immediatelycontact your Cognex Authorized Service Provider (ASP) or
Cognex T echnical Support.

CAUTION: Allcable connectorsare “ keyed” to fit the connectorson the

reader; do not force the connections or damage may occur.

Install Software and Documentation and Connect the Reader

To configure an MX-1000 reader, the DataMan Setup Tool software must be
installed on a networked PC. The DataMan Setup T ool is available from the
DataMan support site: http://www.cognex.com/support/dataman.

Note: The DataMan Setup T ool only worksif the DataMan QuickSetup is
installed on the mobile device. For further details, see the MX-1000 User
Guide.

1. After installing the software, connect the MX-1000 to your PC.

2. Launch the DataMan Setup Tool and click Refresh.

3. Select your MX-1000 reader from the list and click Connect .

9

MX-1000 Specifications

Weight
Charging Temperature

Operating Temper ature

Storage Temperature -40ºC — +60ºC (

Maximum H umidity < 95% (non-condensing)

Environmental IP65

Codes

Power Supply R equirements Battery power

Expected operating time for
typical scan batches (400scan
per hour) witha full y charged
battery

* MX-1000X only

510 g ( 675 g wi thpistol grip)

0ºC — +35ºC (+32ºF — +95ºF)
0ºC — +40ºC (+32ºF — +104ºF)

1-D

: UPC/EAN/JAN, Codabar, Interleaved 2 of5, Code 39, Code128, Code93,

Pharm acode, GS1 DataBar, PDF417, Micro PDF417

2-D

: Data Matrix, QR Code, and MicroQR C ode, DotCode* and postal code*

12 hours

-40

ºF — +140ºF)

Imager Specifications

Specification MX-1000 Imager

ImageSensor 1/3i nchC MOS

ImageSensor Properties 6.0μ m square pixels

ImageR esolution (Pixels) 752 x 480global shutter sensor

Lens Type 3 focal position 6.2 mm, M12 lens with IR blocking filter

10

Charging Station Specifications

Weight 380 g

Operating Temper ature 0ºC — +40ºC (+32ºF — +104ºF)

Storage Temperature -40ºC — + 60ºC (-40ºF — +140ºF)

Maximum H umidity 95% (non-condensing)

Power Supply R equirements 24 V, 13W maxim um LPS or NEC C lass 2 power supply

11

Compliance Statements

The MX-1000 has Regulatory Model 1AA7 and meets or exceeds the requirements
of all applicable standards organizations for safe operation. However, as with any
electricalequipment, the best way to ensure safe operation is to operate them
according to the agency guidelines that follow. Please read these guidelines carefully
before using your device.

The following specifications apply to the MX-1000 readers:

Regulator Specification

USA FCC

Canada ICES-003, Class A

EuropeanC ommunity

Australi a AS/NZS 3548 Class B

Japan

Korea

Note: For them ost up-to-date CE declaration and regulatory conformity i nformation, please refer to the
Cognex online support site: http://www.cognex.com/Support.

47 CFR

Part 15, Subpart B Class A

EN55022, Class A
EN55024

VCCI V-2/2015.04

IEC/CISPR 22
IEC/CISPR 24
KN22
KN24
Registration number: MSIP-REM-CGX-DM9050

12

Safety and Regulatory

EuropeanC ompli ance

FCC Class A Compliance
Statement

Canadian Compliance

WARNING: This is a class A product. In a domestic envir onment this

product may cause radio interference in which case the user m ay be

requir edto take adequate measures.

This equipment complies with the essential requirements of EU Directive
2014/30/EU. Declarations are available from your local representative.

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of theFC C Rules. These limits are designed to
provider easonable protection against harmful interference when theequipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate r adio frequency ener gy and, if not i nstalled andused in accordance with
thei nstruction manual, m ay cause harmful interfer ence to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case theuser w ill be required tocorr ect the interference at
his own expense.
This device complies with part 15 of the FC C Rules. Operation is subject to the
followingtwo conditions: (1) This device m ay not cause harmful interfer ence, and
(2) this device must acceptany interference received, including interference that
may cause undesired operation.

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
num ér ique de la classe A est conform e à la norme NMB-003 duC anada.

For European Union Users

Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE).

This product has required the extraction and use of natural resources for its
production. It may contain hazardous substancesthat could impact health and the
environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the naturalresources, we encourage you to use the

13

appropriate take-back systems for product disposal. Those systems will reuse or
recyclemost of the materials of the product you are disposing in a sound way.

The crossed out wheeled bin symbol informs you that the product should not
be disposed of along with municipal waste and invites you to use the appropriate
separate take-back systems for product disposal.

If you need more information on the collection, reuse, and r ecycling systems, please
contact your local or regionalwaste administration.

You may also contact your supplier for more information on the environmental
performance of thispr oduct.

Compliance Statements: MX-1000 Charging Station

The MX-1000 Charging Station has Regulatory Model 1ABA and meets or exceeds
the requirements of all applicable standar ds organizations for safe operation.
However, as with anyelectrical equipment, the best way to ensure safe operation is
to oper ate them according to the agency guidelines that follow. Please read these
guidelinescarefullybefore using your device.

Regulator Specification

USA FCC 47 CFR Part 15, Subpart B Class A

Canada ICES-003, Class A

EuropeanC ommunity

Australi a AS/NZS 3548 Class A

Japan VCCI V-3/2015.04 Class A

EN55032, Class A
EN55024

14

Regulator Specification

Korea

IEC/CISPR 22
IEC/CISPR 24
KN22
KN24
Registration number: MSIP-REM-CGX-DMA- MT-BASE

For European Union Users

Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE).

This product has required the extraction and use of natural resources for its
production. It may contain hazardous substancesthat could impact health and the
environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the naturalresources, we encourage you to use the
appropriate take-back systems for product disposal. Those systems will reuse or
recyclemost of the materials of the product you are disposing in a sound way.

The crossed out wheeled bin symbol informs you that the product should not
be disposed of along with municipal waste and invites you to use the appropriate
separate take-back systems for product disposal.

If you need more information on the collection, reuse, and r ecycling systems, please
contact your local or regionalwaste administration.

You may also contact your supplier for more information on the environmental
performance of thispr oduct.

15

EuropeanC ompli ance

FCC Class A Compliance
Statement

Canadian Compliance

Safety and Regulatory

WARNING: This is a Cl ass A product. In a domestic envir onment this

product may cause radio interference in which case the user m ay be

requir edto take adequate measures.

This equipment complies with the essential requirements of EU Directive
2014/30/EU. Declarations are available from your local representative.

This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada.
Operation is subject to thefollowing two conditions:

1. this device m ay not cause harm ful interference, and

2. this device m ustaccept any interference received, including

interference that m ay cause undesir ed operation.

Changes or modifications madeto this equipm ent not expressly approved by
Cognex may void the FCC authorization tooperatethis equipment.

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
num ér ique de la classe A est conform e à la norme NMB-003 duC anada.

16

China RoHS

Part Name

部 件名 称

Regulatory
Model 1AA7
Regulatory
Model 1ABA

This table is prepared in accordance wi ththe provisions of SJ/T 11364.
这 个标 签 是根 据 SJ / T 11364 的 规 定准 备 的。

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the
limi t requir em ent of GB / T26572 - 2011.
表 示本 部 件所 有 均质 材 料中 含 有的 有 害物质 低 于GB / T26572- 2011 的 限 量要 求 。

X: Indicates that said hazardous substance contained in at least one of thehomogeneous m aterials used for this
par t is abovethe lim it requir ement of GB / T26572- 2011.
表 示用 于 本部 件 的至 少 一种 均 质材 料 中所含 的 危害 物 质超 过 GB / T26572 - 2011 的限 制 要求 。

Lead (Pb)铅Mercury

(Hg)

汞

X O O O O O

Hazardous Substances 有害 物 质

Cadmium
(Cd)

镉

Hexavalent
Chromium
(Cr (VI))

六 价铬

Polybromi nated
biphenyls (PBB)

多 溴联 苯

Polybromi nated
diphenyl ethers
(PBDE)

多 溴二 苯 醚

17

Cognex Corporation. All Rights Reserved.

Copyright © 2017
