DataMan

260 Series

Quick Reference Guide

04/24/2017 Version:5.7.0.218

Page 2

Precautions

Observe these precautions when installing the Cognex product, to reduce the risk of injury or equipment damage:

l This device requires the use of an LPS or NEC class 2 power supply(non-

PoE device) or the use of a PoE Class 1 (PoE device).

l Do not connect or disconnect this device from the I/O module or 15-pin USB

adapter cable while the I/O module or adapter cable is connected to a PC .

l To reduce the risk of damage or malfunction due to over-voltage, line noise,

electrostatic discharge (ESD), power surges, or other irregularities in the power supply, route all cables and wires away from high-voltage power sources.

l Changes or modifications not expressly approved by the party responsible

for regulatory compliance could void the user’s authority to operate the equipment.

l Cable shielding can be degraded or cables can be damaged or wear out

more quickly if a service loop or bend radius is tighter than 10X the cable diameter. The bend radius must begin at least six inches from the connector.

l This device should be used in accordance with the instructions in this

manual.

l Allspecifications are for reference purpose only and may be changed

without notice.

Page 3

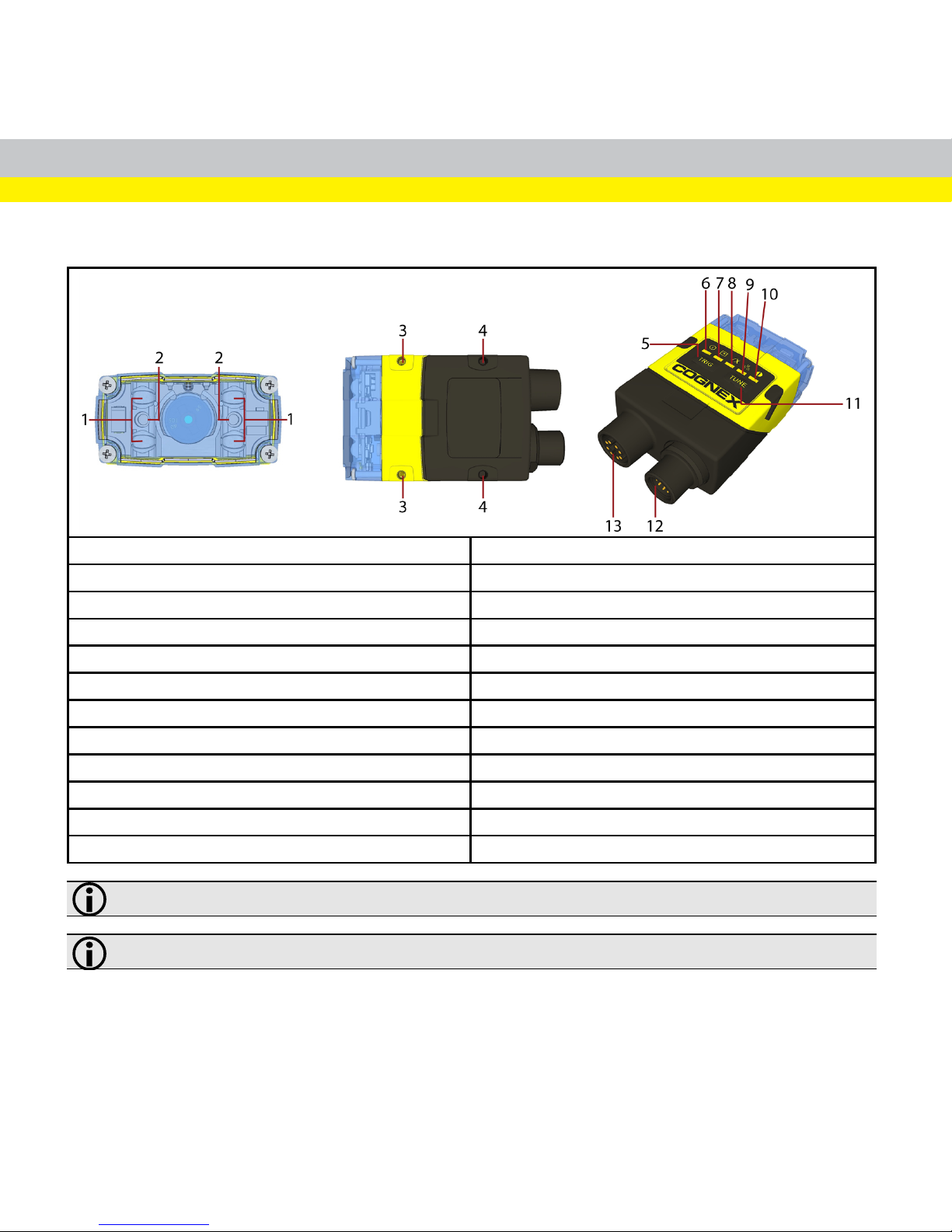

Product Overview

1 Illumination LEDs

2 LED aimers

3-4*

Mounting holes

(M3 x 3.5mm)

Trigger button

Power indicator

7 Train status/

Trigger status indicator

8 Good/bad read indicator

9 Network status indicator

Error indicator

Tune button

Power, I/O and RS-232 connector

Ethernet connector

Note: *Use only one set of mounting holes (either 3 OR 4) for mounting.

Note: The five status LEDs together also function as a peak meter using an orange light.

Page 4

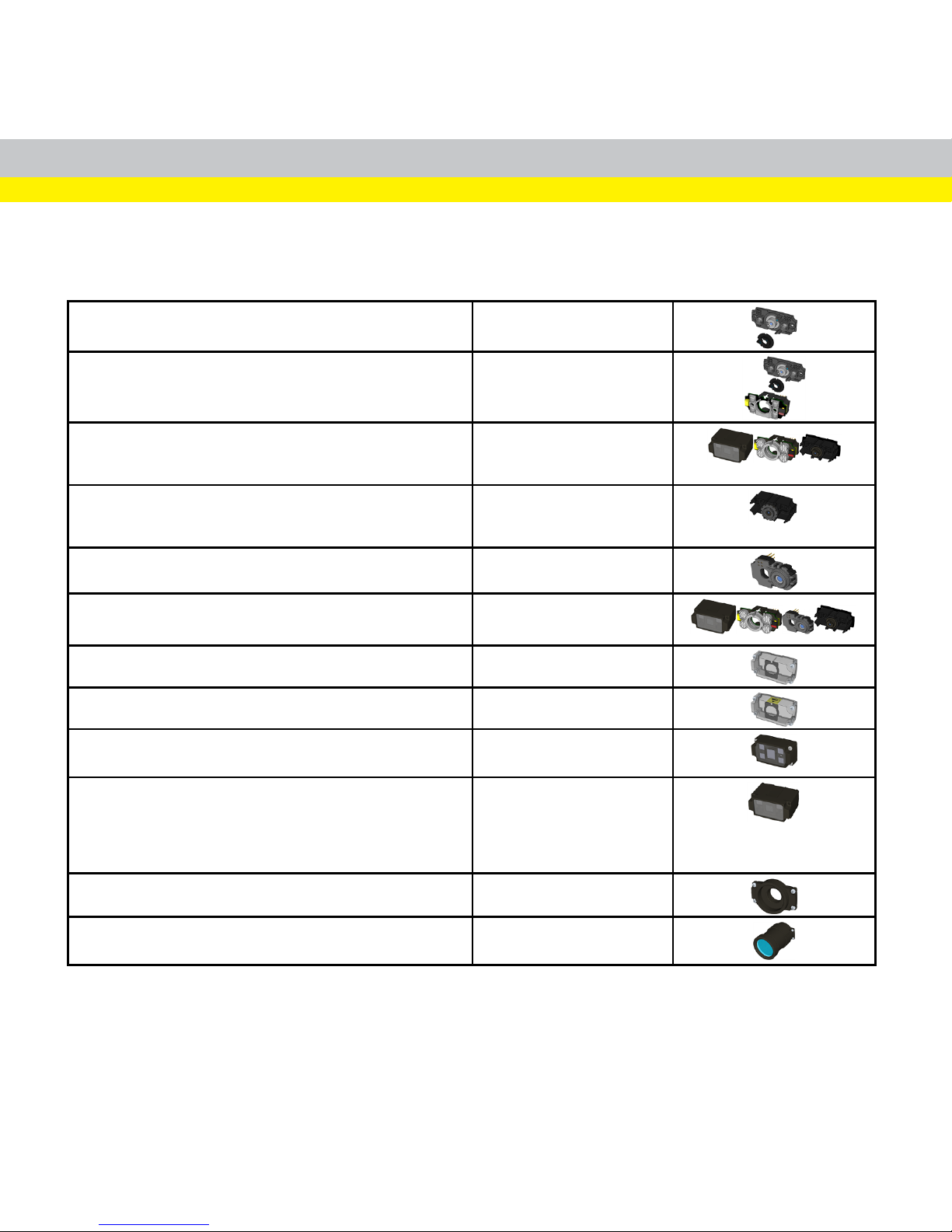

DataMan 260 Accessories

LENS OPTIONS, COVERS, ILLUMINATIONS AND FILTERS

6.2 mm lens kit DM150-LENS-62

IR 6.2 mm lens kit, 3 -position with IR LED

DMA-KIT-IR-62

IR16 mm lens kit

DMA-KIT-IR-16

16 mm lens with extended optics mount (requires the use of an extended front cover and high-powered red LED)

DM260-LENS-16

Liquid Lens Module (LLM) to be used with 6.2 mm lens or 16 mm lens

DMA-LLM-150-260

ImageMax kit

DM260-KIT-16LL

Clear lens cover* DM150-CVR-CLR

Clear lens cover,ESD safe* DM150-CVR-ESD

Polarized front cover* DM260-LENS-62CVR-

F***

Extended lens cover, un-polarized** Extended lens cover, half-polarized ** Extended lens cover, fully polarized**

DM260-LENS-16CVR*** DM260-LENS-16CVR-

P*** DM260-LENS-16CVR-

F***

C-mount adaptor, IP40 DM260-CMNT-00

C-mount adaptor, IP65 DM260-CMNT-CVR

Page 5

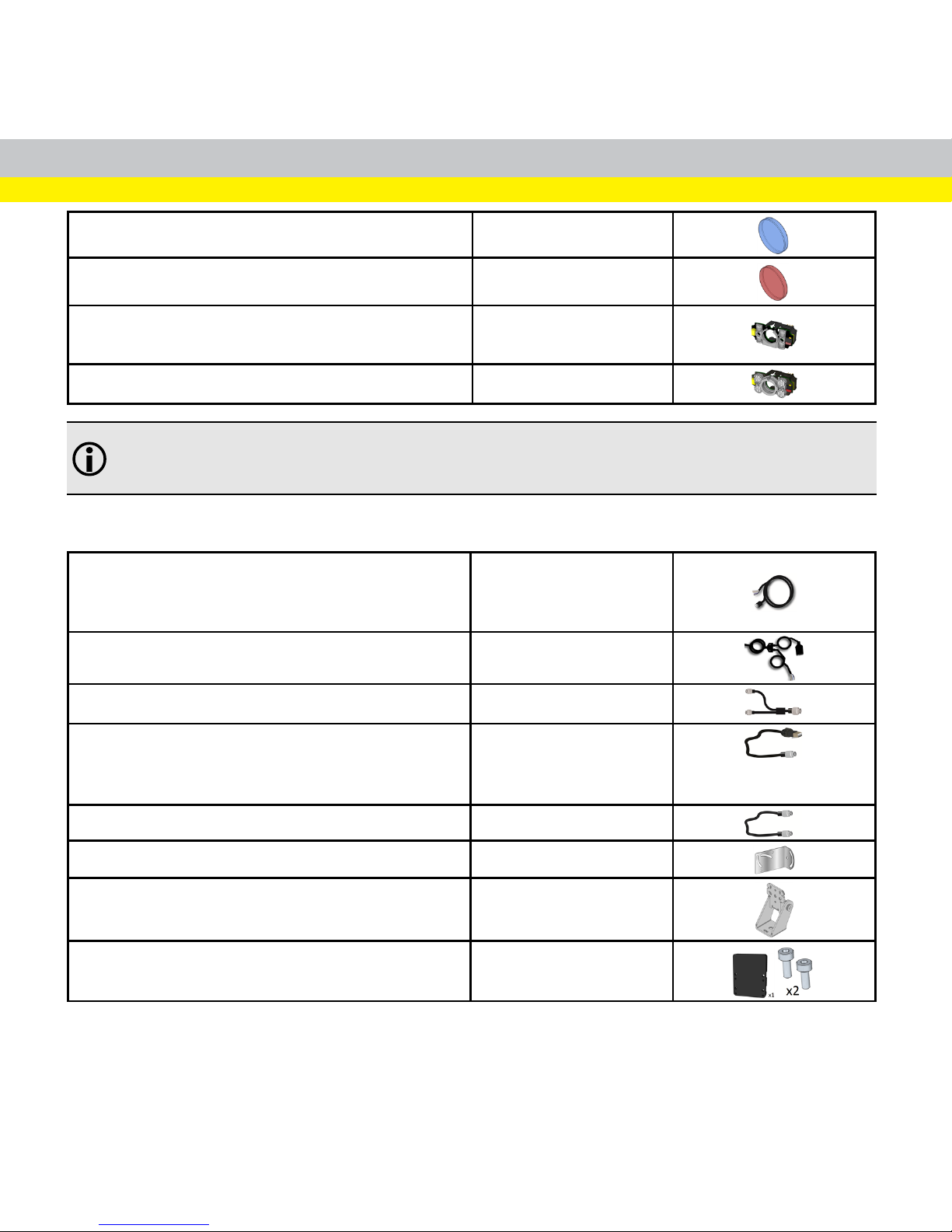

Blue bandpass filter

DM150-BP470

Red bandpass filter

DM150-BP635

Red LED illumination* White LED illumination* Blue LED illumination*

DM150-LED-RED DM150-LED-WHT DM150-LED-BLU

High Powered red LED illumination** DM260-LED-RED-HP

Note: *Use with a 6.2 mm lens only! **Use with a 16 mm lens only! ***ESD safe

CABLES ANDOTHER

Connection cable 24V, I/O, RS-232

CCBL-05-01 CCB-M12x12Fy-xx (y=S:

straight / y=A: angled *, xx specifies length)

Connection cable RS-232

CCB-M12xDB9Y-05

Adapter cable, M12x12 to M8x4/M8x5, 0.5 m DM260-ADAP-M12M8

X-Coded to RJ45 Ethernet Cable

CCB-84901-2001-xx, where xx can be 02, 05, 10, 15 or 30, indicating length in meters

Adapter cable, ETH, M12, X-CODED/A-CODED, 0.5 m

CCB-M12x8MS-XCAC

Universal Mounting Bracket

DM100-UBRK-000

Pivot Mounting Bracket

DM100-PIVOTM-00

DataMan 362 to DataMan 262 adapter kit DM-ADAP-PLT

Page 6

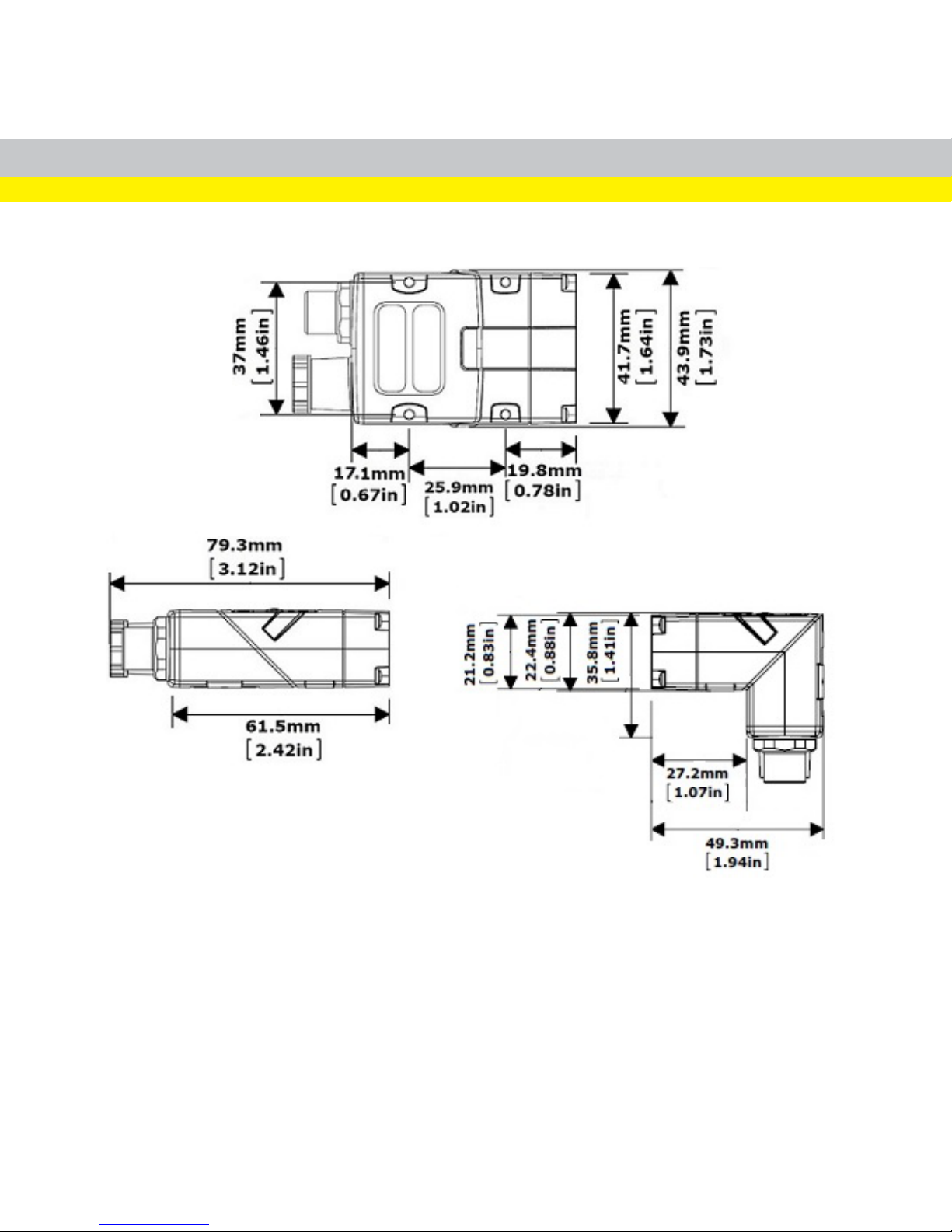

Dimensional Drawings

Page 7

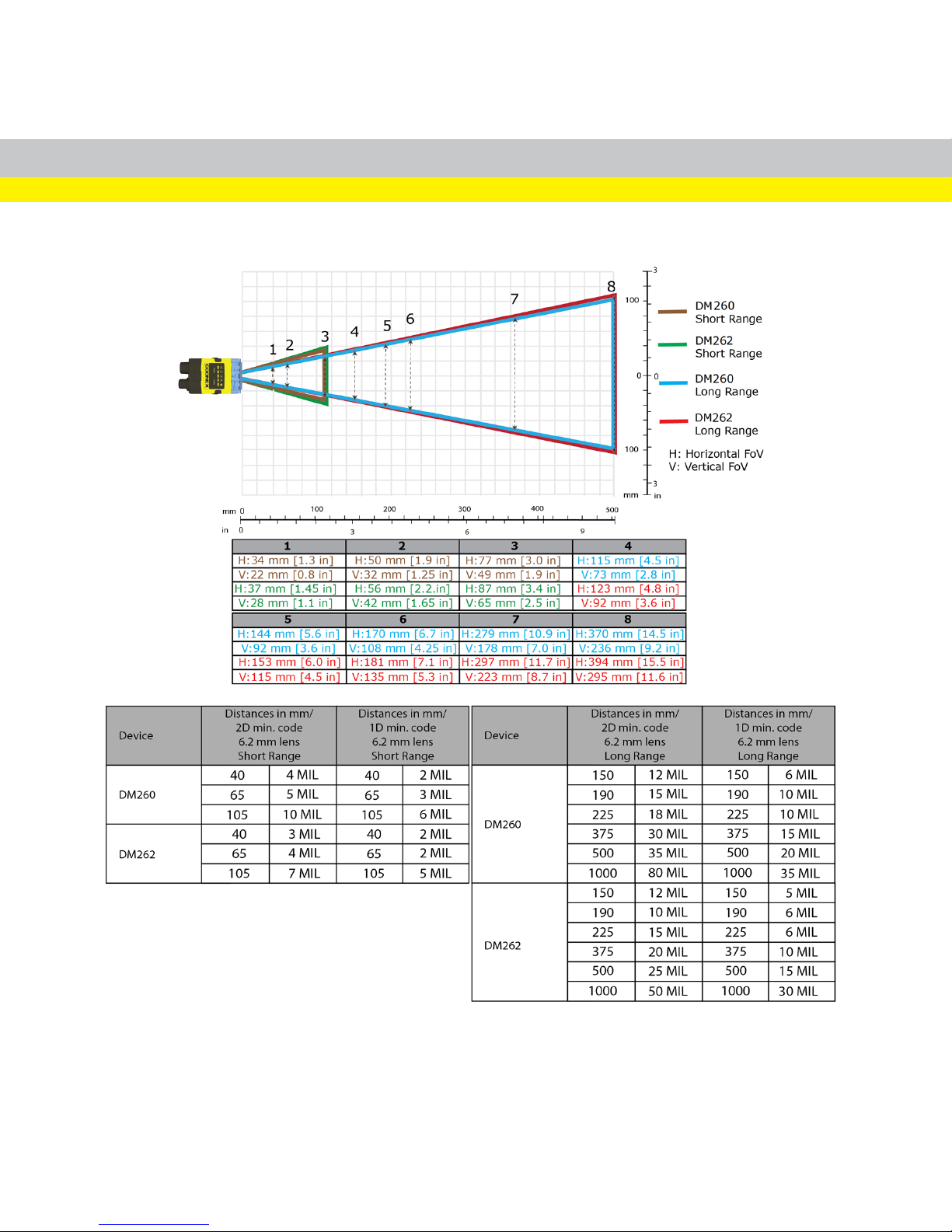

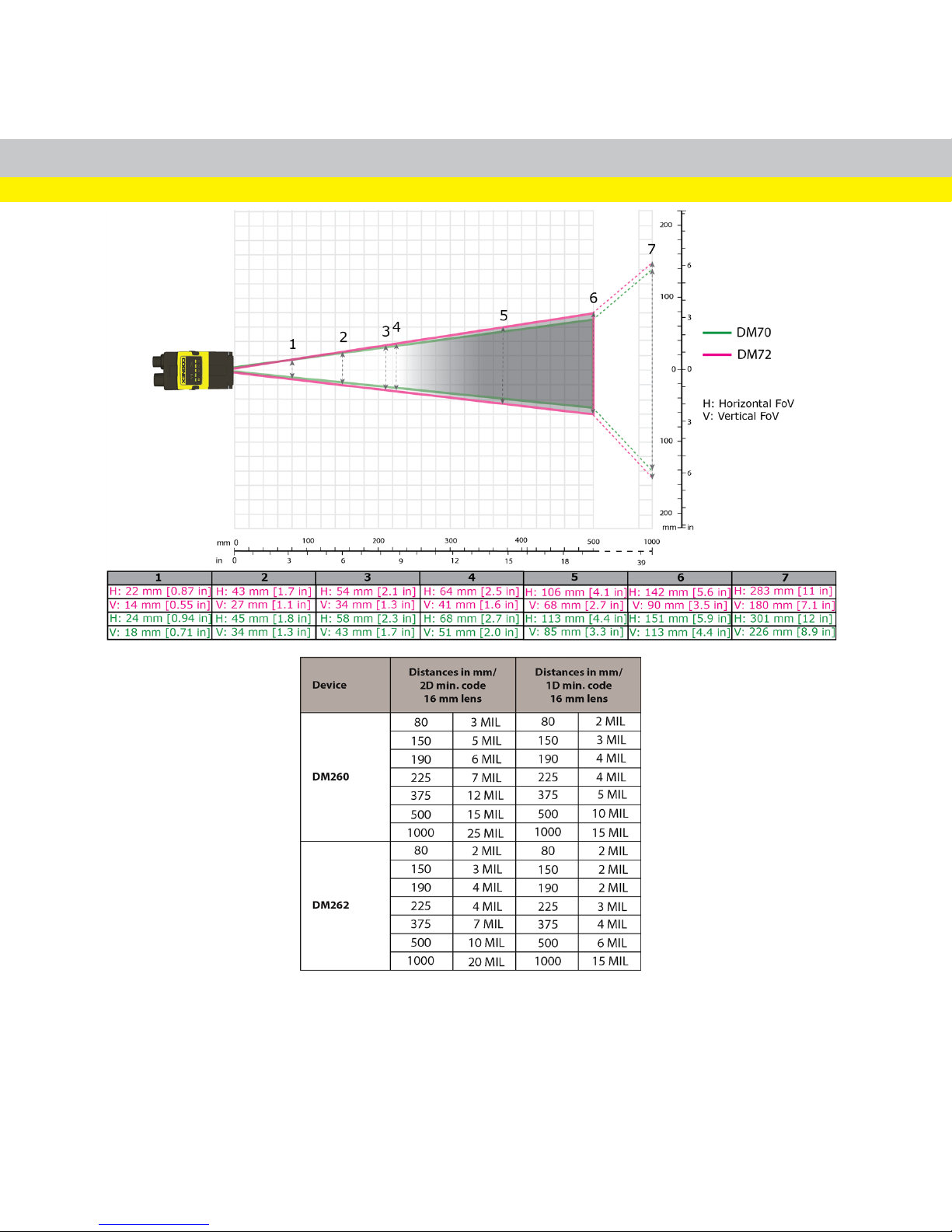

Field of View and Reading Distances

Page 8

Page 9

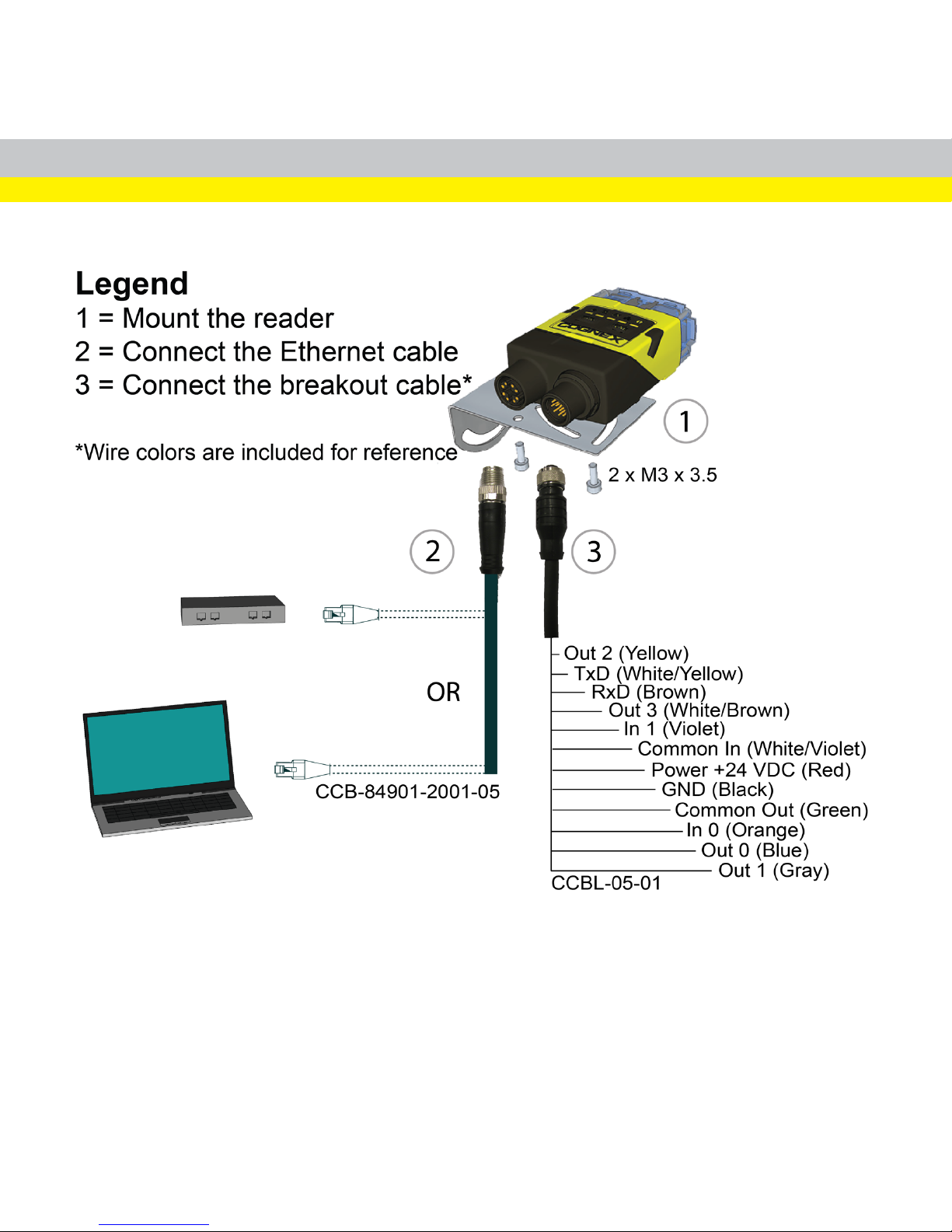

Connecting the Reader

Page 10

Installation

Installation procedures and specifications are presented in detail in the DataMan

260 Reference Manual, which is installed with the DataMan Setup Tool. From the Windows Start menu, select the following to access the manual: AllPrograms > Cognex > DataMan Software vx.x.x > Documentation.

Note:

l Cables are sold separately.

l If any of the standard components appear to be missing or damaged,

immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support.

CAUTION: All cable connectors are “keyed” to fit the connectors on the

reader; do not force the connections or damage may occur.

Mounting

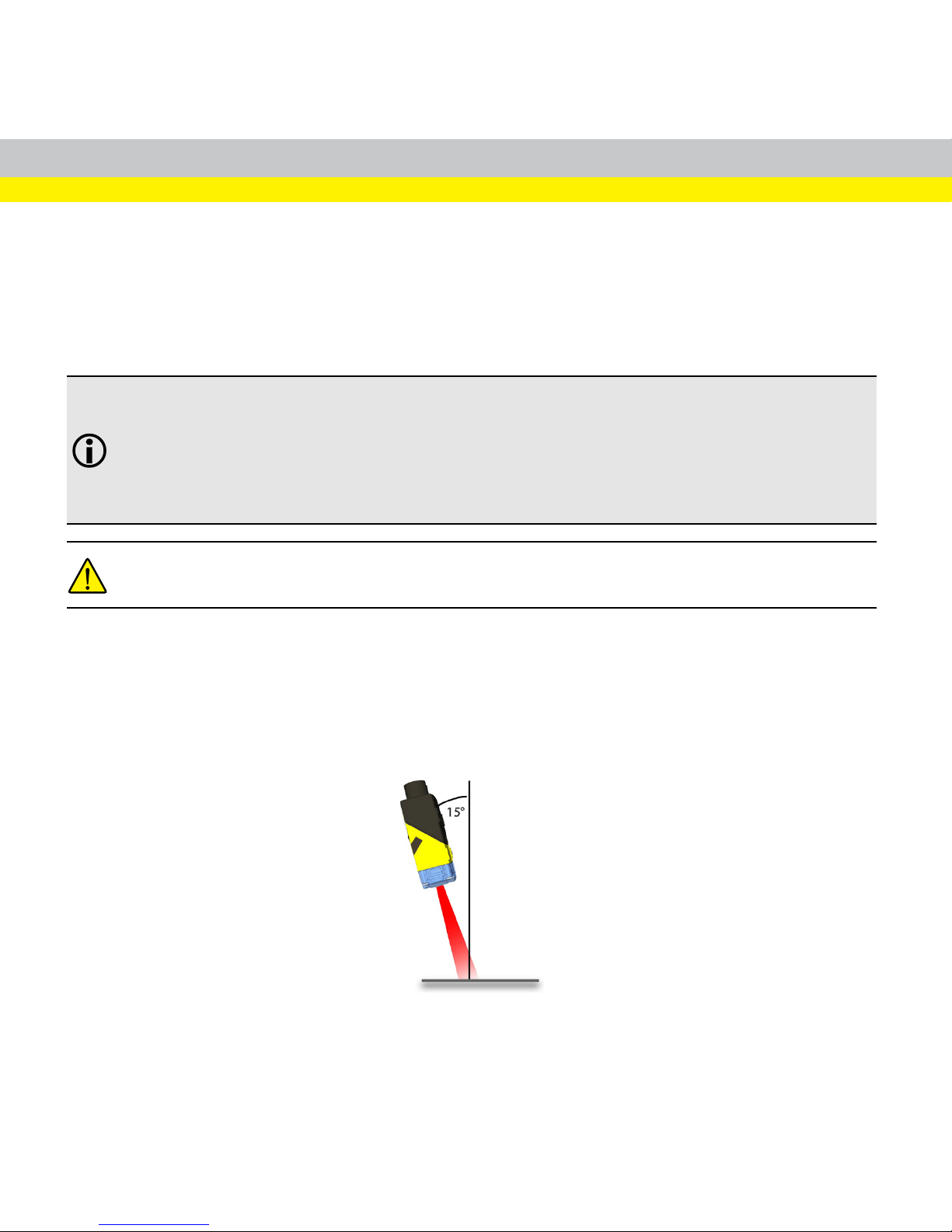

Mounting the DataMan 260 at a slight angle (15°) can reduce reflections and improve reader performance.

Use the set of mounting holes on the rear part to mount the DataMan reader.

Page 11

Connect the Ethernet Cable

1. Connect the Ethernet cable's X-coded connector to the DataMan system's ENETconnector.

2. Connect the Ethernet cable's RJ-45 connector to a switch/router or PC, as applicable.

Connect the Breakout Cable

Note: Unused wires can be clipped short or tied back using a tie made of non-

conductive material.

1. Verify that the 24VDC power supply being used is unplugged and not receiving power.

2. Attach the Breakout cable's +24VDC and GROUND to the corresponding terminalson the power supply.

CAUTION: Never connect voltages other than 24VDC. Always

observe the polarity shown.

3. Attach the Breakout cable's M12 connector to the DataMan 260 reader's 24VDC connector.

4. Restore power to the 24VDC power supply and turn it on if necessary.

Page 12

Install Software and Documentation and Connect the Reader

Follow the steps below to connect your reader to power and network:

1. Connect the I/O+RS232+24V cable to your reader.

2. For a network connection, connect your reader through an Ethernet cable to your network.

3. Connect the cable to a 24V power supply.

To configure a DataMan 260 reader, the DataMan Setup Tool software must be installed on a networked PC. The DataMan Setup Tool is available from the DataMan support site: http://www.cognex.com/support/dataman.

1. After installing the software, connect the DataMan 260 Series reader to your PC.

2. Launch the DataMan Setup Tool and click Refresh.

3. Select your DataMan 260 reader from the list and click Connect.

Page 13

DataMan 260 Specifications

Weight

142

Operating Temperature

0ºC — +40ºC (+32ºF — +104ºF)

Storage Temperature

-10ºC — +60ºC (+14ºF — +140ºF)

Maximum Humidity

<95% (non-condensing)

Environmental

IP65

Shock and Vibration

IEC 60068-2-27: 1000 shocks, semi-sinusoidal, 11g, 10ms IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10 Gs (10 to 500 Hz at

100m/s2 / 15mm)

LED Safety IEC 62471: Exempt risk group, no further labeling is required.

RS-232 RxD, TxD according to TIA/EIA-232-F

Codes

1-D barcodes: Codabar, Code 39, Code 128, and Code 93,Code 25, Interleaved 2 of 5, Pharma, Postal, Code UPC/EAN/JAN, MSI

2-D barcodes: Data MatrixTM(IDMax and IDQuick: ECC 0, 50, 80, 100, 140, and 200) QR Code and microQR Code, RSS/CS, PDF 417, MicroPDF 417, AztecCode, DotCode, MaxiCode

Discrete I/O operating Limits

HS Output 0, 1, 2, 3 I

MAX

@ 24 VDC

MAX

@ 12 VDC

150

@ 24 VDC

470

Input 0 (Trigger) V

±15 — ±25 V

Input 1 V

0 — ±5 V

TYP

@ 12 VDC

2.0

@ 24 VDC

4.2

Power Supply Requirements

Options:

l PoE powered: Class 1 PoE supply, maximum 3.84 W

l External power supply (no PoE): +24 VDC +/- 10% (1 A maximum, 5 W average)

Supplied by LPS or NEC class 2 only

Page 14

Power Consumption

<3.84 W (PoE Class 1) <5 W (average, externally powered at +24 V)

Page 15

DataMan 260 Series Imager Specifications

Specification DataMan 260 Imager DataMan 262 Imager

Image Sensor 1/3 inch CMOS 1/3 inch CMOS

Image Sensor Properties

4.51 mm x 2.88 mm (W x H), 6.0 μm square pixels

4.8 mm x 3.6 mm (W x H), 3.75 μm square pixels

Image Resolution (pixels)

752 x 480 1280 x 960

Lens Type

S-mount 6.2 mm F:5 (with optional liquid lens) with IR blocking filter S-mount 16 mm F:7 (with optional liquid lens) with IR blocking filter

Page 16

Compliance Statements

The DataMan 260 has Regulatory Model 1AA5 and meets or exceeds the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Please read these guidelines carefully before using your device.

Manufacturer:

Cognex Corporation One Vision Drive Natick, MA 01760 USA

Regulator Specification

USA FCC 47 CFR Part 15 Subpart B, Class A

Canada

ICES-003

European Community

EN55022 (CISPR 22) Class A

EN55024

EN60950

Australia

C-TICK, AS/NZS CISPR 22 / EN 55022 for Class A Equipment

Japan

VCCI V-3/2015.04 Class A

Note: For the most up-to-date CE declaration and regulatory conformity information, please refer to the Cognex online support site: http://www.cognex.com/Support.

Page 17

Safety and Regulatory

European Compliance

WARNING: This is a class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take adequate

measures.

The CE mark on the product indicates that the system has been tested to and conforms with the provisions noted within the 2014/30/EU Electromagnetic Compatibility Directive. For further information please contact: Cognex Corporation, One Vision Drive Natick, MA 01760 USA.

Cognex Corporation shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked.

FCC Class A Compliance Statement

FCC Part 15, Class AThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.

Canadian Compliance

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

C-Tick Statement

Conforms to AS/NZS CISPR 22/ EN 55022 for Class A Equipment.

UL and cUL Statement

UL and cUL listed:

IEC 60950-1:2005 (2nd Edition); Am 1:2009 + Am 2:2013

LED Safety Statement

This device has been tested in accordance with IEC62471, and has been certified to be under the limits of Exempt Risk Group. No further labeling is required.

Page 18

For European Community Users

Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its production. It may contain hazardous substancesthat could impact health and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems will reuse or recycle most of the materialsof the product you are disposing in a sound way.

The crossed out wheeled bin symbol informs you that the product should not

be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling systems, please contact your localor regional waste administration.

You may also contact your supplier for more information on the environmental performance of this product.

Page 19

中国大陆 RoHS (Information for China RoHS Compliance)

根据中国大陆《电子信息产品污染控制管理办法》(也称为中国大陆 RoHS)，以下部份列出了本产品中可能包含的有毒有害物质或元素的名称和含量。

Table of toxic and hazardous substances/elements and their content, as required by China’s management methods for controlling pollution by electronic information products.

Hazardous Substances 有害物质

Part Name

部件名称

Lead (Pb)铅Mercury

(Hg)

汞

Cadmium (Cd)

镉

Hexavalent Chromium

(Cr (VI))

六价铬

Polybrominated biphenyls (PBB)

多溴联苯

Polybrominated diphenyl ethers (PBDE)

多溴二苯醚

Regulatory Model 1AA5

X O O O O O

This table is prepared in accordance with the provisions of SJ/T 11364. 这个标签是根据 SJ / T 11364 的规定准备的。

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB / T26572 - 2011.

表示本部件所有均质材料中含有的有害物质低于GB / T26572 - 2011 的限量要求。

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB / T26572 - 2011.

表示用于本部件的至少一种均质材料中所含的危害物质超过GB / T26572 - 2011 的限制要求。
