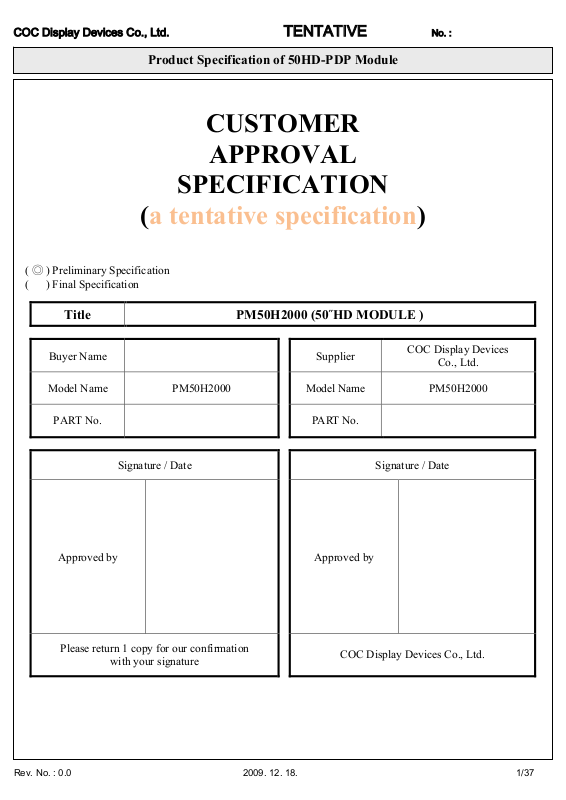

COC PM42H2000 Specification

COC Display Devices Co., Ltd. TENTATIVE No. :

(a tentative specification)

( ◎ ) Preliminary Specification ( ) Final Specification

Title PM50H2000 (50˝HD MODULE )

Product Specification of 50HD-PDP Module

CUSTOMER

APPROVAL

SPECIFICATION

Buyer Name Supplier

Model Name PM50H2000 Model Name PM50H2000

PART No. PART No.

Signature / Date Signature / Date

Approved by Approved by

COC Display Devices

Co., Ltd.

Please return 1 copy for our confirmation

with your signature

COC Display Devices Co., Ltd.

Rev. No. : 0.0 2009. 12. 18. 1/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

Record of Revisions

Revision

No.

0.0

Effective

Date

2009. 12. 18

Comments

- Establishment

Rev. No. : 0.0 2009. 12. 18. 2/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

CONTENTS

0. WARNINGS AND CAUTIONS 4

□ Warning 4

□ Caution 5

1. GENERAL DESCRIPTION 9

□ Description 9

□ Features 9

□ Applications 9

□ Electrical Interface of Plasma Display 9

□ General Specifications 10

2. ELECTRICAL SPECIFICATIONS 11

□ Input Power Specifications 11

□ Power Sequence 12

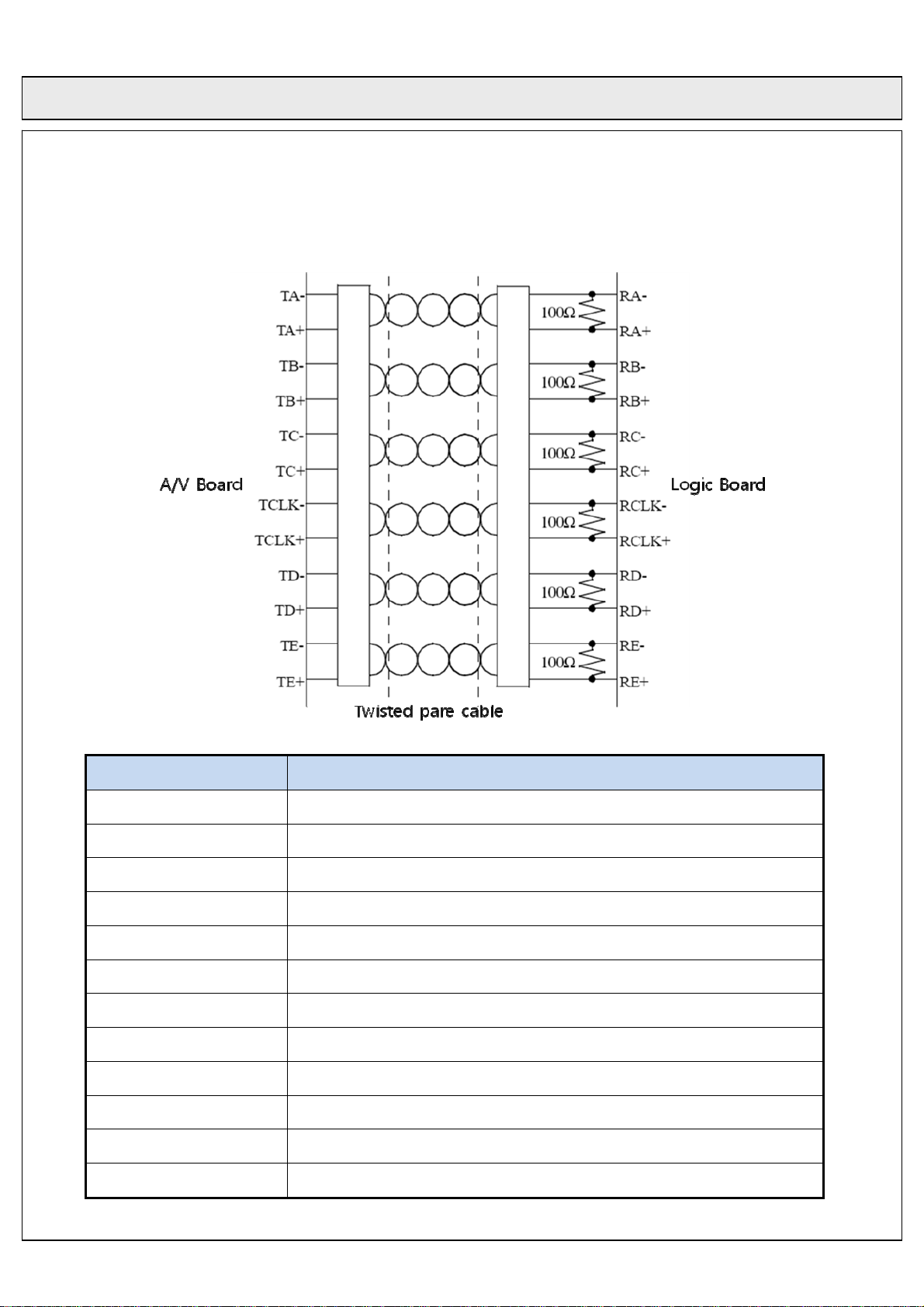

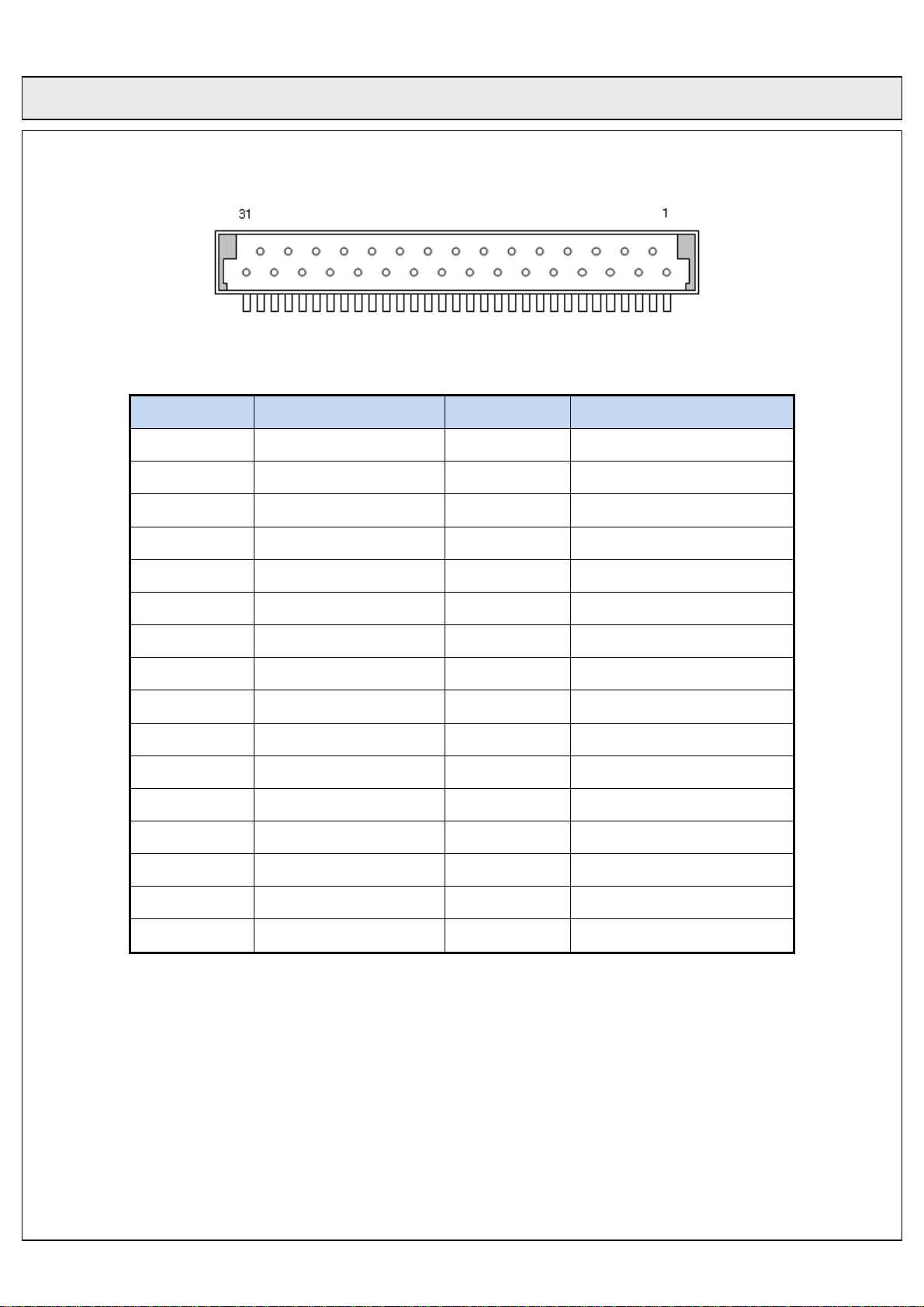

□ LVDS Connection 13

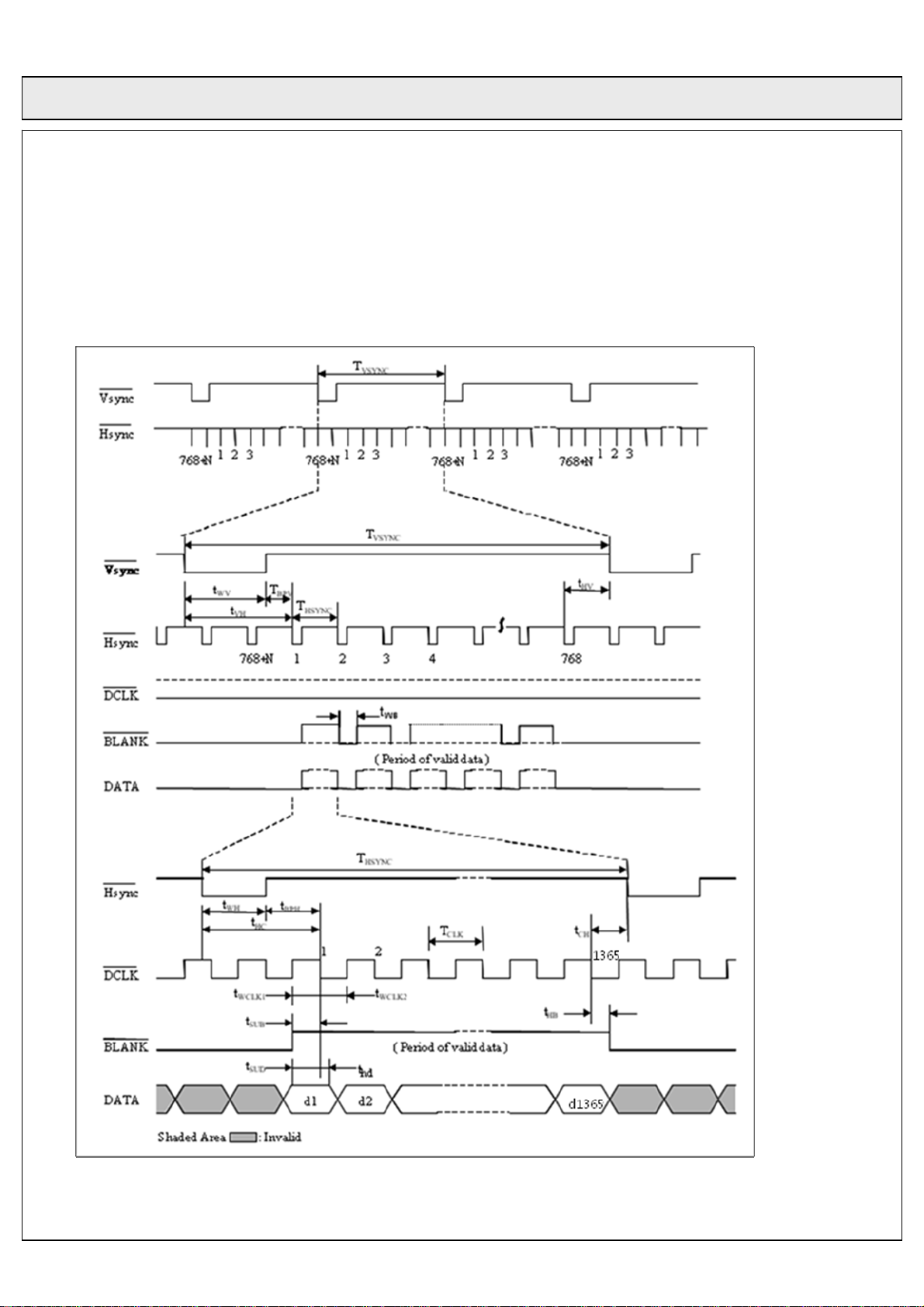

□ Input Signal Timing (Non-interlaced Mode) 17

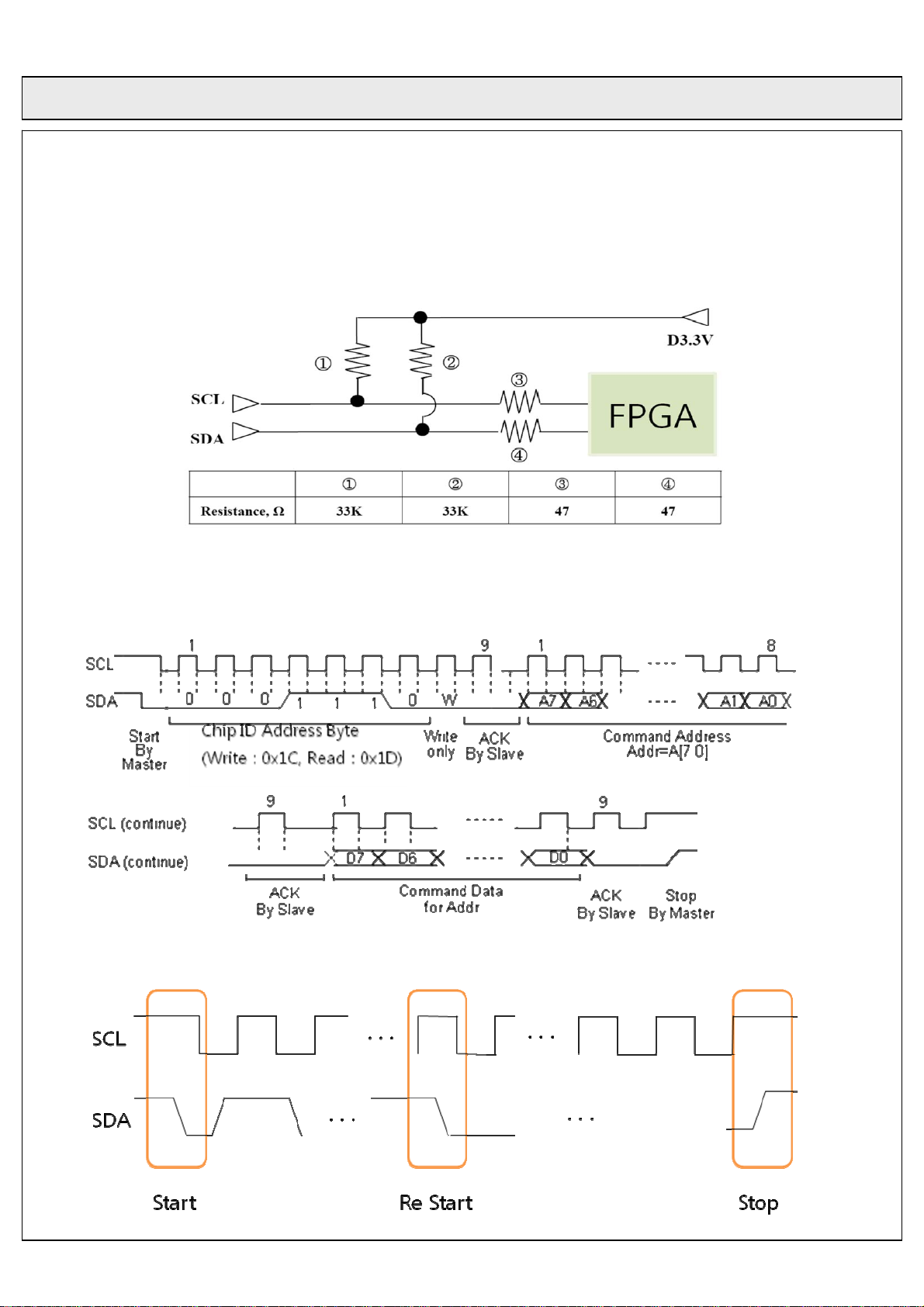

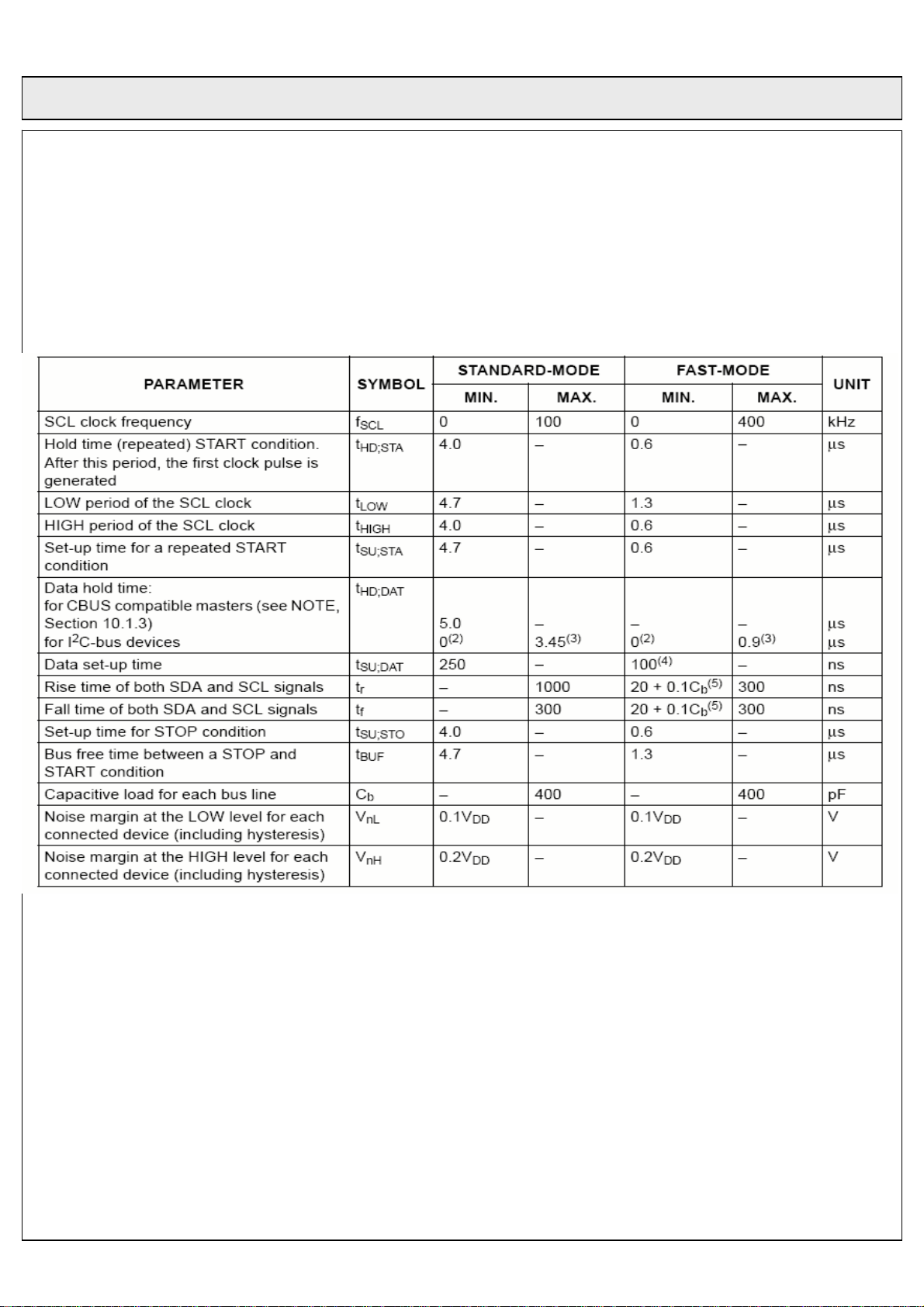

□ I2C Timing Specification & Register Description 19

3. ELECTRO OPTICAL SPECIFICATIONS 25

□ Electro Optical characteristic Specifications (60Hz) 25

□ Electro Optical characteristic Specifications (50HZ) 25

4. MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS 26

□ Mechanical Characteristic Specifications 26

□ Vibration and Drop Specifications 26

□ Environmental Conditions 26

5. IMAGE STICKING CHARACTERISTICS 27

6. OUTLINE DRAWING 28

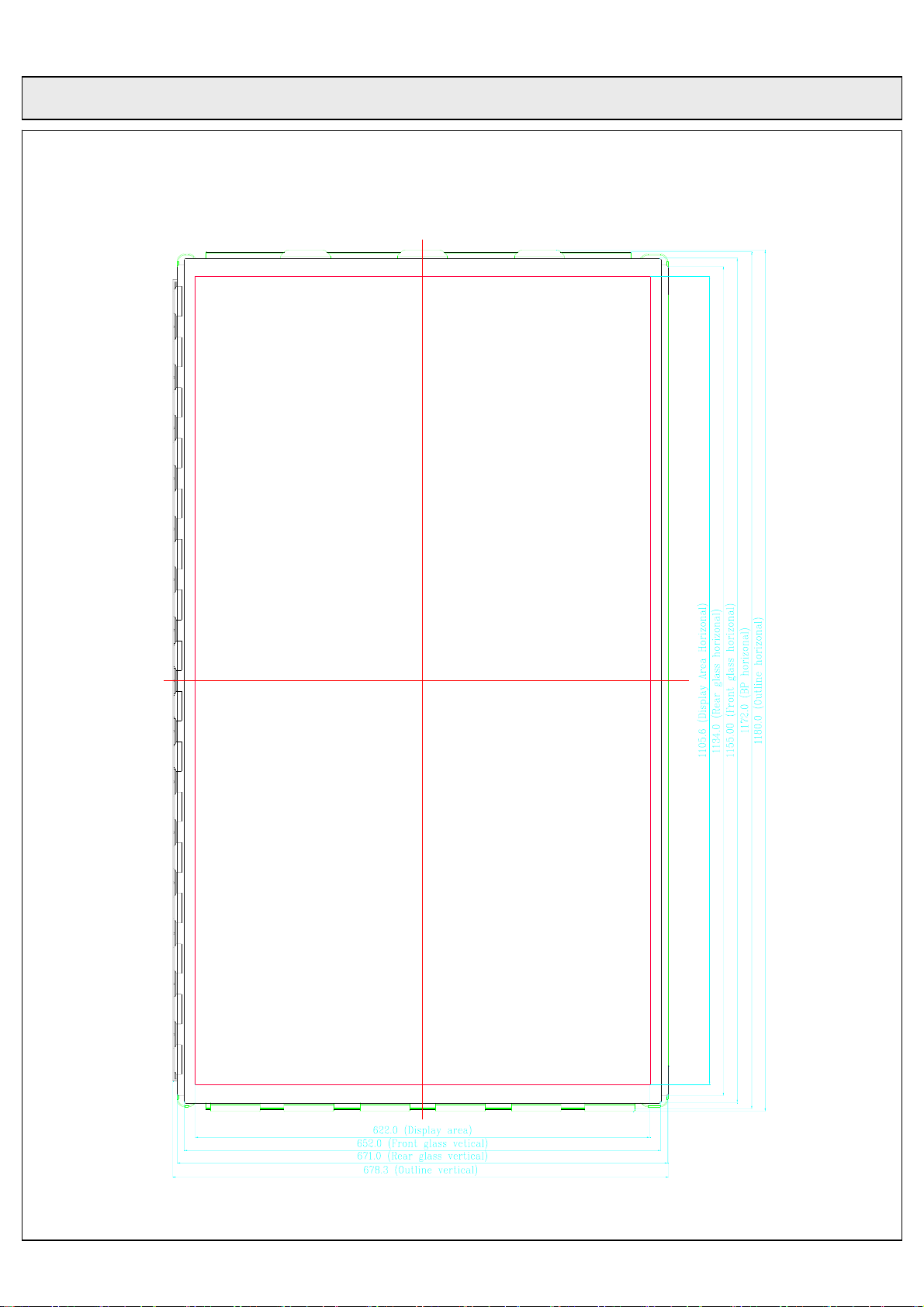

□ Front View 28

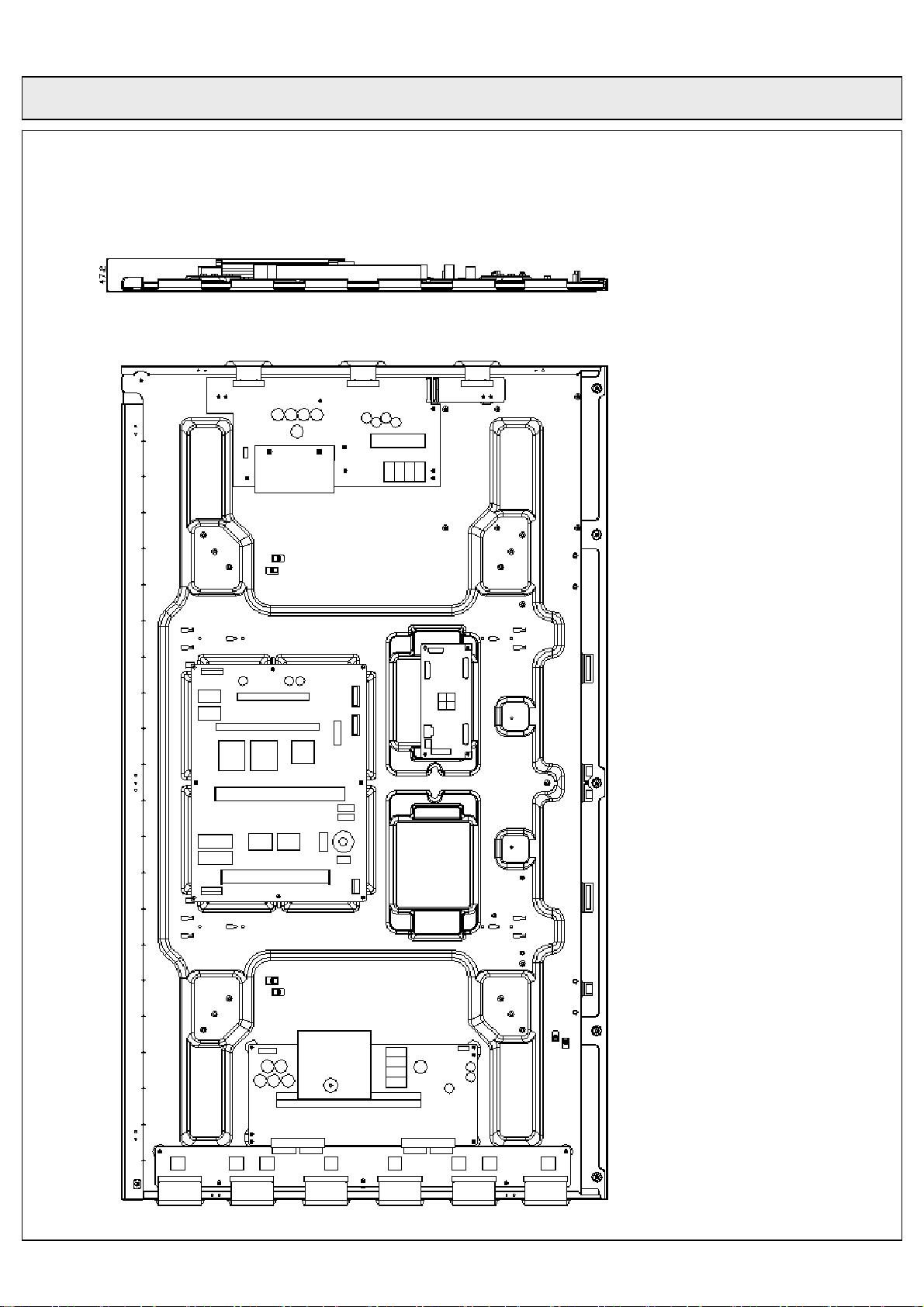

□ Rear View 29

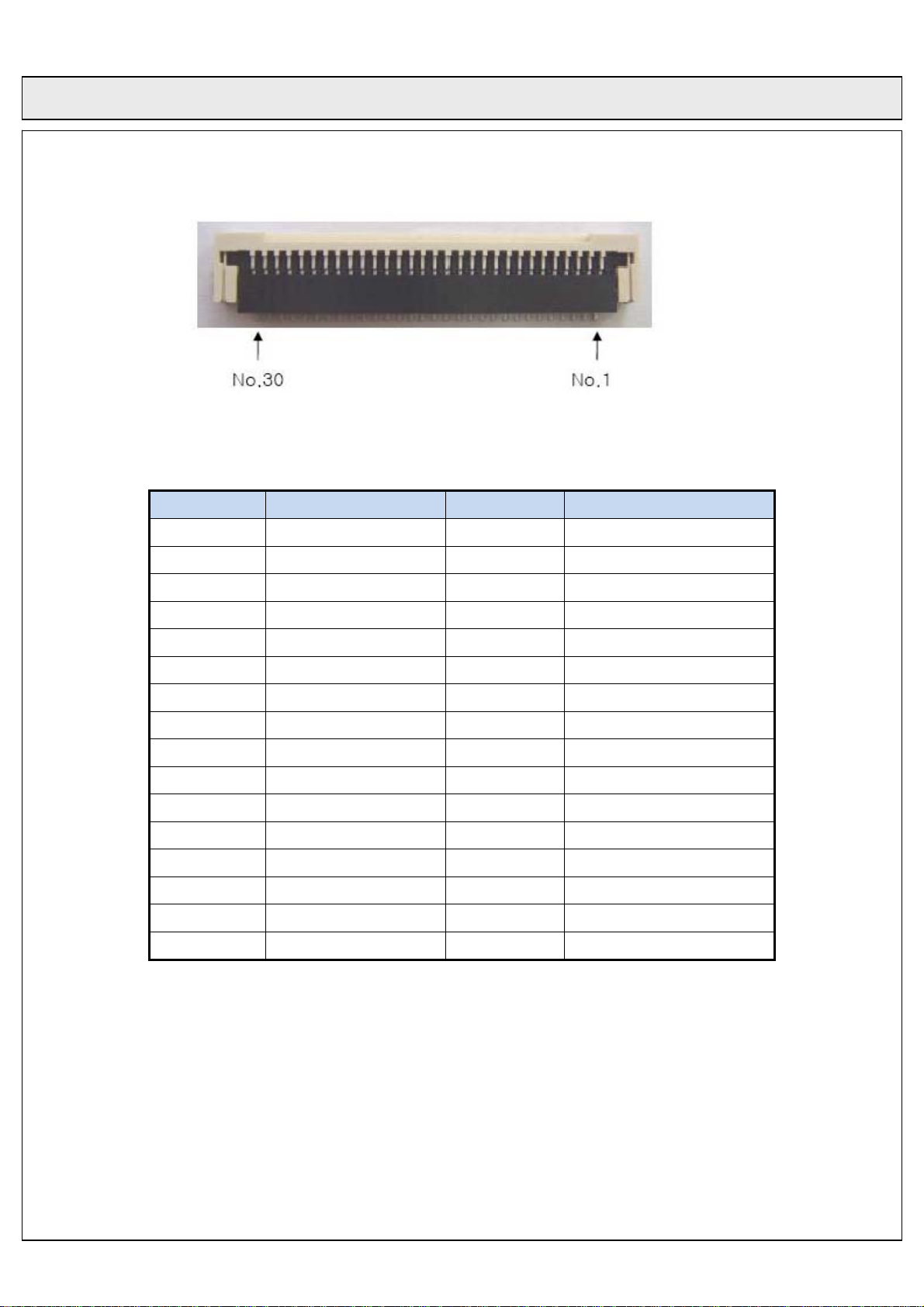

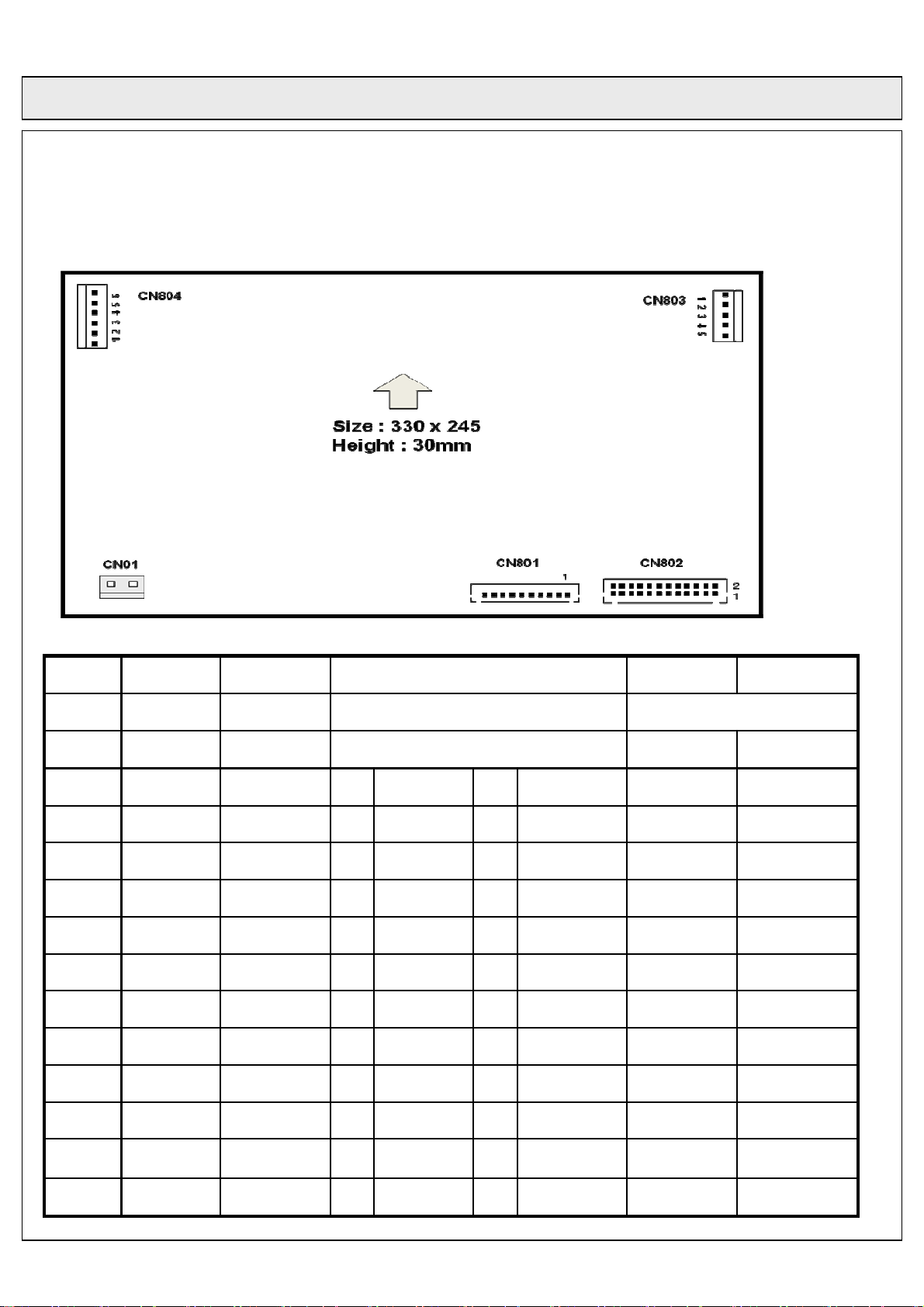

7. CONNECTORS AND CONNECTIONS 30

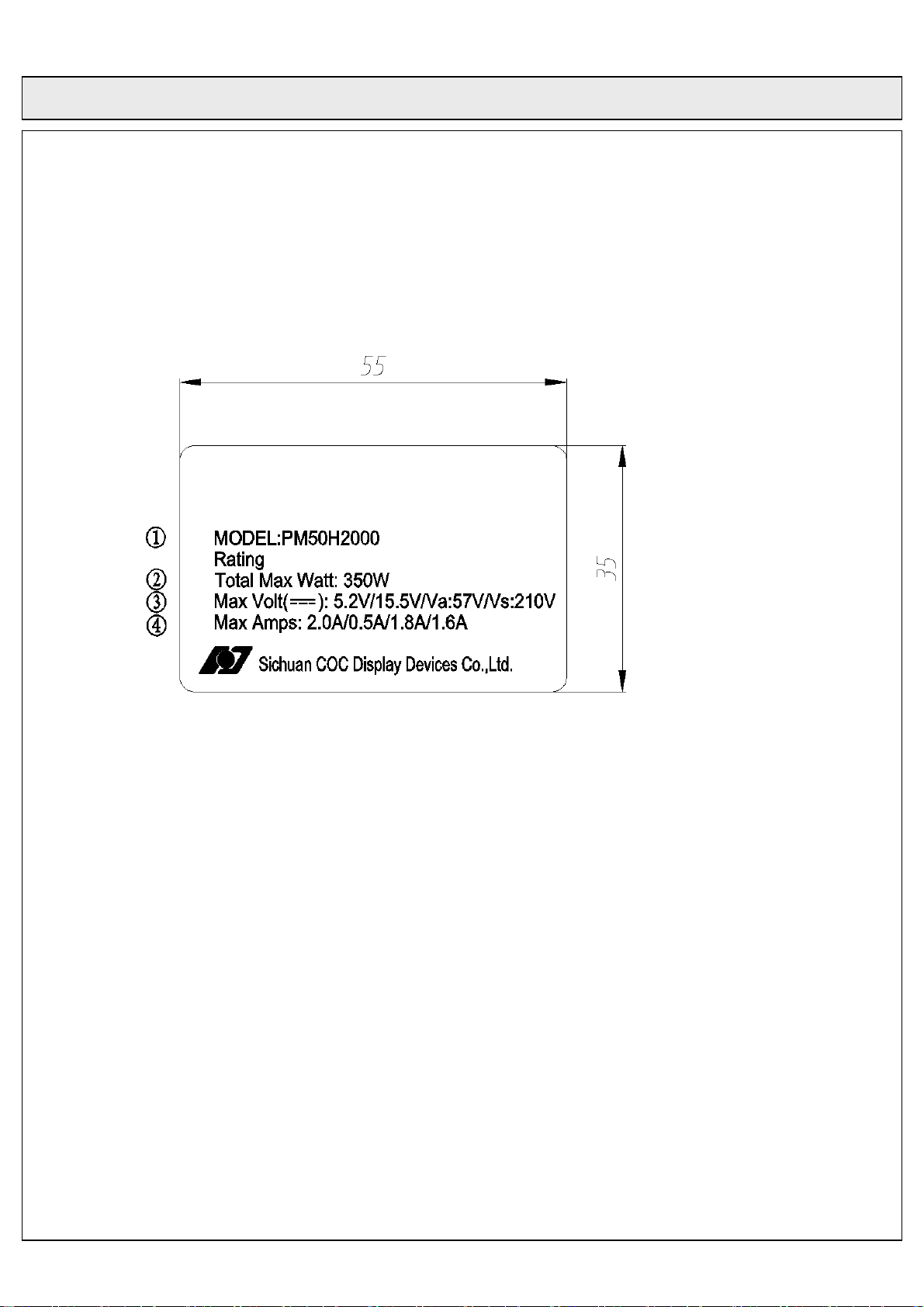

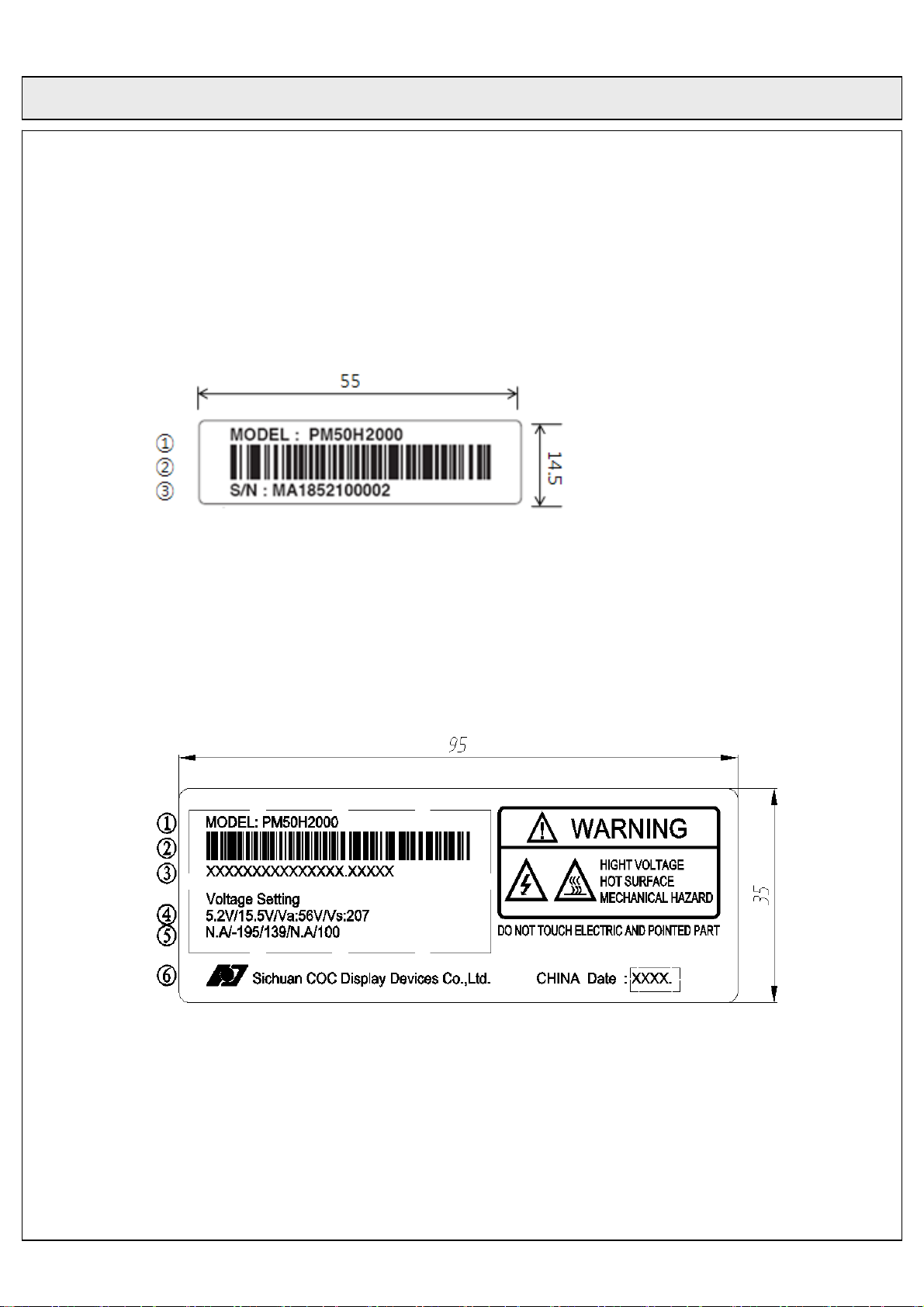

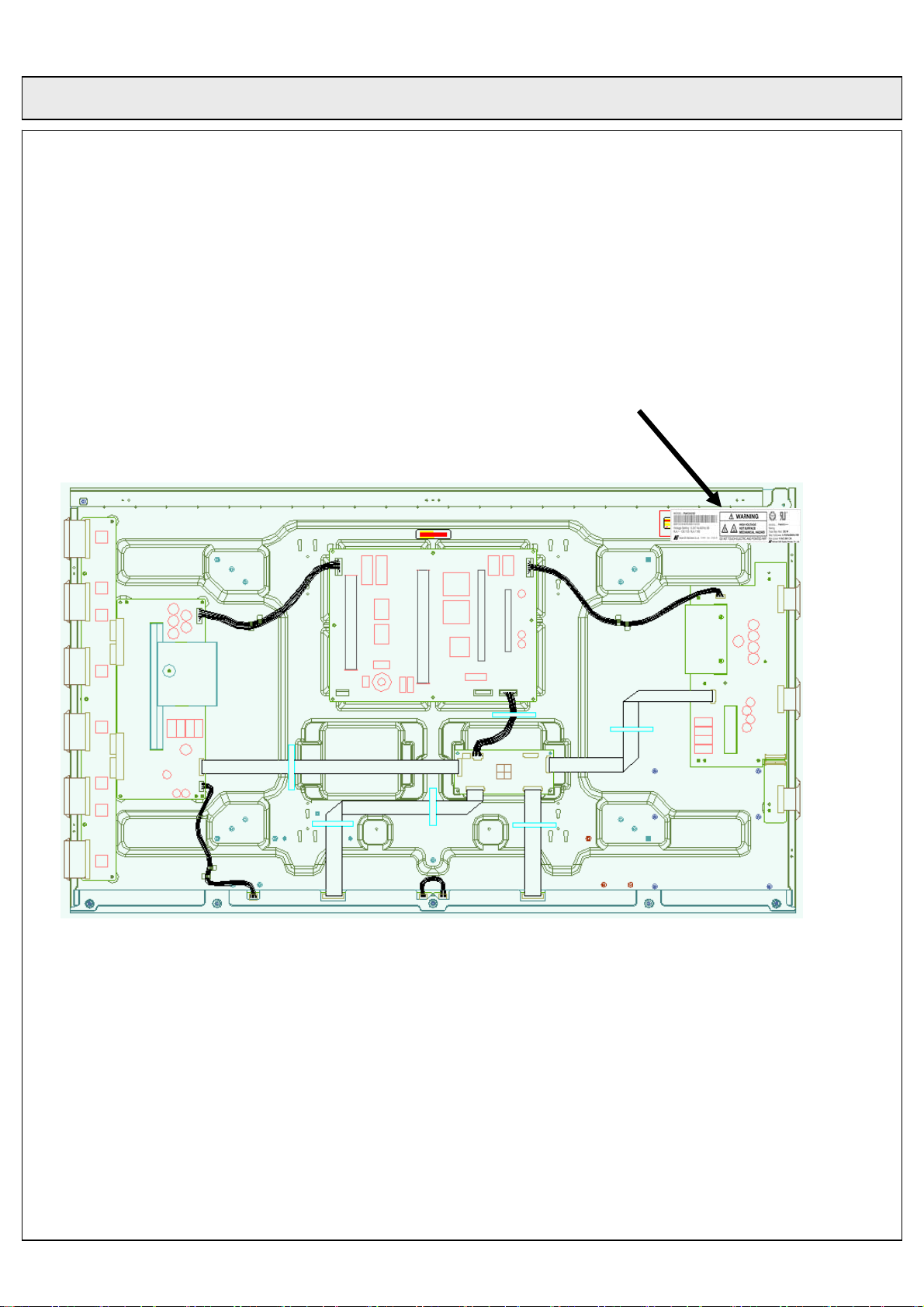

8. LABEL 31

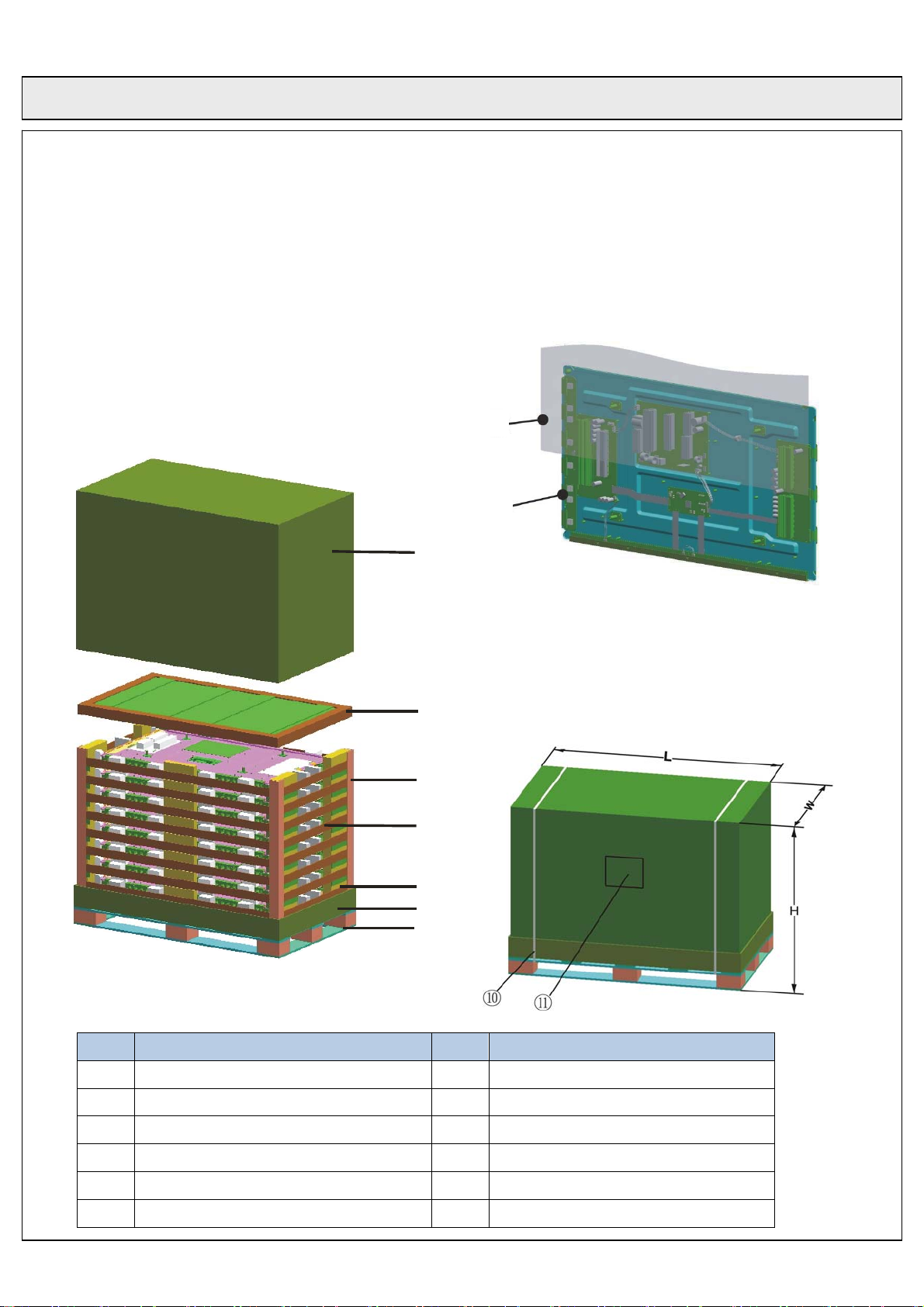

9. PACKING 34

* APPENDIX 35

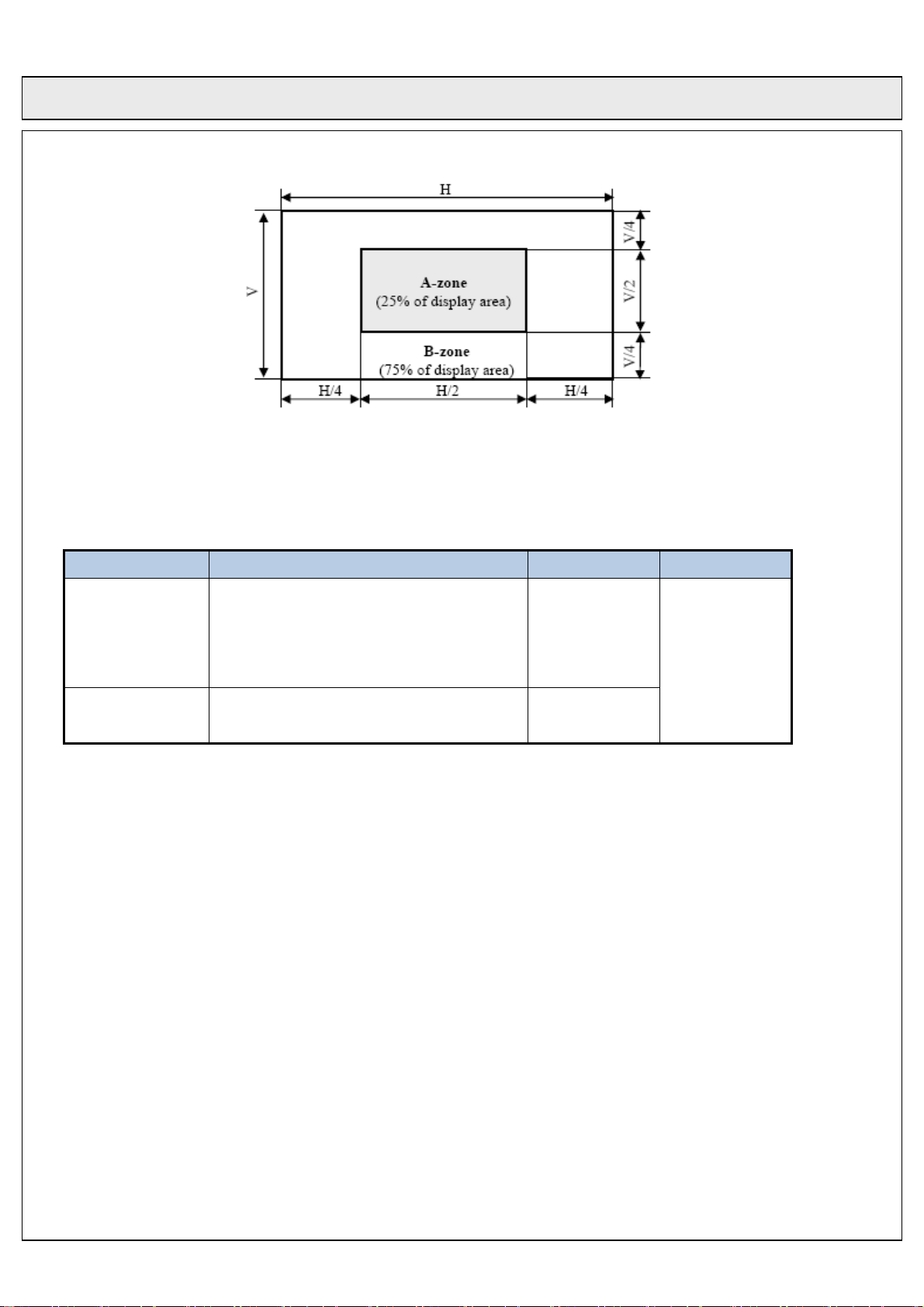

□ Cell Defect Specifications 35

□ Scratch and Dent Specification 36

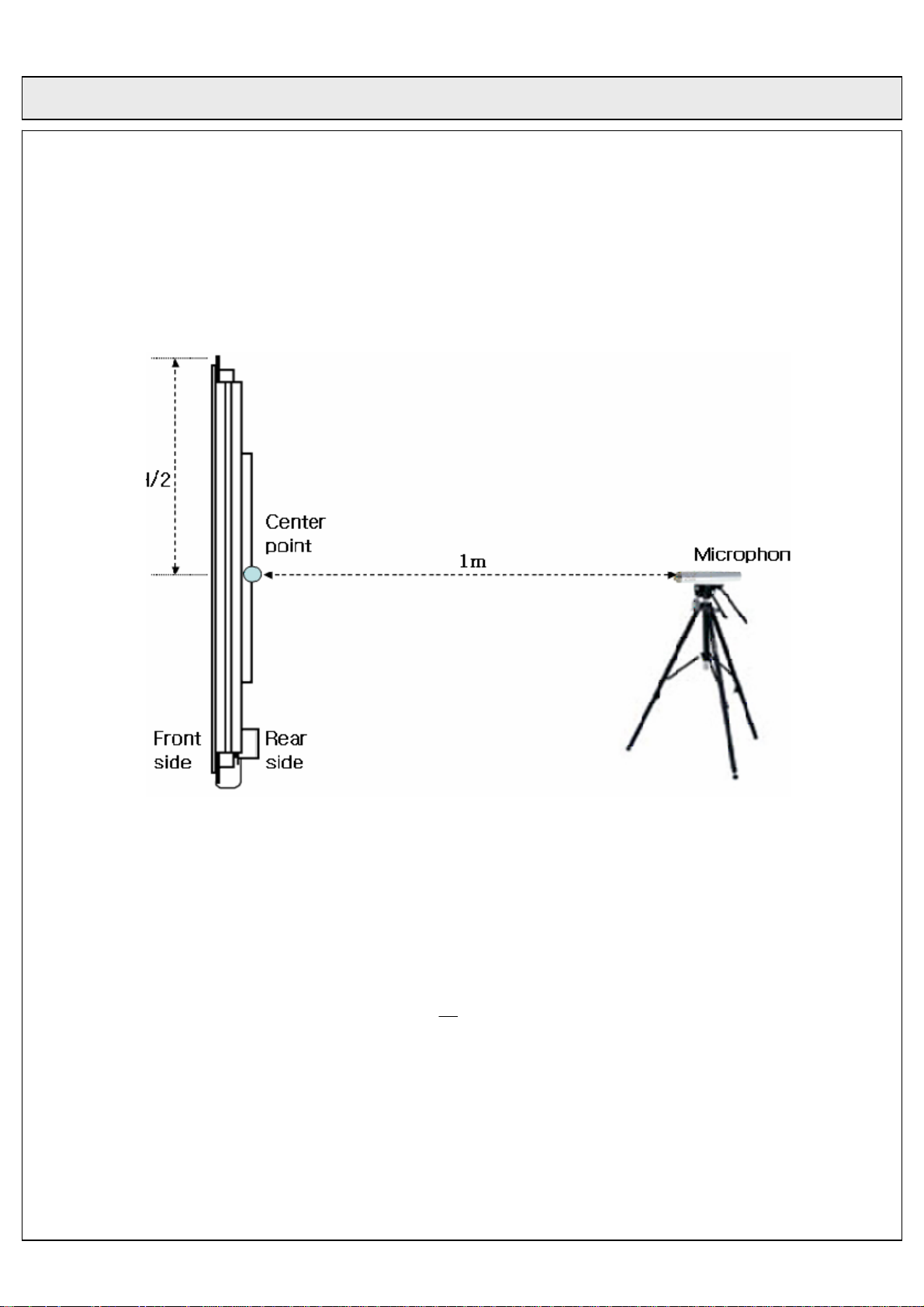

□ Sound Pressure Level Specification 36

Rev. No. : 0.0 2009. 12. 18. 3/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

0. Warnings and Cautions

WARNING indicates hazards that may lead to death or injury if ignored.

CAUTION indicates hazards that may lead to injury or damage to property if ignored.

!!

1) This product uses a high voltage (450 V max.). Do not touch the circuitry of this product with your hands

WARNING

when power is supplied to the product or immediately after turning off the power. Be sure to confirm that the

voltage is dropped to a sufficiently low level.

2) Do not supply a voltage higher than that specified to this product. This may damage the product and may

cause a fire.

3) Do not use this product in locations where the humidity is extremely high, where it may be splashed with

water, or where flammable materials surround it. Do not install or use the product in a location that does no

satisfy the specified environmental conditions. This may damage the product and may cause a fire.

4) If a foreign substance (such as water, metal, or liquid) gets inside the product, immediately turn off the power.

Continuing to use the products it may cause fire or electric shock.

5) If the product emits smoke, an abnormal smell, or makes an abnormal sound, immediately turn off the power.

If noting is displayed or if the display goes out during use, immediately turn off the power. Continuing to use

the product as it is may cause fire or electric shock.

6) Do not disconnect or connect the connector while power to the product is on. It takes some time for the

voltage to drop to a sufficiently low level after the power has been turned off. Confirm that the voltage has

dropped to a safe level before disconnecting or connecting the connector. Otherwise, this may cause fire,

electric shock, or malfunction.

7) Do not pull out or insert the power cable from/to an outlet with wet hands. It may cause electric shock.

8) Do not damage or modify the power cable. It may cause fire or electric shock.

9) If the power cable is damaged, or if the connector is loose, do not use the product; otherwise, this can lead to

fire or electric shock.

10) If the power connector or the connector of the power cable becomes dirty or dusty, wipe it with a dry cloth.

Otherwise, this can lead to fire.

Rev. No. : 0.0 2009. 12. 18. 4/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

CAUTION

!

□ General

1) Do not place this product in a location that is subject to heavy vibration, or on an unstable surface such as an

inclined surface. The product may fall off or fall over, causing injuries.

2) When moving the product, be sure to turn off the power and disconnect all the cables. While moving the

product, watch your step. The product may be dropped or fall, leading to injuries of electric shock.

3) Before disconnecting cable from the product, be sure to turn off the power. Be sure to hold the connector when

disconnecting cables. Pulling a cable with excessive force may cause the core of the cable to be exposed or

CAUTION

break the cable, and this can lead to fire or electric shock.

4) This product should be moved by two or more persons. If one person attempts to carry this product alone,

he/she may be injured.

5) This product contains glass. The glass may break, causing injuries, if shock, vibration, heat, or distortion is

applied to the product.

6) The temperature of the glass surface of the display may rise to 80°C or more depending on the conditions of

use. If you touch the glass inadvertently, you may be burned.

7) Do not poke or strike the glass surface of the display with a hard object. The glass may break or be scratched. If

the glass breaks, you may be injured.

8) If you glass surface of the display breaks or is scratched, do not touch the broken pieces or the scratches with

bare hands. You may be injured.

9) Do not place an object on the glass surface of the display. The glass may break or be scratched.

□ Design

1) This product may be damaged if it is subject to excessive stresses (such as excessive voltage, current, or

temperature). The absolute maximum ratings specify the limits of these stresses, and system design must

ensure that none of the absolute maximum ratings are exceeded.

2) The recommended operating conditions are conditions in which the normal operation of this product is

guaranteed. All the rated values of the electrical specifications are guaranteed within these conditions.

Always use the product within the range of the recommended operating conditions. Otherwise, the reliability

of the product may be degraded. Use of the product with a combination of parameters, conditions, or logic

not specified in the specifications of this product is not guaranteed. If intending to use the product in such a

way, be sure to consult COC in advance.

Rev. No. : 0.0 2009. 12. 18. 5/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

3) This product emits near infrared rays (800 to 1000nm) that may cause the remote controllers of other electric

products to malfunction. To avoid this, use an infrared absorption filter and thoroughly evaluate the system

and environment.

4) This product uses high-voltage switching and a high–speed clock. A system using this product should be

designed so that it does not affect the other systems, and should be thoroughly evaluated.

5) The materials which contain sulfur are forbidden to use, because they may damage PDP module.

6) This product has a glass display surface. Design your system so that excessive shock and load are not applied

to the glass. Exercise care that the vent at the corner of the glass panel is not damaged. If the glass panel or

vent is damaged, the product is inoperable.

7) There are some exposed components on the rear panel of this product. Touching these components may cause

an electric shock.

8) This product uses a high voltage. Design your system so that any residual voltage in this product is dissipated

quickly when power is turned off, observing the specifications.

9) This product uses heat-emitting components. Take the heat emitted by these components into consideration

when designing your system. If the product is used outside the specified temperature range, it may

malfunction.

10) This product uses a high voltage and, because of its compact design, components are densely mounted on the

circuit board. If dust collects on these components, it can cause short-circuiting between the pins of the

components and moisture can cause the insulation between the components to break down, causing the

product to malfunction.

11) Regulations and standards on safety and electromagnetic interference differ depending on the country. Design

your system in compliance with the regulations and standards of the country for which your system is

intended.

12) To obtain approval under certain safety standards (such as UL and EN), a filter that passes a shock test must

be fitted over the glass surface of the finished product. In addition, it must be confirmed that the level of UV

emissions is within the range specified by such standards.

13) If this product is used as a display board to display a static image, “image sticking” occurs. This means that

the luminance of areas of the display that remain lit for a long time drops compared with the luminance of

areas that are lit for a shorter time, causing uneven luminance across the display. The degree to which this

occurs is in proportion to the luminance at which the display is used. To prevent this phenomenon, therefore,

avoid static images as much as possible and design your system so that it is used at a low luminance, by

reducing signal level difference between bright area and less bright area through signal processing.

14) Within the warranty period, general faults that occur due to defects in components such as ICs will be

rectified by COC without charge. However, IMAGE STICKING is not included in the warranty. Repairs due

to the other faults may be charged for depending on responsibility for the faults.

Rev. No. : 0.0 2009. 12. 18. 6/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

15) In case of AC PDP driving mechanism, because the brightness of output is not always proportional to input

signals. Therefore the non-linearity of gray can occasionally be observed in certain gray levels as well as

Contour and Error Diffusion Noise can be appeared when a dark picture is on the screen especially. These are

phenomena that can be observed on the PDP driving mechanism. With simple adjustment to picture

brightness control, these can be reduced considerably.

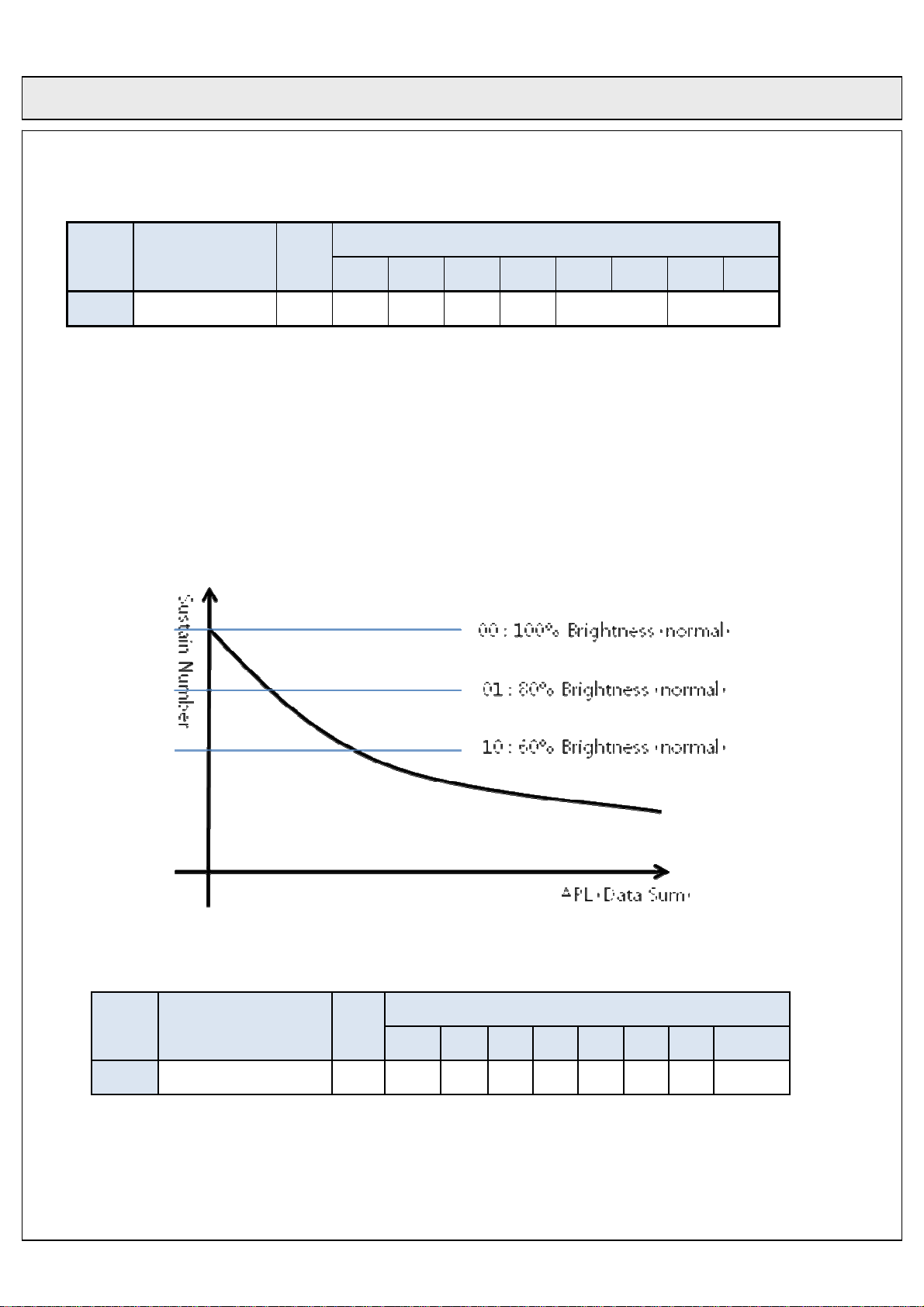

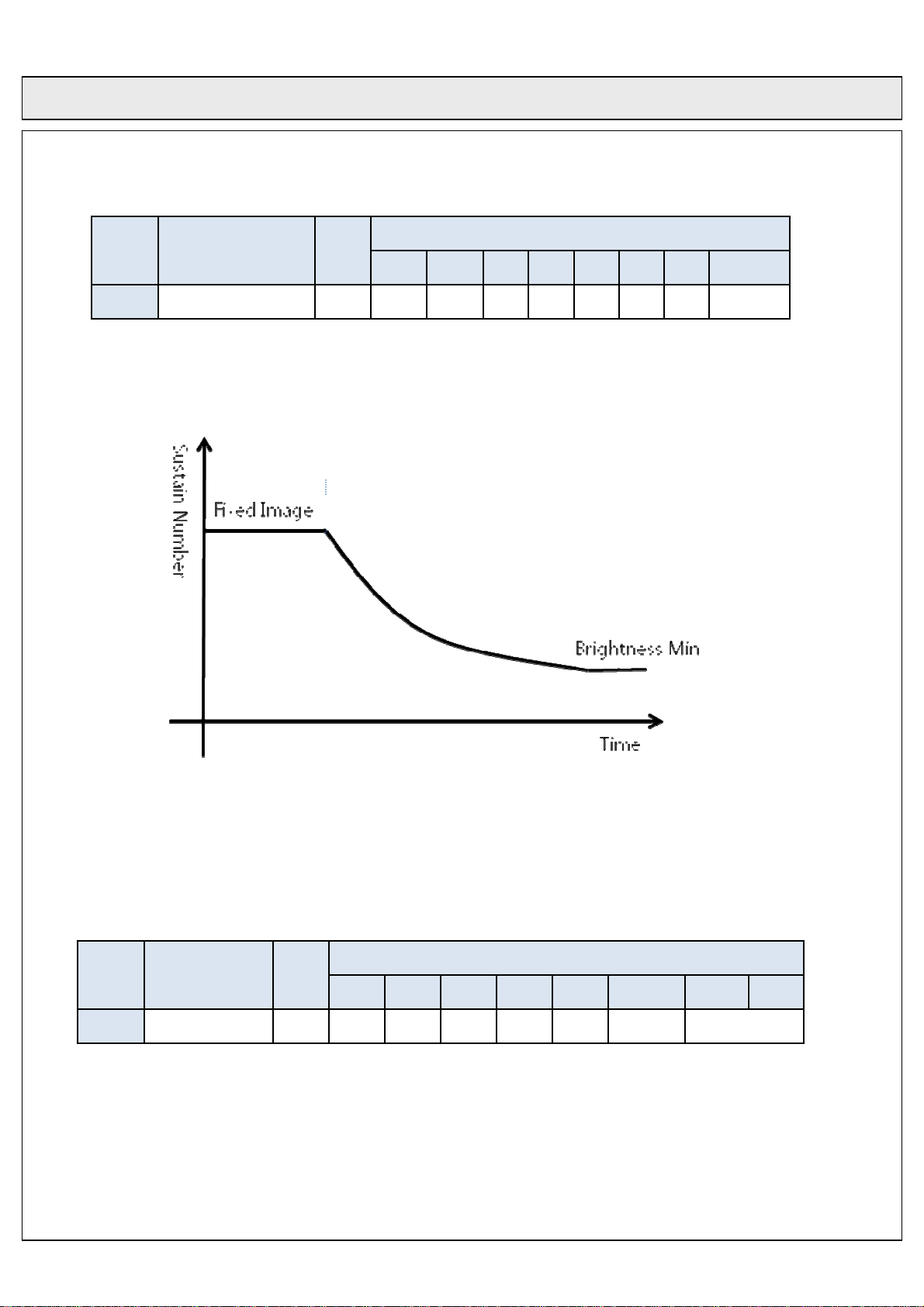

16) Because of the need to control the power consumption on the PDP driving mechanism, the APL(Average

Picture Level) mode was equipped. Thus, as the picture on the screen changes, there can be slightly switched

in brightness. This also is a phenomenon that can be observed on the PDP driving mechanism.

17) This product is designed to COC’s “Standard” quality grade. If you wish to use the product for applications

outside the scope of the “Standard” quality grade, be sure to consult COC in advance to assess the

technological feasibility before starting to design your system.

□ Use

1) Because this product uses a high voltage, connecting or disconnecting the connectors while power is supplied

to the product may cause malfunctioning. Never connect or disconnect the connectors while the power is on.

Immediately after power has been turned off, a residual voltage remains in the product. Be sure to confirm

that the voltage has dropped to a sufficiently low level.

2) Watching the display for a long time can tire the eyes. Take a break at appropriate intervals.

3) PDP’s brightness and contrast ratio is lower than that of the CRT. The picture is dimmer with surrounding light

and better for viewing in dark condition.

4) Do not cover or wrap the product with a cloth or other covering while power is supplied to the product.

5) Before turning on power to the product, check the wiring of the product and confirm that the supply voltage is

within the rated voltage range. If the wiring is wrong or if a voltage outside the rated range is applied, the

product may malfunction or be damaged.

6) Do not store this product in a location where temperature and humidity are high. This may cause the product to

malfunction. Because this product uses a discharge phenomenon, it may take time to light (operation may be

delayed) when the product is used after it has been stored for a long time. In this case, it is recommended to

light all cells for about 2 hours (aging).

7) If the glass surface of the display becomes dirty, wipe it with a soft cloth moistened with a neutral detergent.

Do not use acidic or alkaline liquids, or organic solvents.

8) Do not tilt or turn upside down while the module package is carried, the product may be damaged.

9) This product is made from various materials such as glass, metal, and plastic. When discarding it, be sure to

contact a professional waste disposal operator.

Rev. No. : 0.0 2009. 12. 18. 7/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

□ Repair and Maintenance

Because this product combines the display panel and driver circuits in a single module, it cannot be repaired or

maintained at user’s office or plant. Arrangements for maintenance and repair will be determined later.

□ Others

1) If your system requires the user to observe any particular precautions, in addition to the above warnings and

cautions, include such caution and warning statements in the manual for your system.

2) If you have any questions concerning design, such as on housing, storage, or operating environment, consult

COC in advance.

Rev. No. : 0.0 2009. 12. 18. 8/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

1. GENERAL DESCRIPTION

□ DESCRIPTION

The PM50H2000 is a 50-inch 16:9 color plasma display module with resolution of 1365(H) × 768(V) pixels.

This is the display device which offers vivid colors with adopting AC plasma technology by COC.

□ FEATURES

High peak brightness (1,200cd/m2 Typical) and high contrast ratio (10,000:1 Typical) enables user to create

high performance PDP SETs.

□ APPLICATIONS

- Public information display

- Video conference systems

- Education and training systems

□ ELECTRICAL INTERFACE OF PLASMA DISPLAY

The PM50H2000 requires only 8/10 bits of digital video signals for each RGB color. In addition to the video

signals, six different DC voltages are required to operate the display. The PM50H2000 is equipped with P-CUBE

function which analyzes display signals to optimize system control factor for showing the best display

performance.

Rev. No. : 0.0 2009. 12. 18. 9/37

COC Display Devices Co., Ltd. TENTATIVE No. :

R

RB R

RBR

Product Specification of 50HD-PDP Module

□ GENERAL SPECFICATIONS

- Model Name : PM50H2000

- Number of Pixels : 1365(H) × 768(V) (1pixel=3 RGB cells)

- Pixel Pitch : 810㎛ (H) × 810㎛ (V)

- Cell Pitch : 270㎛ (H) × 810㎛ (V)

- Display Area : 1105.6(H) × 622.0 (V) ± 0.5mm

- Outline Dimension : 1180.0(H) × 678.3(V) × 47.2(D) ± 1mm

- Pixel Type : RGB Closed (Well) type

- Number of Gradations : 10bit (R) 1,024 × (G) 1,024 × (B) 1,024 colors (1.073 billion)

: 8bit (R) 256 × (G) 256 × (B) 256 colors (16.78 million)

- Weight : 18±0.5 Kg (Net 1EA)

- Aspect Ratio : 16:9

- Peak Brightness : Typical 1,200cd/㎡ (1/100 White Window pattern at center)

- Contrast Ratio : Average 170:1 (In a bright room with 100Lux at center)

: Typical 10,000:1 (In a dark room 1/100 White Window pattern at center)

- Power Consumption : Max. 350W

- Expected Life-time : Warranty life time 60,000 Hours with continuous operation

- Display Dot Diagram

nd

2

Pixel

2

Pixel

column

3rdPixel

column

...............

Cell Pitch (width)

270㎛

1,365

column

Pixel Pitch (width)

1stPixel

column

810㎛

Pixel

th

st

1

Pixel

1

Pixel

row

2ndPixel

row

3 rdPixel

row

4 thPixel

row

th

768

768 Pixel

Pixel

row

Pitch (Height)

R GB

G R B

R GB G R B

810㎛

R GB G R B

GB G RB

GB G

GB G RB

...............

GB G RB

...............

GB G RB

...............

GB G RB

...............

GB G

...............

G B G R B

Rev. No. : 0.0 2009. 12. 18. 10/37

COC Display Devices Co., Ltd. TENTATIVE No. :

Product Specification of 50HD-PDP Module

2. Electrical Specifications

□ Input power Specifications

Output

Typic al

(V)

*1PDP

Module

Output

Name

D5V 5.2 - ±5 0.5 1.0 2.0 120

Vg 15.5 - ±5 0.1 0.3 0.5 200

VA 56 52 ~ 57 ±2 0.01 1.0 1.8 500

Va ri ab le

Voltage

Range(V)

Voltage

Tolerance

(%)

Output Current

(A mean)

Min. Nor. Max.

Ripple & Noise

(mVp-p)

VS 207 200 ~ 210 ±2 0.1 1.4 1.6 700

5V St-by 5.2 - ±5 0.04 1.0 1.8 120

Vsc

Board

(Signal

Interface)

A5V 5.2 - ±5 0.1 2.5 3.5 120

A12V 12 - ±5 0.1 1.0 2.0 160

Vamp 15.5 - ±5 0.1 0.5 2.5 200

*1. PDP Module Maximum Power is below 350W.

[Note]

1. Earth Leakage current

The power supply leakage current shall be less than 0.5mA

Rev. No. : 0.0 2009. 12. 18. 11/37

COC Display Devices Co., Ltd. TENTATIVE No. :

□ Power Sequence

Product Specification of 50HD-PDP Module

Rev. No. : 0.0 2009. 12. 18. 12/37

COC PM42H2000 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
