Cobra Electronics XRS R8, XRS R10G User Manual

ntroduction

Important Information and Customer Assistance

The Cobra line of quality products includes:

CB Radios

microTALK

Radar/Laser Detectors

Safety Alert

Handheld GPS Receivers

Mobile GPS Navigation Systems

HighGear

CobraMarine

Power Inverters

Accessories

Nothing Comes Close to a Cobra

Radios

Traffic Warning Systems

Accessories

VHF Marine Radios

Chartplotters

For more information or to

order any of our products,

please visit our website:

www.cobra.com

English

Important Information

Safe Driving

Motorists are expected to exercise all due caution while using this product, and to obey all applicable traffic laws. Do not attempt to change settings of the unit while the car is in motion.

Federal Laws Governing the Use of Radar Detectors

It is not against federal law to receive radar transmissions with your Cobra®radar/laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action.

Safety/Strobe Alert

Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert, 3M or Tomar strobe transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area.

Some states and municipalities prohibit mounting any object on your windshield. If you drive in these states or areas; you can mount the MDU on the dash.

Security of Your Vehicle

Before leaving your vehicle, always remember to conceal your Remote Display Unit (RDU) in order to reduce the possibility of break-in and theft. Your Main Detector Unit (MDU) has a two-position bracket that, when in the up position, presents a very discreet profile from outside the vehicle.

Customer Assistance

Use your owner’s manual to learn about product features. Cobra Electronics offers the following customer assistance services:

For Assistance in the U.S.A.

Automated Help Desk, English only. 24 hours a day, 7 days a week 773-889-3087. Customer Assistance Operators, English and Spanish, 8:00 am to 6:00 p.m. Central

Time Mon. through Fri. (except holidays) 773-889-3087.

Questions, English and Spanish, Fax: 773-622-2269. Technical Assistance, English only, www.cobra.com.

English and Spanish e-mail, Product info@cobra.com.

For Assistance Outside the U.S.A. Contact Your Local Dealer

6500 West Cortland Street

English

Chicago, Illinois 60707 USA

www.cobra.com

•

™

Introduction

Controls, Indicators and Connections

Introduction

Accessories In This Package

Customer Assistance

Accessories Order Info and Trademark Acknowledgement

The XRS R8 provides detection capabilities for radar, laser and strobe signals. The XRS R10G has all the features of the XRS R8 plus a GPS locator module

which provides alerts when approaching photo-enforced intersections, roads with fixed red light/speed cameras and caution areas (such as a high-accident intersection). The XRS R10G can store up to 1,000 additional user-programmable Location Alerts.

Full-Color Extreme Bright DataGrafix Display

™

USB Power Connector for Recharging Battery

GPS Locator for Model XRS R10G (Optional for Model XRS R8)

IntelliLink™Remote Display Unit (RDU)

Main Detector Unit (MDU)

Power Button

USB Port for Connection of GPS Locator

12V Power Connector

Plug-in Global Positioning System Locator

USB Connector

Two-Piece, Self-Adhesive Fasteners

Speaker

Accessories In This Package

MDU 12V Power Cord with In-line Fuse for Hardwired Installation

RDU 12V to 5V USB Power Adapter

RDU Holster and Vent/Visor Clips

Hook and Loop Strips for Alternate Holster Mounting.

DU 12V Power Cord with In-line

M Fuse and Cigarette Lighter Plug

RDU USB to Mini-USB Retractable Cable

MDU Power Cord Clips and Pre-cut Adhesive Tapes

Adapter for Database Updates (R10G Only)

•

Ordering From U.S.A.

Call 773-889-3087 for pricing or visit www.cobra.com.

For Credit Card Orders

Call 773-889-3087 [Press one from the main menu] 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday.

Make Check or Money Order Payable To

Cobra Electronics, Attn: Accessories Dept., 6500 West Cortland Street, Chicago, IL 60707 U.S.A.

To Order Online

Please visit our website: www.cobra.com

Item # Description

CLP-2B Dual Port Power Adapter RDA GPSL55 GPS Locator Upgrade (for Model XRS R8 Only) RDA LIBP LiON Replacement Battery Pack RDA RDU Replacement RDU

Trademark Acknowledgement

•

Cobra®, DigiView®, EasySet®, Extra Sensory Detection®, IntelliMute®, IntelliMute®Pro, IntelliShield®, LaserEye®, Nothing Comes Close to a Cobra®, Safety Alert®Traffic Warning System, Strobe Alert®, VG-2 Alert®, Xtreme Range Superheterodyne®and the snake design are registered trademarks of Cobra Electronics Corporation, USA.

Cobra Electronics Corporation™, 14 Band™, 15 Band™, Extreme Bright DataGrafix™, IntelliLink™, IntelliScope™, IntelliView™, Revolution™ Series, SmartPower™, Spectre Alert™, Super-Xtreme Range Superheterodyne™, S-XRS™, UltraBright™, and Voice Alert™ are trademarks of Cobra Electronics Corporation, USA.

Opticom™ is a trademark of 3M Corporation. Instaclear®for Ford is a registered trademark of Ford Motor Company, Inc. Electriclear®for GM is a registered trademark of General Motors Corporation. 20-20™ and Ultra-Lyte™ are trademarks of Laser Technology, Inc. ProLaser™ and ProLaser III™ are trademarks of Kustom Signals, Inc. Bee III™ and Pop™ are a trademarks of MPH Industries. Stalker™ LIDAR is a trademark of Applied Concepts, Inc. Spectre I™ and Spectre IV+™ are trademarks of Stealth Micro Systems Pty. Ltd. SpeedLaser™ is a trademark of Laser Atlanta, LLC. Interceptor VG-2™ is a trademark of TechniSonic Industries LTD. Tomar®is a registered trademark of TOMAR Electronics, Inc.

English

Nothing Comes Close to a Cobra

Introduction

Contents

Introduction

Important Information . . . . . . . . . . A1

Customer Assistance . . . . . . . . . . A1

Controls, Indicators and

Connections . . . . . . . . . . . . . . . . A2

Accessories In This Package . . . . . A3

Product Overview . . . . . . . . . . . . . . 2

Installation Overview . . . . . . . . . . . . 4

Your Detector

Installation . . . . . . . . . . . . . . . . . . . . 7

Controls and Display . . . . . . . . . . . 15

Getting Started . . . . . . . . . . . . . . . 17

Programming . . . . . . . . . . . . . . . . 21

Program Navigation . . . . . . . . . . . 22

Settings . . . . . . . . . . . . . . . . . . . . . 24

Detection Alerts . . . . . . . . . . . . . . . 29

Radar and Laser . . . . . . . . . . . . . . 36

Maintenance . . . . . . . . . . . . . . . . . 38

Specifications . . . . . . . . . . . . . . . . 39

Customer Assistance

Product Service . . . . . . . . . . . . . . . 40

Warranty

Warranty . . . . . . . . . . . . . . . . . . . . 41

User License

User License . . . . . . . . . . . . . . . . . 42

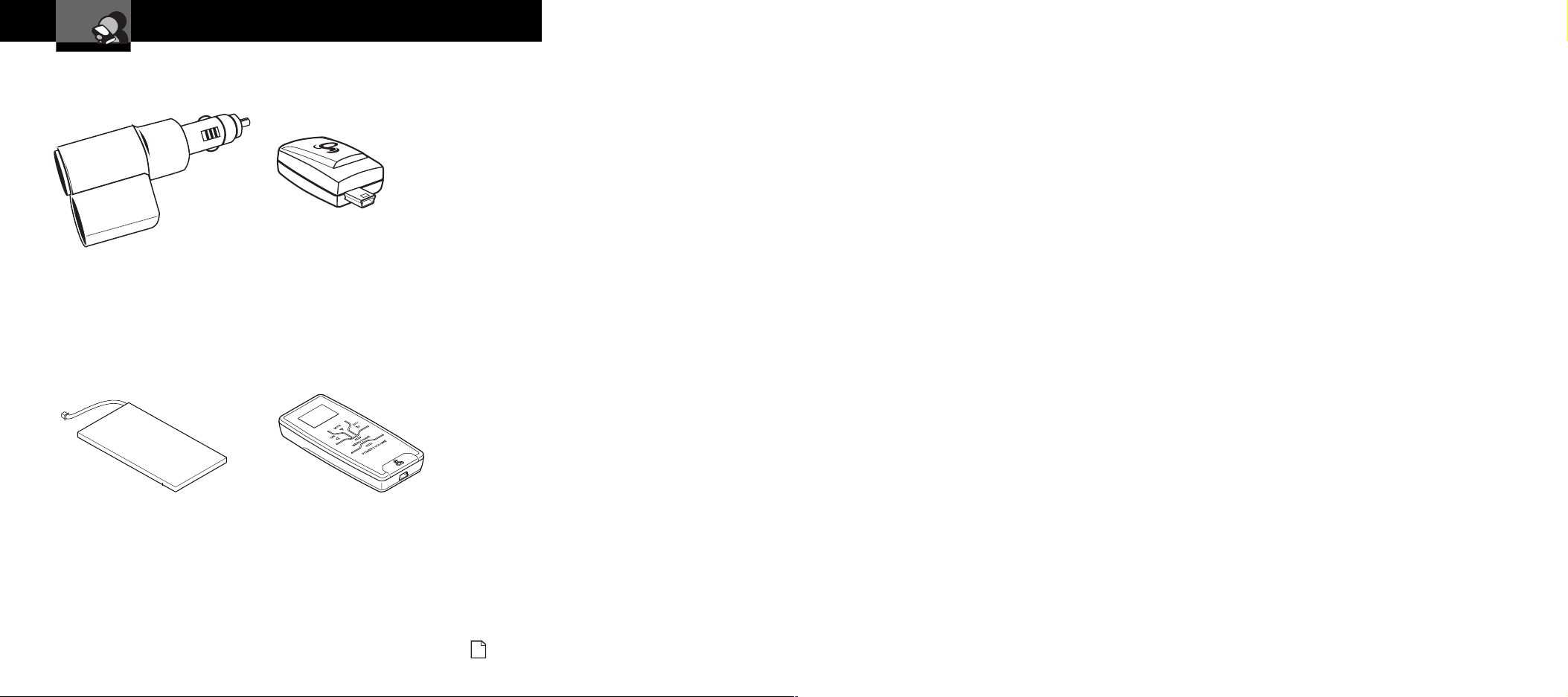

Optional Accessories

Optional Accessories . . . . . . . . . . . 44

Accessories Order Info . . . . . . . . . 45

Trademarks

Trademark Acknowledgement . . . . 45

Nothing Comes Close to a Cobra

Introduction

Product Overview

Introduction

Product Overview

Cobra XRS R8 and XRS R10G

CAUTION

Modifications or parts not approved by Cobra Electronics Corporation may violate FCC Rules and void authority to operate this equipment.

Read and understand the information in the Installation Overview and Installation sections of this manual for best operation.

The XRS R8 consists of a Main Detector Unit (MDU) and a wireless Remote Display Unit (RDU). The XRS R10G adds a Global Positioning System Locator module, providing fixed red light/speed camera and caution area location-based alerts. The XRS R8 can be upgraded with the optional Cobra GPS Locator to provide fixed red light/speed camera and caution area location-based alerts.

Main Detector Unit (MDU)

The MDU is equipped with an adjustable, two-position bracket for detection operation in the down (horizontal) position or in the up position for a less visible profile from the outside. The MDU issues audible messages during power-on and self-testing. The MDU is equipped with a power button to turn the unit On and Off.

The MDU contains detection function sensors so proper mounting and orientation are important.

•

Remote Display Unit (RDU)

The RDU is a wireless remote controller/display module that shows alerts detected by the MDU. The RDU display uses an Extreme Bright DataGrafix

™

(Organic Light Emitting Diode) Display to show large graphical alerts as signals are detected.

The RDU uses a rechargeable lithium-ion (LiON) battery and is supplied with a holster and clips for mounting on heating/air conditioner vents or sun visor. A 12V to 5V USB Power Adaptor with cigarette lighter plug and a USB to Mini-USB Retractable Cable are supplied. The RDU can be charged in the vehicle using these two components or by plugging the USB to Mini-USB Retractable Cable to the USB port of your personal computer.

The normal Auto Dark screen is almost completely dark with only a moving dot. The Auto Dark screen provides discreet usage and helps conserve RDU battery life. The display color can be changed to match most dash illumination.

Global Positioning System Locator – (XRS R10G Only)

The GPS Locator module tracks vehicle location. It uses a database that provides alerts as you approach photo-enforced intersections, roads with fixed red light/speed cameras and caution areas.

Use the GPS Locator functions to program alerts and store up to 1,000 user programmable Location Alerts. Software will be available to update the database and stay current with future photo enforced locations and caution areas. The GPS Locator module has no external controls and plugs into the MDU.

Registering Your Detector

To register your Cobra XRS R8 or XRS R10G go to www.cobra.com. Click on the Product Registration tab.

English

Nothing Comes Close to a Cobra

Introduction

ACC

Installation Overview

Introduction

Installation Overview

Mount Unit

Main Detector Unit (MDU)

Note: To power the MDU, use one of the two power cords provided

(See Page A3).

• 12V Power Cord with In-line Fuse for Hardwired Installation: For connection to vehicle’s fuse box or battery, or

• 12V Power Cord with In-line Fuse and Cigarette Lighter Plug: For connection to 12-volt vehicle accessory outlet (cigarette lighter plug).

Fuse box hard wiring is recommended. Use this configuration to provide a more discreet installation. If you are unsure about making

this connection yourself, contact a professional installer. Cobra does not warrant any damages to the product or vehicle that may occur as a result of improper installation.

On a negative grounded vehicle:

Figure A

Figure B

Figure C

Mount the MDU high on windshield to right of rear view mirror (Figure B). The MDU must have a clear view through the windshield, be parallel to the road (Figure C) and have clearance to snap into the “up” position.

Position the MDU for easy access to power switch, cable connections and for mirror movement. Mount the MDU on the windshield close to the headliner. (See page 7 for details.)

Figure D – External View

MDU Lens

IMPORTANT: Do not block the MDU lens with the sun-shaded area of the windshield (Figure D).

Heated windshields currently available on some vehicles (Instaclear for Ford, Electriclear for GM), may block or weaken incoming signals. Consult your automobile manufacturer.

1. Connect the positive wire [marked with a tag (+)] of the DC power cord to an accessory 12V fuse that is controlled by the ignition switch (Figure A).

2. Connect negative wire (-) to a chassis ground location (Figure A). Body paint may need to be removed to assure a good ground connection.

English

Nothing Comes Close to a Cobra

Introduction

Installation Overview

Your Detector

Installation

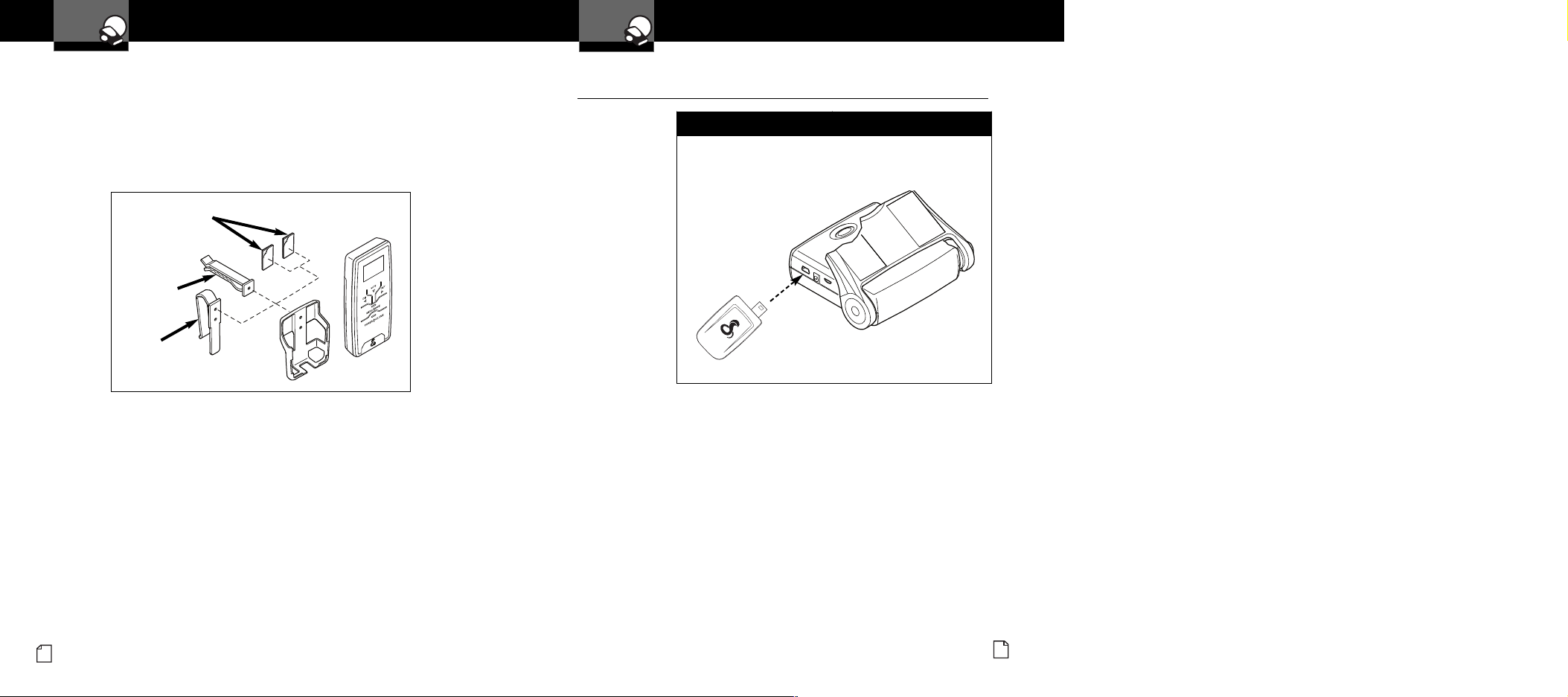

Global Positioning System Locator – (XRS R10G Model Only)

Figure E – Internal View

Mount the GPS Locator module to the MDU by plugging it into the USB port.

Main Detector Unit (MDU)

1. Position MDU before actual mount.

• Do not attempt to adjust MDU bracket.

• Hold unit in place.

• Using non-permanent pen, mark two opposite corners.

2. Peel off film from two-piece fastener strips. Align with two corner markings made in step 1. Press MDU bracket against windshield.

• Fastener strips cannot easily be removed. Strength of adhesive strips increases with time.

• Do not pull on MDU for first 20 minutes.

English

Nothing Comes Close to a Cobra

Your DetectorYour Detector

InstallationInstallation

1. Loosen MDU bracket adjust knob (gray).

2. Adjust module to a position parallel to the road.

3. Tighten knob to set

proper horizontal detection position. The MDU mounting bracket has two detent positions:

• one for detection operation (horizontal position)

• one for storage or concealment (up position). Makes MDU less visible from outside.

IMPORTANT: MDU

will not provide any radar/laser detection in “Stored/Concealed” position.

Not In Use. Stored/Concealed Position.

Loosen

Lower to Operating Detection Position.

Detection Position

Tighten

Bracket Adjust Knob

4. Attach power cord to MDU. Use power cord clips to route to fuse box or lighter/accessory outlet, depending on the selected power cord. Surfaces must be clean and free of dirt, oil and dust. Plug in the

power cord.

Internal V iew

English

Nothing Comes Close to a Cobra

our Detector

Installation

Your Detector

Installation

Remote Display Unit (RDU)

Battery Installation

1. Turn RDU over and slide battery cover off the RDU body.

2. Carefully plug battery wire connector into the battery connection port in RDU. Connector only fits one way.

3. Replace battery cover.

Battery Charging

The unit is shipped with a sealed lithium-ion (LiON) battery pack that is rechargeable.

IMPORTANT: Avoid temperature extremes (hot and/or cold) to help prolong battery life and performance. DO NOT leave RDU exposed to direct sunlight. If the RDU is mounted on vent, clip must be on lower fin to avoid hot air blowing on RDU battery compartment.

NOTE: When battery begins to discharge too quickly, it is time to install a new battery.

•

1. Attach 12V to 5V retractable USB power cable to bottom of RDU and to 12V power adapter.

2. Connect 12V power adapter to vehicle accessory outlet (cigarette lighter plug).

3. Initial charge for battery is two (2) hours. (RDU may be used while charging.)

CAUTION

This lithium-ion (LiON) battery should only be recharged inside the RDU. Do not substitute any other type of charging adapter or charging base to charge the battery. Battery damage, fire or explosion may result.

NOTE: Lithium-ion (LiON) batteries are toxic. Please dispose of properly. Some municipal waste disposal agencies have special provisions for battery disposal.

NOTE: After battery is fully charged, unit can be operated without retractable power cord until battery needs recharging.

English
