Cobra Electronics XRS-9630 User Guide

Important Information and Customer Assistance

Introduction

English

Important Information

•

Federal Laws Governing the Use of Radar Detectors

It is not against federal law to receive radar transmissions with your Cobra radar/ laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action.

Safety Alert

Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area.

Safe Driving

Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws.

Security of Your Vehicle

Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft.

Customer Assistance

•

Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

For Assistance in the U.S.A.

Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone).

Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time

Mon. through Fri. (except holidays) 773-889-3087 (phone).

Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).

Technical Assistance English only. www.cobra.com (on-line: Frequently Asked

Questions). English and Spanish. productinfo@cobra.com (e-mail).

For Assistance Outside the U.S.A.

Contact Your Local Dealer

6500 West Cortland Street

Chicago, Illinois 60707 USA

www.cobra.com

Customer Assistance

XRS 9630

12 BAND™ULTRA HIGH-PERFORMANCE DIGITAL RADAR/LASER DETECTOR WITH XTREME RANGE SUPERHETERODYNE

TECHNOLOGY

Nothing Comes Close to a Cobra

English

Operating Instructions

Printed in China

Part No. 480-233-P

Version C

1212

Nothing Comes Close to a Cobra

English

For more information or to

order any of our products,

please visit our website:

www.cobra.com

CB Radios

microTALK

Radios

Radar/Laser Detectors

Safety Alert

Traffic Warning Systems

Handheld GPS Receivers

Mobile GPS Navigation Systems

HighGear

Accessories

CobraMarine

VHF Marine Radios

CobraMarine

Power Inverters

Accessories

The Cobra line of quality products includes:

9495 XRS 9630-D-B2 4/10/06 11:59 AM Page F1

Nothing Comes Close to a Cobra

Customer Assistance

Product Features

Introduction

Nothing Comes Close to a Cobra

Xtreme Range Superheterodyne Technology

With super-fast sweep circuitry, XRS provides extra detection range and the best possible advance warning to even the fastest radar guns

Ultra Performance

Provides advanced warning with extra detection range

Detection and Separate Alerts

For radar signals (X, K, Ka and Ku bands, with signal strength indicated), laser signals, Safety Alert signals, Strobe Alert signals, VG-2 signals, Spectre 1 signals

8-Point Compass

Displays direction of travel

LaserEye

For 360° detection of laser and strobe signals

Instant-On Ready

Detects radar guns with “instant-on” (very fast) speed monitoring capabilities

Pop Detection

Detects the latest super-fast instant-on signal pulse radar guns

Tone Alert

With adjustable volume

DigiView Data Display

With easy-to-read alpha/numeric dot matrix text readout

IntelliShield False Signal Rejection

Reduces falsing in urban areas with Highway mode and three levels of City mode settings

Safety Alert

Traffic warning system distinguishes important safety alerts from other K band signals

Strobe Alert

Emergency vehicle warning system

Manual Mute or Auto Mute

A mute function of audio alerts

IntelliMute

A mute function which automatically reduces false alerts by sensing engine RPMs

Smart Power

A timed power saving function that saves your car’s battery

EasySet Programming

User-friendly mode selection and setting with visual guidance

Auxiliary Audio Jack

For external speaker connection

Mounting

Mounts easily on windshield or dashboard

Product Features

•

Congratulations! You’ve made a smart choice by purchasing an ultra high performance digital radar/laser detector from Cobra. Just look at some of the sophisticated features and capabilities your new unit includes:

This booklet describes the simple steps for mounting and setting up your detector. It also provides helpful information about how radar and laser guns are used and how you can interpret the alerts you receive.

Controls, Indicators, Connections and Display

Introduction

English

Controls, Indicators, Connections and Display

•

12V DC Power Jack

On-Off/Volume Control

Allows user to adjust the

volume of the tone alerts.

Program/Mute Button

For manual mute of

audio alerts (and to enter

programming mode).

LaserEye

For 360° detection of laser and strobe signals.

Windshield Bracket

Release Button

Speaker

Auxiliary Audio Jack

Select/Dim Button

Adjusts the display brightness for easy

reading (and to scroll through user mode

settings while programming).

Set/City Button

For City or Highway modes to reduce false alerts (and to change user mode settings while programming).

* See pages 5 – 26 for more information

about display features.

Windshield

Bracket Mount

Alpha/Numeric Dot Matrix Text Display*

Shows user mode settings, programming instructions,

signal strength indication, City/Highway mode indicators,

radar, VG-2, Spectre 1 and safety/strobe indicators.

WARNING

Modifications or parts substitutions not approved by Cobra Electronics Corporation may violate FCC Rules and void your authority to operate this equipment.

System Ready

AAcccceessssoorriieess OOrrddeerr IInnffoo

OOrrddeerriinngg FFrroomm UU..SS..AA..

Call 773-889-3087 for pricing or visit www.cobra.com.

For Credit Card Orders

Call 773-889-3087 [Press one from the main menu] 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday.

Make Check or Money Order Payable To

Cobra Electronics, Attn: Accessories Dept., 6500 West Cortland Street, Chicago, IL 60707 U.S.A.

To Order Online

Please visit our website: www.cobra.com

IItteemm ## DDeessccrriippttiioonn

420-030-N-001 Straight 12V Power Cord 420-026-N-001 Coiled 12V Power Cord 545-139-N-001 Windshield Mounting Bracket CLP-2B Dual Port Power Adapter

9495 XRS 9630-D-B2 4/10/06 11:59 AM Page A2

Nothing Comes Close to a Cobra

Contents

Introduction

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1

Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1

Controls, Indicators, Connections and Display . . . . . . . . . . . . . . . . . . . . . A2

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3

Your Detector

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

EasySet Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Highway/City Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Muting an Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Auto Mute Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Auxiliary Audio Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

IntelliMute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Pop Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

K, Ku and X Band Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

VG-2 Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Spectre 1 Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

SmartPower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DigiView Data Display Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Signals Detected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Audio Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Visual Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Instant-On Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Pop Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Responding to Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Understanding Radar and Laser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Warranty

Limited 1-Year Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Customer Assistance

Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Trademark Acknowledgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Order Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9495 XRS 9630-D-B2 4/10/06 11:59 AM Page 1

Nothing Comes Close to a Cobra

Installation

Your Detector

Installation

Your Detector

English

Installation

•

Where to Mount Your Unit

You will get optimum performance from your detector if you Mount it at a point approximately in the center of the vehicle, as low as possible on the front windshield without obstructing the unit’s view of the road either to the front or rear. You can also mount it directly on the dashboard.

The unit’s lens must not be blocked and the LaserEye should have a clear view out the back window to allow 360° detection.

Radar and laser signals pass through glass but not through other materials and objects. Objects that can block or weaken incoming signals include:

■

Windshield wiper blades

■

Mirrored sun screens

■

Dark tinting at the top of the windshield

■

Heated windshields currently available on some vehicles (Instaclear for Ford, Electriclear for GM). Consult your dealer to see if you have this option.

1. Attach the rubber

cups to the bracket.

2. Make sure the rubber cups and your windshield are clean.

3. Push the bracket firmly

onto the windshield.

4. Attach the detector to the bracket. Check the angle of the unit.

5. To adjust the angle if necessary, gently push or pull on the bracket to bend it. DO NOT use the detector to bend the bracket.

6. Plug the power cord into the detector.

7. Plug the cigarette lighter adapter on the power cord into your vehicle’s cigarette lighter.

8. You can temporarily remove the detector whenever you wish by depressing the bracket release button and sliding it off the bracket.

Windshield Mounting

The LaserEye Should Have a Clear View

Windshield Mounting Dashboard Mounting

9495 XRS 9630-D-B2 4/10/06 11:59 AM Page 2

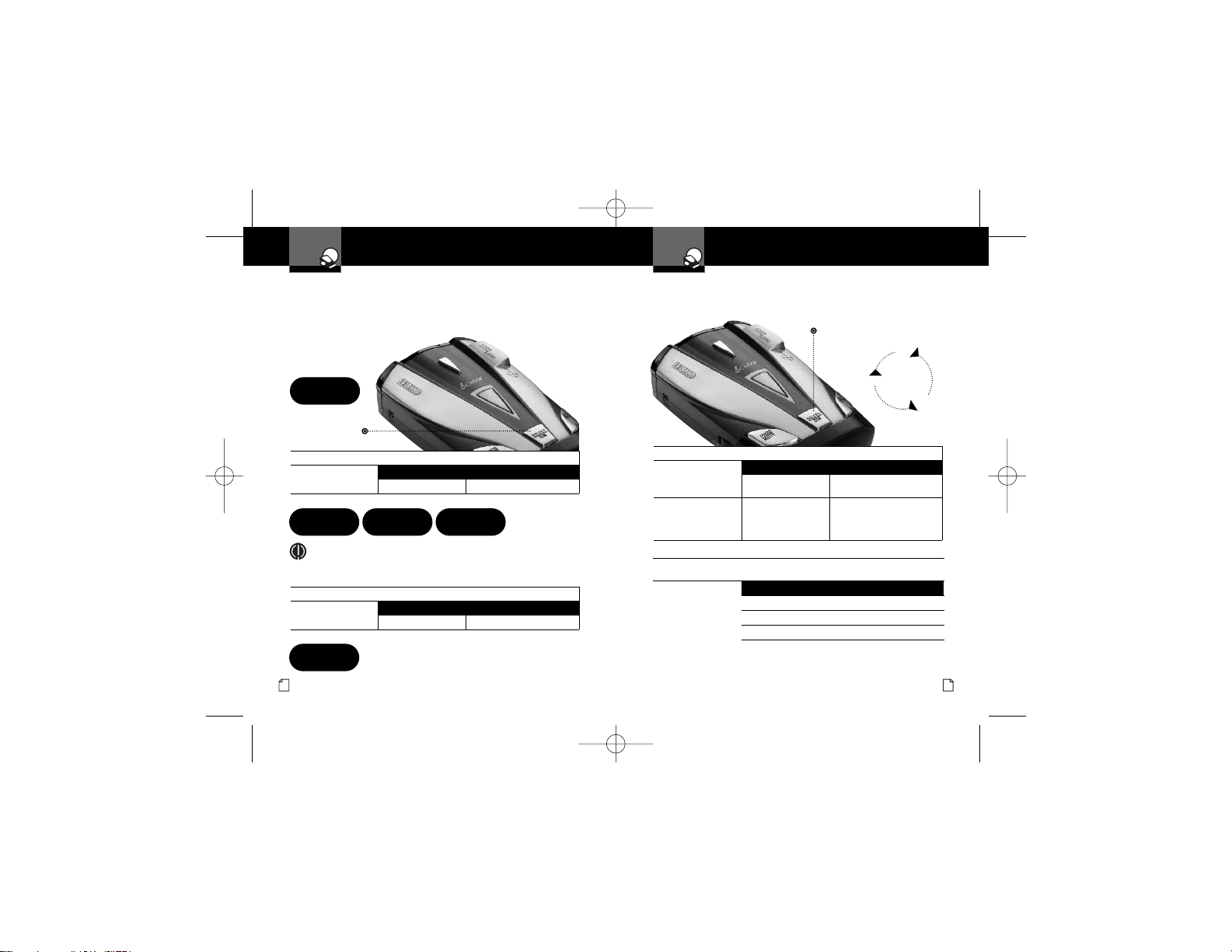

To Turn On the Unit and Adjust the Audio Volume

Rotate the On-Off/ Volume control

clockwise (away from you).

Tone

Visual Display

Three beeps Testing

System Ready

The display will then cycle through the user mode settings (city or highway, Intellimute and SmartPower status).

Start-up is complete when the display continuously shows the current compass direction (N, NE, E, SE, S, SW, W or NW) plus single letters indicating current user mode settings (c = City mode, City X Beep Off mode and City X+K mode, h = Highway mode, i = IntelliMute on).

Getting Started

•

Your Detector

Nothing Comes Close to a Cobra

Installation

Your Detector

1. Place the detector on the dashboard to find a location

where the unit has a clear, level view of the road. The angle CANNOT be adjusted after mounting.

2. Remove the paper backing from one (1) side of the hook-and-loop fastener.

3. Attach the pad to the dashboard at your chosen location and remove the other paper backing.

4. Attach the detector to the hook-and-loop fastener. You can remove and reattach the unit as often as you like.

5. Plug the power cord into the detector.

6. Plug the cigarette lighter adapter on the power cord into your vehicle’s cigarette lighter.

English

Dashboard Mounting

System Ready

Power On

Testing

On-Off/

Volume Control

Rotate clockwise

(away from you)

NOTE

In some vehicles, power is supplied to the cigarette lighter even while the ignition is off. If this is the case with your vehicle and you have turned the SmartPower off, you should turn off or unplug your detector when parking for lengthy periods. Cobra recommends leaving SmartPower at the factory setting, which is on.

Start-Up Complete

NW h

9495 XRS 9630-D-B2 4/10/06 11:59 AM Page 4

EasySet Programming

Nothing Comes Close to a Cobra

EasySet Programming

English

EasySet Programming

•

All user mode settings on your detector can be changed by using Program mode. When changing the settings, please keep in mind:

■

Buttons can have multiple functions.

■

All settings will be stored in memory when the power is turned off and recalled when the power is turned back on.

The procedure for using Program mode is shown on page 7.

NOTE

You cannot enter Program mode during an alert. The unit will not detect signals while in Program mode. During programming, if no buttons are pushed for ten seconds, the unit will automatically exit Program mode and save the last settings.

Programming User Modes

The tables on pages 8 through 9 show you how to program all user modes and the settings you can choose from.

NOTE

On the following pages, you will find more detailed explanations of each setting.

See page 14 for instructions on setting the IntelliMute activation point. See page 16 for instructions on calibrating the compass. See page 21 for instructions on using SmartPower.

Your Detector Your Detector

Program/Mute Button

Press and hold/Press and release

Select/Dim Button

Press and release

Set/City Button

Press and release

To Use Program Mode

Press and hold the Program/Mute button for two seconds.

Tone

Visual Display

Three beeps Program will appear.

Then brief programming instructions will scroll through the display three times.

While the programming instructions are scrolling, press and release the Select/Dim button to cycle through the user modes.

One beep with each button press

As each mode is displayed, the current setting for that mode will be shown.

With the user mode you wish to change displayed, press and release the Set/City button to change the setting.

To move to the next selection, press the Select/Dim button again.

One or two beeps, depending on your selection

The setting you select will be shown.

When you have finished programming any or all of the user modes, press and release the Program/Mute button to exit Program mode. Or simply wait ten seconds without pushing any buttons.

One beep When you exit Program

mode, the new setting will automatically be saved and

EXIT PROGRAM and Settings Saved! will appear in the display.

EXIT

PROGRAM

Settings

Saved!

9495 XRS 9630-D-B2 4/10/06 11:59 AM Page 6

Mode Tone Visual Setting

Result

VG-2 Detect mode

Two beeps VG-2 Detect On Unit will detect VG-2 signals.

One beep VG-2 Detect Off Unit will not detect VG-2 signals.

VG-2 Audio mode (not shown if VG-2 detect is off)

Two beeps VG-2 Audio On With VG-2 Detect on, the unit will give

audible alerts for VG-2 signals.

One beep VG-2 Audio Off With VG-2 Detect off, the unit will give

only visual alerts for VG-2 signals.

Spectre 1 Detect mode

Two beeps Spectre 1

Detect On

Unit will detect Spectre 1 signals.

One beep Spectre 1

Detect Off

Unit will not detect Spectre 1 signals.

Spectre 1 Audio mode (not shown if Spectre 1 detect is off)

Two beeps Spectre 1 AudioOnWith Spectre 1 Detect on, the unit will

give audible alerts for Spectre 1 signals.

One beep Spectre 1 Audio

Off

With Spectre 1 Detect off, the unit will give only visual alerts for Spectre 1 signals.

SmartPower mode

Two beeps SmartPower On SmartPower is on.

One beep SmartPower Off SmartPower is off.

K or Ku Band detect mode

Two beeps K or Ku Band On Unit will detect K or Ku Band signals.

One beep K or Ku Band Off Unit will not detect K or Ku Band signals.

X Band detect mode

Two beeps X Band On Unit will detect X Band signals.

One beep X Band Off Unit will not detect X Band signals.

Set display Dim mode default*

Two beeps Display Dim Partially dimmed for dusk or night driving.

One beep Display

Dimmer

More dimmed for dusk or night driving.

One beep Display Dark Display is off.

Restore factory settings

One beep Restore Factory

Settings

Resets user modes and settings to factory default.

Exit program One beep EXIT PROGRAM Allows you to exit Program mode.

* The settings for these user modes can also be changed with the one button method.

See description of each user mode (pages 10 and 23) for details.

EasySet Programming

Nothing Comes Close to a Cobra

EasySet Programming

English

Your Detector

EasySet Programming Menu

Mode Tone Visual Setting

Result

Set City mode default*

Two beeps City X A single beep sounds when the

signal is first detected.

One beep City X

beep Off

Audio for all X band alerts are blocked until signal strength reaches Level 3.

One beep City X+K Combines the City X mode with

prevention of K band audio alerts until signal strength reaches Level 2.

IntelliMute mode

Two beeps IntelliMute On All alerts (except for strobe signals

from emergency vehicles) are automatically muted below the engine rev point you set.

One beep IntelliMute Off Normal operation.

Set IntelliMute RPMs (not shown if IntelliMute is off)

One beep Set IntelliMute

(see page 14 to set activation point)

Allows you to set the engine rev point while using IntelliMute.

AutoMute mode

Two beeps AutoMute On The audio volume of all alerts will be

automatically muted after four seconds for as long as the signal is detected.

One beep AutoMute Off All alerts will sound at full volume

for as long as the signal is detected.

Set compass One beep Set Compass

(see page 16 to calibrate compass)

Allows you to calibrate the compass.

Pop Detect mode

Two beeps Pop Detect On Unit will detect Pop signals.

One beep Pop Detect Off Unit not will detect Pop signals.

This EasySet programming menu lists all of the modes and settings you can choose from after you have entered Program mode as described on page 7.

Your Detector

9495 XRS 9630-D-B2 4/10/06 11:59 AM Page 8

+ 14 hidden pages
