Important Information

Federal Laws Governing the Use of Radar Detectors

It is not against federal law to receive radar transmissions with your Cobra radar/ laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action.

Safety Alert

Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area.

Safe Driving

Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws.

Security of Your Vehicle

Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft.

Customer Assistance

Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

For Assistance in the U.S.A.

Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time

Mon. through Fri. (except holidays) 773-889-3087 (phone).

Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked

Questions). English and Spanish. productinfo@cobra.com (e-mail).

For Assistance Outside the U.S.A.

Contact Your Local Dealer

English

6500 West Cortland Street

Chicago, Illinois 60707 USA

www.cobra.com

•

ntroduction

Controls, Indicators and Connections

ntroduction

Display and Product Features

ntroduction

ustomerAssistance

Important Information and

Accessories Order Info

Customer Assistance

Controls, Indicators and Connections

Windshield

Bracket Mount

Windshield Bracket

Release Button

12V DC Power Jack

On-Off/

Volume Control

Allows you to adjust the

volume of the tone alerts.

Engine RPM sensing mute function

which reduces false alerts. Button

(Also enters IntelliMute setting mode.*)

* Press and hold for four seconds to

access these functions.

English

IntelliMute Button

turns IntelliMute on and off.

brightness for easy reading.

(Also turns Spectre 1 and VG-2

Dim Button

Allows you to adjust

the DigiView Data Display

alerts on and off.*)

WARNING

Modifications or parts substitutions not approved by Cobra Electronics Corporati on may v iolate FCC R ules and void your authority to opera te this equip ment.

LaserEye

For 360° detection of laser and strobe signals.

Audio Jack

Speaker

City Button

For City or Highway modes to reduce false alerts. (Also turns Ku alerts On

Mute Button

For manual mute or auto mute of audio alerts. (Also turns Voice Alert on and off.*)

and Off.)

•

Display

•

Ordering From U.S.A.

Call 773-889-3087 for pricing or visit www.cobra.com.

For CreditCard Orders

Call 773-889-3087 [Press one from the main menu] 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday.

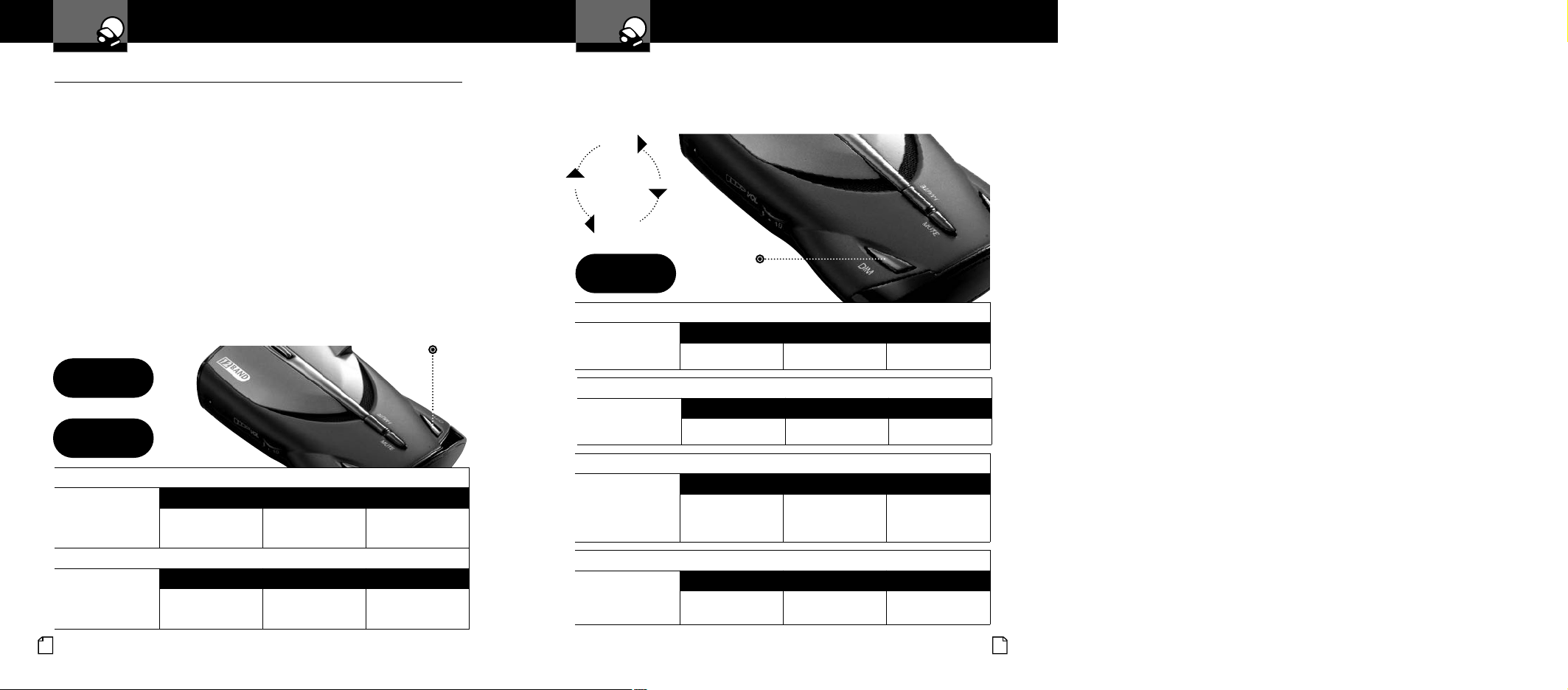

Alpha/Numeric Dot Matrix Text Display

See pages 6 – 16 for more information about display features.

Make Checkor Money Order Payable To

Cobra Electronics, Attn: Accessories Dept., 6500 West Cortland Street, Chicago, IL 60707 U.S.A.

To Order Online

Please visit our website: www.cobra.com

Product Features

•

Congratulations! You’ve made a smart choice by purchasing a high performance radar/laser detector from Cobra. Just look at some of the sophisticated features and capabilities your new unit includes:

Xtreme Range Superheterodyne Technology

With super-fast sweep circuitry, XRS provides extra detection range and the best possible advance warning to even the fastest radar guns

Detection and Separate Alerts For:

Radar signals (X, K,Ka and Ku bands, with signal strength indicated), laser signals, Safety Alert signals, Strobe Alert signals, Spectre 1 signals, VG-2 signals

LaserEye

For 360° detection of laser and strobe signals

Instant-On Ready

Detects radar guns with “instant-on” (very fast) speed monitoring capabilities

Tone Alert or Voice Alert

With adjustable volume

City or Highway

DigiView Data Display

With easy-to-read alpha/numeric dot matrix text readout

Alert Programming

Easy setting of radar bands to be monitored

Safety Alert

Traffic warning system distinguishes important safety alerts from other K band signals

Strobe Alert

Emergency vehicle warning system

Manual Mute or Auto Mute

A mute function of audio alerts

IntelliMute

A mute function which automatically reduces false alerts by sensing engine RPMs

Mounting

Mounts easily on windshield or dashboard

Item # Description

420-030-N-001 Straight 12V Power Cord 420-026-N-001 Coiled 12V Power Cord 545-159-N-001 Windshield Mounting Bracket CLP-2B Dual Port Power Adapter

Modes to reduce false alerts
