Features of This Product
• UHF FM Frequencies
• No Air Time Fees
• Up to 5 Mile Range
• 15 GMRS Channels (7 shared FRS Channels)
• 38 CTCSS Subchannels
• Talk Confirmation To n e
• Ca l l / Ring Bu t to n
• Recharging Pads
• Au to Ba t te ry Saver Ci rc u i ty
• Auto Squelch
• Lock Key
• Ring No t i f i ca t i o n
• Belt Clip
1
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 2
OperationOperation
Battery Installation
Note
Use high quality“AA”batteries such as alkaline,NiMH or Ni-Cad.
Incorrect positioning can dam­age both the batteries and the unit.
See Accessories on page 27. Charge ports are located on side of unit.
Note
When batteries are low or need charging the ( ) BATT LOW indicator will blink. Replace alkaline batteries.
Install Batteries
Pull lock tab down and lift door up (towards you) to remove battery cover.
Insert six “AA”bat­teries.Position bat­teries according to po l a ri ty marki n g s.
Turning On Your microTalk Professional
TURN KNOB CLOCKWISE
Turn the Volume control clockwise to switch power on.Set volume to desired level.Turn the Volume control counter-clockwise to turn power off.
Antenna
The radio is equipped with a SMA female anten­na connector and a matching UHF antenna. Place top of unit with antenna on connector, turning clockwise until tight.You can replace this antenna with an optional mobile antenna when using the radio inside a car,or a base antenna in a fixed location.
PLACE ON
CONNECTOR.
TURN
CLOCKWISE
Turning On Your microTalk Professional
Note
Wh e n ever the unit is on yo u can re ce i ve co m m u n i ca t i o n s.
Antenna
2 3
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 4
OperationOperation
Illuminating the Display
Caution
Illuminating the Display
PRESS AND
RELEASE
Press and release MON Button to illuminate display for ten seconds.
Caution
Do not use an external speaker / microphone with common ground circuits with this radio.The radio’s BTL (Bridge Tied Load) Audio Circuit would be overloaded and become damaged over time. We recommend you use Cobra’s authorized accessories.
Auto Battery Power Saver
Your microTalk Professional has a unique circuit designed to extend battery life. If there are no transmissions within 10 seconds, the unit will automatically switch to mode.
POWER
SAVER
The icon will flash.
High/Low Power
When in close proximity to other party,or during clear weather conditions you can switch from High to Low Power to extend battery life.
Press & Release the lock button and it will switch from High to Low
Auto Battery Power Saver
Note
The Auto Battery Save Circuit does not effect the unit’s ability to receive incoming transmis­sions.
High/Low Power
PRESS AND
RELEASE QUICKLY
4 5
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 6
OperationOperation
Select Channels
Note
Units must be on same channel and subchannels to communicate.
Note
Push and hold Channel up or down Buttons for fast channel advance.
Select Channels (1-15)
Channels 1-7 are shared with FRS radios.
PRESS
UP OR DOWN
Turn on microTalk Professional.An audible “tone”will indicate the unit is on and the LCD will self-test for 3 seconds and then go to Operational Mode.
Select channel by pressing and releasing the
Channel button up or down.
Select CTCSS Subchannel (00-38)
The CTCSS (Continuous Tone Controlled Squelch System) is a great convenience when you are in an area with many radios. It acts like a gate to transmissions from other radios.Once your radio is set to a CTCSS code,you will only hear trans­missions from other radios on the same channel and the same CTCSS code.
Tu rn on the micro Talk Pro fe s s i o n a l .An audible “to n e”will indicate the unit is on and then the LCD will self-test for 3 seconds and then go to O pe rational Mod e.
PRESS
UP OR DOWN
Select main channel by pressing the Channel button up or down.
Select CTCSS
Subchannel
Note
CTCSS (Continuous Tone Controlled Squelch System) is an advanced subcoding system that allows segmentation of a main channel.
Note
If you push and hold the Mode Button,the LCD display will cycle through the different functions.
Note
To return to operational mode and not save your last setting push and release Talk Button.
6 7
continued
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 8
OperationOperation
Select CTCSS Subchannel
Note
Press and hold Channel Button up or down for fast chan­nel advance.
Select CTCSS Subchannel
PRESS AND
RELEASE
Press and release Function Button.Small numbers flash next to channel display on LCD.
PRESS
UP OR DOWN
Se l e ct s u bchannel number by pressing and releasing the Channel Bu t ton up or dow n.
PRESS AND
RELEASE
When desired subchannel is displayed p ress and release Enter Bu t to n .If key audible tone is o n ,an audible tone will co n f i rm your select i o n .
Battery Low
When in normal use the ( ) icon may begin flashing. This is a warning to you that your batteries are getting low.
Replace alkaline batteries as soon as possible or recharge your rechargeable batteries.
Battery Low
Note
When batte ry ca p a c i ty is at the 1/4 level it is re commended that you re p l a ce batte ries or re c h a rge your re c h a rgeable b a t te ri e s.
8 9
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 10
Operation
Talking to Another Party
Note
While Talk Button is depressed you cannot receive incoming calls.
Note
When you release the Talk Button,the person you are talking to will hear a tone indi­cating that it’s ok to talk.See Talk Confirmation Tone section on page 11.
PRESS AND
HOLD
Press and hold PTT Talk Button. Th e ( ) i con will appe a r.
Hold mic about 2 inches from mouth. Speak in a normal voice.
RELEASE FOR
RESPONSE
Talk Confirmation Tone
Your listener will hear an audible tone when you release the PTT Talk Button.
This alerts the other party t h at you are finished talking and it’s OK for them to begin talki n g.
Standby Mode
When finished talking, Release PTT Talk Button to receive incoming transmissions.
Your microTalk Professional is always in the stand­by mode when the PTT Talk Button is not pressed and you are not in function mode. See Advanced Features section on page 16.
Operation
Talk Confirmation
Tone
Standby Mode
Release PTT Talk Button and listen for response.
10 11
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 12
Operation

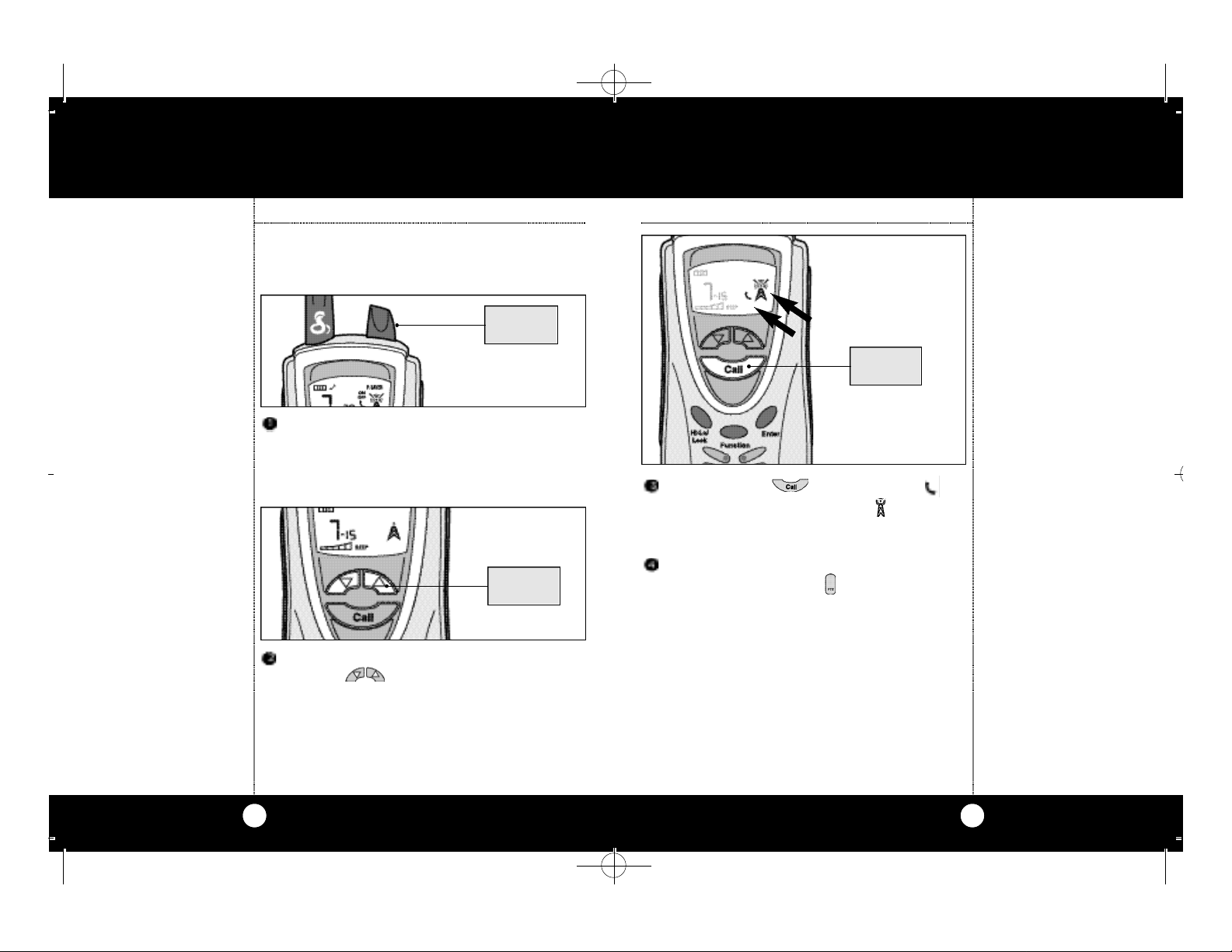

Calling Another Party
Calling Another Party
To alert another party that you wish to communicate:
TURN KNOB CLOCKWISE
Turn on your microTalk Professional 2-way radio. An audible “tone”will indicate the unit is on. The LCD will self-test for 3 seconds and then to operational mode.
PRESS
UP OR DOWN
PRESS AND
RELEASE
Press and release Call Button.The ( ) indicator icon will flash and the ( ) icon will remain on for 3 seconds.The unit you are calling will hear a 2 second ring tone.
Your microTalk Professional is always in the standby mode when the Talk Button is not depressed.
Operation
Note
Your incoming “Ca l l ”audio ri n g­ing level is dependent on yo u r u n i t’s volume setting.
Select desired channel by pressing and
releasing Channel Button up or down. Both the calling and receiving units must be on same channel and subchannel for the call function to work.
12 13
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 14
Operation
Auto Squelch
Maximum Range Extender
Note
To learn more about the range of your microTalk Professional, see page 23.
Range is dependent on battery condition and geographic territory.
Auto Monitor
Au to Sq u e l c h
Your micro Talk Pro fessional is equipped with Au to Sq u e l c h ,which auto m at i cally shuts off weak tra n s­missions and unwa nted noise due to te rrain co n d i­tions or if you have reached your range limit.
Maximum Range Extender
Au to squelch can be te m po ra rily re m oved to allow all signals to enter (Maximum Range Exte n d e r ) .
PRESS
UP OR DOWN
Press and hold Button to allow all signals to enter.
Auto Monitor
When the signal you want to hear is consistently weak,you may place the radio in Maximum Range mode without having to constantly hold the button:Press and hold the Button for five seconds.You will hear an audible beep confirma­tion.To return to normal operation,momentarily press the Button again or change channels.
E x t e rnal Microphone/Speaker Jack
External Microphone/Speaker Jack
Your microTalk Professional 2-Way Radio can be fitted with a variety of accessories,(not included) freeing your hands for other tasks.
To attach an external microphone/speaker accessory:
PLUG IN
HERE
Insert plug into SPK/MIC hole on side
of unit.
External Microphone/ Speaker Jack
Note
To order optional microphone/ speaker accessories, see page 27.
14 15
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 16
Advanced Features
Advanced Features
No te
When using or prog ra m m i n g f u n ct i o n s,p ressing and releasing the Mode Bu t ton or the Lock Bu t ton will save all ente re d i n fo r m a t i o n .
No te
To exit out of function mode and return to ope rational mode with­out saving ente red info r m a t i o n s i m p ly press the Lock Bu t to n .

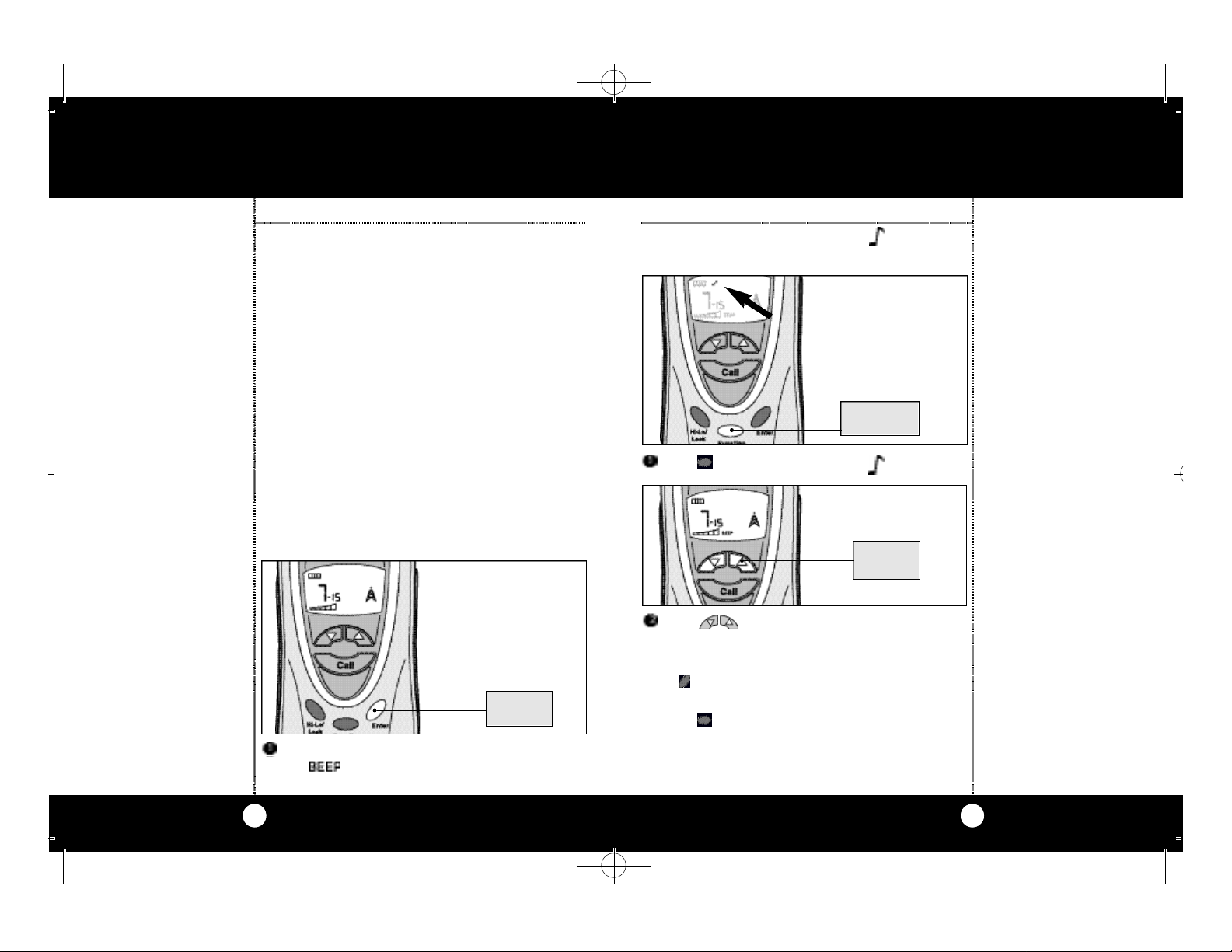

Button Tone Settings
No te
When pressing the radio butto n , the user will now hear an audible to n e.
Advanced Features
Your microTalk Professional has many advanced features not found on other 2-way radios. These include:
• Tone Indicator Settings: – Key Stroke Tone –Talk Confirmation Tone
• Lock Key
Ringer
Your microtalk professional will signal you that there is an incoming transmission with a tone.
Button Tone Settings
Press Enter Button until confirmation beep and icon disappears.
PRESS AND
RELEASE
Advanced Features
Talk Confirmation Tone Indicator
To te m po ra rily eliminate the Talk Co n f i rm ation To n e :
PRESS AND
RELEASE
Press Function Bu t to nuntil flashes.
PRESS AND
RELEASE
Press Channel Button up or down to turn on or off.
To set option:
Press Enter Button.This will immediately
enter new setting;
or Press Function Bu t to n.This will enter new setting and go to new Function Mode;
or Wait 10 seconds.It will go to Operational
Mode with new setting.
16
17
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 18
Advanced Features
Lock Function
Note
Call Button,Range Extender Button and Talk Button
do not lock and are fully operational while the unit
is locked.
The unit cannot lock while in Function Mode.
Lock Function
The purpose of the Lock Function is to lock most buttons to avoid accidental operation.
To engage the Lock Function:
Press and hold for one seco n d Loc kBu t to n .If the Beep Fu n ction is ONyou will hear an audible co n f i rm at i o n . Most buttons are loc ke d. K ey i con will flash.
To“unlock”press and hold for one second will hear an audible co n f i rm at i o n .Buttons are
“unlocked.”There is no key icon visible.
PRESS AND
RELEASE
Loc kBu t to n.If the Beep Fu n ction is ONyo u

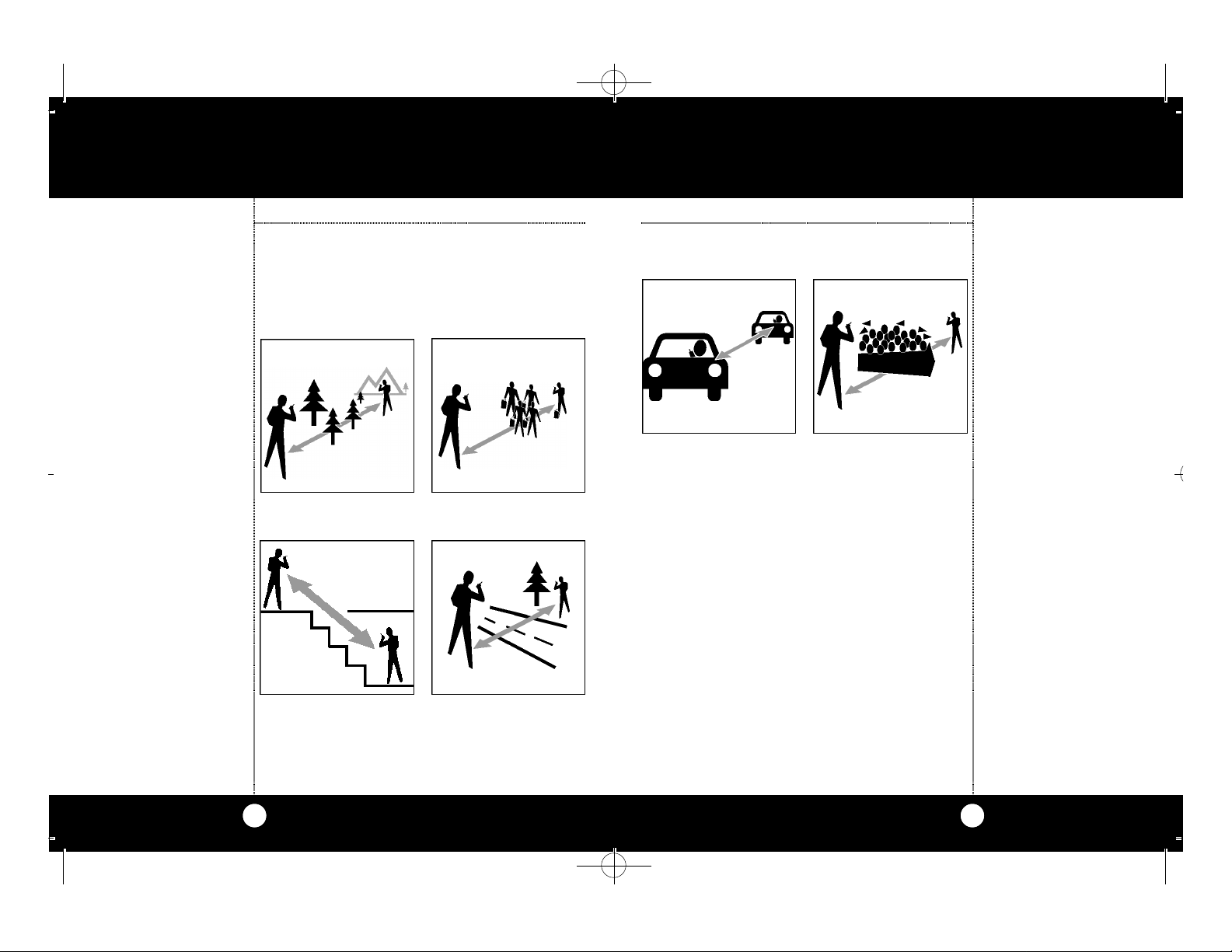

microTalk Professional Range
microTalk Professional Range
Your micro Talk Pro fessional Radio has a range up to 5 miles in GMRS.This effective range can be short­ened under some conditions.
Under flat,o pen co n d i­tions you will ex pe ri­e n ce the micro Ta l k Pro fe s s i o n a l’s maximum ra n g e.
Range can be re d u ce d by buildings and fo l i a g e in the path of the signal.
Range will be furt h e r re d u ced by dense foliage and hilly te rra i n .
microTalk Professional Range
Note
To achieve maximum range the auto squelch can be ove r ri d d e n . Re fer to Maximum Ra n g e Extender section on page 14.
18
1919
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 20
Making Life Easier and Safer
microTalk Professional 2-Way Radios Can Make Your Life Easier and Safer
microTalk Professional 2-Way Radio Can MakeYour Life Easier and Safer
As you become familiar with your microTalk Professional Radio you will find many of your own uses for the unit. Some suggestions include:
Talking with fellow hikers.
Keeping track of the kids in a shopping mall.
Making Life Easier and Safer
microTalk Professional 2-Way Radio Can MakeYour Life Easier and Safer
Checking on traveling companions in another car.
Agree on a meeting spot after an event.
microTalk Professional 2-Way Radios Can Make Your Life Easier and Safer
Communicating be tween basement and f i r s t,s e cond or third f l oo r.
20 2121
Ta l king to a neighbor or a f ri e n d.
continued
20
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 22
Frequency Range
Frequency Ranges
The microTalk Professional unit represents one of the most advanced FM two-way radios available.
CTCSS CTCSS
Channel Frequency Channel Frequency
01 67.0 Hz 21 136.5 Hz 02 71.9 Hz 22 141.3 Hz 03 74.4 Hz 23 146.2 Hz 04 77.0 Hz 24 151.4 Hz 05 79.7 Hz 25 156.7 Hz 06 82.5 Hz 26 162.2 Hz 07 85.4 Hz 27 167.9 Hz 08 88.5 Hz 28 173.8 Hz 09 91.5 Hz 29 179.9 Hz 10 94.8 Hz 30 186.2 Hz 11 97.4 Hz 31 192.8 Hz 12 100.0 Hz 32 203.5 Hz 13 103.5 Hz 33 210.7 Hz 14 107.2 Hz 34 218.1 Hz 15 110.9 Hz 35 225.7 Hz 16 114.8 Hz 36 233.6 Hz 17 118.8 Hz 37 241.8 Hz
18 123.0 Hz 38 250.3 Hz 19 127.3 Hz 20 131.8 Hz
Channel
GMRS Frequency
Channel In MHz
1 462.5625 2 462.5875
3 462.6125 4 462.6375 5 462.6625
6 462.6875 7 462.7125 8 462.5750 9 462.6250 10 462.6750 11 462.5500 12 462.6000
13 462.6500 14 462.7000 15 462.7250
Frequency Range
(Channels 1-7
shared with FRS)
22 2323
22
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 24
Caring for Your
Caring for Yo u r m i c ro Ta l k P ro f e s s i o n a l R a d i o
Note
Modifying or tampering with the radio’s internal components can cause malfunction and will invalidate the warranty. If your radio is not performing as it should,please call Cobra at 773.889.3087.Do not return the unit to the retailer.
Ca ring for Your micro Talk Pro fessional Ra d i o
The microTalk Professional 2-Way Radio will give you years of service if cared for properly.Here are some suggestions:
Handle unit gently. Keep away fro m
d u s t .
I.GENERAL SPECIFICATIONS
B.RECEIVER
1. SENSITIVITY FOR 12 DB SINAD uV 0.25 FOR CALL SIG.DETECTION uV 0.2
2. MAX. AUDIO OUTPUT @5% THD MW 500
3. MAX.S/N RATIO @ 1mV RF INPUT DB 45
4. SQUELCH a) SENS. uV 0.2 b) ATTACK TIME mS 120 c) CLOSING TIME mS 200
5. AUDIO FREQUENCY RESP. @ 300 HZ DB -8 @ 2500 HZ DB -6
6. SIGNAL DISPLACEMENT BW +/-KHZ 6
7. ADJACENT CH.REJECTION DB 60
8. INTERMODULATION REJECTION DB 65
9. SPURIOUS RESPONSE REJECTION DB 65
C.TRANSMITTER
1. EFFECTIVE RADIATED POWER W 2
2. CARRIER FREQ.STABILITY + 1 - p p m 3.5
3. MODULATION LIMITING KHZ 4.0
4. CARRIER ATTACK TIME mS 80
5. AUDIO FREQUENCY RESPONSE @ 300 HZ DB -10 @ 2500 HZ DB +4
6. AUDIO DISTORTION % 3
7. HUM and NOISE DB -40
8. TRANSIENT FREQ.BEHAVIOR a) TX ON mS 30 b) TX OFF mS 5
Specifications
UNIT
UNIT
D.POWER SUPPLY
Never place the unit in water or in a moist place.
24 2525
Avoid ex po s u re to ext reme te m pe rat u re s.
24
1.BATTERY LIFE (1:1:18 RATIO) HR 20
2.BATTERY (6 x AA) V
Cobra PR 1000 manual (4216 copy 12/4/00 4:08 PM Page 26
Limited Two Year Warranty
COBRA ELECTRONICS CORPORATIONwarrants that its COBRA Radios,and the component parts thereof,will be free of defects in workmanship and materials for a period of two (2) years from the date of first consumer pur­chase.This warranty may be enforced by the first consumer purchaser,provided that the product is utilized within the U.S.A.
COBRA will,without charge,repair or replace,at its option, defective radios,products or component parts upon deliv­ery to the COBRA factory Service Department,accompa­nied by proof of the date of first consumer purchase,such as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship the product for warranty service,but the return charges will be at Cobra's expense, if the product is repaired or
Cobra Electronics Corporation
6500 West Cortland Street Chicago,Illinois 60707
replaced under warranty. Exclusions:This limited warranty does not apply;1) to any
product damaged by accident;2) in the event of misuse or abuse of the product or as a result of unauthorized alter­ations or repairs;3) if the serial number has been altered, defaced or removed;4) if the owner of the product resides outside the U.S.A.
All implied wa rra nt i e s,including wa rra nties of m e rc h a nt a b i l i ty and fitness for a particular purpose a re limited in duration to the length of this wa rra nty.
CO B RA shall not be liable for any incident a l ,co n s e q u e n­tial or other damages;i n c l u d i n g,without limitat i o n ,d a m­ages resulting from loss of use or cost of installat i o n .
Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclu­sion or limitation of incidental or consequential dam­ages,so the above limitations may not apply to you.
Ba t te r i e s
212-001-N-001 $3.95 each
Ear Bud Mi c ro p h o n e
Mi n i a t u re microphone and ear­bud for pri va te liste n i n g.
M A-EBM $29.95
Optional Accessories
Ch a rger Ad a p te r
CA-45C $10.00
Lapel Speaker/ Microphone
Remote speaker/microphone combination.
M A- S M $ 2 4 . 9 5
You Can Find These Fine Accessories AtYour Local Cobra Dealer
If you wish,you can order directly from Cobra.
Order by phone
Call 1.773.889.3087 (Press 1 from the main menu) 8 a.m.-6 p.m. M-F CST.
Order by mail or fax
Please fill out order form on next page,and mail/fax directly to Cobra.
Order over the Web:www.cobraelectronics.com
Cigarette Lighter
4 2 0 - 0 3 0 - N - 0 0 2 $ 1 0 . 0 0
Vox Headset/ Mic
VOX (Voice Operated Trans­mitter) provides hands- free operation. MA-VOX $49.95
26
27
Cobra PR 1000 manual (4216 copy 12/4/00 4:09 PM Page 28
Accessory Order Form
Item # Description Cost Ea. Qty. Amount
212-001-N-001 C A - 4 5 C Charger Adapter $ 1 0 . 0 0 4 2 0 - 0 3 0 - N - 0 0 2 M A - E B M Ear Bud Microphone $ 2 9 . 9 5 MA-SM Lapel Speaker/Microphone $24.95 M A - V O X Vox Headset/Mic $ 4 9 . 9 5
Prices subject to change without notice.
Tax Table
Illinois residents add 7% Cook Co.residents add .75% (7.75% total) Chicago residents add 1% (8.75% total)
Indiana residents add 5% Michigan residents add 4 % Ohio residents add 6% Wisconsin residents add 5%
For credit card orders fill out order form and fax to: 1.773.622.2269 or call 1.773.889.3087 (Press 1 from the main menu) 8:00 am - 6:00 pm, M-F, CST.
Please print clearly Name Address (No P.O.Box) City State Zip Telephone ( ) Credit Card No. Exp.Date Customer Signature Circle One: Visa MasterCard Discover
B a t t e r i e s $3.95 each
Cigarette Lighter $ 1 0 . 0 0
Subtotal (Tax if applicable) Shipping/handling
Total
Make check or money order (no stamps) payable to: Cobra Electronics Accessories Dept. 6500 West Cortland St. Chicago, IL 60707
Notes
Shipping & Handling
Amount of Shipping/ Order Handling
$25.00 and under $4.75 $25.01–$40.00 $6.95 $40.01–$80.00 $9.25 $80.01–$120.00 $10.25 $120.01–$160.00 $11.75 $160.01 and up $14.50
For AK,HI and PR please add an additional $15.00 for UPS shipments.
Allow 4 to 6 weeks for delivery.Offer valid in Continental U.S.only.
2928
Cobra PR 1000 manual (4216 copy 12/4/00 4:09 PM Page 30
The Co b ra line of quality prod u cts also includes:
• Ci t i zens Band Ra d i o s
• High Ge a r™Ac ce s s o ri e s
• Radar De te cto r s
• Sa fe ty Al e rt
Traffic Wa rning Sys te m s
• Family Radio Se rv i ce (FRS) 2-Way Ra d i o s
Nothing comes close to a Co b ra
Cobra PR 1000 manual (4216 copy 12/4/00 4:09 PM Page 31
Cobra Electronics Corporation 6500 West Cortland Street Chicago, IL 60707
Pro fe s s i o n a l
If You Think You Need Service
For te c h n i cal assistance,please call our Au to m a ted Help Desk which can assist you by answering the most fre q u e n t ly asked questions about Co b ra prod u ct s.
(773) 889-3087
24 hours a day,7 days a week.
A Consumer Service Representative can be reached through this same number
8:00 am - 6:00 pm,Monday through Friday,CST.
Technical assistance is also available on-line in the Frequently Asked Questions (FAQ)
section at www.cobraelectronics.com or by e-mail to productinfo@cobraelectronics.com
If you think you need service call 1.773.889.3087
“If your product should require factory service please call Cobra first before sending your unit in. This will ensure the fastest turn-around time on your repair.”
You may be asked to send your unit to the Cobra factory.It will be necessary to furnish the follow­ing in order to have the product serviced and returned.
1. For Warranty Repair include some form of proof-of-purchase,such as a mechanical reproduction or carbon or a sales receipt. If you send the original receipt it cannot be returned.
2. Send the entire product.
3. Enclose a description of what is happening with the unit.Include a typed or clearly print name and address of where the unit is to be returned.
4. Pack unit securely to prevent damage in transit. If possible,use the original packing material.
5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First Class Mail to avoid loss in transit to: Cobra Factory Service,Cobra Electronics Corporation,6500 W.Cortland St.,Chicago,IL 60707.
6. If the unit is in warranty,upon receipt of your unit it will either be repaired or exchanged depending on the model. Please allow approximately 3 to 4 weeks before contacting us for status.If the unit is out of warranty a letter will automatically be sent informing you of the repair charge or replacement charge.If you have any questions,please call 1.773.889.3087 for assistance.
Cobra Electronics Corp.© 2000 Printed in Thailand
Part No. 480-294-P-001
O pe rating Instru ctions for your
Professional
2Way Radio
PR 1000
“Ingenious Prod u cts for Easier Co m m u n i cat i o n .”
Cobra PR 1000 manual (4216 copy 12/4/00 4:09 PM Page 33
General Mobile Radio Service
Important Information
FCC Licensing Information
The PR 1000 Professional radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communication Commission (FCC) license. GMRS frequencies have been allocated by the FCC for recreational use such as;skiing,hiking,camping,etc.
For licensing information and application forms, please call the FCC Hotline at:
1-800-418-FORM
(You need form #574) If you have any questions regarding the license
application you can contact the FCC direct at
1-888-CALL-FCC.
FCCWarnings
Replacement or substitution of transistors,regular diodes or other parts of a unique nature,with parts other than those recommended by Cobra, may cause a violation of the technical regulations
1
of part 95 of the FCC Rules,or violation of Type Acceptance requirements of Part 2 of the Rules.
Included with your microTalk Professional
1 Belt Clip
A1
Cobra PR 1000 manual (4216 copy 12/4/00 4:09 PM Page 34
Controls and Indicators
1. Detachable UHF Antenna
2. Microphone Jack
3. Speaker Jack
4. Charger Jack
5. External DC Jack
6. On/Off Power/Volume Knob
7. LCD Display Panel
8. Speaker 9 . Battery Compartment
10. Talk Button
11.
M o n i to r / LCD Di s p l ay Light Bu t to n
12. Channel Select Button
13. Call Button
14. Hi-Lo/Lock Key
15. Function Key
16. Enter Key
17. Belt Clip
3
4
10
2
11
5
10
11
14
Our Thanks to You
1
6
17
1
9
6
7
12
15
13
3 2
4
5
16
8
Thank you for purchasing this Cobra microTalk Professional 2-way Radio. Properly used,this Cobra product will give you many years of reli­able service.
Customer Support
Should you encounter any problems with the product or not understand its many features, please refer to this owner’s manual. If,after referring to the manual, you still need help, call Cobra Customer Service at 773.889.3087.
This device complies with part 15 of the FCC rules.Operation is subject to the condition that this device does not cause harmful interference.
Cobra Customer Service
Live operators are available
M-F 8:00 am - 6:00 pm CST at:
773.889.3087
Automated Technical Assistance available 24 hours a day,seven days a week.E-mail questions to: productinfo@ cobraelectronics.com
Co b ra on the Wo rld Wide We b : Fre q u e n t ly As ked Questions (FAQ ) can be found on-line at: www.cobraelectronics.com
A2
A3
Cobra PR 1000 manual (4216 copy 12/4/00 4:09 PM Page 36
CAUTION
Important Safety Information
for PR1000
Your wireless handheld portable transceiver contains a radio fre­quency transmitter. When the PTT button is pushed the trans­mitter sends out RF signals.The device is authorized to operate at a transmit duty factor not exceed 5% using alkaline AA size batteries to comply with Federal Communications Commissions (FCC) RF exposure safety level guidelines for hand-held wireless devices.
To maintain compliance with the FCC’s RF exposure guidelines hold the transceiver at least 2 inches (5 centimeters) from your face and speak in a normal voice,with the antenna pointed up and away.If you wear the transceiver on your body using the supplied belt clip,do not transmit with this device in the body worn configuration.Unauthorized antennas,modifications,or attachments could damage the transceiver and may violate FCC regulations.
Normal Operating Position:Hold the transceiver approximately 2 inches to 3 inches from your face with the antenna pointed up and away.
Loading...
