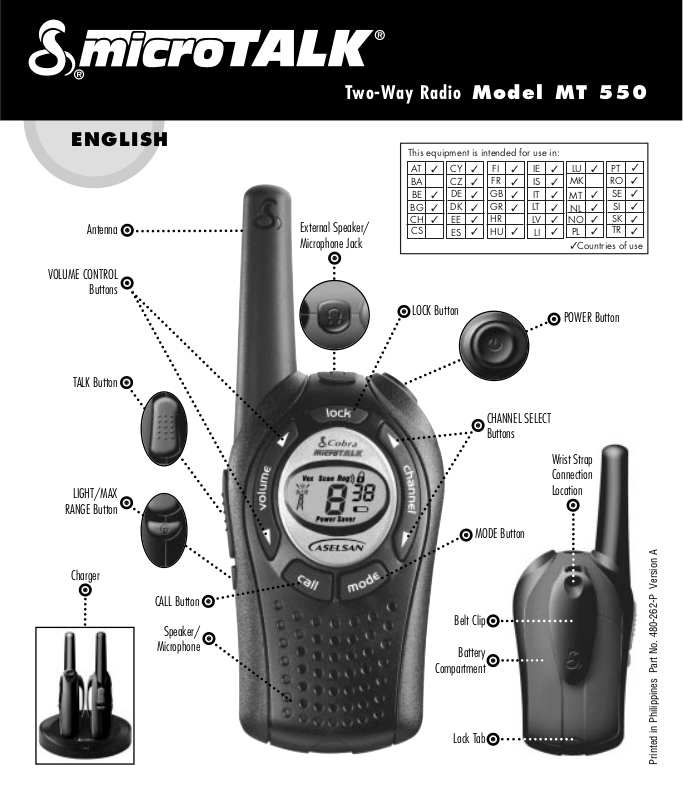

Cobra Electronics MT 550 User Manual
EN GL IS H
POWER Button
VOLUME CONTROL
Buttons
LOCK Button
MODE Button
CHANNEL SELECT
Buttons
Speaker/
Microphone
Belt Clip
CALL Button
External Speaker/
Microphone Jack
LIGHT/MAX
RANGE Button
Battery
Compartment
Lock Tab
TALK Button
Antenna
Two-Way Radio Mo de l M T 55 0
Wrist Strap
Connection
Location
Charger
Printed in Philippines Part No. 480-262-P Version A
This equipment is intended for use in:
AT
BA
BE
BG
CH
CS
FI
CY
CZ
DE
DK
EE
ES
IE
FR
IS
GB
IT
GR
LT
HR
LV
HU
LI
LU
MK
MT
NL
NO
PL
PT
RO
SE
SI
SK
TR
Countries of use
Features
• Two-Way Radio
with up to a 5 km (3 mile) range
• 8 Channels*
• 38 CTCSS Privacy Codes
• Backlit LCD Display
• Battery Saver Circuitry
• Maximum Range Extender
• Call Alert
• Scan (Channel, Privacy Code)
• Vox Mode for Hands-Free Operation
• Auto Squelch
• Selectable On/Off "Roger Beep" Confirmation Tone
• Key Lock
• External Speaker/Microphone Jack
• Belt Clip
*You are not allowed to use channels 1 and 2 in France.
This situation can change; please contact the French radio licensing
authority for more information.
Main Channel
Number
CTCSS Privacy
Code Numbers
Receive/Transmit Icon
Lock Icon
Scan Icon
Power Saver Icon
Product Information
This microTALK®radio has been manufactured to meet all
required standards for radio equipment using PMR 446
frequencies as authorized. The use of this two-way radio
product involves the public airways and its use may be
subject to local laws or regulations. Contact your radio
licensing authority for more information.
Caring for Your Radio
Your microTALK®radio will give you years of trouble-free
service if cared for properly. Here are a few suggestions:
• Handle the radio gently.
• Keep it away from dust.
• Never put the radio in water or in a damp place.
• Avoid exposure to extreme temperatures.
VOX Icon
Battery Low Icon
Roger Beep Icon
English
PRODUCT FEATURES
Vox
Scan
Power Saver
Rog
Desktop Charger and Rechargeable Batteries
To Insert Batteries in Radio:
1. Remove belt clip by releasing belt clip latch and sliding clip up.
2. Pull down on lock tab to remove battery cover.
3. Insert GA-3ANH batteries according to polarity markings.
NOTE: Estimated operation time on full charge: 12 hours.
These rechargeable batteries must be recycled or disposed of properly in compliance with all applicable laws. They must not be thrown in the
rubbish bin. Some countries and local authorities require recycling and have established collection programs. Please contact your local waste
disposal authority for instructions.
WARNING: Do not put batteries into fire or expose to high heat. They may explode.
For Charging Cobra’s microTALK®Radio(s):
1. Insert radio(s) into charger as shown.
2. Insert round connector of 230 volt adaptor into jack on back of charger.
3. Plug 230 volt adaptor into mains socket.
If charging light is not On, check position of radio. Radio should be upright.
The charge indicator light will stay On as long as the radio is in the charging well, even after the batteries are fully charged.
It normally takes about 15 hours to fully recharge batteries. Batteries will not be damaged if they stay in the charging well
longer than that.
Each port can charge one radio. Uses 230 Volt adaptor. Use only Cobra NiMH batteries, model GA-3ANH with charger model PA-CD2.
Cobra recommends your radio is turned Off while being charged.
Radio Power
To Turn Your Radio On:
– Press and hold the POWER button until you hear a series of audible tones indicating that the radio is On.
Your microTALK
®
radio is now in LISTENING MODE, ready to receive transmissions. The radio is always in LISTENING MODE,
except when the TALK, CALL or MODE/LOCK buttons are pressed.
To Turn Your Radio Off:
– Press and hold the POWER button.
Battery Low Indicator
When battery power is low, the BATTERY LOW indicator will blink, indicating that batteries should be recharged or replaced.
WARNING: Only the supplied NiMH batteries can be recharged.
Battery/Power Saver
If there are no transmissions within ten (10) seconds, the unit will automatically switch to Battery Save mode and POWER
SAVER will appear in the display. This will not affect the unit’s ability to receive incoming transmissions.
English
OPERATION
Lock TabRemove Belt Clip Insert Batteries
Insert Radio(s)
Power Button
Battery Low Icon
Power Saver Icon
r Saver
Power Saver
