Cobra Electronics CXR925 User Manual

Download

Nothing Comes Close to a Cobra

Making Life Easier and Safer

Secure your microTALK radio while on the go.

Carrying your microTALK you is easy when using the belt clip.

The belt clip easily attaches to your belt, purse or backpack.

radio with

Owner’s Manual

Introduction

Staying in touch with your family and friends is convenient and easy when using your microTALK radio. Some of the many uses you will discover include:

Communicating with others while hiking, biking and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall.

Belt Clip

Customer Assistance

For Assistance in the U.S.A.

In this user’s manual, you should find all the information you need to operate your microTALK assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

Automated Help Desk

English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators

English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone).

Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).

Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo

For more information or to

order any of our products,

please visit our website:

www.cobra.com

English

TWO-WAY RADIO MODEL

CXR925

Nothing Comes Close to a Cobra

Printed in China

Part No. 480-578-P

Version A

English

For Assistance Outside the U.S.A.

Contact Your Local Dealer

radio. If you require further

@cobra.com (e-mail).

6500 West Cortland Street

Chicago, Illinois 60707 USA

www.cobra.com

LI 7300

Introduction

Product Features

1. Antenna

2. External Speaker/ Microphone/Charge Jack

3. Backlit LCD Display

4. On/Off Power Button

5. Hi-Low Power Button

6. Channel Up/Down Buttons

7. Mode Button

8. Lock/Enter Button

9. Rewind Button

10. Speaker/Microphone

11. Volume Up/Down Buttons

12. Light/Max Range Button

13. Talk Button

14. Call Button

15. Wrist Strap Connector

16. Belt Clip

17. Battery Compartment

18. Battery Door Latch

Introduction

Features

• 22 Channels

7 shared with FRS/ GMRS, 7 FRS only, 8 GMRS only

• Rewind-Say-Again™

Digital Voice Recorder

• 10 Channel NOAA ALL Hazards Radio

• 142 Privacy Codes

(38 CTCSS/104 DCS)

• Hands-Free Operation (VOX)

• VibrAlert Silent Paging

• 10 Channel Memory

• Scan

Channels, privacy codes, memory

• Selectable

Hi•Med•Low Power

In GMRS

• Backlit LCD Display

• Button Lock

• Call Alert

10 selectable tones

• Speaker/ Microphone/ Charge Jack

• Roger Beep Selectable on/off

• Battery/ Power Saver

• Keystroke Tones Selectable on/off

• Auto Squelch

• Maximum Range

Extender

• Belt Clip

Product Features

Backlit LCD Display

1. Rewind Icon

2. Call Alert and VibrAlert® Icon

3. Lock Icon

4. Keystroke Tones Icon

5. DCS Icon

6. Roger Beep Icon

7. VOX Icon

8. NOAA All Hazards Radio Icon

9. Memory Icon

10. CTCSS Icon

Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions.

Important FCC Licensing Information

This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 27 for licensing and other related information.

1516

11. Memory Location Number

12. Privacy Code Numbers

13. Receive/Transmit Icon

14. Hi-Med-Low Power Icons

15. Battery Low Indicator

16. Scan Icon

17. Power Saver Icon

18. Channel Numbers

Warranty and Trademark

Warranty

Limited One-Year Warranty on Radio(s) & Charger

For Products Purchased in the U.S.A.

Cobra Electronics Corporation warrants that its Cobra microTALK® radios and charger, and the component parts thereof, will be free of defects in workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.

Cobra will, without charge, repair or replace, at its option, defective microTALK to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Exclusions: This limited warranty does not apply: 1) To any product damaged by accident; 2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced or removed; 4) If the owner of the product resides outside the U.S.A.

All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

For Products Purchased Outside the U.S.A.

Please contact your local dealer for warranty information.

90-Day Warranty on Cobra Lithium Ion Rechargeable Battery Packs

For products purchased in the U.S.A. and Canada.

Trademark Acknowledgement

Cobra®, microTALK®, Nothing Comes Close to a Cobra®, VibrAlert® and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation™ and Rewind-Say-Again™ are trademarks of Cobra Electronics Corporation, USA.

Acknowledgement

radios, chargers, products or component parts upon delivery

•

Introduction

Caring for Your microTALK® Radio

Your microTALK if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures.

Remove Belt Clip

Operation Customer Assistance Warranty

radio will give you years of trouble-free service

Rechargeable Battery Pack and Desktop Charger

To install or replace battery pack:

1. Remove belt clip by releasing belt clip

Pull Down Latch

Insert Battery Pack

latch and sliding clip up.

2. Pull down on the battery door latch to remove

the battery compartment cover.

3. Insert lithium ion battery pack. Position

battery pack as shown in radio.

4. Replace battery compartment cover

and belt clip.

Estimated operation time on full charge: 12 hours.

Rechargeable battery packs must be recycled or disposed of properly in compliance with all applicable laws. They may not be thrown in the trash.

Certain states or municipalities require recycling and have established collection programs. Please contact your local waste removal authority for instructions, or return to Cobra for recycling.

Wrap battery packs carefully and mail postage prepaid to: Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, IL 60707 USA, Attn: Battery Recycling.

Do not put battery packs into fire or expose to high heat. They may explode.

•

Introduction

Insert Radio(s)

Using Your Radio

For charging microTALK® radio(s) in desktop charger:

1. Insert radio(s) into desktop charger as shown.

2. Insert round connector of 120-volt adapter

into jack on back of charger.

3. Plug 120-volt adapter into electrical outlet. If charging light is not on, check position of radio.

indicator light will stay on as long as the radio is in the charging well and the battery pack is charging. After the battery pack is fully charged, the charge indicator light will turn off.

It normally takes about 15 hours to fully recharge battery pack. Battery pack will not be damaged if it stays in the charging well longer than that.

Use only the supplied rechargeable batteries and charger for recharging your Cobra microTALK

Radio should be upright. The charge

To charge a single radio, you can bypass the desktop charger and simply insert the wall adapter’s round connector directly into the speaker/microphone/charge jack located on the top of the radio.

radio.

Cobra recommends your radio is turned off while being charged.

Quick Start

1. Press and hold the Power button to turn on your radio.

2. Press the Channel Up or Channel Down button to select a channel.

Both radios must be tuned to the same channel/privacy code to communicate.

3. Press and hold the Talk button while speaking into the microphone.

4. When finished talking, release the Talk button and listen for a response.

On/Off Power

Battery Low

Battery Save Mode

Talk Button

Two Inches (5 cm) from Mouth

Operation

Customer Assistance WarrantyIntroduction

Turning on Your microTALK® Radio

Press and hold the Power button until you hear a series of audible tones indicating the radio is on.

Your microTALK mode, ready to receive transmissions. The radio is always in Standby mode, except when the Talk, Call, Mode or Power buttons are pressed.

radio is now in Standby

Battery Low

When battery power is low, the Battery Low icon will blink. Your batteries should be recharged.

Auto Battery Save

Your microTALK designed to extend battery life. If there are no transmissions for 10 seconds, the radio will automatically switch to Battery Save mode and the Power Saver icon will flash in the display. This will not affect the radio’s ability to receive incoming transmissions.

radio has a unique circuit

Communicating with Another Person

1. Press and hold the Talk button.

2. With the microphone about 2 inches

(5 cm) from your mouth, speak in a normal voice.

3. Release the Talk button when you are

finished talking and listen for a response.

You cannot receive incoming calls while pressing the Talk button.

Both radios must be tuned to the same channel/privacy code to communicate.

•

Operation

Channel Button

Channel Number

Listening

Call Button

Light/Max Range

Using Your Radio

Channels

With the radio on, select any of the 22 channels by pressing the Channel Up or Channel Down button.

Both radios must be tuned to the same channel to communicate.

Channels 1 through 7 are shared by FRS and GMRS. Channels 8 through 14 are FRS only. Channels 15 through 22 are GMRS only.

See page 26 for FRS/GMRS frequency allocations and compatibility charts.

Listening for a Response

Release the Talk button to receive incoming transmissions. Your microTALK in Standby mode while the Talk or Call buttons are not pressed.

Call Button

To alert another person that you are calling: – Press and release the Call button.

The other person will hear a two (2) second call tone. This tone is used only to establish voice communications.

See page 24 on how to select from 10 available call tone settings.

To Illuminate Display

Press and release the Light/Max Range button to illuminate the display for 10 seconds.

radio is always

Operation

•

Talk Button

Hi-Low Button

Hi Power Icon

Medium Power Icon

Time-out Timer

The Time-out Timer feature limits transmit time to three (3) continuous minutes to extend battery life and prevent accidental operation. After three (3) continuous minutes of transmission, the radio will stop transmitting and will require a rest period of 30 seconds. During this time the display will flash on and off, and an error tone will sound if the Push-to-Talk button is pressed.

Selectable High•Medium•Low Power Output

When in close proximity to another party or during favorable conditions, you can switch from High to

Medium to Low Power to extend battery life.

To switch from high to medium to low power:

Customer Assistance WarrantyIntroduction

This feature applies to GMRS Channels 1 through 7 and 15 through 22 only. Channels 8 through 14 operate exclusively on low power.

•

– Press and release the Hi•Low button. When in High Power and using Channels 1

through 7 and 15 through 22, the Hi icon will be

Low Power Icon

•

visible in the LCD display. When in Medium Power and using Channels 1

through 7 and 15 through 22, the Med icon will be visible in the LCD.

When in Low Power or while using channels 8 through 14, the Low icon will be visible in the display.

When using an external speaker/ microphone accessory on channels 1-7 or 15-22, your microTALK only operate on medium or low power.

radio will

Operation

LI 7300

Auto Squelch/Maximum Range

Your microTALK automatically shuts off weak transmissions and unwanted noise due to terrain and conditions. This slightly reduces the Maximum Range at which signals can be heard.

You can turn off auto squelch to allow all signals to be received and extend the maximum range of your radio.

Light/Max Range

Using Your Radio

radio is equipped with Auto Squelch, which

To briefly turn off auto squelch: – Press the Light/Max Range button

for less than five (5) seconds.

If you hear two (2) beeps, you have turned the maximum range extender on (see below).

To turn maximum range extender on: – Press and hold the Light/Max Range button

for at least five (5) seconds until you hear two (2) beeps which indicates the maximum range extender is on.

To turn maximum range extender off: – Press and release the Light/Max Range

button or change channels.

Lock Feature

The Lock feature locks the Channel, Mode, Hi•Low and Power buttons to prevent accidental operation.

Lock/Enter Button

Lock Mode

To turn the lock feature on or off: – Press and hold the Lock/Enter button for

two (2) seconds.

A double beep sound is used to confirm your lock on or off request. When in Lock mode, the Lock icon will be displayed.

Operation

•

Speaker/Microphone/Charge Jack

Your microTALK freeing your hands for other tasks. This same jack also serves as the connecting point for the wall charger/adapter.

Speaker/Microphone/ Charge Jack

radio can be fitted with an external Speaker/Microphone,

To attach a speaker/microphone:

1. Open the speaker/microphone/charge

tab on top of your microTALK

2. Insert the plug into the speaker/

microphone/charge jack. (See page 5 for power output settings while using speaker/ microphones.)

Customer Assistance WarrantyIntroduction

•

radio.

To connect a wall charger/adapter:

1. Open the speaker/microphone/charge

tab on top of your microTALK

2. Insert the wall charger/adapter plug

into the speaker/microphone/charge jack.

Rewind-Say-Again™

The Rewind-Say-Again feature on your microTalk incoming or outgoing calls. Recorded calls will fill the memory up to its 20-second capacity. As additional calls are recorded, the

•

oldest calls will be dropped from memory. To save recordings, turn off the Rewind-Say-Again feature.

Rewind Button

To turn on Rewind-Say-Again:

1. Press and hold the Rewind button until the Rew icon illuminates.

radio.

radio can record

•

The feature will remain on until turned off.

Rewind Icon

To turn off Rewind-Say-Again:

1. Press and hold the Rewind button until the Rew icon is no longer illuminated.

Recording will be ended and the most recent 20 seconds of recording will be retained in memory.

To record incoming transmissions:

1. Turn on Rewind-Say-Again.

If Rewind-Say-Again is already on, incoming calls will be recorded without further action on your part.

Using your Radio

LI 7300

Operation

Rewind Button

Rewind Icon

Talk Button

3. Press and hold the Talk button and begin recording your

message. The display will show a 20-second countdown and the Rew icon will stop blinking.

4. Release the Talk button at the end of your message to end recording. The Rew icon will remain illuminated.

If attempting a long recording, two beeps will sound at the end of 20 seconds, then recording will stop and the first 20 seconds of your message will be saved.

To review your recorded outgoing message:

1. Check that the Rew icon is illuminated. If it is not, turn on

Rewind-Say-Again.

2. Press the Rewind button.

The message will play through the speaker and the display will show a 20-second countdown, but the message will not be transmitted. The radio will return to standby at the end of the message.

To send (transmit) your message:

1. Check that the Rew icon is illuminated. If the icon is not illuminated, turn on Rewind-Say-Again.

2. Press and hold the Talk button, then press the Rewind button.

3. Release the Talk button when you hear the beginning of the

message from the speaker.

The message will continue to transmit and play to the end, then the radio will return to standby. Transmission can be stopped at any time by pressing the Rew or Talk button.

and Mode Functions

To play back an incoming transmission:

1. Check that the Rew icon is illuminated. If it is not, turn on Rewind-Say-Again.

2. Press the Rewind button.

The most recent call recorded will play, then second most recent, and so on. Play back can be stopped at any time by pressing the Rew or Talk button.

To record an outgoing message:

1. Check that the Rew icon is illuminated. If it is not, turn on Rewind-Say-Again.

2. While no message is being received, press and hold the Hi-Lo Power button until the Rew icon blinks.

Operation

Customer Assistance WarrantyIntroduction

microTalk® Range

Your range will vary depending on terrain and conditions.

Maximum Range

Reduced Range

In flat, open country your radio will operate at maximum range.

Buildings and foliage in the path of the signal can reduce the range of the radio.

Dense foliage and hilly terrain will further reduce the range of the radio.

On FRS channels 8 through 14, your radio automatically switches to low power, which will limit the range the radio can communicate.

Remember, you can achieve maximum range by using maximum range extender. See page 6 for details.

Scrolling through Mode Functions

By scrolling through the Mode Functions, you will be able to select or turn on/off preferred features of your microTALK When scrolling through the Mode Functions, your radio features will be displayed in the following order:

Mode Button

Scroll through the mode functions using the Mode button. Each press and release of the Mode button will advance to the next mode function. Press the Talk button at any point to return the radio to Standby mode.

Set CTCSS Privacy Codes

Set DCS Privacy Codes Set NOAA All Hazards Radio Channel Set VOX On/Off Set VOX Sensitivity Level Set Memory Locations Set Channel Scan Set CTCSS Privacy Code Scan Set DCS Privacy Code Scan Set Memory Location Scan Set VibrAlert Set Call Alert Tone Signal Set Roger Beep On/Off Set Keystroke Tones On/Off

and/or Call Alert

radio.

•

Operation

Mode Functions

Privacy Codes

Your microTALK® radio incorporates two (2) advanced coded squelch systems that can help to reduce interference from other users on any given channel. CTCSS (Continuous Tone Coded Squelch System) provides 38 privacy codes and DCS (Digitally Coded Squelch) provides 104 privacy codes. This provides a total of 142 Privacy Codes. Either system can be used on all channels, but both systems cannot be used on the same channel at the same time.

To successfully communicate using a privacy code, both the sending and receiving radios must be tuned to the same channel and to the same privacy code system (CTCSS or DCS) and privacy code number. Each channel will remember the last privacy code system and number you select.

The privacy code 00 is not a privacy code, but allows all signals to be heard on a channel that is set to 00 on both the CTCSS and DCS systems.

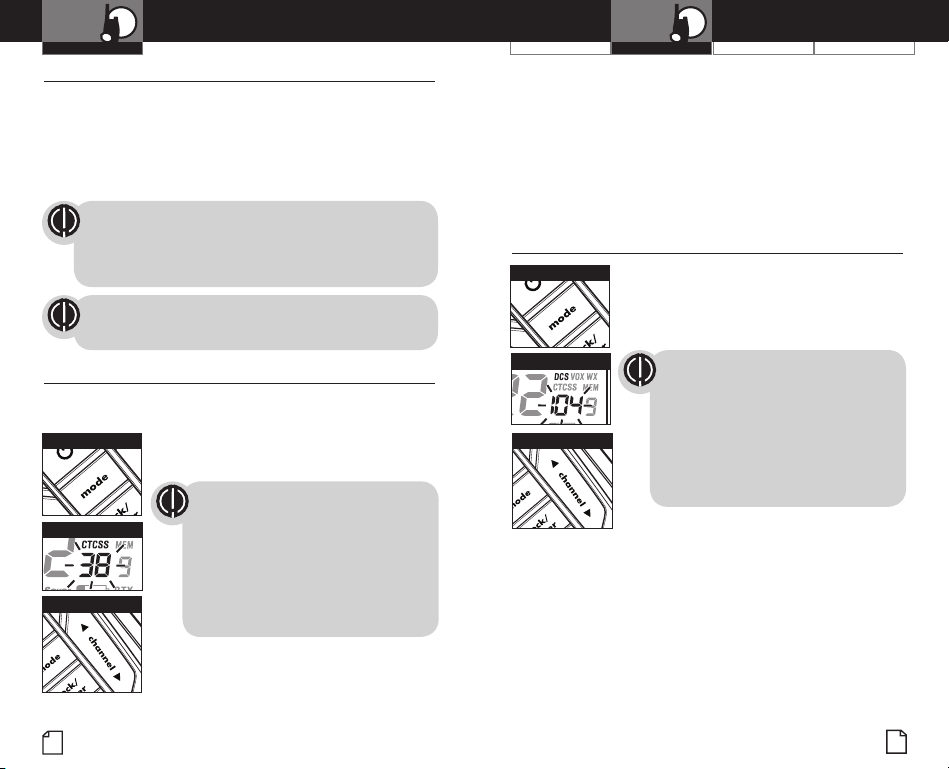

Set CTCSS Privacy Codes

To select a CTCSS privacy code:

1. After selecting a channel, press the

Mode Button

CTCSS Privacy Code

Channel Button

Mode button until the CTCSS icon appears and the small numbers flash on the display (01 through 38).

If DCS is turned on at the channel selected, the display will flash the CTCSS icon and “OFF.” To switch from DCS to CTCSS, press the Channel Up or Channel Down button while the display is flashing “OFF.” The display will then show the small numbers flashing and you will then be able to proceed to step 2.

2. Press using the Channel Up or Channel Down button to select a CTCSS privacy code. You can hold the Channel Up or Channel Down button for fast advance.

Operation

•

3. When your desired CTCSS privacy code is

displayed, choose one of the following:

a. Press the Mode button to enter the new

setting and proceed to other functions.

b. Press the Lock/Enter button to enter the

new setting and return to Standby mode.

c. Do not press any buttons for 15 seconds

to enter the new setting and return to Standby mode.

Set DCS Privacy Codes

Mode Button

DCS Privacy Code

To select a DCS privacy code:

1. After selecting a channel, press the Mode

button until the DCS icon appears and the small numbers flash on the display (01 through 104).

•

Channel Button

2. Press the Channel Up or Channel Down

button to select a DCS privacy code. You can hold the Channel Up or Channel Down button for fast advance.

3. When your desired DCS privacy code is

displayed, choose one of the following:

a. Press the Mode button to enter the new

setting and proceed to other functions.

b. Press the Lock/Enter button to enter the

new setting and return to Standby mode.

c. Do not press any buttons for 15 seconds

to enter the new setting and return to Standby mode.

Customer Assistance WarrantyIntroduction

If CTCSS is turned on at the channel selected, the display will flash the DCS icon and “OFF.” To switch from CTCSS to DCS, press the Channel Up or Channel Down button while the display is flashing “OFF.” The display will then show the small numbers flashing and you will then be able to proceed to step 2.

•

Operation

NOAA* All Hazards Radio Channels

You can use your microTALK Radio channels transmitting in your area.

Mode Button

Hazards Radio Icon

Channel Button

Mode Functions

radio to listen to NOAA All Hazards

To listen to All Hazards Radio channels:

1. Press the Mode button until the WX (All

Hazards Radio) icon, the currently selected All Hazards Radio channel, and signal strength are displayed.

2. Use the Channel Up or Channel Down button to change All Hazards Radio channels.

3. WX (All Hazards Radio) icon will continue to be displayed when All Hazards Radio is on. Choose one of the following:

a. Press the Mode button to proceed

to other functions.

b. Press the Lock/Enter button to exit

All Hazards Radio channels mode and return to Standby mode.

*National Oceanographic and Atmospheric Administration

Operation

•

Voice Activated Transmit (VOX)

In VOX mode, your microTALK automatically transmitting when you speak. You can set the VOX sensitivity level to fit the volume of your voice and avoid transmissions triggered by background noise.

Mode Button

VOX Icon

To turn VOX mode on or off:

1. Press the Mode button until the VOX icon flashes on the display. The current on or off setting is displayed.

2. Press the Channel Up or Channel Down button to turn VOX on or off.

Customer Assistance WarrantyIntroduction

radio can be used “hands-free,”

•

3. Choose one of the following:

a. Press the Mode button to enter the

selected on or off setting and proceed

Channel Button

to other functions.

b. Press the Lock/Enter button to enter

the selected on or off setting and return to Standby mode.

To set VOX sensitivity:

VOX Sensitivity Level

1. Press the Mode button until the VOX icon flashes and the current sensitivity level is displayed.

The current sensitivity level is displayed with letters “LE” and a Number 01 through 05, with Number 05 being the most sensitive level and Number 01 being the least sensitive level.

2. Press the Channel Up or Channel Down button to change the setting.

3. Choose one of the following:

a. Press the Mode button to enter

the selected setting and proceed to other functions.

b. Press the Lock/Enter button to

enter the selected setting and return to Standby mode.

Operation

LI 7300

10 Memory Locations

Your microTALK your most frequently used channels and channel/privacy code combinations. These Memory Locations can be selected individually or can be scanned. (See page 22 for memory location scan.)

Mode Button

Memory Icon

Channel Button

Lock/Enter Button

Mode Functions

radio has 10 Memory Locations for storing

To program a memory location:

1. Press the Mode button until the Memory icon and the memory location

flash on the display.

2. Press the Channel Up or Channel Down button to select the memory location (0 through 9).

If a location has been programmed before, its associated channel/privacy code will be shown on the display.

3. Press the Lock/Enter button to enter a new memory location or edit an already programmed memory location. The channel numbers will flash on the display.

4. Press the Channel Up or Channel Down button to select a channel (1 through 22).

5. Press the Lock/Enter button. The CTCSS icon and privacy code numbers will flash on the display.

Operation

•

6. Choose one of the following: a. Press the Channel Up or Channel Down

button to select a CTCSS privacy code (01 through 38) for the channel.

b. Press the Lock/Enter button to

switch from CTCSS to DCS. The DCS icon and privacy code numbers will flash on the display. The Channel Up or Channel Down button can then be used to select a DCS privacy code (01 through 104) for the channel.

Customer Assistance WarrantyIntroduction

If “OFF” flashes in place of the privacy code numbers, a privacy code is already set in the opposite (CTCSS or DCS) system. Press the Channel Up or Channel Down button to cancel the opposite code and select a privacy code from the active system for the selected channel.

7. Choose one of the following: a. Press the Lock/Enter button to enter

the channel/privacy code in the selected memory location. Radio then proceeds to next Memory location, which will blink.

b. Press the Mode button to

enter the channel/privacy code in the selected memory location and proceed to other functions on the channel/ privacy code displayed before you entered mode functions.

c. Press the Talk button to enter the channel/

privacy code in the selected memory location and exit mode functions. Upon release of the Talk button, the radio will enter Standby mode on the channel/privacy code just entered.

Operation

LI 7300

Mode Button

Memory Icon

Channel Button

Mode Functions

To recall a stored memory channel location:

1. Press the Mode button until the Memory icon

and the memory location number flash on the display.

2. Press the Channel Up or Channel Down button to select a memory location (0 through 9).

If a location has been programmed before, its associated channel/privacy code will be shown on the display.

3. Press the Talk button to return to Standby mode on the selected memory location.

A memory location can be reprogrammed at any time it is displayed and flashing. Press the Lock/Enter button to begin.

While recalling a stored memory location, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code displayed before you entered mode functions.

Mode Button

Memory Icon

Channel Button

Lock/Enter Button

Channel 0

Operation

Customer Assistance WarrantyIntroduction

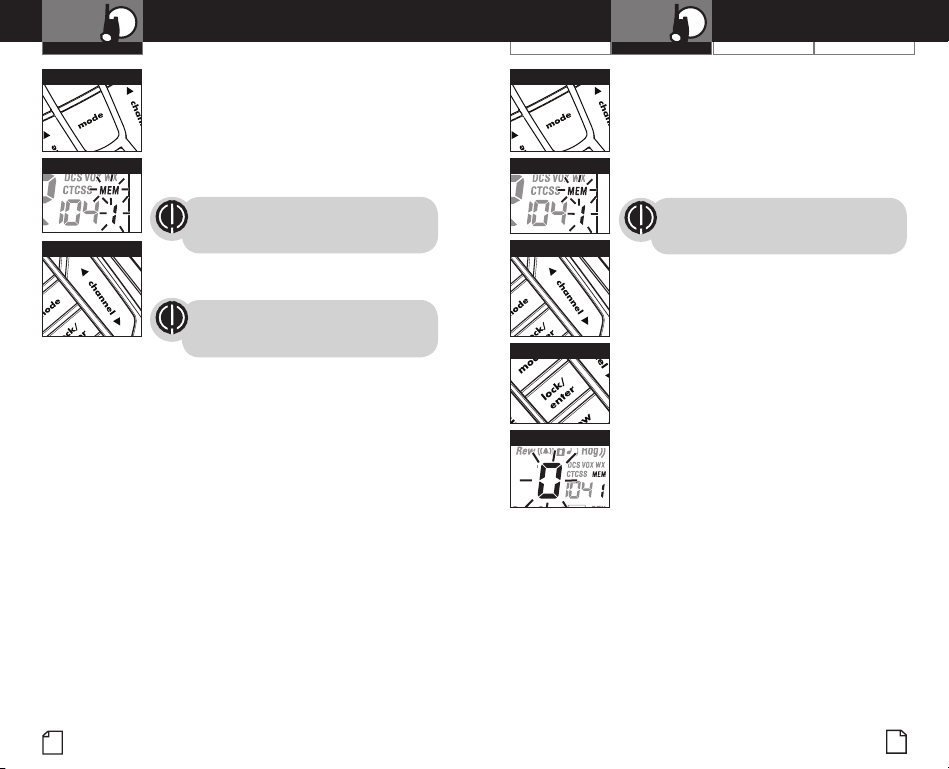

To de-program a memory location:

1. Press the Mode button until the Memory icon and the memory location

flash on the display.

2. Press the Channel Up or Channel Down button to select the memory location (0 through 9).

If a location has been programmed before, its associated channel/privacy code will be shown on the display.

3. Press the Lock/Enter button. The channel numbers will flash on the display.

4. Press the Channel Up or Channel Down button to select Channel 0.

5. Choose one of the following:

a. Press the Lock/Enter button to enter

the channel/privacy code in the selected memory location and return to the beginning of memory location options.

b. Press the Mode button to

enter the channel/privacy code in the selected memory location and proceed to other functions on the channel/ privacy code displayed before you entered mode functions.

While de-programming a memory location, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code displayed before you entered mode functions.

Operation

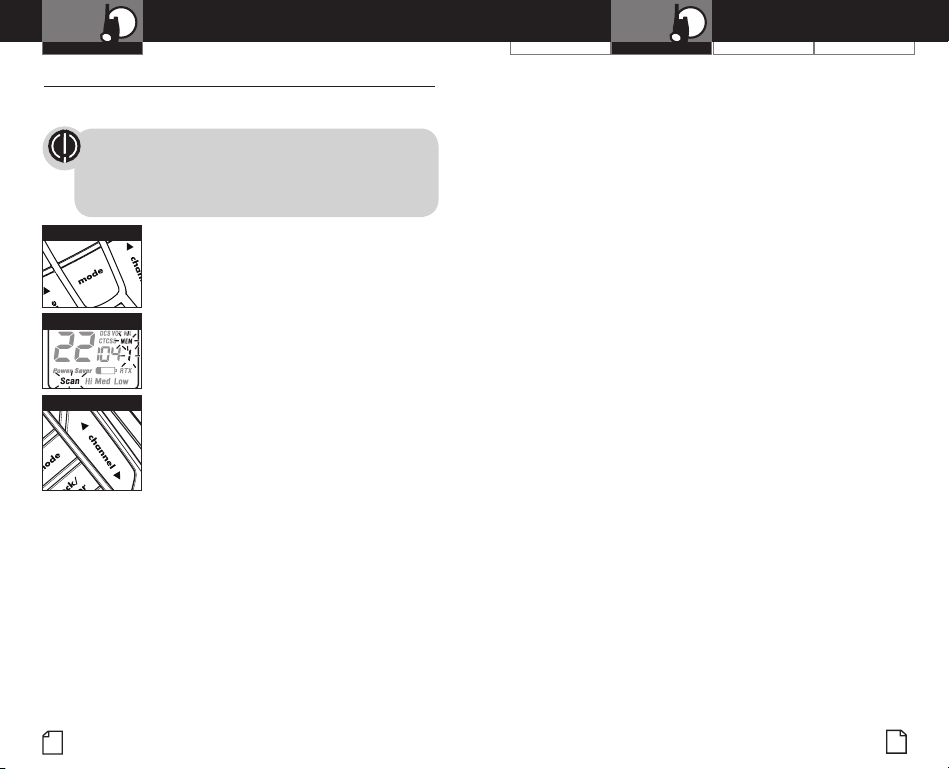

Channel Scan

Your microTALK

Mode Button

Scanning Channels

Channel Button

Mode Functions

radio can automatically scan channels.

To scan channels:

1. Press the Mode button until the Scan icon and the channel numbers

flash on the display.

2. Press the Channel Up or Channel Down button to begin scanning channels.

The radio ignores specific privacy codes while scanning channels.

The Scan icon will continue to be displayed when scan is on. Your radio will continue to scan all channels and stop if an incoming transmission is detected. Your radio will remain on that channel for 10 seconds.

While setting channel scan, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel or channel/privacy code displayed before you entered mode functions.

Operation

•

During channel scan (while receiving an incoming transmission), you can choose from the following:

a. Press and hold the Talk button to communicate on

that channel. Your radio will remain on that channel and return to Standby mode.

b. Press the Channel Up or Channel Down button to

resume scanning channels.

If you press the Talk button while scanning, but more than 10 seconds after receiving a transmission, you will transmit on the channel on which you last received a transmission. This will return the radio to Standby mode.

If you do not press any button within 10 seconds after receiving a scanned transmission, your radio will automatically resume scanning channels.

During channel scan (while not receiving a transmission), you can choose from the following:

a. Press and hold the Talk button to communicate on the

channel or channel/privacy code that was displayed before you entered mode functions or the channel on which, during scanning, you last received a transmission. This will then return the radio to Standby mode.

b. Press the Mode button to proceed to set privacy code scan

on the channel that was either displayed before you entered mode functions or on which, during channel scanning, you last received a transmission (see page 20 for further details).

c. Press the Lock/Enter button to return to Standby mode

on the channel/privacy code that was displayed before you entered mode functions or the channel on which, during scanning, you last received a transmission.

Customer AssistanceIntroduction

Operation

Privacy Code Scan

Your microTALK Codes (either CTCSS 01 through 38 or DCS 01 through 104) within one channel. Only one set of privacy codes (CTCSS or DCS) can be scanned at a time.

Select Channel

Mode Button

Scan Privacy Codes

Channel Button

Mode Functions

radio can automatically scan the Privacy

To scan privacy codes:

1. While in Standby mode, press the Channel Up or Channel Down button

to choose the channel on which you wish to scan privacy codes.

2. Press the Mode button until either the CTCSS or the DCS icon appears on the display and the Scan icon and the privacy code numbers flash on the display.

3. Press the Channel Up or Channel Down button to begin scanning privacy codes within the channel you selected.

The Scan icon will continue to be displayed when privacy code scan is on. Your radio will continue to scan privacy codes and stop as an incoming transmission is detected. Your radio will remain on that channel/privacy code for 10 seconds.

While setting privacy code scan, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code that was displayed before you entered mode functions.

Operation

•

During privacy code scan (while receiving an incoming transmission), you can choose from the following:

a. Press and hold the Talk button to communicate on

that channel/privacy code. Your radio will remain on that channel/privacy code and return to Standby mode.

b. Press the Channel Up or Channel Down button to

resume scanning privacy codes.

If you press the Talk button while scanning, but more than 10 seconds after receiving a transmission, you will transmit on the channel/privacy code on which you last received a transmission. This will then return the radio to Standby mode.

If you do not press any button within 10 seconds, your radio will automatically resume scanning privacy codes.

During privacy code scan (while not receiving a transmission), you can choose from the following:

a. Press and hold the Talk button to communicate on

the channel/privacy code that was displayed before you entered mode functions or the channel/privacy code on which, during scanning, you last received a transmission. This will return the radio to Standby mode.

b. Press the Mode button to proceed to set memory location

scan (see page 22 for further details).

c. Press the Lock/Enter button to return to Standby

mode on the channel/privacy code that was displayed before you entered mode functions or the channel/ privacy code on which, during scanning, you last received a transmission.

Customer AssistanceIntroduction

Operation

Memory Location Scan

Your microTALK 10 programmed Memory Locations.

Mode Button

Scanning Locations

Channel Button

Mode Functions

radio can automatically scan up to

If there are one or fewer memory locations programmed in your radio, the scan memory locations option will not be available. To program at least two (2) memory locations, see program memory locations on page 14.

To scan memory locations:

1. Press the Mode button until the Scan icon, Memory icon and the memory location

number flash on the display.

2. Press the Channel Up or Channel Down button to begin scanning memory locations.

The Scan icon and the Memory icon will continue to be displayed when memory location scan is on. Your radio will continue to scan memory locations and stop if an incoming transmission is detected. Your radio will remain on that memory location for 10 seconds.

While setting memory location scan, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code displayed before you entered mode functions.

Operation

•

During memory location scan (while receiving an Incoming transmission), you can choose from the following:

a. Press and hold the Talk button to communicate on that

memory location.

b. Your radio will remain on that memory location and return to

Standby mode. Press the Channel Up or Channel Down button

to resume scanning memory locations.

Customer Assistance WarrantyIntroduction

c. After 10 seconds of inactivity, unit starts scan again.

If you press the Talk button while scanning, but more than 10 seconds after receiving a transmission, you will transmit on the memory location on which, during scanning, you last received a transmission.

If you do not press any button within 10 seconds, your radio will automatically resume scanning memory locations.

During memory location scan (while not receiving a transmission), you can choose from the following:

a. Press and hold the Talk button to communicate on the

channel/privacy code that was displayed before you entered mode functions or memory location on which, during scanning, you last received a transmission.

b. Press the Mode button to proceed to other functions. c. Press the Lock/Enter button to return to Standby mode

on the channel/privacy code that was displayed before you entered mode functions or the memory location on which, during scanning, you last received a transmission.

To reduce the number of memory locations being scanned, you may de-program any unwanted locations. (See page 17 to de-program a memory location.)

Operation

VibrAlert® and Call Alert

Your microTALK sounding an audible call tone, by vibrating silently or both.

Mode Button

Channel Button

Mode Functions

radio can alert you to incoming signals by

To change call settings:

1. Press the Mode button

until the Call Setting icon flashes on the display. The current setting (“01” vibrate + ring, “02” vibrate only or “03” ring only) is displayed.

2. Press the Channel Up or Channel Down button to

change the call setting.

VibrAlert® + Ring

VibrAlert® Only

Ring Only

3. Choose one of the following:

a. Press the Mode button

to enter the new setting and proceed to other functions.

b. Press the Lock/Enter button to enter the

new setting and return to Standby mode.

10 Call Tone Settings

Mode Button

You can choose from 10 different call tone settings to transmit a unique call alert.

To change a call tone setting:

1. Press the Mode button until the

letter “C” and the current call tone number

Call Tone Setting

(01 through 10) is displayed.

2. Press the Channel Up or Channel Down button to hear the other call tone settings.

3. Choose one of the following:

Channel Button

a. Press the Mode button to enter the new

setting and proceed to other functions.

b. Press the Lock/Enter button to enter the

new setting and return to Standby mode.

Operation

•

Roger Beep Confirmation Tone

Roger Beep is an audible tone that your listener will hear when you release the Talk button. This alerts the other party that you are finished talking and it is OK for them to speak.

Mode Button

Roger Beep On

To turn roger beep on or off:

1. Press the Mode button until the Roger Beep icon flashes on the display. The current on or off setting is displayed.

2. Press the Channel Up or Channel Down button to select roger beep on or off.

Customer Assistance Warranty

•

3. Choose one of the following:

a. Press the Mode button to enter

the new setting and proceed to other

Channel Button

functions.

b. Press the Lock/Enter button to enter the

new setting and return to Standby mode.

•

Keystroke Tones

With Keystroke Tones turned on, your radio will sound beeps each time you press a button or change a setting.

Mode Button

To change keystroke tones:

1. Press the Mode button until the Keystroke Tones icon flashes on the display. The current on or off setting is displayed.

Keystroke Tones On

2. Press the Channel Up or Channel Down button to turn keystroke tones on or off.

•

3. Choose one of the following:

a. Press the Mode button to enter the new

Channel Button

setting and return to Standby mode.

b. Press the Lock/Enter button to enter the

new setting and return to Standby mode.

General Specifications

Operation

General Specifications

FRS/GMRS Frequency

Allocation and Compatibility

Important: Please note that Cobra GMRS models with 15 Channels

may designate different channel numbers for the same frequency. For example, a Cobra 15 Channel GMRS model would need to be tuned to Channel 11 in order to communicate with a 22 Channel GMRS tuned to Channel 15. Please refer to the chart below for channel/ frequency number compatibility.

A = Channel No. for 22 Channel FRS/GMRS Models B = Channel No. for 15 Channel GMRS Models C = Type of Radio Service D = Frequency in MHz E = Power Output

1 1

2 2 FRS/GMRS 462.5875 High, Med, or Low

3 3 FRS/GMRS 462.6125 High, Med, or Low

4 4 FRS/GMRS 462.6375 High, Med, or Low 5 5 FRS/GMRS 462.6625 High, Med, or Low 6 6 FRS/GMRS 462.6875 High, Med, or Low 7 7 FRS/GMRS 462.7125 High, Med, or Low 8 FRS 467.5625 Low 9 FRS 467.5875 Low 10 FRS 467.6125 Low 11 FRS 467.6375 Low 12 FRS 467.6625 Low 13 FRS 467.6875 Low 14 FRS 467.7125 Low 15 11 GMRS 462.5500 High, Med, or Low 16 8 GMRS 462.5750 High, Med, or Low 17 12 GMRS 462.6000 High, Med, or Low 18 9 GMRS 462.6250 High, Med, or Low 19 13 GMRS 462.6500 High, Med, or Low 20 10 GMRS 462.6750 High, Med, or Low 21 14 GMRS 462.7000 High, Med, or Low 22 15 GMRS 462.7250 High, Med, or Low

and FCC License

C D E

FRS/GMRS 462.5625 High, Med, or Low

Operation WarrantyIntroduction

•

IMPORTANT NOTICE: FCC LICENSE REQUIRED

This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. A user must be licensed prior to operating on Channels 1 through 7 on high power or 15 through 22, which comprise the GMRS channels of this radio. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules. Operation of this radio is subject to additional rules specified in 47 C.F.R. Part 95.

Licensed users will be issued a call sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time.

For licensing information and application forms, please call the FCC Hotline at 800-418-FORM. Request form #159 and form #605. Questions regarding the license application should be directed to the FCC at 888-CALL-FCC. Additional information is available on the FCC’s website at www.fcc.gov.

Channel 1 through 7 on low power and channels 8 through 14 comprise the FRS (Family Radio Service). No license is required to operate on the FRS.

Customer Assistance

•

Safety Information for microTALK® Radios

Your wireless handheld portable transceiver contains a low power transmitter. When the talk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices.

Important

FCC RF Exposure Requirements: For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Cobra accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications or attachments could damage the transmitter and may violate FCC regulations.

Normal Position

Hold the transmitter approximately two inches from your face and speak in a normal voice, with the antenna pointed up and away.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Warnings: Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra may cause a violation of the technical regulations of part 95 of the FCC rules, or violation of type acceptance requirements of part 2 of the rules.

Customer Assistance

Product Service Questions

For any questions about operating or installing this new Cobra product, or if parts are missing…PLEASE CALL COBRA FIRST…do not return this product to the store. See customer assistance on page A1.

For Products Purchased in the U.S.A.

If your product should require factory service, please call Cobra first before sending your radio. This will ensure the fastest turn-around time on your repair. You may be asked to send your radio to the Cobra factory. It will be necessary to furnish the following to have the product serviced and returned.

1) For warranty repair include a copy of the original sales receipt. If you send the original receipt, it cannot be returned.

2) Send the entire product.

3) Enclose a detailed description of the problem along with the name and address of where the product is to be returned.

4) Pack radio securely to prevent damage in transit. If possible, use the original packing material.

5) Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or Priority Mail to avoid loss in transit to Cobra Factory Service:

Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 U.S.A.

6) If the radio is under warranty, it will be repaired or exchanged depending on the model.

Please allow approximately three to four weeks before contacting Cobra for status. If the radio is out of warranty, a letter will automatically be sent informing you of the repair charge or replacement charge. If you have any questions, please call 773-889-3087 for assistance.

Product Service

•

For Products Purchased Outside the U.S.A.

Please contact your local dealer for product service information.

Cobra Electronics CXR925 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
