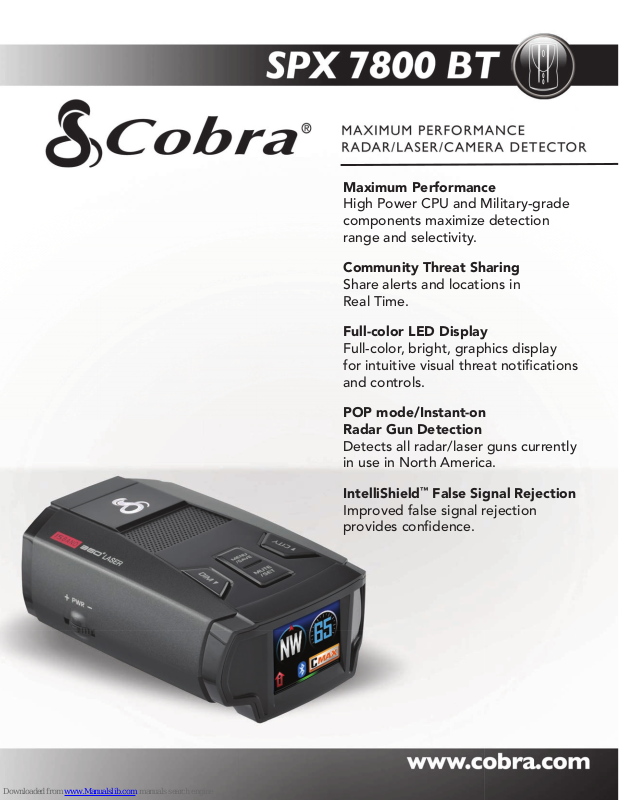

Cobra SPX 7800BT Specifications
Maximum Performance
High Power CPU and Military-grade
components maximize detection
range and selectivity.
Community Threat Sharing
Share alerts and locations in
Real Time.
Full-color LED Display
Full-color, bright, graphics display
for intuitive visual threat notications
and controls.
POP mode/Instant-on
Radar Gun Detection
Detects all radar/laser guns currently
in use in North America.
IntelliShield
™
False Signal Rejection
Improved false signal rejection
provides condence.
Drive with a Cobra and drive with peace-of-mind!
The new SPX Series is the culmination of Cobra’s over 30 years of experience in building quality, high-performance, radar/laser detectors.
The SPX Series combines following cutting-edge technology to achieve its supercharged performance – nearly doubling the detection range of its predecessors:
• Ultra-low-noise, signal ampliers that once were affordable only to military systems
• Low-microwave-loss circuitry utilizing gold-plated circuit boards
• Use of ip-chip Mixer/Multiplier diodes in packages that were once unattainable
• First Local Oscillator Transistor (Super-low-noise, high-mobility J-FET) that has been chosen to
optimize signal gain, output power, and low noise characteristics over its frequency range
• Powerful CPU that enables sweeping of the entire police radar band spectrum in less than 240 milliseconds
The SPX Series utilizes best components/technology available today to provide best detection range in its class, against all current radar/laser speed
enforcement guns used today, including Instant-on, X-band, K-band, Superwide Ka-band, Ku-band and Laser. The result is a radar/laser detector that performs
near the theoretical limits for a low-noise receiver.
Features Benets
Maximum Performance High Power CPU and Military-grade components maximize detection range and selectivity.
Ultra Compact Design Discreet and Rened - One of the world’s smallest detector available.
POP mode/Instant-on Radar Gun Detection
IntelliShield
™
False Signal Rejection Improved false signal rejection provides condence.
Community Threat Sharing Compatible Download free Cobra iRadar
8-Point GPS Compass Automatically provides an accurate direction heading, when connected to your iOS/Android
Full-color Organic LED Display Bright graphics display for intuitive visual threat notications.
Customizable Display Color Themes Choose from blue, green, red, orange, white and multi-color themes
VoiceAlert
™
Provides the user with specic band voice annunciation.
City/Highway Modes Allows the user to select operating mode, reducing the frequency of falsing in densely populated urban areas.
®
LaserEye
Provides 360˚ detection of laser signals.
Ku Band Detection Detects Ku Band Radar Gun currently being used in Europe. Be ready when it comes to U.S.
Digital Signal Strength Meter Provides the user with relative proximity to the target.
High-gain Lens Special lens amplies radar/laser singals, while ltering out noise.
Auto Mute Automatically mutes the alert tone for enhanced driver convenience.
IntelliMute
IntelliMute
®
Relative speed sensing auto-mute system that virtually eliminates false alerts.
®
Pro Relative speed sensing auto shutdown feature will render your detector undetectable by currently available
Dim Mode Allows the user to dim the radar detector display enhancing night driving visibility.
Safety Alert
Strobe Alert
VG-2 Alert
®
Warns driver of emergency vehicles and road hazards from systems equipped with Safety Alert® transmitters.
®
A Cobra exclusive, works with tens of thousands of emergency vehicles currently equipped with trafc light
®
Alerts the user when they are under surveillance of VG-2 radar detector-detectors.
VG-2 Undetectable Provides complete immunity to VG-2 radar detector-detectors.
Spectre Alert
™
Alerts user when they are under surveillance of Spectre I/IV+ radar detector-detectors.
Spectre Undetectable Provides complete immunity to Spectre I radar detector-detectors.
Stay Set Electronic Memory Electronically remembers radar detector settings for an indenite period of time even with the power removed.
System Self Test Noties the user that the radar detector has correctly completed a self-test and is ready.
Unit Specications - General
Unit Dimension 1.54” H x 2.43” W x 3.71” D
(39 mm x 61.6 mm x 94.3 mm)
SKU# SPX 7800 BT
UPC 028377 10640 8
Master Pack Qty. 4
Master Pack 1 00 28377 10640 5
Bar Code
Clamshell 7.87” H x 6.34” W x 1.81” D
Dimension (200 mm x 161 mm x 46 mm)
©2013 Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, IL 60707, US
®
Cobra
, DigiView®, EasySet®, IntelliMute®, IntelliShield®, LaserEye®, Nothing Comes Close to a Cobra®, Safety
Alert® Trafc Warning System, Strobe Alert®, VG-2 Alert®, Xtreme Range Superheterodyne® and the snake
design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corpora-
tion™, 14 Band™, ExtremeBright DataGrax™, Spectre Alert™, UltraBright Data Display™ and Voice
Alert™ are trademarks of Cobra Electronics Corporation, USA. LTI Laser™ and LTI 20-20™ are trademarks of Laser Technology, Inc. Kustom Laser™, Kustom Laser 340™ and ProLaser II™ are trademarks
of Kustom Signals, Inc. SpeedLaser™ is a trademark of Laser Atlanta. Spectre™ is a trademark of Stalcar.
Interceptor VG-2™ is a trademark of TechniSonic Industries LTD.
Detects both POP Mode and Instant-On radar guns.
®
app to your iOS/Android™ smartphone to receive AURA® speed/red light/camera and
speed traps location-based alerts and community-shared threats on your detector.
®
smartphone via Cobra iRadar app.
radar detector-detectors.
controlling strobe emmitters. Provides advanced alert of the presence and/or approach of these vehicles.
Detects
Clamshell 11.39 oz. (323 g.)
Weight
Master Pack 8.27” H x 6.89” W x 10.83” D
Dimension
Master Pack 3.49 lbs. (1582 g.)
Weight
(210 mm x 175 mm x 275 mm)
*Specications subject to change without notice*
*All dimensions (H x W x D)*
• 7 Radar Signals 1. X Band Radar
2. K Band Radar
3. Ka Superwide Radar
4. Ku Band Radar
5. VG-2 Radar Detector-Detector
6. Spectre 1 Radar-Detector-Detector
7. Spectre IV+ Radar-Detector-Detector
• 6 Laser Signals 1. LTI 20-20**
2. LTI Laser**
3. Kustom Signals Laser 340**
4. Kustom Signals Laser**
5. Stalker LIDAR**
6. Laser Atlanta SpeedLaser/Kustom
Signals-ProLaser II**
• 2 Safety Systems 1. Safety Alert
2. Strobe Alert® System**
**360° Detection
Packaging is made from recyclable materials.
®
System
Nothing Comes Close to a Cobra
®
SPX7800BT SP 6/13
