Important Information
•
Federal Laws Governing The Use Of Radar Detectors
It is not against federal law to receive radar transmissions with your Cobra radar/
laser detector. The Communications Act of 1934 guarantees your right to receive
radio transmissions on any frequency. Local laws that contravene this Act, while
illegal, may be enforced by your local law enforcement officials until and unless
they are prohibited from doing so by federal court action.
Safety Aler t
Use of this product is not intended to, and does not, ensure that motorists or
passengers will not be involved in traffic accidents. It is only intended to alert
the motorist that an emergency vehicle equipped with a Cobra Safety Alert
transmitter is within range as defined by that product. Please call local fire
and police departments to learn if coverage exists in your area.
Safe Driving
Motorists, as well as operators of emergency or service vehicles, are expected to
exercise all due caution while using this product, and to obey all applicable traffic laws.
Security Of Your Vehicle
Before leaving your vehicle, always remember to conceal your radar detector
in order to reduce the possibility of break-in and theft.
Customer Assistance
•
Should you encounter any problems with this product, or not understandits many features,
please refer to this owner’s manual. If you require further assistance after reading this
manual, Cobra Electronics offers the following customer assistance services:
For Assistance in the U.S.A.
AutomatedHelp Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators Englishand Spanish. 8:00 a.m. to 6:00 p.m. Central Time
Mon. through Fri. (except holidays) 773-889-3087 (phone).
Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).
Technical Assistance Englishonly. www.cobra.com (on-line: Frequently Asked
Questions). English and Spanish. product info@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
ESD 7400
9 BAND
®
RADAR/LASER DETECTOR WITH
EXTRA SENSORY DETECTION
Nothing ComesClose to a Cobra
®
EnglishNothing ComesClose to a Cobra
®
English
Operating Instructions
Printedin China
PartNo. 480-529-P
VersionA
For more information or to
order any of our products,
please visit our website:
www.cobra.com
©2008 CobraElectronics Corporation
6500 West Cortland Street
Chicago,Illinois 60707 USA
www.cobra.com
CB Radios
microTALK
®
Radios
Radar/Laser Detectors
Safety Alert
®
Traffic Warning Systems
Mobile GPS Navigation Systems
HighGear
®
Accessories
CobraMarine
®
VHF Radios
Marine Chartplotters
Power Inverters
Accessories
The Cobra line of quality products includes:
Customer Assistance
ESD7400_MANL_CVR.qxd:7000-Cover 10/31/08 12:01 PM Page 1
Nothing Comes Close to a Cobra
®
1
Table Of Contents
Introduction
Introduction
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Controls, Indicators And Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Your Detector
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Highway/City Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Muting An Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Auto Mute Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Signals Detected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Audio Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Visual Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Instant-On Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Responding To Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Understanding Radar And Laser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Warranty
Limited 1-Year Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Customer Assistance
Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Trademark Acknowledgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Accessories Order Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Nothing Comes Close to a Cobra
®
Installation
Your Detector
3
Installation
Your Detector
2
English
Installation
•
Where To Mount Your Unit
You will get optimum performance from your detector if you Mount it at a
point approximately in the center of the vehicle, as low as possible on the
front windshield without obstructing the unit’s view of the road either to
the front or rear. You can also mount it directly on the dashboard.
The unit’s lens must not be blocked and the LaserEye should have a clear view
out the back window to allow 360° detection.
Radar and laser signals pass through glass but not through other materials
and objects. Objects that can block or weaken incoming signals include:
■
Windshield wiper blades
■
Mirrored sun screens
■
Dark tinting at the top of the windshield
■
Heated windshields currently available on some vehicles
(Instaclear for Ford, Electriclear for GM.) Consult your dealer
to see if you have this option.
1. Attach the rubber
cups to the bracket.
2. Make sure the rubber cups and your windshield are clean.
3. Push the bracket firmly
onto the windshield.
4. Attach the detector to
the bracket. Check the
angle of the unit.
5. To adjust the angle if
necessary, gently push or
pull on the bracket to bend
it. DO NOT use the detector
to bend the bracket.
6. Plug the power cord
into the detector.
7. Plug the cigarette lighter
adapter on the power
cord into your vehicle’s
cigarette lighter.
8. You can temporarily remove the detector whenever you
wish by depressing the bracket release button and sliding
it off the bracket.
Windshield Mounting
The LaserEye Should Have A Clear View
Windshield Mounting Dashboard Mounting
To Turn On The Unit And Adjust The Audio Volume
Rotate the On-Off/
Volume control
clockwise (away
from you).
Tone
Visual Display
Three (3) beeps The power indicator will light
up in the display indicating
that the power is On
.
Getting Started
Getting Started
•
Your Detector
Nothing Comes Close to a Cobra
®
5
Installation
Your Detector
4
English
1. Place the detector on the dashboard to find a location
where the unit has a clear, level view of the road.
The angle can NOT be adjusted after mounting.
2. Remove the paper backing
from one (1) side of the
hook-and-loop fastener.
3. Attach the pad to the
dashboard at your chosen
location and remove the
other paper backing.
4. Attach the detector to the
hook-and-loop fastener.
You can remove and
reattach the unit as
often as you like.
6. Plug the power cord
into the detector.
7. Plug the cigarette lighter
adapter on the power
cord into your vehicle’s
cigarette lighter.
Dashboard Mounting
Power On
On-Off/
Volume Control
Rotate clockwise
(away from you)
NOTE
In some vehicles, power is supplied to the cigarette lighter
even while the ignition is Off. If this is the case with your
vehicle, you should turn Off or unplug your detector when
parking for lengthy periods.
•
XK⁄KaLV⁄
S Cty
Settings
Your Detector
Nothing Comes Close to a Cobra
®
7
Settings
Your Detector
6
English
Settings
•
When changing the Settings on your detector, please keep in mind:
■
Each time the unit is turned On the factory settings of Highway
and Auto Mute-On will be set. They can be changed while the
unit is in use as described in the following sections.
Highway/City Mode
Setting your detector to City mode delays all X band audio alerts at lower
signal strength levels. (A single beep will sound when the signal is first
detected.) This will reduce false alerts while you are driving in, or near,
urban areas where there are many sources for conflicting X band signals
such as microwave towers and automatic door openers.
To change settings, follow the procedure listed below, which indicates
what you will see and hear as you complete each step. The factory setting
is Highway mode.
City Button
Press and release
City Mode
Highway Mode
To Change From Highway Mode To City Mode
Press and release
the City button.
Tone
Visual Display
One (1) beep
Cty
appears in the display
To Change From City Mode Back To Highway Mode
Press and release
the City button again.
Tone
Visual Display
Two (2) beeps
Cty
off
•
XK⁄KaLV⁄
S Cty
•
XK⁄KaLV⁄
S Cty
Muting An Alert
Your detector allows you to quickly turn Off an audio Alert by momentarily
pressing the Mute button. If you press the Mute button a second time
during the Alert, the audio Alert will be turned back On.
Auto Mute Mode
Auto Mute will automatically reduce the audio volume of all alerts
after four (4) seconds for as long as the signal is detected. The factory
setting for Auto Mute is On.
Mute Button
Press and release
To Turn Auto Mute Off
Press and release
the Mute button
while no alert
is occurring.
Tone
Visual Display
One (1) beep None
To Turn Auto Mute On
Press and release
the Mute button
again while no
alert is occurring.
Tone
Visual Display
Two (2) beeps None
Detection
Your Detector
Nothing Comes Close to a Cobra
®
9
Detection
•
Signals Detected
The tables on the following pages show you the types of Signals your
detector will detect, as well as the visual alerts it provides for each of them.
Audio Alerts
A distinctly different Alert tone is used for each type of signal detected
(including separate tones for each laser signal). For X, K and Ka band
radar signals, the tones will repeat faster as you approach the signal
source. The repeat rate of the tones gives you useful information about
the signal detected. (See responding to alerts on page 11.)
Visual Display
An indication of the type of signal detected will appear in the UltraBright
data Display.
During radar alerts the lettersXorK⁄Ka will appear.
During laser alerts the letterLwill appear.
During VG-2 and Safety Alerts, the lettersV⁄S
will appear.
Detection
Your Detector
8
English
K Signal DetectedX Signal Detected
•
XK⁄KaLV⁄
S Cty
X Signal Detected
•
XK⁄KaLV⁄
S Cty
Laser Signal Detected
•
XK⁄KaLV⁄
S Cty
•
XK⁄KaLV⁄
S Cty
•
XK⁄KaLV⁄
S Cty
Ka Signal Detected
•
XK⁄KaLV⁄
S Cty
Ka Signal Detected
•
XK⁄KaLV⁄
S Cty
K Signal Detected
•
XK⁄KaLV⁄
S Cty
VG-2 Alert Signal Detected
•
XK⁄KaLV⁄
S Cty
Safety Alert Signal Detected
•
XK⁄KaLV⁄
S Cty
Radar Signals And Visual Displays
Type of Signal Visual Display
X Band Radar X is Steady
K Band Radar
K
⁄Ka is Steady
Ka Band Radar
K
⁄Ka is Steady
Laser Signal Detected
Laser Signals And Visual Displays
Type of Signal Visual Display
LTI 20-20* L is Steady
LTI Ultra-Lyte* L is Steady
Kustom Signals ProLaser* L is Steady
Kustom Signals ProLaser III* L is Steady
* Your detector provides 360˚ detection of these signals.
Detection
Your Detector
Nothing Comes Close to a Cobra
®
11
Detection
Your Detector
10
English
Safety Alert Signals And Visual Displays
Type of Signal Visual Display
Emergency Vehicles
V
⁄S is Steady
Road Hazards
V
⁄S is Steady
Trains
V
⁄S is Steady
VG-2 Alert Signal And Visual Display
Type of Signal Visual Display
Interceptor VG-2
V
⁄S is Steady
Description Interpretation
Recommended
Response
Tone repeats slowly at
first, then speeds up
rapidly.
Probably police radar FULL ALERT
Tone sounds one (1)
time only.
Probably a false alarm,
but possibly pulsed radar
or VG-2 nearby
Exercise caution
Tone instantly begins
repeating rapidly.
Radar or VG-2 nearby
has been activated
suddenly
FULL ALERT
Tone repeats slowly as you
approach a hill or bridge,
then speeds up sharply as
you reach it.
Probably police
radar beyond the
hill or bridge
FULL ALERT
Tone repeats slowly
for a short period.
Probably a false alarm Exercise caution
Any type of laser alert. Laser alerts are
never false alarms
FULL ALERT
Any Safety Alert. You are nearing an
emergency vehicle,
railroad crossing,
or road hazard
(construction,
accident, etc.)
Exercise caution
Instant-On Detection
Your detector is designed to detect Instant-On speed monitoring signals,
which can suddenly appear at full strength.
NOTE
You should take appropriate action
immediately whenever an instant-on alert is given.
Responding To Alerts
VG-2 Alert Signal Detected
•
XK⁄KaLV⁄
S Cty
Safety Alert Signal Detected
•
XK⁄KaLV⁄
S Cty
Understanding Radar And Laser
Your Detector
Nothing Comes Close to a Cobra
®
13
Understanding Radar And Laser
•
Radar Speed Monitoring Systems
Three (3) band frequencies have been approved by the Federal Communications
Commission (FCC) for use by speed monitoring radar equipment:
X band 10.525 GHz
K band 24.150 GHz
Ka band 33.400 – 36.00 GHz
Your detector detects signals in all three (3) radar bands.
VG-2
VG-2 is a “detector detector” that works by detecting low-level signals
emitted by most radar detectors. Your detector does not emit signals that
can be detected by VG-2, but does detect VG-2 signals and will alert you
when a device is in use near your vehicle.
Safety Alert®Traffic Warning System
FCC-approved Safety Alert transmitters emit microwave radar signals that
indicate the presence of a safety-related concern. Depending on the frequency
of the signal emitted, it can indicate a speeding emergency vehicle or train,
or a stationary road hazard.
Because these microwave signals are within the K band frequency, most
conventional radar detectors will detect Safety Alert signals as standard
K band radar. Your detector, however, is designed to differentiate between
standard K band and Safety Alert signals, and give separate alerts for each.
Safety Alert technology is relatively new. Safety Alert transmitters can
be found in limited numbers in all 50 states, but the number is growing.
Depending on your location, you may not receive these alerts regularly
and may often encounter emergency vehicles, trains and road hazards
without being alerted. As the number of transmitters increases,
these alerts will become more common.
When you receive such an alert, please watch for emergency vehicles ahead
of you, on cross streets and behind you. If you see an emergency vehicle
approaching, please pull over to the right side of the road and allow it to pass.
Understanding Radar And Laser
Your Detector
12
English
LIDAR (Laser)
The correct name for the technology that most people refer to as
laser is actually LIDAR, which stands for Light Detection and Ranging.
LIDAR operates much like radar. Its signal spreads out like a radar
signal, though not as widely. Unlike radar, LIDAR must have a clear
line of sight to its target vehicle throughout the entire measurement
interval. Obstructions such as sign posts, utility poles, tree branches,
etc., will prevent valid speed measurement.
Some common questions about LIDAR include:
■ Does weather have any affect on LIDAR?
Yes. Rain, snow, smoke, fog, or airborne dust particles will reduce the
effective range of LIDAR and can, if dense enough, prevent its operation.
■ Can LIDAR operate through glass?
Yes. Newer LIDAR guns can obtain readings through most types of glass.
However, the laser pulse also can be received through glass to trigger
an alarm by your detector.
■ Can LIDAR operate while in motion?
No. Because LIDAR operates by line of sight, the person using it cannot
drive the vehicle, aim and operate the gun all at the same time.
■ Is LIDAR legal to use?
Yes. It is legal in all 50 states.
Warranty And Product Service
Nothing Comes Close to a Cobra
®
15
Maintenance And Specifications
14
English
Maintenance
•
Maintenance Of Your Radar Detector
Your detector is designed and built to give you years of trouble-free
performance without the need for service. No routine Maintenance is required.
If your unit does not appear to be operating properly, please follow these
troubleshooting steps:
■ Make sure the power cord is properly connected.
■ Make sure the socket of your vehicle’s cigarette lighter is clean
and free of corrosion.
■ Make sure the power cord’s cigarette lighter adapter is firmly
seated in your cigarette lighter.
■ Check the power cord fuse. (Unscrew the ribbed end cap
of the cigarette lighter adapter and examine the fuse. If required,
replace it with a 2-amp fuse only.)
Specifications
•
Band And Frequencies
Band Frequencies
X Band 10.525 ± 0.050 GHz
K Band 24.125 ± 0.125 GHz
Safety Alert 24.070 ± 0.010 GHz
Traffic Warning 24.110 ± 0.010 GHz
System 24.190 ± 0.010 GHz
24.230 ± 0.010 GHz
Ka Band 34.700 ± 1.300 GHz
Laser 910 ± 50 nm
Unit Dimensions And Weight
Dimensions* Weight*
11⁄4" x 23⁄4" x 37⁄8" 4.26 oz.
(33 mm x 70 mm x 98 mm) (121 g)
* Dimensions and weight measurements are approximate.
This radar detector is covered by one or more of the following U.S. patents: 5,497,148; 5,594,432;
5,612,685; 6,078,279; 6,094,148. Additional patents may be listed inside the product or pending.
Limited 1-Year Warranty
•
For Products Purchased In The U.S.A.
Cobra Electronics Corporation warrants that its Cobra 9 Band Radar/Laser Detectors, and the
component parts thereof, will be free of defects in workmanship and materials for period of one (1)
year from the date of first consumer purchase. This warranty may be enforced by the first consumer
purchaser, provided that the product is utilized within the U.S.A.
Cobra will, without charge, repair or replace, at its option, defective 9 Band Radar/Laser Detectors,
products or component parts upon delivery to the Cobra Factory Service Department, accompanied
by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship the product for warranty service, but the
return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty.
This warranty gives you specific rights, and you may also have other rights which vary from state to state.
Exclusions: This limited warranty does not apply: 1) To any product damaged by accident.
2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs.
3) If the serial number has been altered, defaced or removed. 4) If the owner of the product resides
outside the U.S.A.
All implied warranties, including warranties of merchantability and fitness for a particular purpose
are limited in duration to the length of this warranty.
Cobra shall not be liable for any incidental, consequential or other damages; including,
without limitation, damages resulting from loss of use or cost of installation.
Somestates do not allowlimitationson how long an implied warrantylasts and/or do not allowthe exclusion
or limitation of incidental or consequential damages, so the above limitations may not apply to you.
Product Service
•
If you have any questions about operation or installing your new Cobra product, or if you are
missing parts…
Please call Cobra first! DO NOT RETURN THIS PRODUCT TO THE STORE!
See customer assistance on page A1.
If you suspect that your unit requires service, please call 773-889-3087 BEFORE shipping
it to Cobra. This will ensure that you receive service as quickly as possible.
If you are asked to send your unit to the Cobra factory, please follow these steps: 1) Send the
complete unit, including power cord. (It is not necessary to include the mounting bracket.) 2) For
warranty repair, enclose some form of proof-of-purchase, such as a photocopy or carbon copy of
a sales receipt. If you send the original receipt, it cannot be returned. 3) Enclose a typed or clearly
written description of the problem you are having with your unit, plus the name and address where
you want the unit returned. 4) Pack the unit securely to prevent damage during transit. If possible,
use the original packing materials. 5) Ship prepaid and insured using a traceable carrier such as
United Parcel Service (UPS), Federal Express, or Priority mail with delivery confirmation. Ship to:
Cobra Factory Service, Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, IL 60707
U.S.A. 6) Please allow three (3) to four (4) weeks before contacting us about the status of your
service. Call 773-889-3087 for assistance. If your unit is under warranty, it will either be repaired
or replaced upon receipt, depending on the model. If your unit is out of warranty, you will receive
a letter informing you of the repair or replacement charge.
Your Detector Warranty
Customer Assistance
Trademark Acknowledgement
And Optional Accessories
16
English

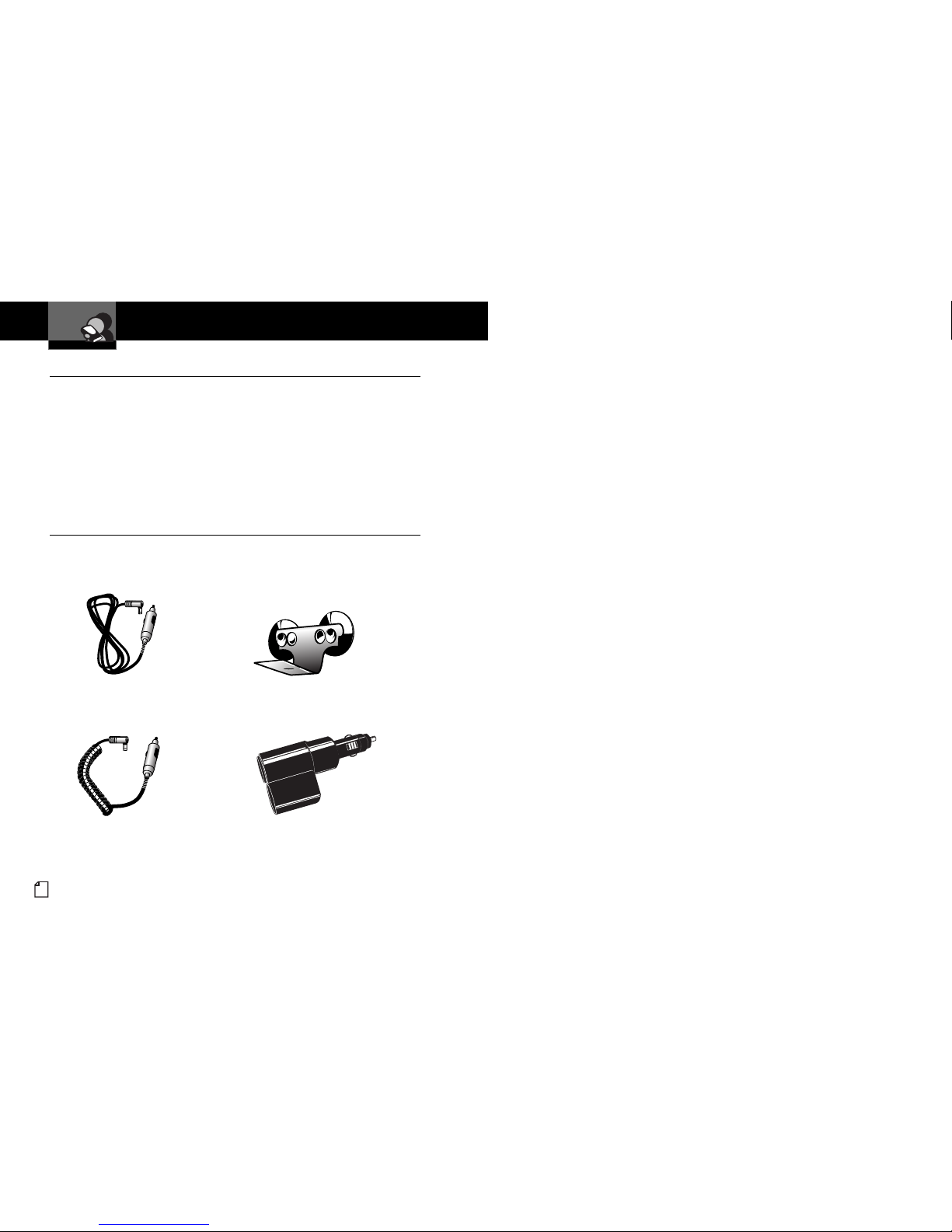

Windshield Mounting Bracket
Includes suction cups
Item # 545-159-N-001
Straight 12V DC Power Cord
Includes plug and fuse
Item # 420-030-N-001
Coiled 12V DC Power Cord
Includes plug and fuse
Item # 420-026-N-001
Dual Port Power Adapter
Includes adjustable plug
(up to 90˚) and fuse
Item # CLP-2B
Customer Assistance
Optional Accessories
•
You can find quality Cobra products and accessories
at your local Cobra dealer, or in the U.S.A., you can
order directly from Cobra.
Trademark Acknowledgement
•
Cobra®, 9 Band®, DigiView®, Extra Sensory Detection®, HighGear®, EasySet®, IntelliMute®,
IntelliShield
®
, microTALK®, LaserEye®, Safety Alert®Traffic Warning System, Strobe Alert®, VG-2
Alert
®
, Nothing Comes Close to a Cobra®and the snake design are registered trademarks of Cobra
Electronics Corporation.
Cobra Electronics Corporation™, SmartPower™, Spectre Alert™, UltraBright™ and Voice Alert™ are
trademarks of Cobra Electronics Corporation.
Opticom™ is a trademark of 3M Corporation. Instaclear
®
for Ford is a registered trademark of
Ford Motor Company, Inc. Electriclear
®
for GM is a registered trademark of General Motors
Corporation. 20-20™ and Ultra-Lyte™ are trademarks of Laser Technology, Inc. ProLaser™ and
ProLaser III™ are trademarks of Kustom Signals, Inc. Bee III™ and Pop™ are a trademarks of
MPH Industries. Spectre™ is a trademark of Stalcar. Interceptor VG-2™ is a trademark of
TechniSonic Industries LTD. Tomar
®
is a registered trademark of TOMAR Electronics, Inc.
Loading...
