Operating Instructions for your Cobra 29 LTD BT

U.S. Patent No. 8078120

Part No. 480-455-P

The Citizens Band lies between the shortwave broadcast and 10-meter Amateur radio bands, and was established by law in 1949. The Class D two-way communications service was opened in 1959. (CB also includes a Class A citizens band

and Class C remote control frequencies.)

FCC Regulations

FCC regulations permit only “transmissions” (one party to another) rather than “broadcasts” (to a wide audience). Thus, advertising is not allowed on CB Channels because that is “broadcasting.”

FCC Warnings

All transmitter adjustments other than those

supplied by the manufacturer as front panel operating controls, must be made by, or under the supervision of, the holder of an FCC-issued general Radio-Telephone Operator’s License.

Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra, may cause violation of the technical regulations

of Part 95 of the FCC Rules, or violation of Type Acceptance requirements of Part 2 of the Rules.

You should read and understand Part 95 (included with this unit) of the FCC Rules and Regulations, before operating your Cobra radio, even though the FCC no longer requires you to obtain an operator’s license.

What’s Included with Your 29 LTD BT

2. Microphone with

Bluetooth® Button

3. Transceiver bracket

4. Microphone bracket

1. CB transceiver

5. Operating manual

6. DC power cord

(not shown)

7. FCC rules

(not shown)

Controls and Indicators

1. 6-Pin Microphone Connector

2. Power On/Off/Volume/

Squelch Control

3. Dynamike®

4. RF Gain

5. Delta-Tune

6. SWR CAL / Talk Back

7. Channel Selector

8. LED Channel Display

9. ANT Indicator and

Bluetooth® LED Indicator

10. RX (Receive)/ TX ( Transmit)

LED Indicator

11. Channel 9/ Normal Switch

12. Dimmer Switch

13. CB/PA Switch

14. NB/ANL ANL Off Switch

15. S/RF SWR CAL Switch

16. Signal Strength Meter.

17. Microphone.

18. Bluetooth Button

2 3 4 5 6 7

Our Thanks to You

Ordering From U.S.A.

Thank you for purchasing the Cobra 29 LTD BT CB Radio. Properly used, this Cobra product will give you many years of reliable service.

Customer Support

Should you encounter any problems with the product or not understand its many features, please refer to this owner’s manual. If , after referring to the manual, you still need help, call Cobra Customer Service at 773-889-3087.

NOTE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two (2) conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Cobra Customer Service

Live operators are available M-F 8:00 am - 5:30 pm Central Time at: 773-889-3087

Automated Technical Assistance available 24 hours a day, seven days a week. E-mail questions to: productinfo@cobra.com

Cobra on the World Wide Web: Frequently Asked Questions (FAQ) can be found on-line at: www.cobra.com

Call 773-889-3087 for pricing or visit www.cobra.com.

For Credit Card Orders

Call 773-889-3087 [Press one from the main menu] 8:00 a.m. to 5:30 p.m. Central Time, Monday through Friday.

Make Check or Money Order Payable To

Cobra Electronics, Attn: Accessories Dept., 6500 West Cortland Street, Chicago, IL 60707 U.S.A.

To Order Online

Please visit our website: www.cobra.com

Item # Description

426-002-N-001 Replacement DC Power Cord 251-353-9-001 Replacement Mounting Bracket 634-081-9-001 Replacement Thumb Screws 741-080-9-001 Replacement Microphone Bracket HG A1000 21” Base Loaded,

HG A1500 38” Base Loaded

MNA MIC External Bluetooth Microphone

Magnetic Mount Antenna

Back Side

19. External Bluetooth

Microphone Jack

20. Public Address

Speaker Jack

21. External Speaker Jack

22. Power Jack

23. Antenna Connector

23 22

How to Use Your

Cobra 29 LTD BT

Contents

Features .................................................................................................................1

The CB Story..........................................................................................A1

FCC Regulations FCC Warnings Included Accessories

Controls & Indicators.......................................................................A2

Our Thanks to You .............................................................................A3

Customer Support

Installation

Location ................................................................................................2

Mounting and Connection ............................................................2

Antennas

CB Antenna..........................................................................................6

Marine Installation ............................................................................6

Ignition Noise Interference .............................................................7

Operating Your 29 LTD BT

Turning On Your CB...........................................................................8

Setting Channel Selector ................................................................9

Calibrate For SWR (Standing Wave Ratio)...............................10

To Receive...........................................................................................13

Bluetooth Linking With Cell Phone..........................................14

Selecting a Channel ........................................................................16

Bright/Dim Switch ...........................................................................16

NB-ANL/ANL/Off (Noise Blanker/Automatic..........................17

Noise Limiter Switch)

RF Meter ..............................................................................................18

S-Meter ................................................................................................18

External Speaker/Microphone ....................................................19

RF Gain Control.................................................................................19

Setting Delta-Tune ..........................................................................20

Setting Squelch ................................................................................20

To Transmit ........................................................................................22

Setting Dynamike® .........................................................................22

Transmit..............................................................................................23

TalkBack..............................................................................................23

PA (Public Address) ........................................................................24

Home And Office Set-Up .............................................................26

Temporary Mobile Set-Up ...........................................................27

How Your CB Can Serve You..........................................................28

A Few Rules You Should Know ..................................................28

Channel 9 Emergency Messages ..............................................28

CB 10 Codes...................................................................................... 30

Frequency Ranges............................................................................. 32

29 LTD BT Specifications ................................................................ 33

Warranty Information..................................................................... 34

Optional Accessories ....................................................................... 35

Accessory Order Info........................................................................37

If You Think You Need Service ....................................Back Cover

Features of This Product

• 40 CB Radio Channels

• Heavy-Duty Noise Canceling Microphone

• Full 4 Watts AM RF Power Output

• SWR Calibration Meter

• Talk Back

• Instant Channel 9

• Allows use of Bluetooth® enabled cell phone through CB

• 6-Pin Front Mount Microphone Connector

• Delta -Tune

• Switchable Automatic Noise Limiter & Noise Blanker

• Adjustable Dynamike® Boost

• 9 Ft. Mic Cord

• RF Gain

Installation

Location

Mounting and Connection

Hold the radio with the mounting bracket in the exact desired location. If there is no interference, remove the bracket and use it as a template to mark the location for the mounting screws.

Location

Plan location of transceiver and microphone bracket before starting the installation.

Select a location that is convenient for operation, yet does not interfere with the driver or passenger.

The transceiver is usually mounted to the underside of the dash with the microphone bracket beside it.

Note

The transceiver is held in the universal mounting bracket by two thumbscrews which allow for adjustment at a convenient angle.

The bracket includes two self-tapping screws and star washers. The mounting must be mechanically strong, conveniently located.

continued

Drill the holes and secure the bracket.

Connect the antenna cable plug to the receptacle marked “ANT” on the back of the unit.

Installation

Note

Connecting to an accessory fuse prevents the unit from being left on accidentally, and also permits operating the unit without running the engine.

Note

In positive ground vehicles the red wire goes to the chassis and the black wire is connected to the ignition switch.

Note

Before installing the CB radio, visually check the vehicle’s battery connection to determine which terminal, positive or negative, is grounded (positive is the larger of the two) to the engine block (or chassis). A negatively grounded vehicle has its negative lead grounded to the chassis.

In a negative grounded vehicle, connect the red lead of the DC power cord to an accessory 12 volt fuse.

Connect the black lead to the negative side of the vehicle. This is usually the chassis. Any convenient location with a good electrical contact (remove paint) may be used.

Plug power cable into back of unit marked “Power”. Be sure to observe polarity markings.

Mount the microphone bracket on either side of the unit (driver’s left) using two screws supplied. Bracket should be placed under the dash so microphone is readily accessible.

Attach the 6-pin microphone cable to receptacle, on the front of unit and install unit on bracket securely.

Ignition Noise Interference

Antennas

Use of a mobile receiver at low signal levels is normally limited by the presence of electrical noise. The primary source of noise in automobiles is from the alternator and ignition system. Typically, when signal level is adequate, the background noise does not present a serious problem. Also, when extremely low level signals are being received, the transceiver may be operated with the vehicle’s engine turned off. The unit requires very little current and therefore will not significantly discharge the vehicle’s battery.

Even though the Cobra 29 LTD BT has an automatic noise limiter, in some installations ignition interference may be high enough to make good communications impossible. Many possibilities exist and variations between vehicles require different solutions. Consult your COBRA dealer or a 2-way radio technician for help in locating the source of a severe noise.

CB Antenna

Since the maximum allowable power output of the transmitter is limited by the FCC, the antenna is critical in affecting transmission distance. Only a properly matched antenna system will allow maximum power output. Cobra loaded type antenna models are highly recommended for most installations. Consult your Cobra dealer for further details, or call 773-889-3087 and speak to a Cobra representative.

Marine Installation

The transceiver will not operate at maximum efficiency in a boat without a ground plate, (unless it has a steel hull). Before attempting installation , consult your dealer for information regarding an adequate grounding system and prevention of electrolysis between fittings in the hull and water.

CB Antenna

Note

For optimum performance in passenger cars the ideal antenna location is on the center of the roof. Second choice is on the center of the trunk.

Note

Because many newer trucks feature fiberglass door skins, the outside mirror must be grounded to the chassis via a ground strap when antenna is mounted on the mirror bracket.

Note

3-way Combination Antennas are also available which allow operation of all three bands (AM-FM & CB), using a single antenna. However, this type of antenna usually results in less than normal transmit and receive range when compared to a standard-type “Single Band” CB antenna. Call 773-889-3087 for further information.

A standard antenna connector is provided on the transceiver for easy connection.

ANT

The CB/PA button should be in the CB position.

Operation

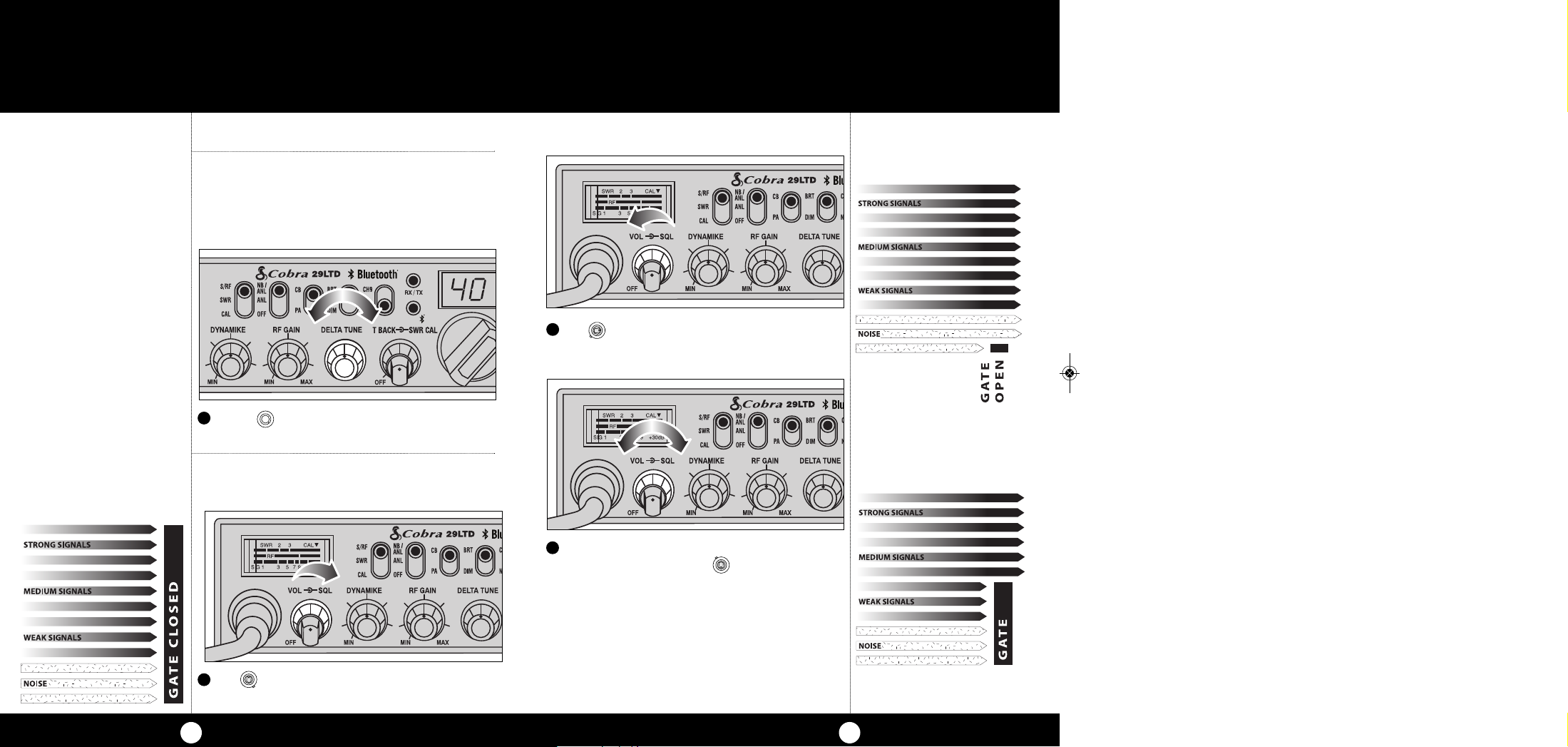

Turning On Setting Channel

Selector

Turning On

Make sure the power cord, antenna and microphone are connected to their proper connectors before starting.

Setting Channel Selector

Rotate the On/Off Volume knob clockwise to a normal listening level.

Select one of forty channels and adjust volume. The selected channel is indicated by the LED readout directly above the channel selector knob

ANT/

Operation

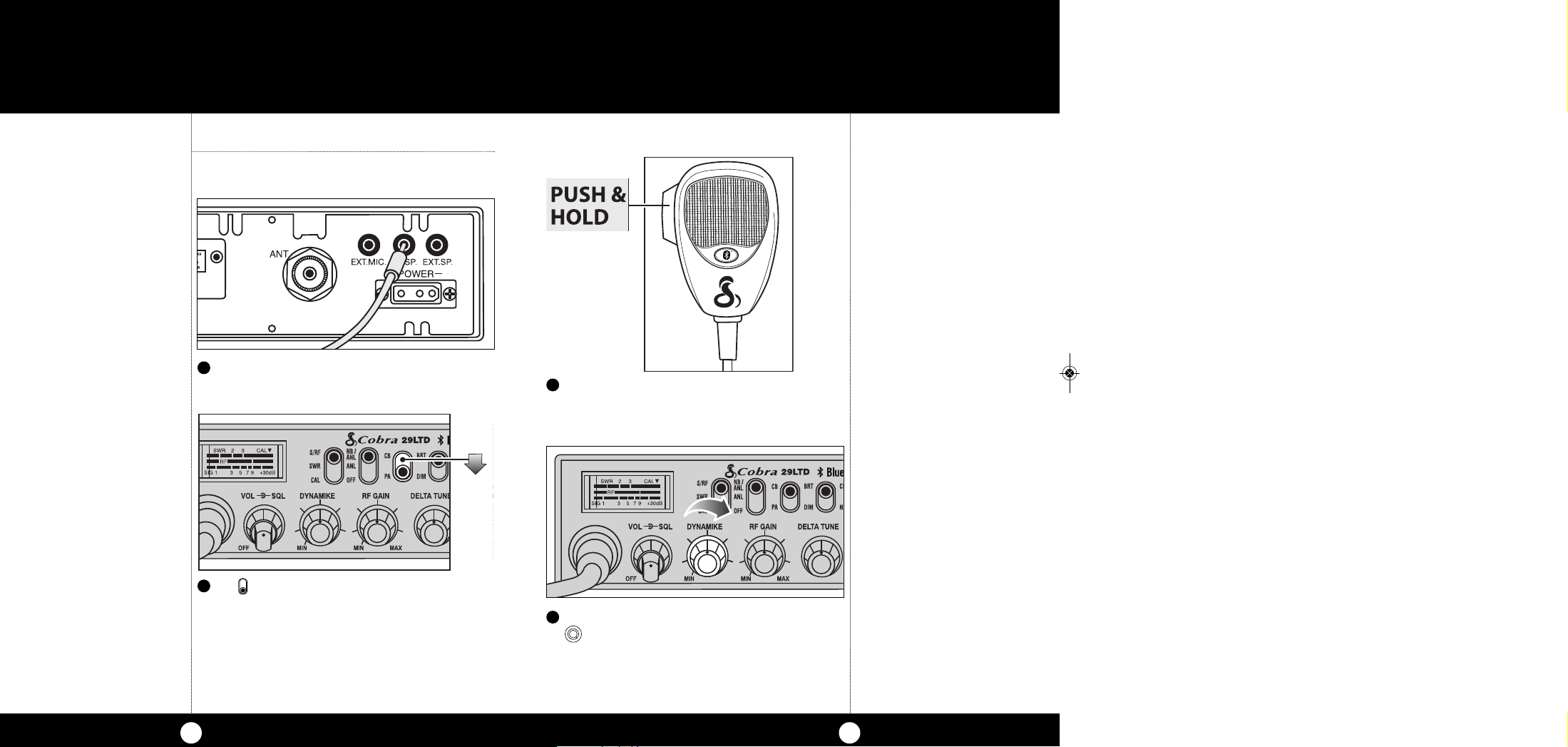

Calibrate For SWR (Standing Wave Ratio)

1110

Note

Antenna Indicator LED will illuminate when TX if SWR is high.

Note

Calibration must be made in an open area (never in a garage). Vehicle doors must be closed. No one should be standing near the antenna. (See your antenna directions for more complete information).

continued

Switch to the CAL position.

Calibrate for SWR (Standing Wave Ratio)

SWR calibration is done to properly adjust the length of the antenna and to monitor the quality of the coaxial cable and all RF connections. This calibration is critical in order to achieve optimum performance.

Select channel 20.

Push and hold mic button.

While holding mic button adjust the SWR CAL knob so the meter needle swings to the CAL ▼ mark on the meter (located on the right).

ANT/

Operation

Note

The reading will be slightly higher on Channels 1 and 40 compared to Channel 20.

Note

When switched to SWR position the meter needle should ideally be as far to the left as possible. Anything over 3 is not acceptable. The antenna indicator will light. A slight antenna height adjustment (higher or lower) may be required. Repeat calibration steps.

Repeat the same steps two through five on Channel 1 and 40. This will check SWR for all channels.

While still holding down the mic button, set the S/RF SWR CAL switch to the SWR position, to read the SWR reading.

Rotate the On/Off Volume knob clockwise the green RX/TX LED will be illuminated.

To Receive

Operation

Bluetooth

Calls on a Bluetooth enabled cell phone can be routed through the 29 LTD BT speaker or external speaker accessory.

To Pair with a Cell Phone

With 29 LTD BT power On, press and hold the BT Button for six seconds to enter Standby mode. A tone will sound and the BT LED will flash for one minute to confirm entry to Standby.

From Standby, press and hold the BT Button for four seconds to enter Pairing mode.

A. First time pairing with a cell phone:

I. A tone will sound and the BT LED will flash rapidly

to confirm Pairing mode.

II. Follow the cell phone manufacturer's instruction

to enable its Bluetooth function and enter the PIN

(Personal Identification Number) 0000.

III. Successful pairing will be indicated by a tone and

brief flashing of the BT LED to confirm entr y to Connected mode. A pair record will also be established for subsequent connections.

B. Subsequent pairings with a cell phone:

I. Follow any cell phone manufacturer instructions,

if needed, to enable the Bluetooth function.

II. Successful pairing will be indicated by a tone

and brief flashing of the BT LED to confirm entry to Connected mode.

To Answer Calls

Press and release the BT Button when the cell phone ring is heard through the 29 LTD BT speaker. The BT LED will light steadily to indicate a call is in progress.

Speak into the 29 LTD BT microphone. The CB function of the unit and PTT Button will be disabled while a call is in progress.

End the call by press and release of the BT Button. A tone will sound and the BT LED will flash briefly.

To Initiate Calls

Dial a number according to the cell phone manufacturer’s instructions. The key press and other tones will be heard through the 29 LTD BT speaker.

Press Send on the cell phone. The BT LED will light steadily to indicate a call is in progress; and after a few seconds, you will hear the ring tone for the number you dialed.

Once connected, speak into the 29 LTD BT microphone.

End the call by press and release of the BT Button. The BT LED will flash briefly.

Redial a number by press and hold of the BT Button for two seconds. A tone will sound; and after a few seconds, you will hear the ring tone for the number you dialed.

Note

If no further pairing steps are taken, the unit will time-out and return to Standby after five minutes. During the pairing process, press and release the BT Button to cancel the pairing process.

To Enable or Disable Voice Dialing

If the paired cell phone supports voice dialing, press and release the BT Button twice to toggle between enabling and disabling this feature.

To Turn Off The Bluetooth Function

Press and hold the BT Button for six seconds to turn off the Bluetooth function. Two short tones will sound and the BT LED will turn Off and remain Off.

To Re-pair The 29 LTD BT To The Cell Phone

If pairing is lost while the 29 LTD BT power is On, press and hold the BT Button for four seconds to re-pair with the cell phone.

If the 29 LTD BT is turned Off, it will retain the Bluetooth address and automatically re-pair with the last cell phone used when it is turned back On.

BT LED Indicator

BT Button

Note

For best audio quality while using the Bluetooth feature, place your cell phone at least 12 inches away from the 29 LTD BT.

Note

When cell phone calls are in progress using the Bluetooth feature, the CB functions of the unit are disabled.

Note

The optional external microphone (see accessories on page 35) can be plugged into the rear of the unit and clipped to a pocket or lapel for hands-free speech during calls.

When the optional microphone is plugged in, the main microphone will not pick up speech during calls but will be fully functional for CB operation.

ANT/

Operation

Switch to NOR to select desired channel.

Selecting A Channel

ANT/

NB-ANL/ANL/ OFF (Noise Blanker/ Automatic Noise Limiter) Switch

Note

The RF noise blanker is very effective in reducing repetitive noises such as ignition interference.

When switched to ANL the Automatic Noise Limiter is activated. This helps reduce noise created by the vehicle’s electronics.

When switched to NB/ANL position the RF Noise Blanker is also activated, providing increased noise filtration.

When switched to OFF position all noise filtration will be turned off.

NB-ANL/ANL/OFF (Noise Blanker/Automatic Noise Limiter) Switch

Bright/Dim Switch

Switch to BRT or DIM to control brightness of the channel indicator and multi-function meter for day or nighttime driving.

The S/RF-SWR-CAL switch must be in the S/RF position to read the meter.

S-Meter

Swings proportionately to strength of incoming signal when receiving.

Operation

1918

RF Gain Control

The RF Gain is used to optimize reception in strong or weak signal areas.

Note

The RF Gain is used to optimize reception in weak signal areas.

Rotate the RF Gain knob counterclockwise

to reduce gain in strong signal areas. In weak signal areas turn clockwise to increase gain.

RF Meter

External Speaker

RF Meter

This meter swings proportionately to the RF output (outgoing signal) while transmitting.

External Speaker & Bluetooth Microphone

The external speaker jack is used for remote receiver monitoring. The optional Bluetooth microphone connects to the Ext Mic jack.

The S/RF-SWR-CAL switch must be in the S/RF position.

Note

The external speaker should have 8-ohm impedance and be rated to handle at least

4.0 watts. When the external speaker is plugged in, the internal speaker is automatically disconnected.

Note

Cobra external speakers are rated at 10 watts.

Connect an external speaker and/or Bluetooth microphone to the jacks on the rear panel.

Full clockwise rotation closes the gate allowing only very strong signals to enter.

Full counterclockwise rotation opens the “gate” allowing all signals in.

To achieve the Desired Squelch Setting (DSS), turn the Squelch control counterclockwise until you hear noise. Now turn the control clockwise just until the noise stops. This is the DSS setting.

Setting Delta-Tune

Delta-Tune functions as a “fine tune” control enabling you to capture a more readable signal, as well as eliminate adjacent channel interference.

Setting Squelch

Squelch is the “control gate” for incoming signals.

Setting Delta-Tune

Operation

Rotate Delta-Tune knob to the center position for optimum tuning.

ANT/

Gate open

Gate set to Desired Squelch Setting (DSS)

Gate closed

Setting Squelch

Setting Dynamike®

This controls the microphone sensitivity (outgoing audio level).

To Transmit

To Transmit Transmit

TalkBack

Setting Dynamike

Caution!

Be sure the antenna is properly connected to the radio before transmitting. Prolonged transmitting without an antenna, or a poorly matched antenna, could cause damage to the transmitter.

Be sure to read the F.C.C. Rules and Regulations included with this unit before transmitting.

Operation

Select desired channel.

ANT/

Initially, set fully clockwise so that maximum voice volume is available. Dynamike® may have to be reduced in some conditions.

Transmit

Push and hold mic button to transmit. Transmitter is now activated. When transmitting, hold the microphone two inches from your mouth and speak in a clear, normal voice. Release to receive.

Setting TalkBack

This control is used to adjust the desired amount of modulation talk back that is present at the speaker during transmit. At fully counter-clockwise position the talk back is off.

ANT/

Operation

PA (Public Address)

2524

PA (Public Address)

Connect an external PA speaker to the PA jack on the rear panel.

Set CB/PA switch to PA position.

Push and hold microphone button and speak

in a normal voice. Your voice will now transmit on the PA speaker.

Adjust PA speaker volume with the

Dynamike® control.

Note

Speaker should have 8-ohm impedance and be rated to handle at least 4.0 watts.

Note

The speaker should be directed away from the microphone to prevent acoustic feedback.

Note

Activity on the CB channel will be heard through the PA speaker. Adjust volume control to a normal listening level.

Temporary Mobile Set-Up

Base Station Operation (From 120V AC House Current)

Temporary Mobile Set-Up

Temporary Mobile Operation

For temporary mobile operation you may want to purchase an optional automobile power adapter from your COBRA dealer. This adapter and a magnetic mount antenna allow you to quickly “install” your transceiver for temporary use.

Base Station Operation (From 120V AC House Current)

To operate your transceiver from home or office you will need a 13.8 volt DC Power Pack rated at a minimum of 2 amps, and a properly installed base station antenna.

Home And Office Set-Up

Warning!

Do not attempt to operate this transceiver by connecting it directly to 120v ac.

Note

For further information call Cobra Customer Service 773-889-3087.

Connect properly installed and matched base station antenna.

Simply connect the red (+) and black (-) leads of the transceiver to the corresponding terminals of the power pack.

Plug power cable into back of unit marked “Power”. Be sure to observe polarity markings.

How Your CB Can Serve You

2928

The FCC gives these examples of permitted and prohibited messages for channel 9. These are only guidelines and not all-inclusive:

Permitted Example Message

Yes “Tornado sighted six miles north

of town.”

No “Post number 10.

No tornado sighted.”

Yes “Out of gas on I-95 at mile

marker 211.”

No “Out of gas in my driveway.”

Yes “Four car accident on I-94 at

Exit 11. Send police and ambulance.”

No “Traffic moving smoothly on I-94.”

Yes “Weather Bureau has issued

thunderstorm warning. Bring sailboat into port.”

No “Attention motorists.

Weather Bureau advises snow tomorrow will accumulate 4 to 6 inches.”

Yes “Fire in building at 539 Main,

Evanston.”

No “Halloween patrol number 3.

All quiet.”

1. Set to channel 9 for emergencies

Be sure antenna is properly connected.

2. CB Distress Data

When transmitting an emergency, you should request a “REACT BASE” and provide the CB distress data (called CLIP):

C all Sign Identify yourself. L ocation Be exact.

I njuries Number. Type. Trapped?

P roblem Give details and help needed.

Transmit CLIP repeatedly so any monitor can assist.

Channel 9 Emergency Messages

Note

If no response on channel 9, try channels 19 or 14.

• Warn of traffic problems

• Provide weather and road data

• Provide help in event of an emergency

• Provide direct contact with home or office

• Assist police by reporting erratic drivers

• Get “local information” to find destination

• Communicate with family and friends

• Suggest spots to eat and sleep

• Keep you alert while traveling

A Few Rules You Should Know

A. Conversations cannot last more than 5 minutes

with another station. A one minute break is required to let others use the channel.

B. You cannot blast others off the air by use of

illegally amplified transmitters or illegally

high antennas. C. You cannot use CB to promote illegal activities. D. Profanity is not allowed. E. You may not transmit music with a CB. F. Selling of merchandise and/or services is

prohibited.

A Few Rules You Should Know

How Your CB Can Serve You

3130

Code Meaning

10-29 Time is up for contact

10-30 Does not conform to FCC rules

10-33 Emergency traffic

10-34 Trouble at this station

10-35 Confidential information

10-36 Correct time is

10-37 Wrecker needed at

10-38 Ambulance needed

10-39 Message delivered

10-41 Turn to channel

10-42 Traffic accident at

10-43 Traffic tie up at

10-44 Have a message for

10-45 All units within range please report

10-50 Break channel

10-60 What is next message number?

10-62 Unable to copy. Use phone

10-63 Net directed to

10-64 Net clear

10-65 Awaiting your next message/assignment

10-67 All units comply

10-70 Fire at

10-71 Proceed, transmission in sequence

10-77 Negative contact

10-81 Reserve hotel room for

10-82 Reserve room for

10-85 My address is

10-91 Talk closer to mic

10-93 Check my frequency on this channel

10-94 Give me a long count

10-99 Mission completed, all units secure

10-200 Police needed at

CB 10-Codes

Citizen Bands have adopted the “10-CODES” for standard questions and answers. These codes provide quick and easy communication, especially in noisy areas. Following are some of the more common codes and meanings:

Code Meaning

10-1 Receiving poorly 10-2 Receiving well 10-3 Stop transmitting 10-4 OK, message received 10-5 Relay message 10-6 Busy, stand by 10-7 Out of service, leaving 10-8 In service, subject to call 10-9 Repeat message 10-10 Transmission completed standing by 10-11 Talking too rapidly 10-12 Visitors present 10-13 Advise weather/roads 10-16 Make pick up at 10-17 Urgent business 10-18 Anything for us? 10-19 Return to base 10-20 My location is 10-21 Call by phone 10-22 Report in person to 10-23 Stand by 10-24 Completed last assignment 10-25 Can you contact 10-26 Disregard last info 10-27 Moving to channel 10-28 Identify your station

CB 10-Codes

29 LTD BT SpecificationsFrequency Ranges

3332

GENERAL

Channels . . . . . . . . . . . . . . . . . . . . . . . . . . CB - 40 CH

Frequency Range . . . . . . . . . . . . . . . . . . CB - 26.965 to 27.405 MHz

Frequency Tolerance . . . . . . . . . . . . . . . 0.005 %

Frequency Control . . . . . . . . . . . . . . . . . PLL (phase lock loop) Synthesizer

Operating Temperature Range . . . . . -30° C to + 50° C

Microphone . . . . . . . . . . . . . . . . . . . . . . . Plug-in noise canceling

Input Voltage . . . . . . . . . . . . . . . . . . . . . . 13.8VDC nom. (positive or negative ground)

Current Drain . . . . . . . . . . . . . . . . . . . . . Transmit: AM full mod., 1.5A (maximum)

Receive: Squelched, 0.3A;

full audio output, 1.2A (nominal)

Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5/8” D x 7-9/32” W x 2-13/64” H

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 lbs.

Antenna Connector . . . . . . . . . . . . . . . .UHF; SO-239

Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Illuminated; indicates relative power output,

received signal strength and VSWR

Bluetooth Range . . . . . . . . . . . . . . . . . . .33' (10 meters)

TRANSMITTER

Power Output . . . . . . . . . . . . . . . . . . . . . .4 watts

Modulation . . . . . . . . . . . . . . . . . . . . . . . .AM (Amplitude Modulation)

Frequency Response . . . . . . . . . . . . . . .300 to 3000 Hz

Output Impedance . . . . . . . . . . . . . . . . .50 ohms, unbalanced

RECEIVER

Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . .Less than 1 µV for 10 dB (S+N) /N

Selectivity . . . . . . . . . . . . . . . . . . . . . . . . .6 dB @ 7 KHz, 60 dB @ 10KHz

Image Rejection . . . . . . . . . . . . . . . . . . .80 dB, typical

Adjacent-Channel Rejection . . . . . . . .60 dB, typical

IF Frequencies . . . . . . . . . . . . . . . . . . . . .Double Conversion: 1st: 10.695 MHz

2nd: 455 KHz

Automatic Gain Control (AGC) . . . . . .Less than 10 dB change in audio output for

inputs from 10 to 50,000 microvolts

RF Gain Control . . . . . . . . . . . . . . . . . . . .Adjustable for optimum signal reception

Noise Blanker . . . . . . . . . . . . . . . . . . . . . .RF type

Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . .Adjustable; threshold less than 1µV

Audio Output Power . . . . . . . . . . . . . . .4 watts

Frequency Response . . . . . . . . . . . . . . .300 to 3000 Hz

Distortion . . . . . . . . . . . . . . . . . . . . . . . . . .Less than 5% @3 watts @ 1000 Hz

Built-in Speaker . . . . . . . . . . . . . . . . . . . .8 ohms, 5w

External Speaker (Not supplied) . . . . . .8 ohms; disables internal speaker

when connected

PA SYSTEM

Power Output . . . . . . . . . . . . . . . . . . . . . .4 watts into external speaker

External Speaker for PA . . . . . . . . . . . . .8 ohms, when PA-CB switch is in PA,

(Not Supplied) . . . . . . . . . . . . . . . . . . . . .The PA speaker also monitors the receiver;

separate jack provided

(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm..

Wash hands after handling.

The COBRA 29 LTD BT transceiver represents one of the most ad vanced AM two-way radios used as a Class D station in the Citizens Radio Service. This unit features advanced Phase Lock Loop (PLL) circuitry providing complete cov er age of all 40 CB chan nels.

1 26.965 21 27.215 2 26.975 22 27.225 3 26.985 23 27.255 4 27.005 24 27.235 5 27.015 25 27.245

6 27.025 26 27.265 7 27.035 27 27.275 8 27.055 28 27.285 9 27.065 29 27.295 10 27.075 30 27.305

11 27.085 31 27.315 12 27.105 32 27.325 13 27.115 33 27.335 14 27.125 34 27.345 15 27.135 35 27.355

16 27.155 36 27.365 17 27.165 37 27.375 18 27.175 38 27.385 19 27.185 39 27.395 20 27.205 40 27.405

Channel Channel CB Freq. CB Freq. Channel In MHz Channel In MHz

Optional Accessories

Replacement DC Power Cord

For in vehicle use 426-002-N-001

Replacement Mounting Bracket

For in vehicle use 251-353-9-001

Replacement Thumb Screws

For in vehicle use 634-081-9-001

Replacement Microphone Bracket

For in vehicle use 741-080-9-001

Limited One Year Warranty

COBRA ELECTRONICS CORPORATION warrants that

its COBRA CB Radios, and the com po nent parts thereof, will be free of defects in workmanship and materials for period of one (1) year from the date of first consumer purchase. This war ran ty may be enforced by the first consumer pur chas er, pro vid ed that the product is utilized within the U.S.A.

COBRA will, without charge, repair or replace, at its option, de fec tive CB radios, products or com po nent parts upon de liv ery to the COBRA factory Service Department, ac com pa nied by proof of the date of first consumer pur chase, such as a du pli cat ed copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra's expense, if the product is repaired or replaced under warranty.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Exclusions: This limited warranty does not apply;

1) to any product dam aged by accident; 2) in the event of misuse or abuse of the product or as a result of un au tho rized alterations or repairs; 3) if the serial number has been altered, defaced or re moved; 4) if the owner of the product resides outside the U.S.A.

All implied warranties, including war ran ties of mer chant abil i ty and fitness for a par tic u lar purpose are limited in duration to the length of this warranty. COBRA shall not be liable for any incidental,

con se quen tial or oth er dam ag es; including, without lim i ta tion, damages re sult ing from loss of use or cost of in stal la tion.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the ex clu sion or limitation of incidental or con se quen tial dam ag es, so the above lim i ta tions may not apply to you.

Cobra Electronics Corporation

6500 West Cortland Street Chicago, Illinois 60707 USA

www.cobra.com

QUA LITY SEALQUALITY SEAL

21” Base Loaded Magnet Mount Antenna

HG A1000

38” Base Loaded Magnet Mount Antenna

HG A1500

External Bluetooth Microphone

MNA MIC

Dynamic External Speaker

HG S100

Noise Canceling External Speaker

HG S300

Noise Canceling With Talk Back External Speaker

HG S500

Optional Accessories

You can find quality Cobra products and accessories at your local Cobra dealer, or in the U.S.A., you can order directly from Cobra. See ordering info on page 37.

Optional Accessories cont.

Cobra 29 LTD BT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
