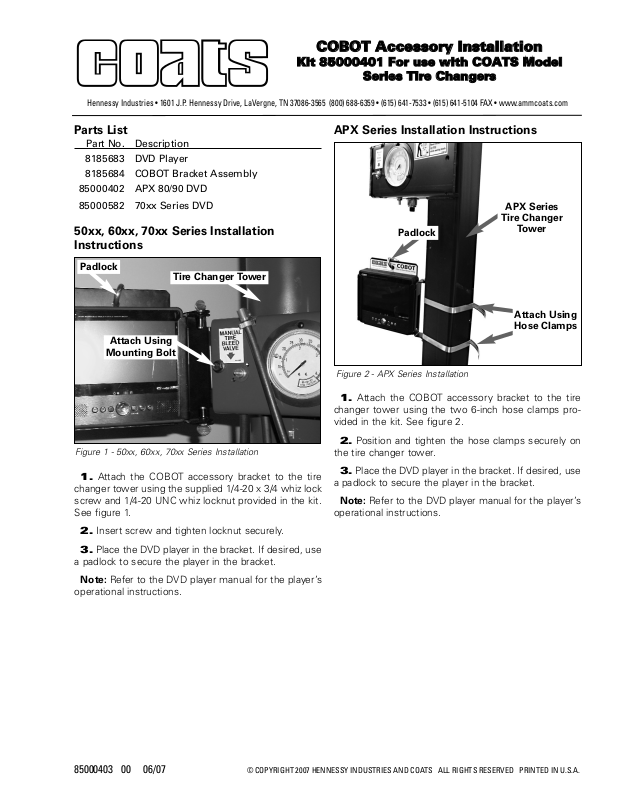

COATS Kit 85000401 User Manual
Parts List
Part No. Description
8185683 DVD Player
8185684 COBOT Bracket Assembly
85000402 APX 80/90 DVD
85000582 70xx Series DVD
50xx, 60xx, 70xx Series Installation
Instructions
1. Attach the COBOT accessory bracket to the tire
changer tower using the supplied 1/4-20 x 3/4 whiz lock
screw and 1/4-20 UNC whiz locknut provided in the kit.
See figure 1.
2. Insert screw and tighten locknut securely.
3. Place the DVD player in the bracket. If desired, use
a padlock to secure the player in the bracket.
Note: Refer to the DVD player manual for the player’s
operational instructions.
APX Series Installation Instructions
1. Attach the COBOT accessory bracket to the tire
changer tower using the two 6-inch hose clamps provided in the kit. See figure 2.
2. Position and tighten the hose clamps securely on
the tire changer tower.
3. Place the DVD player in the bracket. If desired, use
a padlock to secure the player in the bracket.
Note: Refer to the DVD player manual for the player’s
operational instructions.
85000403 00 06/07 © COPYRIGHT 2007 HENNESSY INDUSTRIES AND COATS ALL RIGHTS RESERVED PRINTED IN U.S.A.
COBOT Accessory Installation
Kit 85000401 For use with COATS Model
Series Tire Changers
Hennessy Industries • 1601 J.P. Hennessy Drive, LaVergne, TN 37086-3565 (800) 688-6359 • (615) 641-7533 • (615) 641-5104 FAX • www.ammcoats.com
Tire Changer Tower
Attach Using
Mounting Bolt
APX Series
Tire Changer
Tower
Padlock
Padlock
Attach Using
Hose Clamps
Figure 1 - 50xx, 60xx, 70xx Series Installation
Figure 2 - APX Series Installation
