COUNTER HEIGHT CHAIR
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 3
REVISION 0 : 11/06/2018
REVISION 1 : 12/19/2018
Page 2
ITEM :
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
!
107829
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME 20 MINUTES
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION
PART NAME FIGURE
BACK FRAME 1PC
A
SEAT CUSHION 1PC
B
SEAT FRAME 1PC
C
LEFT FRONT
D
E
F
G
H
LEG
RIGHT FRONT
LEG
LEFT SIDE
STRETCHER
RIGHT SIDE
STRETCHER
FRONT
STRETCHER
HARDWARE IDENTIFICATION
QTY QTY
1
2
3
1PC
1PC
1PC
1PC
1PC
4
5
6
7
8
HARDWARE NAME FIGURE
ALLEN WRENCH
(4MM - BLK)
SHORT BOLT
(Ф4/17'' x 1-4/7''- RBW)
MEDIUM BOLT
(Ф4/17'' x 2-4/11'' - RBW)
LONG BOLT
(Ф4/17'' x 2-3/4'' - RBW)
LOCK WASHER
(Ф4/17'' - RBW)
FLAT WASHER
(Ф4/17'' - RBW)
SHORT FLAT HEAD
SCREW
(Ф3/19'' x 1'' - RBW)
LONG FLAT HEAD
SCREW
(Ф3/19'' x 1-1/2'' - RBW)
1PC
2PCS
4PCS
4PCS
10PCS
10PCS
5PCS
6PCS
NOTE : QUANTITIES SHOWN ARE FOR ONE CHAIR
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY PROCESS;
HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
www.coastercompany.com
PAGE 2 OF 3
Page 3
ITEM :

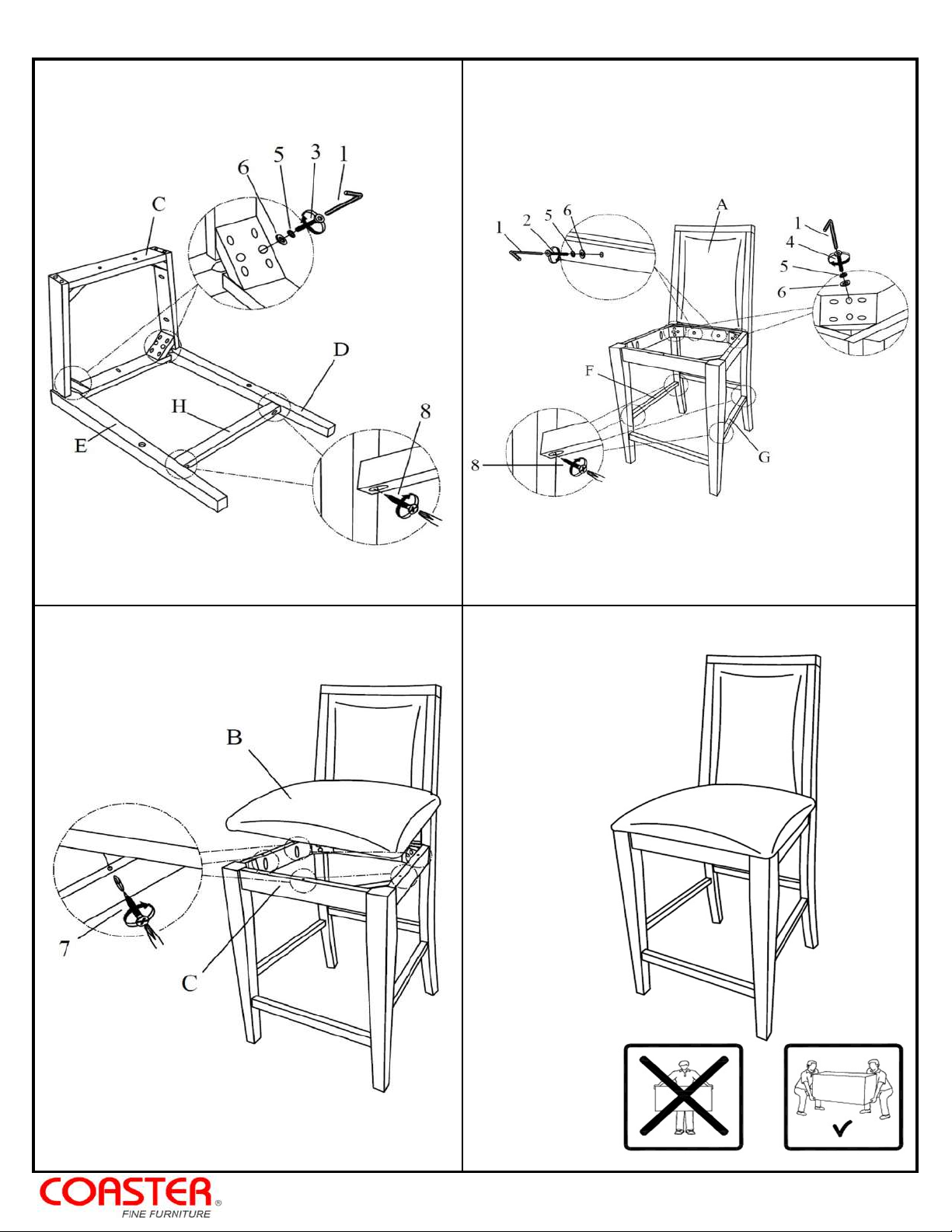

STEP 1 STEP 2
107829
ASSEMBLY INSTRUCTIONS
STEP 3 STEP 4
COMPLETE
PAGE 3 OF 3
www.coastercompany.com
