CMS Products 780 User Manual

7800041

Models 780

Refreshment Center 1

Copyright© 12-05

12955 Enterprise Way
Bridgeton, Missouri 63044-1200
[phone] / [phone]
www.CraneMS.com

780Cover

7800041

This machine has been engineered to our own rigid safety and performance require­ments and manufactured in accordance with the safety standards of Underwriters Labo­ratories (UL) and the Canadian Standards Association (CSA). It has been designed to
comp ly with the National A utomatic Merchandising Association (NAMA) “Standard f or
the Sanitary Design and Construction of Food and Beverage Vending Machines”.

To maintain this degree of safety and to continue to achieve the level of performance
built into this machine, it is important that installation and maintenance be performed so
as to not alter the original construction or wiring and that replacement parts are as spec­ified in the Parts Manual
this Operators’ Guide
work. By following prescribed procedures, machine performance and safety will be pre­served.

. Your investment in this equipment will be protected by using

and the Parts Manual in your operation, service and maintenance

CRANE MERCHANDISING SYST EMS PARTS & SUPPORT:

PARTS: 1-800- 621-7278 SERVICE: 1-800-628-8363

www.CraneMS.com

For faster service, please have your account number ready before calling.

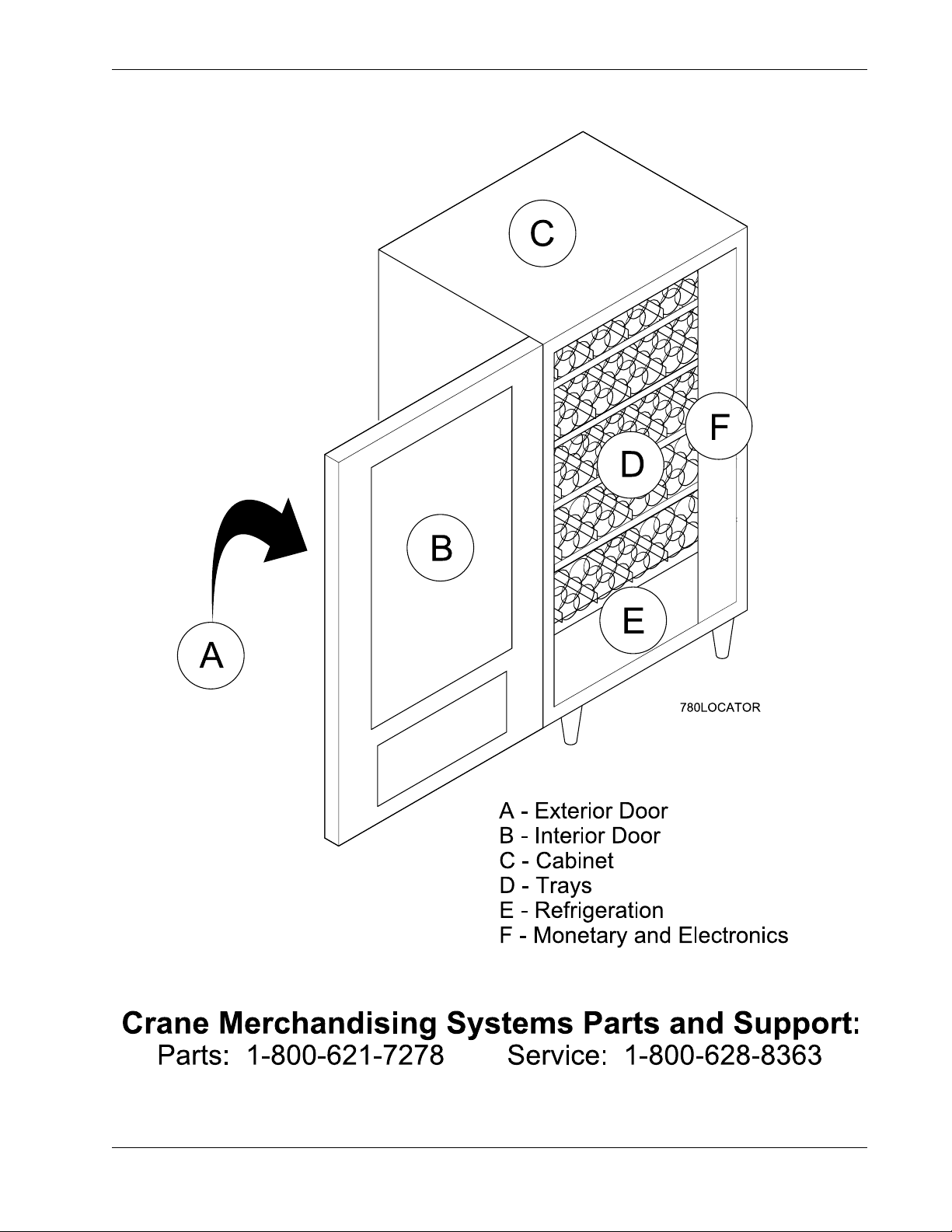

Refreshment Center Parts Manual List of Figures

List Of Figures

Section A: Exterior of door ................................................................................................2

FIGURE 1 Exterior door Assy........................................................................................... 2

FIGURE 2 Button Array Assy ................................................... .......... ......... ......................4

Section B: Interior of door .................................................................................................6

FIGURE 3 Interior Door Assy ............................................................................................6

FIGURE 4 Light Bracket Assy ...........................................................................................8

FIGURE 5 Lock Handle Assy ....................... .......... .........................................................10

FIGURE 6 Coin Cup ........................... ......... .......... ......... ......... .......... ......... ....................12

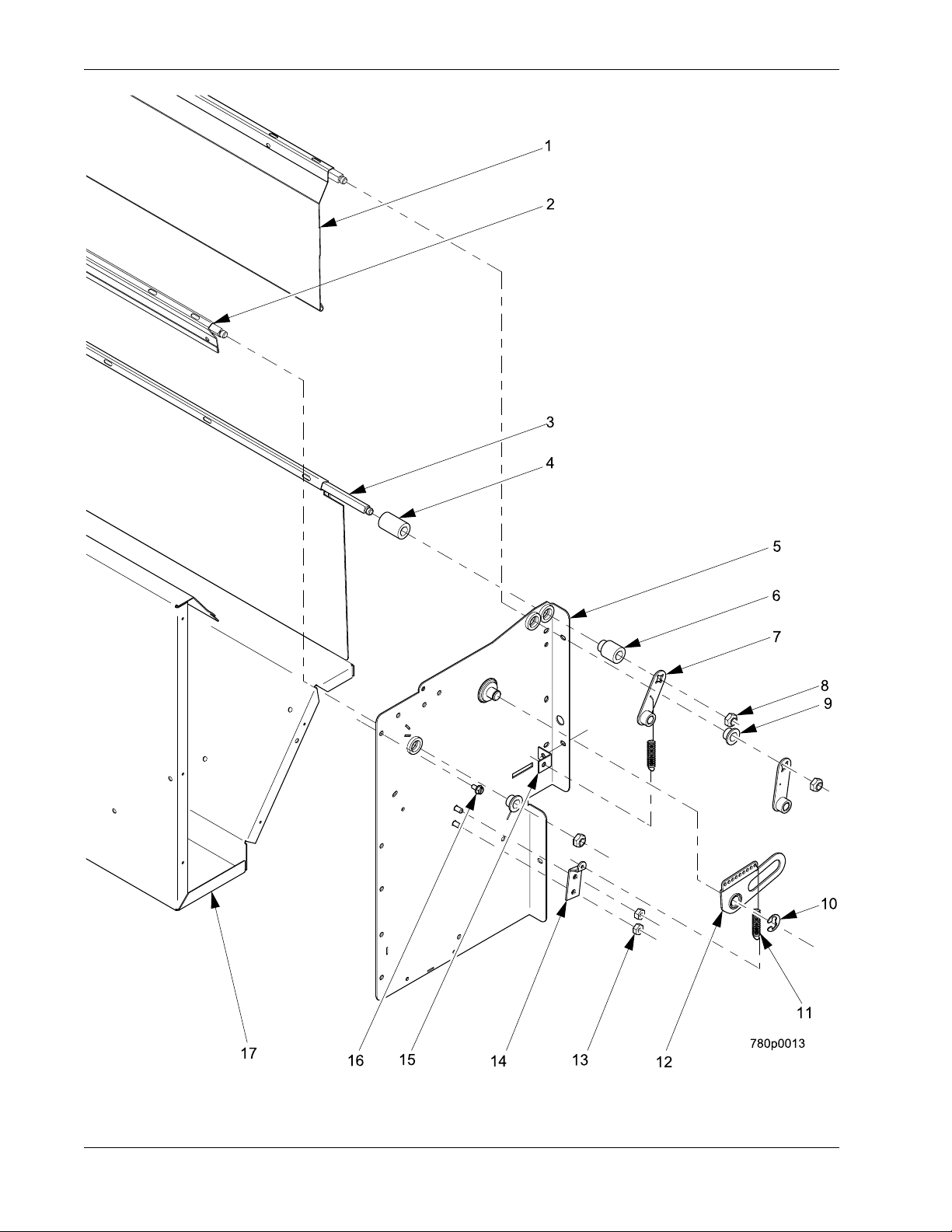

FIGURE 7 Delivery Bin (1 of 4) .......................................................................................14

FIGURE 8 Delivery Bin (2 of 4) .......................................................................................16

FIGURE 9 Delivery Bin (3 of 4) .......................................................................................18

FIGURE 10 Delivery Bin (4 of 4) .......................................................................................20

FIGURE 11 SureVend ...................................................... ......... .......... .............................22

Section C: Cabinet............................................................................................................ 24

FIGURE 12 Cabinet Assy ........................................ ......... ......... .......... ......... ......... .......... .24

FIGURE 13 Cash Box Lock ..............................................................................................2 6

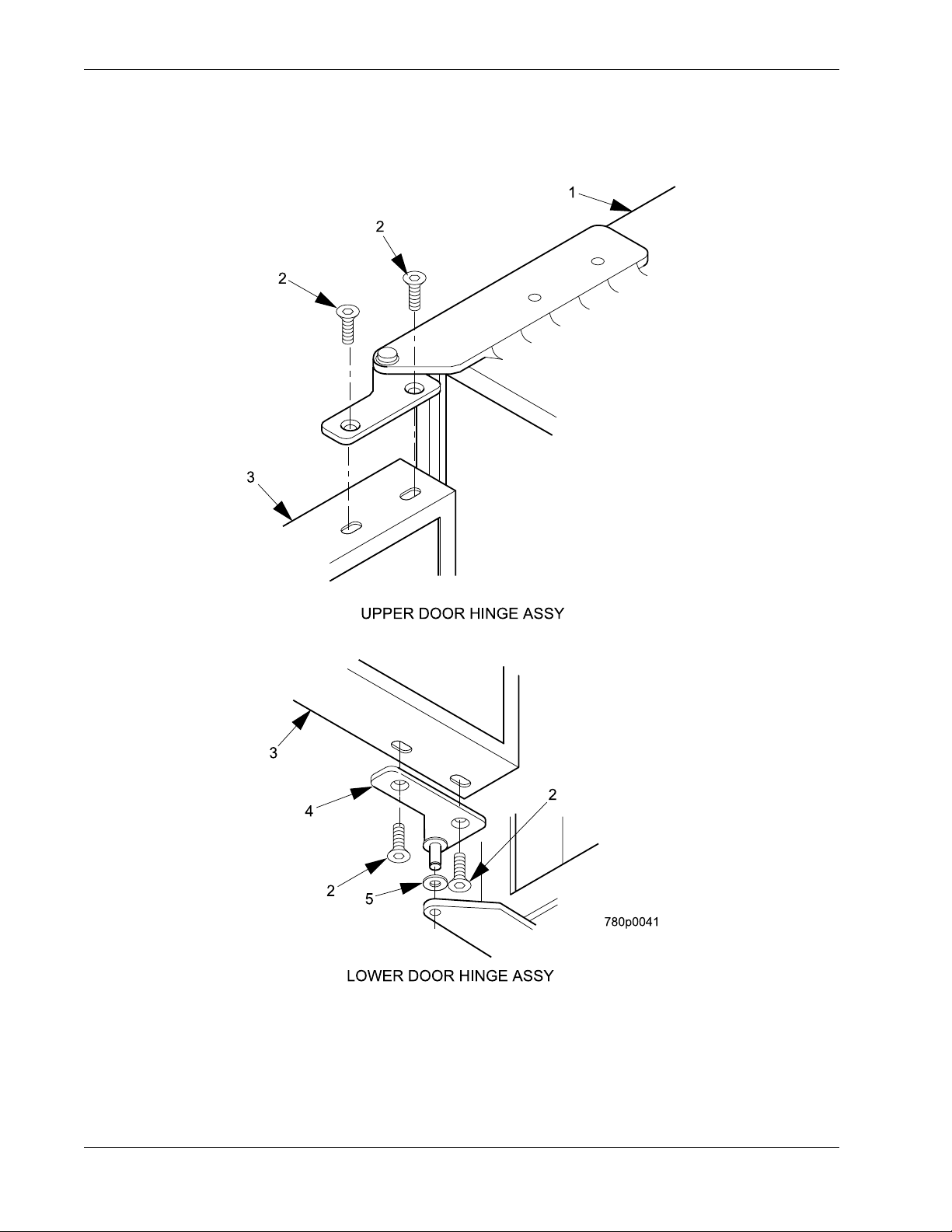

FIGURE 14 Door Hinge ........................................... ......... ......... .......... ......... ....................28

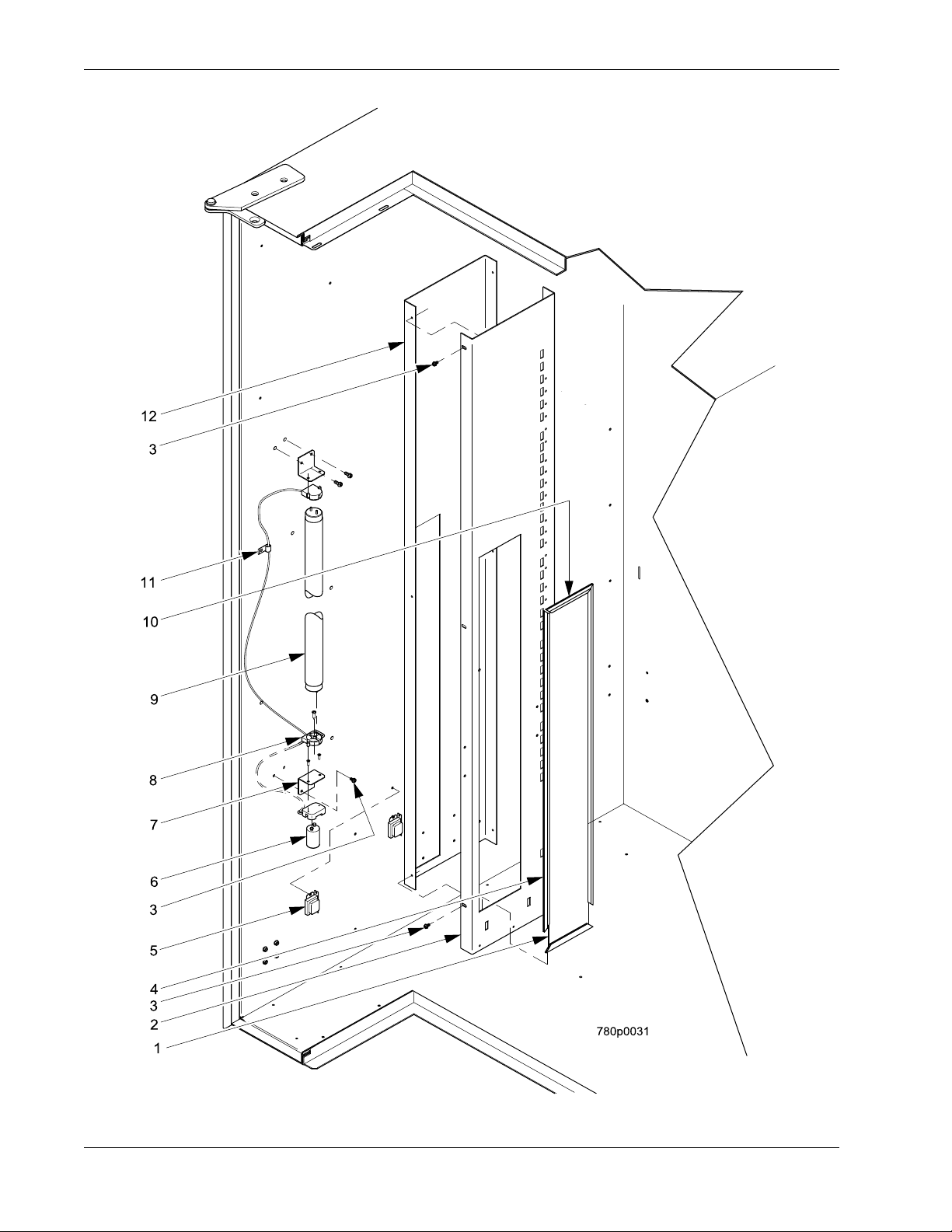

FIGURE 15 Lighting Channel ............... ......... .................................................................. .30

FIGURE 16 Evaporator Fan Assy .....................................................................................32

FIGURE 17 Dual Zone Components Version I Duct System ............................................34

FIGURE 18 Dual Zone Components Version II Duct System ...........................................36

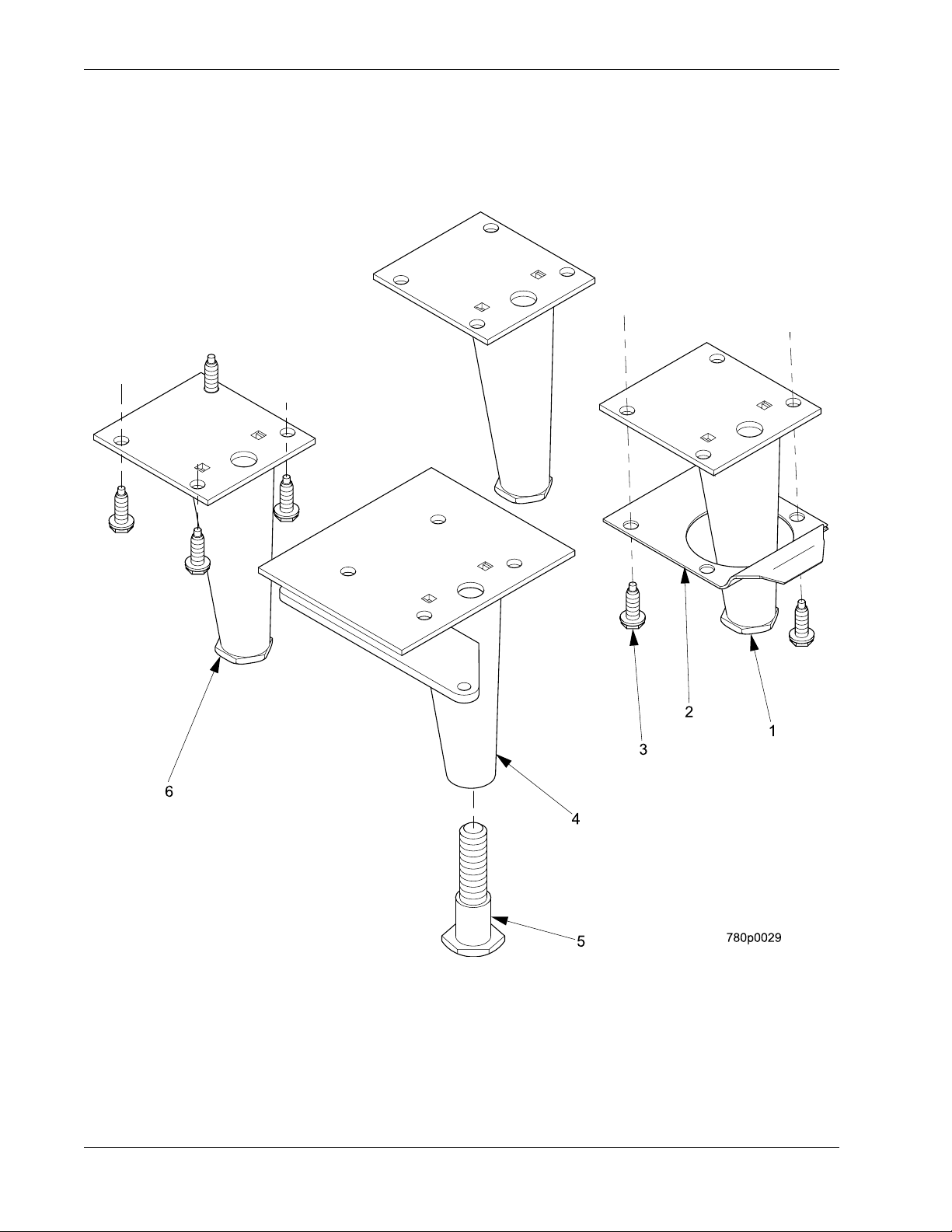

FIGURE 19 Cabinet Legs ........................................ ......... ......... .......................................38

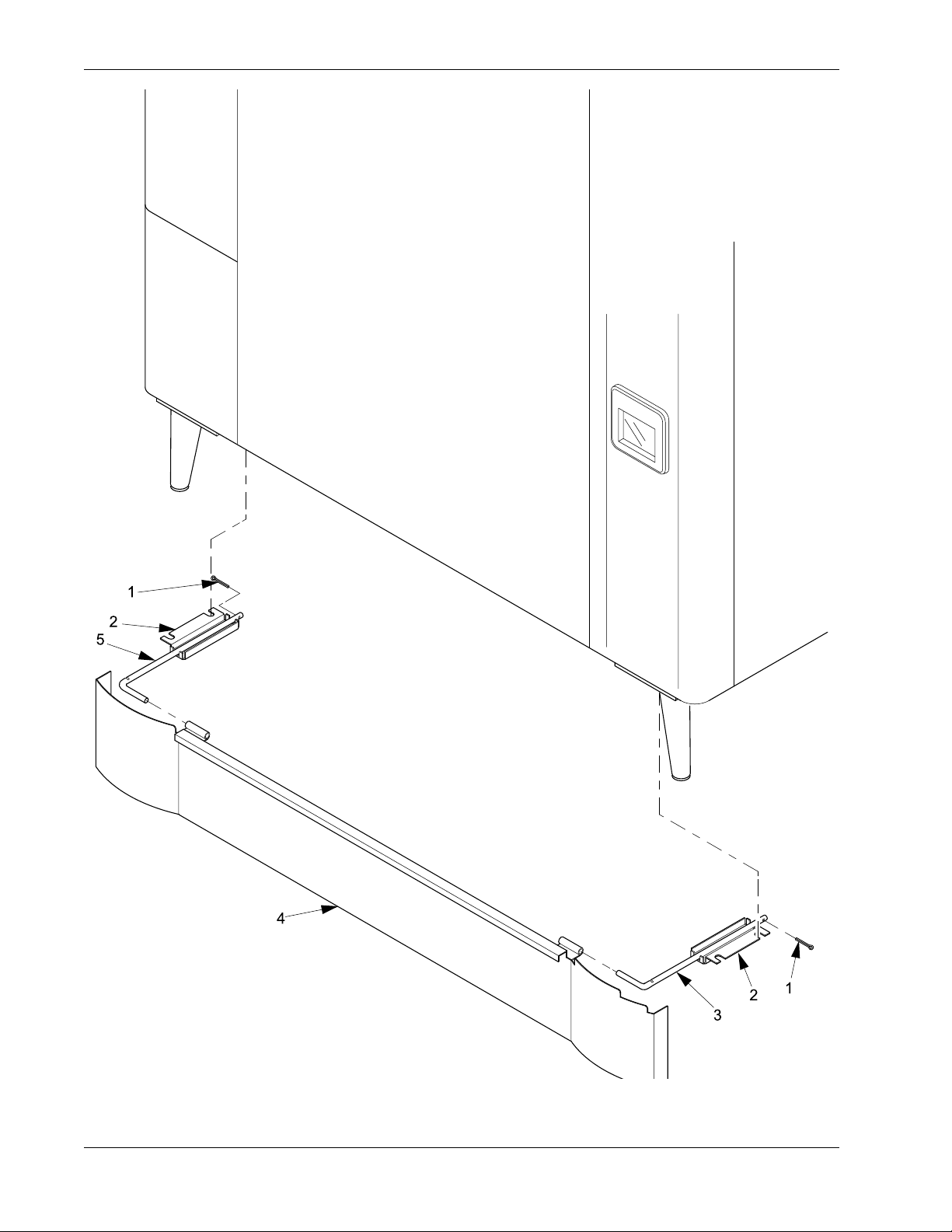

FIGURE 20 Base Plate ................ ......... ................................................................. .......... .40

Section D: Trays................................................................................................................ 42

FIGURE 21 Snack Tray Assy........................................................................................... 42

FIGURE 22 Snack Tray Assy - Rear ................................................................................44

FIGURE 23 Candy Tray Assy ...........................................................................................46

FIGURE 24 Candy Tray - Rear .........................................................................................48

FIGURE 25 Bottle Tray ................ ......... ......... .................................................................. .50

FIGURE 26 Bottle Tray - Rear ....................... .......... ......... ......... .......... ......... ....................52

Section E: Refrigeration ...................................................................................................56

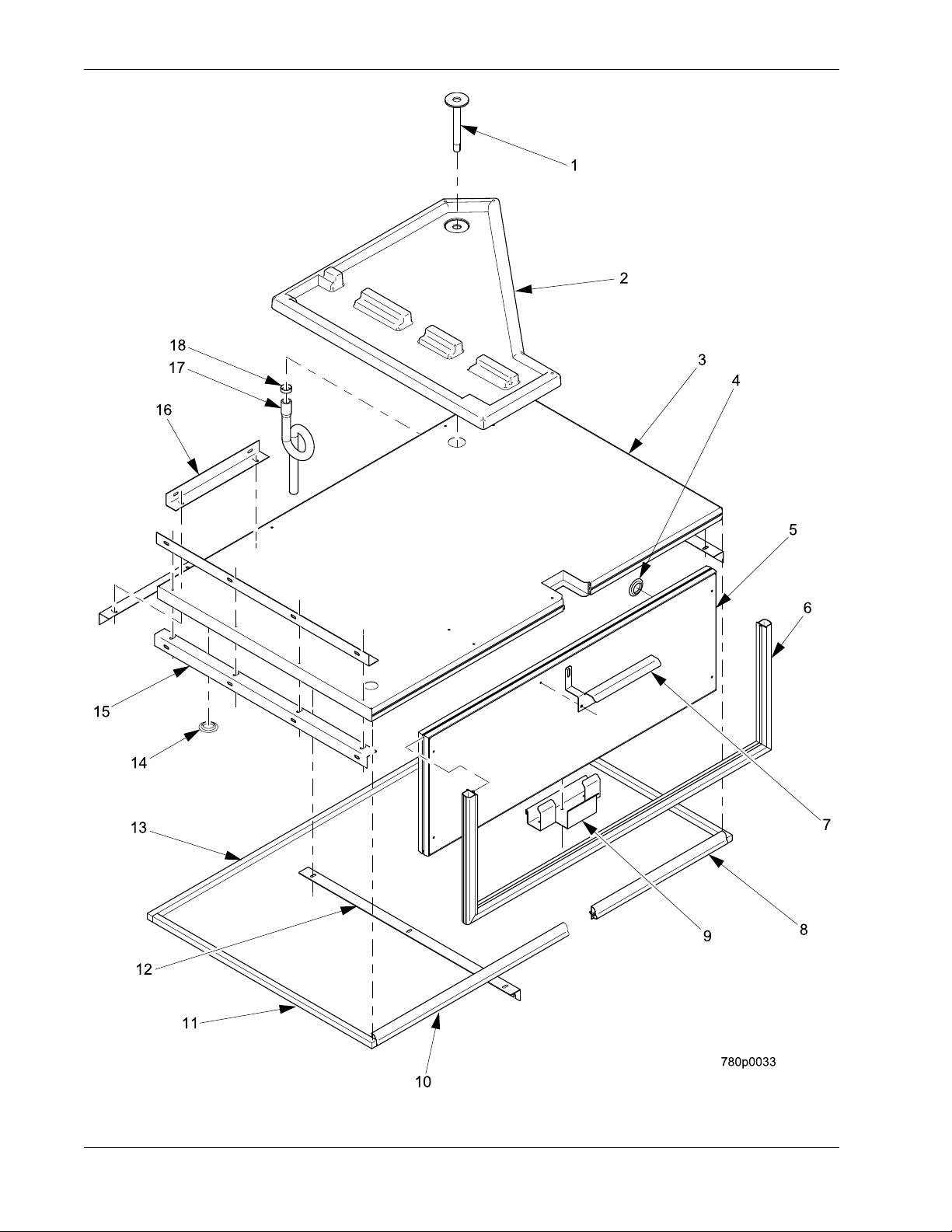

FIGURE 27 Evaporator Pan Assy..................................................................................... 56

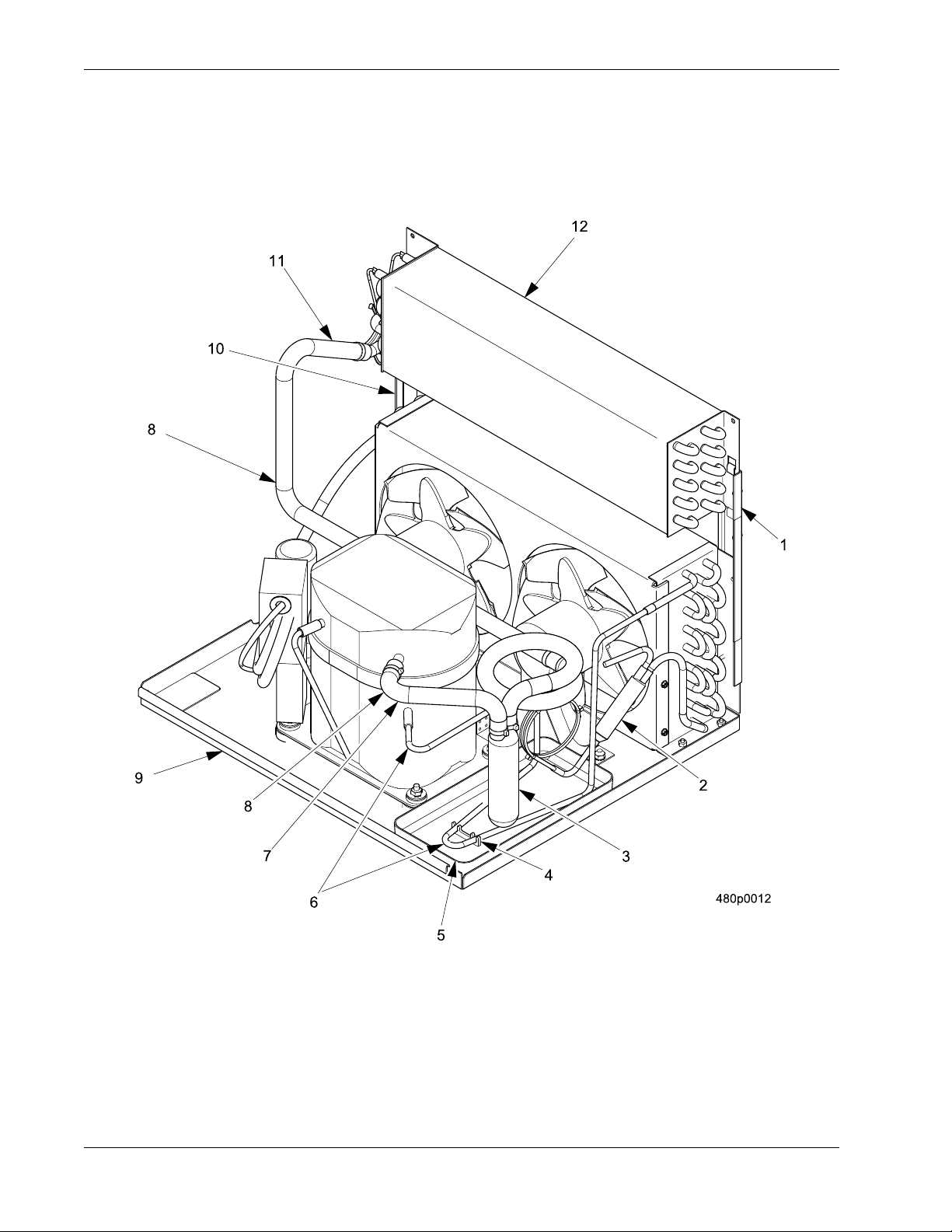

FIGURE 28 Refrigeration Assy (1 of 2) .............................................................................58

FIGURE 29 Refrigeration Assy (2 of 2) .............................................................................60

Section F: Monetary and electronics ..............................................................................62

FIGURE 30 Monetary Assy............................................................................................... 62

FIGURE 31 PCB Housing ........................................ ......... ......... .......................................64

FIGURE 32 Coin Mech Bracket ............ ......... .......... ......... ......... .......... ......... ......... ...........66

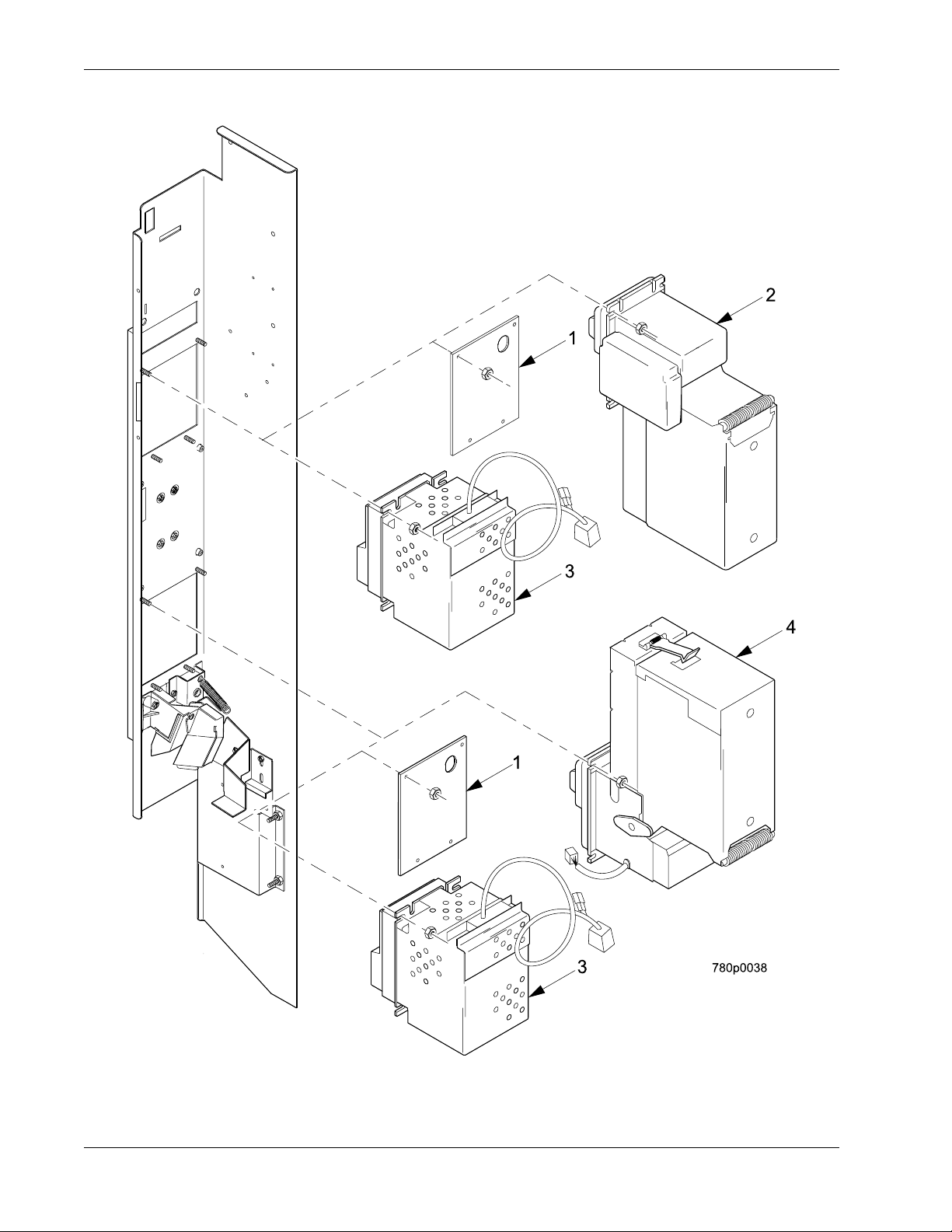

FIGURE 33 Card Reader and Bill Validator Combinations ...............................................68

FIGURE 34 Power Panel Assy .........................................................................................71

December 2005 i 7800041

List of Figures Refreshment Center Parts Manual

7800041 ii December 2005

Refreshment Center Parts Manual List of Tables

List Of Tables

Section A: Exterior of door ................................................................................................2

TABLE 1: Exterior Door ...................................................................................................3

TABLE 2: Button Array Assy............................................................................................ 5

Section B: Interior of door .................................................................................................6

ITABLE 3: nterior Door Assy .............................................................................................7

TABLE 4: Light Bracket Assy ...........................................................................................9

TABLE 5: Lock Handle Assy ..........................................................................................11

TABLE 6: Coin Cup .......................................................................................................13

TABLE 7: Delivery Bin (1 of 4) .......................................................................................15

TABLE 8: Delivery Bin (2 of 4) .......................................................................................17

TABLE 9: Delivery Bin (3 of 4) .......................................................................................19

TABLE 10: Delivery Bin (4 of 4) .......................................................................................21

TABLE 11: SureVend ......................................................................................................23

Section C: Cabinet ............................................................................................................24

TABLE 12: Cabinet Assy .................................................................................................25

TABLE 13: Cash Box Lock ..............................................................................................2 7

TABLE 14: Door Hinge ....................................................................................................29

TABLE 15: Lighting Channel) ..........................................................................................31

TABLE 16: Evaporator Fan Assy......................................................................................33

TABLE 17: Dual Zone Components Version I Duct System ............................................35

TABLE 18: Dual Zone Components Version II Duct System ...........................................37

TABLE 19: Cabinet Legs .................................................................................................39

TABLE 20: Base Plate .....................................................................................................41

Section D: Trays ................................................................................................................42

TABLE 21: Snack Tray Assy ...........................................................................................43

TABLE 22: Snack Tray Assy - Rear ................................................................................45

TABLE 23: Candy Tray Assy ...........................................................................................47

TABLE 24: Candy Tray Rear ...........................................................................................49

TABLE 25: Bottle Tray .....................................................................................................51

TABLE 26: Bottle Tray - Rear.......................................................................................... 53

Section E: Refrigeration ...................................................................................................56

TABLE 27: Evaporator Pan Assy .....................................................................................5 7

TABLE 28: Refrigeration Assy (1 of 2) .............................................................................59

TABLE 29: Refrigeration Assy (2 of 2) .............................................................................61

Section F: Monetary and electronics.............................................................................. 62

TABLE 30: Monetary Assy ...............................................................................................6 3

TABLE 31: PCB Housing .................................................................................................65

TABLE 32: Coin Mech Bracket ............ ......... .......... ......... ......... .......... ......... ......... ...........67

TABLE 33: Card Reader and Bill Validator Combinations ...............................................69

TABLE 34: Power Panel Assy .........................................................................................72

TABLE 35: Harnesses .....................................................................................................72

December 2005 iii 7800041

List of Tables Refreshment Center Parts Manual

7800041 iv December 2005

Refreshment Center Parts Manual

December 2005 1 7800041

Section A: Exterior of door Refreshment Center Parts Manual

Section A: Exterior of door

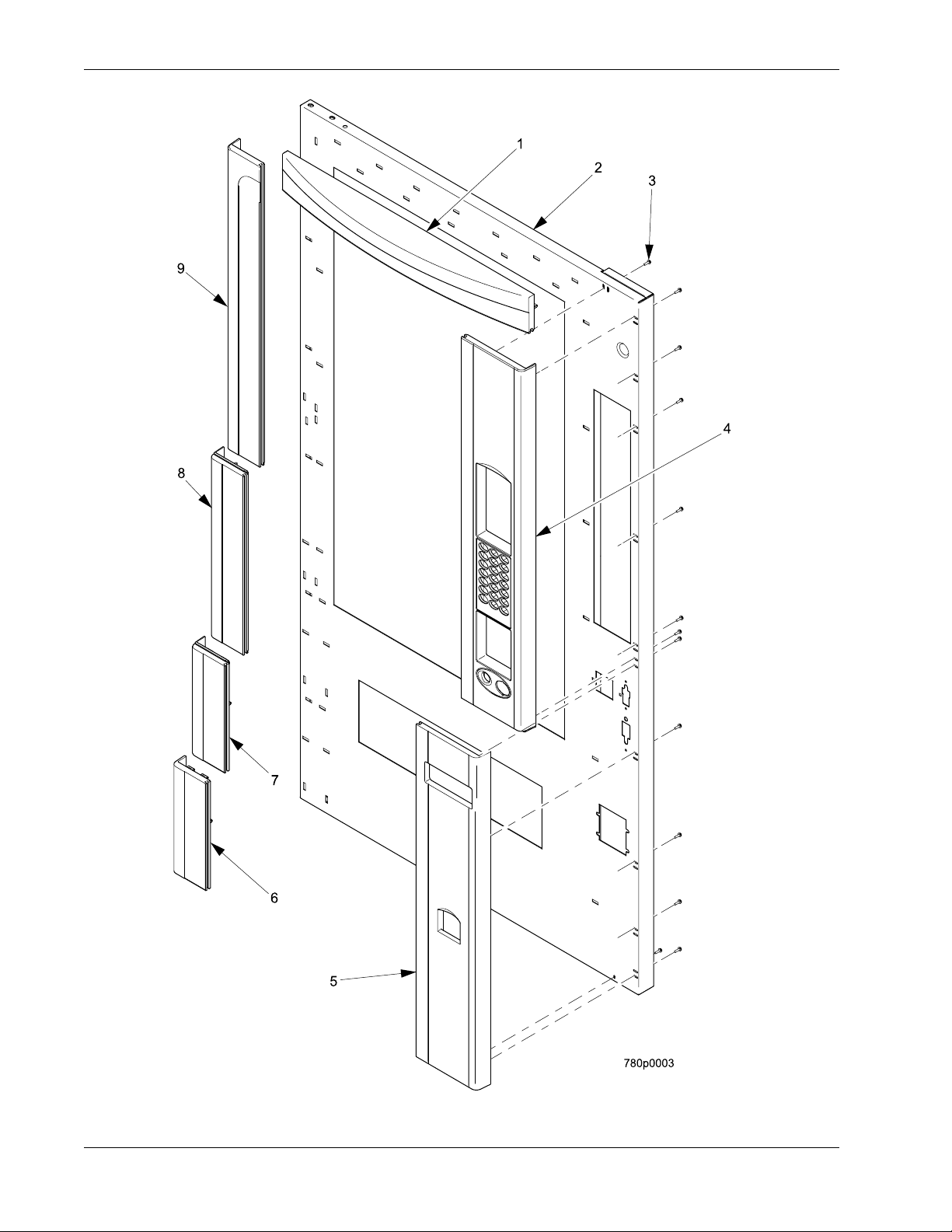

FIGURE 1: EXTERIOR DOOR ASSY

7800041 2 December 2005

Refreshment Center Part s Manual Section A: Exterior of door

T ABLE 1: EXTERIOR DOOR

INDEX PART NUMBER DESCRIPTION QTY

1 7802053 TRIM ASSY-TO P -BLACK 1
2 7802001 WELD ASSY-DOOR-T. BLACK 1
3 1572269 SCREW-#6-19 X .50 HEX W/HD.-TF 13
4 7802059 TRIM ASSY-R.H.-UPPER-BLACK 1
5 7802060 TRIM ASSY-R.H.-LOWER -BLACK 1
6 7802057 TRIM ASSY-L.H.-BOTTOM-BLACK 1
7 7802056 TRIM ASSY-L.H.-LOWER-BLACK 1
8 7802055 TRIM ASSY-L.H.-MIDDLE-BLACK 1
9 7802054 TRIM ASSY-L.H.-UPPER-BLACK 1

December 2005 3 7800041

Section A: Exterior of door Refreshment Center Parts Manual

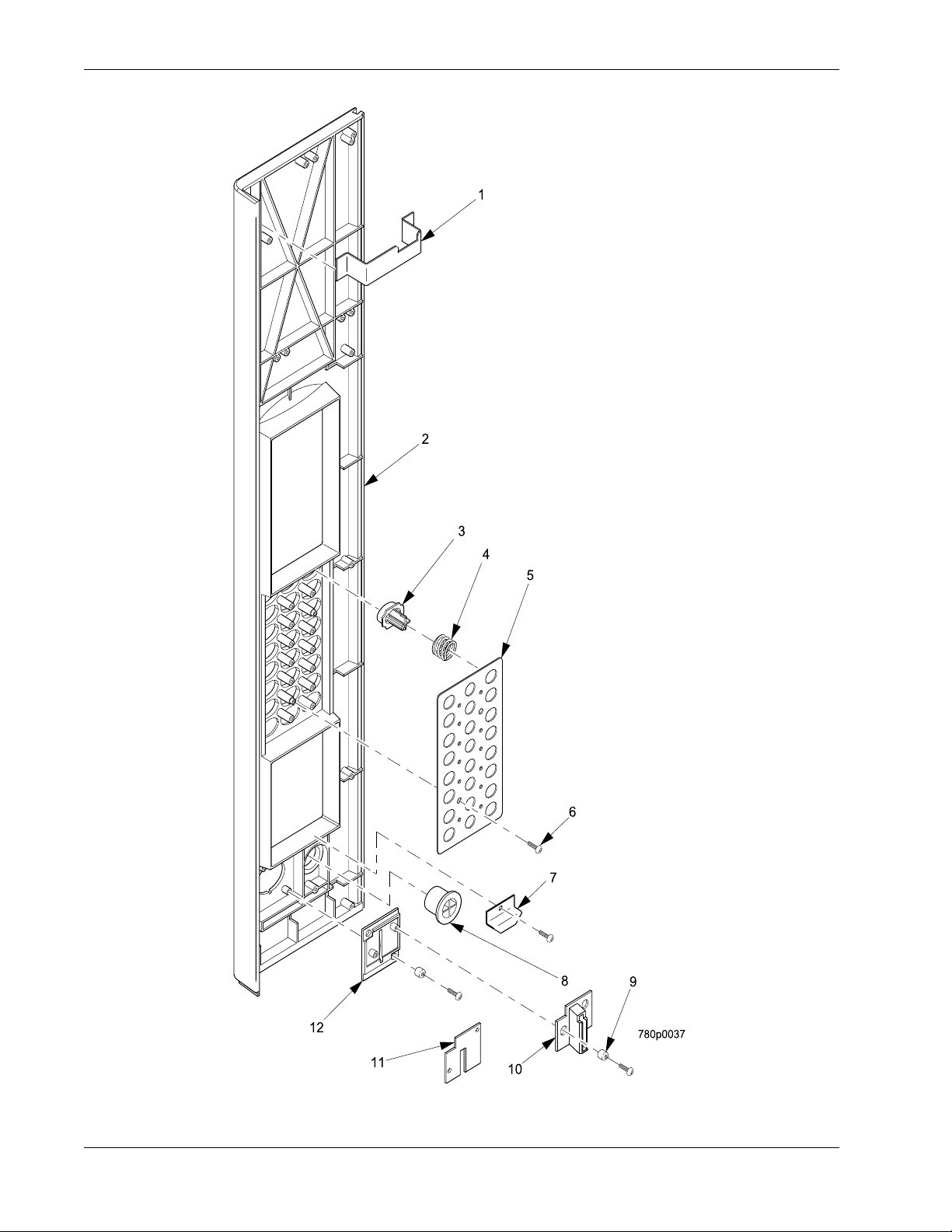

FIGURE 2: BUTTON ARRAY ASSY

7800041 4 December 2005

Refreshment Center Part s Manual Section A: Exterior of door

TABLE 2: BUTTON ARRAY ASSY

INDEX PART NUMBER DESCRIPTION QTY

1 7801121 PANEL-KNOCKOUT-BTM(REF.ITEM) 1
2 1572213 RIGHT HAND TRIM-UPPER-"A-21" 1
3 1572212 ARRAY-PUSH BUTTON SELECTION 1
4 1572224 SPRING-PUSH BUTTON 24
5 1572223 PLATE-STOP BUTTONS 1
6 1472454 SCREW-#6-20 X.31 PHIL.TRUSS HD 10
7 1572292 RETAINER-RETURN BUTTON 1
8 1572210 COIN RETURN BUTTON-"A-2" 1

9 2302053 SPACER-CUP 2
10 1572323 EXTENSION-COIN INSERT 1
11 16710 41 COIN BLOCK-50 CE NTS 1
12 1572209 COIN INSERT-"A-1" 1

December 2005 5 7800041

Section B: Interior of door Refreshment Center Parts Manual

Section B: Interior of door

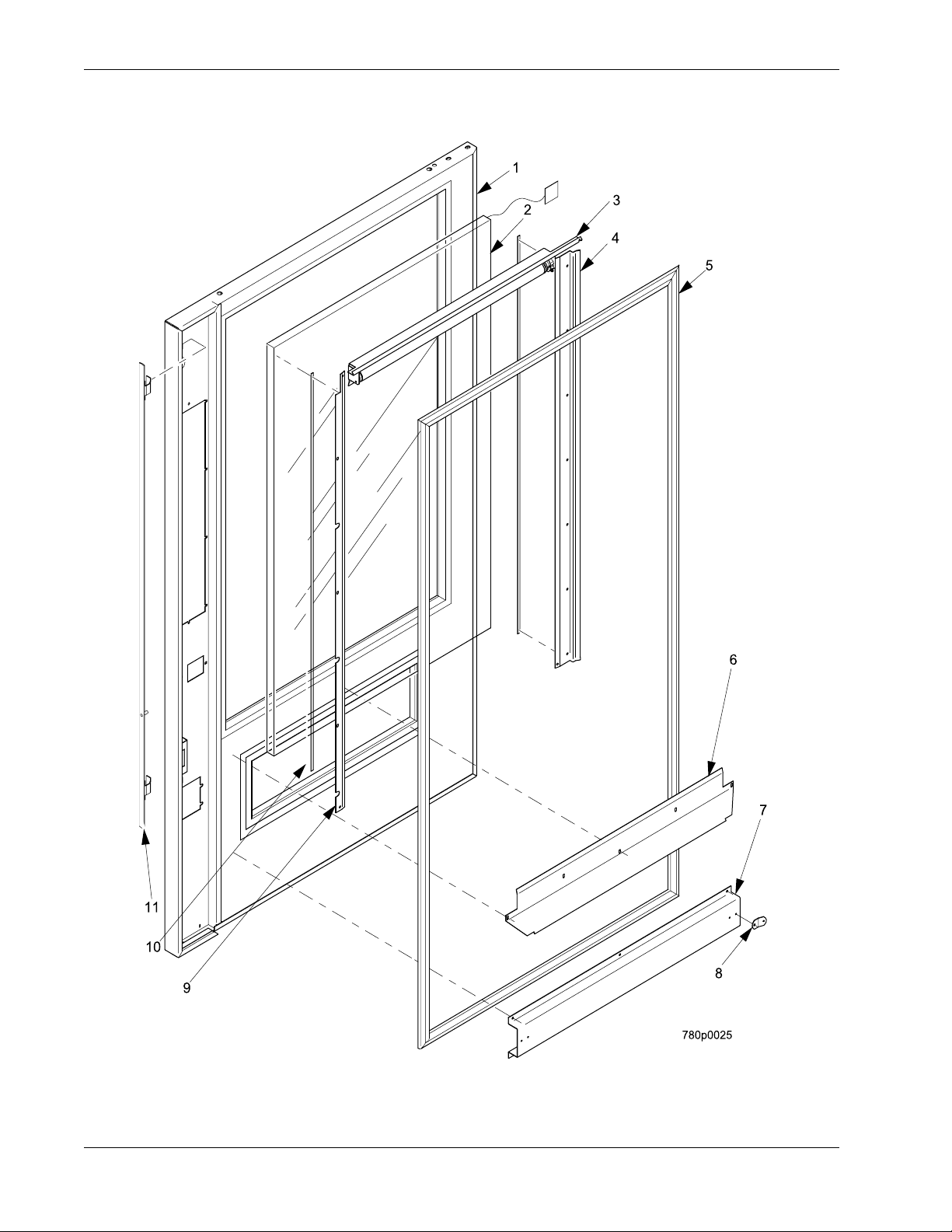

FIGURE 3: INTERIOR DOOR ASSY

7800041 6 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 3: INTERIOR DOOR ASSY

INDEX PART NUMBER DESCRIPTION QTY.

1 7802070 DOOR ASSY-MILLENNIA BLACK 1

2

3 7802149 CHANNEL-GLASS RETAIN-MONET SID 2

4 7802011 GASKET DOOR BLACK 1

5 7802031 DEFLECTOR-FRONT-DELIVERY-PAN 1

6 1572227 BRACE-DOOR -MI LLENNIA 1

7 4301285 BRACKET-DOOR CHAIN 1

8 1472178 LOCK BAR ASSEMBLY 1

7802017 GLASS ASSY, 120 VAC 1
7802072 GLASS ASSY-INS-HEATED-230V 1

December 2005 7 7800041

Section B: Interior of door Refreshment Center Parts Manual

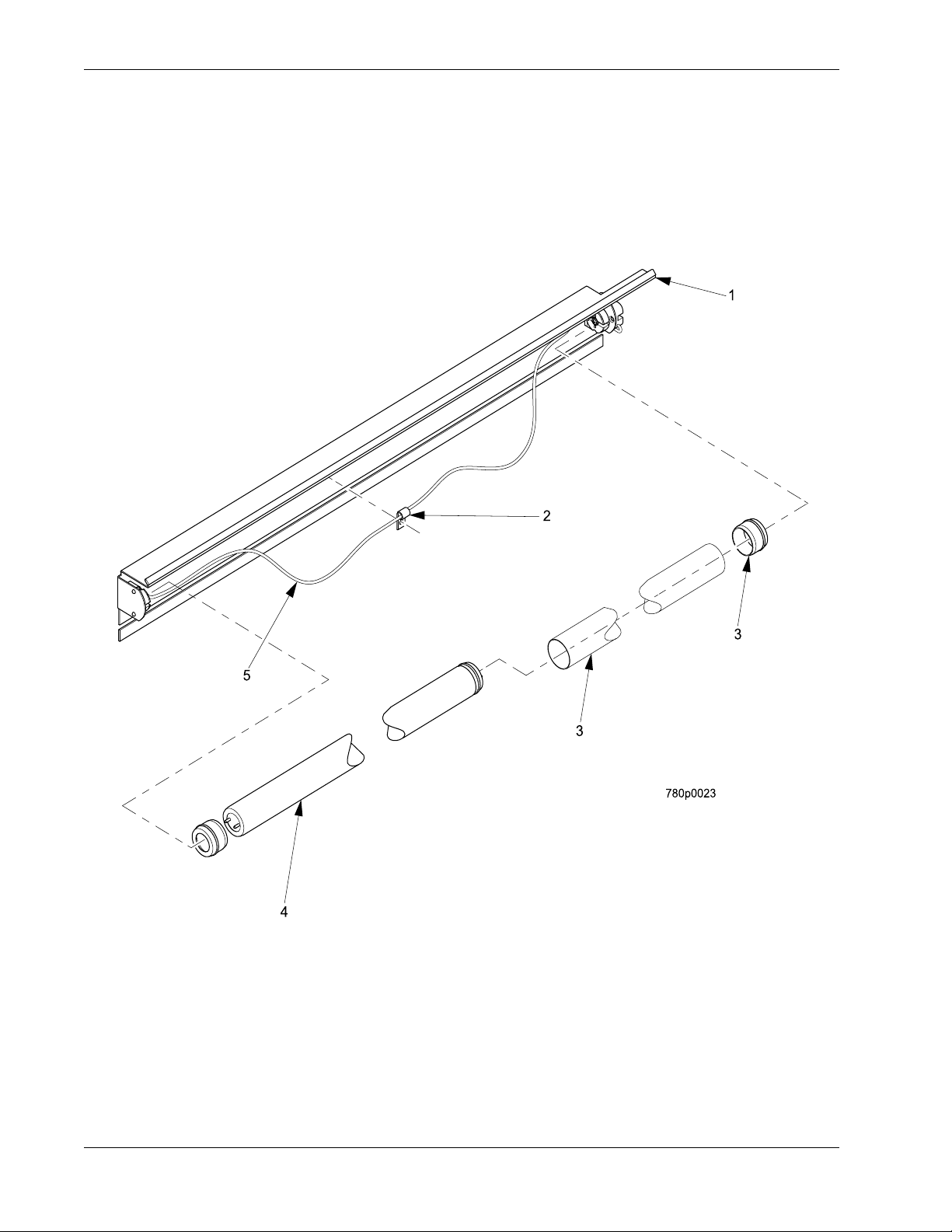

FIGURE 4: LIGHT BRACKET ASSY

7800041 8 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 4: LIGHT BRACKET ASSY

INDEX PART NUMBER DESCRIPTION QTY

1 7802051 BRACKET LIGHT 1

2 2342315 CLIP-WIRE HARNESS 2

3 7802019 SAFETY SLEEVE & END CAP ASSY 1

4 6732034 LAMP-FLUORESCENT-18 WATT 1

5 7809005 HARNESS-LIGHT&FILTER ASSY 1

-- 2302218 ST ARTER-FLSCT LAMP-FS-25(NOT SHOWN) 1

December 2005 9 7800041

Section B: Interior of door Refreshment Center Parts Manual

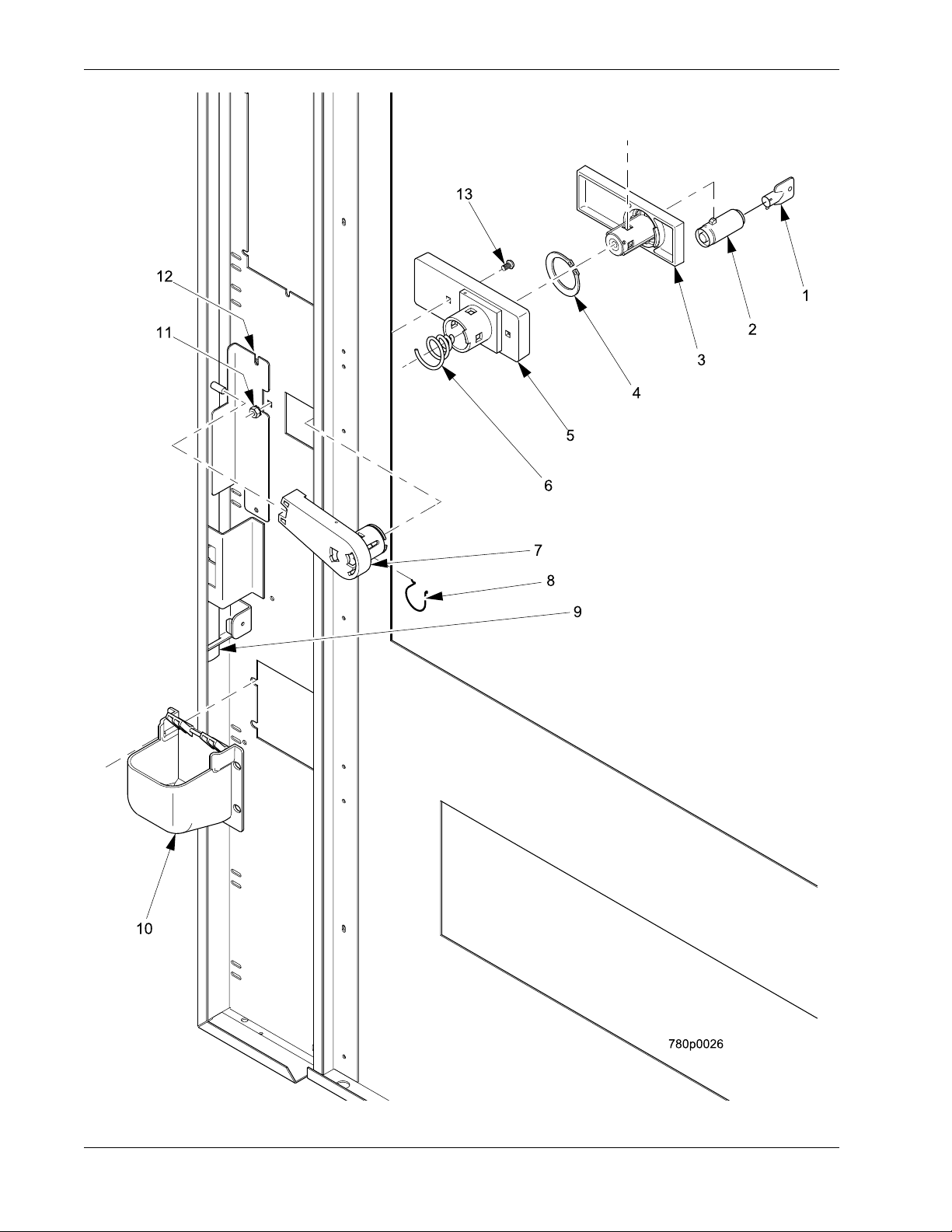

FIGURE 5: LOCK HANDLE ASSY

7800041 10 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 5: LOCK HANDLE ASSY

INDEX PART NUMBER DESCRIPTION QTY.

1

2

3 1572397 LEVER-LOCK HANDLE 1

4 1572199 RETAINING RING-LOCK ACTUATOR 1

5 1572396 BASE-LOCK HANDLE 1

6 1572203 SPRING-LOCK 1

7 1572398 ACTUATOR-LOCK BAR 1

8 1572204 SPRING-LIFT-ACTUATOR 1

9 1472178 LOCK BAR ASSEMBLY 1
10 1572010 CUP-COIN RETURN 1
1 1 9900152 NUT #10-24 2
12 1572196 CHANNEL-FILLER-LOCK 1
13 2221908 CARRIAGE BOLT-BASE PLATE 10-24 2

9994002 KEY-002
9994400 KEY-400
9995002 LOCK CYLINDER ASSY-KEY 002
9995400 LOCK CYLINDER ASSY-KEY 400
1670912 LOCK & KEY-ACE II-KEY 400
1670913 LOCK & 2 KEYS-ACE II-KEY 400
1670914 LOCK & 2 KEYS-ACE II-KEY 002

--

--

December 2005 1 1 7800041

Section B: Interior of door Refreshment Center Parts Manual

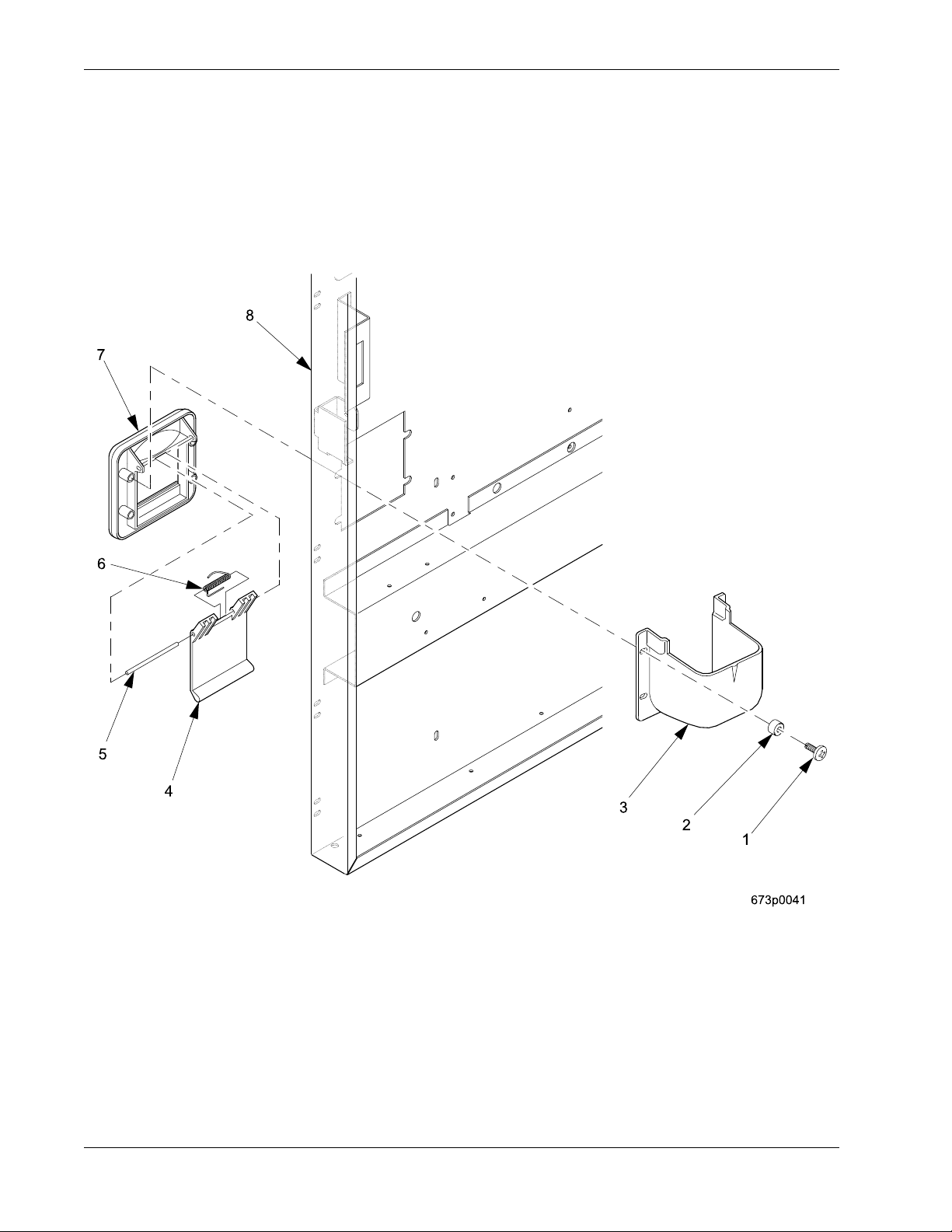

FIGURE 6: COIN CUP

7800041 12 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 6: COIN CUP

INDEX PART NUMBER DESCRIPTION QTY.

1 9900160 SCREW-#8-18 X 1/2"PHIL.PAN HD. 4

2 2302053 SPACER-CUP 4

3 1572010 CUP-COIN RETURN 1

-- 1672082 GATE,SPRING & SHAFT ASSY(ITEMS 4,5 AND 6) --

4 4245082 GATE-COIN RETURN 1

5 4245084 SHAFT-DOOR-COIN RETURN 1

6 4245085 ROD-LOCK PIVOT 1

7 1572011 TRIM-COIN CUP-BLACK 1

8 7802000 FOAM ASSY-DOOR-MILLENNIA BLACK 1

December 2005 13 7800041

Section B: Interior of door Refreshment Center Parts Manual

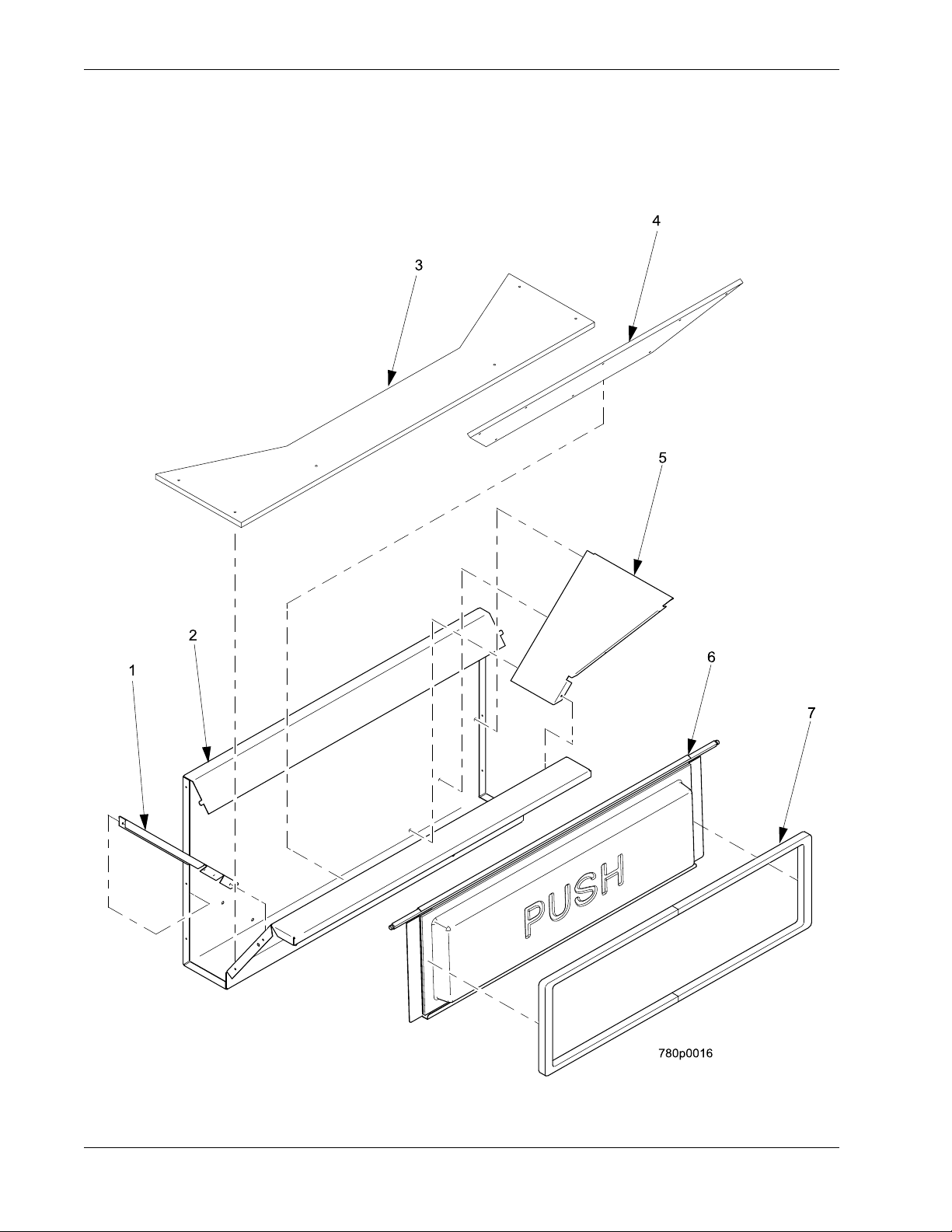

FIGURE 7: DELIVERY BIN (1 OF 4)

7800041 14 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 7: DELIVERY BIN (1 OF 4)

INDEX PART NUMBER DESCRIPTION QTY.

-- 7802010 DELIVERY PAN ASSEMBLY-RC1 --

1 7802030 BAFFLE-DELIVERY PAN-LEFT 1

2 7802024 DELIVERY PAN 1

3 7802077 PAD-BOTTOM & SIDES - RC-1 1

4 7802078 PAD-FRONT-RC-1 1

5 7802035 BAFFLE-DELIVERY PAN-RIGHT 1

6 7802036 VEND DOOR ASSY-FOAMED 1

7 7802018 GASKET-VEND DOOR 1

December 2005 15 7800041

Section B: Interior of door Refreshment Center Parts Manual

FIGURE 8: DELIVERY BIN (2 OF 4)

7800041 16 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 8: DELIVERY BIN (2 OF 4)

INDEX PART NUMBER DESCRIPTION QTY.

1 7802033 DOOR ASSEMBLY-ANTIPILFER AGE 1

2 7802032 DOOR ASSEMBLY - REAR 1

3 7802036 VEND DOOR ASSY-FOAMED 1

4 1572315 SPACER-DELIVERY DOOR 2

5 1572425 SIDE PLATE ASSEMBLY-R.H. 1

6 1572416 SLEEVE-DELIVERY DOOR 2

7 1572353 ARM ASSEMBLY-SPRING ASSIST 1

8 9900184 NUT 1/4-20 SELF-LOCKING 3

9 1572452 SLEEVE-PILFER DOOR-L.H. 1
10 9900437 RETAINING RING REINF E TYP.375 1
11 1572420 SPRING 1
12 1572423 ACTUATOR ASSY.-SPRING ASSIST 1
13 9900081 NUT #8-32 KEPS ZINC PLATE 2
14 1572421 ANCHOR-SPRING 1
15 7802073 ANCHOR-SPRING 1
16 4721035 SCREW-#8-18 X .38-LGM 1
17 7802024 DELIVERY PAN 1

December 2005 17 7800041

Section B: Interior of door Refreshment Center Parts Manual

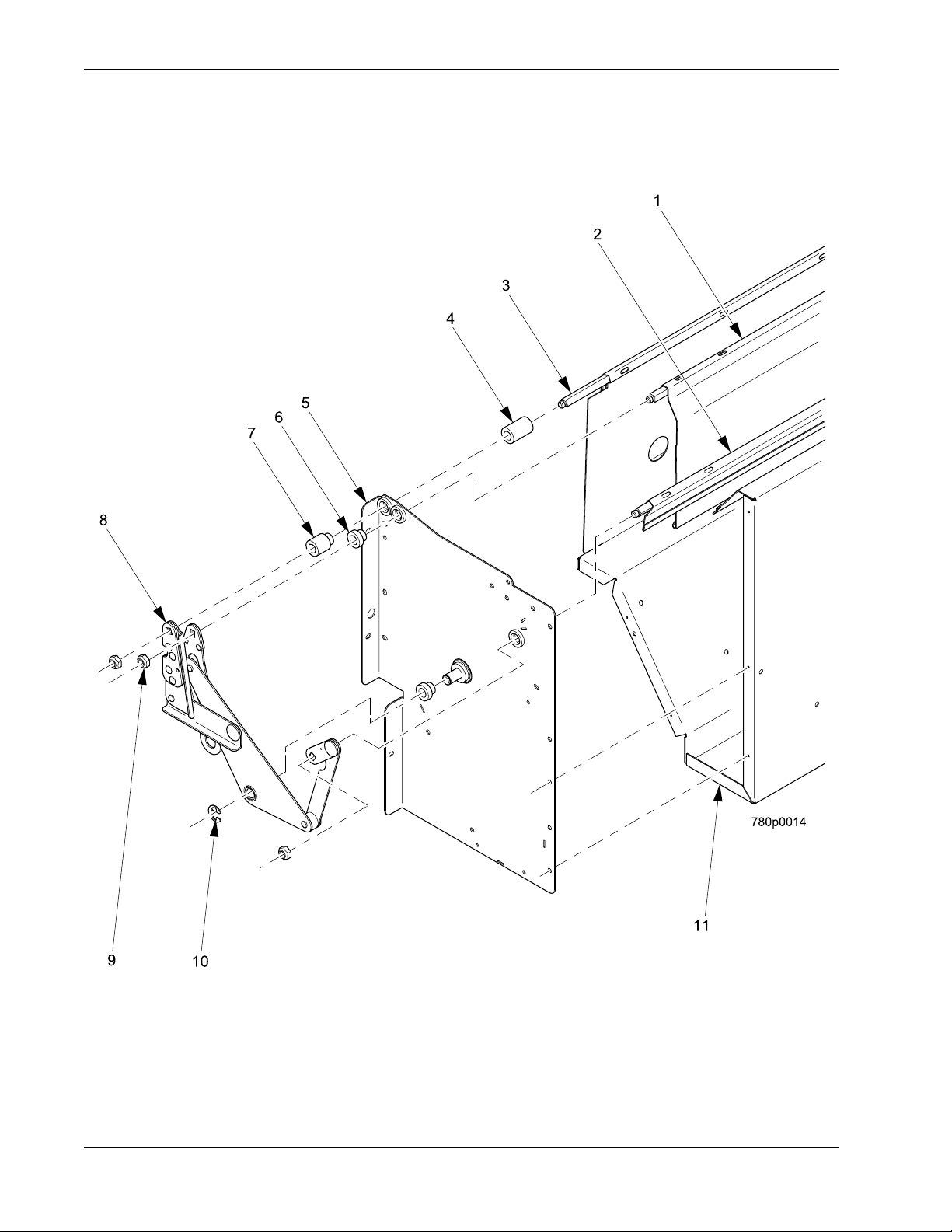

FIGURE 9: DELIVERY BIN (3 OF 4)

7800041 18 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 9: DELIVERY BIN (3 OF 4)

INDEX PART NUMBER DESCRIPTION QTY.

1 7802033 DOOR ASSEMBLY-ANTIPILFER AGE 1

2 7802032 DOOR ASSEMBLY - REAR 1

3 7802036 VEND DOOR ASSY-FOAMED 1

4 1572315 SPACER-DELIVERY DOOR 1

5 1572424 SIDE PLATE ASSEMBLY-L.H. 1

6 1572417 SLEEVE-PILFER & REAR DR.-R.H. 1

7 1572416 SLEEVE-DELIVERY DOOR 1

8 1572410 LINKAGE ASSEMBLY-R.H. 1

9 9900184 NUT 1/4-20 SELF-LOCKING 3
10 9900437 RETAINING RING REINF E TYP.375 1
1 1 7802024 DELIVERY PAN 1

December 2005 19 7800041

Section B: Interior of door Refreshment Center Parts Manual

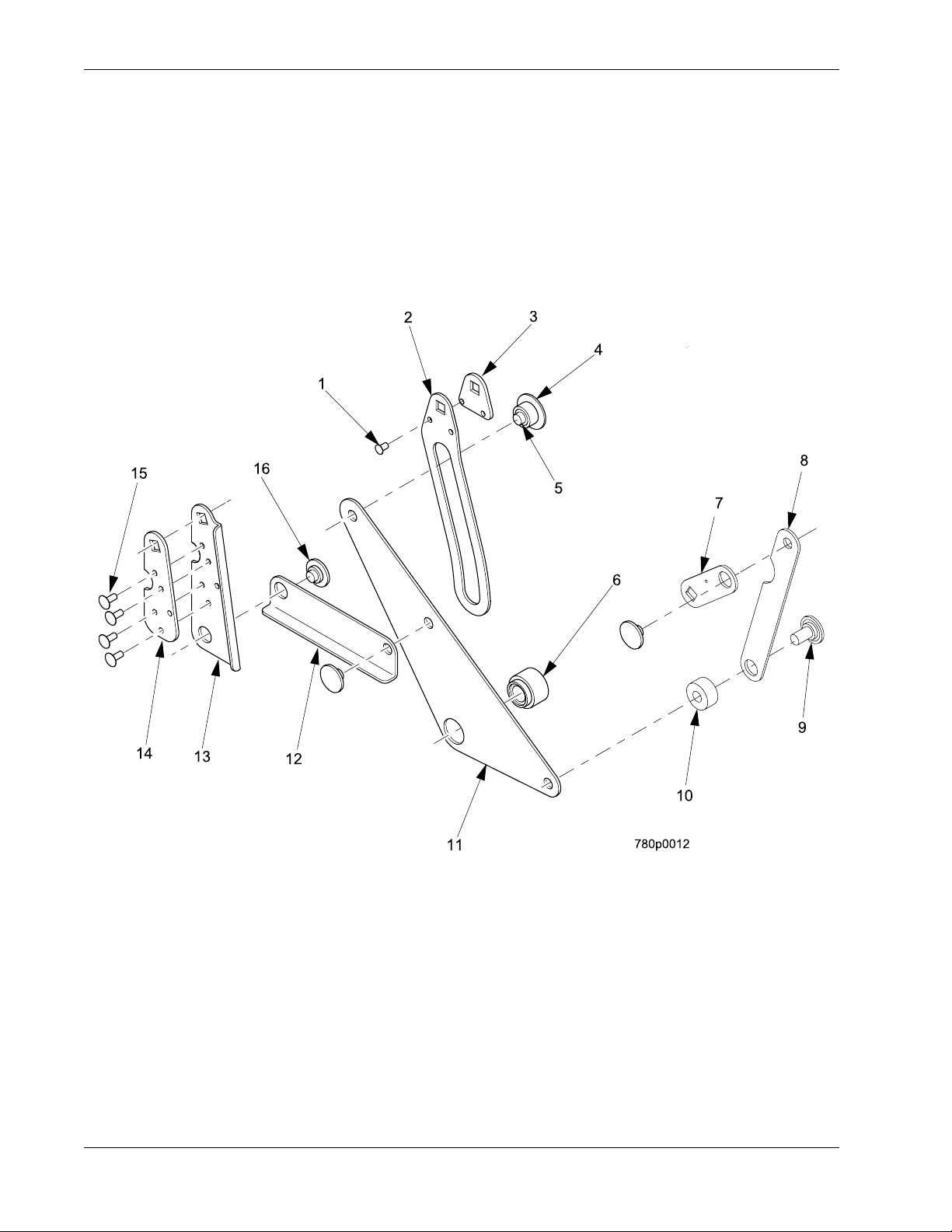

FIGURE 10: DELIVERY BIN (4 OF 4)

7800041 20 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 10: DELIVERY BIN (4 OF 4)

INDEX PART NUMBER DESCRIPTION QTY.

1 9900141 RIVET SEMI-TUBULAR.120 D.X.203 2

2 1572334 ARM-PILFER.DOOR-72DEG(RE F.ITEM) 1

3 1572335 PLATE-BACKING-PILFER 1

4 1572319 ROLLER-INTERMEDIATE ARM ASSY 1

5 1572320 STUD-INTERMEDIATE ARM ASSY 1

6 1572316 COLLAR-INTERMEDIATE ARM 1

7 1572387 ARM-REAR-DELIVERY DOOR 1

8 1572386 LINK-REAR-DELIVERY DOOR 1

9 1572408 SPACER-STUD 1
10 1572407 STUD-LINKAGE ASSY-LONG 1
11 15723 04 ARM -INTRMED.-DEL.DOOR(REF.ITEM) 1
12 1572303 LINK-INTERMED.-DEL.DOOR 1
13 1572356 ARM-DEL.DR-20.5DEG(REF.ITEM) 1
14 1572357 PLATE-BACKING-20.5 DEG. 2
15 1572330 RIVET-SEMI-TUBULAR-.120 DIA.X 4
16 1572318 STUD-LINKAGE ASSEMBLY 3

December 2005 21 7800041

Section B: Interior of door Refreshment Center Parts Manual

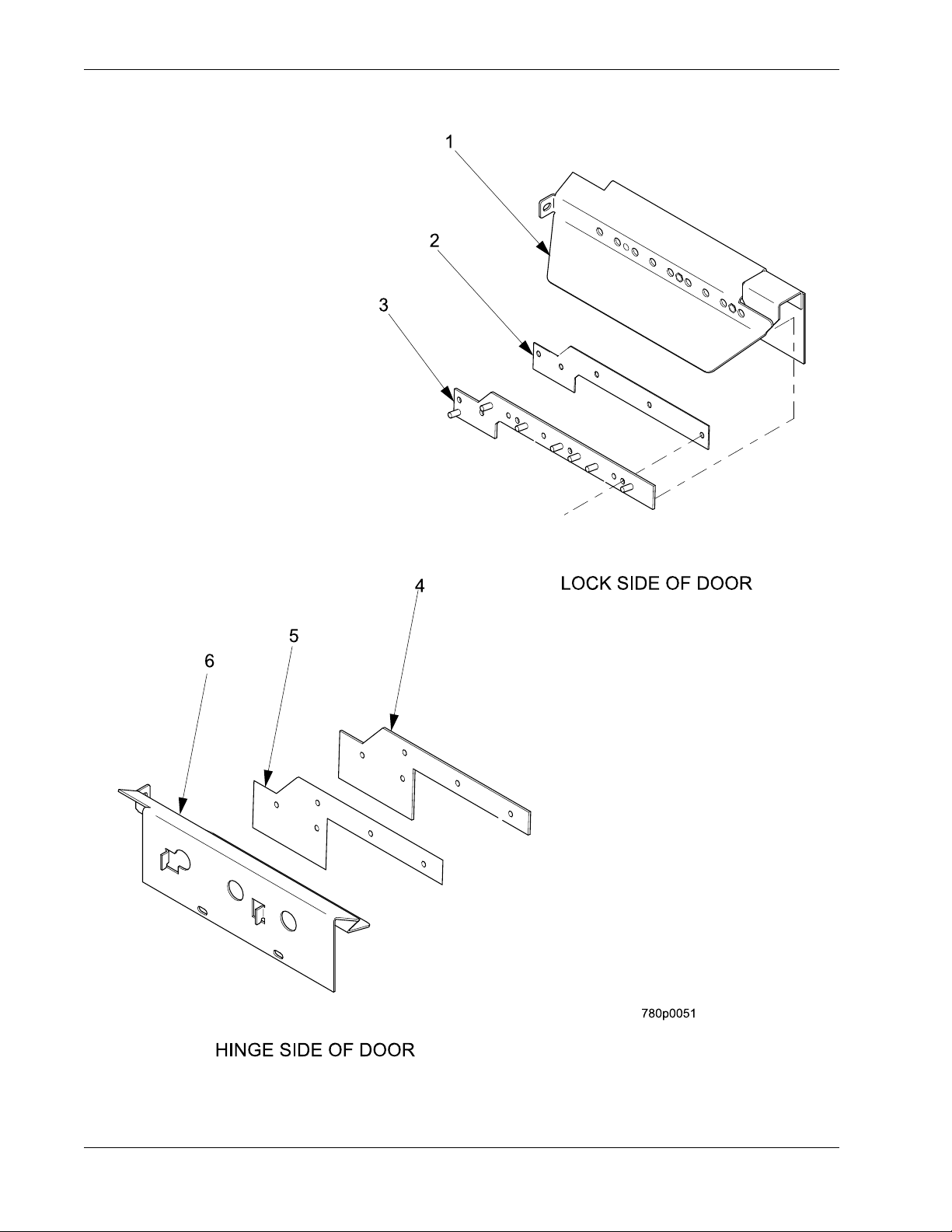

FIGURE 11: SUREVEND

7800041 22 December 2005

Refreshment Center Parts Manual Section B: Interior of door

TABLE 11: SUREVEND

INDEX PART NUMBER DESCRIPTION QTY.

1 7802043 BRKT-W/A-EMITTER-SURE VEND 1

2 1672060 COVER-PCB-LH 1

3 1676011 PCB ASSY-PROD.DETECTION-LED 1

4 1676000 PCB ASSY-PRODUCT DET.-RECEIVER 1

5 1672061 COVER-PCB-RH 1

6 7802034 SENSOR BRK ASSY-RECEIVER-SV 1

December 2005 23 7800041

Section C: Cabinet Refre shment Center Parts Manual

Section C: Cabinet

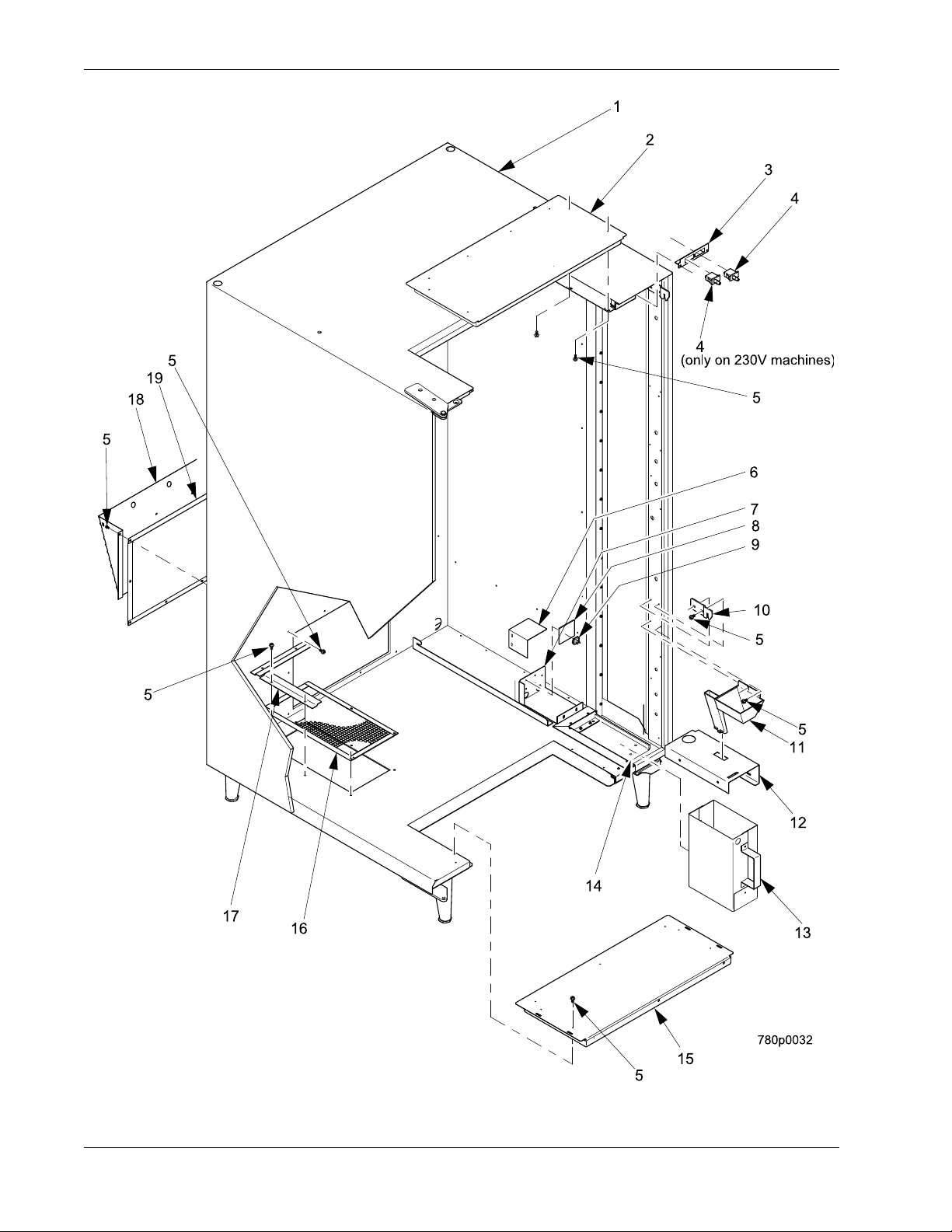

FIGURE 12: CABINET ASSY

7800041 24 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 12: CABINET ASSY

INDEX PART NUMBER DESCRIPTION QTY

1 7801107 FOAMED CABINET ASSEMBLY 1

2 7801120 KNOCKOUT-TOP ASSEMBLY 1

3

4

5 1451097 SCREW-#8-32X.31 HEX HD.TF-BLK. 4

6 7801168 COVER TRIAC 1

7 7801143 BRACKET MONETARY TRIAC 1

-- 9989887 PCB ASSY - RC-I TRIAC --

8 9989886 PCB-RC-1 TRIAC 1

9 9983778 TRIAC-35A-600V 1
10 1571074 LOCK ARM-CABINET 2
11 6231242 CHUTE-PAYOUT 1
12 7801109 TOP HOUSING MONEY BOX 1
13 1671090 COIN BOX 1
14 7801 110 FLOOR HOUSING MONEY BOX 1
15 7801124 KNOCKOUT-BOTTOM ASSEMBLY 1
16 4321150 SCREEN-INLET AIR 1
17 7801147 FRAME INLET SCREEN 1
18 7801160 PANEL-REAR-DIFFUSER 1
19 4321156 SCREEN-OUTLET AIR 1

7801076 BRACKET-INTERLOCK SWITCH-DOM.
7801077 BRACKET-INTERLOCK SWITCH-FOR.

1211141 SWITCH 1

2366135 SWITCH-INTERLOCK (ONLY FOR 230V MACHINES) 1

1

December 2005 25 7800041

Section C: Cabinet Refre shment Center Parts Manual

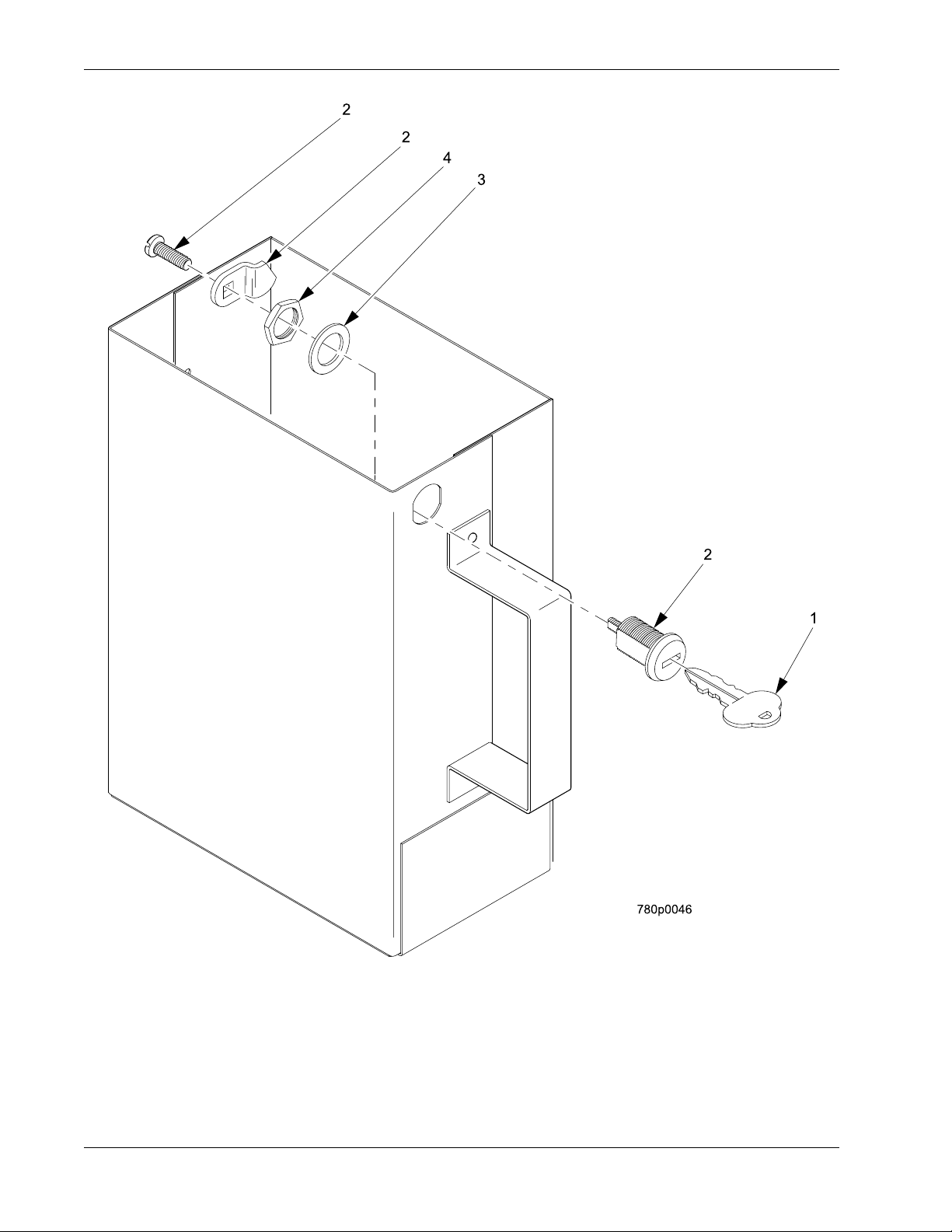

FIGURE 13: CASH BOX LOCK

7800041 26 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 13: CASH BOX LOCK

INDEX PART NUMBER DESCRIPTION QTY

-- 1470761 MONEY BOX LOCK(ITEMS 1-4) --

1 2221920 KEY-CHICAGO LK-#1801 NV407, KB 1

2 1101906 MONEY BOX LOCK-#1801, KA NV407 1

3 2222604 WASHER-LOCK BARREL-#2693 1

4 2222603 NUT-LOCK RET A INING 1

December 2005 27 7800041

Section C: Cabinet Refre shment Center Parts Manual

FIGURE 14: DOOR HINGE

7800041 28 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 14: DOOR HINGE

INDEX PART NUMBER DESCRIPTION QTY

1 7801096 WELD ASSY CABINET(REF.ITEM) --

2 6232036 SCREW-5/16-18X.75 FLT.HDSOCKET 4

3 7802001 WELD ASSY-DOOR-T. BLACK --

4 6232031 HINGE ASSY-DOOR-LOWER 1

5 4242145 BEARING-THRUST-LOWER HINGE KB 1

December 2005 29 7800041

Section C: Cabinet Refre shment Center Parts Manual

FIGURE 15: LIGHTING CHANNEL

7800041 30 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 15: LIGHTING CHANNEL)

INDEX PART NUMBER DESCRIPTION QTY

1 7801 125 LEXAN PANEL 1

2 7801142 CHANNEL RAIL MNT FL OUTER 1

3 1451097 SCREW-#8-32X.31 HEX HD.TF-BLK. 4

4 7801126 FRAME LONG 2

5

6 2302218 STARTER-FLSCT LAMP-FS-25 1

7 7801153 BRACKET LIGHT 2

8 7809005 HARNESS-LIGHT & FILTER ASSY 1

9 6732034 LAMP-FLUORESCENT-18 WATT 1
10 7801127 FRAME SHORT 2
1 1 1211161 CABLE CLAMP-RICHCO#N4 2
12 7801141 CHANNEL RAIL MNT FL INNER 1

1602084 BALLAST ASSY-14/20 WATT 2
6332009 BALLAST ASSY-18 WATT-230V 1

December 2005 31 7800041

Section C: Cabinet Refre shment Center Parts Manual

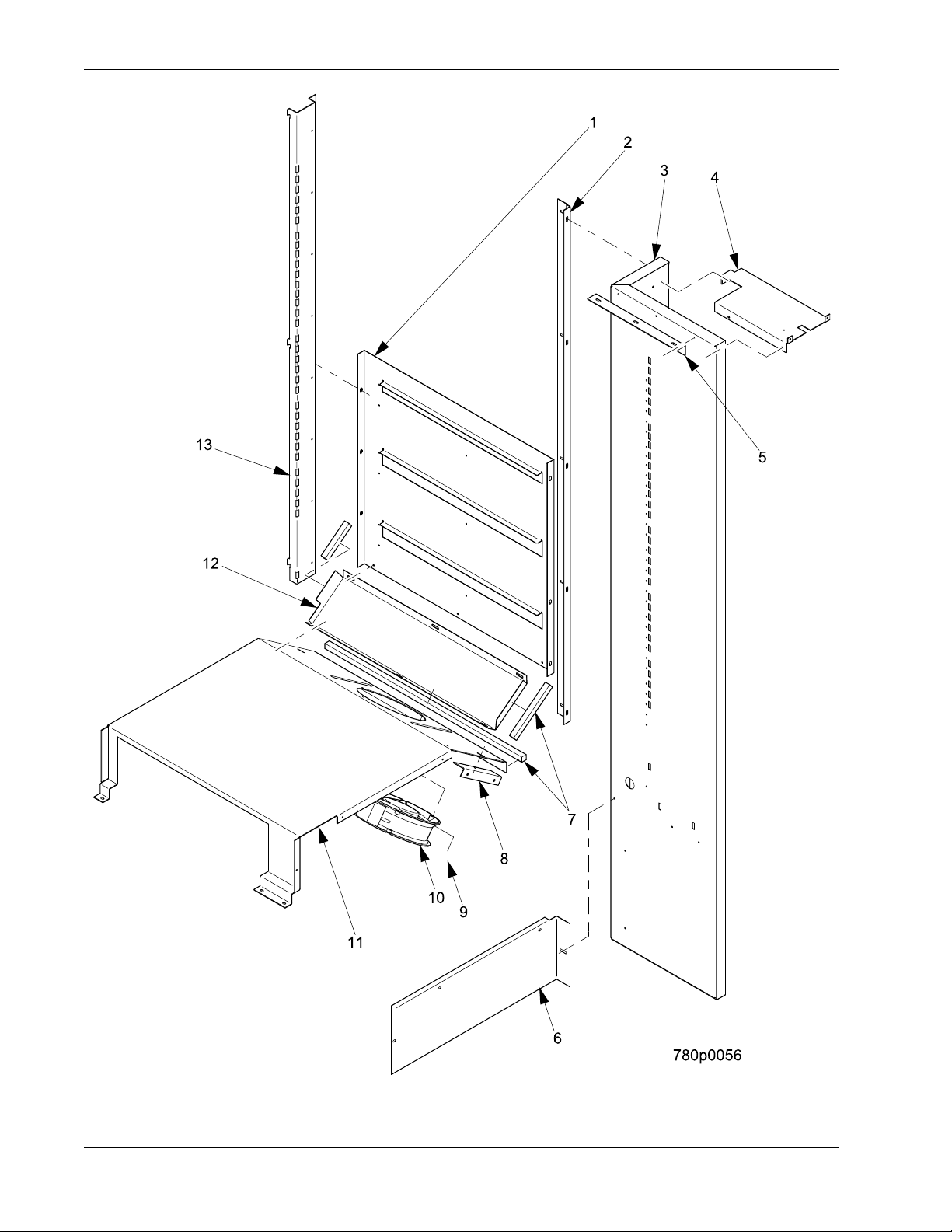

FIGURE 16: EVAPORATOR FAN ASSY

7800041 32 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 16: EVAPORATOR FAN ASSY

INDEX PART NUMBER DESCRIPTION QTY.

1 7801 1 56 PANEL AIR SU PPLY 1

2 7801144 BRACKET MONETARY LONG 1

3 7801131 P ANEL MONETARY ASSY FORWARD 1

4 7801078 BRACKET-ALIGNMENT 1

5 7801151 BRKT UPPER MONETARY ANGLE 1

6 7801 152 FRONT EVAPORATOR COVER 1

7 4744031 SEAL-.50 X.50 87

8 7801150 ANGLE-FAN-SUPPORT 2

9 3104124 SCREW-#8-32 X 5/8 PHS SS 2

-- 4402043 NUT-#8-32 W/L.W. -S.S. (NOT SHOW N) 2
10
11 7801145 PANEL-EVAPORATOR-COVER 1

12 7801148 P ANEL FAN ACCESS 1
13 7801139 CHANNEL RAIL MOUNT RR 1

4314014 FAN-EVAPORATOR-AXIAL
7804013 FAN EVAPORATOR-AXIAL-230V

1

December 2005 33 7800041

Section C: Cabinet Refre shment Center Parts Manual

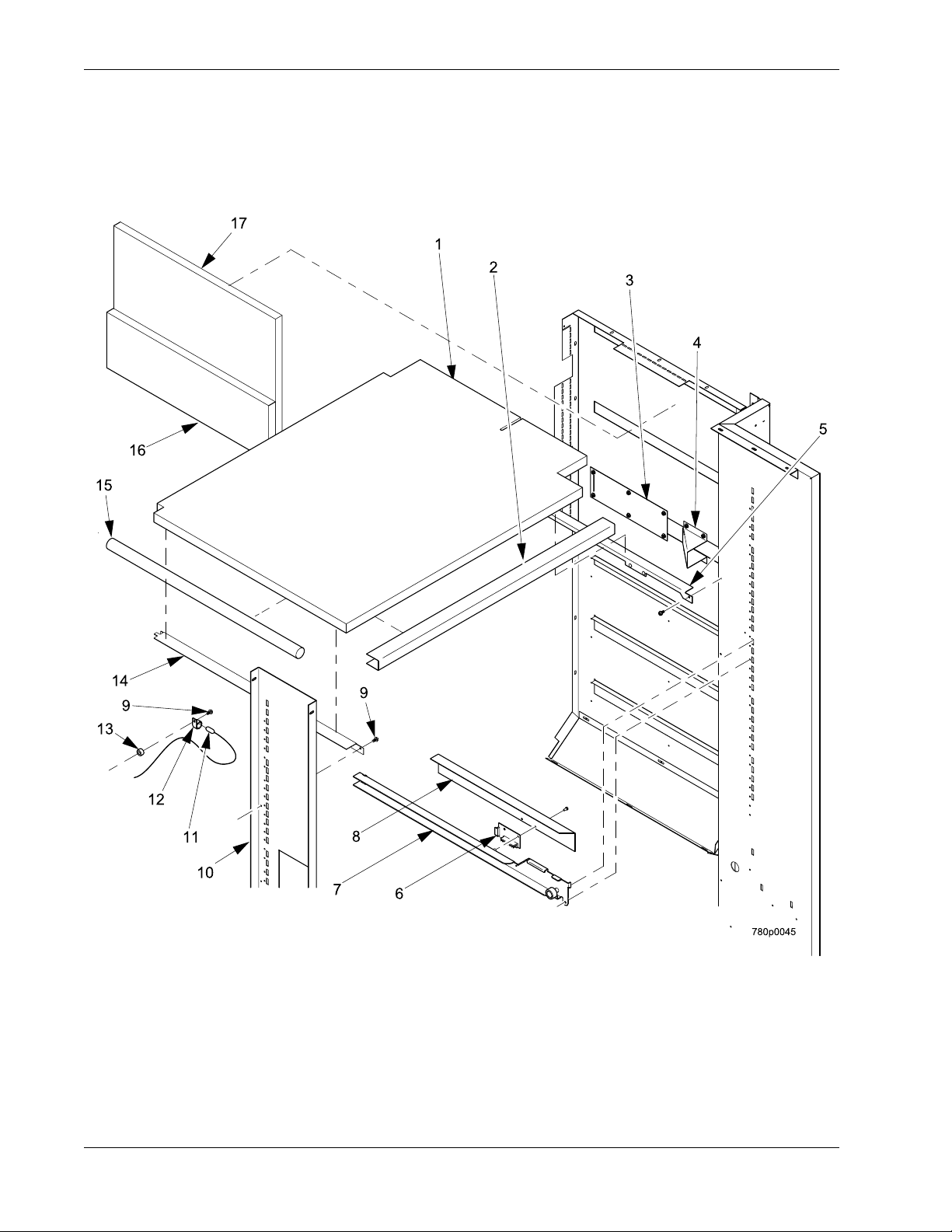

FIGURE 17: DUAL ZONE COMPONENTS VERSION I DUCT SYSTEM

7800041 34 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 17: DUAL ZONE COMPONENTS VERSION I DUCT SYSTEM

INDEX PART NUMBER DESCRIPTION QTY.

1 7801165 DIVIDER SHELF 1
2 7801166 COVER FRONT EDGE BARRIER 1
3 7801 1 75 AIR PLA T E- U SED FO R TWO TRAY CONFIG U R AT ION ONLY 1

4 7801174
5 7801181 RAIL-RH-THERM BARRIER W/STANDO 1

6 1596014 PCB ASSEMBLY-TRAY 1
7 7801049 GUIDE RAIL AY R.H. W/STANDOFFS 1

-- 7801046 TRAY GUIDE RAIL ASSY-L.H.(NOT SHOWN) 1

8 7801052 SHIELD-TRAY RAIL-PCB 1

9 1451097 SCREW-#8-32X.31 HEX HD.TF-BLK. 2
10 7801142 CHANNEL RAIL MNT FL OUTER 1
11 9987852 PROBE-TEMP.SENSOR 1
12 1211 1 61 CABLE CLAMP-RICHCO#N4 1
13 4302134 SPACER-P.C.BOARD 1
14 7801159 RAIL-LH-THERMAL BARRIER 1
15 4241148 INSULATION-ROD-.50 25
16 7801170 INSULATION BOARD-SMALL 1
17 7801169 INSULATION BOARD-LARGE 1

AIR DEFLECTOR-USED FOR TWO TRAY CONFIGURATION
ONLY

1

December 2005 35 7800041

Section C: Cabinet Refre shment Center Parts Manual

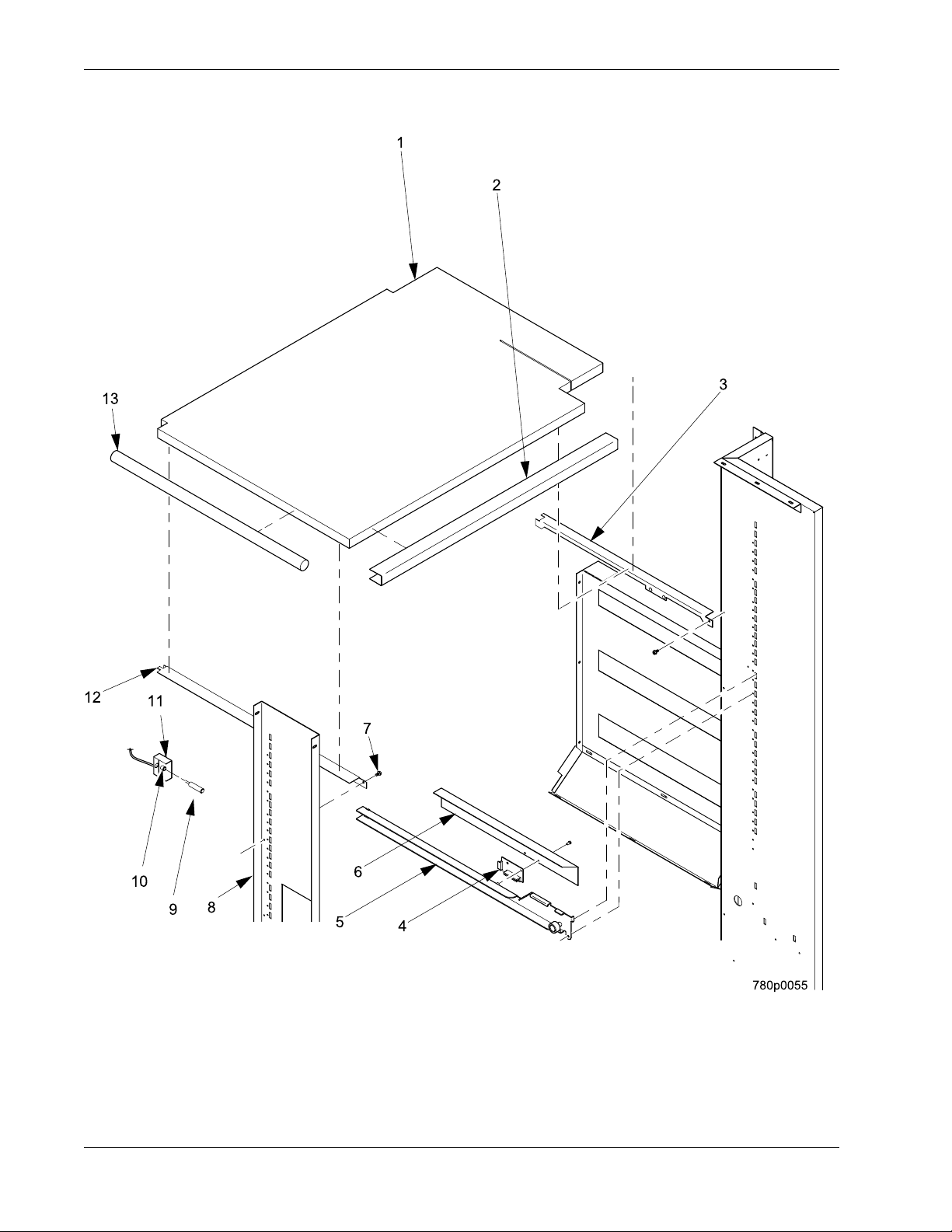

FIGURE 18: DUAL ZONE COMPONENTS VERSION II DUCT SYSTEM

7800041 36 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 18: DUAL ZONE COMPONENTS VERSION II DUCT SYSTEM

INDEX PART NUMBER DESCRIPTION QTY.

1 7801 157 DIVIDER-SHELF-VERSION 2 1

2 7801 1 66 COVER-FRONT EDGE BARRIER 1

3 7801181 RAIL-RH-THERM BARRIER W/STANDO 1

4 1596014 PCB ASSEMBLY-TRAY 1

5 7801049 GUIDE RAIL AY R.H. W/STANDOFFS 1

-- 7801046 TRAY GUIDE RAIL ASSY-L.H.(NOT SHOWN) 1

6 7801052 SHIELD-TRAY RAIL-PCB 1

7 1451097 SCREW-#8-32X.31 HEX HD.TF-BLK. 2

8 7801142 CHANNEL RAIL MNT FL OUTER 1

9 9987852 PROBE-TEMP.SENSOR 1
10 9985887 BUSHING-STRAIN RELIEF 1
1 1 4321175 COVER-TEMP. SENSOR 1
12 7801159 RAIL-LH-THERMAL BARRIER 1
13 4241148 INSULATION-ROD-.50 25

December 2005 37 7800041

Section C: Cabinet Refre shment Center Parts Manual

FIGURE 19: CABINET LEGS

7800041 38 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 19: CABINET LEGS

INDEX PART NUMBER DESCRIPTION QTY.

1 4311068 LEG ASSY-CABINET-WELD 3

2 7801081 PLATE DOOR SUPPORT 1

3 9900218 SCREW-#5/16 X 1 W/LOCKING RING 16

4 1571115 LEG & HINGE ASSY-WELD 1

5 1471098 LEVELER-CABINET 4

6 1471237 LEG & LEVELER ASSY-CABINET (ITEMS 1 AND 5) --

December 2005 39 7800041

Section C: Cabinet Refre shment Center Parts Manual

FIGURE 20: BASE PLATE

7800041 40 December 2005

Refreshment Center Parts Manual Section C: Cabinet

TABLE 20: BASE PLATE

INDEX PART NUMBER DESCRIPTION QTY.

1 9900098 COTTER PIN 3/32 X 3/4 IN 2

2 6231087 BRACKET-BASE PLATE 2

3 1411194 SLIDE-BASE PL ATE-R.H. 1

4 1581050 BASE PLATE ASSY-32"-MILLENNIA 1

5 1411195 SLIDE-BASE PL ATE-L.H. 1

December 2005 41 7800041

Section D: Trays Refreshment Center Parts Manual

Section D: Trays

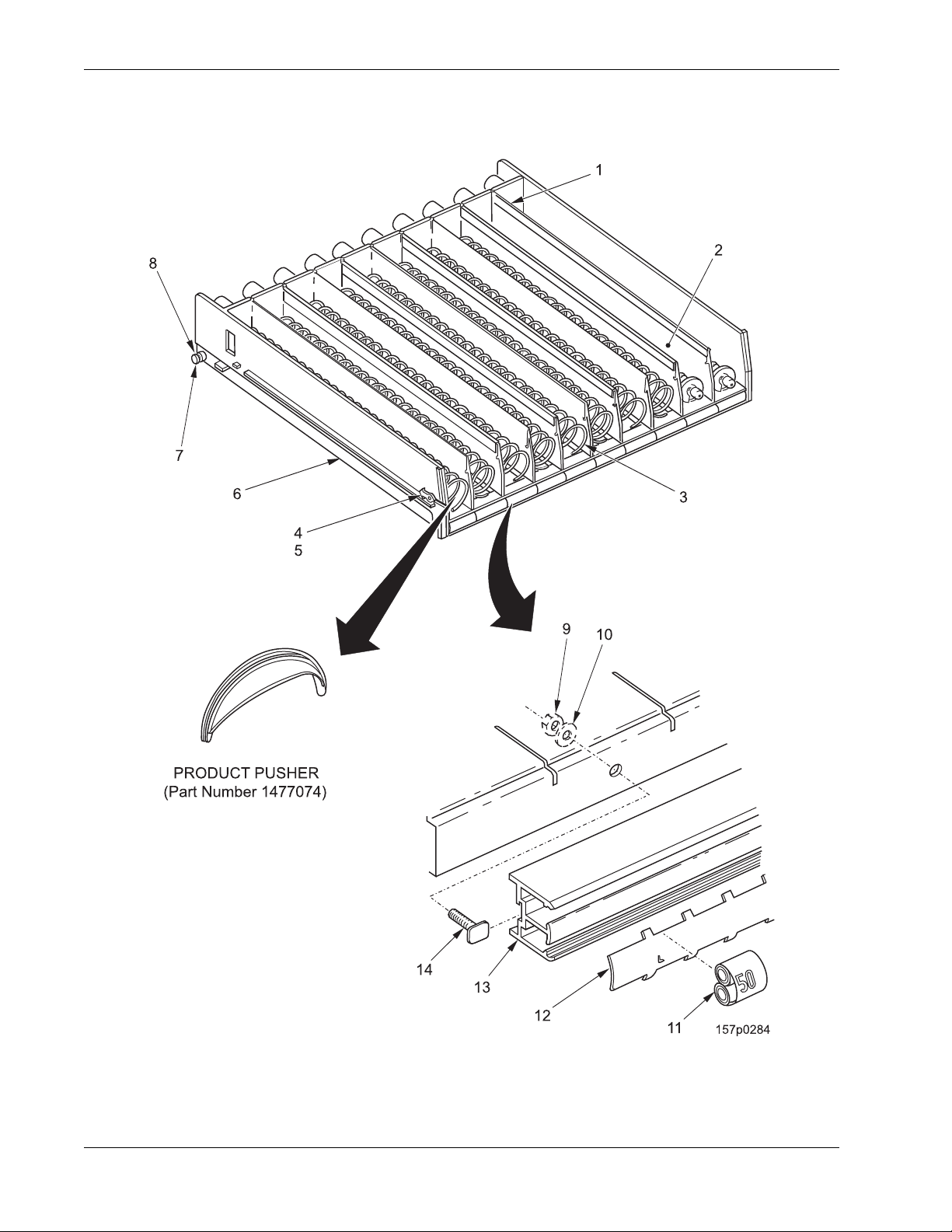

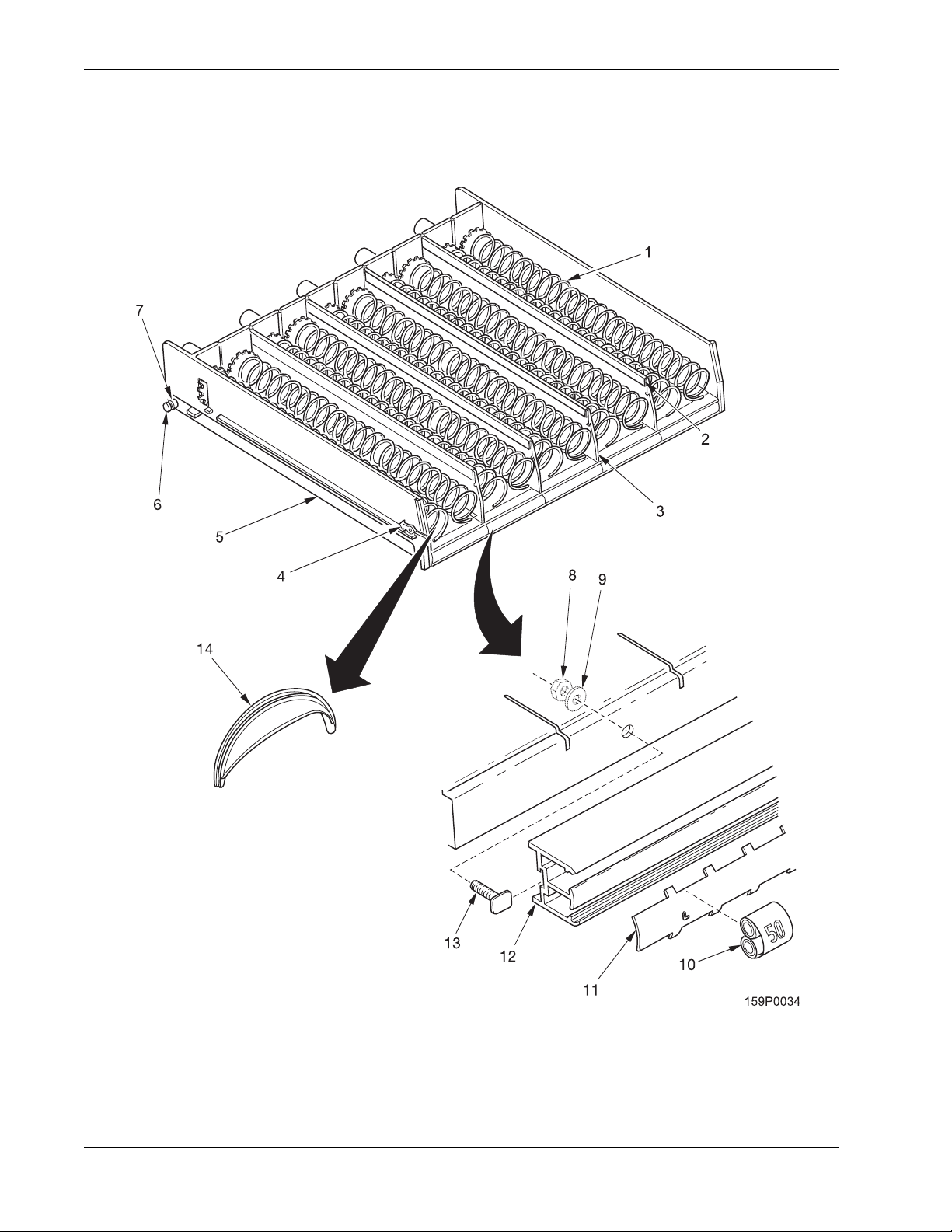

FIGURE 21: SNACK TRAY ASSY

7800041 42 December 2005

Refreshment Center Parts Manual Section D: Trays

TABLE 21: SNACK TRAY ASSY

INDEX PART NUMBER DESCRIPTION QTY

--

1--

2 1677193 SPACER - ADJUSTABLE 4

3 1477175 WALL - TRAY 4

4 1477017 LATCH 1

5 1577040 TRAY - 5 & 10 DIVISION 1

6 1477097 AXLE - TRAY ROLLER 2

7 1477148 ROLLER - TRAY 2

8 9900030 NUT #8-32 SELF - LOCKING 3

9 5560113 WASHER - HOPPER RELEASE 3
10 -­11 14771 57 HOLDE R - PRICE & SELECTION 1

12 1477134 RAIL - PRICE & SELECTION 1
13 2222031 TEE BOLT - TRIM 3
14 1477074 PUSHER - PRODUCT 10

1597001 SNACK TRAY ASSEMBLY - 5 SNACK
1470811 SNACK TRAY ASSEMBLY - 5 SNACK

SPIRAL AND RETAINER ASSEMBLY
(SEE TABLE 26B ON PAGE 55)

PRICE ROLLS
(SEE TABLE 26A ON PAGE 54)

--

--

December 2005 43 7800041

Section D: Trays Refreshment Center Parts Manual

1

DETAIL A

3

SEE

2

4

5

7

6

159P0035

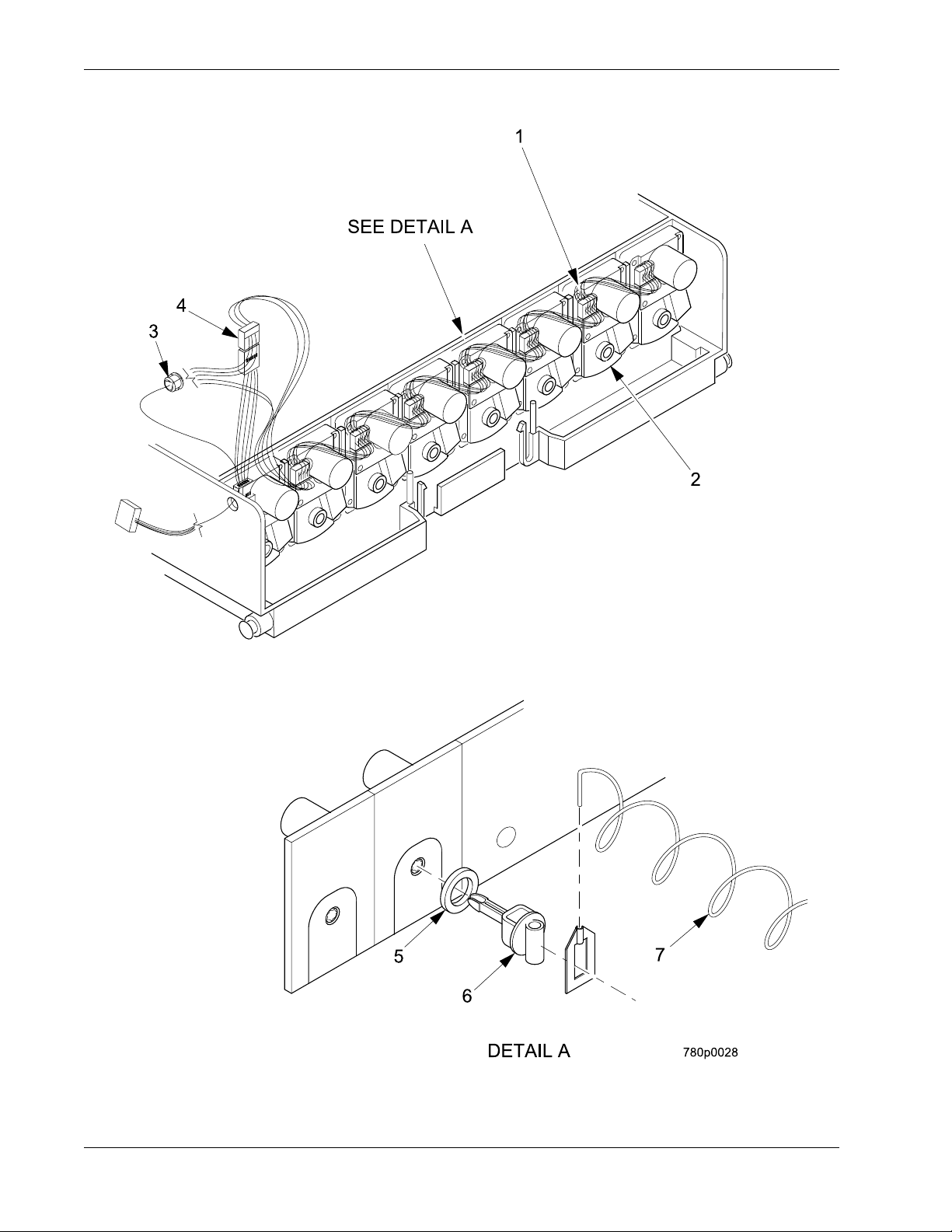

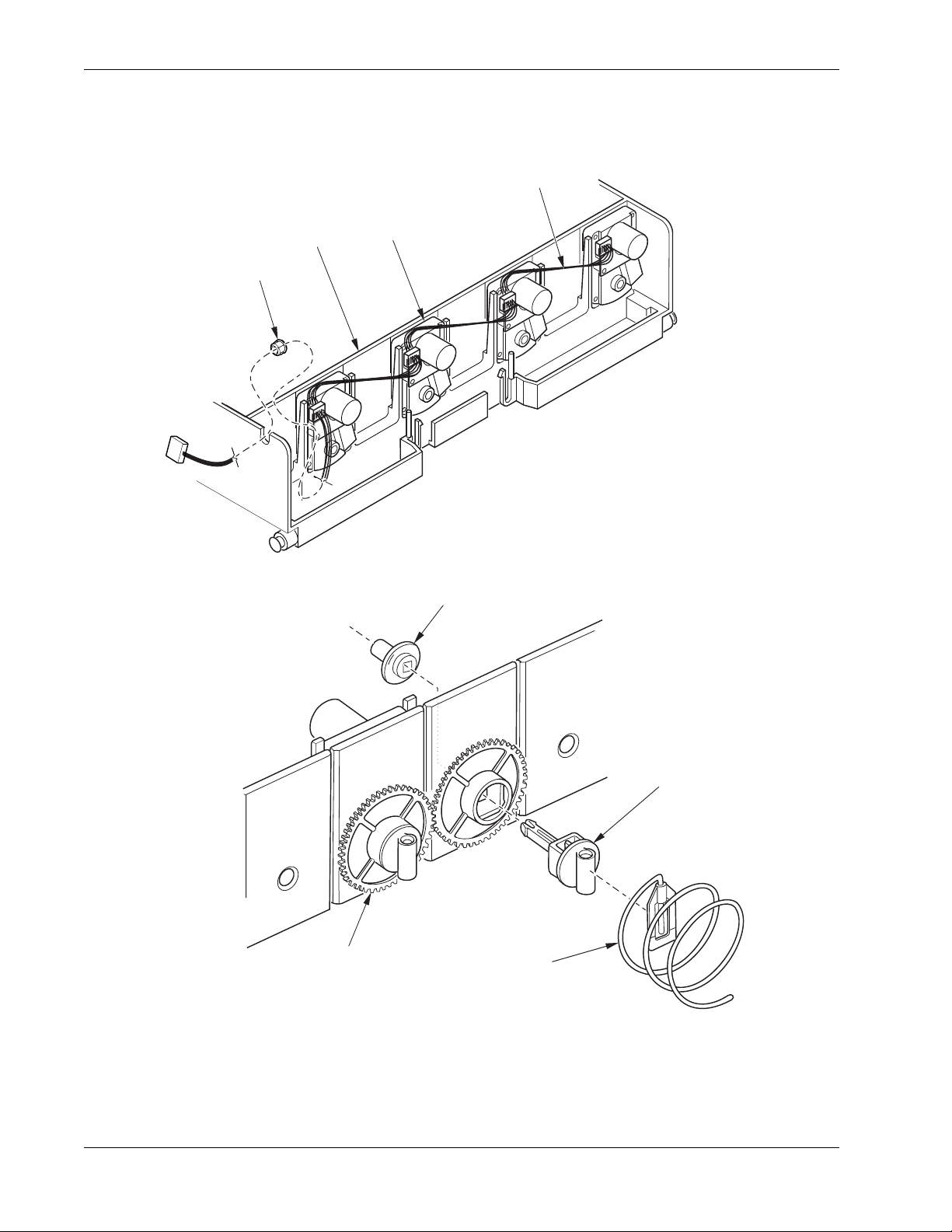

FIGURE 22: SNACK TRAY ASSY - REAR

7800041 44 December 2005

Refreshment Center Parts Manual Section D: Trays

TABLE 22: SNACK TRA Y ASSY - REAR

INDEX PART NUMBER DESCRIPTION QTY.

1 1679010 HARNESS - 5 MOTOR TRAY 1

2 1577038 MOTOR & PCB ASSEMBLY 5

3 9989821 BUSHING - 0.512 DIAMETER 1

4 1477022 BEARING - COUPLER 5

5 1477113 COUPLING - SPIRAL 10

6--

7 1477020 GEAR - TRAY 10

SPIRALS
(SEE TABLE 26B ON PAGE 55)

--

December 2005 45 7800041

Section D: Trays Refreshment Center Parts Manual

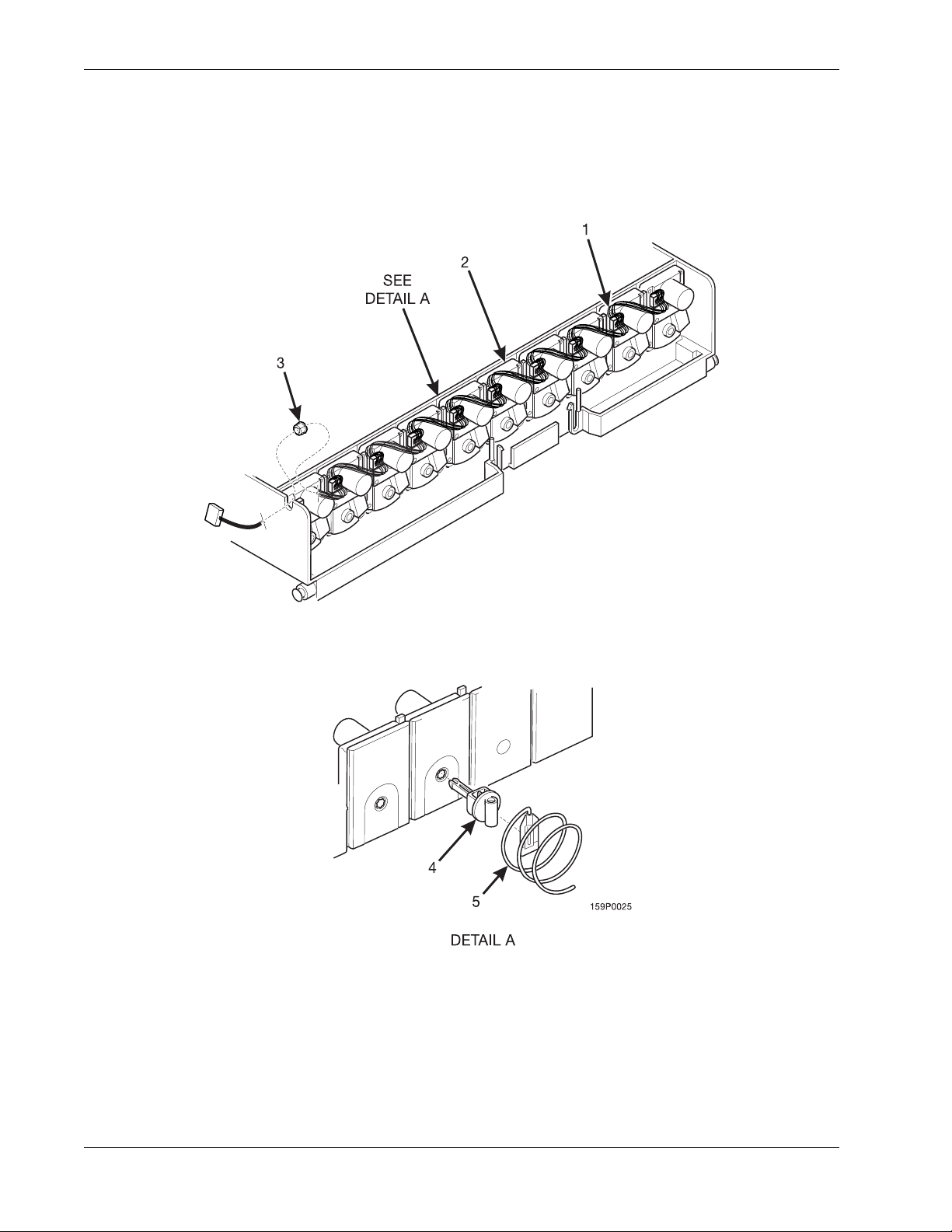

FIGURE 23: CANDY TRAY ASSY

7800041 46 December 2005

Refreshment Center Parts Manual Section D: Trays

TABLE 23: CANDY TRAY ASSY

INDEX PART NUMBER DESCRIPTION QTY.

1597002 CANDY TRAY ASSEMBLY - 10 MOTOR

1470812 CANDY TRAY ASSEMBLY - 10 MOTOR
1 1477175 WALL - TRAY 9
2 1677193 SPACER - ADJUSTABLE 4

3-­4 1477017 LATCH 1

5 5201267 PUSH-ON RETAINER - .312 2
6 1577040 TRAY - 5 & 10 DIVISION 1
7 1477097 AXLE - TRAY ROLLER 2
8 1477148 ROLLER - TRAY 2
9 9900030 NUT #8-32 SELF-LOCKING 3

10 5560113 WASHER - HOPPER RELEASE 3
11 -­12 1477157 HOLDER - PRICE & SELECTION 1

13 1477134 RAIL - PRICE & SELECTION 1
14 2222031 TEE BOLT - TRIM 3

SPIRALS
(SEE TABLE 26B ON PAGE 55)

PRICE ROLLS
(SEE TABLE 26A ON PAGE 54)

--

10

December 2005 47 7800041

Section D: Trays Refreshment Center Parts Manual

FIGURE 24: CANDY TRAY - REAR

7800041 48 December 2005

Refreshment Center Parts Manual Section D: Trays

TABLE 24: CANDY TRAY REAR

INDEX PART NUMBER DESCRIPTION QTY.

1 1679011 HARNESS - 10 MOTO R TRAY 1
2 1577038 MOTOR & PCB ASSEMBLY 10
3 9989821 BUSHING 1
4 1477113 COUPLING - SPIRAL 10

5--

SPIRALS
(SEE TABLE 26B ON PAGE 55)

--

December 2005 49 7800041

Section D: Trays Refreshment Center Parts Manual

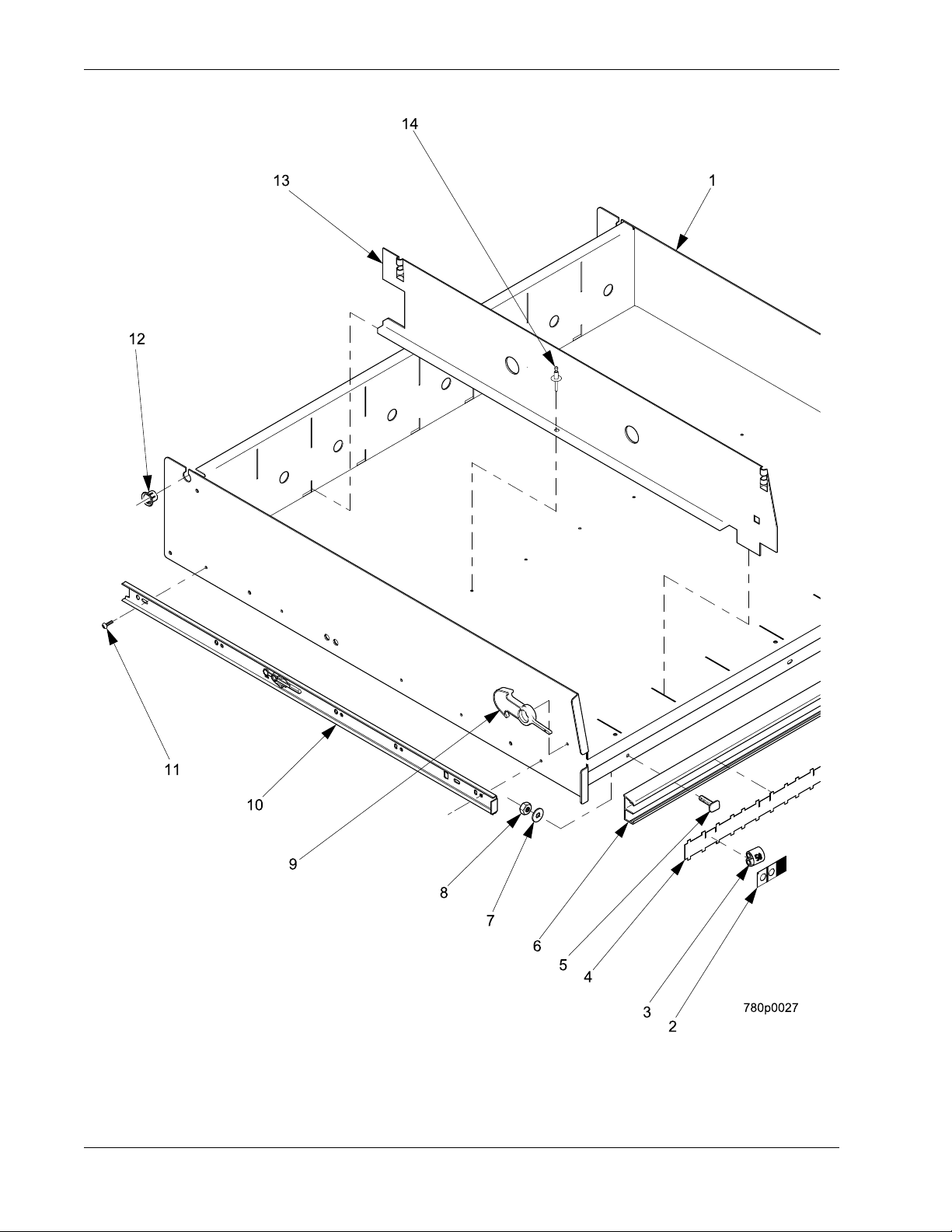

FIGURE 25: BOTTLE TRAY

7800041 50 December 2005

Refreshment Center Parts Manual Section D: Trays

TABLE 25: BOTTLE TRAY

INDEX PART NUMBER DESCRIPTION QTY

-- 7807000 BOTTLE TRAY ASSEMBLY -­1 7807005 TRAY ASSEMBLY WELDED 1

2--

1577047 LABEL-ITEM LETTERS -A 0-A9 1
1577048 LABEL-ITEM LETTERS -B 0-B9 1

3

4 7807002 HOLDER-PRICE & SELECTION 1
5 2222031 TEE BOLT-TRIM 3
6 7807001 RAIL-PRICE & SELECTION 1
7 5560113 WASHER-HOPPER RELEASE 3
8 9900030 NUT #8-32 SELF-LOCKING 3
9 1477017 LATCH 1

10 7801055 SLIDE-TRAY 2
1 1 4312217 SCREW#8-32 X.50 PHILLIPS-PN HD 4
12 9989821 BUSHING-0.512 DIAMETER 1
13 1477175 WALL-TRAY 7
14 3502078 RIVET-POP-.125 DIA X .265 7

1577049 LABEL-ITEM LETTERS -C0-C9 1
1577050 LABEL-ITEM LETTERS -D0-D9 1
1577051 LABEL-ITEM LETTERS -E 0-E9 1
1577052 LABEL-ITEM LETTERS -F0-F 9 1

PRICE ROLLS
(SEE TABLE 26A ON PAGE 54)

--

December 2005 51 7800041

Section D: Trays Refreshment Center Parts Manual

FIGURE 26: BOTTLE TRAY - REAR

7800041 52 December 2005

Refreshment Center Parts Manual Section D: Trays

TABLE 26: BOTTLE TRAY - REAR

INDEX PART NUMBER DESCRIPTION QTY.

1 7809007 HARNESS-8 MOTOR TRAY 1
2 1577038 MOTOR & PC BOARD ASSEMBLY 8
3 9989821 BUSHING-0.512 DIAME TER 1
4 1599024 HARNESS-MOTOR COUPL E R -­5 4407803 SPACER-MOTOR 1
6 1477113 COUPLING-SPIRAL 8

7--

SPIRAL
(SEE TABLE 26B ON PAGE 55)

--

December 2005 53 7800041

Section D: Trays Refreshment Center Parts Manual

TABLE 26A: PRICE ROLLS (FOR TRAYS)

PART NUMBER DESCRIPTION

1477014 PRICE ROLL - CENTS
1477015 PRICE ROLL - DOLLARS
1687001 PRICE ROLL - 1 TO 25 PRICE - DOLLARS
1687002 PRICE ROLL - 26 TO 50 PRICE - DOLLARS
1672065 PRICE ROLL - PRICE - UK - RANGE 1-5 KB
1472273 PRICE ROLL - U.K. - 1L/10L 40P/95P
1472274 PRICE ROLL - U.K. - 1L/10L 8P/35P
1572205 PRICE ROLL - UK - 36P TO 62P + FREE KB
1572206 PRICE ROLL - UK, 63P TO 90P, KB
1477123 PRICE ROLL - 0 TO 25 - UK/GER/FR KB
1577004 PRICE ROLL - 000 TO 250 YEN
1577003 PRICE ROLL - 1 TO 9/10 TO 90 YEN
1577005 PRICE ROLL - 260 TO 500 YEN
1577006 PRICE ROLL - 510 TO 760 YEN
1577007 PRICE ROLL - 770 TO 990 YEN

7800041 54 December 2005

Refreshment Center Parts Manual Section D: Trays

TABLE 26B: SPIRAL OPTIONS

COUNTER CLOCKWISE

LEFT HAND

SPIRAL
COUNT

6 PURPLE 1477103 1477102 1477105 1477104 1477107

9 GRAY 1477152 1477153 1477149 1477150 1477155
11 BLUE 1477023 1477024 1477026 1477027 14 57061
13 YELLOW 1477029 1477030 1477032 1477033 1457062
15 RED 1477035 1477036 1477038 1477039 1457063
17 BROWN 1477101 1477100 1477099 1477098 1477106
20 WHITE 1477041 1477042 1477044 1477045 1457064
25 GRE EN 1477047 1477048 1477050 1477051 1457065
30 BLACK 1477053 1477054 1477056 1477057 1477073
38 ORANGE 1477059 1477060 1477062 1477063 1467137

RETAINER

COLOR ASSEMBLY SPIRAL ASSEMBLY SPIRAL RETAINER

Note:

CLOCKWISE

RIGHT HAND

Bottle trays use a 3.25” diameter spiral.

TABLE 26C: BOTTLE TRAY

BOTTLE TRAY SPIRAL OPTION

SPIRAL
COUNT

6 DARK GREEN 7807011 7807003 4407822
7 RED 7807015 7807016 1457063

RETAINER

COLOR ASSEMBLY SPIRAL RETAINER

December 2005 55 7800041

Section E: Refrigeration Refre shment Center Parts Manual

Sect ion E: Refrigeration

FIGURE 27: EVAPORATOR PAN ASSY

7800041 56 December 2005

Refreshment Center Parts Manual Section E: Refrigeration

TABLE 27: EVAPORATOR PAN ASSY

INDEX PART NUMBER DESCRIPTION QTY

1 3128063 DRAIN-WATER BATH 1
2 7801036 DRAIN PAN 1
3 7801065 DIVIDER SHE LF 1
4 6231034 PLUG-HOLE 1
5 7801132 VERTICAL WALL ASSY FOAMED 1
6 7801015 GASKET-VERTICAL WALL 1
7 7801163 BRACKET UPPER VERTICAL WALL 1
8 7801062 GASKET-HORZ. SHELF SHORT 1

9 7 801162 BRACKET LOW ER VERTICAL WALL 1
10 7801061 GASKET-HORZ. SHELF LONG 1
11 4727069 GASKET-.19X.38 2
12 78011 8 2 ANGLE AIR SEAL 1
13 7801064 GASKET-HORIZONTAL SHELF BACK 1
14 6231034 PLUG-HOLE 2
15 78011 3 7 BRACKET LONG HORZ. SHELF 3
16 7801138 BRACKET SHORT HORIZ. SHELF 2
17 4321042 HOSE-DRAIN 1
18 3154059 CLAMP-STAINLESS STEEL 1

December 2005 57 7800041

Section E: Refrigeration Refre shment Center Parts Manual

FIGURE 28: REFRIGERATION ASSY (1 OF 2)

7800041 58 December 2005

Refreshment Center Parts Manual Section E: Refrigeration

TA BLE 28: REFRIGERATION ASSY (1 OF 2)

INDEX PART NUMBER DESCRIPTION QTY

-­1 7804008 BRACKET-SHIPPING-LEFT 1

2 4364034 FILTER/DRIER-REFRIGERANT 1
3 4244009 ACCUMULATOR P-H 22-056380-01 1
4 4304076 SPACER-COMP.DISCH.TUBE 1
5 4324030 PAN-CONDENSATE 1
6 4324027 TUBE-DISCH LINE-COMPR TO CON 1
7 4324006 INSULATION-TUBE-5X. 1875 CPE 59.5
8 4324025 TUBE-SUCTION LINE-ACCUM TO COM 1
9 4324004 BASE/STUD ASSY-REFRIG. UNIT 1

10 7804011 BRACKET-SHIPPING/SEALING RIGHT 1
11 78040 10 HEAT EXCHANGER ASSY 1
13 7804006 EVAPORATOR COIL 4 ROW 1

7804000 REFRIG. ASSY MODEL 780, 1 15V -­7804001 REFRIG. ASSY MODEL 780, 220V 1

December 2005 59 7800041

Section E: Refrigeration Refre shment Center Parts Manual

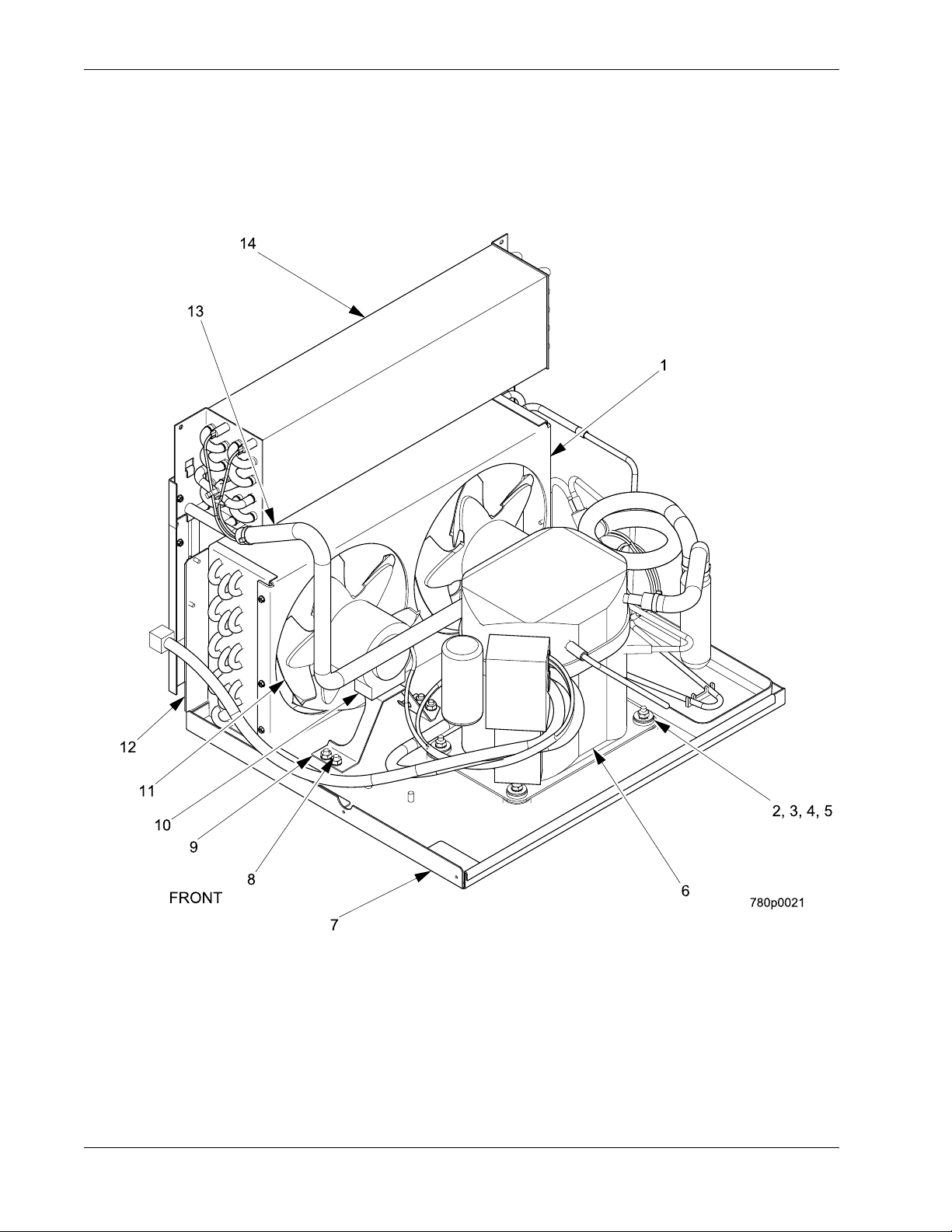

FIGURE 29: REFRIGERATION ASSY (2 OF 2)

7800041 60 December 2005

Refreshment Center Parts Manual Section E: Refrigeration

TA BLE 29: REFRIGERATION ASSY (2 OF 2)

INDEX PART NUMBER DESCRIPTION QTY

1 4324016 SHROUD-CONDENSER-CARDBOARD 1
2 1211105 1/4-20 KEPS NUT EXT LW ZP 4
3 4304236 WASHER-.88 O.D.X.38 I.D.X.063 4
4 4324012 GROMMET-11/16 HEIGHT 4
5 4324013 SLEEVE-11/16 LENGT H 4

6

-- 4324048 BAG-AKA4460YXA COMP.PARTS-115V 1
7 4324004 BASE/STUD ASSY-REFRIG. UNIT 1
8 9900081 NUT #8-32 KEPS ZINC PLATE 4
9 4324044 BRACKET-MOTOR MOUNT 2

10
1 1 7214014 BLADE-CONDENSER FAN 2

12 4324014 CONDENSER-9 X 17.5 3R7 FPI 1
13 7804010 HE AT EXCHANGER ASSY 1
14 7804006 EVAPORATOR COIL 4 ROW 1

4274000 COMPRESSOR-AKA4460YXA 115V 60H
4314055 COMPRESSOR-AKA4476YX C 22 0V-R134A

4304092 MOTOR-CONDENSER FAN-115V 60HZ
4774122 MOTOR-CONDENSER FAN-230V

1

2

December 2005 61 7800041

Section F: Monetary and electronics Refreshment Center P arts Manual

Section F: Monetary and elect ronics

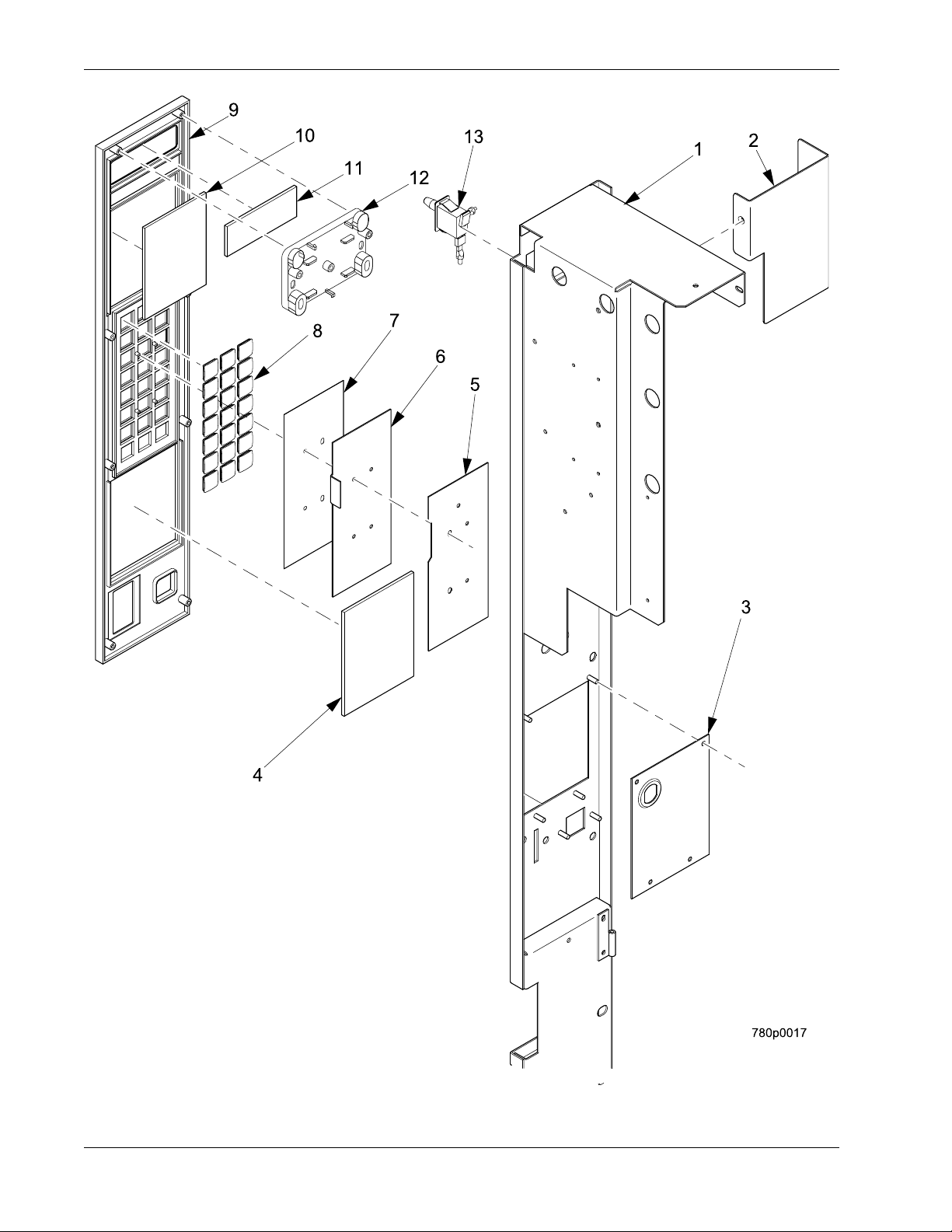

FIGURE 30: MONETARY ASSY

7800041 62 December 2005

Refreshment Center Parts Manual Section F: Monetary and electronics

TABLE 30: MONETARY ASSY

INDEX PART NUMBER DESCRIPTION QTY

1 7805017 PANEL-MONETARY-WELD ASSY 1
2 1575029 COVER-DISPLAY 1
3 1575048 PLATE-INSERT BACKING 1
4 1575035 INSERT-INSTR-LOWER-ENGLISH 1
5 1575091 PLT-SELECT SW.-BACKUP-W/STUD 1
6 7215019 MEMBRANE SWITCH ASSY-SELECT 1
7 1575010 LETTER SHEET-SELECT SWITCH 1

-- 1475089 1/8 NUT-SELF-THREADING 4
8 1472251 LENS-PUSH BUTTON 21

-- 1575098 FACEPLATE ASSEMBLY-W/COIN OPT. -­9 1575001 SELECTION PANEL-MONETARY 1

10 1675006 I N S ERT-INSTR.-UPPER-SUREVEND 1
11 1572013 LENS-DI SPLAY 1

-- 9989823 DISPLAY W/BRACKET ASSEMBLY --

12 1475099 BRACKET-PCB-DISPLAY 1
13 1401110 SWITCH 1

December 2005 63 7800041

Section F: Monetary and electronics Refreshment Center P arts Manual

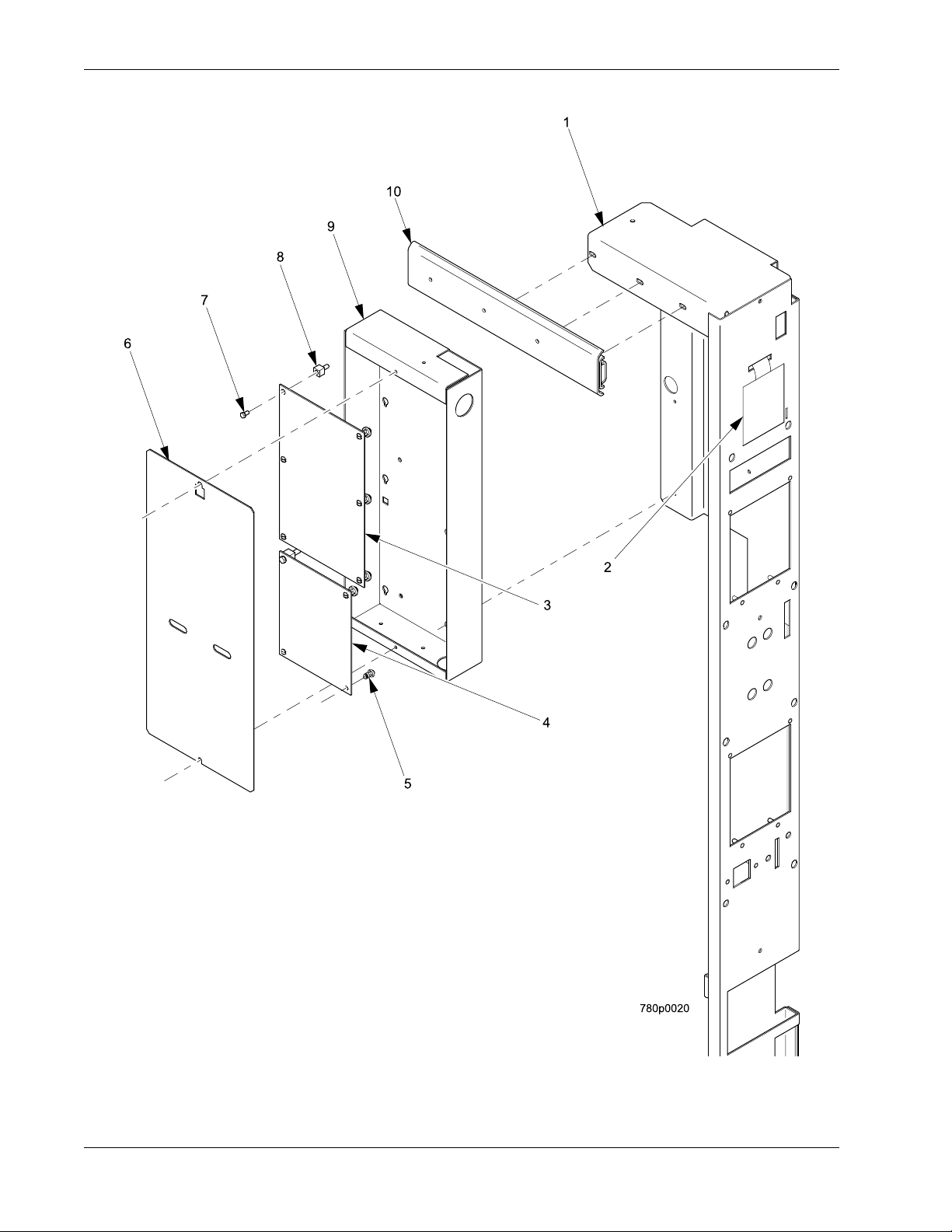

FIGURE 31: PCB HOUSING

7800041 64 December 2005

Refreshment Center Parts Manual Section F: Monetary and electronics

TABLE 31: PCB HOUSING

INDEX PART NUMBER DESCRIPTION QTY

1 7805017 PANEL-MONETARY-WELD ASSY 1

-- 7806000 MAIN CONTL.PCB W.EMPROM-780 -­2 7215025 MEMBRANE SWITCH ASSY-PROGRAM 1
3 9989755 PCB-MAIN CONTROLLER 1

-- P7806006 IC ASSY-VERSION 780. 03(NOT SHOWN) -­4 1576008 PCB-SNACK INTERFACE 1
5 1571036 STANDOFF-PCB-.375 KEY SLOT 10
6 7805002 COVER-HOUSING-PCB 1
7 1471199 SCREW-#8-18 X .62 HEX/WH. 2
8 1571034 STANDOFF-PCB-3/8 SCREW MOUNT 2
9 7805001 HOUSING-PCB 1

10 7211229 SLIDE-MONETARY 2

December 2005 65 7800041

Section F: Monetary and electronics Refreshment Center P arts Manual

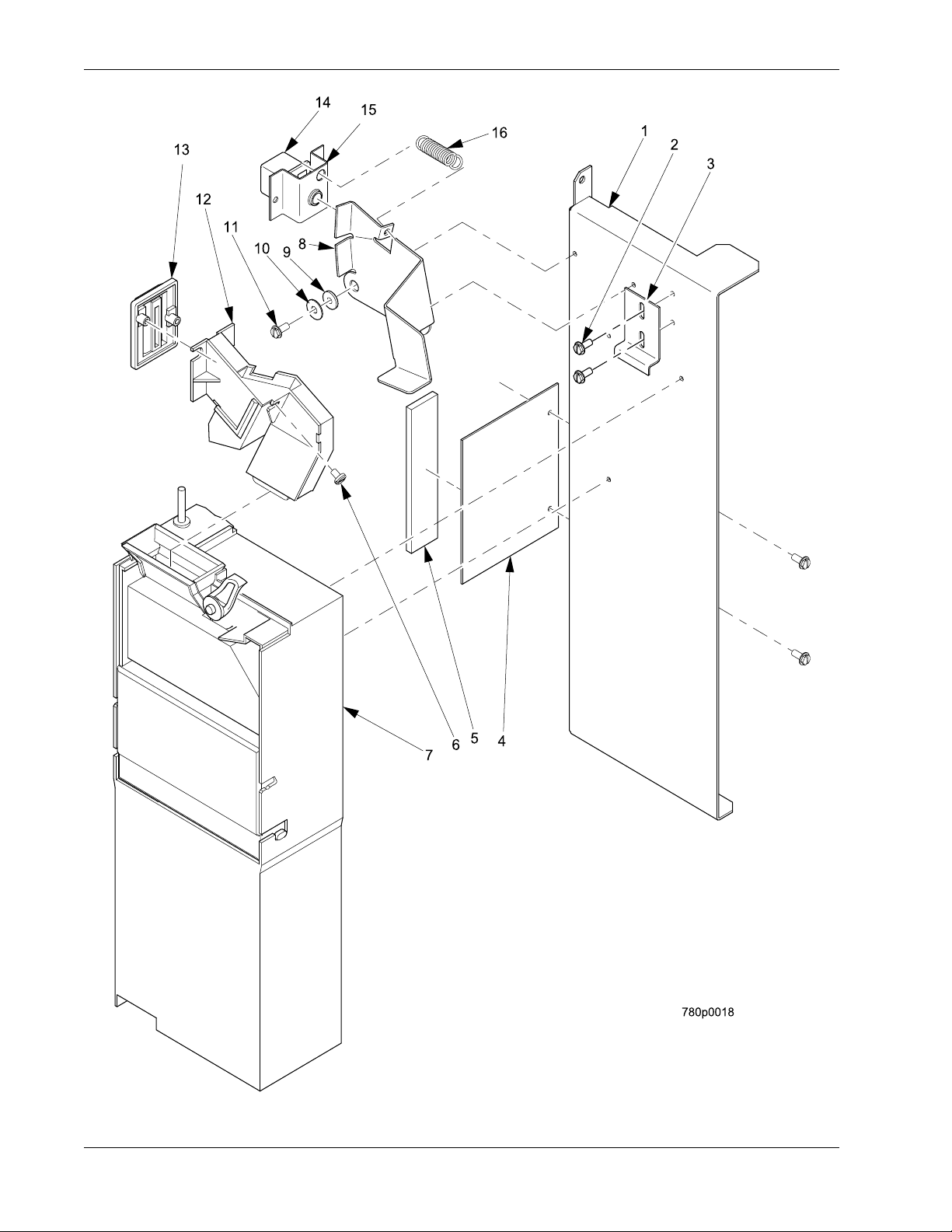

FIGURE 32: COIN MECH BRACKET

7800041 66 December 2005

Refreshment Center Parts Manual Section F: Monetary and electronics

TABLE 32: COIN MECH BRACKET

INDEX PART NUMBER DESCRIPTION QTY

1 7805007 BACKBOARD & HINGE ASSY 1
2 9900106 SCREW #8-32 X 3/8 ACORN HEX HD 2
3 6231037 CLAMP-CABLE 1
4 7805009 BRACKET-MAGNET 1
5 3122056 MAGNET-RETAINR-COIN CHANGER KB 1
6 6237049 SCREW-#8-16X.25-SLTD-PHS 2

-- 2302053 S PACER-CUP(NOT SHOWN) 4
7-­8 1571113 ARM-SCAVENGER 1

9 2204093 WASHER-SCAVENGER BAR 1

10 2228011 S PACER-RELEASE ARM 1
1 1 4741050 SCREW-#8-32 X .50 HX.HD.-T/F-B 1
12 1575003 COIN CHUTE ASSEMBLY 1
13 1472223 COIN INSERT 1
14 1475026 BUTTON-COIN RETURN 1

-- 1475072 SHAFT-RETURN BUTTON(NOT SHOWN) 1

15 1571079 BRACKET-COIN RETURN BUTTON 1
16 1127808 SPRING-SHELF RESET 1

COIN MECH
(SEE TABL E 33D ON PAGE 70)

OPT

December 2005 67 7800041

Section F: Monetary and electronics Refreshment Center P arts Manual

FIGURE 33: CARD READER AND BILL VALIDATOR COMBINATIONS

7800041 68 December 2005

Refreshment Center Parts Manual Section F: Monetary and electronics

TABLE 33: CARD READER AND BILL VALIDATOR COMBINATIONS

INDEX PART NUMBER DESCRIPTION QTY

1 1575048 PLATE-INSERT BACKING 1
2 -- DOWNSTACK BILL VALIDATOR OPT

3--

4--

CARD READER
(SEE TABLE 33B ON PAGE 70)

UPSTACK BILL VAL ID ATOR
(SEE TABL E 33C ON PAGE 70)

TABLE 33A: MONETARY CAPABILITY

MONETARY PANEL LOCATION

OPT

OPT

MONETARY

CAPABILITY

COIN - VAL - CARD CARD READER UPSTACK VALIDATOR YES
COIN - VAL - CARD DOWNSTACK VALIDATO R CARD READER YES

COIN - VALIDATOR

COIN - VALIDATOR DOWNSTACK VALIDATO R

COIN - CARD

COIN - CARD CARD READER

VALIDATOR - CARD DOWNSTACK VALIDATOR CARD READER NO
VALIDATOR - CARD CA RD READER DOWNSTACK VALIDATOR NO

COIN ONL Y

VALIDATOR ONLY

VALIDATOR ONLY DOWNSTACK VALIDATOR

CARD ONLY CARD READER

CARD ONLY

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

UPPER LOWER

UPSTACK VALIDATOR YES

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048

CARD READER YES

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

UPSTACK VALIDATOR NO

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

INSERT INSTRUCTIONS BACK-

UP PLATE (1575048)

CARD READER NO

WITH

COIN?

YES

YES

YES

NO

NO

Note:

All Items are secured with four Nuts (p/n 9900081).

Shaded Items Represent Alternate Configurations

December 2005 69 7800041

Section F: Monetary and electronics Refreshment Center P arts Manual

TABLE 33B: CARD READER OPTIONS

PART NUMBER DESCRIPTION

5900246 DEBITEK - KVIS - MDB
1575050 BRACKET - DEBITEK CONTROLLER

TA BLE 33C: BILL VALIDATOR OPTIONS

PART NUMBER DESCRIPTION HARNESS

5900210 W/MARS VN2512-U5M**MDB**-S 1679054
5900247 W/MARS AE2612-U5M**MDB**-S 1679054
5900303 W/VAL-COINCO BP4SX SV
5900267 P W/CONLUX NBM-3140**MDB***-

TABLE 33D: COIN MECHANISM OPTION

PART NUMBER DESCRIPTION

5900289 MARS COIN-VN4510*MDB*-DBL
5900279 CONLUX CCM5G-4 1N 1D 2Q 1$
5900307 MEI CF7512 1N,1D,2Q,$
5900295 CONLUX 5TB CCM5G1 1D,1N,3Q
5900293 CONLUX CCM56-2 2N,2D,1Q
5900269 COINCO USQ G701 MDB-4 TUBE
5900270 COINCO USQ G702 MDB-2Q,1N,
5900243 MARS TRC6512**"MDB"**COIN
5900213 COINCO 9302-GX*"MDB"*COIN
5900310 MARSCF 7512 2Q,2N,1D
5900313 COINCO VORTEX CHANGER
5900214 COINUNIT-MEI-VN4510-5/10/25/$1
5900276 COIN UNIT -VN4510-5/10/25/25 KB

7800041 70 December 2005

Refreshment Center Parts Manual Section F: Monetary and electronics

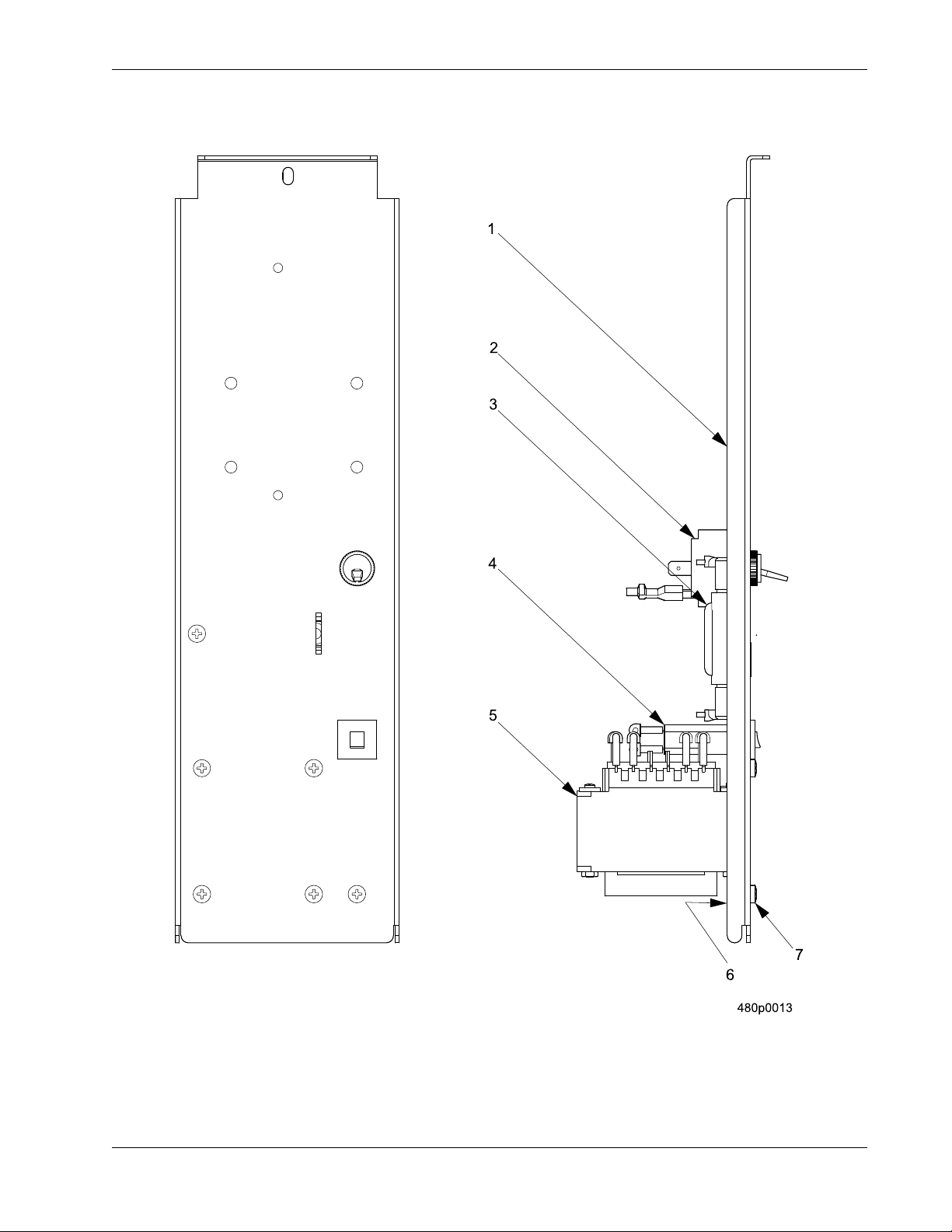

FIGURE 34: POWER PANEL ASSY

December 2005 71 7800041

Section F: Monetary and electronics Refreshment Center P arts Manual

TABLE 34: POWER PANEL ASSY

INDEX PART NUMBER DESCRIPTION QTY

-­1 1701037 PLATE-HOUSING-PA NE L(CP7-7) 1

2 9984629 SWITCH-TOGGLE-DPS T-20AMP 1
3 9989100 INTERFERENCE FILTER 1
4 9989674 CIRCUIT BREAKER-4 AMP 1
5 9989046 24V XFMR-DUAL PIR.-.187 TERM. 1
6 9900081 NUT #8-32 KEPS ZINC PLATE 6
7 9900118 SCREW-#8-32 X 3/8 PHS 6

3281092 POWER PANEL ASSY-DOM. 20 AMP
4521053 POWER PANEL ASSY-230V-U.K.

TABLE 35: HARNESSES

CONNECTOR HARNESS PART NUMBER

J1 HARNESS-MAIN CONTROL TO SENSOR 1679012

J2 HARNESS-EMITTER TO DETECTOR 1679013
J30 CABLE RIBBON-16 CONDUCTOR 1579008
J31 JUMPER-TEMP & DRIVER 7809001
J33 HARNESS-CONTROL TO DISPLAY 1599200
J34 HARNESS-MAIN CONTROL TO SENSOR 1679012
J35 HARNESS-POWER PANEL 6739021
J36 HARNESS-DEX INTERFACE 1679056
J37 HARNESS-24VAC PCB & COIN POWER 9989750
J38 HARNESS-24VAC PCB & COIN POWER 9989750
J39 HARNESS-MON ETARY**"MDB"** 1679054
J45 HARNESS-CONTROL TO DISPLAY 1599200
J46 MEMBRANE SWITCH ASSY-SELECT 7215019
J47 SWITCH ASSY-FREE VEND 9989639
J48 JUMPER-MONETARY DOOR SWITCH 1579009
J49 S ERVICE KEYPAD ASSEMBLY 1575046
J50 JUMPER-DOOR POWER 7809020
J51 JUMPER-DOOR POWER 7809020
J52 JUMPER-DOOR POWER 7809020
J53 JUMPER-DOOR POWER 7809020
J55 CABLE RIBBON-16 CONDUCTOR 1579008
J58 HARNESS-7 TRAY CHANNEL 7809011
J59 HARNESS-7 TRAY CHANNEL 7809011
J60 HARNESS-7 TRAY CHANNEL 7809011

--

7800041 72 December 2005

Refreshment Center Parts Manual Section F: Monetary and electronics

TABLE 35: HARNESSES

CONNECTOR HARNESS PART NUMBER

J61 HARNESS-24VAC PCB & COIN POWER 9989750
J71 HARNESS-COMPRESSOR & FAN 7809022
J82 HARNESS-POWER PANEL 6739021
J83 HARNESS-POWER PANEL 6739021
J90 HARNESS-COMPRESSOR & FAN 7809022
J92 HARNESS-24VAC PCB & COIN POWER 9989750

J93A HA RNESS-24VAC PCB & COIN POWER 9989750

J94 HARNESS-POWER PANEL 6739021
J96 JUMPER-TRANS FORMER-120V-PRM. 1709001

J97 HARNESS-POWER PANEL 6739021
J100 JUMPER -INTE R LOCK -DOMESTIC 1579010
J127 HARNESS-COMPRESSOR & FAN 7809022
J133 HARNESS-L IGHT & FILTER ASSY 7809005

J133A HARNESS-LIGHT & FILTER ASSY 1679005

J135 JUMPER BALLAST & HEATER 7809021
J179 JUMPER-COMP & EV AP FAN 7809003

TABLE 35A: BAG ASSEMBLY

PART NUMBER DESCRIPTION

B7800003X BAG ASSEMBLY: 15

1477015 ROLL-PRICE DOLLARS (KB)
1477083 RETAINER-SPIRAL-WALL
1577047 LABEL-ITEM LETTERS-A0-A9
1577048 LABEL-ITEM LETTERS-B0-B9
1577049 LABEL-ITEM LETTERS-C0-C9
1577050 LABEL-ITEM LETTERS-D0-D9
1577051 LABEL-ITEM LETTERS-E0-E9
1577052 LABEL-ITEM LETTERS-F0-F9
7800025 OPERATORS GUIDE RC-1
7809023 LIST HARNESS-RC-1
7809023 LIST HARNESS-RC-1

December 2005 73 7800041

Section F: Monetary and electronics Refreshment Center P arts Manual

7800041 74 December 2005

Refreshment Center Parts Manual Part Number Index

Part Number Page Part Number Page Part Number Page

Numerics

1101906 .....................................27

1127808 .....................................67

1211105 .....................................61

1211141 .....................................25

1211161............................... 31, 35

1401110..................................... 63

1411194 .....................................41

1411195 .....................................41

1451097 .. .................25, 31, 35, 37

1457061 .....................................55

1457062..................................... 55

1457063..................................... 55

1457064..................................... 55

1457065..................................... 55

1467137 .....................................55

1470761 .....................................27

1470811 .....................................43

1470812..................................... 47

1471098..................................... 39

1471199 .....................................65

1471237..................................... 39

1472178 .................................7, 11

1472223..................................... 67

1472251..................................... 63

1472273 .....................................54

1472274..................................... 54

1472454....................................... 5

1475026 .....................................67

1475072 .....................................67

1475089..................................... 63

1475099..................................... 63

1477014..................................... 54

1477015............................... 54, 73

1477017 .........................43, 47, 51

1477020 .....................................45

1477022..................................... 45

1477023..................................... 55

1477024..................................... 55

1477026..................................... 55

1477027 .....................................55

1477029 .....................................55

1477030..................................... 55

1477032..................................... 55

1477033 .....................................55

1477035..................................... 55

1477036......................................55

1477038......................................55

1477039..................................... 55

1477041..................................... 55

1477042..................................... 55

1477044..................................... 55

1477045..................................... 55

1477047..................................... 55

1477048.....................................55

1477050 .................................... 55

1477051 .................................... 55

1477053. ................................... 55

1477054. ................................... 55

1477056. ................................... 55

1477057. ................................... 55

1477059 .................................... 55

1477060. ................................... 55

1477062. ................................... 55

1477063 .................................... 55

1477073. ................................... 55

1477074.....................................43

1477083. ................................... 73

1477097 .............................. 43, 47

1477098 .................................... 55

1477099 .................................... 55

1477100 .................................... 55

1477101.....................................55

1477102. ................................... 55

1477103 .................................... 55

1477104. ................................... 55

1477105 .................................... 55

1477106 .................................... 55

1477107. ................................... 55

1477113. ....................... 45, 49, 53

1477123 .................................... 54

1477134 .............................. 43, 47

1477148. ............................. 43, 47

1477149. ................................... 55

1477150. ................................... 55

1477152 .................................... 55

1477153. ................................... 55

1477155 .................................... 55

1477157 .............................. 43, 47

1477175. ....................... 43, 47, 51

1571034 .................................... 65

1571036. ................................... 65

1571074.....................................25

1571079.....................................67

1571113 .................................... 67

1571115. ................................... 39

1572010 .............................. 11, 13

1572011. ................................... 13

1572013. ................................... 63

1572196. ................................... 11

1572199. ................................... 11

1572203.....................................11

1572204. ................................... 11

1572205 .................................... 54

1572206. ................................... 54

1572209. ..................................... 5

1572210. ..................................... 5

1572212 ...................................... 5

1572213 ......................................5

1572223 ...................................... 5

1572224 ......................................5

1572227 ...................................... 7

1572269 ...................................... 3

1572292 ......................................5

1572303 .................................... 21

1572304 .................................... 21

1572315 ..............................17, 19

1572316 .................................... 21

1572318 ....................................21

1572319 ....................................21

1572320 .................................... 21

1572323 ...................................... 5

1572330 .................................... 21

1572334 ....................................21

1572335 ....................................21

1572353 ....................................17

1572356 ....................................21

1572357 .................................... 21

1572386 ....................................21

1572387 .................................... 21

1572396 .................................... 11

1572397 .................................... 11

1572398 .....................................11

1572407 .................................... 21

1572408 .................................... 21

1572410 .................................... 19

1572416 ...............................17, 19

1572417 ....................................19

1572420 .................................... 17

1572421 .....................................17

1572423 .................................... 17

1572424 .................................... 19

1572425 .................................... 17

1572452 .................................... 17

1575001 .................................... 63

1575003 .....................................67

1575010 ....................................63

1575029 .................................... 63

1575035 .....................................63

1575046 ....................................72

1575048 .............................. 63, 69

1575050 .................................... 70

1575091 .................................... 63

1575098 ....................................63

1576008 ....................................65

1577003 .................................... 54

1577004 .................................... 54

1577005 .................................... 54

1577006 .................................... 54

1577007 .................................... 54

1577038 ........................ 45, 49, 53

1577040 ..............................43, 47

December 2005 Index - 1 7800041

Part Number Index Refreshment C enter Parts Manual

Part Number Page Part Number Page Part Number Page

1577047............................... 51, 73

1577048............................... 51, 73

1577049 ...............................51, 73

1577050............................... 51, 73

1577051 ...............................51, 73

1577052............................... 51, 73

1579008 .....................................72

1579009..................................... 72

1579010 .....................................73

1581050..................................... 41

1596014............................... 35, 37

1597001..................................... 43

1597002..................................... 47

1599024..................................... 53

1599200..................................... 72

1602084..................................... 31

1670912..................................... 11

1670913..................................... 11

1670914..................................... 11

1671041....................................... 5

1671090...................................3 25

1672060..................................... 23

1672061..................................... 23

1672065..................................... 54

1672082..................................... 13

1675006 .....................................63

1676000..................................... 23

1676011 .....................................23

1677193............................... 43, 47

1679005..................................... 73

1679010 .....................................45

1679011..................................... 49

1679012..................................... 72

1679013 .....................................72

1679054 ...............................70, 72

1679056 .....................................72

1687001..................................... 54

1687002..................................... 54

1701037..................................... 72

1709001 .....................................73

2204093..................................... 67

2221908..................................... 11

2221920 .....................................27

2222031......................... 43, 47, 51

2222603..................................... 27

2222604 .....................................27

2228011 .....................................67

2302053........................... 5, 13, 67

2302218................................. 9, 31

2342315....................................... 9

2366135 .....................................25

3104124..................................... 33

3122056..................................... 67

3128063 .....................................57

3154059.................................... 57

3281092 .................................... 72

3502078.................................... 51

4241148 .............................. 35, 37

4242145.................................... 29

4244009.................................... 59

4245082.................................... 13

4245084 .................................... 13

4245085.................................... 13

4274000.................................... 61

4301285...................................... 7

4302134.................................... 35

4304076 .................................... 59

4304092.................................... 61

4304236..................................... 61

4311068 .................................... 39

4312217..................................... 51

4314014 .................................... 33

4314055.................................... 61

4321042.................................... 57

4321150 .................................... 25

4321156 .................................... 25

4321175..................................... 37

4324004.............................. 59, 61

4324006.................................... 59

4324012.................................... 61

4324013.................................... 61

4324014.................................... 61

4324016.................................... 61

4324025.................................... 59

4324027.................................... 59

4324030.................................... 59

4324044.................................... 61

4324048.................................... 61

4364034.................................... 59

4402043.................................... 33

4407803.................................... 53

4407822.................................... 55

4521053 .................................... 72

4721035 .................................... 17

4727069 .................................... 57

4741050.................................... 67

4744031.................................... 33

4774122.................................... 61

5201267.................................... 47

5560113........................ 43, 47, 51

5900210.................................... 70

5900213 .................................... 70

5900214.................................... 70

5900243.................................... 70

5900246.................................... 70

5900247.................................... 70

5900267.................................... 70

5900269 .................................... 70

5900270 .....................................70

5900276 .................................... 70

5900279 ....................................70

5900289 .................................... 70

5900293 .................................... 70

5900295 .................................... 70

5900303 .................................... 70

5900307 .................................... 70

5900310 .................................... 70

5900313 .................................... 70

6231034 ....................................57

6231037 .................................... 67

6231087 .................................... 41

6231242 .................................... 25

6232031 .................................... 29

6232036 .................................... 29

6237049 .................................... 67

6332009 .................................... 31

6732034 ................................ 9, 31

6739021 .............................. 72, 73

7211229 .....................................65

7214014 ....................................61

7215019 ..............................63, 72

7215025 ....................................65

7800025 ....................................73

7801015 .................................... 57

7801036 ....................................57

7801046 ..............................35, 37

7801049 ...............................35, 37

7801052 ..............................35, 37

7801055 ....................................51

7801061 .................................... 57

7801062 ....................................57

7801064 .................................... 57

7801065 .................................... 57

7801076 .................................... 25

7801077 .................................... 25

7801078 ....................................33

7801081 .....................................39

7801096 .................................... 29

7801107 .................................... 25

7801109 ....................................25

7801110 ....................................25

7801120 ....................................25

7801121 ...................................... 5

7801124 ....................................25

7801125 .................................... 31

7801126 .................................... 31

7801127 .................................... 31

7801131 .................................... 33

7801132 ....................................57

7801137 .................................... 57

7801138 .................................... 57

7801139 .....................................33

7800041 Index - 2 December 2005

Refreshment Center Parts Manual Part Number Index

Part Number Page Part Number Page Part Number Page

7801141..................................... 31

7801142 .........................31, 35, 37

7801143..................................... 25

7801144..................................... 33

7801145..................................... 33

7801147..................................... 25

7801148 .....................................33

7801150..................................... 33

7801151..................................... 33

7801152..................................... 33

7801153......................................31

7801156..................................... 33

7801157..................................... 37

7801159............................... 35, 37

7801160..................................... 25

7801162..................................... 57

7801163..................................... 57

7801165..................................... 35

7801166............................... 35, 37

7801168......................................25

7801169..................................... 35

7801170 .....................................35

7801174..................................... 35

7801175..................................... 35

7801181 ...............................35, 37

7801182 .....................................57

7802000..................................... 13

7802001................................. 3, 29

7802010..................................... 15

7802011....................................... 7

7802017....................................... 7

7802018..................................... 15

7802019........................................9

7802024......................... 15, 17, 19

7802030..................................... 15

7802031....................................... 7

7802032............................... 17, 19

7802033............................... 17, 19

7802034..................................... 23

7802035 .....................................15

7802036 ... ..................... 15, 17, 19

7802043 .................................... 23

7802051. ..................................... 9

7802053 ...................................... 3

7802054 ...................................... 3

7802055. ..................................... 3

7802056.......................................3

7802057. ..................................... 3

7802059. ..................................... 3

7802060. ..................................... 3

7802070. ..................................... 7

7802072. ..................................... 7

7802073 .................................... 17

7802077. ................................... 15

7802078. ................................... 15

7802149. ..................................... 7

7804000. ................................... 59

7804001 .................................... 59

7804006 .............................. 59, 61

7804008 .................................... 59

7804010 .............................. 59, 61

7804011.....................................59

7804013 .................................... 33

7805001 .................................... 65

7805002. ................................... 65

7805007. ................................... 67

7805009. ................................... 67

7805017. ............................. 63, 65

7806000. ................................... 65

7807000 .................................... 51

7807001. ................................... 51

7807002 .................................... 51

7807003. ................................... 55

7807005. ................................... 51

7807011. ................................... 55

7807015. ................................... 55

7807016. ................................... 55

7809001 .................................... 72

7809003 .................................... 73

7809005. ......................... 9, 31, 73

7809007 ....................................53

7809011 .................................... 72

7809020 ....................................72

7809021 .................................... 73

7809022 ....................................73

7809023 ....................................73

9900030 ........................43, 47, 51

9900081 ........................17, 61, 72

9900098 .................................... 41

9900106 ....................................67

9900118 ....................................72

9900141 .................................... 21

9900152 ....................................11

9900160 ....................................13

9900184 .............................. 17, 19

9900218 ....................................39

9900437 ..............................17, 19

9983778 .................................... 25

9984629 .................................... 72

9985887 ....................................37

9987852 .............................. 35, 37

9989046 .................................... 72

9989100 .................................... 72

9989639 .................................... 72

9989674 .................................... 72

9989750 .............................. 72, 73

9989755 ....................................65

9989821 ..................45, 49, 51, 53

9989823 ....................................63

9989886 .................................... 25

9989887 ....................................25

9994002 .................................... 11

9994400 .....................................11

9995002 ....................................11

9995400 .................................... 11

B

B7800003X ................................ 73

P

P7806006.................................. 65

December 2005 Index - 3 7800041

Part Number Index Refreshment C enter Parts Manual

Part Number Page Part Number Page Part Number Page

7800041 Index - 4 December 2005

Terms and Conditions of Sale

LIMITED WARRANTY: Subject to the limitation specified herein, all parts included on
original equipment manufactu red by CRANE MERCHANDISING SYSTEMS and so ld to
purchaser are warranted for two (2) years from the date of shipment of the equipment in
question. This warr anty ap pl ies only to the ori gina l purcha ser of th e Mer chandi se r and is
null and void if the Merchandiser is sold during the period of warranty.

Defective parts will be repaired or replaced free of charge when the defective part is
returned, with transportation charges prepaid by purchaser, to a destination designated
by CRANE MERCHANDISING SYSTEMS.

This warranty does not in clude any cost of service r endered or rep airs made by custome r
or its agents on Merchandiser, or parts, unless authorization to incur such expense has
been given in writing by CRANE MERCHANDISING SYSTEMS prior to incurring such
expense. This warranty covers labor and service charges performed by CRANE
MERCHANDISING SYSTEMS service technicians for the first 90 days of ownership from
date of shipment.

This warranty does not apply to A) electrical components, wiring, or circuits or
mechanical parts or assemblies damaged as a result of operating the Merchandiser at
other than the design volt age and freque ncy specifi ed on the El ectrical R ating Tag, or B)
in event of vandalism, fire or negligence, or C) incandescent lamps, neon lamps,
fluorescent lam ps, ball asts, starters or other e xpenda ble items, o r D) when seal is broken
on electronic boards, or E) when other manufactured components are installed in
CRANE MERCHANDISING SYSTEMS Merchandisers.

Replacement parts sold by CRANE MERCHANDISING SYSTEMS as After Market shall
be covered for three months from the date shown on the parts invoice. Purchaser must
obtain prior RETURN AUTHORIZATIO N for return of all parts, following guidelines given
by CRANE MERCHANDISING SYSTEMS. New, unused parts purchased as After
Market can be retu rned wit hin 30 days fr om d ate of p art s i nvoice , w ith pr ior authorization
from CRANE MERCHANDISING SYSTEMS.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OF
FITNESS FOR A PARTICULAR PURPOSE. CRANE MERCHANDISING SYSTEMS
SHALL NOT BE RESPONSIBLE FOR CONSEQUENTIAL OR PUNITIVE DAMAGES.
CRANE MERCHANDISING SYSTEMS n either assumes nor authorizes any person to
assume for it any obligation or liability in connection with the sale of said equipment or
any part thereof.
